122 MIKRON used machine for sale

x-travel:600 mm y-travel:500 mm z-travel:450 mm turning speeds:5 - 5000 U/min quill stroke:90 mm total power requirement:9 kW feed range:0-10.000 mm/min weight of the machine ca.:3260 kg dimensions of the machine ca.:2200x2800x2000 mm spindle:6 kW vertical milling head:SK 40 CNC universal milling machine with toolchanger, Equipped with CNC-Heidenhain TNC 407 el.handwheel coolant device oroginal table included

x-travel:600 mm y-travel:500 mm z-travel:450 mm turning speeds:5 - 5000 U/min quill stroke:90 mm total power requirement:9 kW feed range:0-10.000 mm/min weight of the machine ca.:3260 kg dimensions of the machine ca.:2200x2800x2000 mm spindle:6 kW vertical milling head:SK 40 CNC universal milling machine (without toolchanger), Equipped with CNC-Heidenhain TNC 407 el.handwheel coolant device

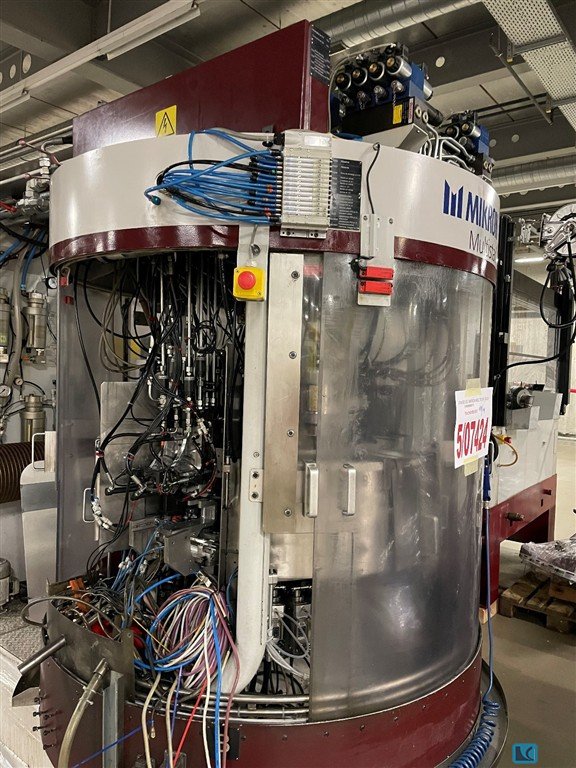

stations:24 weight of the machine ca.:3,5 t ·Precise serial production of part families and demanding workpieces ·Table index repeatability of ± 2.5 µm ·24 stations with up to 44 machining units for very high output rates ·Ideal for high volume production with fast cycle times

x-travel:600 mm y-travel:500 mm z-travel:450 mm weight of the machine ca.:3,5 t

Article: Transfer machine Manufacturer: Mikron Type: Multistep XS Yob: 2007 Number of modules: 4 (1 loading module, 3 process modules) Number of spindles: 6 Rotational speed : 15.000 rpm Control: Bosch Rexroth MTX Coolant unit: Knoll VRF450/2100 Extraction: Elektrostat / LTA 3D tool path correction 5/6-axis transfórmation Machine dimensions: 9.300 mm x 3.400 mm x 3.500 mm Wight per processing module: 4,5 t Wight per loading module: 2,5 t Clamping force: 10 kN Workpiece cange chip-to-chip time: 6s Workpiece: Diameter: 140 mm, Length: 180 mm, Weight: 21 kg Tool changer: Tools (2 discs with 12 positions) / processing module: 22 Weight of tool disc: 5 kg Max. tool weight: 2,5 kg Max. free tool length: 186 mm Max. tool diameter: 63 mm Max. tool diameter with free position: 105 mm Shortest chip-to-chip time:

x-travel: 600 mm y-travel: 450 mm z-travel: 450 mm control: Heidenhain iTNC530 total power requirement: kW weight of the machine ca.: 6100 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mm y-travel: 600 mm z-travel: 500 mm control: Heidenhain iTNC 530 total power requirement: kW weight of the machine ca.: 8300 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: Mikron Model: UME600 Year of manufacture: 1995 Type of Machine: CNC milling machine Control unit: Heidenhain TNC407 Spindle taper: SK 40 Spindle speed: max. 5,000 rpm Feed rate: max. 10,000 mm/min Table size: approx. 900 × 530 mm Travel paths: X 600 mm / Y 500 mm / Z 450 mm without automatic tool changer Motor power: max. 9 kW Weight: approx: 3,200 kg Condition: - Used, good overall condition - Fully functional and ready for use Equipment / Accessories: - coolant pump - machine vice - 3D probe - Various collet sets / tool holders SK 40 - Toolbox with worktop and hand vice - Further accessories available upon request Find more here - / Contact us at -

x-travel: 500 mm y-travel: 500 mm z-travel: 400 mm table-size: 900 x 530 mm control: Heidenhain TNC 355 tool adaptor: ISO 40 | | turning speed range: 40- 4000 U/min rapid speed: 5 / 6 m/min feed speeds: 2 - 3000 | mm/min | power requirement: 6 kW table load: 350 kg dimensions: 2,6 x 1,8 x 2,2 m weight: 2,6 t Univers. milling machine 3 axis - external electric handweel - housing - universal head The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 600 mm y-travel: 500 mm z-travel: 450 mm Control: Heidenhain TNC 426 PB tool change unit: 22-fach tool taper: SK40 turning speeds: 5-6.300 U/min table-size: 900 x 530 mm table load: 400 kg total power requirement: 9 kW weight of the machine ca.: 3550 kg dimensions of the machine ca.: 2,2 x 2,7 x 2,05 m 3-axis vertical machining centre MIKRON UM 600, built in 1997 In excellent technical condition, all guides have been freshly scraped. The spindle has been re-mounted and has since been used for only 262 hours. New power unit for spindle drive installed. Accessories: Heidenhain TS 642 touch probe system 2 new vices SK40 tool holder The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 450 mm z-travel: 350 mm Control: Heidenhein iTNC 530 : 68 fach tool adaptor: HSK 40E turning speeds: 30.000 U/min fixed table - dimensions: 300 x 400 mm mm workpiece weight: 200 kg pallet table size: 320 x 320 mm feed speeds autom. x/y/z: 40 m/min. spindle drive motor: 13 kW Number of working hours: 32369 h total power requirement: 16 kW weight of the machine ca.: 7.500 kg Machine still in the delivery factory: Condition: ready for operation: CE signed: Electric 380 Volt: Palett changer: 7-fach Cabin: Tool magazin places number: 68 High-speed 3-axis universal machining center with 7-station pallet changer. Operating hours: 44,899 hours. Load hours: 32,369 hours. Spindle time since replacement: 13,350 hours. Gantry-style machine with a solid monoblock polymer concrete construction, compact linear ball bearings, Heidenhain direct measuring system, hydraulic  ...

x-travel: 1.200 mm y-travel: 600 mm z-travel: 675 mm Control: Heidenh.iTNC 620 HSCI FS table-size: 1.220 x 620 mm : 40 fach Distance between table and spindle: 735 mm turning speeds: 10.000 U/min spindle drive: 18 kW Internal cooling system: 30 bar total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m -Electronic steering wheel. -LINEAR RULES. -Laser probe measuring tools. -Preparation for piece measuring probes. PROBE NOT INCLUDED. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: Mikron Model: VCP 1000 (ITNC 530 Control) Year of Manufacture: 2004 Weight: 10,500 kg Power Supply: 400 V / 50 Hz / 3 Phases Current: 100 A Power Consumption: 40 kW Control Circuit Voltage: 24 VDC Sound Level: 68 dB(A) Find more here - / Contact us at -

Manufacturer: Mikron Model: VCP 1350 Year of Manufacture: 1999 Weight: 10,100 kg Power Supply: 3 Phase, 400 V, 50 Hz Current: 125 A Power Consumption: 46 kW Control Circuit Voltage: 24 VDC Sound Level: 75 dB(A) Certification: CE Find more here - / Contact us at -

x-travel: 1000 mm y-travel: 600 mm z-travel: 600 mm control: Heidenhain TNC 426 spindle nose: 100-700 mm work table:: 1.080 x 580 mm workpiece weight max.: 550 kg T-slots: 7 Stk. T-slot - width: 14 mm tool piece magazine with: 36 Plätzen weight of tools max.: 8 kg tool length - max.: 340 mm total power requirement: kW weight of the machine ca.: 6,2 t dimensions of the machine ca.: 4.790 x 5.330 x 2.905 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-axis: 1350 mm y-axis: 1150 mm z-axis: 895 mm control: HEIDENHAIN iTNC 530 turning speeds: 15000 U/min tool taper: HSK-A63 surface area: 1100 x 1000 mm max. table load: 1600 kg numbers of tools in magazin: 92 spindle drive: 30 / 38 kW A-Axis: -16 / +120 ° total power requirement: 58 kW weight of the machine ca.: 12,6 t dimensions of the machine ca.: 5100 x 2300 x 3090 m 2023 new Spindle machine equipped with: - CNC Control Heidenhain TNC 530 - swivel head, direct drive ‘High Torque’ motor - Autom. Tool change: 46-position tool magazine - High pressure cooling through spindle – Chip evacuator – Tool control with duallaser – Radio frequency probe – Airthrough spindle – APS(Advanced Process System) & ITC(Intelligent Thermal Control) - Renishaw probe Machine on: 6680h, active drives: 4876h, spindle: 2657h The data for this ad was created with ModulMWS - the software solutio ...

Manufacturer: Mikron Model: Multi X Year of Manufacture: 2020 Technical Specifications: - Weight: 24,500 kg - Rated Voltage: 400 Vac - Rated Current: 75 A - Power Consumption: 45 kW - Control Voltage: 24 Vdc - Auxiliary Voltage: 230 Vac - Frequency: 50 Hz - Max Fuse Rating: 80 A - Phases: 3P + PE (Three-phase with protective earth) - Air Pressure Requirement: 6 bar Certifications: - CE Marked Find more here - / Contact us at -

This 3-axis MIKRON UM600 TNC 410/426 was manufactured in 1998. It features a maximum longitudinal movement of 600 mm, transverse movement of 500 mm, and vertical movement of 450 mm. The machine is equipped with a robust table size of 520 x 900 mm and a maximum table load capacity of 400 kg. If you are looking to get high-quality machining capabilities, consider the MIKRON UM600 TNC 410/426 vertical machining centre we have for sale. Contact us for further details.

This 3-axis MIKRON UME600 was manufactured in 1995. It features a maximum spindle speed of 5,000 rpm and a feed rate of up to 10,000 mm/min. The table size is approximately 900 × 530 mm, providing ample workspace for various machining tasks. If you are looking to get high-quality milling capabilities, consider the MIKRON UME600 vertical machining centre we have for sale. Contact us for further details.

MIKRON WF 3 DCM Universal Milling Machine Heidenhain TNC 151 control Table 800x380 mm x-travel 500 mm y-travel 500 mm z-travel 400 mm speed range 3150 rpm drive power 4 kW SK 40 Weight 1700 kg Many Accessories and tools

CONTROLS   CNC controls HEIDENHAIN ITNC 530 WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 5   X-axis travel: 600 mm   Y-axis travel: 450 mm   Z-axis travel: 450 mm   rotating range B-axis from: -115 °   rotating range B-axis up to: 30 °   rotating range C-axis from: 0 °   rotating range C-axis up to: 360 ° TABLE   clamping surface diameter: 450 mm   workpiece load (max): 200 kg SPINDLE / HEAD   spindle revolutions (max): 20000 /min AXIS DRIVES   rapid traverse X: 22000 mm/min TOOL MAGAZINE   number of positions: 220 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 4400 mm   space req ...

x-travel: 710 mm y-travel: 500 mm z-travel: 500 mm table-size: 1080x580 mm spindle taper: SK40 spindle turning speed range: 10000 U/min tool change unit: 30 weight of the machine ca.: 10 t HEIDENHAIN TNC430 Coolant through spindle www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control: Manufacture: HEIDENHAIN iTNC 530 x-travel: 800 mm y-travel: 500 mm z-travel: 540 mm table-size: 910x500 mm spindle turning speed range: 10000 U/min tool magazin:: 24 weight of the machine ca.: 8 t HEIDENHAIN TNC-426 Prepared for the 4th axis www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1600 mm y-travel: 900 mm z-travel: 800 mm control: HEIDENHAIN iTNC 530 for axes: 3 table surface area: 1700x850 mm tool magazin:: 30 spindle taper:: SK 40 spindle turning speed - stepless: 100-10000 U/min feeds infinitely variable to rapid traverse: 2-20000 mm/min voltage: 400 V dimensions of the machine ca.: 385x420x325 cm weight of the machine ca.: 18.6 t Coolant through spindle: pressure: 18 bar 3D measuring tracer: RENISHAW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

with CNC-path-control: HEIDENHAIN type: iTNC 530 for axes: 3 x-travel: 1020 mm y-travel: 560 mm z-travel: 600 mm table surface area: 1000x560 mm table load: 1.35 t tool magazin:: numbers of tools: 40 max. tool diameter: 76 mm max. tool-dia with free toolbox: 125 mm max. tool length: 305 mm max. tool weight: 7 kg milling head: spindle taper:: SK40 spindle turning speed - stepless: 100-10000 U/min Power: 12/18 KW feeds -stepless-: 16000 mm/min rapid motion -longitudinal/cross/vertical: 40 m/min dimensions of the machine ca.: 3x2.3x2.6 m weight of the machine ca.: 6.8 t 3D measuring tracer: RENISHAW OMP40 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 600x400 mm table height: x mm table load: x t www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Mikron Universal Milling Machine Type 21D Heidenhain Control TNC 355 Tool holder ISO 40 21 spindle speeds from 40 - 4000 rpm Clamping table 350 x 700 mm Displacement distances: X=450 mm / Y=400 mm / Z=400 mm 400 V Control voltage 24 V Total weight approx. 2410 kg

The machine is in good technical condition, testing possible after prior agreement. Haidenhain 530 system.

The machine is in good technical condition, testing possible after prior agreement. 3 AXES, Heidenhain ITNC 530 control system.
