4 LISSMAC sheet metal deburring machines used machines

Key data: 1 mm, 900 mm

Machine Type: Deburring Machine Manufacturer: Lissmac Type: SMS123RE Dust extractor ESTA WDE3000 ECO Year of Make: 2020 Condition: used / very good **Offer will only be sent if a complete imprint is provided!** Price VB Location Warstein , Germany Reference number M-LIS-0326 DESCRIPTION We offer you a used deburring machine from the manufacturer Lissmac. Technical data Max. passage width: 950 mm Sheet thickness: 1 - 50 mm Voltage: 400 V / 50 Hz Load capacity:300 kg/m Mesh shape: 3~ PEN / 3~ PE+N Rated current: 42.3 A Rated power: 19.9 kW Degree of protection: IP 42 Infinitely variable feed: 0.5 - 8 m/min Plate thickness adjustment: electric Setting tools: manual Weight:1750 kg Dimensions (W/D/H): 1600/1800/1950 mm Incl. replacement sanding belts, dust removal system from Esta and documentation. Availability: immediately Our offer is ai ...

Inv. Num. : 7225 Type: SBM - XS 300 G1E1 Producer: LISSMAC Created: 2015 Parameters: Hours: 166 Maximum sheet plate width: 15 mm Weight: 1400 kg

Working hours machine: 5320 h max. working width: 300 mm workable material thickness: 1-15 mm Tension: 400V / 50 Hz Total power: 13,5 A Total current consumption: 7,5 kW Insulation class: IP42 Infinitely variable feed speed: 0-2 m / min Length: 2600 mm Width: 2300 mm Height: 1300 mm Machine weight: 1900 kg

A deburring machine with extraction is available. Passage width: 1000mm, sheet thickness: 20mm, minimum sheet size X/Y: 150mm/100mm, sound power level: 82dB(A), feed rate: 4m/min, dimensions X/Y/Z: approx. 2200mm/1500mm/1500mm, weight: approx. 1600kg, operating hours: 7152h. Including P. Ries 330 D Lissmac extraction unit, year of construction: 2007, filter area: 10m², air volume: 3300m³/h, negative pressure: 33mbar. Documentation available.

max. working width: 1000 mm workable material thickness: 0,5 - 50 mm Total power: 82 A Total current consumption: 44,5 kW Insulation class: IP 42 Infinitely variable feed speed: 0-4 m / min Adjustment of material thickness: elektrisch Adjustment of tools: elektrisch Length: 3100 mm Width: 2100 mm Height: 2000 mm Machine weight: 3800 kg

This LISSMAC SBM-M 1500 B2 deburring machine was manufactured in 2014. Ideal for efficient deburring applications, it ensures consistent quality and performance. Consider the opportunity to buy this LISSMAC SBM-M 1500 B2 deburring machine. Contact us for more information.

This LISSMAC SBM-M 1000 B2 deburring machine was manufactured in 2012. It features an automatic material throughput with an aperture width of 1000 mm and can handle sheet thicknesses up to 20 mm. The machine is equipped with a powerful brushing motor and offers an infinitely variable feed adjustment. Weighing 2000 kg, its designed for robust and precise deburring operations. If you are looking to get high-quality deburring capabilities consider the LISSMAC SBM-M 1000 B2 machine we have for sale. Contact us for more information.

Fully functional.

The Posimat PB 80 is a pneumatically operated handling device. Version : with counterweight, suspended from on-site steel construction. Specifications: Load capacity: 120 kg; Hub; 1,600 mm; working range (radius) 2,600 mm; dead weight without counterweight and column: 150 kg The device was only in use for a few months.

Handling weight max. 400 kg, reach 9,000 mm, travel speed 3 m/sec., power 45 kW, weight 1,600 kg, drive fully hydraulic, was used for wall prefabrication, other plant components available, please contact us if you are interested.

Material width: 1000 mm workable material thickness: 1-20 mm min. part length: 150 x 100 mm Required power: 4 x 4,8 kW Rotation speed: 1400 rpm Length: 2220 mm Width: 1500 mm Height: 1500 mm Weight of machine approx.: 1550 kg

A Lissmac steel brushing and deburring machine is available. Passage width: 1500mm, max. sheet thickness: 20mm, medium: brushing block, machine dimensions X/Y/Z: approx. 3100mm/1400mm/1800mm, weight: approx. 2300kg. Documentation available. On-site inspection is possible.

working width: 950 mm workpiece width - max.: 1,0 - 50 mm sandingbelt width: 970 mm sandingbelt length: 1900 mm weight of the machine ca.: 1,8 t The SMD 123 RE is a universal entry-level machine for all-round deburring Uniform edge rounding and surface grinding of sheet metal dry process. * Suitable for processing steel, stainless steel and aluminium. * The non-slip conveyor belt enables safe transport and the Machining even of small workpieces. * The two rotor heads ensure an all-round uniform Edge rounding and a directionless finish. * The intuitive operation via touch panel allows every employee get to grips with the machine quickly. * The SMD 1 models are installed and ready for operation in a short time. * The compact design saves valuable production space. * Low acquisition and operating costs lead to short amortization periods and guarantee economical processing of your workpieces ...

Extraction Lissmac Type: DD 3200 BJ 2014 for Deburring Machines

working width: 1500 mm workpiece width - max.: 0,5 - 50 mm dimensions: 3300 x 1500 x 1800 mm feed stepless: 0-4 m/min total power requirement: 20,4 kW weight of the machine ca.: 2800 kg The SBM-L G1S2 grinding and deburring machines were developed for double-sided deburring and edge rounding of workpieces in a single operation. LISSMAC machines are used for deburring sheet metal and processing sheet metal parts, laser parts, and stamped parts. The L series is equipped with three units on the top and bottom . Workpieces made of stainless steel, steel, aluminum or non-ferrous metal can be processed on the top, bottom or both sides. Processing sheet metal on both sides and rounding edges in a single operation saves up to 60% in time. It is also possible to easily connect automation solutions or integrate the machine into production lines. The machine design ensures ergonomic working and a p ...

working width: 1000 mm workpiece width - max.: 0,5 - 50 mm sandingbelt width: -- mm weight of the machine ca.: 2,5 t With the SBM-L 1000 G1S2, which works in the dry process, in alternating operation Steel, stainless steel and aluminum can be machined. She deburrs and rounds the edges on the outer and inner contours of punched, laser, fine plasma or water jet cut workpieces with a thickness of up to 50 mm on both sides in just one operation. * Two sanding units, 1 each on the top and bottom, remove spatter and slight burrs on outside and inside edges of sheet metal. * A total of four sanding belts, 2 each on the top and bottom Underside, process the sheets on both sides at the same time. here All edges are softened or rounded, depending on the tool settings. * Machining on both sides saves time-consuming turning of the workpieces and edit twice. * All pairs of aggregates can be switched  ...

working width: 1000 mm workpiece width - max.: 0,5 - 50 mm sandingbelt width: -- mm weight of the machine ca.: 2,5 t With the SBM-L 1000 G1S2, which works in the dry process, in alternating operation Steel, stainless steel and aluminum can be machined. She deburrs and rounds the edges on the outer and inner contours of punched, laser, fine plasma or water jet cut workpieces with a thickness of up to 50 mm on both sides in just one operation. * Two sanding units, 1 each on the top and bottom, remove spatter and slight burrs on outside and inside edges of sheet metal. * A total of four sanding belts, 2 each on the top and bottom Underside, process the sheets on both sides at the same time. here All edges are softened or rounded, depending on the tool settings. * Machining on both sides saves time-consuming turning of the workpieces and edit twice. * All pairs of aggregates can be switched  ...

Year 2014 - twin orbital grinding/polishing pads. with extraction & filtration

Capacity and working area • Minimum dimensions (LxWxH): 600 x 600 x 10 mm. • Maximum dimensions (LxWxH): 1680 x 1830 x 30 mm. • Maximum weight: 250 kg. • Machine opening: 1 - 100 mm. Grinding unit 1 • Contact roller: Ø 280 mm, 70° Shore Ni 37 45. • Main motor: 90 kW . • Speed: 8 - 22 m/sec (frequency controlled). • Direction of rotation: 2 directions of rotation. • Sanding belt dimensions: length 2620 mm x width 2130 mm. • Oscillation: Electronic, adjustable (2130, 1600 or 1380 mm).

Disc diameter 250mm>br>speed 1500/300rpm, 3.1 KW>br>incl. 4 discs>br>see pictures >br>condition: untested (6)

Deburring of sheet metal edges using rotating stainless steel brushes up to sheet thickness 6 mm

working width: 1380 mm workpiece height: 70 mm : total power requirement: 45 kW weight of the machine ca.: 5.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

working width:1400 mm Workpiece thickness max.: 80 mm work height max.:1000 mm Feed speed:4m/min I Stufe, 8 II Stuf m/min. Required air-pressure:max. 5 bar voltage:50 Hz, 380 V workpiece length:320 mm workpiece thickness min.:1 mm weight of the machine ca.:3500 kg Documents:vorhanden

working width:880 mm workpiece height:1- 70 mm work height max.:1000 mm Feed speed:4- 8 m/min. voltage:50 Hz, 400 V weight of the machine ca.:2.800 kg dimensions of the machine ca.:2500 x 1715 x1675 mm width:min. 350 mm Sanding cylinder diameter:420 mm electr. connected load:20 KW Required air-pressure:1 x R3/ 8 " pressure:5 bar tank:des Bandfilter ca.200 l automatic magnetic filter unit:vorhanden grinding tools:1540 x 900 mm accessories::9 Bänder Documents:vorhanden

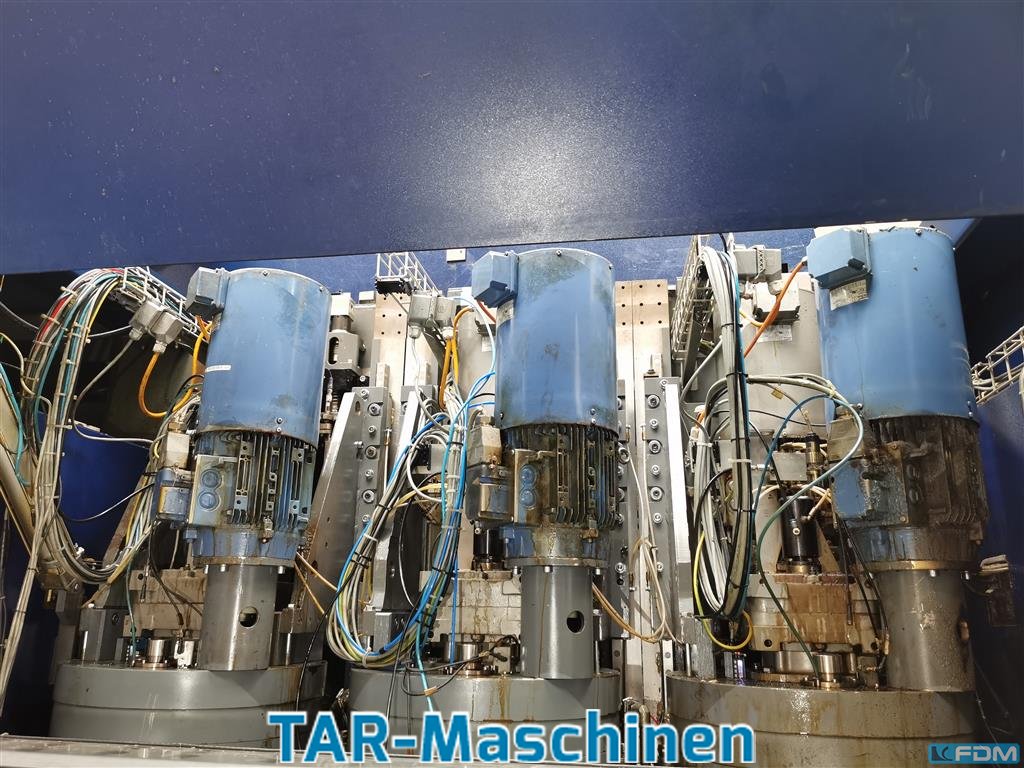

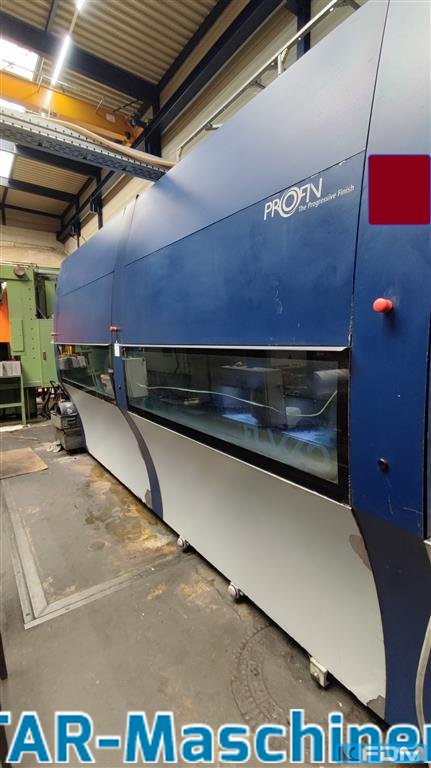

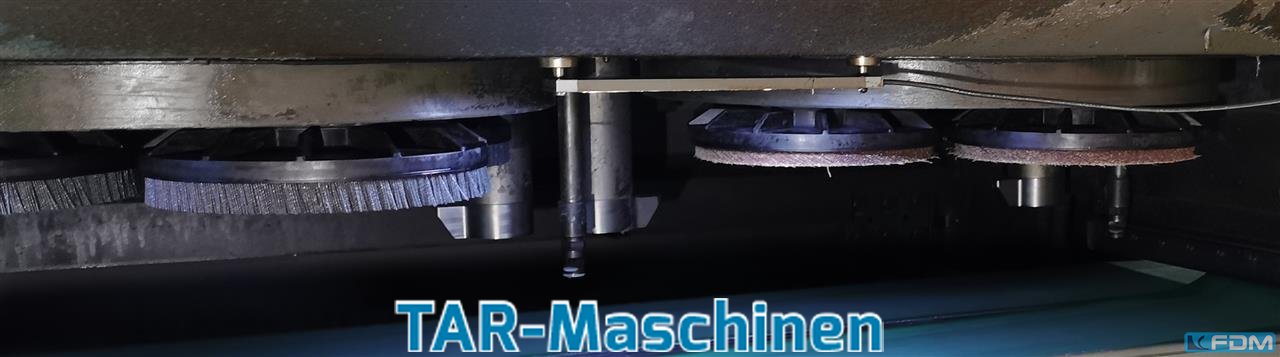

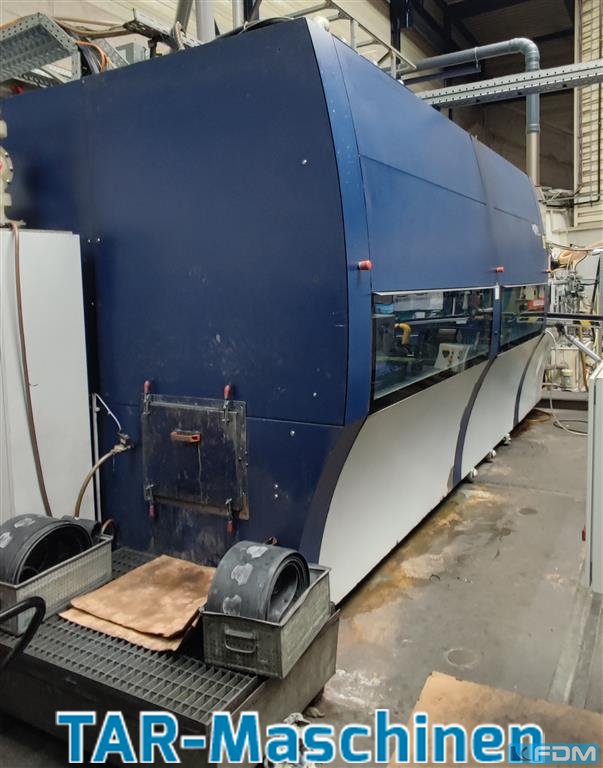

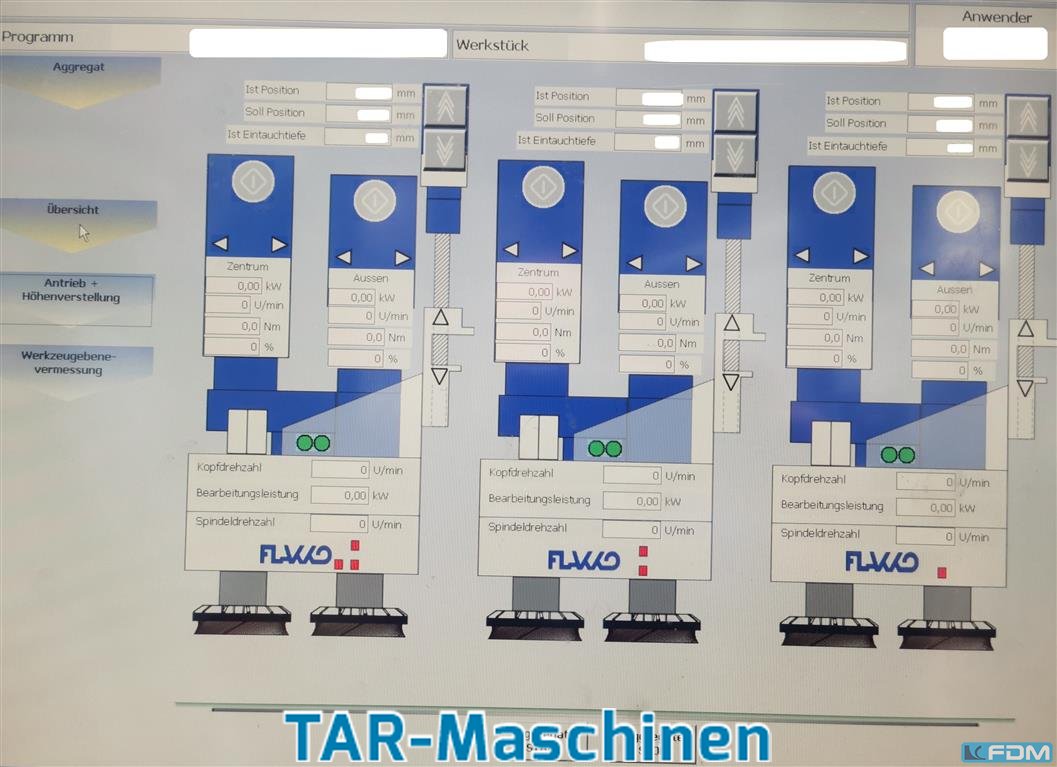

Finishing machine single-sided machining or double-sided machining, second-hand 3 FLAKKO units with 4 disc tools each: Drive power 7.5kW Spindle speed 300 - 2500 rpm Feed speed 2-20 m/min Wet machining Tool diameter 230mm Working width 400mm for single-sided machining Working width 200mm for double-sided machining with turning device Special magnetic inserts designed for hot machining IPC control with PLC Connected load 3x 400V 50Hz Connected load approx. 52 kW Overhaul of all units with conversion to new 4-point bearing between 2021 and 2023. Special-price 25.000 EURO, net -free loaded truck- Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
