5 LEIFELD metal spinning machines used machines

However, equipping the PNC 90-3A with three additional PNC/CNC-controlled auxiliary axes now enables a working area of approx. 900x1,100mm and thus an extremely economical production of large printed parts. - Hydraulic roundabout centering device - Blank counter holder - Machining unit BAE 1 (on the spindle box) - Processing unit KA (in front of the machine) - 4-fold tool changer Specifications: Blank diameter (max.): 900 mm Tip width : 1,100 mm Tool holder DIN 55027: Gr. 11 Axis force (transverse) (max.): 45 kN Axis force (longitudinal) (max.): 45 kN Stroke (transverse): 305 mm Stroke (longitudinal): 650 mm Cross speed: (max.) 7.0 m/min Longitudinal speed: (max.) 7.0 m/min Stroke ejector: 300 mm Tailstock stroke: 450 mm Speeds (infinitely variable): 100-2,300 min-1 Main drive: 28 kW Hydraulic drive: 15 kW Operating voltage: 400 V Frequ ...

- Hydraulic roundabout centering device - Blank counter holder - Machining unit BAE 1 (on the spindle box) optional 2. - Processing unit KA (in front of the machine) - Double reel seat Specifications: Blank diameter (max.): 700 mm Tip width : 800 mm Tool holder DIN 55027: Gr. 6 Axis force (transverse) (max.): 22 kN Axis force (longitudinal) (max.): 20 kN Stroke (transverse): 250 mm Stroke (longitudinal): 400 mm Cross speed: (max.) 7.0 m/min Longitudinal speed: (max.) 7.0 m/min Stroke ejector: 200 mm Tailstock stroke: 400 mm Speeds (infinitely variable): 100-3,800 rpm Main drive: 11 kW Hydraulic drive: 7.5 kW Operating voltage: 400 V Frequency: 50 Hz Connected load: approx. 20 kVA Weight: approx. 7,000 kg

- Hydraulic roundabout centering device - Blank counter holder - Machining unit BAE 1 (on the spindle box) optional 2. - Processing unit KA (in front of the machine) Specifications: Blank diameter (max.): 700 mm Tip width : 825 mm Tool holder DIN 55027: Gr. 6 Axis force (transverse) (max.): 22 kN Axis force (longitudinal) (max.): 20 kN Stroke (transverse): 250 mm Stroke (longitudinal): 400 mm Transverse speed: (max.) 6.0 m/min Longitudinal speed: (max.) 6.0 m/min Stroke ejector: 200 mm Tailstock stroke: 400 mm Speeds (infinitely variable): 100-2,800 rpm Main drive: 11 kW Hydraulic drive: 7.5 kW Operating voltage: 400 V Frequency: 50 Hz Connected load: approx. 20 kVA Weight: approx. 3,500 kg

- Gearbox with oil circulation lubrication - Blank counter holder (optional) - Processing unit KA - behind the machine (optional) - Specifications: Blank diameter (max.): 1,200 mm Tip width : 900 mm Tool holder DIN 55027: Gr. 11 Axis force (transverse) (max.): 20 kN Axis force (longitudinal) (max.): 30 kN Stroke (transverse): 360 mm Stroke (longitudinal): 750 mm Cross speed: (max.) 3.0 m/min Longitudinal speed: (max.) 2.0 m/min Stroke ejector: 400 mm Tailstock stroke: 750 mm Speeds (9 levels): 42-660 rpm Main drive: 11 kW Hydraulic drive: 7.5 kW Operating voltage: 400 V Frequency: 50 Hz Connected load: approx. 20 kVA Weight: approx. 6,000 kg

- Two-roller technology - 180° arrangement of wheels - Closed work area with coolant and lubricant equipment - Hydraulic roundabout centering device - Gearbox with oil circulation lubrication -Temperature Specifications: Workpiece diameter (max.): 360 mm Blank diameter (max.): 380 mm Workpiece length (max.): 600 mm Center width (max.): 1,340 mm Tip width (min.): 200 mm Tool holder DIN 55026: Gr. 11 Force per axis (transverse) (max.): 117 kN Axle force (longitudinal)/feed axle (max.): 140 kN Stroke (transverse): 190 mm Stroke (longitudinal): 690 mm Feed axis speed: (max.) 1.8 m/min Rapid traverse (longitudinal): 7.0 m/min Adjustment roller (axial): 0-20 mm Stroke ejector: 380 mm Ejector force: 26 kN Tailstock stroke: 800 mm Tailstock force: 5-19 kN Speeds (infinitely adjustable): 6-231-387 min-1 25-850-1,550 min-1 Main drive (DC motor): 33  ...

- Two-roller technology - 180° arrangement of wheels - Closed work area with coolant and lubricant equipment - Hydraulic roundabout centering device - Gearbox with oil circulation lubrication -Temperature Specifications: Workpiece diameter (max.): 360 mm Blank diameter (max.): 380 mm Workpiece length (max.): 600 mm Center width (max.): 1,340 mm Tip width (min.): 200 mm Tool holder DIN 55026: Gr. 11 Force per axis (transverse) (max.): 117 kN Axle force (longitudinal)/feed axle (max.): 140 kN Stroke (transverse): 190 mm Stroke (longitudinal): 690 mm Feed axis speed: (max.) 1.8 m/min Rapid traverse (longitudinal): 7.0 m/min Adjustment roller (axial): 0-20 mm Stroke ejector: 380 mm Ejector force: 26 kN Tailstock stroke: 800 mm Tailstock force: 5-19 kN Speeds (infinitely adjustable): 6-231-387 min-1 25-850-1,550 min-1 Main drive (DC motor): 33  ...

- Two-roller technology - 180° arrangement of wheels - Closed work area with coolant and lubricant equipment - Hydraulic roundabout centering device - Gearbox with oil circulation lubrication -Temperature Specifications: Workpiece diameter (max.): 360 mm Blank diameter (max.): 380 mm Workpiece length (max.): 600 mm Center width (max.): 1,340 mm Tip width (min.): 200 mm Tool holder DIN 55026: Gr. 11 Force per axis (transverse) (max.): 117 kN Axle force (longitudinal)/feed axle (max.): 140 kN Stroke (transverse): 190 mm Stroke (longitudinal): 690 mm Feed axis speed: (max.) 1.8 m/min Rapid traverse (longitudinal): 7.0 m/min Adjustment roller (axial): 0-20 mm Stroke ejector: 380 mm Ejector force: 26 kN Tailstock stroke: 800 mm Tailstock force: 5-19 kN Speeds (infinitely adjustable): 6-231-387 min-1 25-850-1,550 min-1 Main drive (DC motor): 33  ...

- New hydraulics 2015 - Bed length 3540 mm - Stroke in X 1200 mm - Stroke in Z   300 mm - Speeds 18 steps from 6 to 675 Rpm

A complete beer keg cleaning and filling system Leifeld + Lemke, today IW-Anlagentechnik, is available. Throughput capacity: approx. 120kegs/h, keg/barrel formats: 20l/30l/50l, control system: Siemens S7, control system retrofit: 2008. 1) Keg exterior cleaning machine Schöttiger + Schäfer KHAH 240, max. cleaning capacity: 240kegs/h, operating cleaning capacity: 140kegs/h, drive rollers: 2, transfer rollers infeed/outfeed: 1/1. 2) Keg pre-cleaning machine Leifeld + Lemke KVR 300, year of manufacture: 1988, max. washing capacity: 180kegs/h, operating washing capacity: 120kegs/h, design: stainless steel, process: centering, residual emptying with air purging, mixed water pre-cleaning, waiting and soaking station, caustic cleaning and pre-filling. 3) Keg main cleaning and filling machine Leifeld + Lemke KFR 401, year of manufacture: 1988, filling line capacity: 60kegs/h, design: stainless  ...

YARN PRODUCTION MACHINERY: 2X 2014 RIETER A11 UNIFLOC MACHINE 2X 2014 RIETER A48 HEAVY METAL SEPARATOR 2X 2014 RIETER B12 UNICLEAN 2X 2014 RIETER B76 UNIMIX 2X 2014 RIETER A79 UNISTOR 2X 2014 RIETER A21 CONDENSER 2X 2014 JOSSI MAGIC EYE 2X 2014 JOSSI TVS XSPECT 1X 2014 RIETER B25 WASTE OPENER 1X 2014 RIETER UNICONTROL 2X 2015 ARGEMA SMT 64500 14X 2014 RIETER C70 CARD MACHINE 4X 2016 RIETER C70 CARD MACHINE 6X 2014 RIETER SB-D 45 6X 2014 RIETER RSB-D 45 1X 2014 RIETER SPIDERWEB 10 X 2014 RIETER R60 Open End Spinning • Make : Rieter • Model : R60 • Year : 2014 • No of Rotors : 600 • Yarn Clearer Make : Rieter Q10 • Piecer Carriage : 4 • Opening Roller Type : B174 N-64 • Rotor Diameter in mm : 33 • Length Measuring : Available • Type of Spinbox : R60 • Type of Drum : SRZ • Conicity : Cylindrical • Rotor Drive Type : Aero - bearing � ...

COTTON SPINNING SMALL OPEN END LINE – YOC – 2007 Composition: 1. Cotton Blow room – 1 set ( capacity 500-800 kgs/h cotton), composed of: - Blendomat – 36 m rails for 36 bales, 2 rollers bale plucker - Staend.Br – condenser - SP-EM – metal separator - CL-C3 - Cleanomat ( fine cleamer) - MX-1-10 – multimixer - SP-DX - Dustex 2. Flat cards model TC-03 - 3 sets ( 60-90 kgs/h /each)- with: - DFK chute feeds - 3 liker in ; 12 stat.flats front and 6 st.flats back - IDF – autolevellers - Automatic can changer – cans dia 1000x1200 mm 3. Drawing frames TD -03 - 2 sets ( prod. Speed 600-800 m/min) - Creel for 8 slivers/cans - Cans delivery – 450 x1000 mm 4. Rotor spinning machines AUTOCORO 360 of 168 rotors /each – 2 sets - Delivery – 6” cylindrical ( waxing) - Rotors – type BD ( cotton) ( S556-BD & G536-BD on second machine) - Combers – B 174  ...

We have complete Barmag POY spinning lines, YOM 2004, 2 kinds of widers, ACW 4T 1200/8, ACW 1500/10. each model 48 pos. available very good condition. Serious buyers contact us.

We can offer TMT FDY spinning lines, manufactured by TMT, Japan in 2012, Melt spinning lines,from melt PET inlet to winder.each inlet spuuly 3 beams, each beam has 2 positions, spinneret diameter 100mm, pitch 1400mm, redial blowing quenching, each has 4 hot gidets, 230X450mm, TMT ATi-615/32 winder, twins winder,chuck 1500mm,

BARMAG POLYESTER EXTRUSION -SPINNING LINE WITH 12 POSITION / 72 THREADLINES FOR POLYESTER POY MICROFILAMENT YARNS • MANUFACTURER : BARMAG , GERMANY • CONSISTING OF FOLLOWING EQUIPMENT : •1 EXTRUDER BARMAG 12 E 8•SPIN BEAM INCLUDING SPIN PACKS & SPIN PUMPS3,5 CC/U•SPINNERETTES 100MM DIA, BOTTOM LOADED,DESIGNED FOR HIGH COUNTS MICRO & SUPERMICRO•POLYMER MANIFOLD EXTRUDER TO SPIN BEAM•DOWTHERM MANIFOLD FOR SPINBEAM ANDPOLYMER MANIFOLD•QUENCH SYSTEM INCLUDING FINISH SYSTEM,SPINFINISH JETS BY 'KYOCERA'•WITH CONVENTIONAL QUENCHING CABINETS +EVOSEPEED & RADIAL TYPE •TAKE UP UNITS, INCLUDING:•TAKE UP SECTIONS / PLATFORMS / LADDERS•COLD GODETS, ONE PAIR PER POSITION•INTERLACE SYSTEM WITH HEBERLINE INTERMINGLING JETS•YARN SUCTION SYSTEM•12 WINDERS, BARMAG CW6-1200/66 ENDS PER CHUCK , max. dia 440mm, stroke 170 mm

Now we have 2 spunlace lines, One manufactured by TSUSCHLER in 2013,ww: 3500mm,Another one manufactured by ANDRITZ in 2016 ww: 2750mm. If you interest in these lines, do not heisitate to contact us.Thanks.

A spinning, drawing and winding line for the production of monofilament yarns, multifilament FDY and POY is available. Spinning positions: 24, yarn ends: 192, drafting: cold and hot godets, package change: without yarn breakage, number of godets heated/cold: 50/50, number of winders: 24 (+2 reserve winders). Including various spare parts for the machine and electronics. Documentation available. On-site inspection is possible.

Polyester fiber production line Polyester fiber production line, manufactured in 2008, put into operation in 2010. From the end of 2012 until the second half of 2019, fiber production was suspended. The productivity of the line is 10,000 tons of fiber per year. The possibility of producing fiber from primary raw materials - PET granules and from secondary raw materials - PET flakes (recycled PET bottles). The main default raw material (as cheaper) is PET flakes. The available spinneret can be used to produce solid fiber 3, 7 and 15 denier, and hollow fiber, 7 and 15 denier. Hollow fiber can be produced in the "conjugated" type. Can buy and use other denier spinnerete according needs. The main components of the line: Fiber extrusion line • Vacuum dryers, volume 8m3, heated with thermal oil, year of manufacture 2011 – 4 units. + In 2019 instaled, elevators and a screw conveyor for  ...

Lathe spinning tool, roller block, support roller -Support roller: solid design -Roll: Ø 80 x 15 mm -Square: 38 x 37 mm, clamping length 250 mm -Dimensions: 325/80/H43 mm -Weight: 3.8 kg

Lathe spinning tool, roller block, support roller -Support roller: solid design -Roll: Ø 145 mm -Square: 73 x 26 mm, clamping length 180 mm -Number: 2x roller block available -Dimensions: 350/145/85 mm -Weight: 8.4 kg/piece

Guillotine Shears, Metal Shears DIGEP Type OL 3Workshop Overhauled Guillotine ShearFabr. No. 1312 Year of construction 1977Cutting length 1250 mm (nominal cutting length)Cutting length max. 1300 mmCutting thickness at 450 N/mm² 3 mmSingle back gauge 500 mmStand projection 200 mmCutting angle 2 stroke rate at full cutting length max. 50 strokes/min. Working height 860 mmMotor power 2.2 kWNew connection 380 Volt, 50 Hz- LED cutting area-Lighting- Simple backgauge with manual adjustment- Mechanical

Guillotine Shears, Metal Shears DIGEP Type OL 3Workshop Overhauled Guillotine ShearFabr. No. 1312 Year of construction 1977Cutting length 1250 mm (nominal cutting length)Cutting length max. 1300 mmCutting thickness at 450 N/mm² 3 mmSingle back gauge 500 mmStand projection 200 mmCutting angle 2 stroke rate at full cutting length max. 50 strokes/min. Working height 860 mmMotor power 2.2 kWNew connection 380 Volt, 50 Hz- LED cutting area-Lighting- Simple backgauge with manual adjustment- Mechanical

Guillotine shear LOTZE type HSS 20 / 7Cutting length 2050 mmCutting thickness 7 mmwith single back gauge; used

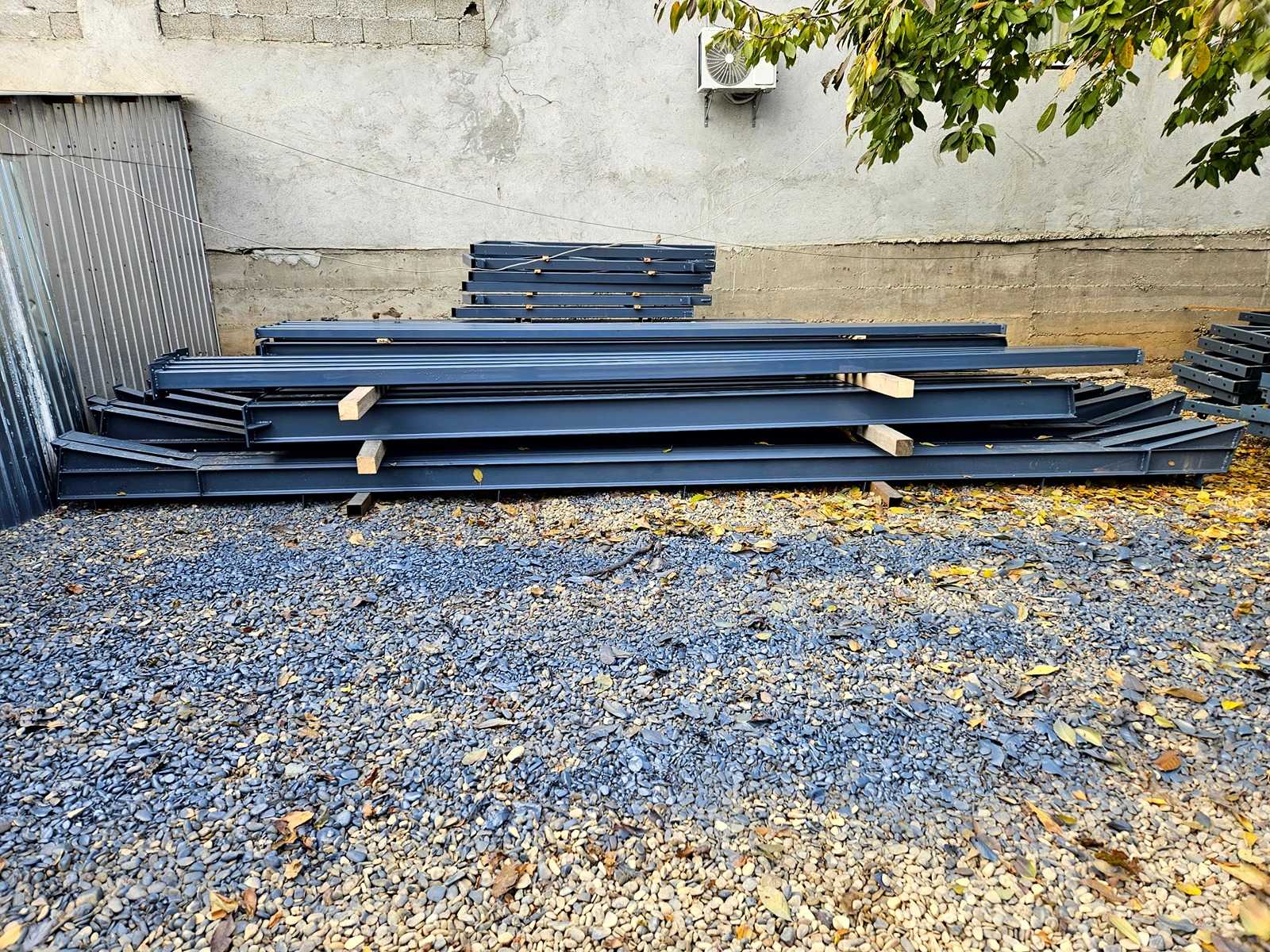

LOT 6 Type: Metal hall Material: Steel Year of construction: 2026 Total area: 250 sq m Overall size (1): L 10000 mm Overall size (2): L 25000 mm Gutter height: 4000 mm Ridge height: 5500 mm Additional information: Roof slope: 20 degrees; Painted RAI 5023; The structure consists of: 2 beams (trusses) on the ends from IPE 140 profile; 4 intermediate beams (trusses) from IPE 180 profile; 4 end posts from IPE 140 profile; 8 intermediate posts from IPE 180 profile; 3 door posts from square pipe 100x100x4; 5 pressure uprights from 70x4 pipe; wind bracing for beams and posts made of galvanized steel with 16 mm tensioner; The entire structure is assembled with bolts (demountable); Condition: unused; The structure includes Certificate of Conformity for materials, construction sketch, and foundation plan; Auction-ID: A7-45215-6

Year 1996, CE norm, complete instructions, control Delem, machine in TOP condition with warranty, more details on request

Key data: 300 , 4

Bandwidth - up to 460 mm Band thickness - 0,5-4 mm Motor drive - 6 kW together with Reel 1.5 T - non-powered
