5 HESS frame presses used machines

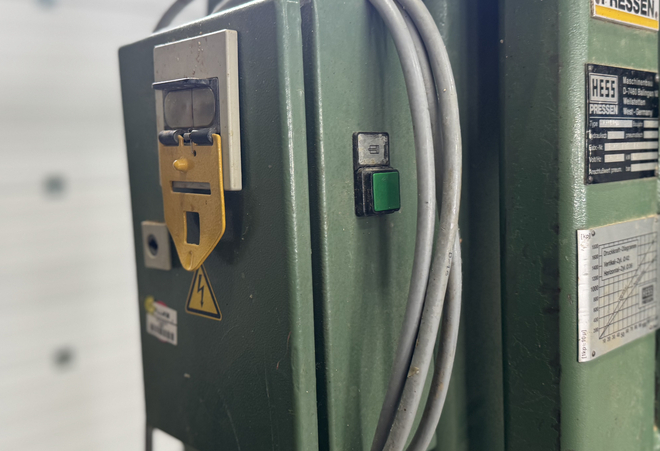

Frame press Hess economic hydraulic 3600 x 2250 mm L x W x H: 400 x 100 x 270 cm Weight approx. 1100 kg year 1987 The machine is in good condition, ready to use. Subject to changes, errors, prior sale! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system + technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Tel. 0041 62 966 18 32 Fax 0041 62 966 21 12

Frame press Hess Type VARIANT Machine No. 2182 Built in 1979 Pneumatic Frame Press Workspace 3700 mm x Height 2300 mm 4 bars with pressure cylinders from above Stop side left 1 movable pressure bar from the right with 2 pressure cylinders Cylinder stroke 110 mm Compressive force per cylinder 1100 kp (1kp = 1kg) Compressed air connection max. 15 bar Weight approx. 550 kg Exterior Dimensions 4400 mm x 700 mm x H 2800 mm Loading dimensions 4400 mm x 600 mm x H 2300 mm + Pallet with pressure beam 2800 mm x 800 mm x H approx. 700 mm

Key data: 3550 mm, 2250 mm

Frame press Hess Type SPEEDY Built in 1995 Crimping dimension 3550 mm x 2250 mm Insertion depth 100 mm Electric height adjustment of the press cylinders Hydraulic 160 bar pressure capacity Hydraulic power unit 2.2 kW 3 vertical cylinders: 1000 mm stroke, 20,000 N pressing force per cylinder 2 horizontal cylinders: 80 mm stroke, 12,500 N pressing force per cylinder Smallest dimensions without medium pressure beam horizontal 380 mm, vertical 320 mm Dimensions 4500 mm x 950 mm x H 2600 mm Weight 1,800 kg Loading dimensions Length 4500 mm x Height 2450 mm Width approx. 2400 mm

Frame press Hess hydraulic Type: HYDRO-LUX Crimping dimension approx. L 3550 m x W 2250 mm Connected load 380 V / 50 Hz 2.6kw Hydraulic Pump Machine dimensions Length 6600 mm x Width 1600 mm x Height 2770 mm 0 - 8 bar pneumatic Optoelectronic measurement query. The window scantlings are placed in the feed channel so that the photoelectric sensor can measure whether the pressure beams and press corners need to be opened or closed. If the light beam of the probe hits the window scantlings, the machine receives the command to drive up in width and height until the working dimension is reached. Workflow: Automatic dimensional adjustment loose insertion Automatic pressing process loose presentation remove Automatic dimensional adjustment Program selection options in the control system: 1. Automatic measurement adjustment via optoelectronic measurement query with a ...

Cylinder go Hess frame press with pneumatic 3 vertical and 2 horizontal cylinder

Frame press Hess Technical description: - 2 pneumatic pressure cylinders in length - 2 pneumatic pressure cylinders in width - 2 pneumatic workpiece holders - Feed bandwidth: approx. 680 mm - Feed belt length: approx. 3,400 mm - Clamping area: 680 x 1,400 mm - Control panel Dimensions: - Length: approx. 3,400 mm - Width: approx. 1,700 mm - Height: approx. 1,400 mm - Weight: approx. 800 kg

Manufacturer: Hess , Type: Centro, Year: 2000, Hydraulical/pneumatical: yes, High / low pressure: yes, Press length mm: 3050, Press height in mm: 2200, Press depth mm: 100, Cylinder vertical: 2, Cylinder horizontally: 2, Vertikaldruckzylinder: 2, Haltezylinder zum Fixieren der Hölzer: yes, Mitteldruckbalken: no, Querdruckeinrichtung: yes, Funk-Handpanel: Handpanell, Elektronische Einzeldruckregelung (zum Verpressen von Kreuzsprossenfenster): yes, Year :2000

Manufacturer: Hess , Type: Rahmenpresse, Year: ca.1995, Work piece width min-max mm: ca.1500, Min.-max. workpiece length in mm: 2500, Min.-max. workpiece height in mm: 10-90, Working widht max mm: 2500, Hydraulical/pneumatical: elektrisch, Year :ca.1995

Manufacturer: Hess, Type: Speedy Quick Step, Year: 1995, Min.-max. workpiece length in mm: 3500, Min.-max. workpiece height in mm: 2500, Working widht max mm: 600, Hydraulical/pneumatical: hydraulisch, High / low pressure: Hochdruck, Cylinder vertical: 3, Cylinder horizontally: 2, FREE TEXT: Automatisches Verfahren der Balken und Lanhhubzylinder für vertikale Bewegung, Year :1995

pressing area: 3000mm x 1900mm; pressing units vertical: 3; pressing units horizontal: 2; pressing system: elctro - hydraulic; machine length: 3500mm; machine width: 1000mm; machine height: 2600mm; waight: ca. 900kg;

Edge Press Hess Type mobil 3000 Machine No. M 2 2791 1538 Year of manufacture 1991 Working length 3000 mm Pneumatic Banding width 60 mm Pressure range 0 – 8 bar 6 press cylinders, pressure plate 120 mm diameter Mobile on castors Heavy version Heating element 0 – 200 °C Solid edge preheating device Length 3200 mm x width 850 mm Weight approx. 450 kg

Gluing star with heating plates. Connection 30 KW. Four pressing surfaces. Hydraulic, pneumatic. Further dates will follow.

: neu : ca. 3-6 Wochen ab Auftrag : Türkei : 62500 € : 1181.25 € : 63 to : 750 mm : 500 mm : 170 mm : 4 - 102 mm : 54 1/min : 490x325 mm : 90 mm : 270 mm : 440 mm : 7.5 kW : 1800 mm : 1150 mm : 2750 mm : 4100 kg 8-fold ram guide front protection by light guard manual stroke adjustment ram adjustment witch ratchet drive over gear combined clutch brake unit with pneumatic control fix table single and continuous stroke foot pedal and 2 hand control mech. overload safety device automatic central lubrication user manual in GERMAN and ENGLISH according to CE rules The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 10 Wochen ab Auftrags : Türkei : 70300 € : 1328.67 € : 110 to : 900 mm : 540 mm : 180 mm : 14 - 114 mm : 60 1/min : 490x325 mm : 90 mm : 280 mm : 7.5 kW : 1870 mm : 1320 mm : 2800 mm : 5600 kg 8-fold ram guide front protection by light guard manual ram adjustment mech. overload safety device automatic lubrication user manual in GERMAN and ENGLISH according to CE rules The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : 2025 : 070145 : prompt, Zwischenverkauf v : Türkei : 44500 € : 849.95 € : 1 : 40 to : 4 mm : 630 mm : 450 mm : 160 mm : 3 - 75 mm : 154 1/min : 420 x 275 mm : 8 : 75 mm : 40 mm : 230 mm : 293 mm : 4 kW : 1174 mm : 1540 mm : 2200 mm : 2850 kg 8-fold ram guide 2-hand control panel and foot pedal Automatic central lubrication Front light guard Vibration pads User Manual in German with CE Declaration of Conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 3-6 Wochen ab Auftrag : Türkei : 64000 € : 1209.6 € : 80 to : 900 mm : 540 mm : 180 mm : 4 - 102 mm : 54 1/min : 490x325 mm : 280 mm : 380 mm : 7.5 kW : 2010 mm : 1390 mm : 2750 mm : 5400 kg 8-fold ram guide front protection by light guard manual stroke adjustment ram adjustment witch ratchet drive over gear combined clutch brake unit with pneumatic control fix table single and continuous stroke foot pedal and 2 hand control mech. overload safety device automatic central lubrication user manual in GERMAN and ENGLISH according to CE rules The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 33700 € : 643.67 € : 30 to : 2 mm : 400 mm : 600 mm : 150 mm : 1 - 60 mm : 140 1/min : 4 : 60 mm : 40 mm : 200 mm : 300 mm : 3 kW : 1300 mm : 1150 mm : 2050 mm : 1670 kg Welded steel frame construction 4-fold ram guide Pneumatic clutch-brake combination Protective enclosure with light barriers and side doors Mechanical overload protection Two-hand and foot pedal operation Manual stroke adjustment Manual ram adjustment Variable stroke rate via frequency converter Operating modes: * Adjustment mode * Two-hand release * Foot release * 2-stroke operation via light barriers * Continuous operation Touchscreen for * Stroke counter with preselection for continuous operation * Stroke rate adjustment * Lubrication intervals and duration * Alarm messages * Motor direction of rotation * Monitoring of inputs and outputs 2 free cams for connecting pe ...

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 33700 € : 643.67 € : 30 to : 2 mm : 400 mm : 600 mm : 150 mm : 1 - 60 mm : 140 1/min : 4 : 60 mm : 40 mm : 200 mm : 300 mm : 3 kW : 1300 mm : 1150 mm : 2050 mm : 1670 kg Welded steel frame construction 4-fold ram guide Pneumatic clutch-brake combination Protective enclosure with light barriers and side doors Mechanical overload protection Two-hand and foot pedal operation Manual stroke adjustment Manual ram adjustment Variable stroke rate via frequency converter Operating modes: * Adjustment mode * Two-hand release * Foot release * 2-stroke operation via light barriers * Continuous operation Touchscreen for * Stroke counter with preselection for continuous operation * Stroke rate adjustment * Lubrication intervals and duration * Alarm messages * Motor direction of rotation * Monitoring of inputs and outputs 2 free cams for connecting pe&n ...

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 33700 € : 643.67 € : 30 to : 2 mm : 400 mm : 600 mm : 150 mm : 1 - 60 mm : 140 1/min : 4 : 60 mm : 40 mm : 200 mm : 300 mm : 3 kW : 1300 mm : 1150 mm : 2050 mm : 1670 kg Welded steel frame construction 4-fold ram guide Pneumatic clutch-brake combination Protective enclosure with light barriers and side doors Mechanical overload protection Two-hand and foot pedal operation Manual stroke adjustment Manual ram adjustment Variable stroke rate via frequency converter Operating modes: * Adjustment mode * Two-hand release * Foot release * 2-stroke operation via light barriers * Continuous operation Touchscreen for * Stroke counter with preselection for continuous operation * Stroke rate adjustment * Lubrication intervals and duration * Alarm messages * Motor direction of rotation * Monitoring of inputs and outputs 2 free cams for connecting pe&n ...

Grinding and polishing machine for the shoemaker's profession, cleaned and tested.

Control Rexroth System 200 BTV30 Circulation diameter over bed: 160 mm Circulation diameter over face carriage 250 mm Chuck diameter 160 mm Turning length 300 mm Spindle speed 8000 min-1 12-speed revolver with attached Competition. Workpiece conveyor belt Conveyor Various tool holders

x-travel: 600 mm y-travel: 350 mm z-travel: 500 mm total power requirement: 3 kW weight of the machine ca.: 3 t dimensions of the machine ca.: 2,5 x 2,5 x 2,5 m No. 3701 Vertical console milling machine HESSAPP HC 50 et Working area: 600 x 350 x 500 Drive: 2,3 Control: Heidenhain TNC 135 / Indramat Table surface 1180 x 330 mm Speed range 70 - 6000 rpm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Number of boring motors: 1 St. boring of corner bearing 1=yes, 0=no: 1 ja_yes boring of olive 1=yes, 0=no: 1 ja_yes 1 HESS fitting drilling station for corner bearings and olives This Hess drilling station for tradesmen offers a lot of drilling technology for little money. A complete station for drilling corner bearings and olives with all the important features, such as 2 clamping cylinders, drilling depth sensing, effective suction, stop systems for corner bearing and olive drilling, drilling head with interchangeable chuck, adjustable drilling feed speed, automatic program sequence. This means technology for perfect work: just one machine with just one drilling unit and just one drilling head for 2 work steps. The system: - Base frame as a support wall for frames and sashes up to 100 mm - Drilling unit positioned in the middle, height manually adjustable via threaded spindle - Drill h ...

Number of sanding units: 2 st. sanding width: 190 mm Sanding height max.: 4-180 mm HESS - GLORIA 2 BELT SINGLE WOOD SANDING MACHINE ----------------------------------------------------- Machine is being checked! Manufacturers description: ----------------------------------------------------- Compact design designed according to modern principles. Quiet and vibration-free operation thanks to rigid, stable machine housing and special insulation. Work safety device in accordance with the EC Machinery Directive with the dust-tested certificate. Offset grinding units with large-dimensioned tension rollers for good heat dissipation and stable sanding belt guidance. Sanding units with forced sanding belt oscillation. 2-point sanding dust extraction directly on the sanding roller. Airborne dust extraction on the large tension rollers. Integrated sanding belt blower for longer service life of the ...

Number of sanding units: 4 St sanding width: 190 mm Sanding height max.: 4-180 mm weight: 4200 kg Hess Expert 4-belt single wood sanding machine machine will be checked by our technicians -------------------------------------- Ø Grinding at the bottom/top Ø With 2 offset grinding units each (bottom and top) Ø Grinding units (bottom and top) connected in series according to the Dressing principle Ø Pre-sanding with coarse grit (calibrate) Ø Regrinding with fine grit (finish) Ø Central motorized height adjustment of the lower grinding units Ø Central motorized and synchronous height adjustment of the entire upper Grinding and brushing units including the upper transport units Ø Oscillating sanding belt utilization (during the sanding process) Ø Absolute power connection thanks to 5.5 KW motors and large dimensions drive drums Ø Oxide ceramic grinding shoe for - exact surface geom ...
