151 GILDEMEISTER used machine for sale

This Gildemeister CTX 400 S2 Lathe was manufactured in the year 1998 in Germany and has 65655 production hours. It is equipped with a HEIDENHAIN CNC PILOT 3190/4290 control unit. The machine has a spindle speed of 25-5000 rpm.

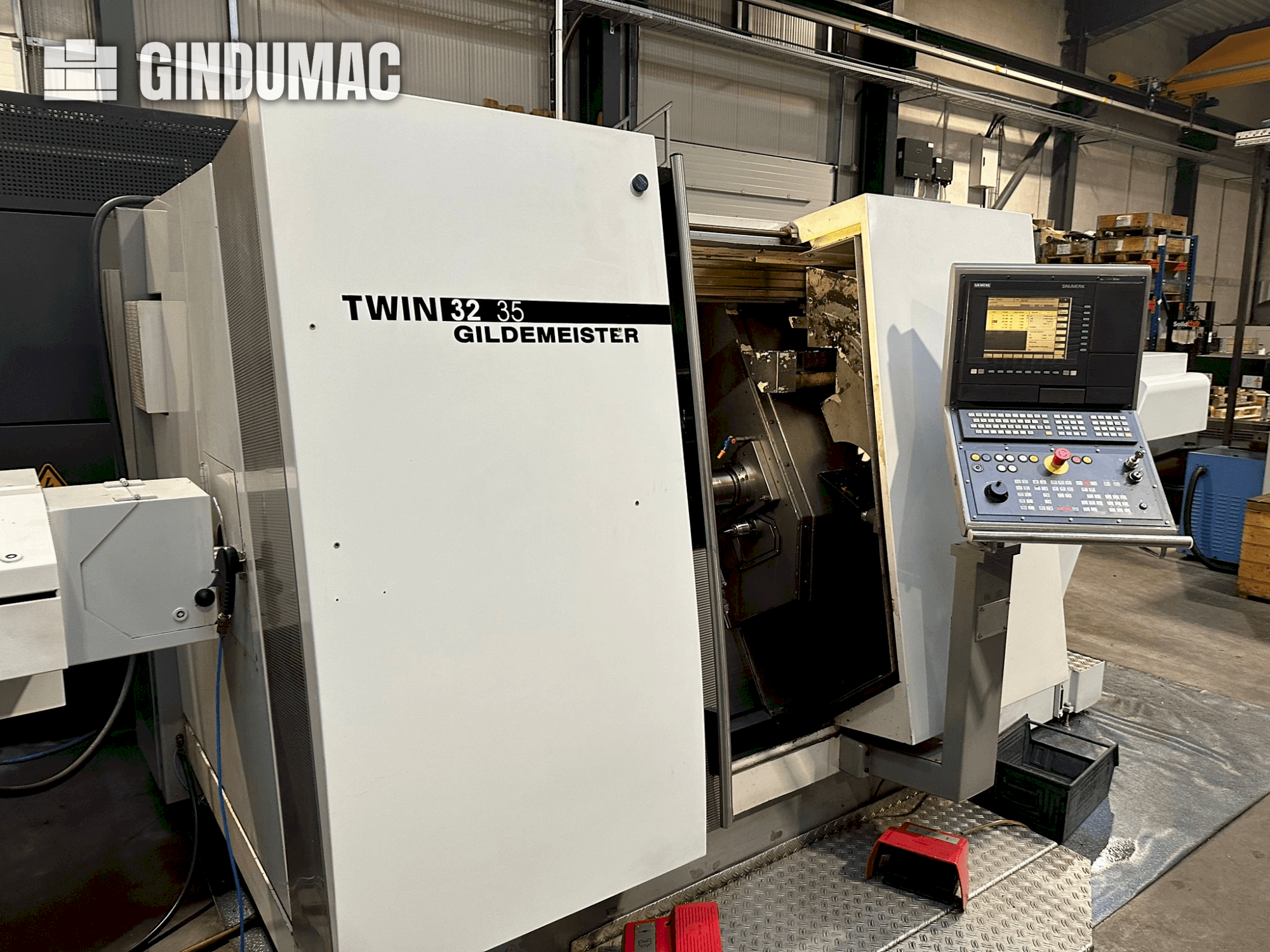

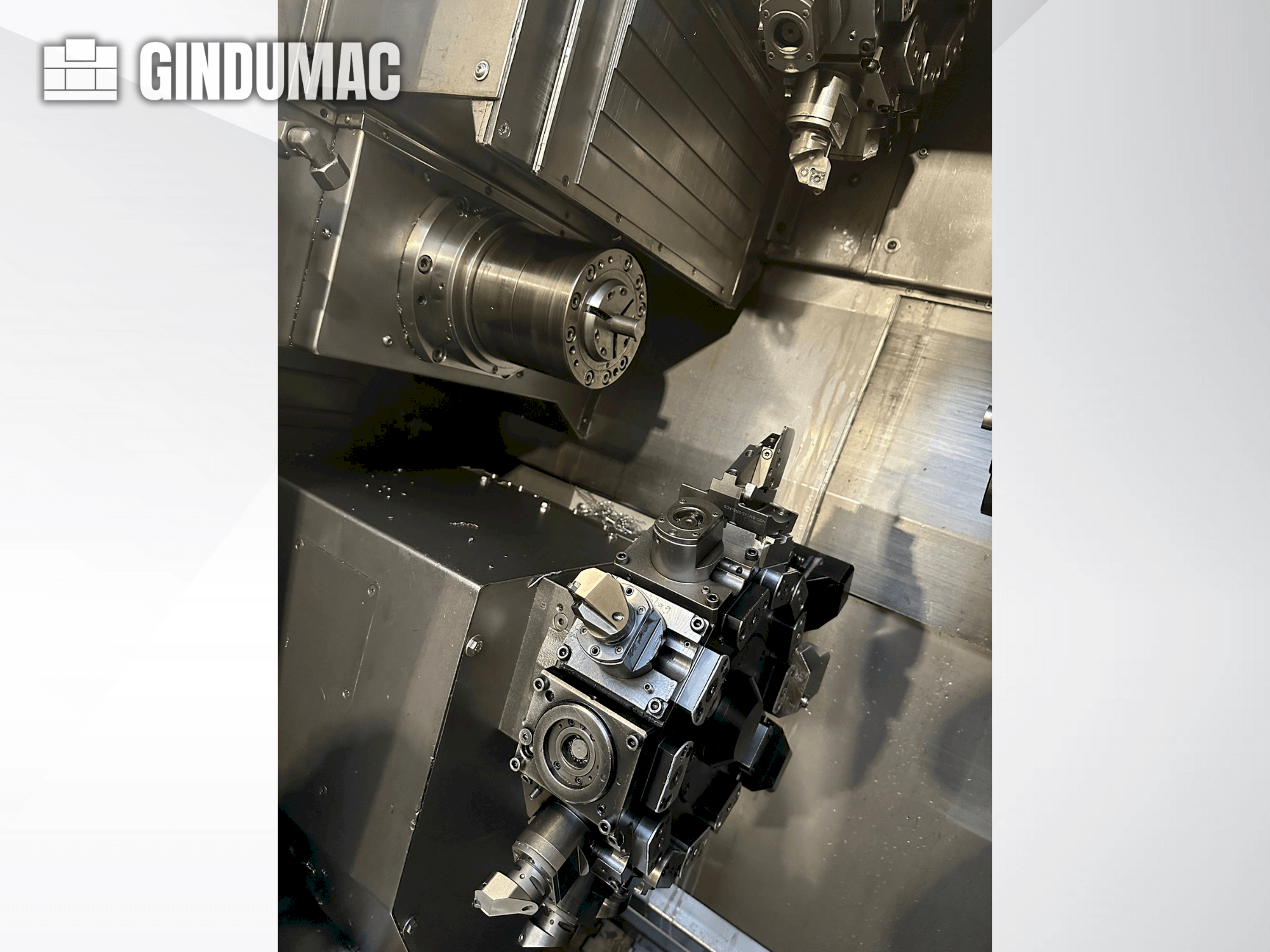

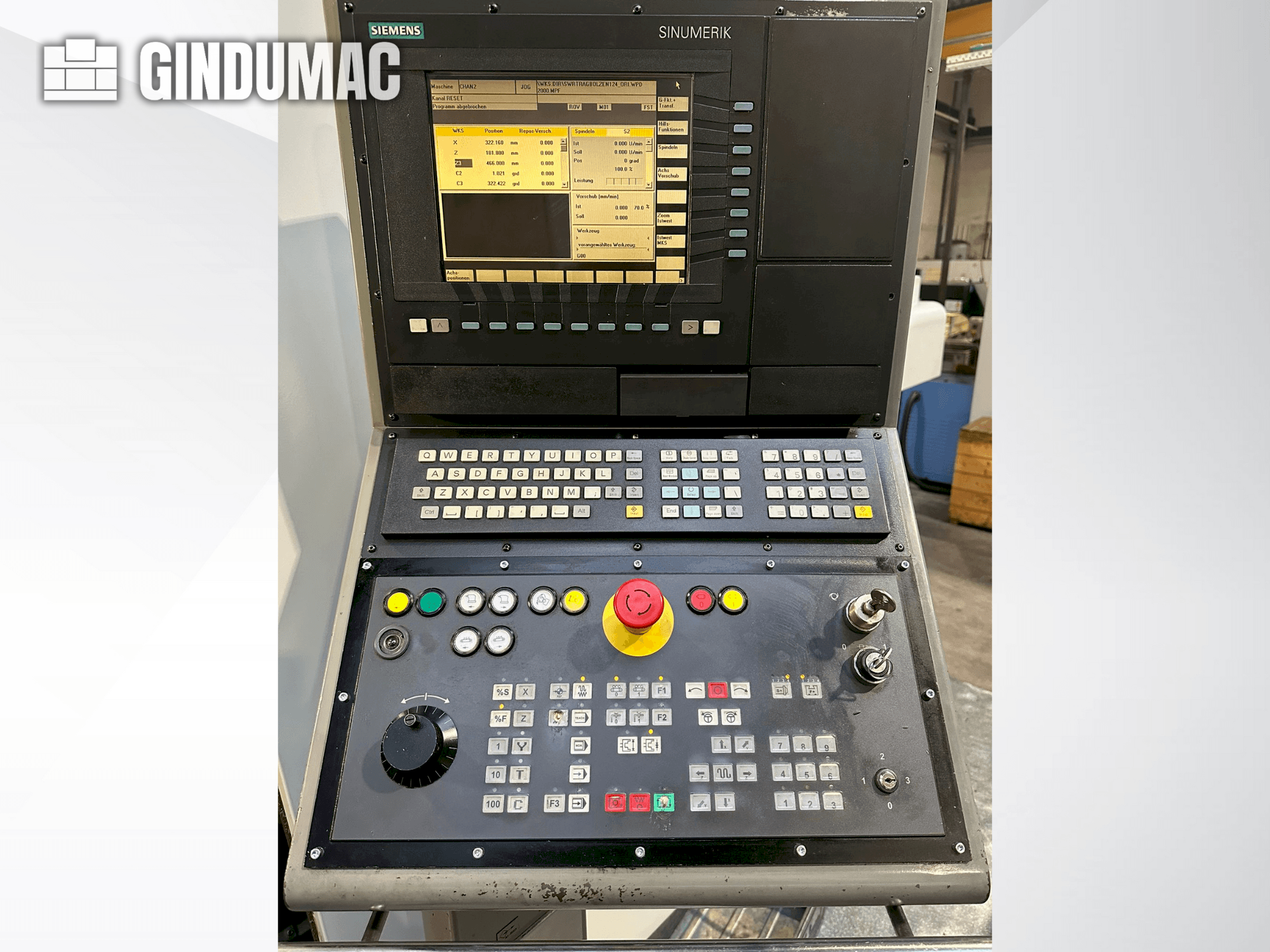

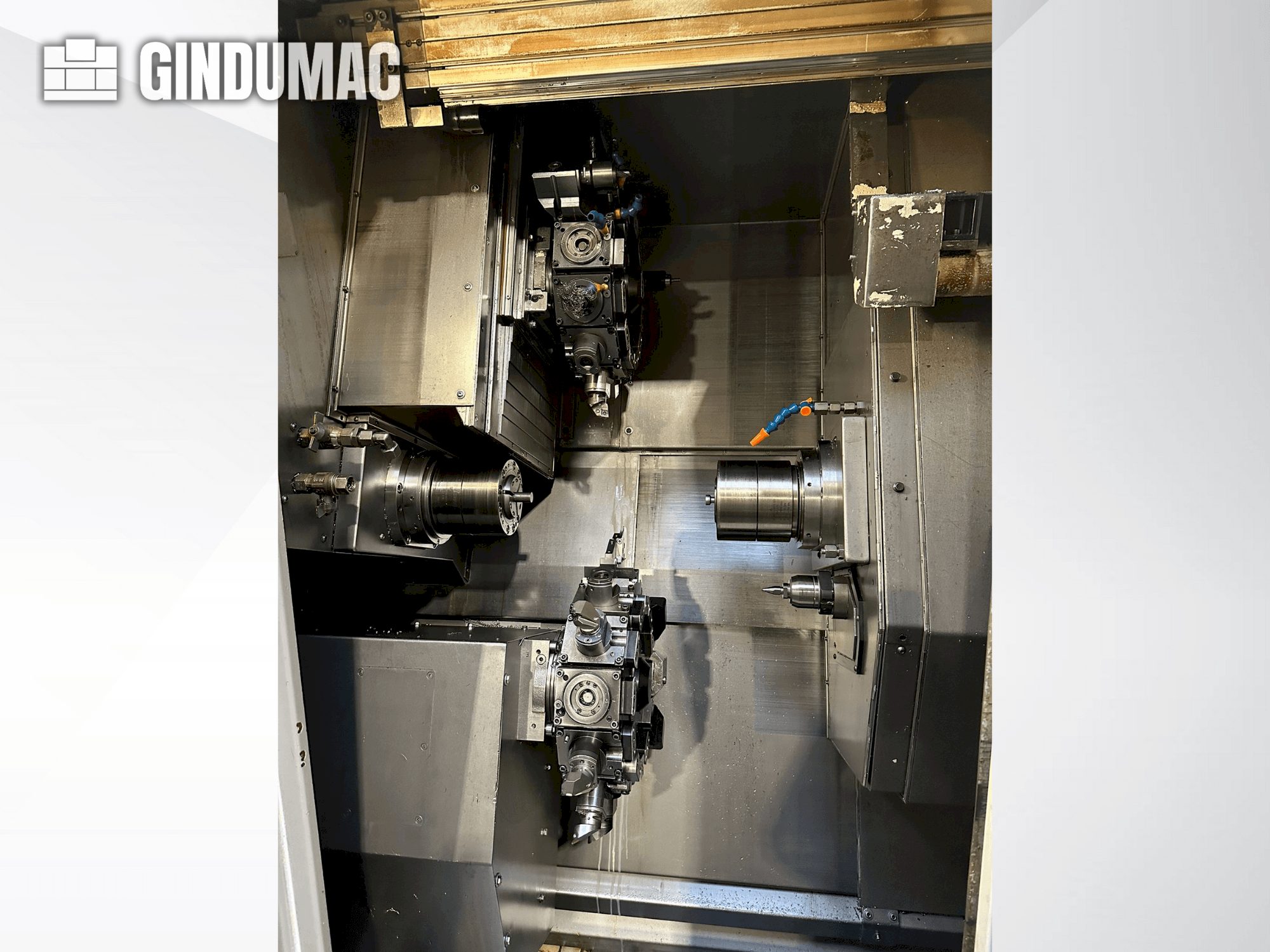

This Gildemeister TWIN 32 horizontal turning machine was manufactured in 2000. It features a Siemens control unit, a bar passage with a maximum diameter of 32mm, and a bar loading magazine IRCO with a length of 3000mm. Additionally, it includes a chip conveyor and a parts pick-up device. If you are looking to get high-quality turning capabilities, consider the Gildemeister TWIN 32 machine we have for sale. Contact us for further details regarding this machine.

Technical data: Circumferential diameter: 680 mm Center width: 1000 mm Speed: 2800 1/min Chuck: ø300 mm Dimensions, approx.: 5560 x 2400 x 2130 mm Weight, approx.: 10,000 kg Equipment: - Control: Heidenhain CNC Pilot 4290 - 12-speed revolver VDM 40 - C-axis

Key data: 600 mm, 2000 mm

CNC Lathe Manufacturer: Gildemeister Type CTX 500 Year of manufacture 1999 little used max turning length 2000mm Driven tools every 2nd turret station 315mm three-jaw chuck Schunk Bezel SMW Machine is in TOP condition Geometrically it is also still very good, deviation at 2000mm 0.02mm. Machine is available from week 18. For further information, I am available to you at any time at 01778957069.We also have Whatsapp.

A CNC lathe Gildemeister including a chip conveyor and a Forkat chuck is available. 1) Gildemeister NEF CT 60, year of manufacture: approx. 1982, distance between centers: 1000mm, turning length: 1000mm, max. turning diameter: 460mm, center height: 300mm, bed width: 450mm, spindle bore: 107mm, speed: 3015rpm, tool stations: 12, quill diameter: 100mm, quill stroke: 180mm, machine dimensions X/Y/Z: approx. 5400mm/2100mm/2000mm, weight: approx. 7000kg. 2) Chip conveyor Allweiler GB 30L 38L. Without Filter. Documentation available. An on-site inspection is possible.

A cycle-controlled CNC lathe Gildemeister is available. Center distance: 1500mm, max. turning length: 1500mm, swing diameter over bed/cross slide: 500mm/290mm, speed: 2800rpm, spindle bore: 70mm, spindle torque: 1050Nm, travel X/Z: 260mm/1600mm, rapid traverse X/Z: 6m/8m/min, feed rate: 5m/min, feed force: 5kN, tailstock quill stroke: 180mm, tailstock quill diameter: 80mm. Machine dimensions X/Y/Z: approx. 3200mm/1800mm/1900mm, weight: approx. 3100kg, operating hours: 79727h. Documentation available. On-site inspection is possible.

A CNC lathe Gildemeister is available. Swing diameter over bed/face slide: 600mm/360mm, bed dimensions X/Y: 350mm/450mm, carriage length: 620mm, carriage width: 250mm, facing travel: 1100mm, chuck diameter: 315mm, spindle bore: 107mm, spindle diameter: 140mm, spindle power: 30kW, torque: 950Nm, speed: 3150rpm, rapid traverse X/Z: 10m/min/5m/min. Quill diameter: 100mm, quill stroke: 180mm, max. tailstock pressure: 1200daN, turning length: 1000mm. Machine dimensions X/Y/Z: approx. 4350mm/2050mm/2000mm, weight: approx. 6400kg, operating hours: 49811h. Documentation available. An on-site inspection is possible.

CNC lathe GILDEMEISTER CTX 420 linear With Siemens 840 D powerline controller Year of Make: 2006 Max. rotatable diameter: 324 mm Max. rotatable length: 600 mm Max. circumferential diameter: 680 mm Spindle bore: 79 mm Max. spindle speed: 4500 rpm With the following accessories: Slide protection with interior lighting 12-speed turret with 12 driven stations Y axis , C axis Tool measuring device Parts collection facility 3 jaw chuck hydraulic 0 210 mm with foot switch Hydraulic Collet Chuck Hainbuch IRCO Breuning RBK 10012 Bar Feeder Signal lamp Tailstock with quill Conveyor Oil mist extraction Coolant system with IKZ and belt filter system Operating instructions

Control Siemens 840 D Rotary diameter. [mm] 250 Turning length [mm] 650 General: Year of manufacture 2007 Control Siemens 840 D Bar passage 65 mm Turning diameter 250 mm Turning length 650 mm Main Pindel: Motor spindle technology Speed 5,000 rpm Power max. 35 kW Torque max. 370 Nm C-axis 0.001° Bar passage 65 mm Chuck Hainbuch Clamping Top Size 65 Clamping Cylinder Hollow Clamping Cylinder Sub-spindle: Motor spindle technology Speed 5,000 rpm Power 26 kW Torque 290 Nm C-axis 0.001° Chuck Hainbuch Clamping Top Size 65 Clamping Cylinders Partial Hollow Clamping Cylinders Z-axis 670 mm X-axis 175 mm Tool carrier I (X/Y/Z): Technology Tool turret, 12 stations Tool holder VDI 30 Tool drive 4,000 rpm, 11 kW, 28 Nm X-Axis 300 Y-axis 80 mm ( +/- 40 mm) Z-axis 650 mm Tool carrier II (X/Z): Technology Tool turret, 12 stations Tool holder VDI 30 Tool  ...

Universal lathe GILDEMEISTER NEF 320 K With Siemens SINUMERIK 810 DE (SIMATIC PANEL TOUCH SCREEN) control Year of Make: 2003 Spindle bore: 52 mm Center width: 750 mm Circumference Ø over bed : 320 mm Circulation O over face slide: 150 mm Face travel : 185 mm Speed range: 14 – 3550 rpm infinitely variable With the following accessories: Slide protection with interior lighting Multifix tool holder with 2 inserts 3 jaw chuck SCHUNK ROTA plus 0 200 mm 2 set of soft top jaws Coolant Setup Chip rinsing gun 6 pcs. machine shoes Operating instructions The machine is in very good condition

Lathe Gildemeister NEF 710

CNC controller: SIEMENS SINUMERIK 840D-ERGOLINE Capacity X-axis travel mm: 725 Y-axis travel mm: ± 50 Z-axis travel mm: 300 Turning length mm: 160 Max. turning diameter mm: ø: 250 Swing over bed mm: ø: 320 Tool magazine Magazine places: 16 Tool holder: VDI-30 Tool length max. mm: 390 Tool diameter max. mm: 140 Lower turret Number of tool slots St .: 12 Speed driven tools RPM: 4.000 Drive power driven tools kW: 11,7 Milling function: Yes Main spindle Speed spindle rpm: 5.000 Drive power spindle kW: 11,7 (40% ED) Maximun torque Nm: 280 / 360 (100% / 40% ED) Coolant system Tank capacity liter: 980 L High-pressure bar: 8 / 20 Equipment Chip conveyor CE conformity Coolant gun Air blast / coolant switch-over Internal coolant supply Paper band filter Automatic workpiece magazine loader - 16 positions x ø 220 Working time hours ...

Key data: 680 mm, 1300 mm, 4000 1/min

Year of construction 2003 Spindle Hours 11600 Siemens Control 810D max. circulation 680 mm Circulation via X-guide 565 mm Longitudinal travel 1300 mm Planweg mm 315 Spindle head h5 Spindle diameter in front bearing 150 mm Spindle bore 107 mm Chuck diameter 315 mm max. torque 600 Nm Spindle speed 4000 rpm Rapid traverse X-axis 60 m/min Rapid traverse Z-axis 45 m/min Tool carrier for 12 tools Powered Tools 12 Tool holder VDI 40 Quill stroke 120 mm Recording MK 5 Dimensions of the machine with chip conveyor L/W/H 570/2600/2210 mm Machine weight approx. 10000 kg Accessories: Bezel clamping range 30-245 mm Conveyor Lathe chuck

- Control: SIEMENS SINUMERIK 840-C - Max. rod Ø: 65 mm - C-axis - Turntable main spindle: 31 - 6,300 rpm - Turret 1: 8 stations, 4 of which are powered - Revolver 2: 8 stations, 4 of which are powered - Speed applied Operating time: 4,000 1/min - Both turrets with internal cooling - High-pressure system -Conveyor - Bar feeder IRCO SiMag 65 - Max. rod length: 3200 mm Dimensions LxWxH: - Machine 3400 x 1700 x 1800 mm - Bar feeder 4000 x 1000 x 1400 mm - Chip conveyor 3000 x 1100 x 1600 mm Total weight: approx. 6,000 kg

Specifications: Workspace: Max. circumferential diameter: 680 mm Circumferential diameter via X-guide: 565 mm Chuck diameter: 250 / 315 mm Plane stroke (X): 315 mm Longitudinal stroke (Y): 1350 mm Spindle box: Spindle diameter in the front bearing: 150 mm Spindle bore: 107 mm Main Drive: Power of the three-phase main drive: 36 / 45 kW Torque (100% ED / 40% ED): 600 / 750 Nm Speed range (100% ED): 20 - 3200 rpm Speed range (40% ED): 20 - 4000 rpm Tool carrier: Number of tool stations: 12 Cylindrical shank diameter: 50 mm Switching time 30°: 0.16 sec. Tailstock: Tailstock, travel: 1200 mm Quill stroke: 120 mm Quill diameter: 120 mm Quill holder: MK 5 Coolant Facility: Content: approx. 220 l Pump power: 1.7 kW Flow rate at 6 bar: 20 l/min Connected load: approx. 65 kVA Dimensions (LxWxH), approx.: 5560 x 2115 x 2050 mm Weight without chip conveyor, ...

Base machine CTX 200E with driven tools, C-axis and 1x back working. Includes DATAPILOT software package TurnPlus, cooling unit for control cabinet, hinge belt chip conveyor, discharge height: 1100mm including coolant tank, tool holder set for universal disc turret with tool holders for external machining, boring bar holders, tools with cylindrical shank holders, sealing plugs, reducing sleeves. Bar gripper, axial complete, workpiece pick-up device, tool spindles 3x axial for drilling/milling/tapping, 1x radial for drilling/milling/tapping, 1x for saw blades, collet chuck complete for main spindle, collet chuck complete for counter spindle, 17x DIN collets 173E round Ø 3-40mm, 2x DIN collets 173E, hex SW 7 and 12mm, 2x DIN collets 173E, square SW 8mm. Bar loading magazine IEMCA BOSS 542/32, guide channel set LW 13, additionally for IEMCA BOSS 542, 13x guide jaws for bar loading magazine ...

Number of spindles 8 Max. bar feed in one station: 130 mm Max. bar feed in two stations: 260 mm Max. stroke radial slide: 52 mm Radial slide adjustment: +- 12 mm Max. stroke axial slide: 72 mm Max. stroke tool spindles: 106 mm Adjustment of tool spindles: +- 10 mm Main spindle speed: 500 - 4,000 1/min Piece time: 2 - 80 s Number of tool positions: 18 Weight: 12,600 kg

Key data: 465 mm, 1050 mm, 3500 1/min

Specifications: Manufacturer: Gildemeister Type: CTX 510 Year of Make: 2006 Control: Siemens 840D ShopTurn Travel distances: X 300 mm, Z 1,050 mm Working spindle Speed: 3,500 rpm Spindle bore: 95 mm Rotary diameter: 465 mm Deh length: 1,050 mm Tool/movement Tool turret: 12-speed Tool holder: VDI 40 Circumferential diameter: 680 mm Dimensions and weight Weight: 7,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Tailstock Conveyor automatic door Three-jaw chuck 315

NC Lathe Gildemeister Nef 500 BJ 1996

control: Heidenhain centre distance: 1400 mm weight of the machine ca.: 3,6 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

chucking diameter: 250 mm greates pass round over bed: 500 mm swing diameter over slide rest: 290 mm centre distance: 850 / 1350 mm weight of the machine ca.: 2700 KG dimensions of the machine ca.: 2900 x 1953 x 1825 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 210 mm, 305 mm, 5000 1/min

CNC Lathe Make: Gildemeister Model: CTX 200 Control: Heidenhain Pilot 1190 Year of manufacture 1996 Switch-on hours: approx. 38,000 h Specifications Circumferential diameter over bed 440 mm Circumferential diameter over carriage 210 mm Turning length 305 mm Bar passage 42 mm Speed 5000 rpm Turret 12 stations Tool holder 20 VDI Machine dimensions L x W x H 2800 x 1651 x 1771 mm Machine weight approx. 3000 kg Accessories: Various tool holders Collet chuck on main spindle Tailstock Documentation

turning diameter: 400 mm turning length: 600 mm control: Turn Plus CNC Pilot 3190 total power requirement: 44 kVA weight of the machine ca.: 5 t dimensions of the machine ca.: 6 2,5 2 m Machine has been in use until now ( 2-axis turning ) Known defects: - Driven tools without function - Tailstock leaking - out of service - Sporadic problems hydraulics / leaking The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A Gildemeister CNC double-spindle turning and milling center including coolant system and chip conveyor is available. Turning diameter over bed: 640mm, machining diameter: 400mm, center distance: 1930mm, travel X/Z: 550mm/1585mm, travel Y: +/-110mm, B-axis: +/-120° (interpolating), C-axis: 360°. Main spindle: power: 36kW/45kW, speed: 4000rpm, torque: 600Nm-730Nm, bore: 107mm. Milling spindle: Speed: 12000rpm, power: 13.2kW/22kW, torque: 100Nm. Tool places: 60, carrier: turret 12-fold star SW 380, machine dimensions X/Y/Z: approx. 9300mm/4600mm/3100mm, weight: approx. 20000kg, control: Siemens Sinumerik 840D powerline. Documentation available. On-site inspection is possible.

control: 840 C control: 2x 840 D : Kühlmittelsystem chip conveyor: ja kW generator - rated current: 95,00 A connected load: 65,00 kW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 2 turning diameter: max. 250 mm toll turrets: 2 x 12 control: Fanuc 16 T tool taper: HSK 63 : 04800000181 frequency: 50 Hz ampere: 168 A The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Turning diameter: 200mm, passage diameter: 330mm, passage diameter over cross slide: 260mm, travel X/Z: 160mm/460mm, feed X/Z: 24m/min, speed: 5000rpm, spindle clearance: 51mm, spindle power: 16.5kW/11kW, torque: 1665.5Nm/112Nm, tailstock: 400mm, tool positions: 12. Machine dimensions X/Y/Z: approx. 4200mm/1700mm/2300mm, weight: approx. 3500kg, control: Siemens Sinumerik 810D. Including chip conveyor. Documentation available. On-site inspection is possible.

Swing diameter over bed/face slide: 570mm/420mm, turning diameter: 420mm, turning length: 635mm, traverse path X/Z: 220mm/635mm, speed: 5000rpm, spindle bore: 79mm, max. bar diameter: 65mm. Tool positions: 12, driven tools: 6, tool holder: VDI 30, rapid traverse X/Z: 24m/30m/min. Machine dimensions X/Y/Z: approx. 3500mm/2500mm/2000mm, weight: approx. 4500kg. On-site inspection is possible.

turning diameter: max. 560 mm turning length: 600 mm control: 840D powerline Siemens greates pass round over bed: 680 mm Swing dia. over traverse guideway: 565 mm centre distance: 620 mm Main spindle:: turning speed range - main spindle: 20 - 5.000 min/-1 power capacity - main spindel: 25 / 37 kW max. Torque: 390 Nm spindle nose: 170H5 spindle bearing diameter: 120 mm usable bar diameter: 65 mm max. chucking diameter: 250 mm C-Axis: 0,025° / 360 ° Subspindel:: Spindle speed range subspindle: 20 - 7.000 min/-1 power capacity - Sub spindle: 25 / 33 kW max. Torque: 213 Nm spindle bearing diameter: 90 mm spindle bore: 57 mm spindle nose: 140H5 C-Axis: 0,025° / 360 ° turret:: number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. Spindle speed - driven tools: max. 4.500 min -1 power capacity - driven tools: 12,2 kW tool taper: VDI 40 DIN 69880 Tool dimensions with sq ...

turning diameter: 42 mm turning length: 250 mm control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC-lathe with bar feed with Sameca bar feed The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
