CNC Lathe XIANGFAN OUAN CK61220HP/8M
metal working machines / lathes
A Xiangfan/SPARK CNC large-format engine lathe is available. Swing diameter over bed/cross slide: 2200mm/1800mm, bed width: 1100mm, distance between centers: 8000mm, max. turning length: 7500mm, max. workpiece weight: 20t, max. workpiece weight between centers: 19t, main spindle bore: 140mm, bar ...

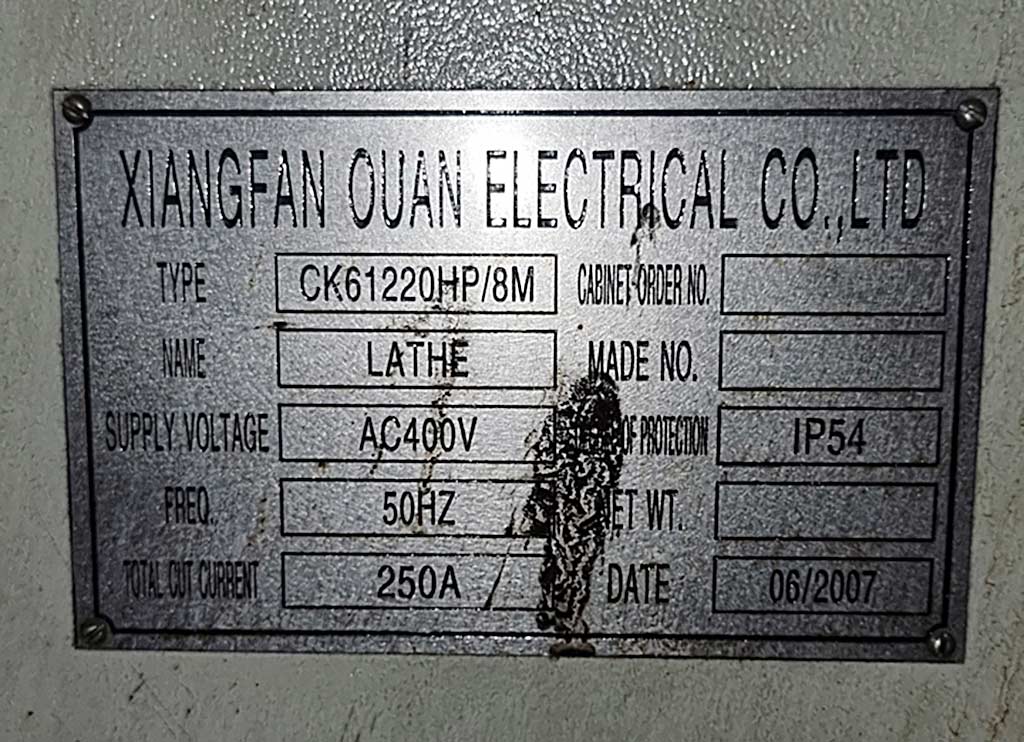

Manufacturer: XIANGFAN OUAN
Model:CK61220HP/8M
Type of machine: CNC Lathe
item-No.: 169921807
Quantity: 1
Date: 28.07.2026
Year of manufacture: 2007
Location:
Germany
Deutschland
Price:
Machine in stock:No
Seller-item-No.:INNO32039

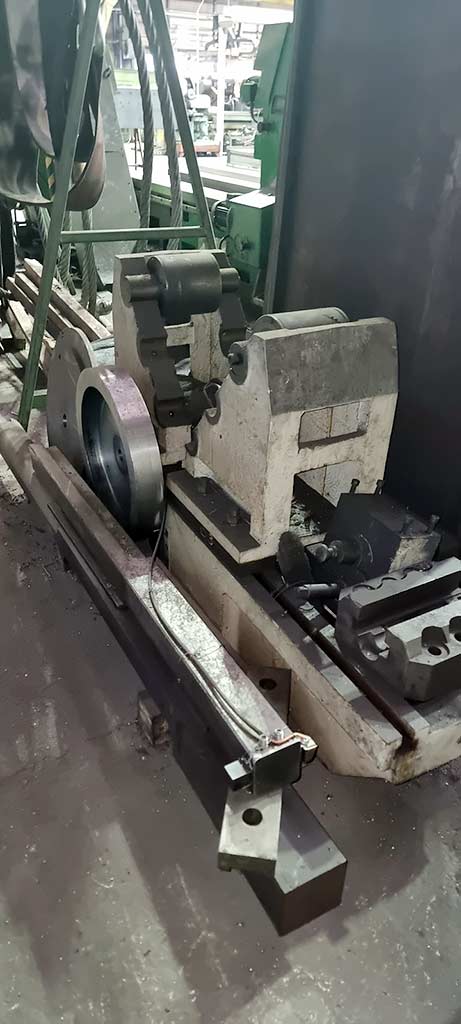

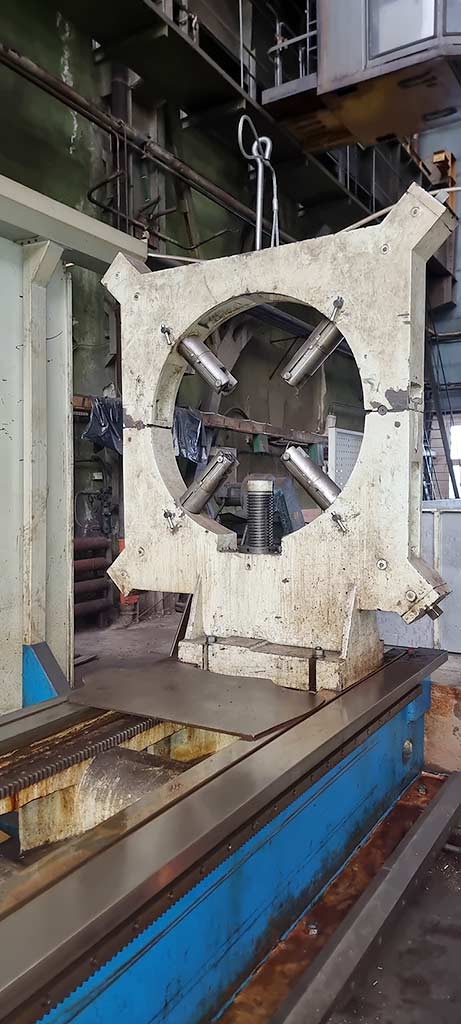

A Xiangfan/SPARK CNC large-format engine lathe is available. Swing
diameter over bed/cross slide: 2200mm/1800mm, bed width: 1100mm,
distance between centers: 8000mm, max. turning length: 7500mm, max.
workpiece weight: 20t, max. workpiece weight between centers: 19t,
main spindle bore: 140mm, bar capacity: 100mm, spindle speed: 200rpm,
X/Z-axis travel: 920mm/7500mm, feed rate: 2m/min, rapid traverse:
3m/min, tool stations: 4, chuck jaw count: 4, chuck diameter: 2200mm,

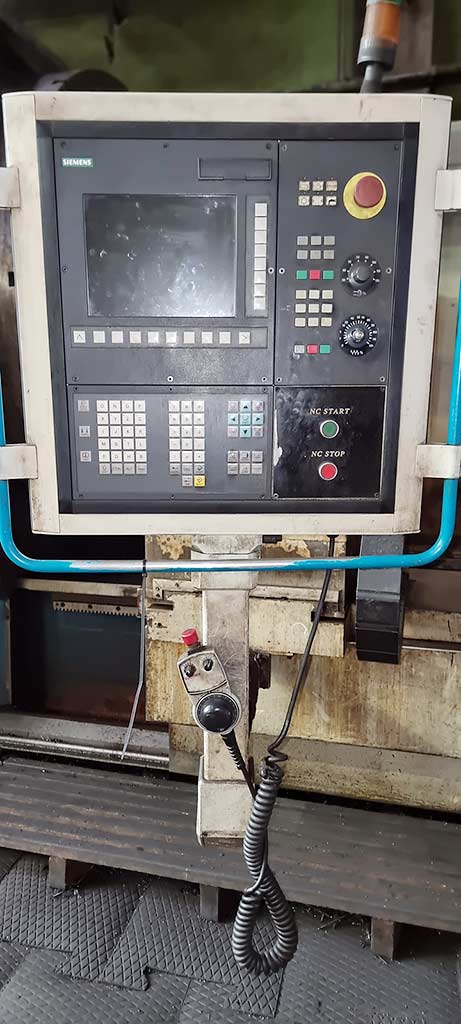

chip conveyor length: 8000mm, control: Siemens SINUMERIK 802D.
Including coolant system, mandrel, chip conveyor and measuring system.
Documentation available. An on-site inspection is possible.
