CNC Turning Machines WEILER DZ 40
metal working machines / lathes / CNC Turning Machines
Weiler DZ 40, Year of manufacture 2008, Control Siemens 840 D, Travel X/Z 200/350 mm, Turning diameter 180 mm, Bobmkney Ev Iujrzedf Circulation Ø max. 560 mm, Y axis +/- 25 mm, Q axle / programmable tailstock, Q axis travel 360 mm, Q axis measuring system rotative, Tailstock MK 4, Main spindle ...
Manufacturer: WEILER
Model:DZ 40
Type of machine: CNC Turning Machines
item-No.: 169956262
Quantity: 1
Date: 03.08.2026
Year of manufacture: 2008
Location:
Germany
Price:
Your price suggestion:
Weiler DZ 40,
Year of manufacture 2008,
Control Siemens 840 D,
Travel X/Z 200/350 mm,
Turning diameter 180 mm,
Bobmkney Ev Iujrzedf
Circulation Ø max. 560 mm,
Y axis +/- 25 mm,
Q axle / programmable tailstock,
Q axis travel 360 mm,
Q axis measuring system rotative,
Tailstock MK 4,

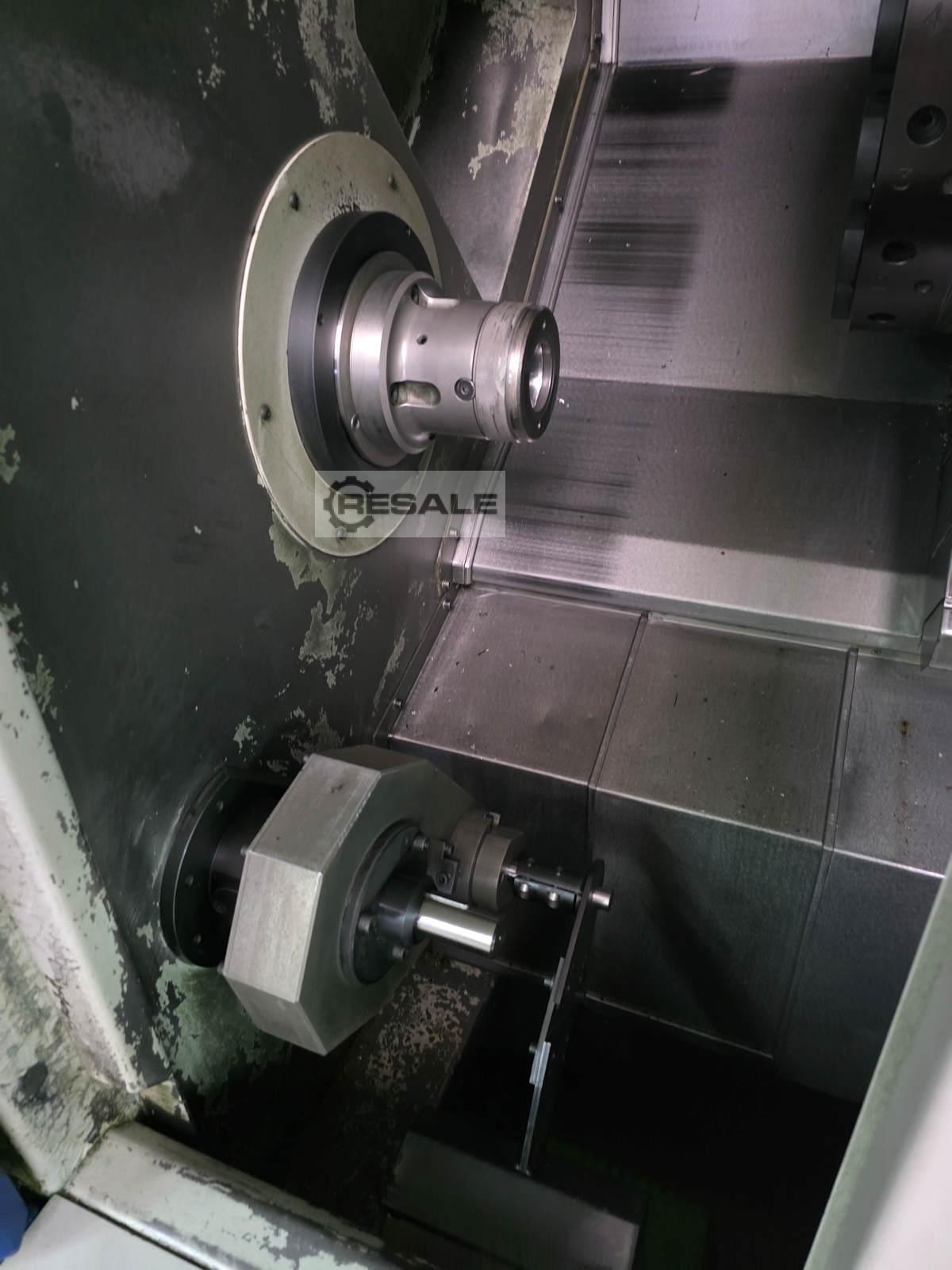

Main spindle max. rod passage 42 mm,
Spindle bore 52 mm,
Rapid traverse X/Z/Q 30/30/20 m/min,
Turret 16 speed - all stations driven,
VDI 25,
Shaft diameter 25 mm,
Requested. Tools up to 4,500 rpm,
Parts tray,
accessories,
Requested. Tool holders,
rigid holders,
Year of manufacture 2008,
Control Siemens 840 D,
Travel X/Z 200/350 mm,
Turning diameter 180 mm,
Bobmkney Ev Iujrzedf
Circulation Ø max. 560 mm,
Y axis +/- 25 mm,
Q axle / programmable tailstock,
Q axis travel 360 mm,
Q axis measuring system rotative,
Tailstock MK 4,
Main spindle max. rod passage 42 mm,
Spindle bore 52 mm,
Rapid traverse X/Z/Q 30/30/20 m/min,
Turret 16 speed - all stations driven,
VDI 25,
Shaft diameter 25 mm,
Requested. Tools up to 4,500 rpm,
Parts tray,
accessories,
Requested. Tool holders,
rigid holders,
