Universal Turning Machines (Lathes) VOEST-ALPINE DA210/2

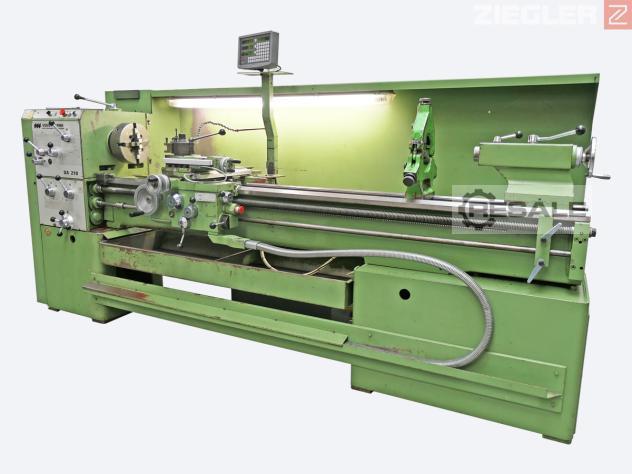

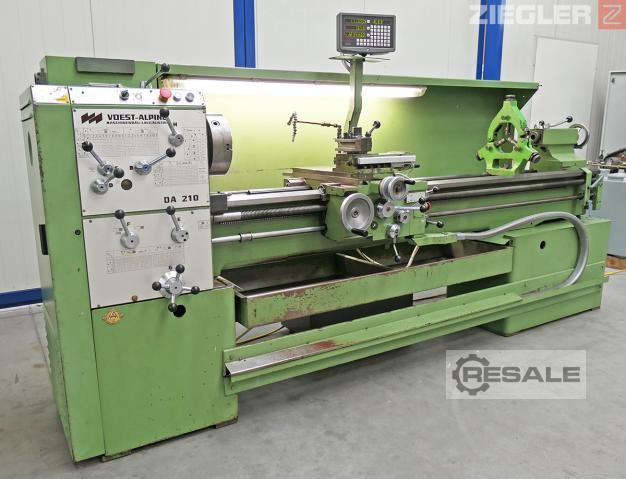

Voest-Alpine DA210/2 - Universal lathe

Center width: 2000 mm
Circumference Ø: 420 mm
Spindle bore: 52 mm

- 3-axis position indicator
- 4-jaw lathe chuck Ø 250 mm

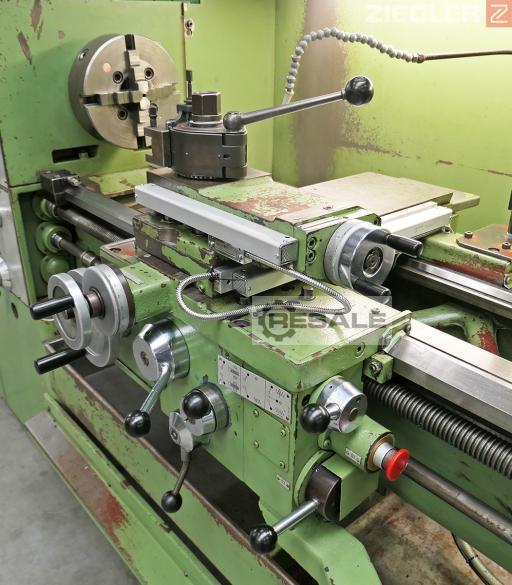

- Multifix quick-change holder
- Coolant device
- Workplace lighting
- Chip back panel
- Built in 1992

Optional accessories:

- Fixed lynette (€ 650 excl. VAT)

Technical data

- Tip height over flat guide: 210 mm
- Center height above floor: 1090 mm
- Bed width: 330 mm
Main spindle:
- Spindle head according to DIN 55027: Gr. 6
- Spindle bore diameter: 52 mm
- Diameter in the front bearing: 83 mm
- Inner cone: metr. 57
- Speed levels: 12
- Speed range: 33 - 1500 rpm
- Max. torque: 900 Nm
Tailstock:
- Tailstock quill diameter: 65 mm
- Morse taper: MK 4

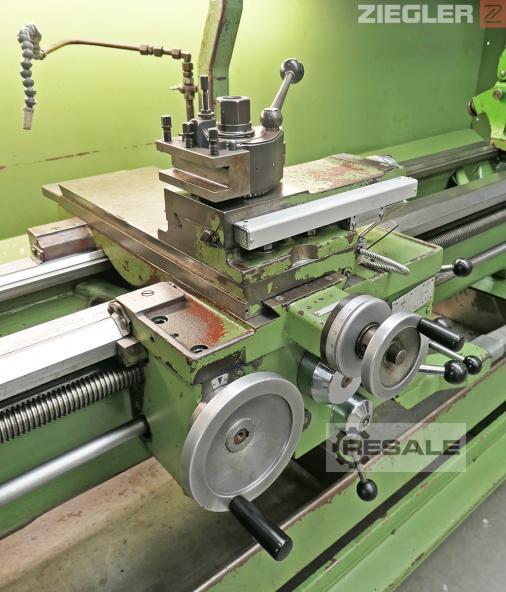

Sled:
- Pitch of the lead screw: 6 mm
- Lathe bit cross-section HxW: 20 x 20 mm
Areas of work:
- Circumferential diameter over bed: 435 mm
- Turning diameter via face slide: 245 mm
- Displacement of the face slide: 330 mm
- Displacement of the top slider: 130 mm
- Tailstock quill displacement: 120 Z6137148 mm
Permissible workpiece Z6137148 weight:
- Between peaks: 500 daN
- Flying in the faceplate: 150 daN
Feeds:
- Longitudinal feeds: 0.072 - 4.038 mm/rev
- Flat feeds: 0.036 - 2.019 mm/rev
- Metric threads: 0.05 - 28 mm
- Inch thread: 56 - 1 gg/1"
- Module thread: Mod 0.25 - 14
- D.P. Thread: 112 - 2 Gg/1"
Electric drive:
- Drive power: 5.5 kW
- Motor rated speed: 1500 rpm
Dimensions:
- Machine dimensions WxHxD: 3250 x 1700 x 1100 mm
- Weight: approx. 1500 kg

seller offer No. resale 100240
