paper converting: carton gluers used for sale (62)

Reference ID: PP-62267 Manufacturer: Inmatech Model: DFG 3000 Year: 2021 Max. Size: 3,000 x 2,000 mm Condition: Good Location: Europe Availability: Immediately INMATECH GLUER FOR LARGE-FORMAT RSC BOXES Manufacturer: INMATECH Machine Type: Gluer for Large-Format RSCs (Regular Slotted Containers) Machine Description Designed for joining two identical half-blanks Two vertically stacked feeders Automatic pick-up of two blanks Automatic folding of glue flaps Hot-Melt Adhesive Application Automatic joining of both halves into a finished box High folding and gluing repeatability Optional Dual-Adhesive System Hot-melt adhesive applied at the beginning, middle and end of the glue flap Dispersion (cold) glue applied to the remaining sections Reduced adhesive costs Lower consumption of expensive hot-melt adhesive Suitable for cost-efficient large-format box production  ...

Working width max. 800 mm, min. 76 mm, Equipment: Longitudinal seam, folding bottom, double edge, 4-point, feeder with vibrator and cleaning nozzles, Accufeed, cutting alignment according to the feeder right and left, primary crusher right and left with lower central transport, electronic top gluer HHS with 2 application heads, small box device, disc undergluing unit left, semi-automatic digital positioning system for format setting with memory locations (CS), digital position indicators, remote control, electronic control Bobst C.U.B.E, A2 folding floor module, video surveillance of the transfer station, upper and lower Central transport in folding, kicker, counter, box alignment on the press belt, pneumatic, long press belt. Overhaul 2026: cleaned, checked, painted, new feeder and transport belts.

Reference ID PP-62454 Category Folder Gluer Manufacturer Bobst Model MISTRAL 110 A2 Year Built 2006 Color - Impression - Working Hours - Speed - - Max. size 1,100 mm Min. Size - Condition Good Location Europe Availability Immediately Machine Description The BOBST Mistral 110 A2 is a high-performance folder gluer designed for various folding carton and corrugated board applications. 6 gluing points HSS glue control system 4 cold glue nozzles Lower left gluing system with glue disc and double scraper Removable glue tank Automatic glue level control system Kurandt lower glue trace detector Kurandt Compact Series code reader BOBST rotary ejector with box advancement device Left alignment conveyor Main gauge with lateral and longitudinal adjustment Gauge blade with blower Electric pile vibrator Lower central conveyor Upper central conveyor Central low ...

Heiber+Schröder Model WPS 1100 WINDOW GLUEING MACHINE with foil carrier DR-1100 max. 800mm x 1100mm, year of manufacture 2005, The machine is in very good condition., Two-knife machine with punching device for side placement, incl. roll rewinder and mandrel shear, Technical data Single-track Double-track, Length A 100 - 760 mm 100 - 760 mm, Width B 80 - 1,100 mm 80 - 530 mm, Length of the foil C 50 - 560 mm 50 - 560 mm, Width of the foil D 30 - 940 mm 30 - 380 mm, Material thicknesses, Cardboard 220 – 600 g/m², corrugated cardboard up to 5 mm thickness, PET / PE (hard film) 0.03 - 0.3 mm, PVC, PE, PS etc. 0.03 - 0.2 mm, Film winding diameter: maximum 500 mm, Core diameter: 70–80 mm, - Max. cutting format: 800mm x 1100mm, - Min. bend format: 80mm x 80mm, - Max. window format: 560mm x 940mm, - Min. window size: 30mm x 40mm, Max. sheet size: 800mm x 1100mm, Min. sheet format: 80mm x ...

Heidelberg X 135 – Folder gluer Year: 2007 Working width: 45–1,350 mm Straight-line, crash-lock bottom, double-wall and 4-point gluing Equipment: HHS X-tend upper gluing system, 8 channels, 4 applicator heads Left-hand lower disc gluing unit; vacuum feeder with vibrator Alignment and pre-breakers on both sides; kicker and counter Motorised centre transport; servo back-folding with touchscreen Delivery camera monitoring; extended pneumatic compression belt Cleaned, checked and repainted in 2023. Reference: PP-51356 Further information on request.

Bobst Domino 90 Matic – Folder gluer Year: 1987 Max. format: 800 × 900 mm Material weight: up to 600 g/m² Equipment: Straight-line and crash-lock bottom Left-hand lower disc gluing unit Renewed HHS cold-glue system with applicator heads Bobst Easyfeeder 90 Belts replaced in 2025 Reference: PP-53236 Further information on request.

Bahmüller Turbox BJD 1700 – Folder gluer Year: 2008 Mechanical speed: up to 250 m/min, depending on product Material weight: 800–1,500 g/m² Flutes: A, B, C, E, F, EE, BE, BC Power supply: 400 V / 50 Hz, three-phase Straight-line, crash-lock bottom, multi-compartment and 4-/6-point gluing applications. 2 back-folding devices. Blank-size range and included packing equipment on request. Reference: PP-54474 Further information on request.

Bizzozero MICA – Two-head hotmelt gluing machine Year: 2005 Gluing heads: 2 Opening width: 4,000 mm Equipment: Renewed Nordson hotmelt system 2 independently operating lift tables at the infeed 1 lift table at the outfeed Reference: PP-58380 Further information on request.

Bobst Domino 165 A3 MOT – Folder gluer Year: 1992 Working width: 290–1,650 mm Straight-line, 3-point gluing and crash-lock bottom applications Equipment: HHS XT-E8 upper gluing system, 8 channels, 4 PL-500 heads Vacuum feeder, pre-breakers and motorised format adjustment Bump-and-turn station for 90° rotation HHS hotmelt station 2 Enpro units for tear-strip and self-adhesive application Additional crash-lock bottom module and alignment units Pneumatic timed compression belt Condition: The 4-point module is not operational. A quotation for conversion or repair of this module is available. Reference: PP-58602 Further information on request.

Jagenberg Diana 105-2 – Folder gluer Year: 1991 Equipment: Straight-line folding and gluing Crash-lock bottom HHS gluing system with 2 applicator heads and glue wheel Reference: PP-59866 Further information on request.

Tünkers FAS 480, semi-automatic packaging aid for folding carton gluers, Box width 40 - 420 mm, box length 40 - 480 mm, right delivery, frequency-controlled drive, vibrator, for carton, E- and B-flute. Overhaul 2026: cleaned, checked, painted and new belts

Impressions=0 m, Condition= Good , Availability= 2026-09-12, 2014 B&R Moll Versa-Fold Pocket Folder – Gluing System Electronic control Belt transport system 3 x Point gluing system Model: 26-48-9016CF Serial No.: BF1056-33-14

Heidelberg Japack Pro Packing aid for folding carton gluers, box length: 80-535 mm, box width: 50-500 mm, Standard, laser counter, right curve in infeed, box types: normal folding boxes, 4-point erection boxes (min. side height 40 mm), 6-point erection boxes (max. 400 g/m²), box material: 200 - 600 g/m², Packing scheme: 1-5 rows next to each other, 1-5 layers on top of each other, depending on the type of box, up to 7 layers possible, output: max. 200,000 boxes per hour. Overhaul 2026: cleaned, checked and new belts.

Bobst Easyfeeder GT, BJ. 2006 Pre-inserts for folding carton gluers, Format area: max. 1100 x 600 mm, min: 100 x 90 mm, Standard, pneumatic cut, supports, max. 800g/m² & E-flute, pneumatic alignment shield for feeders, cleaned, tested.

We offer this used Stock Maschinenbau SFAM 2020 Fassonglubemaschine, built in 2004. The associated press belt is built in 2010, the Meler hot melt machine is built in 2022. The working width for hot and cold glue is approx. 2100mm! Type: SFAM 2020 Machine No.: 20041227 If you have any questions or need more information, please feel free to send us a message or give us a call.

Heidelberg / MK Diana Stapelwender, BJ. 2018 Cutting pile width max. 900 mm, min. 200 mm Cutting pile length: max. 600 mm, min. 200 mm Cutting pile height: max. 300 mm mm, min. 100 mm, pile turner especially for turning and feeding Stacking of blanks on folding carton gluers. Stack turns per minute max. 4, Stack weight max. 30 kg, Folding boxboard: 200 - 800 g/m², Box range: Longitudinal seam boxes, folding bottom boxes, 4+6 point erection boxes.

Longitudinal seam, blank alignment module according to the feeder, quality assurance system HHS X-tend ³ with code reader, glue seam control, linear ejector, Disc underglue unit on the left with automatic pump-on system, feeder with own servo drive, primary crusher right and left, kicker, counter, Small box setup, 400m/min. drive, radio remote control, digital Position indicator, intermittent press belt.

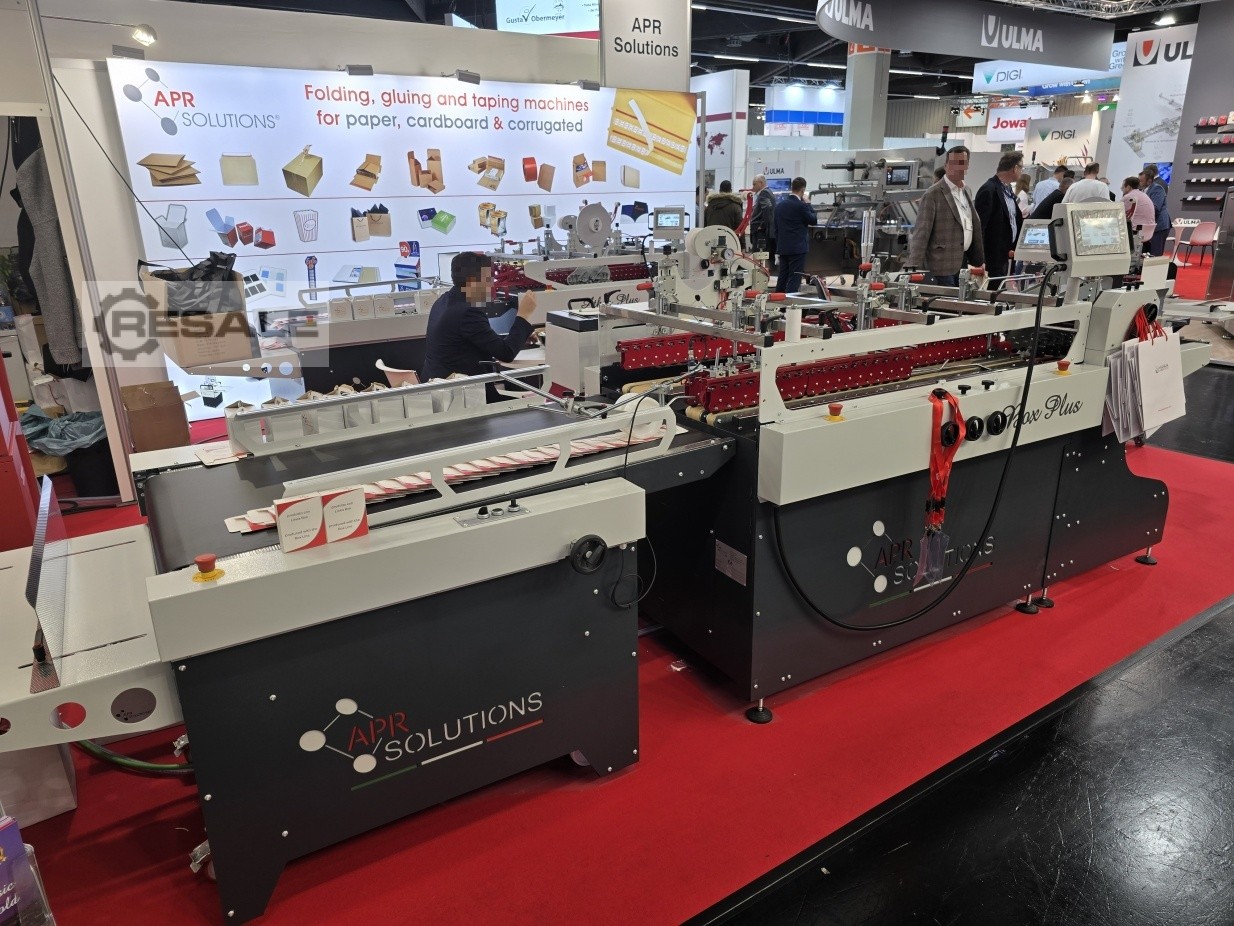

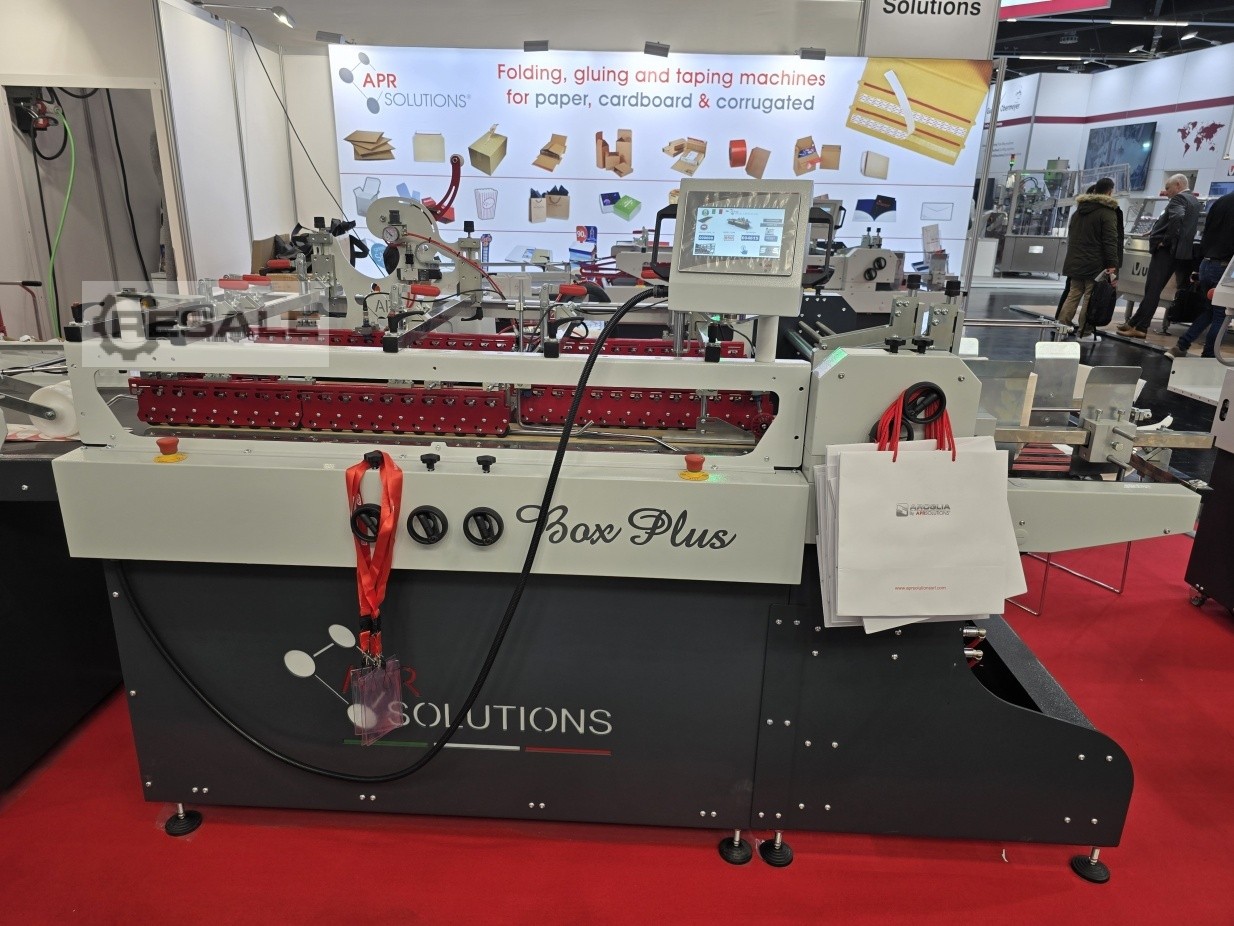

max. format 42 x 25 cm Year of construction 2026 New machine Automatic Folding Carton Gluer Machine especially for use in digital printing Nonstop friction feeder Longitudinal seam device Hotmelt glue plant Nozzle gluing plant HHS 1 nozzle glue head Display table Delivery date: 2 - 3 months

Bobst Domino 145 Matic, • Construction year: 1990, • longitudinal stitch, • with electronic glue system hhs4, • 4/6 point gluing, • max.size: 1100 x 1450mm, • Cold-glue electronics glue system hhs with 6 nozzles, • Hot-melt electronics glue system hhs with 4 nozzles, + Alignment station, + Ring inserter, + Pressband, • Material : Corrugated cardboard and solid cardboard, • Year of construction: 1990, • max.size: 1100 x 1450mm

Format range: max. 1100 mm, min. 126 mm. Equipment: Longitudinal seam, folding bottom, double edge, 4-point gluing, cutting alignment module according to the feeder, electronic ERO top gluer with 4 application heads, Disc subglue unit on the left, electronic overhaul folding with servos, vibrator with tooth gauge on the feeder, additional central transport in the primary crusher, primary crusher right and left, kicker, counter, additional central transport in folding, long, pneumatic, intermittent press belt, cleaned, tested, new feeder and transport belts. Machine can be viewed by appointment while running.

Equipment: Hot melt system HHS Promelt consisting of: 4 channels with 2 application heads and bracket, hose length approx. 4m, preparation for HHS/KAS control cables, electric valves, system trolley. SN 4705 0410 001

Format range: max. 750 mm, min. 66 mm. Equipment: Longitudinal seam, folding bottom, double edge, dental gauge, vacuum and vibrator at the feeder, cutting alignment module with alignment right / left, primary crusher right and left with central transport top / bottom, disc subgluer left, digital position indicators, electronic top gluer HHS 8-channel with 4 application heads, Quality assurance system HHS with disc glue monitoring and 2x nozzle glue monitoring, pinball, camera monitoring of the tray, Central transport top/bottom in folding, press roll device, radio remote control, pump-up glue unit, long press belt. Overhaul 2026: cleaned, checked, painted, new feeder and transport belts. Machine can be viewed by appointment while running.

Format range: max. 800 mm, min. 126 mm Equipment: Longitudinal seam, folding bottom, double edge, feeder with vibrator and tooth gauge, Accufeed, cutting alignment according to the feeder right and left, Pre-crusher right and left with lower central transport, electronic HHS upper gluer with 2 application heads, HHS quality assurance system with code reader, glue seam control and flipper ejector, disc bottom glue unit left, Digital positioning system for format setting with memory spaces (CS), digital position indicators, radio remote control, electronic control Bobst C.U.B.E, A2 folding floor module, video surveillance of the transfer station, upper and lower central transport in folding, kicker, counter, pneumatic, long press belt. Overhaul 2026: cleaned, checked, painted, new feeder and transport belts. Machine can be viewed by appointment while running.

Reference ID PP-59295 Category Manufacturer - Model Diana 90-2 Year Built 1992 Machine Description The machine performs side gluing and bottom folding. It is equipped with an HHS system featuring three cold-glue guns. It produces boxes with a width of 90 cm and can handle small boxes with a folded section (the tuck-in flap) as narrow as 60 mm.

Reference ID: PP-58435 Category: Folder Gluer Manufacturer: Bobst Model: DOMINO 145 MATIC A4 Year Built: 1993 Impression: - Working Hours: - Condition: Good Location: Europe Availability: Immediately Machine Description: Machine Options: • Straight-line gluing • Straight-line upper gluing • Straight-line gluing + EUR lock • Crash lock / crash lock with partition • Special – conical construction Workable Materials: • Solid board • Flute N • Flute F • Flute E • Flute B Machine Equipment: • HHS Xtend2 gluing system • LNT 300 gluing check, 1x under wheel • PL500 gluing nozzles, 4 pieces • Prefolding tool for gluing flap • Under gluing wheels width: 5 mm and 10 mm

Format range: max. 450 mm, min. 55 mm Equipment: Longitudinal seam, quality assurance system HHS X-tend² with code reader CT 30, Glue seam inspection LNT-300, length control P4 with turntable ejector, Pre-crusher right and left, kicker, counter, small box device, Disc undergluing unit on the left, digital position indicators, clocked press belt. Overhaul 2026: cleaned, checked and equipped with new feeder and transport belts. Machine can be viewed by appointment while running.

Format range: max. 1000 mm, min. 56 mm Equipment: Longitudinal seam, folding floor, double edge, 4-point gluing, motorised format adjustment, servo overhaul folding with program memory, Robatec electronic top gluing unit with 4 application heads, disc bottom gluing unit on the left, feeder with vibrator, belt crusher on the right, left up to max. 30 mm, additional central transport, folding floor module A2 with additional upper and lower centre transport, additional central transport in folding station, pneumatic kicker, counter, Bobst CUBE control, camera surveillance, Small box equipment, pneumatic press belt. Overhaul in 2026: cleaned, checked, painted and with new press belts as well as new feeder and transport belts. Other: Machine can be viewed by appointment while running.

Format range: Cutting width max. 1120 mm, min. 80 mm Cutting length max. 1020 mm, min. 100 mm Film width max. 840 mm, min. 30 mm Film length max. 720 mm, min. 50 mm Equipment: 1 lane (preparation for 2 lanes) Suction belt feeder with vacuum, vibrator, cliché glue unit Other: Machine can be viewed by appointment while running.

HEIDELBERG DIANA SMART 115, Manufacturer: HEIDELBERG, Year of construction: 2018, - 2018, - Folding Carton Line, - longitudinal seam carton:, - max. 1150 x 600 mm, - min. 75 x 55 mm, - min. 45 x 55 mm (with small carton device), - Fold-bottom carton:, - max. 1150 x 600 mm, - min. 146 x 80 mm, - 4-point erecting carton:, - max. 1150 x 680 mm, - min. 120 x 110 mm, - 6-point erecting carton:, - max. 1150 x 630 mm, - min. 250 x 130 mm, - with BELKHOFF control system, - Rolling and drying tunnel, - TÜNKERS EAS 480 output station, right, 2019, - in production, - Available: immediately, - Located in: Germany

Window patch machine Heiber & Schroeder, Year 1986, Model: WP 1
