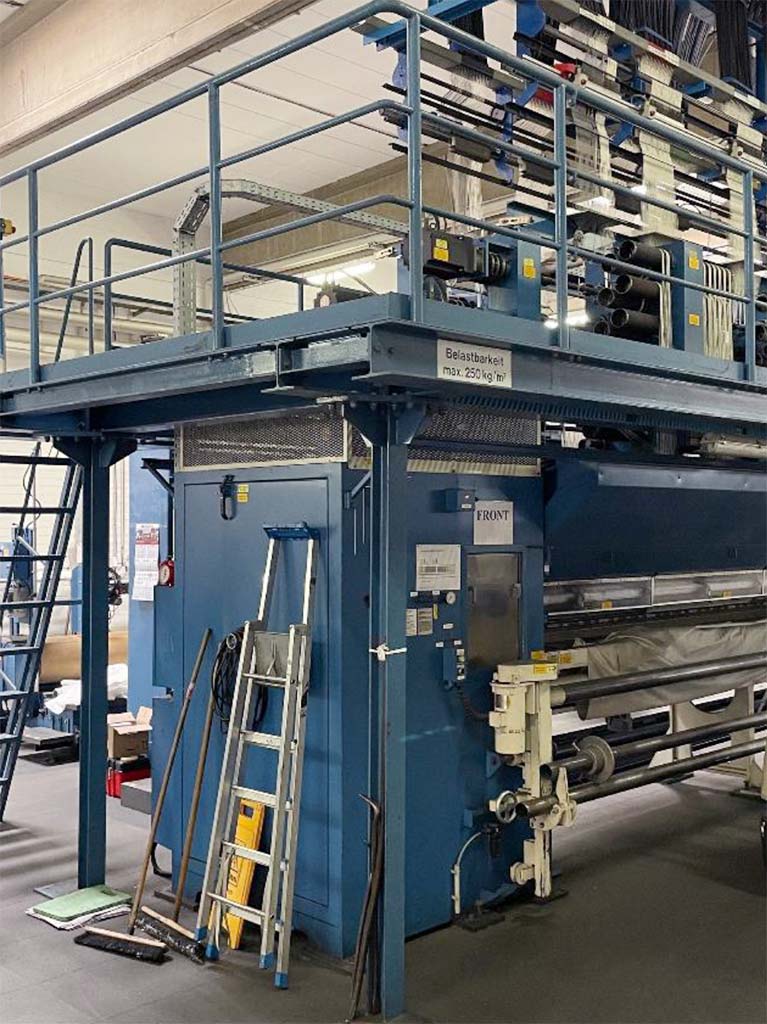

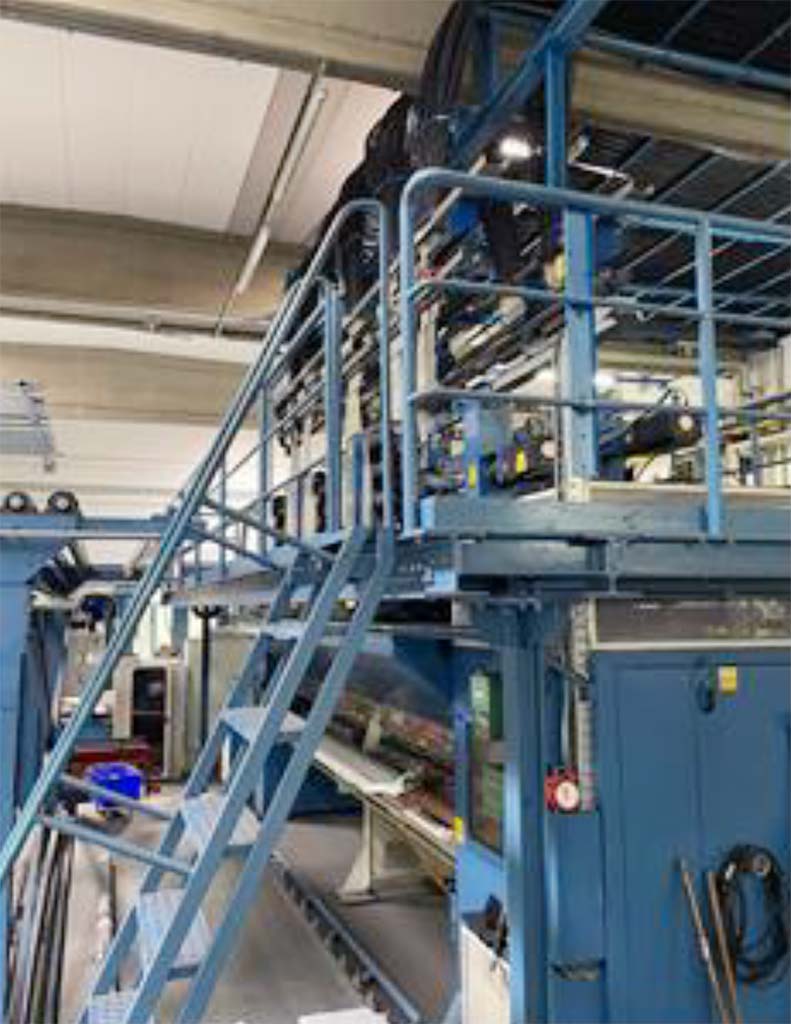

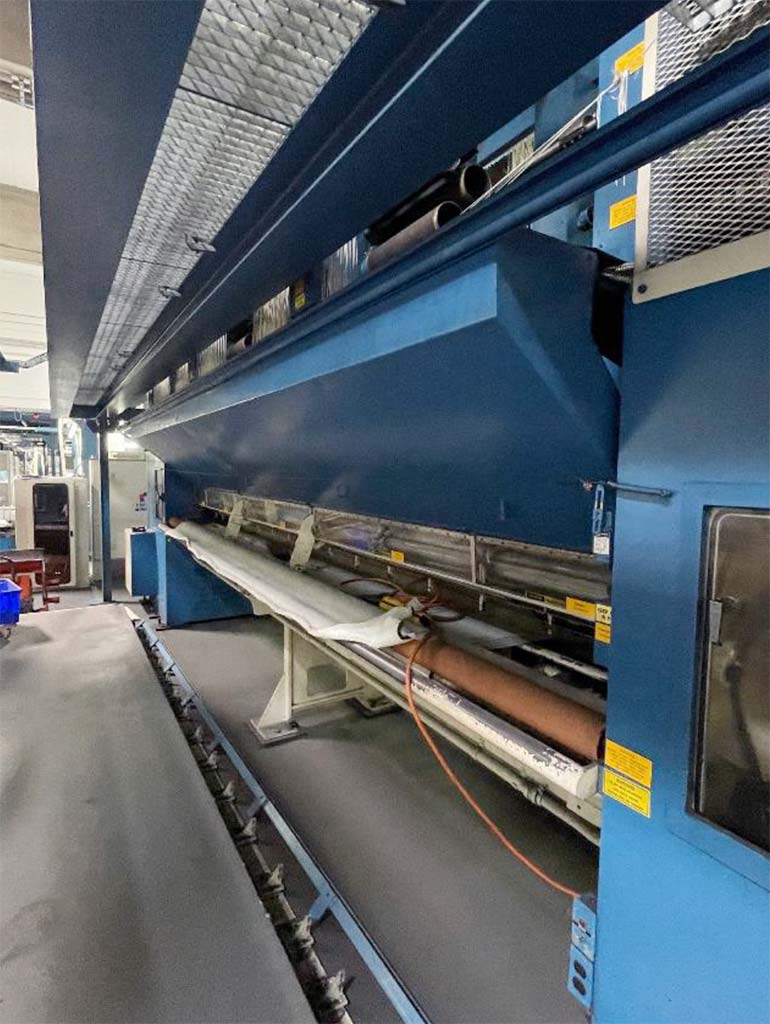

Tufting Machine TUFTCO CORP. SUPER SOUTHERN II Continental

High speed model with SPLIT ROLL high low pile patterning device, working width: 5180mm, needle gauge: 1/8 inch, 1632 (2x 816). Equipment: adjustable needle stroke eccentric and needle stroke adjustment lever with counterweights, prepared in side drive frames, easily accessible at working height, pile height adjustment range 5-16mm, table height adjustment (machine bed) with hydraulically controlled table lock via ENCORE PC memory programmable controller, looper stroke and knife stroke eccentrics with counterweights, 2 needle bars with individual needles, 2 looper bars with Cut Loop individual loopers, 2 knife bars with Tuftco knife blocks, 8 knives per block, individually replaceable, reed plates for front and rear needle bar, ENCORE PC memory programmable controller for controlled stitch density and controlled backing tension, main shaft designed as a hollow shaft with integrated pump controlled pressurized oil circulation lubrication or spray lubrication to each needle drive connecting rod bearing and main shaft bearing in the side drive frames, 2 PC memory programmable HYDRASHIFT DRIVES for smooth needle bar shift, 12 shift steps each to the right/left per needle bar, high speed version with linear slide bearings in the needle bar suspension, pneumatic disc brakes on the main shaft, main shaft rotation via ratchet indexing gear, variable main drive (2x15HP) with frequency inverter, Siemens memory programmable controller with fully wired control cabinet, mounted externally on the control cabinet door. An on-site inspection is possible.
seller offer No. resale INNO31605
