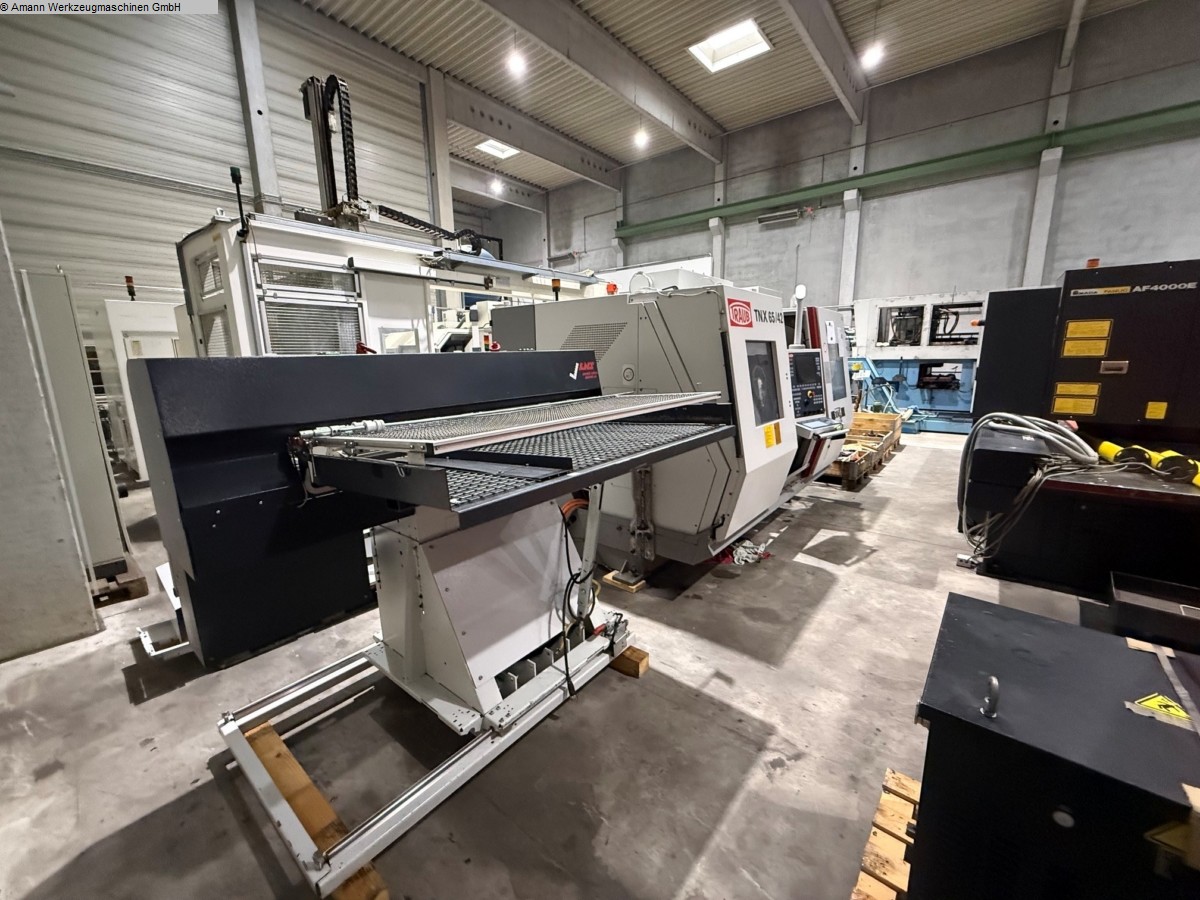

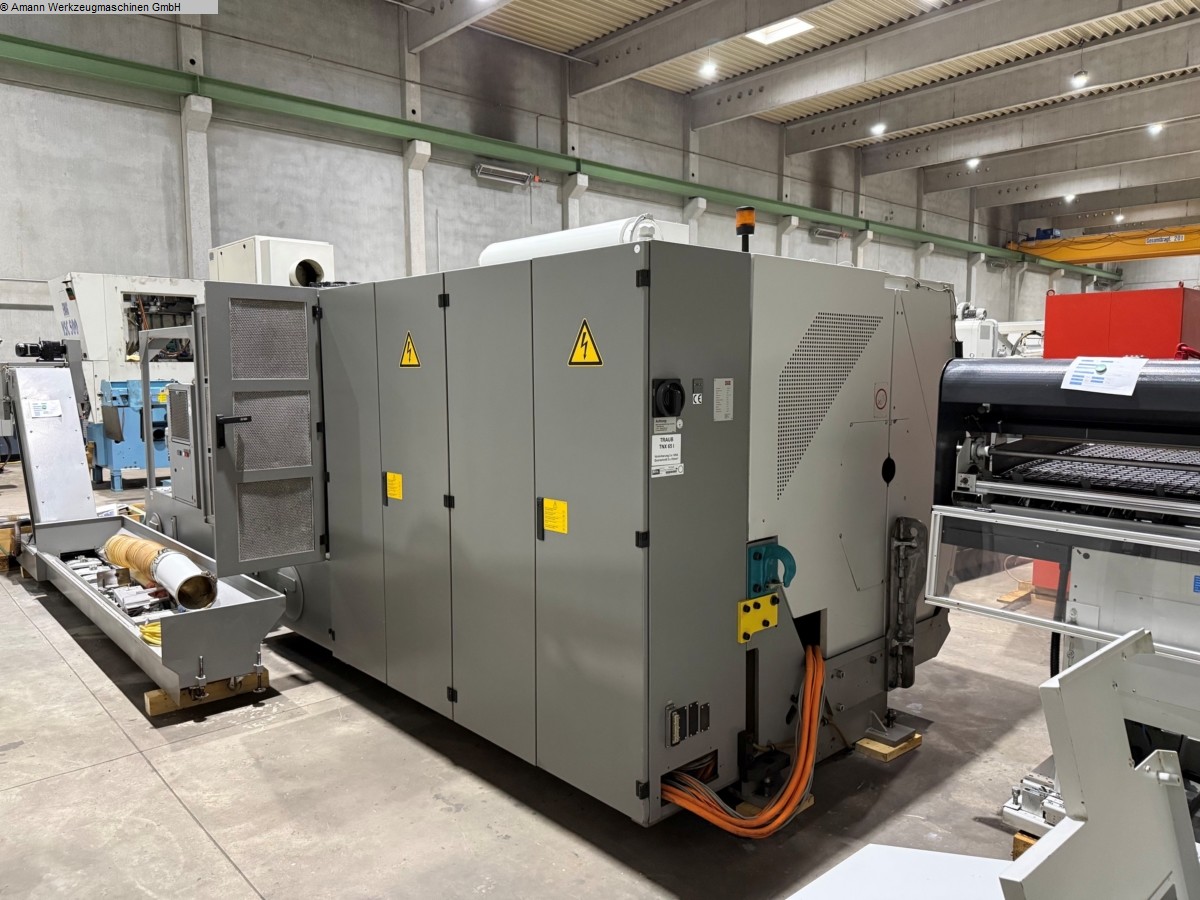

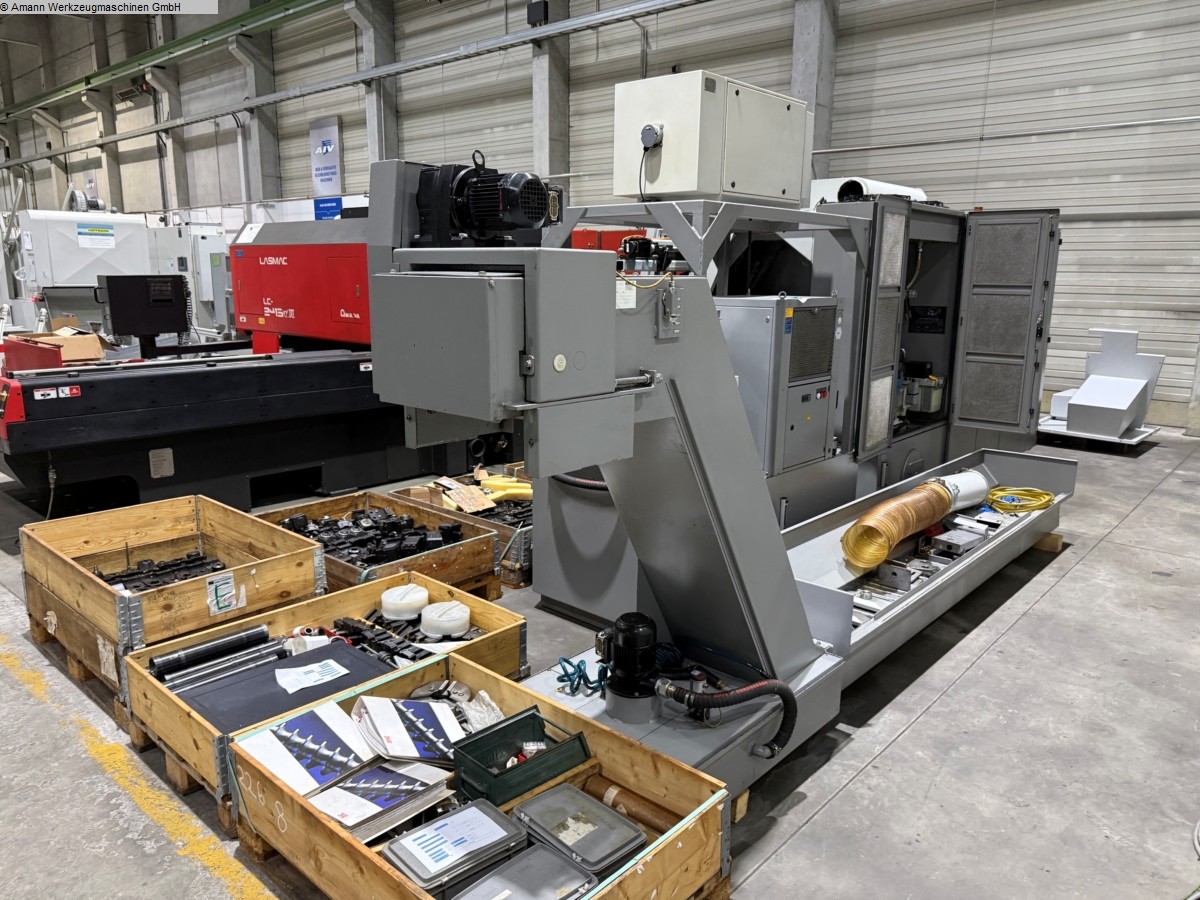

CNC Turning Centers TRAUB TNX65/42

turning diameter: 275 mm
turning length: 900 mm
control: TRAUB TX8i-s
spindle passage: 65 mm
spindle turning speed - stepless: 1 - 5.000 U/min
spindle diameter in front bearing: 110 mm
C-axis: 1 - 500 U/min
x-axis: 175 mm
z-axis: 650/975 mm
y-axis: +/- 40 mm
rapid traverse X/Y/Z: 20 / 40 / 20 m/min
feed capacity X/Y/Z: 5,5 / 5,5 / 10 kN
tool turret - number of stations: 10
number of driven tools: 10 mm
toolpiece turning speed range: 1 - 6.000 U/min
power capacity at 25 % load: 5,50 kW
max. torque at 25% load: 17,50 Nm
tool taper DIN 69880: Ø30x55
spindle diameter in front bearing: 110 mm
total power requirement: 95,00 kW
weight of the machine ca.: 16,00 t
dimensions of the machine ca.: 10,00 x 3,50 x H3,00 m
