CNC Turning Centers TBI TC 200-65 MC

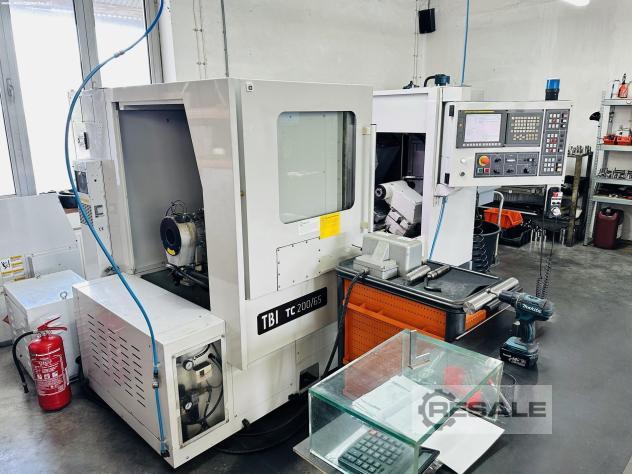

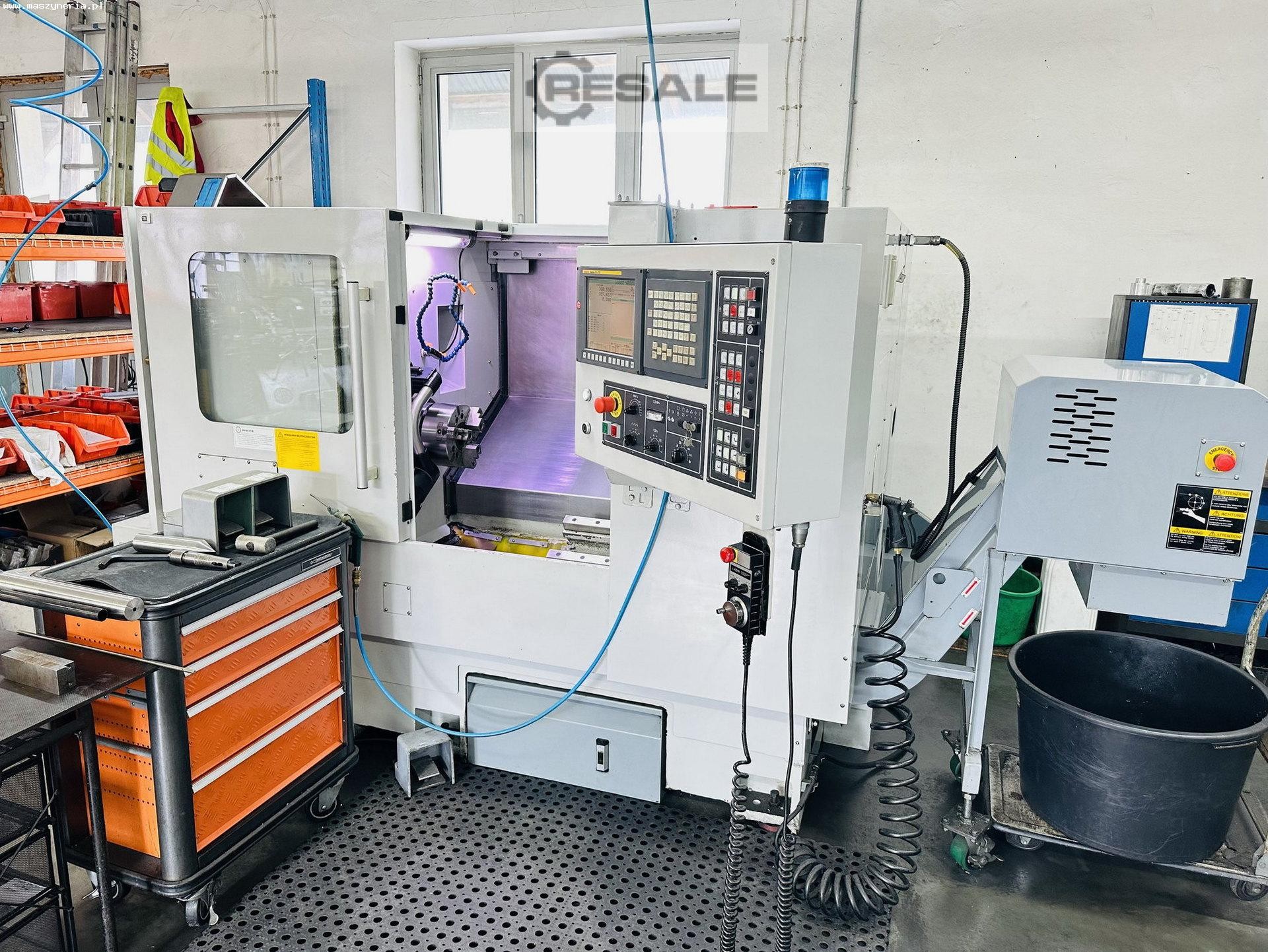

TBI TC 200-65 MC CNC turning center was built in 2015 in Taiwan by TBI Technology Ltd. The machine, distinguished by its high reliability and extensive equipment, was created as an effective answer to the needs of even the most demanding customers. Workpieces with a maximum diameter of 500 mm are machined inside a large, fully illuminated workspace using a powerful spindle and tools taken from a 12-position turret. Daily work, in turn, is facilitated by a FANUC CNC control with the innovative MANUAL GUIDE workshop programming tool, which reduces the time between drawing up the technical drawing and the actual production of the workpiece. The offer also includes, among others, a hydraulic tailstock and an automatic tool measuring probe. The TBI TC 200/65 MC metal lathe weighs 3200 kg.

Technical specifications of the TBI TC 200/65 MC CNC lathe
- maximum turning diameter: 210 mm
- maximum turning diameter above the bed: 500 mm
- maximum turning length: 460 mm
- feed in the X/Z axis: 215/510 mm
- feed rate in X,Z axis: 30 m/min
- maximum spindle rotational speed: 4000 rpm
- spindle bore: 65 mm
- spindle tip: A2-6
- spindle drive power (S1/S6): 11/15 kW
- maximum tool diameter: 32 mm
- tool cross-section: 20×20 mm
- tailstock extension: 370 mm
- tailstock sleeve extension: 50 mm
- tailstock sleeve diameter: 65 mm
- tailstock sleeve taper: MT4

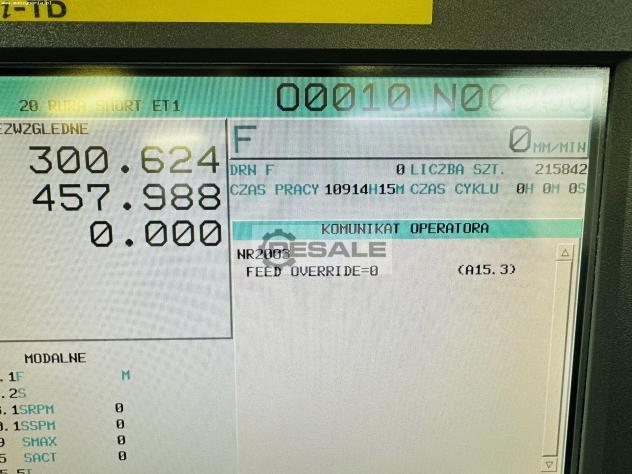

- operating hours: 10914 h
- cooling pump capacity: 55 l/min
- cooling pump pressure: 2.5 kg/cm2
- cooling pump motor power: 3/4 HP
- hydraulic pump motor power: 75 kW
- M5651405 dimensions (L x W x M5651405 H): 2500 x 1820 x 1680 mm
- weight of the TBI TC 200/65 MC machine: 3200 kg

Technical data of the TBI inclined bed CNC lathe

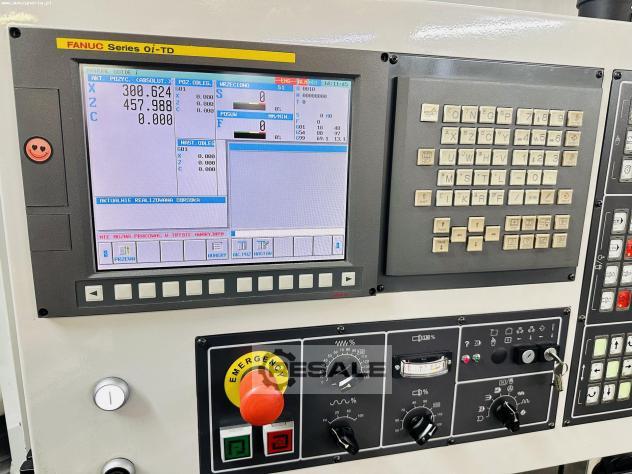

- CNC control FANUC Series 0i-TD with MANUAL GUIDE
- automatic tool measuring probe

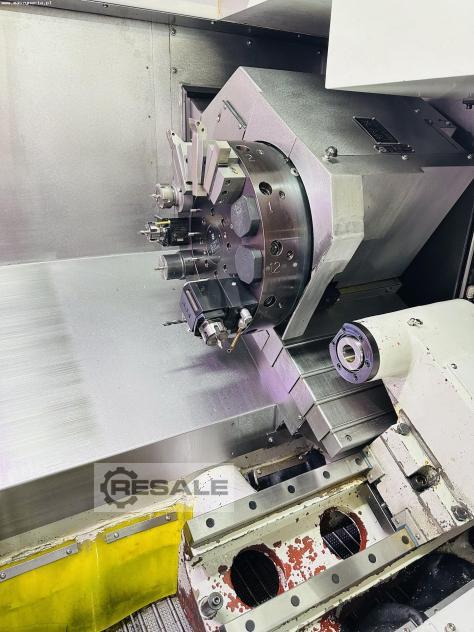

- SAUTER 12-position turret with VDI 30 toolholders
- driven tools
- straight and angle toolholders for driven tools
- hydraulic tailstock with claw sleeve

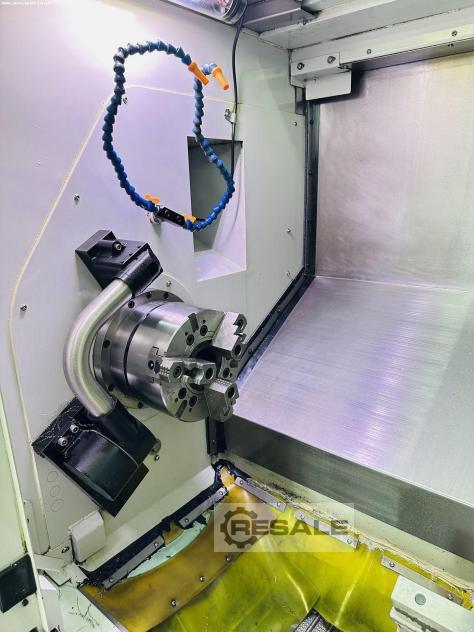

- 3-jaw lathe chuck 203 mm
- belt chip conveyor
- preparation for bar feeder
- cooling system

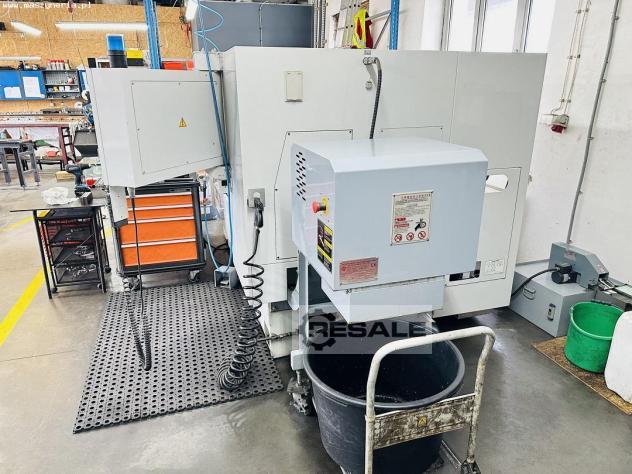

- hydraulic unit
- central lubrication system
- oil skimmer (oil separator)
- workspace illumination
- levelling shims
- ball screws in the X,Z axis
- CE certificate
seller offer No. resale 167403983
