Vertical 5-Axis Machining Center TAJMAC ZPC S.S. MCFV 1060S
metal working machines / boring mills and machining centers
X-axis travel: 1016mm, Y-axis travel: 610mm, Z-axis travel: 760mm, distance from spindle nose to pallet: 150-910mm, distance from spindle axis to column: 635mm, distance from spindle axis to front of machine: 820mm, distance from table to floor: 959mm, working surface dimensions: 1270x590mm, number ...
Manufacturer: TAJMAC ZPC S.S.
Model:MCFV 1060S
Type of machine: Vertical 5-Axis Machining Center
item-No.: 170359206
Quantity: 1
Date: 23.10.2026
Year of manufacture: 2008
Location:
Germany
Deutschland
Price:
Machine in stock:No
Seller-item-No.:INNO32612

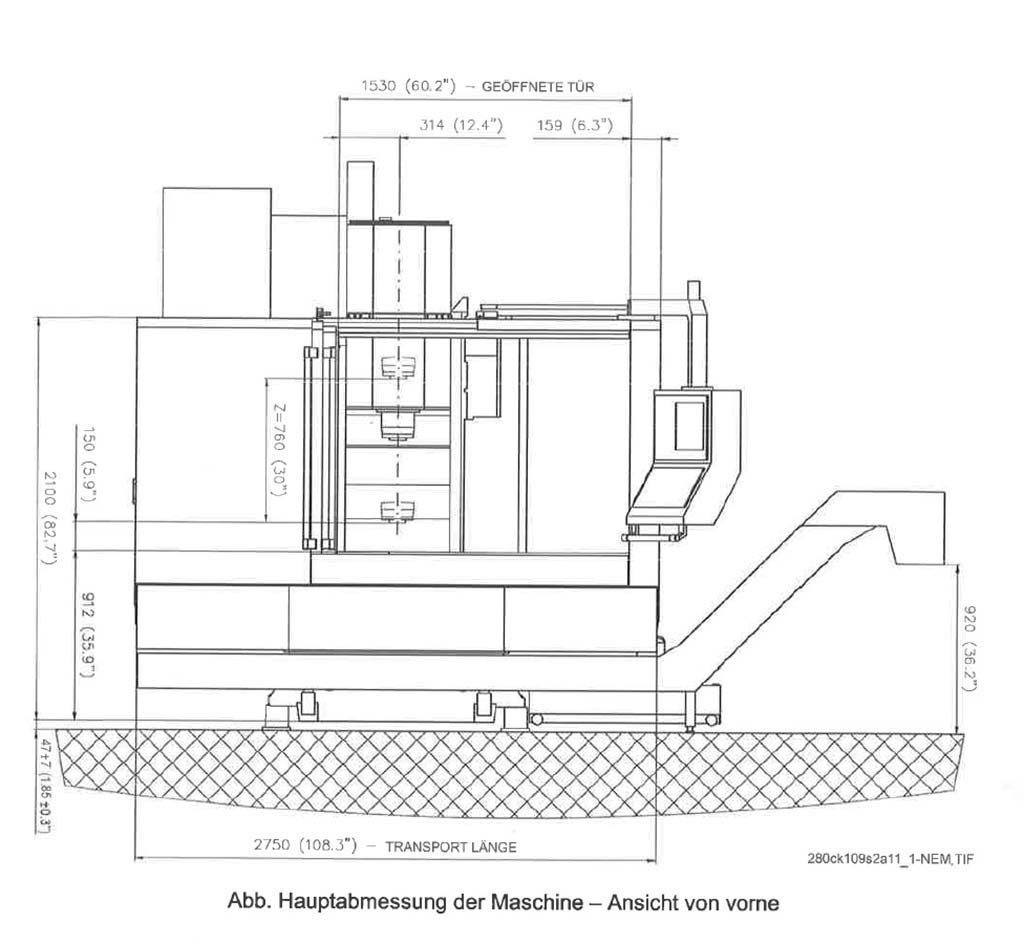

X-axis travel: 1016mm, Y-axis travel: 610mm, Z-axis travel: 760mm,
distance from spindle nose to pallet: 150-910mm, distance from spindle
axis to column: 635mm, distance from spindle axis to front of machine:
820mm, distance from table to floor: 959mm, working surface
dimensions: 1270x590mm, number of T-slots: 5, T-slot width: 18mm,
center T-slot dimensions: 18 H6 mm, centering bore diameter: 30 H6 mm,
T-slot spacing: 125mm, max. table load: 1350kg, working feed rate:
0-15m/min, max. programmable feed rate: 40m/min, rapid traverse speed:
40m/min, acceleration: 5m/s², max. spindle speed: 10,000rpm, control
system: HEIDENHAIN, length: 2750mm, width: 2120mm, height: 2100mm,
weight: approx. 7.7t, operational hours counter: approx. 17,000h,
including documentation. An on-site inspection is possible.
