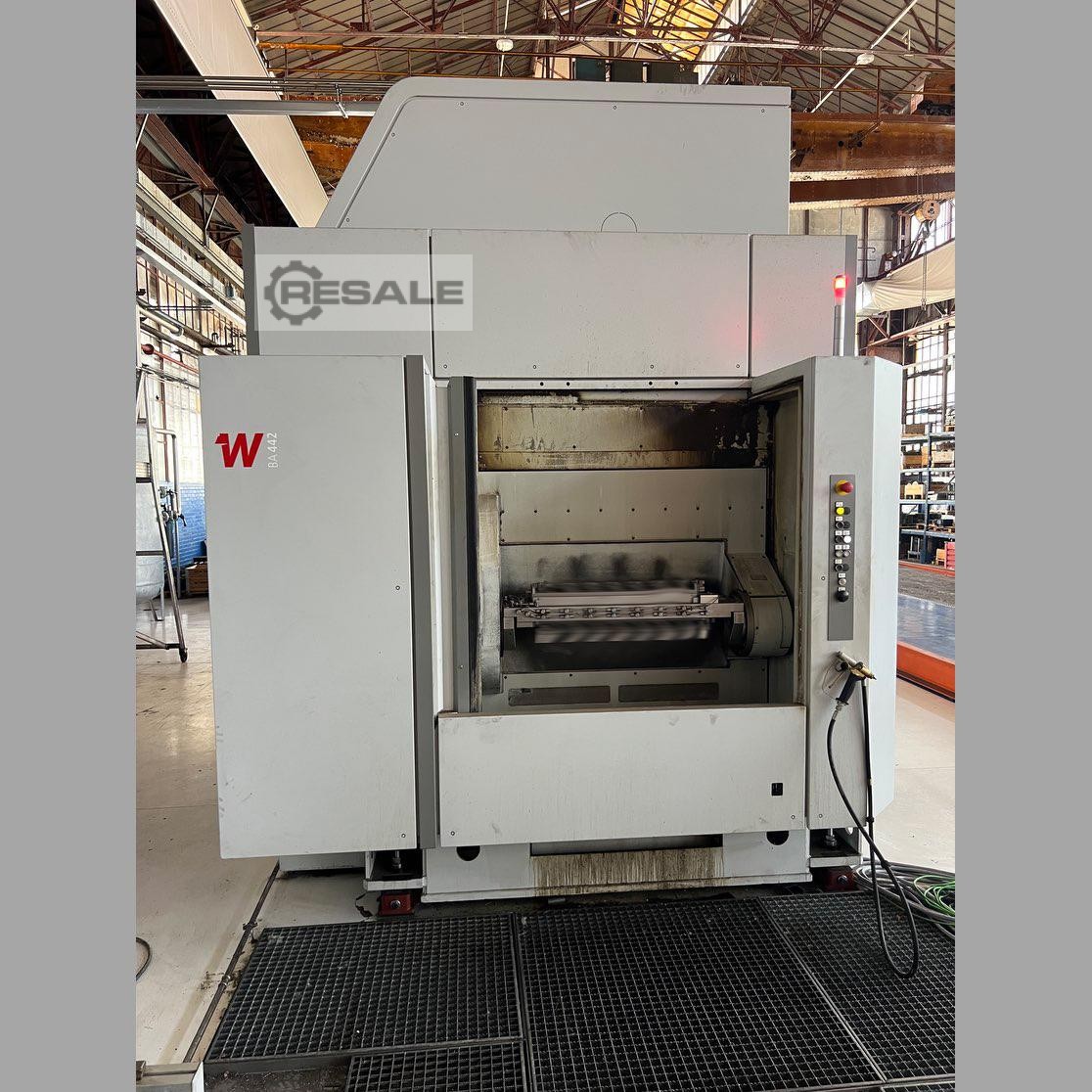

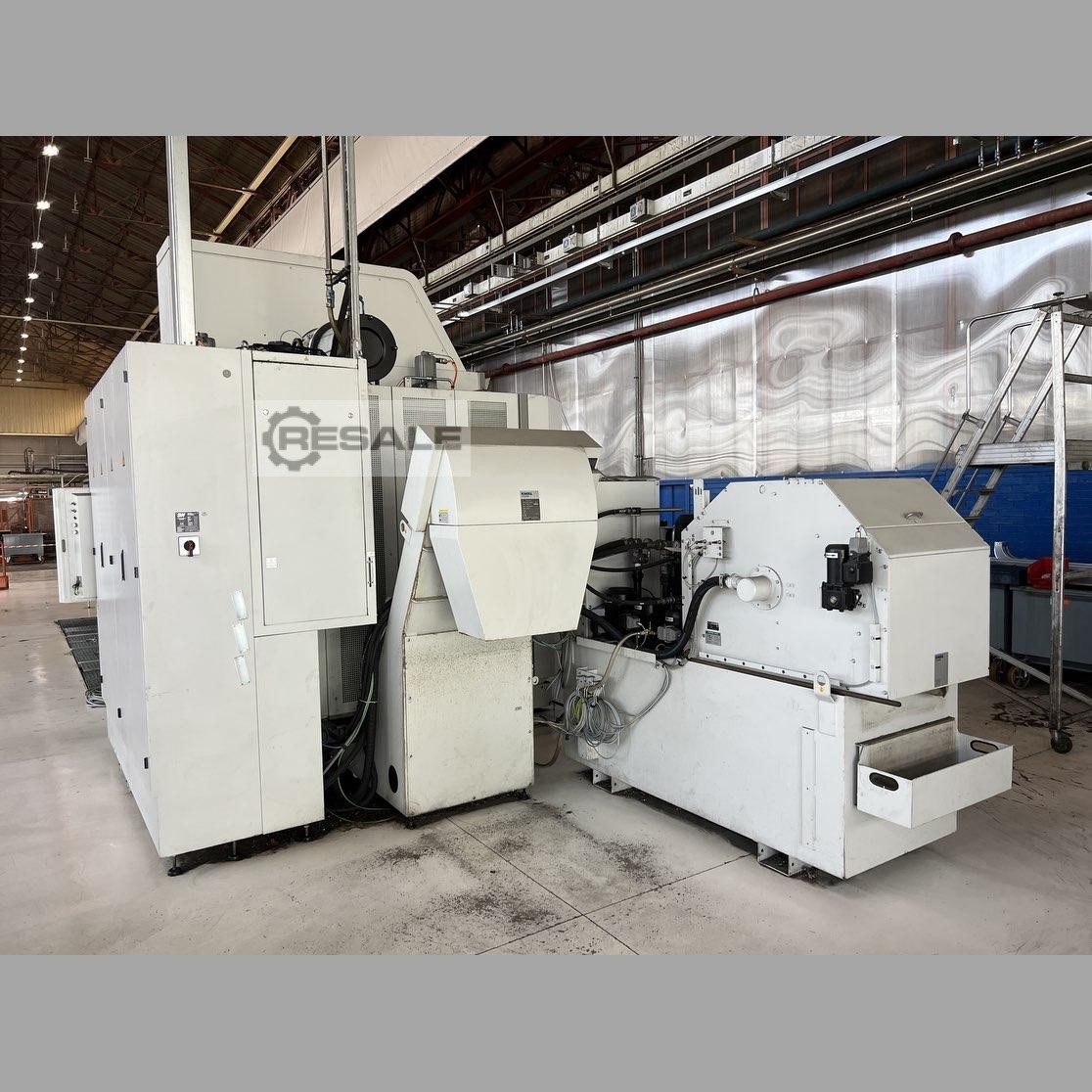

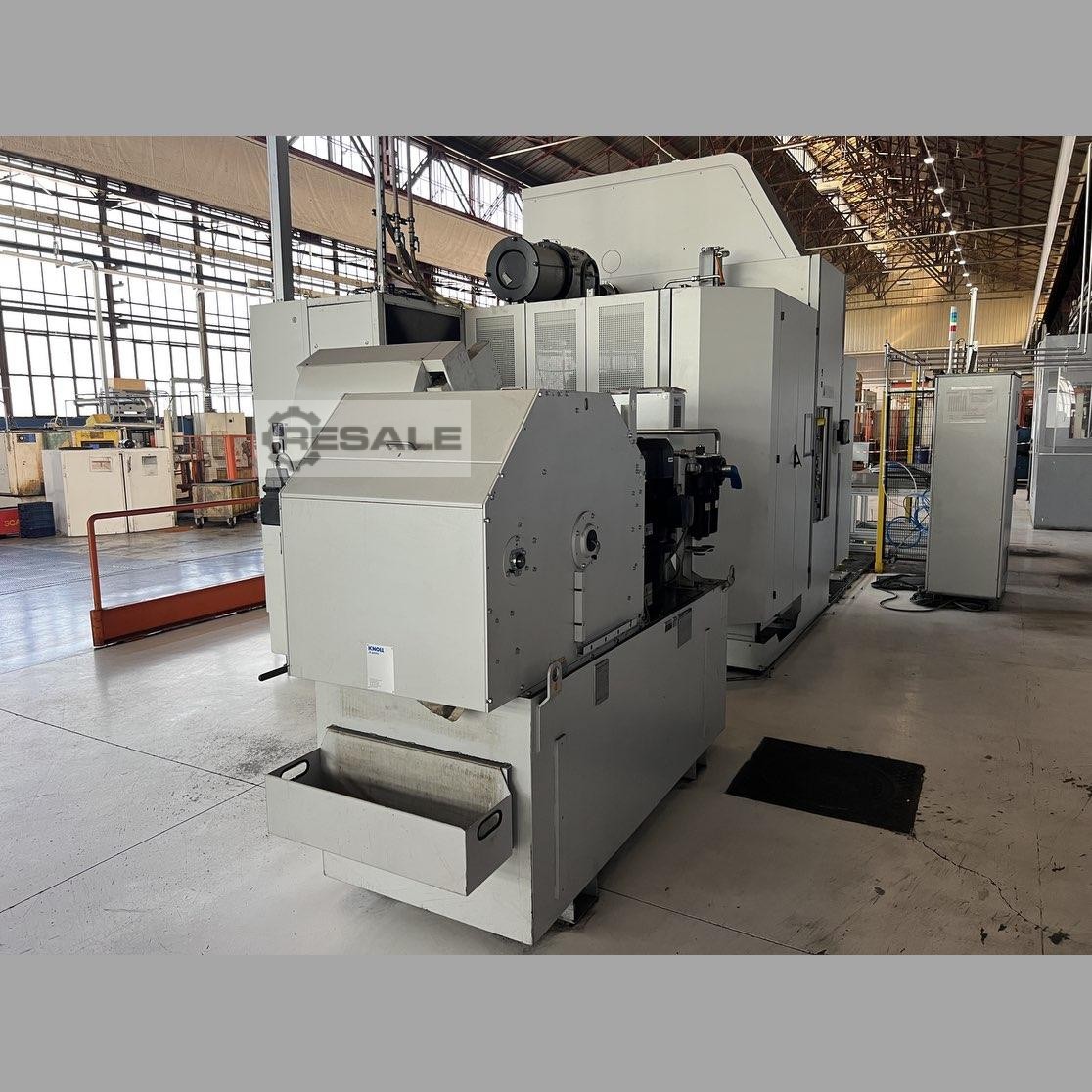

Horizontal Numerically Controlled Machining Centres SW BA 442

GENERAL

Project No.: 905842
Quantity: 1 pcs.
Manufacturer: SW Schwäbische Werkzeugmaschinen
Type: BA 442
Control: Siemens Sinumerik one
Year of Make: 2022
Condition: Used machine
Approx (hrs): 9760
Spindle Approx (Hrs): 4060

DESCRIPTION

MILLING

Travel in X 200 mm
Travel in Y 500 (775) mm
Travel in Z 425 mm
Max. rapid traverse speed in X/Y/Z 55/70/70 m/min
Max. acceleration in X/Y/Z 8/8/12 m/s2
Feed force in X/Y/Z 15000/15000/12000 N
Direct displacement measurement system
Tool holder HSK 63
Max. speed milling spindle 17500 1/min
Max. power at ED 10-40/100% 4x32 kW
Max. torque at ED 10-40/100% 4x72 Nm
Spindle diameter in the front bearing 80 mm
4 pcs horizontally arranged milling spindle/s
Spindle spacing 200 mm
Pneumatic tool system control
Chain Tool Magazine 4x30 Stations
Max. tool diameter 80 mm
Max. tool diameter for free neighboring spaces 150 mm
Max. tool length 300 mm
Max. tool weight 10 kg
Chip to chip time 3 s
Bridge dimension 1030x550 mm
1 set of tension bridge supports

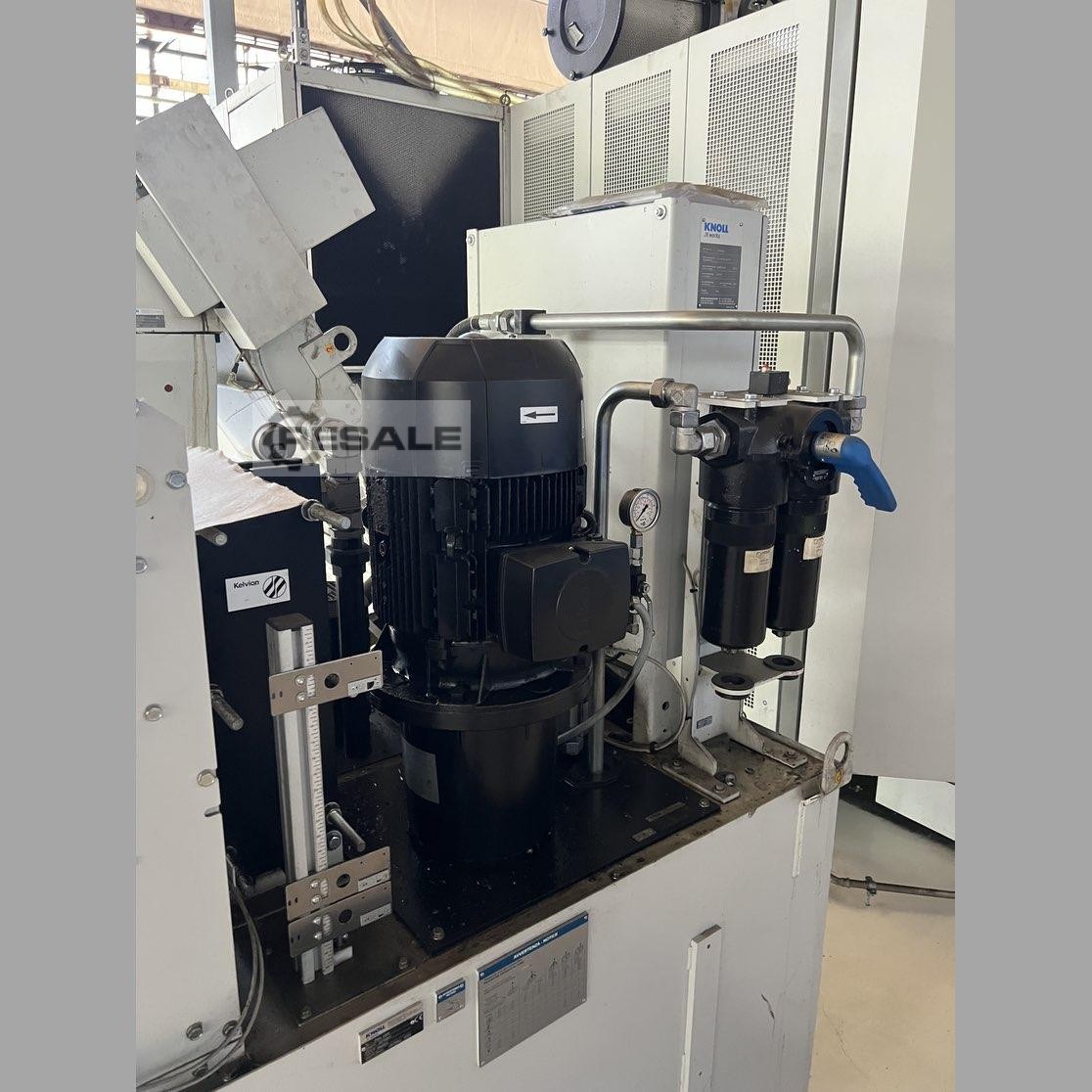

Clamping hydraulics 250 bar
2 pcs Additional clamping circuit(s)

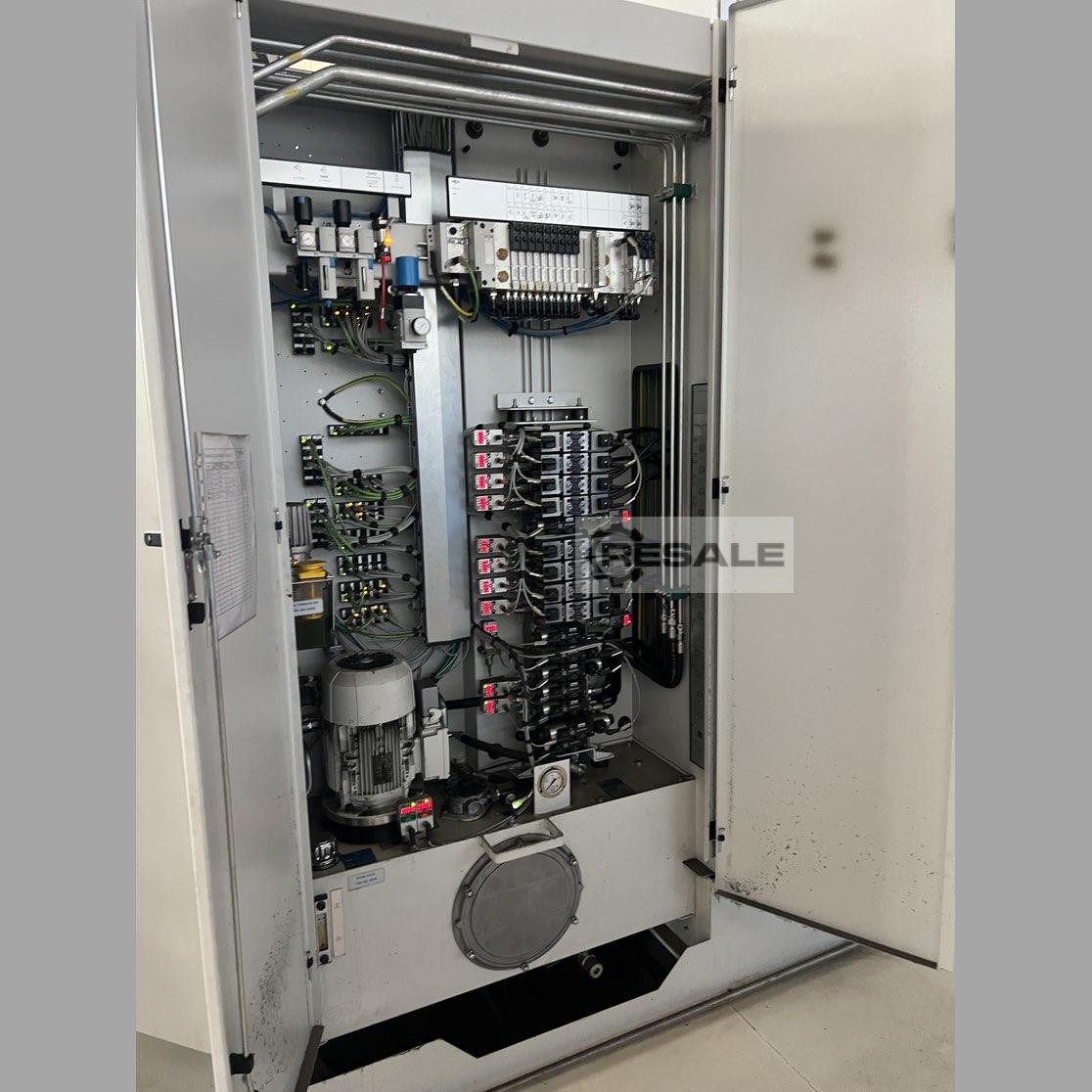

Pneumatic workpiece system control

OTHER EQUIPMENT

Tool breakage monitoring toolinspect
Tool life monitoring
Splash protection cladding with fully encapsulated working area
Automatic work room door
Lighting in the work area
Oil/Emulsion Mist Extraction System
Scraper Chip Conveyor
Machine is/was operated with emulsion
Internal coolant supply

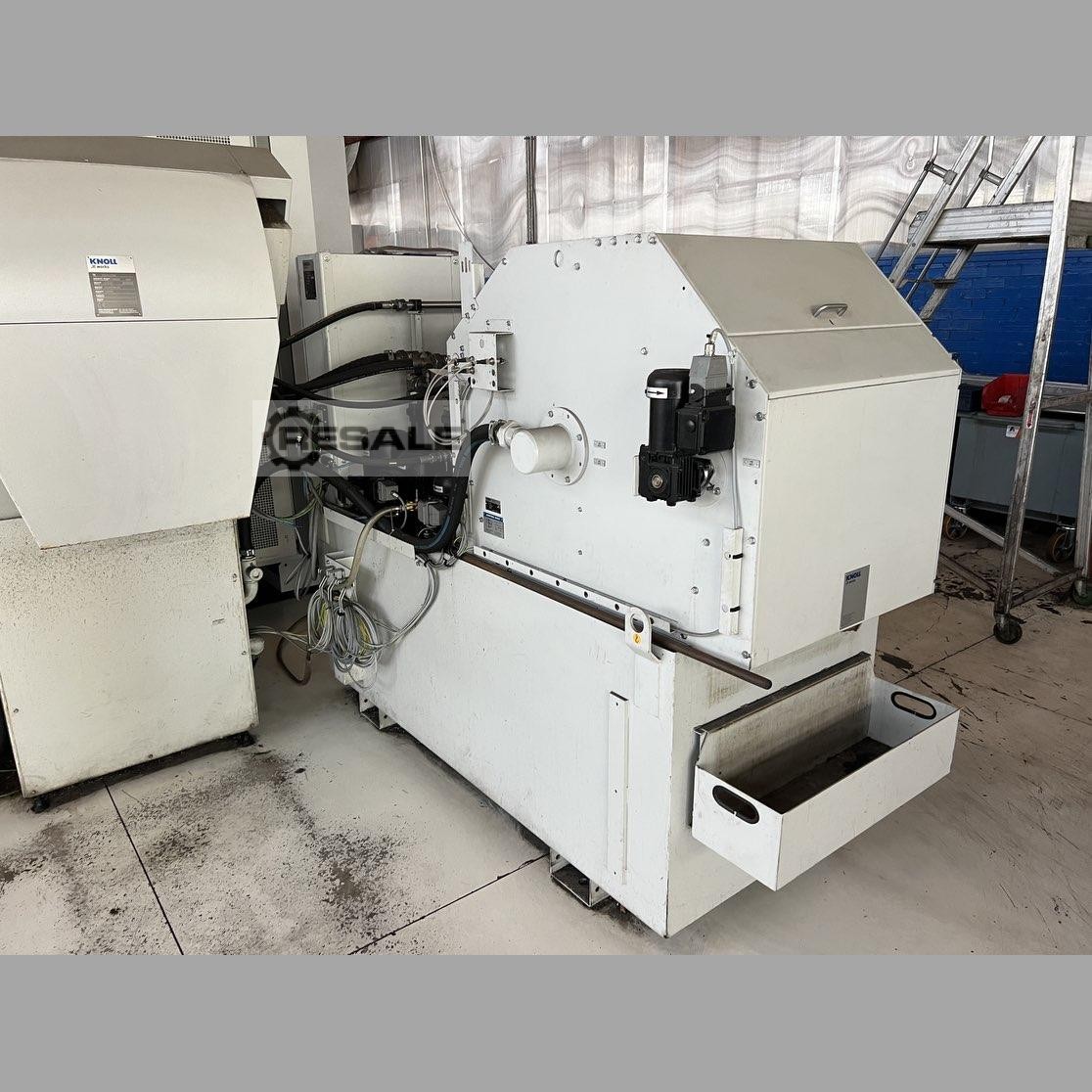

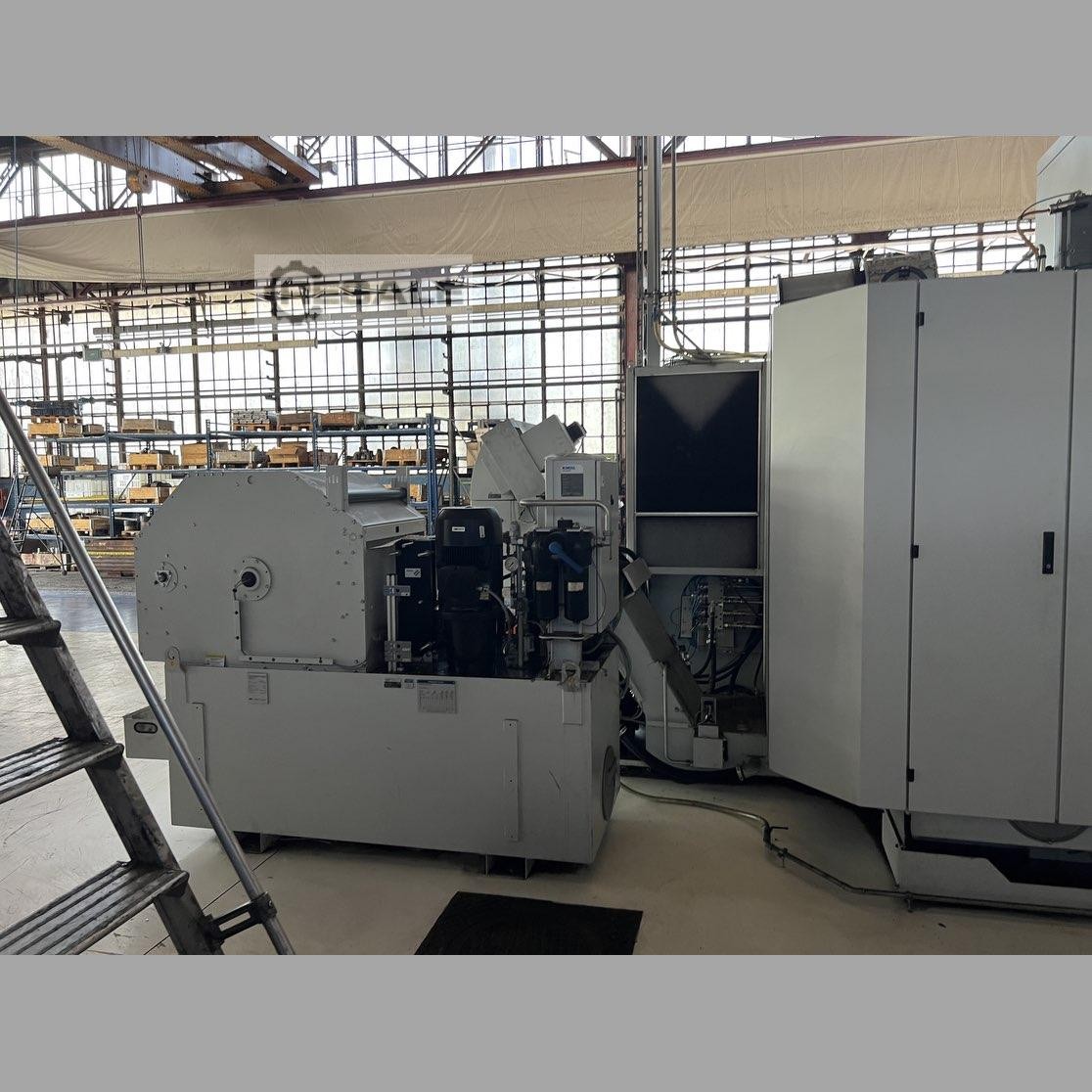

Coolant device with paper belt filter
High pressure pump 70 bar
Additional control panel for tool management
Machine condition light

GENERAL TECHNICAL DATA

Total power requirement 110 kVA
Transport dimensions of the machine (LxWxH) approx. 4400x3270x3050 mm
Area requirement of the entire system LxWxH) approx. 4380x7000x5500 mm
Machine weight approx. 18000 kg

NOTE

We have described the named product with the greatest possible care. However, since this does not come from our production, the data mentioned and the equipment details may differ. We therefore ask you to consider the description as non-binding and to check the data in detail during an inspection.
