CNC Lathe SPINNER TC 32-MC
metal working machines / lathes
A lathe Spinner requiring repair is available. Travel X/Z: 96mm/245mm, max. turning length: 245mm, max. swing diameter: 120mm, turning diameter over bed: 290mm, spindle bore: 42mm, speed: 6000rpm, rapid traverse: 15m/min, tool stations: 12, tool holder: VDI16, bar passage: 42mm. Machine dimensions ...
Manufacturer: SPINNER
Model:TC 32-MC
Type of machine: CNC Lathe
item-No.: 169426497
Quantity: 1
Date: 07.05.2026
Year of manufacture: 2002
Location:
Germany
Deutschland
Price:
Machine in stock:No
Seller-item-No.:INNO31326
A lathe Spinner requiring repair is available. Travel X/Z: 96mm/245mm,
max. turning length: 245mm, max. swing diameter: 120mm, turning
diameter over bed: 290mm, spindle bore: 42mm, speed: 6000rpm, rapid
traverse: 15m/min, tool stations: 12, tool holder: VDI16, bar passage:
42mm. Machine dimensions X/Y/Z: approx. 4400mm/1200mm/2200mm, weight:

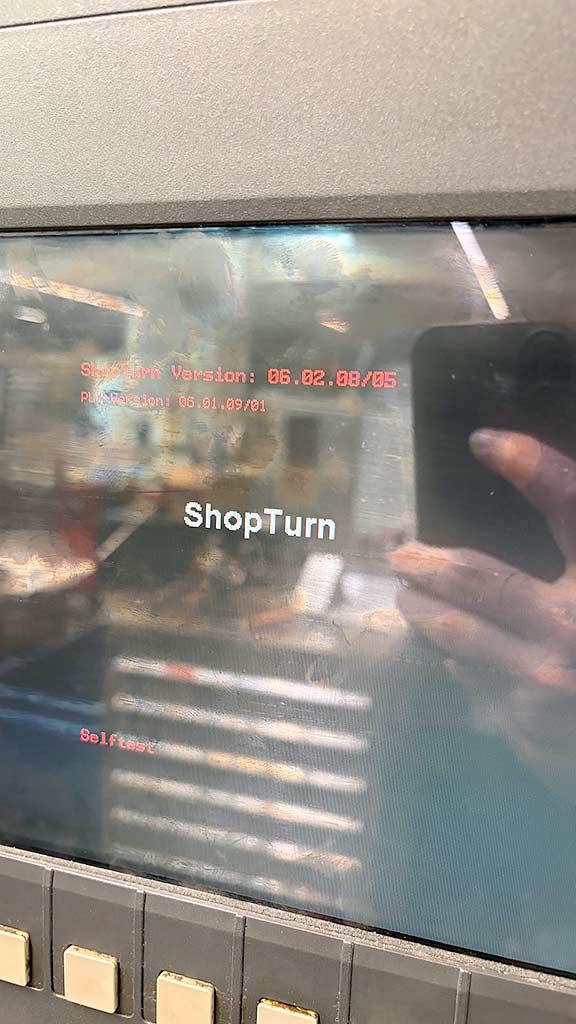

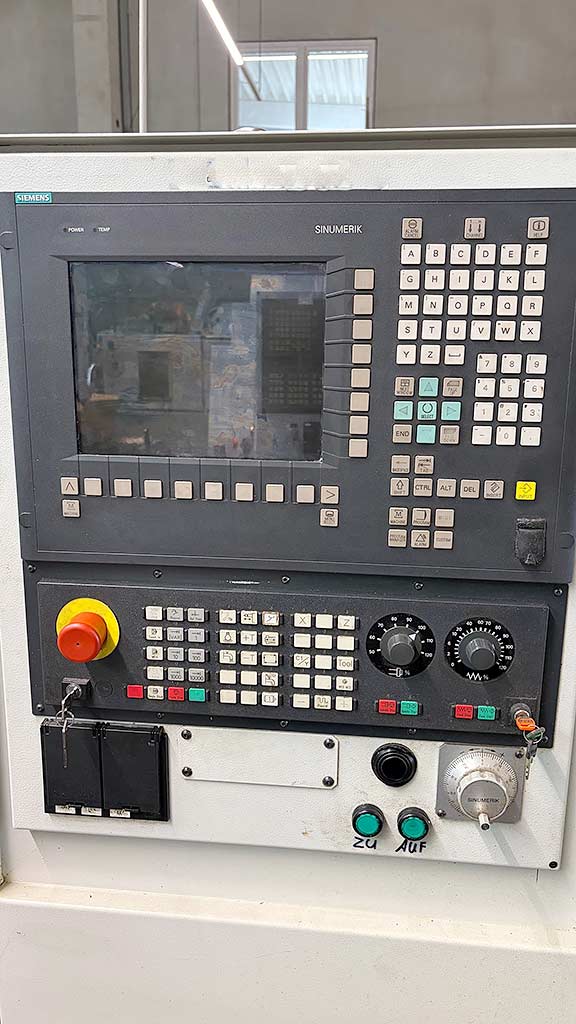

approx. 3000kg, control: Siemens Sinumerik ShopTurn. Including bar

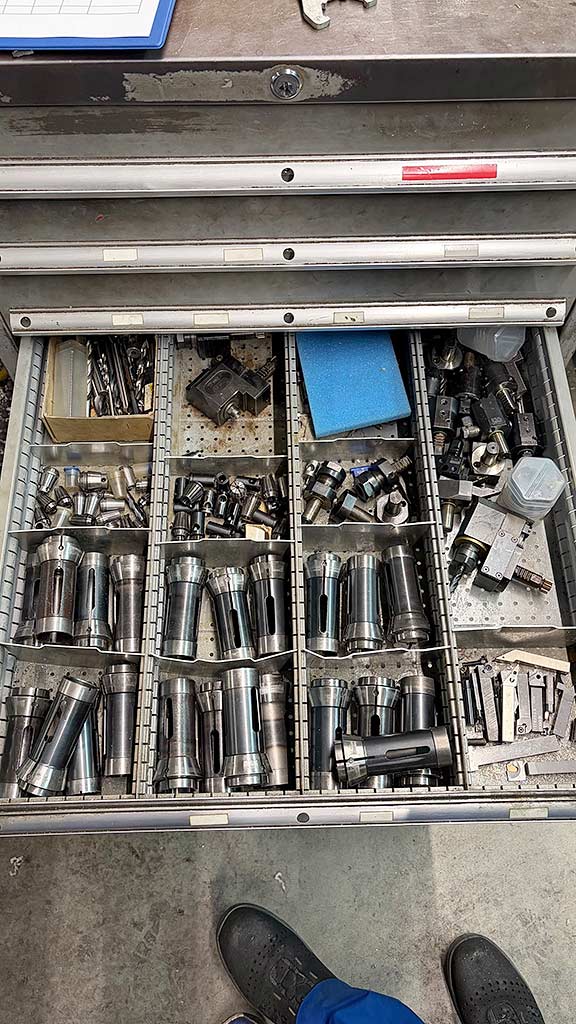

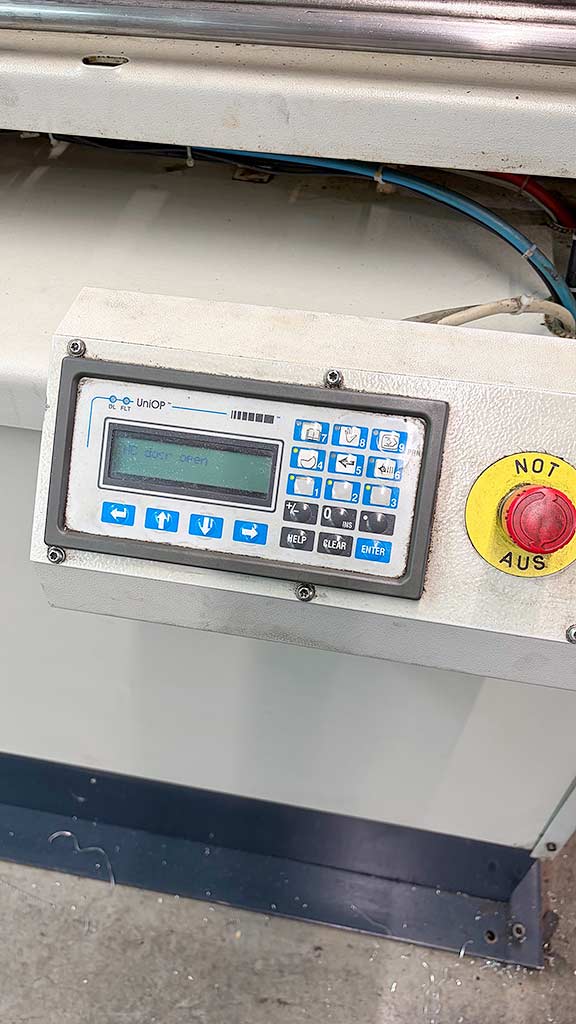

feeder and drawer contents. The machine has the following problems:
high measuring inaccuracy, problems with the handwheel and measuring
arm as well as measurement deviation. Documentation available. An
on-site inspection is possible.
