Engine Lathes (Sliding, Surfacing And Screw Cutting Lathes) OPTIMUM DREHMASCHINE D330

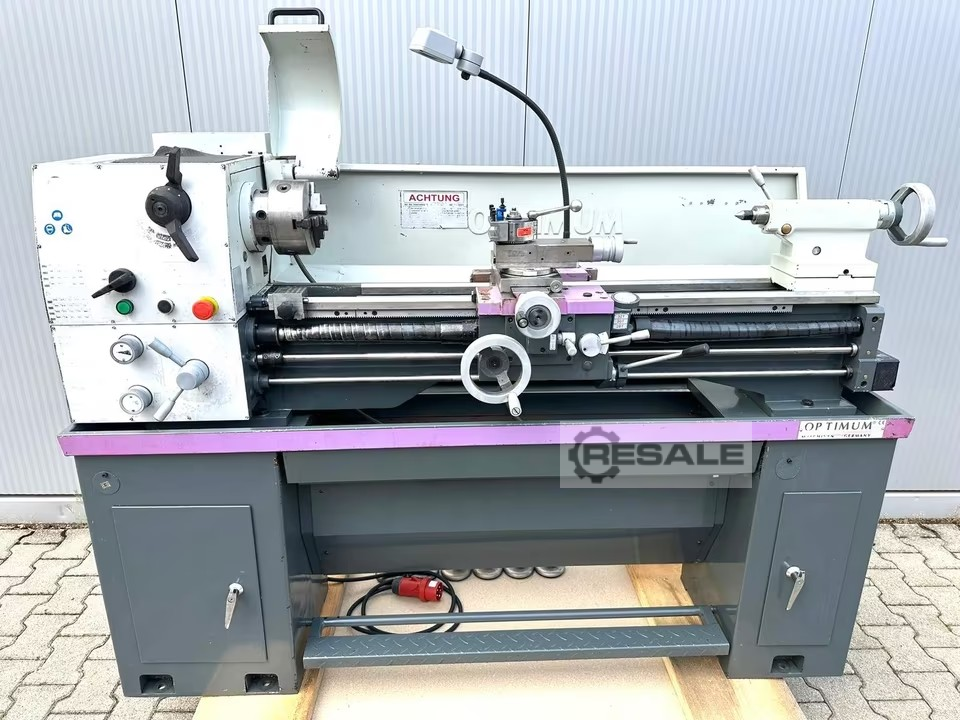

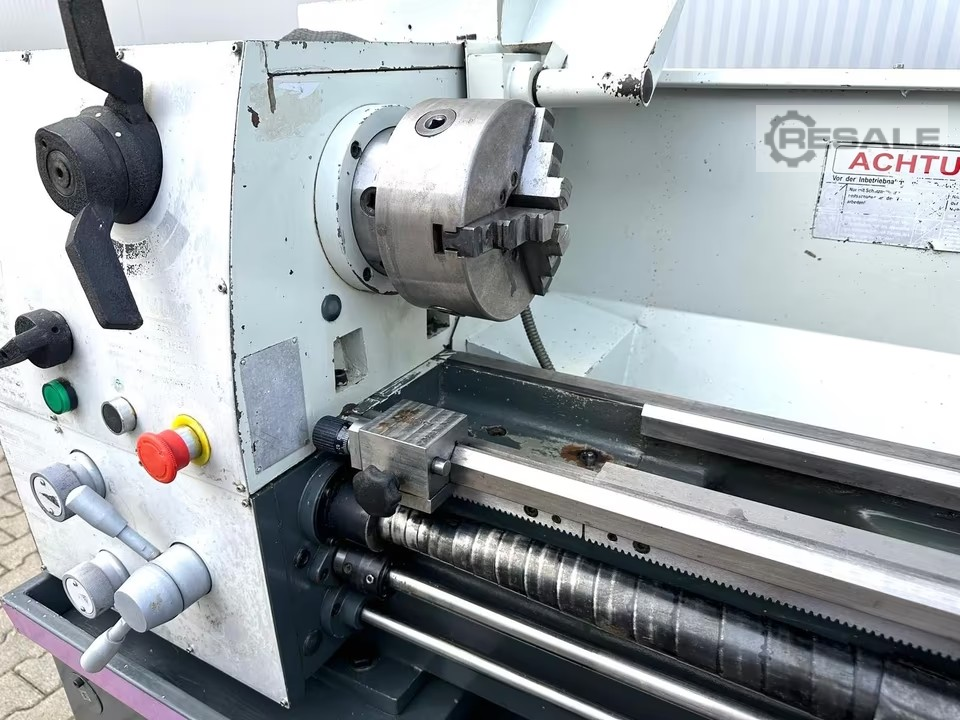

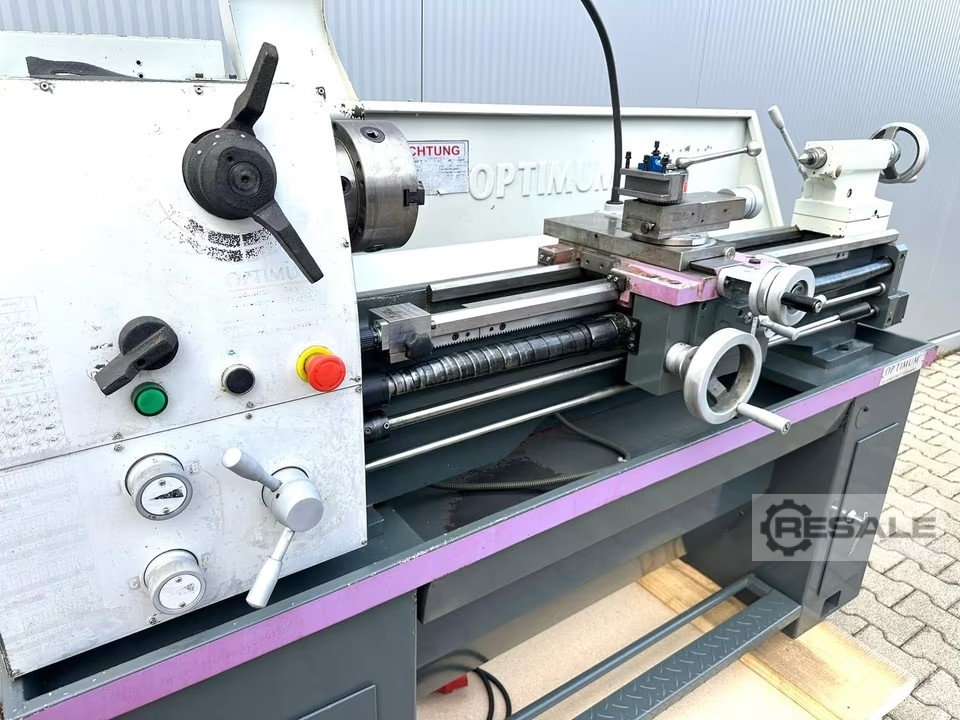

Optimum Lathe D330 x 1000 SG

-Center width: 1000 mm
-Circumferential diameter over bed: 330 mm
-Circumferential diameter over support: approx. 190–200 mm
-Spindle bore: approx. 38 mm
-Spindle mount: Camlock (mostly D1-4)
-Speed range: approx. 70 – 2000 rpm (stepped)
-Feeds: longitudinal and flat, automatic
-Threading: metric and imperial possible
-Motor power: approx. 1.5 – 2.2 kW
-Voltage: 400 V / 3 phases
-Tailstock mount: MK3
- Spindle holder: MK5
-Work light
-Three-jaw chuck
-13x Face Plates/Drive Plates
-Multifix with 1 steel holder
-Machine feet
-Lining protection

Dimensions:
LxWxH 1.9x0.7x1.5 meters / Weight 700Kg
seller offer No. resale 169693014
