CNC Turning- and Milling Center OKUMA LT 300-MY Twin Star (7 machines available)

max. turning diameter:350 mm
turning length:1040 mm
control:OSP E 100 L Fanuc
greates pass round over bed:550 mm
Max. distance between centres:1200 mm
max. workpiecediameter:550 mm
Traverse X-Axis 1:270
Traverse X-Axis 2:230 mm
Traverse Y-Axis 1:120 (±60) mm
Traverse Z-Axis 1:930 mm
Traverse Z-Axis 2:920 mm
Spindle 1 Power:22 / 15 kW
Spindle 1 RPM:5000 1/min
spindle nose:JIS A2-8
bar material dia.:65 mm
C-Axis:0,001°
Number of Turrets:2
Turret No.1 stations / rotary tools:12/12 VDI 40
Turret 1 tool RPM:4500 1/min
Turret 1 power rotary tools:7.0 / 3,3 kW
Turret No.2 stations / rotary tools:12/12 VDI 40
Turret 2 tool RPM:4500 1/min
Turret 2 power rotary tools:7.0 / 3,3 kW
rapid traverse X-axis:30 m/min
rapid traverse Y-axis:26 m/min
rapid traverse Z-axis:40 m/min
total power requirement:33 kVA
weight of the machine ca.:10 t
dimensions of the machine ca.:7,0 x 2,3 x 2,3 m
spindle load monitor:B
Spindle 1 Chuck:300 mm

CNC Turning-and Milling Center
The Okuma LT 300 MY has 2 turrets, the upper turret has Y-axis with milling function, the lower turret has milling function. It has main- and subspindle. This allows synchronized machining using 2 turrets.

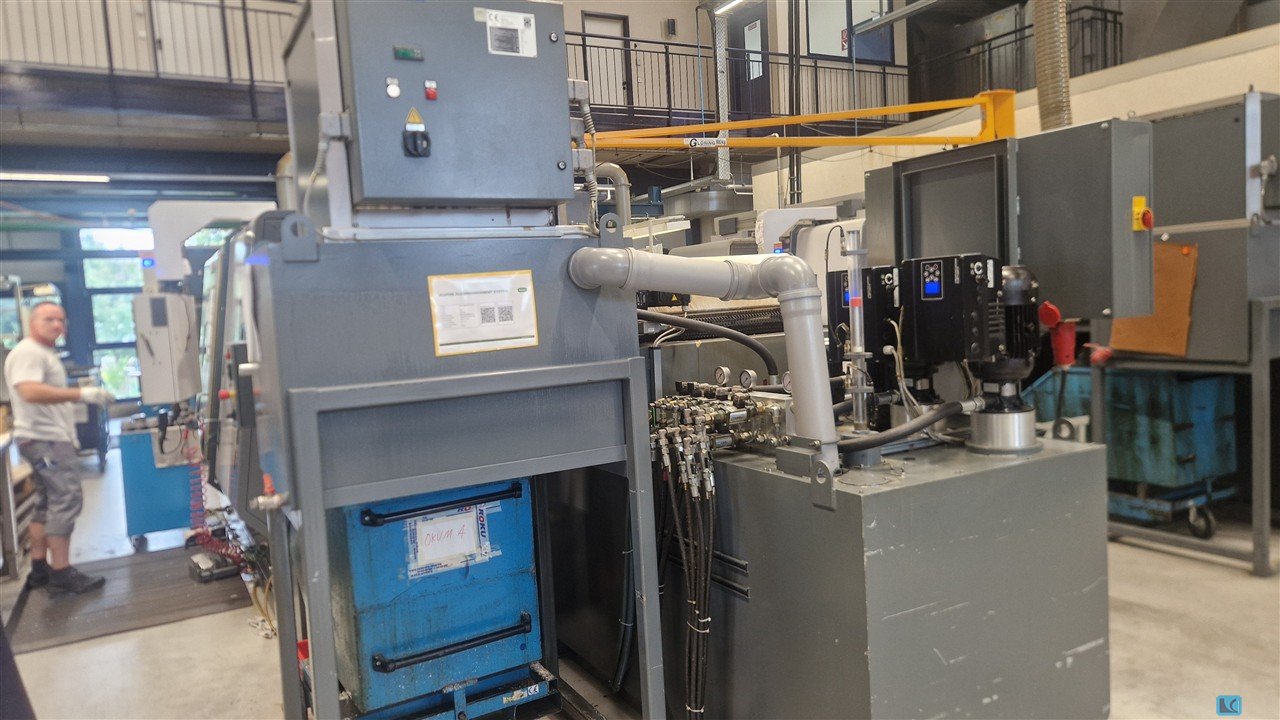

There is an Interlit paperfilter/high pressuire system with the machine with coolant cooler.
There are 7 identical machines available, all in very good and well maintained condition.

seller offer No. resale 1070-100726
