CNC Turning- and Milling Center OKUMA LT 300 MY (7 machines)

max. turning diameter:320 mm
turning length:1040 mm
control: OSP E 100 L Dialog Fanuc
greates pass round over bed:530 mm
standard turning dia.:350
Max. distance between centres:1200 mm
max. workpiecediameter:525 mm
Traverse X-Axis 1:500
Traverse X-Axis 2:350 mm
Traverse Y-Axis 1:160 (+80/-80) mm
Traverse Z-Axis 1:1200 mm
Traverse Z-Axis 2:1200 mm
Spindle 1 Power:22 kW
Spindle 1 RPM:3800 1/min
spindle nose:JIS A2-8
spindle bore:80 mm
bar material dia.:65 mm
C-Axis:0,001°
Number of Turrets:2
Turret No.1 stations / rotary tools:12/12
Turret 1 tool RPM:4500 1/min
Turret No.2 stations / rotary tools:12/12
rapid traverse X-axis:20 m/min
rapid traverse Z-axis:25 m/min
total power requirement:33 kVA
weight of the machine ca.:10 t
dimensions of the machine ca.:6,0 x 2,5x 2,3 m
High pressure coolant system:INterlit 8/20 bar
spindle load monitor:B
Spindle 1 Chuck:SMW 300 mm


CNC Turning-and Milling Center
The Okuma LT 300 MY has 2 turrets, the upper turret has Y-axis with milling function, the lower turret has milling function. It has main- and subspindle. This allows synchronized machining using 2 turrets.

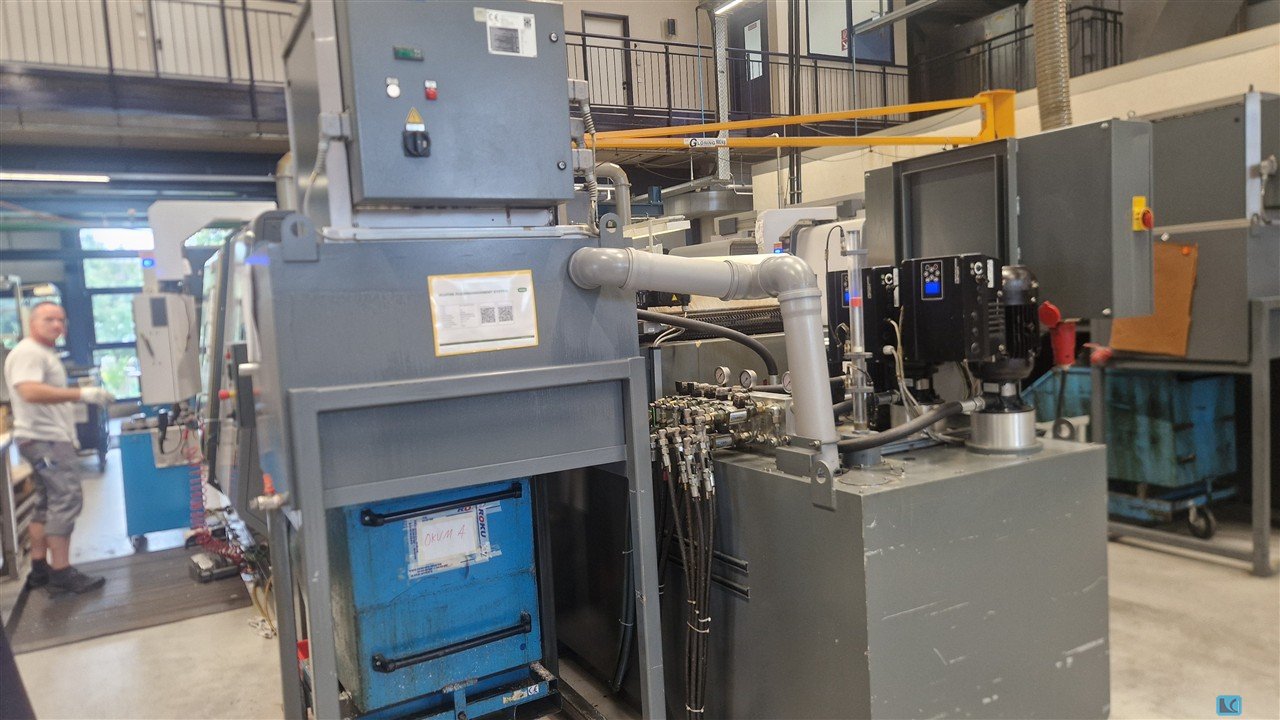

There is an Interlit paperfilter/high pressuire system with the machine with coolant cooler.
There are 7 identical machines available, all in very good and well maintained condition.

seller offer No. resale 1070-100727
