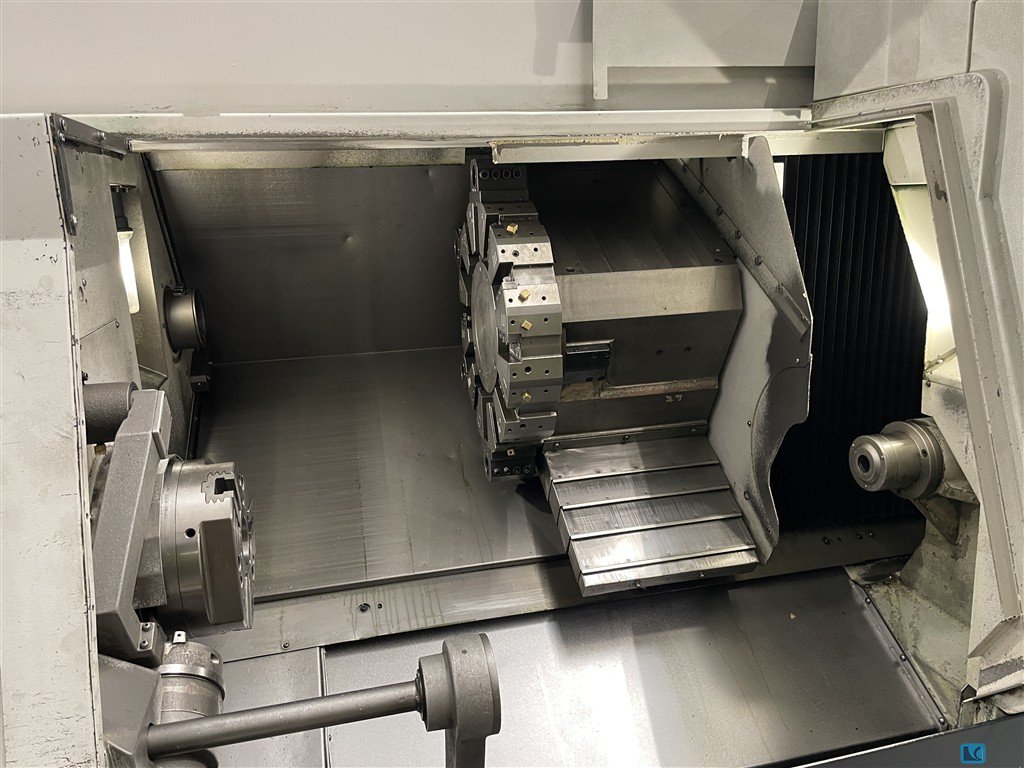

CNC Lathe MAZAK Quickturn Nexus 250-II
metal working machines / other metal working machines
turning diameter:x. 350 mmturning length:985 mmswing dia.:610 mmclamping range for bar work:77 mmspeeds:350 - 4.000 U/minTorque:465 Nmspindle nose:A2 - 8" spindle bore diameter:88 mmchucking diameter:254 mmnumbers of tools:12 travel -x axis:190 mmtravel -z axis:1.025 mmrapid traverse X-axis:30 ...
Manufacturer: MAZAK
Model:Quickturn Nexus 250-II
Type of machine: CNC Lathe
item-No.: 169410849
Quantity: 1
Date: 28.04.2026
Year of manufacture: 2008
Price:
Machine in stock:Yes
Seller-item-No.:3402-260401
turning diameter:x. 350 mm
turning length:985 mm
swing dia.:610 mm
clamping range for bar work:77 mm
speeds:350 - 4.000 U/min
Torque:465 Nm
spindle nose:A2 - 8"
spindle bore diameter:88 mm
chucking diameter:254 mm
numbers of tools:12
travel -x axis:190 mm
travel -z axis:1.025 mm
rapid traverse X-axis:30 m/min
rapid traverse Z-axis:33 m/min
Tailstock Travel:1.010 mm
tailstock taper MT:4
turning length:985 mm
swing dia.:610 mm
clamping range for bar work:77 mm
speeds:350 - 4.000 U/min
Torque:465 Nm
spindle nose:A2 - 8"
spindle bore diameter:88 mm
chucking diameter:254 mm
numbers of tools:12
travel -x axis:190 mm
travel -z axis:1.025 mm
rapid traverse X-axis:30 m/min
rapid traverse Z-axis:33 m/min
Tailstock Travel:1.010 mm
tailstock taper MT:4
