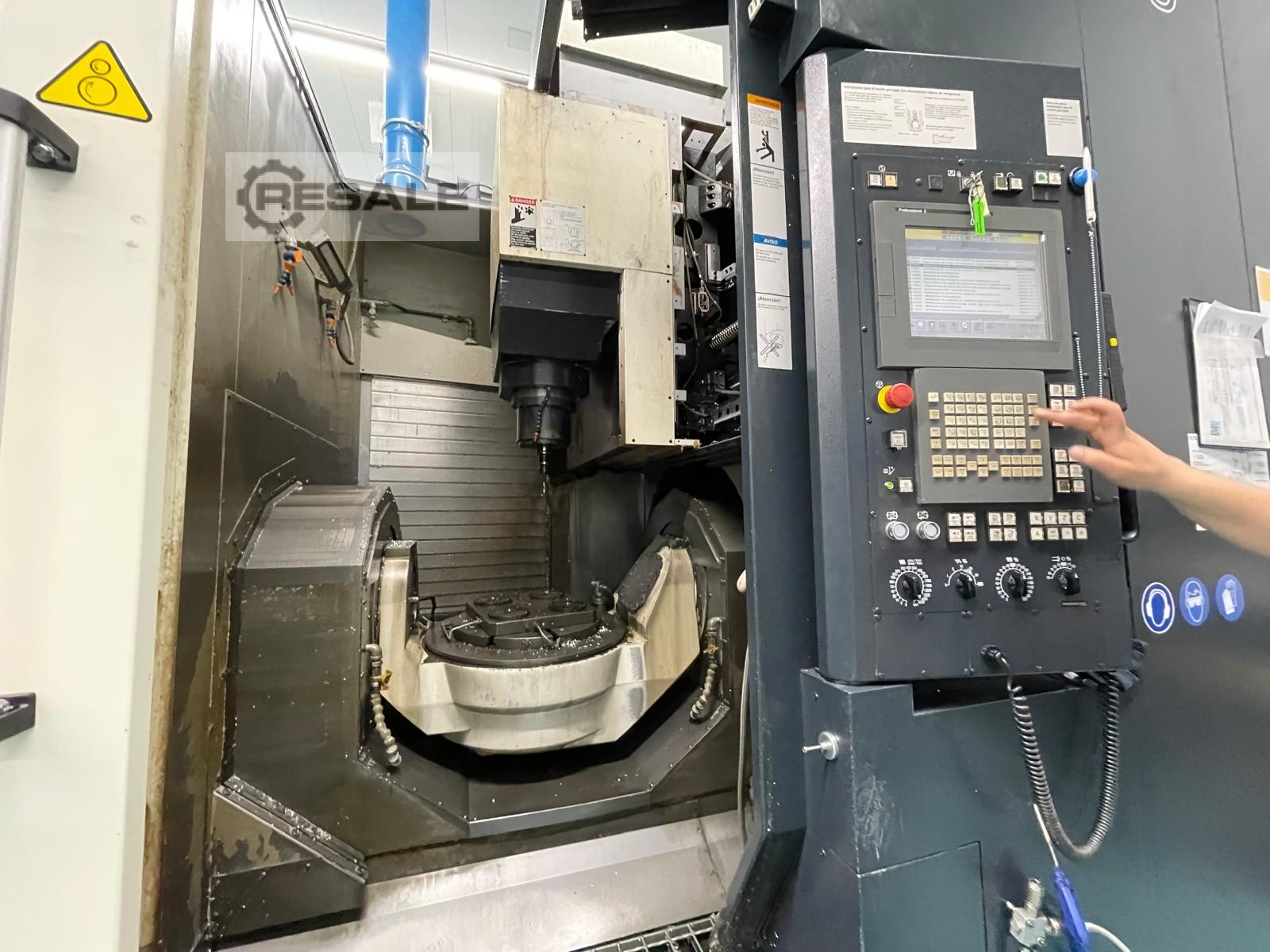

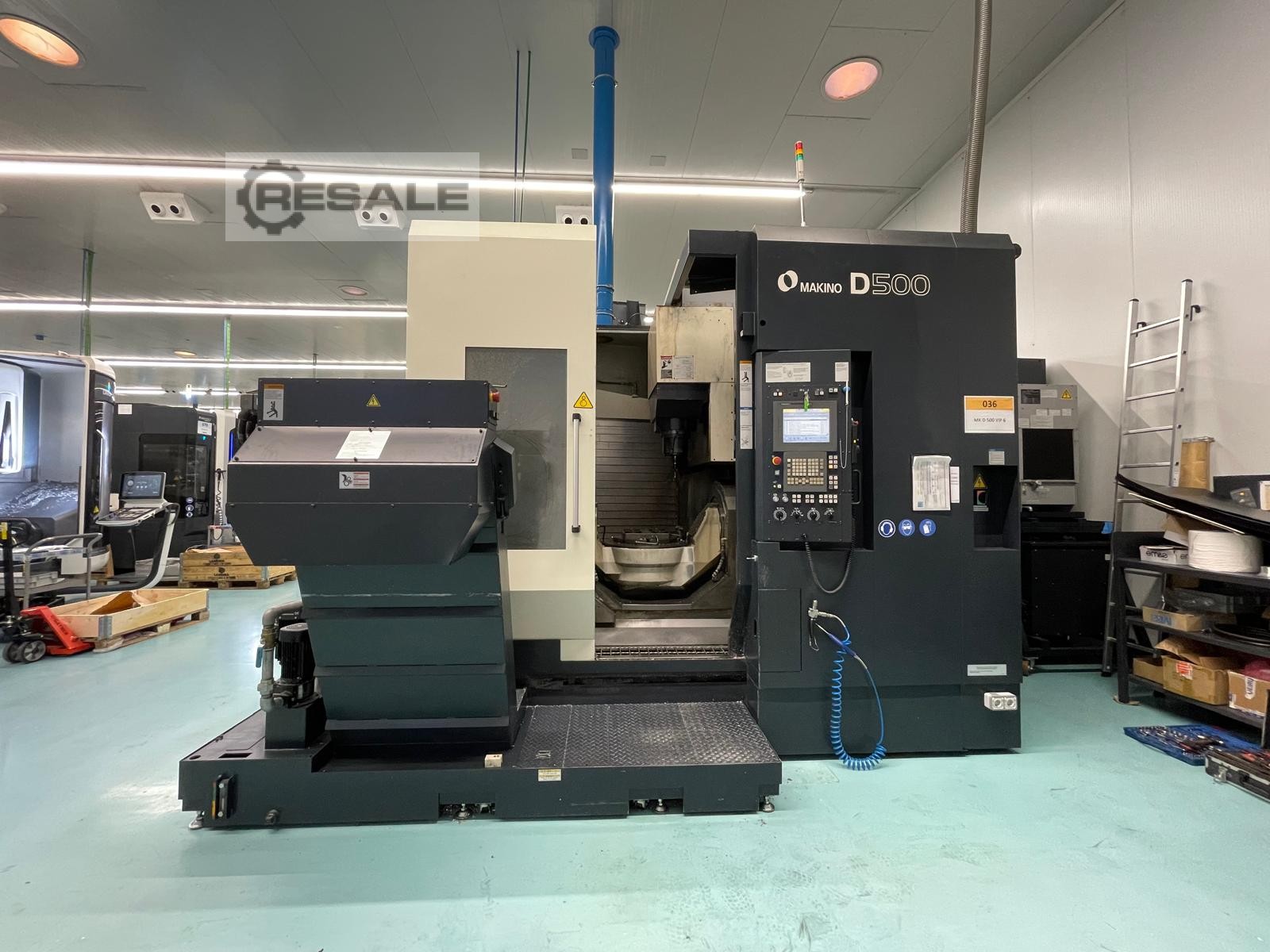

Centro de mecanizado de 5 ejes MAKINO D500

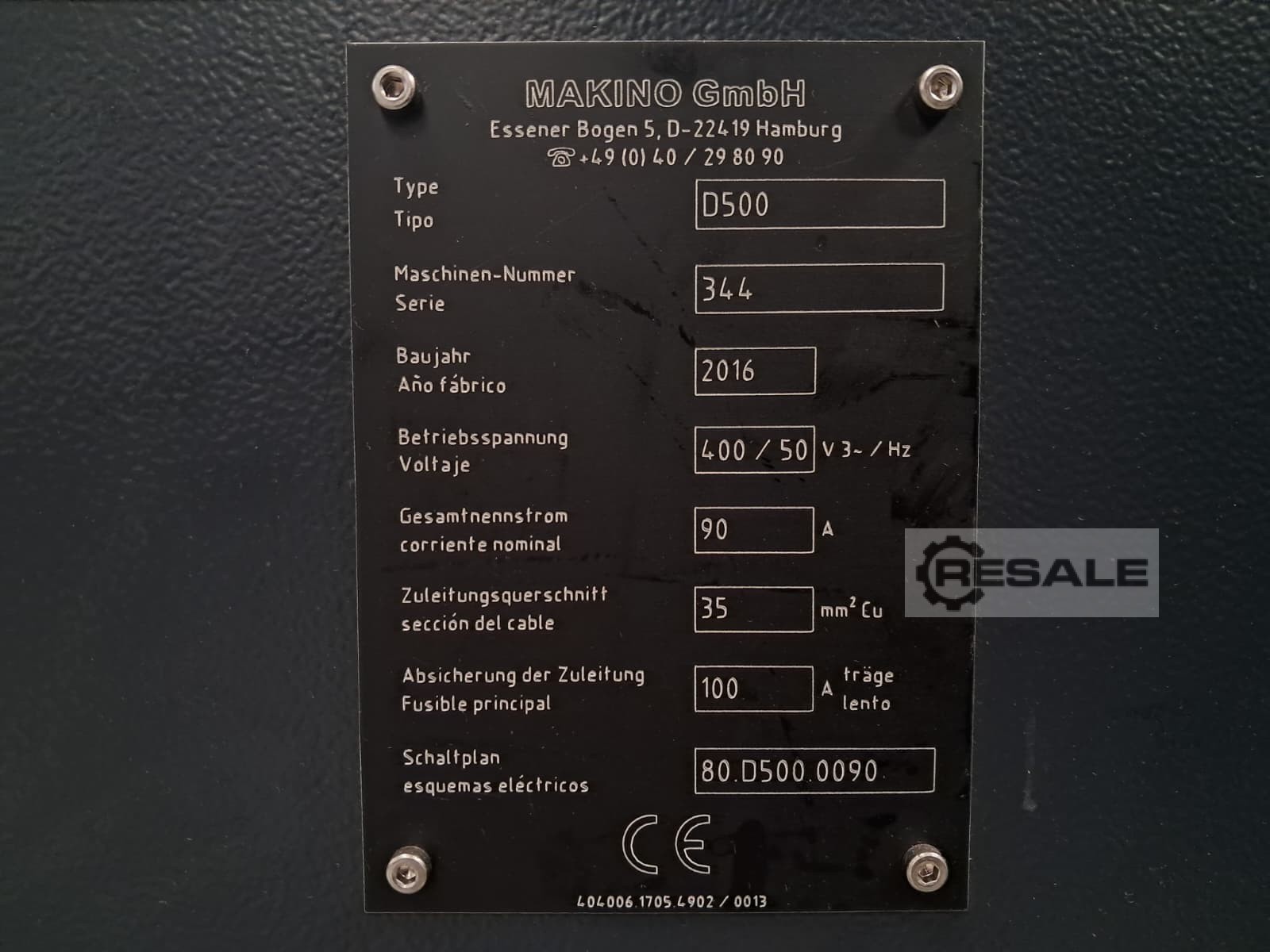

Year of construction: 2016
CNC controller: FANUC Professional 5
Axes
X-axis travel mm: 550
Y-axis travel mm: 1000
Z-axis travel mm: 500
C-axis degrees: 360 (continuous rotation) / rotary encoder
A-axis degrees: 150 (+30 120º) rotary encoder
Feed rates m/min: X:32; Y,Z:40
Rapid traverse m/min: X,A,C:48; Y,Y:50; A,C:18
Worktable
Table dimensions mm: 500
Maximum workpiece size (D x H) mm: 650x500
Max. workpiece weight kg: 350

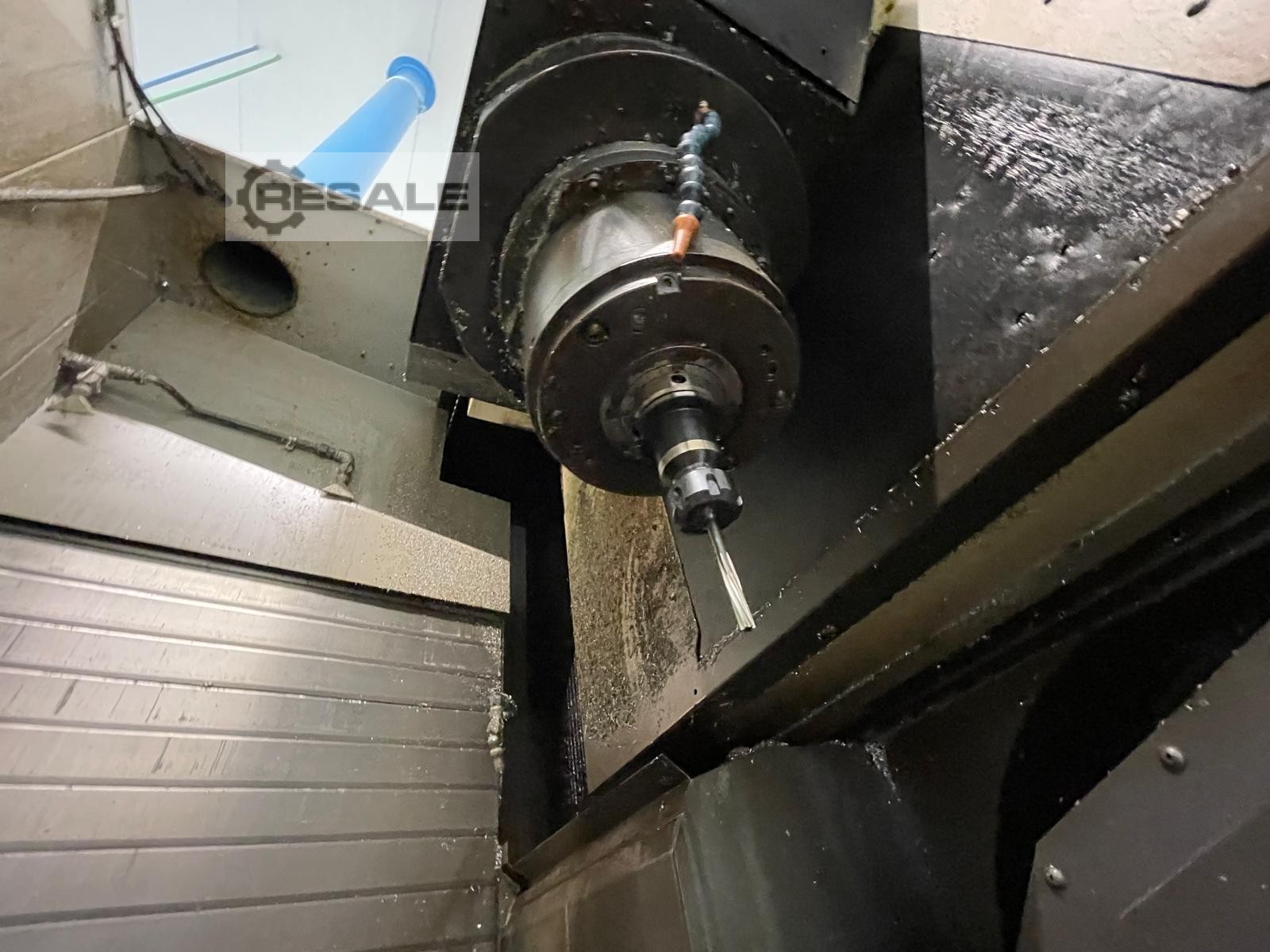

Spindle
Spindle speed rpm: 14000

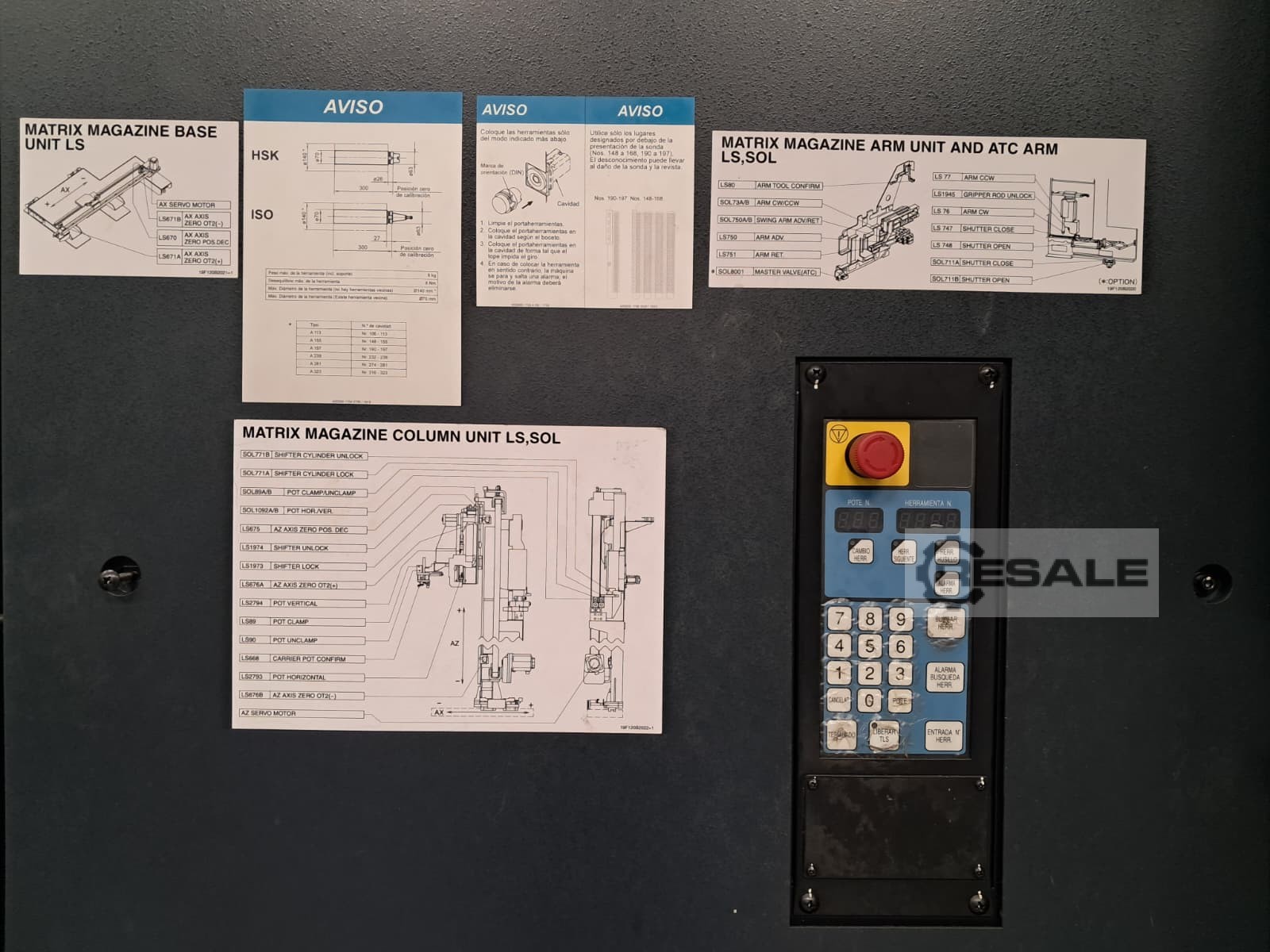

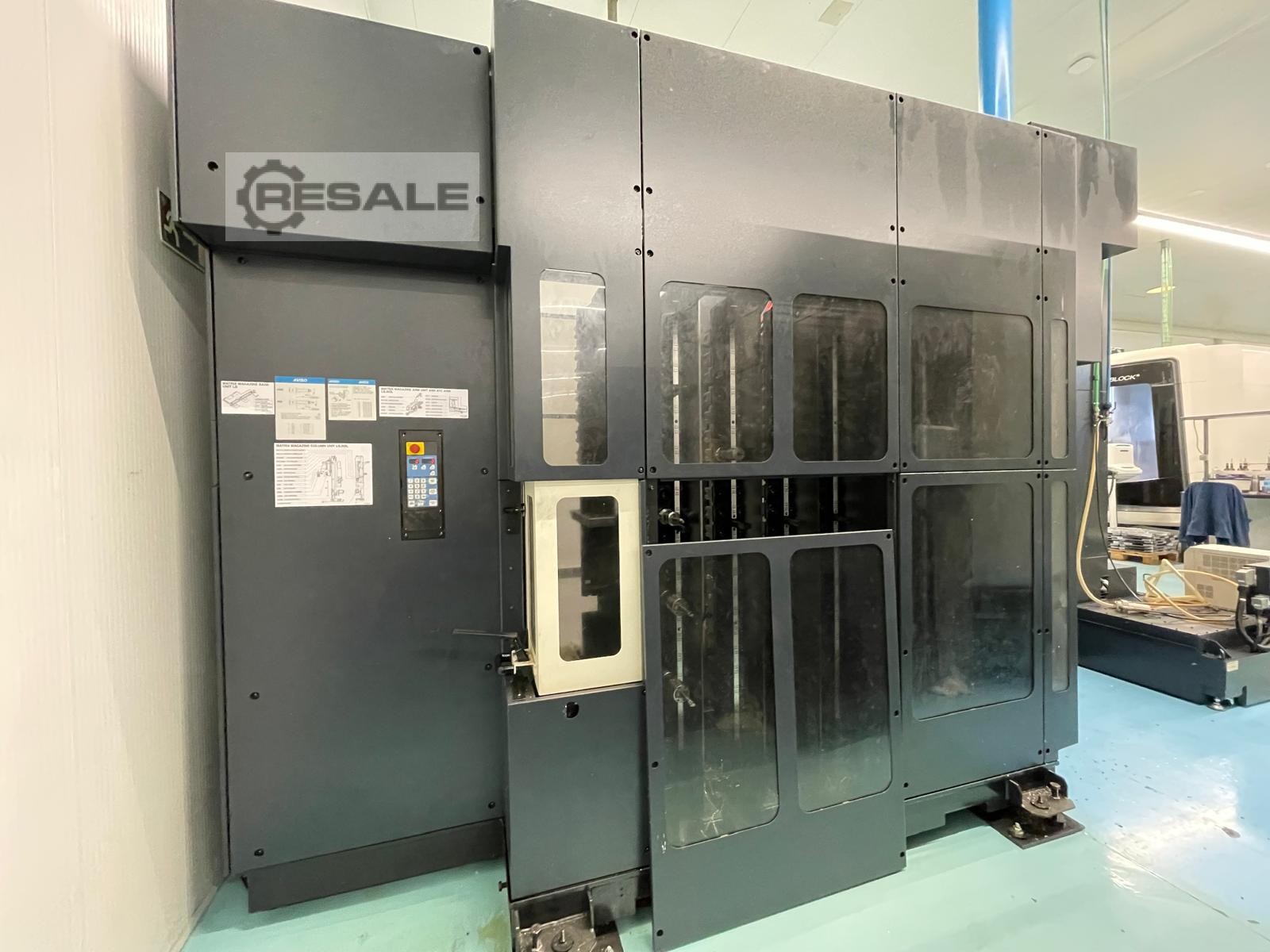

Tool system
Tool holder: HSK-A63
Tool magazine slots: 323
Tool changer: Pinza doble
Max. Tool Diameter 70
With occupied neighboring places mm: 140
Max. Tool Length mm: 300
Max tool weight kg: 8
Equipment
Electronic Handwheel
Chip conveyor
Measuring probe

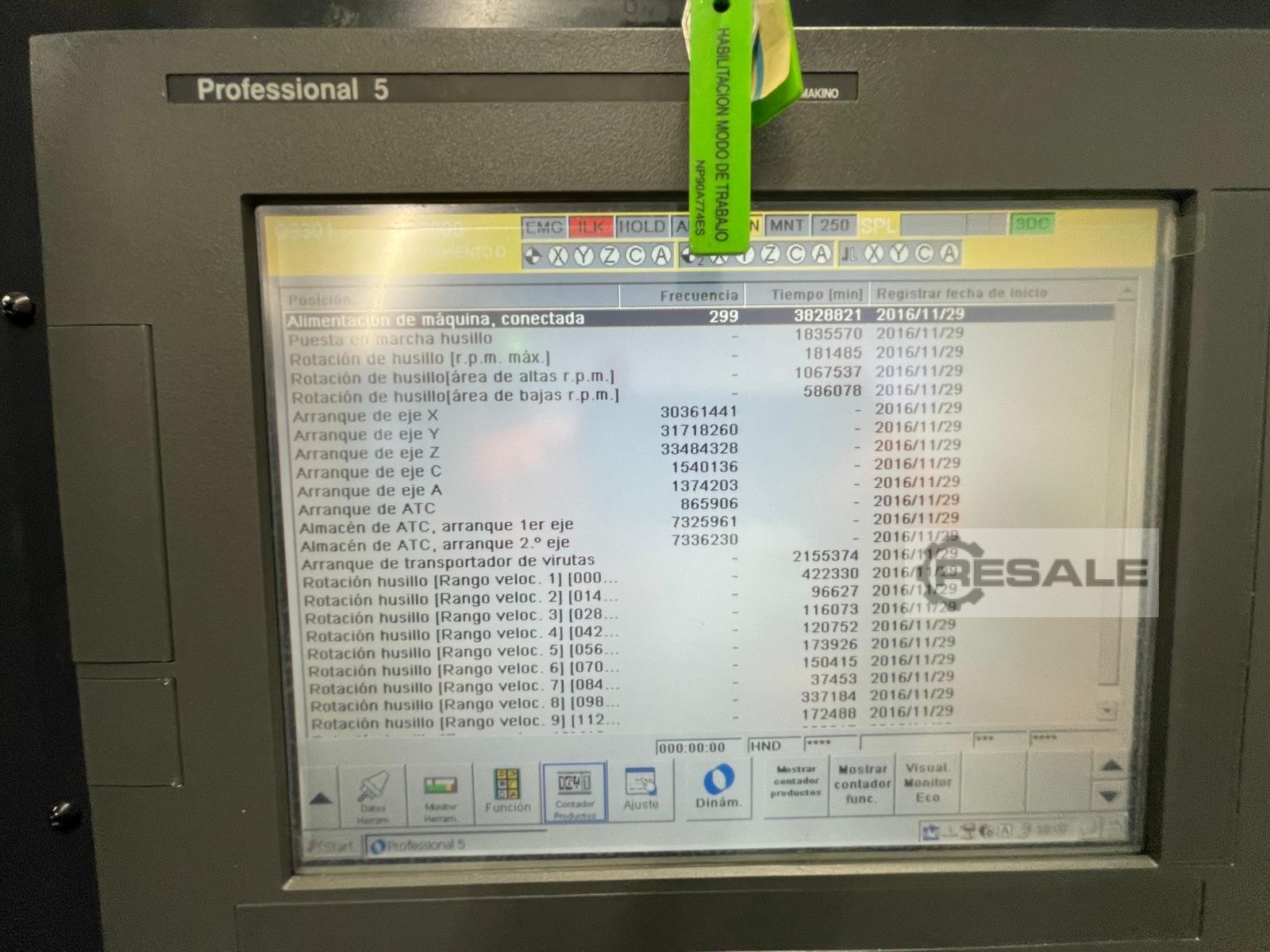

Machine running times
Under power: 63813h
Spindle Working: 30592h
Basic machine dimensions / weight
Length mm: 3550
Width mm: 2900
Height mm: 3200
Weight kg: 15700

seller offer No. resale CNC0688
