Drying chambers MüHLBöCK ZLSM -4x1.20-3x1.20-04.72
wood working machines / peripheral equipment (e.g. heating, conveying, drying) / Drying chambers
Drying chamber Mühlböck Already dismantled and stored in a dry place, ready for collection Type ZLSM -4x1.20-3x1.20-04.72 Year of construction 2003 With control Interior dimensions gross 7.40 x 4.55 x H 4.25 meters Gross stacking capacity 73 m³ Stacking depth 5 x 1.20 m + 4 x 0.10 m Stacking ...
Manufacturer: MüHLBöCK
Model:ZLSM -4x1.20-3x1.20-04.72
Type of machine: Drying chambers
item-No.: 169381972
Quantity: 1
Date: 23.04.2026
Year of manufacture:
Location:
Germany
32683 Barntrup
Price: 6,500 EUR
Seller-item-No.:9806

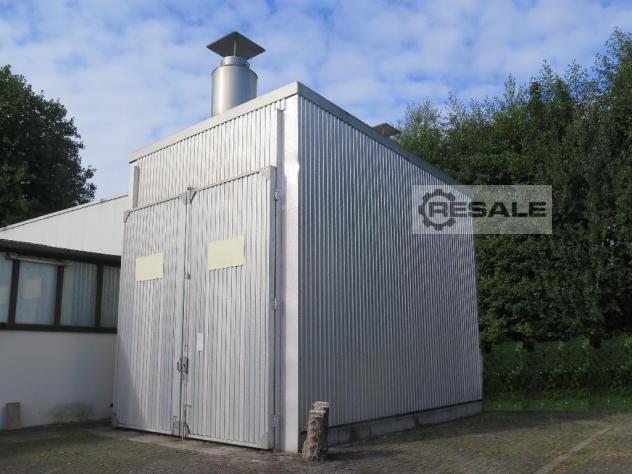

Drying chamber Mühlböck

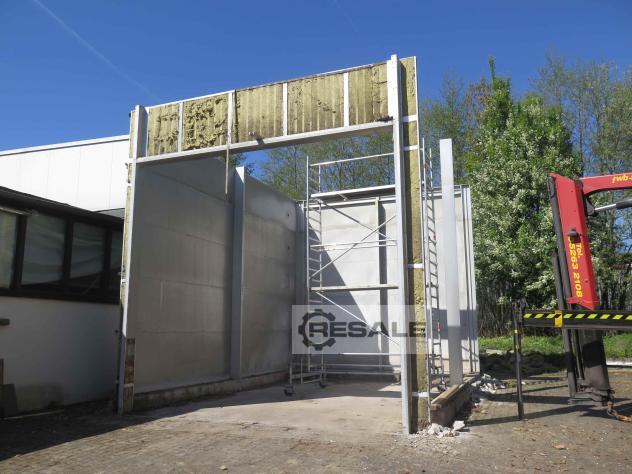

Already dismantled and stored in a dry place, ready for collection
Type ZLSM -4x1.20-3x1.20-04.72
Year of construction 2003
With control

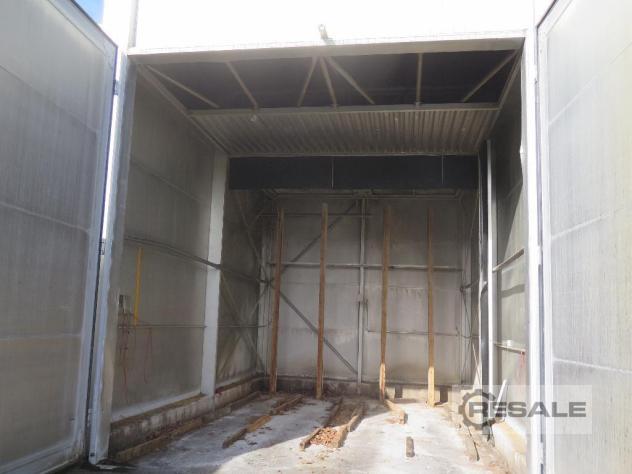

Interior dimensions gross 7.40 x 4.55 x H 4.25 meters
Gross stacking capacity 73 m³
Stacking depth 5 x 1.20 m + 4 x 0.10 m
Stacking height 3 x 1.20 m + 3 x 0.10 m + 0.30 m
Interior length 2 x 2.10 m + 0.52 m
With ventilation via false ceiling

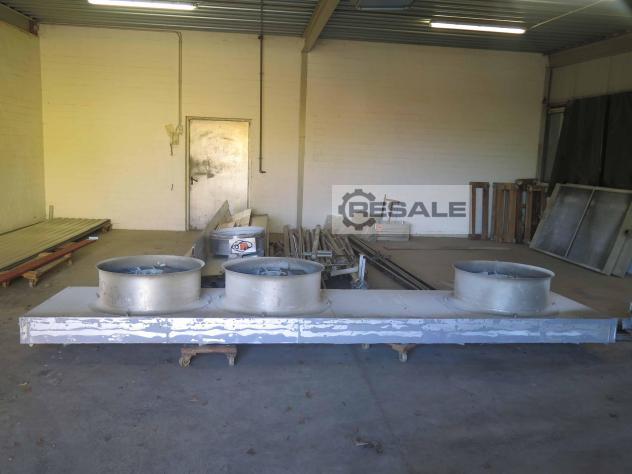

3 fans each 3 kW
10 measuring points
With frequency converter
for connection to an external hot water heating system or hot water pipe
Heating capacity 223 kW
Water temperature 85 °C
Water volume 14 m³/h
Voltage 230/400 Volt
Total connected load 12 kW

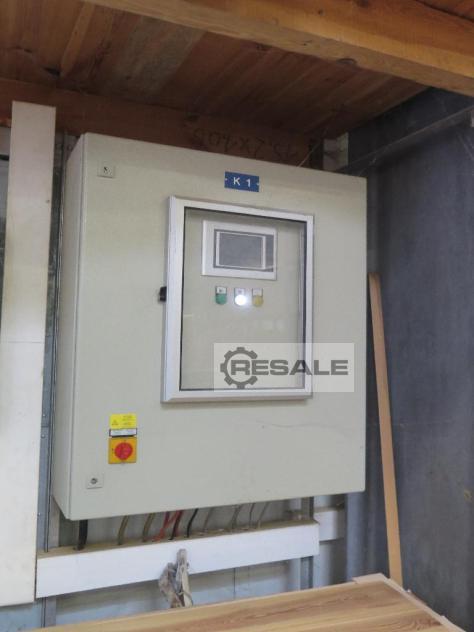

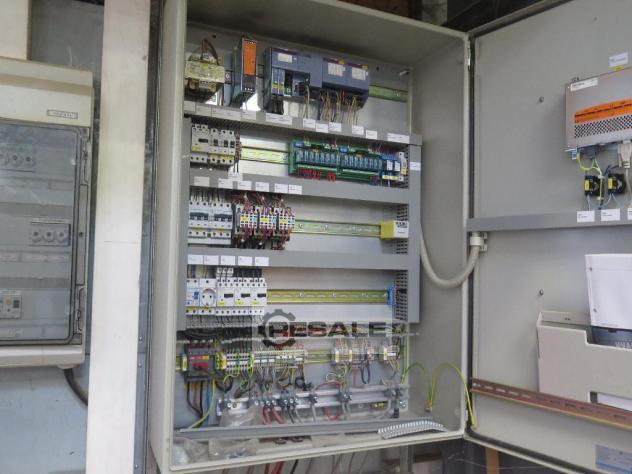

Control Program MB 8000 PC
Remote control via modem via RS485 connection
Drying assistant

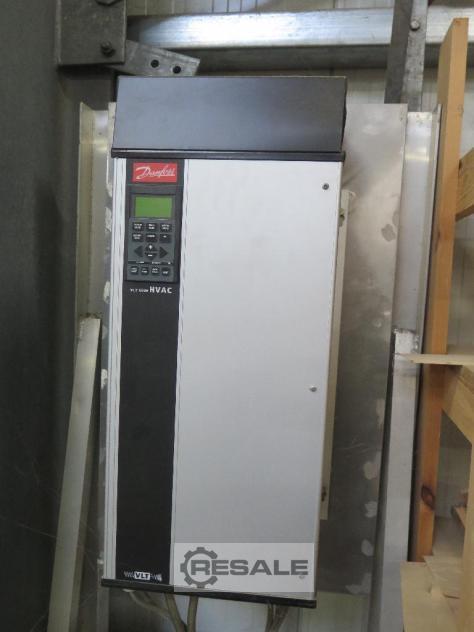

Danfoss VLT 6000 HVAC Variable Frequency Drive
Clear door height 4200 mm
Clear door width 4560 mm
External dimensions 7700 mm x 5500 mm x H 5600 mm

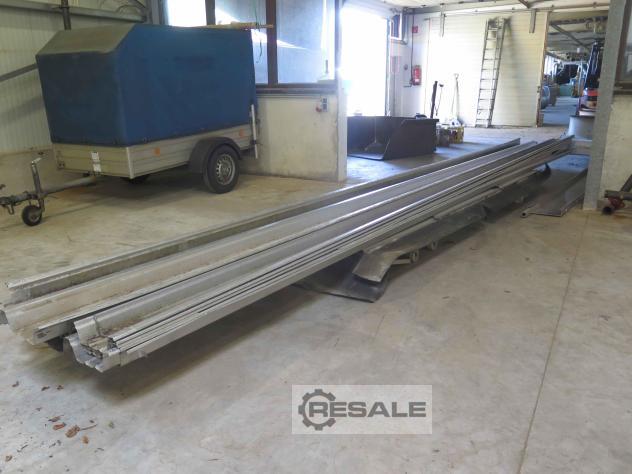

Information and dimensions for loading:
2 door parts Dimensions per door leaf H 4500 mm x W 2370 mm x thickness 160 mm
The side plates are 6000 mm long throughout
Inner sheets approx. L 4000 mm x W 1000 mm
12 loading meters, approx. 5000 kg
Already dismantled and stored in a dry place, ready for collection
Type ZLSM -4x1.20-3x1.20-04.72
Year of construction 2003
With control
Interior dimensions gross 7.40 x 4.55 x H 4.25 meters
Gross stacking capacity 73 m³
Stacking depth 5 x 1.20 m + 4 x 0.10 m
Stacking height 3 x 1.20 m + 3 x 0.10 m + 0.30 m
Interior length 2 x 2.10 m + 0.52 m
With ventilation via false ceiling
3 fans each 3 kW
10 measuring points
With frequency converter
for connection to an external hot water heating system or hot water pipe
Heating capacity 223 kW
Water temperature 85 °C
Water volume 14 m³/h
Voltage 230/400 Volt
Total connected load 12 kW
Control Program MB 8000 PC
Remote control via modem via RS485 connection
Drying assistant
Danfoss VLT 6000 HVAC Variable Frequency Drive
Clear door height 4200 mm
Clear door width 4560 mm
External dimensions 7700 mm x 5500 mm x H 5600 mm
Information and dimensions for loading:
2 door parts Dimensions per door leaf H 4500 mm x W 2370 mm x thickness 160 mm
The side plates are 6000 mm long throughout
Inner sheets approx. L 4000 mm x W 1000 mm
12 loading meters, approx. 5000 kg
