Radial Drilling Machine KOVOSVIT MAS VO 50
metal working machines / boring mills and machining centers
Max. drilling diameter in steel, strength 600MPa: 50mm, max. drilling diameter in cast iron, strength 250MPa: 60mm, max. boring diameter (with guide) in steel, 600MPa: 200mm, max. thread in steel, 600MPa: M50x1.5, max. thread in cast iron, 250MPa: M60x2, spindle reach: 320-1250mm, pitch circle of ...
Manufacturer: KOVOSVIT MAS
Model:VO 50
Type of machine: Radial Drilling Machine
item-No.: 170061936
Quantity: 1
Date: 18.08.2026
Year of manufacture: 1999
Location:
Germany
Deutschland
Price:
Machine in stock:No
Seller-item-No.:INNO32204
Max. drilling diameter in steel, strength 600MPa: 50mm, max. drilling
diameter in cast iron, strength 250MPa: 60mm, max. boring diameter
(with guide) in steel, 600MPa: 200mm, max. thread in steel, 600MPa:
M50x1.5, max. thread in cast iron, 250MPa: M60x2, spindle reach:

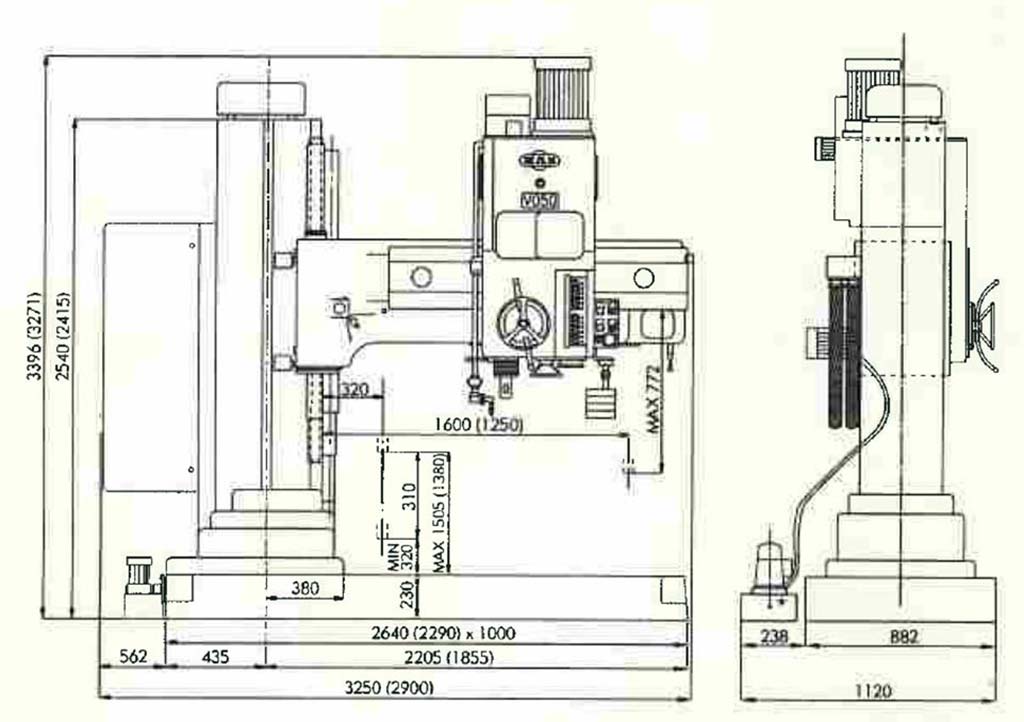

320-1250mm, pitch circle of holes: 1208-3039mm, distance from spindle
axis to base plate: 320-1380mm, max. arm height adjustment: 750mm,
max. drill carriage travel on arm: 930mm, arm swivel range: +/-180°,
spindle head diameter: 75h6, spindle diameter at front bearing: 55mm,
length: 2900mm, width: 1120mm, height: 3271mm, weight: 4.2t, with
documentation. An on-site inspection is possible.
