Extrusion blow molding machines KAUTEX KCC30
machines for plastic / blow moulding machines / Extrusion blow molding machines
Manufacturer: KAUTEX
Model:KCC30
Type of machine: Extrusion blow molding machines
item-No.: 167568224
Quantity: 1
Date: 26.07.2025
Year of manufacture: 2012
Operating hours: 33000
Location:
France
01100 OYONNAX
Price:
Machine in stock:Yes
Seller-item-No.:kcc3012

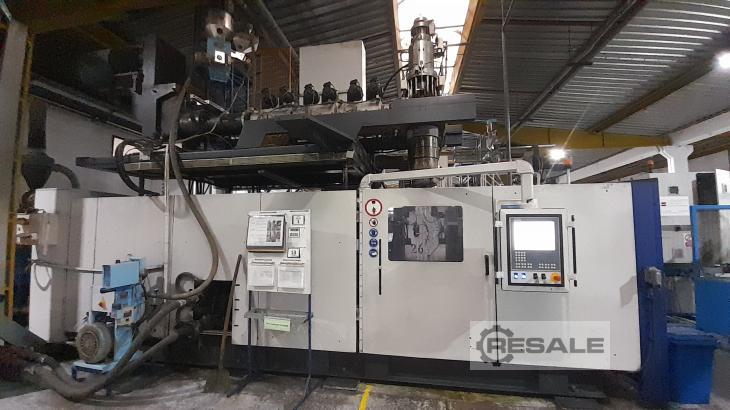

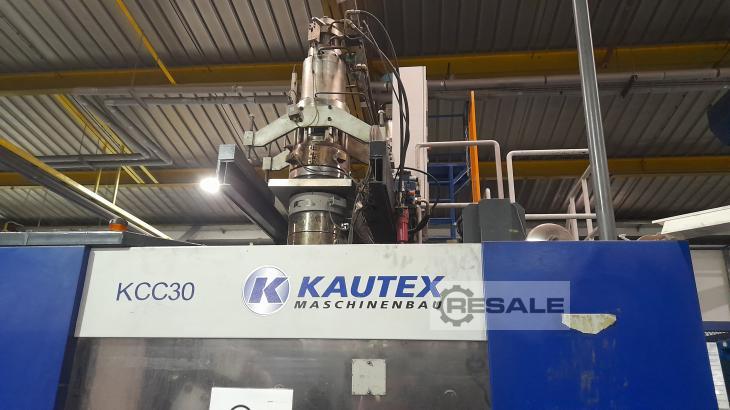

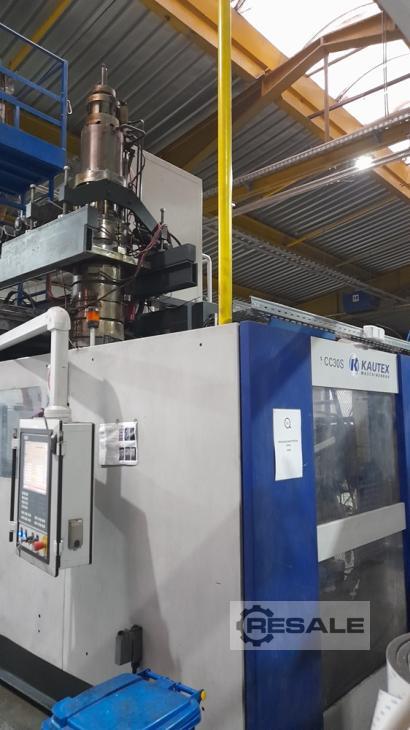

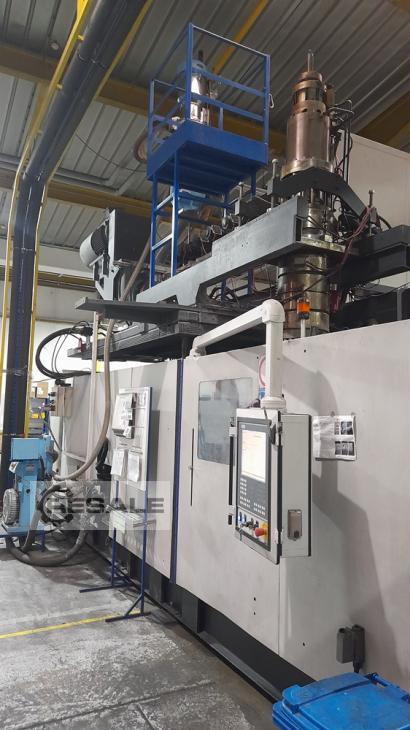

KAUTEX KCC30 Extrusion Blow Molding Machine / Extruder
Year: 2012
Number of operating hours: 33000 hours
1 position
Robot Kautex
Clamping force: 300 KN
Screw diameter: 90 mm
4 KG Accumulation Head (HDPE)
Tray dimensions: 530 x 700 mm
Distance between trays: 1000 mm
Maximum mold dimensions: 870 x 650 x 765 mm
Command: Blow command

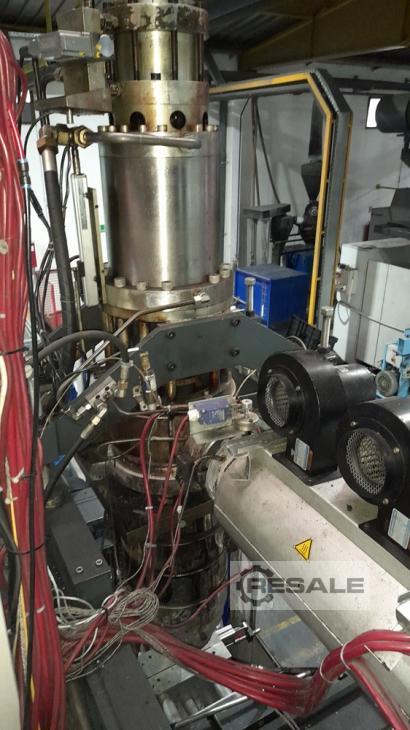

Head Type: Vertical Head with Hydraulic Accumulator
Maximum container volume: 30 A5763789 litres
Die diameter: 90, 150, 170, 190 or 220 mm
Maximum pressure: 220 bar
Air consumption: 95 M3/h
Air pressure: 6 - 10 bar
Installed power: 20 KW
Number of temperature zones: 5
Year: 2012
Number of operating hours: 33000 hours
1 position
Robot Kautex
Clamping force: 300 KN
Screw diameter: 90 mm
4 KG Accumulation Head (HDPE)
Tray dimensions: 530 x 700 mm
Distance between trays: 1000 mm
Maximum mold dimensions: 870 x 650 x 765 mm
Command: Blow command
Head Type: Vertical Head with Hydraulic Accumulator
Maximum container volume: 30 A5763789 litres
Die diameter: 90, 150, 170, 190 or 220 mm
Maximum pressure: 220 bar
Air consumption: 95 M3/h
Air pressure: 6 - 10 bar
Installed power: 20 KW
Number of temperature zones: 5
