Other Drilling And Boring Machines IBARMIA B 70
metal working machines / boring mills and machining centers / Other Drilling And Boring Machines
Gearbox - Column Drill IBARMIA B 70 -Drilling capacity / steel approx. 70mm -Morse taper MK 5 -Spindle stroke / drilling depth approx. 270mm -Speed range 62-1120 rpm (12 gear speeds) -Automatic feeds - 6 levels (0.1-0.6 mm/turn -Projection spindle column 425mm - Table size approx. 770x660mm -Round ...
Manufacturer: IBARMIA B 70
Model:
Type of machine: Other Drilling And Boring Machines
item-No.: 169952814
Quantity: 1
Date: 02.08.2026
Year of manufacture:
Location:
Germany
76646 Bruchsal
Price:
Machine in stock:Yes

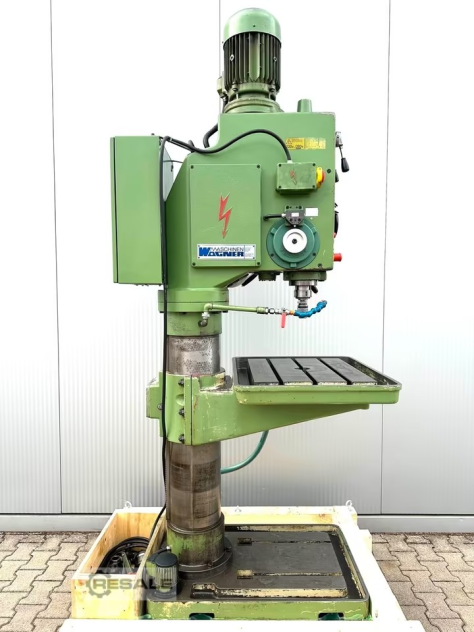

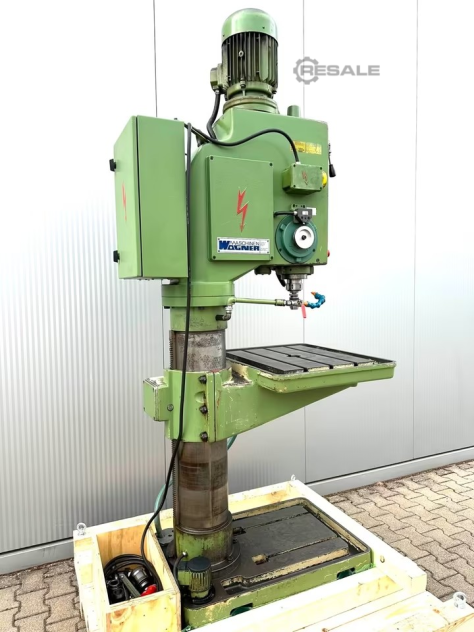

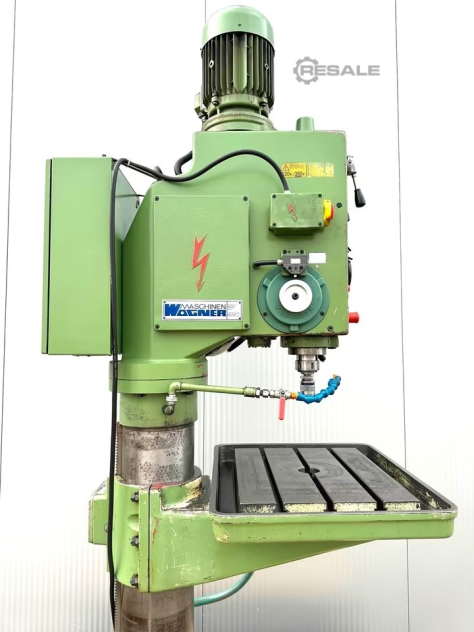

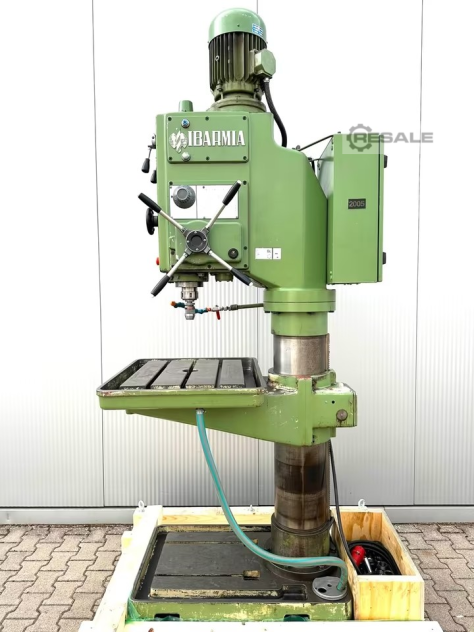

Gearbox - Column Drill IBARMIA B 70
-Drilling capacity / steel approx. 70mm
-Morse taper MK 5
-Spindle stroke / drilling depth approx. 270mm
-Speed range 62-1120 rpm (12 gear speeds)
-Automatic feeds - 6 levels (0.1-0.6 mm/turn
-Projection spindle column 425mm
- Table size approx. 770x660mm
-Round column
- Right/counterclockwise rotation
-Tapping device
-Coolant device
-Work light
-Motor power 5.6 KW
-Emergency / Off
-Various tools / drill chuck / quick-change mounts incl. inserts
-Documentation
Dimensions: LxWxH 1.1x0.7x2.7 meters / Weight 1900Kg
-Drilling capacity / steel approx. 70mm
-Morse taper MK 5
-Spindle stroke / drilling depth approx. 270mm
-Speed range 62-1120 rpm (12 gear speeds)
-Automatic feeds - 6 levels (0.1-0.6 mm/turn
-Projection spindle column 425mm
- Table size approx. 770x660mm
-Round column
- Right/counterclockwise rotation
-Tapping device
-Coolant device
-Work light
-Motor power 5.6 KW
-Emergency / Off
-Various tools / drill chuck / quick-change mounts incl. inserts
-Documentation
Dimensions: LxWxH 1.1x0.7x2.7 meters / Weight 1900Kg
