Processing Centers HEDELIUS Tiltenta 7 Magnum

X-travel: 3200 mm Y-travel: 750 mm Z-travel: 695 mm Basic machine data

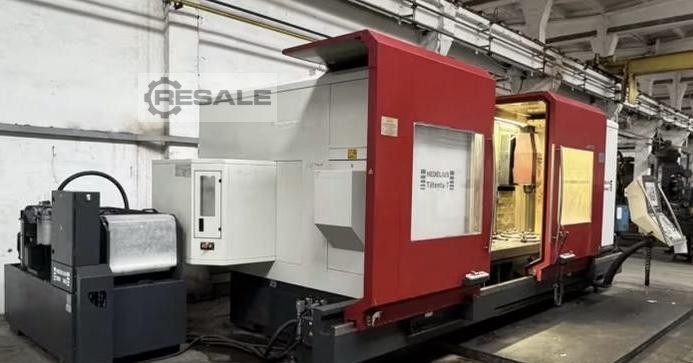

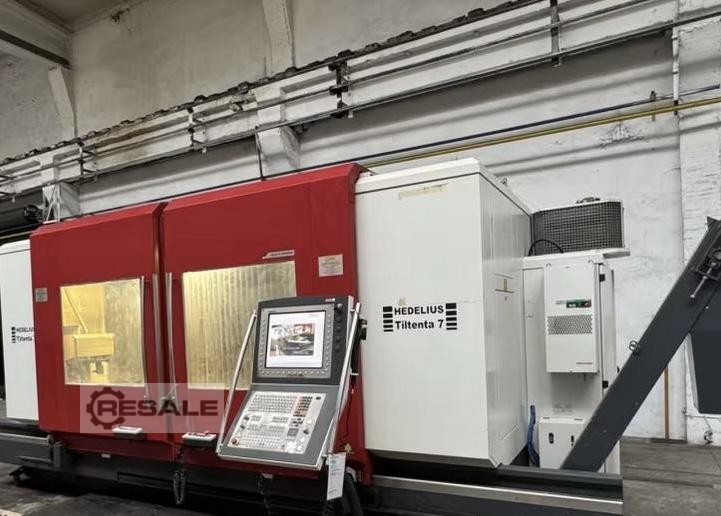

Used 5-axis machining center from HEDELIUS

Make: HEDELIUS
Type: Tiltenta 7 Magnum
Year of Make: 2016
Condition: very good

Control:

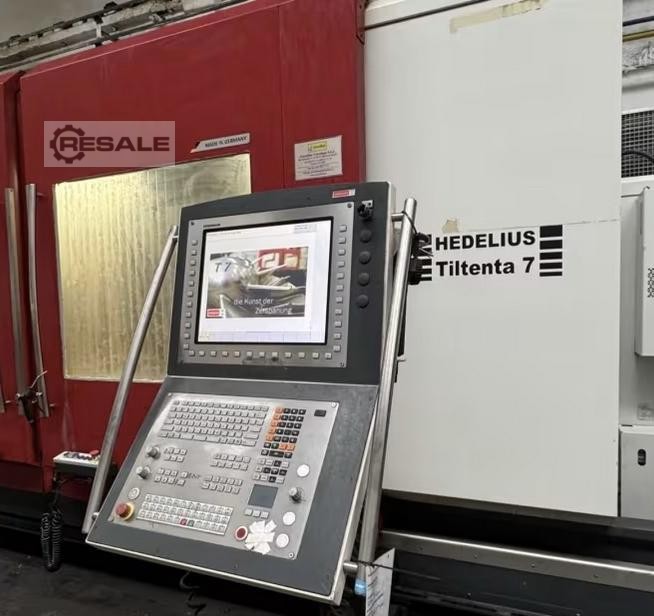

Name: Heidenhain iTNC 530
Handwheel: Heidenhain

Travel: x-axis: 3200 mm // y-axis: 750 mm // z-axis: 695 mm

Technical data:
• Spindle: 50-12,000 rpm
• SK40 interface
• Fixed machining table with integrated NC rotary table
• Ø table: 750 mm
• Max. workpiece weight: 800 kg
• B-axis infinitely variable: + 98°/- 98°

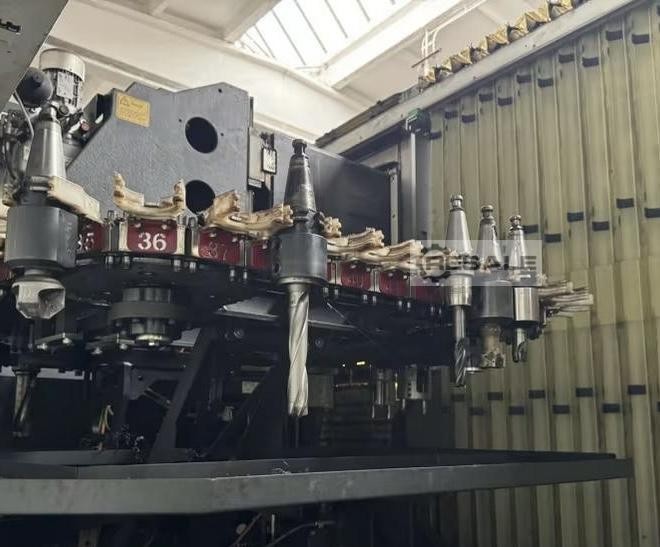

• 50-fold tool changer
• Max. tool length: 330 mm
• Feed speeds: up to 40 m/min
• IKZ (internal coolant supply)

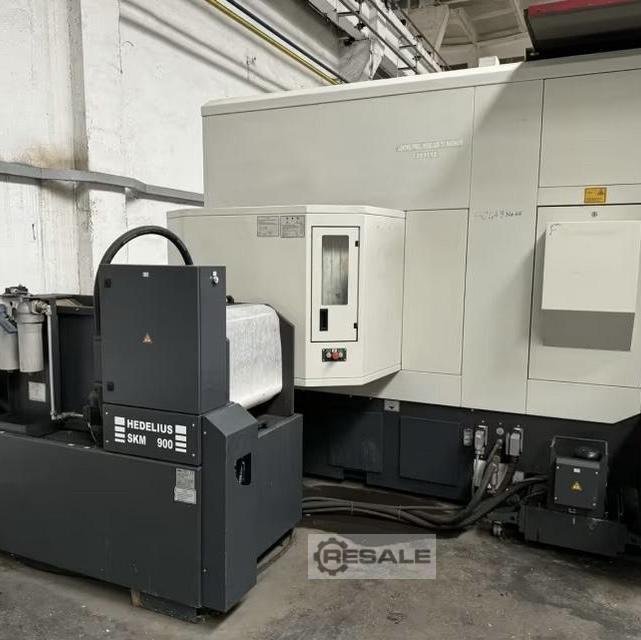

• 500 L tank with paper belt filter

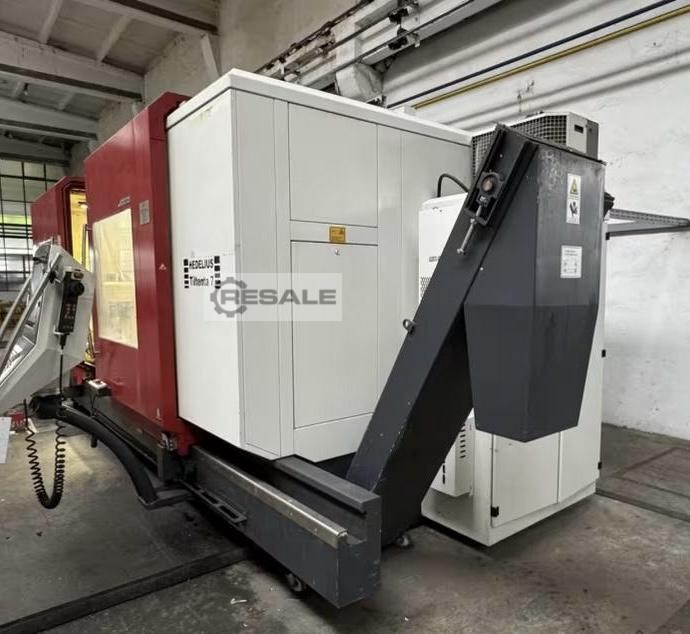

• Chip conveyor

Prior sale is reserved. No liability is assumed for the technical information provided here. The legal provisions apply.
