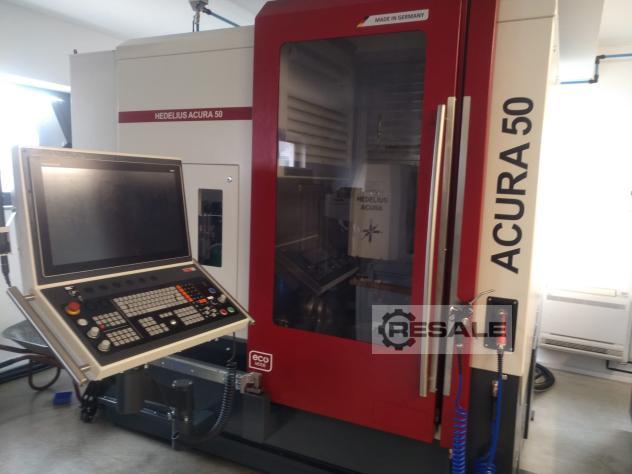

Numerically Controlled Machining Centres HEDELIUS Acura 50

5-axis machining center Hedelius Acura 50
Control: Heidenhain TNC 7
Year of Make: 2025
Spindle hours: approx. 100h
Internal machine no. 54

Travels:
X-axis 500 mm
Y-axis (H / V) 550 / 370 mm
Z-axis 550 mm
Swivel range +30° - -115°
Rotary table Ø 500 x 430 mm
Holder: SK 40 DIN 69871
Tool magazine: 55 compartment
Spindle speed: 50 - 14,000 rpm
Drive power: 22 kW

Equipment:
- KinematicOpt
- 3D Formingstar package
- Screen filter coolant system 500l
- IKZ 25 bar
- Booster pump from 25 to 50 bar
- Scraper belt conveyor
- Blow-off gun
- Rinsing gun
- Electronic handwheel HR 510 FS
- Infrared receiver M&H
- 3D Infrared Probe M&H 25.50
- Laser control system Blum LC50 260
- LTA suction
seller offer No. resale 169340506
