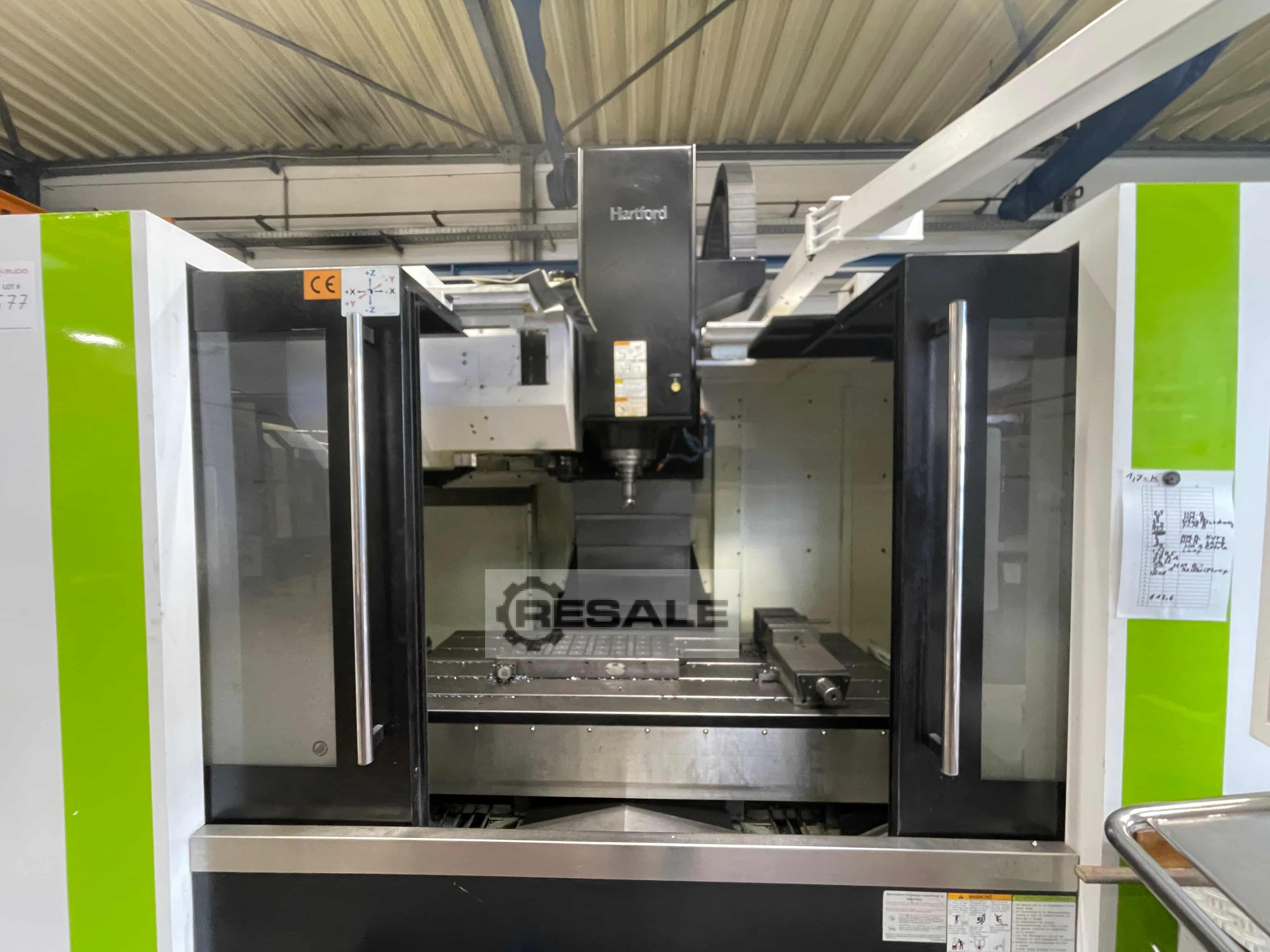

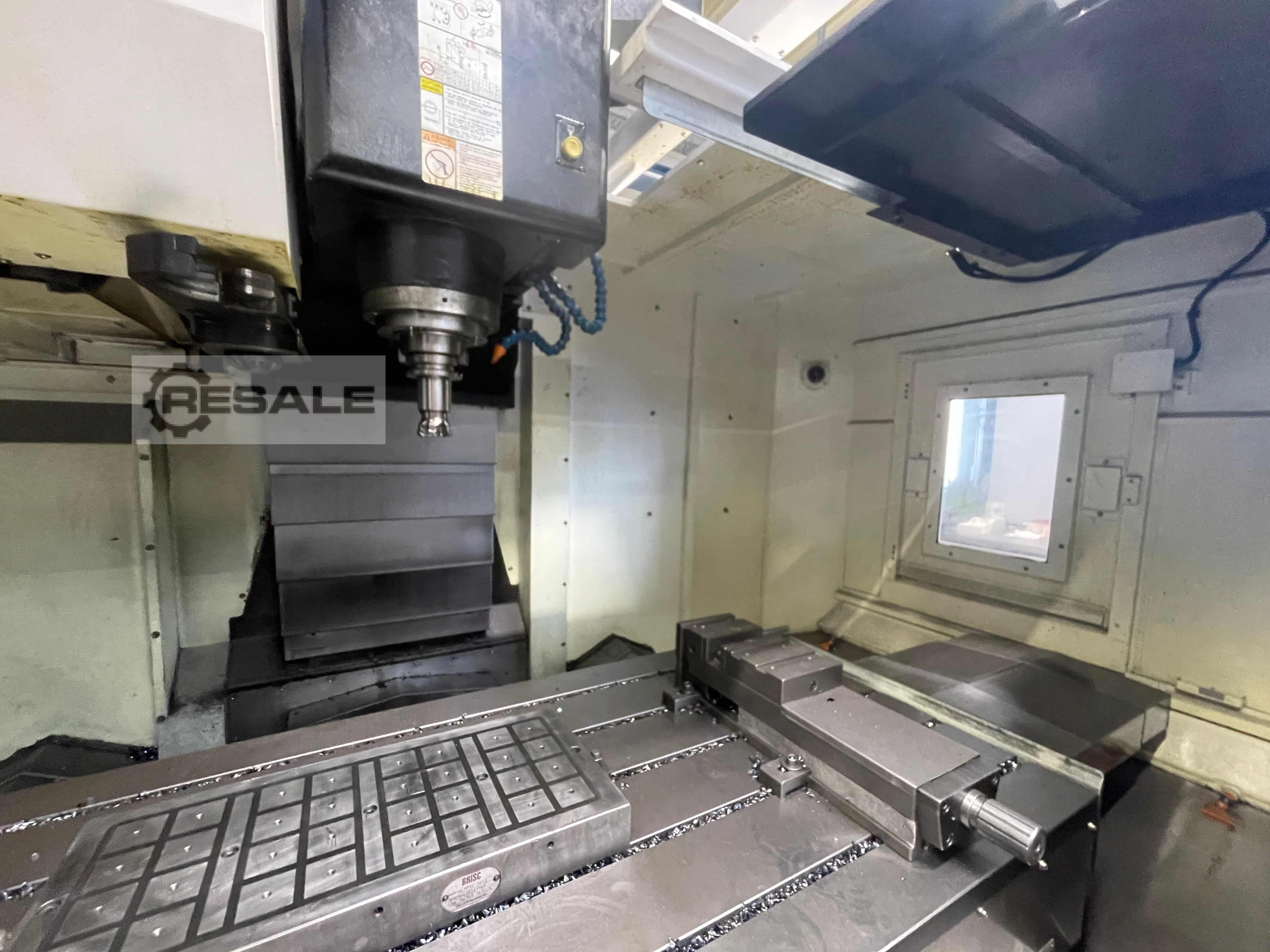

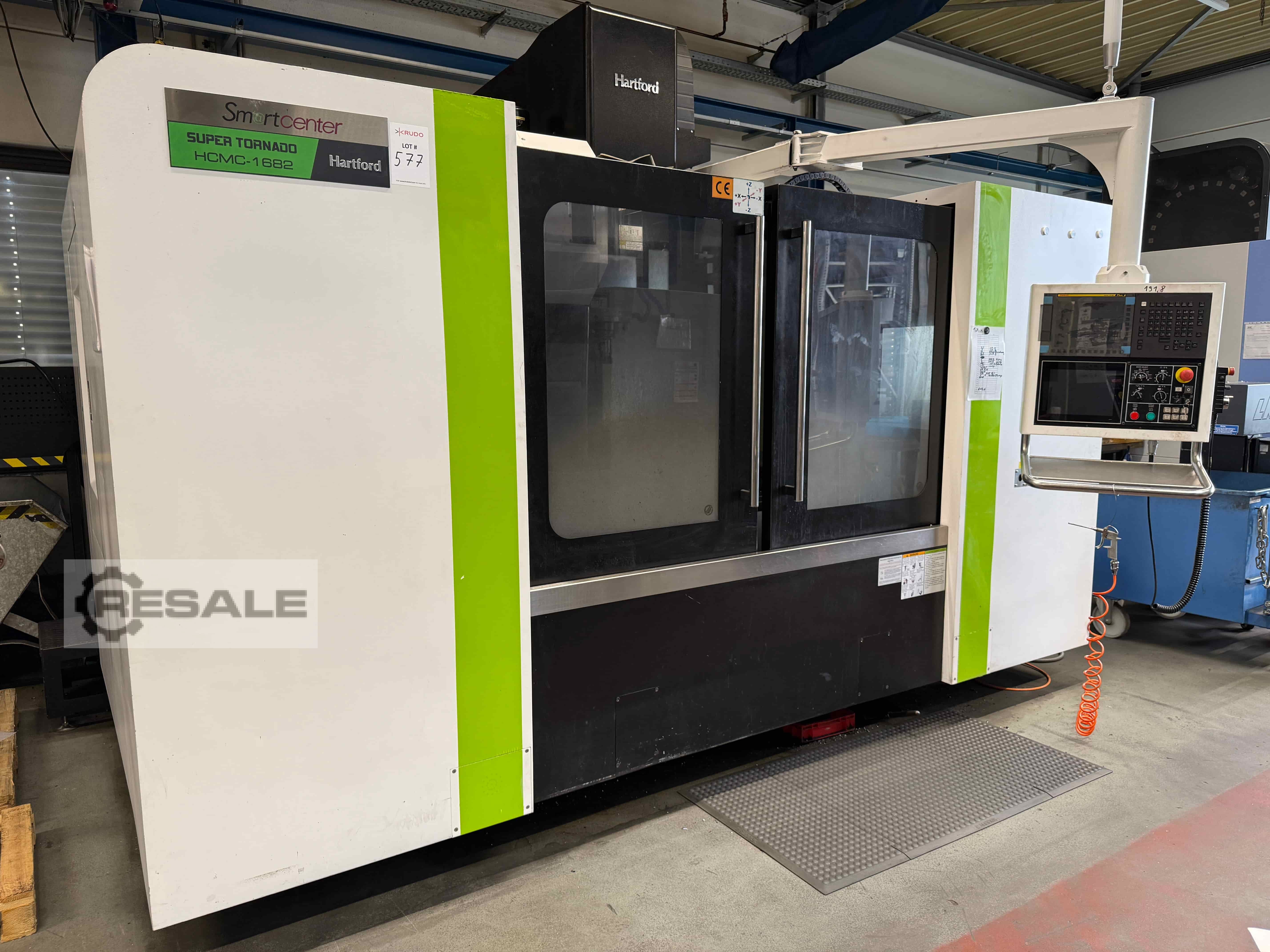

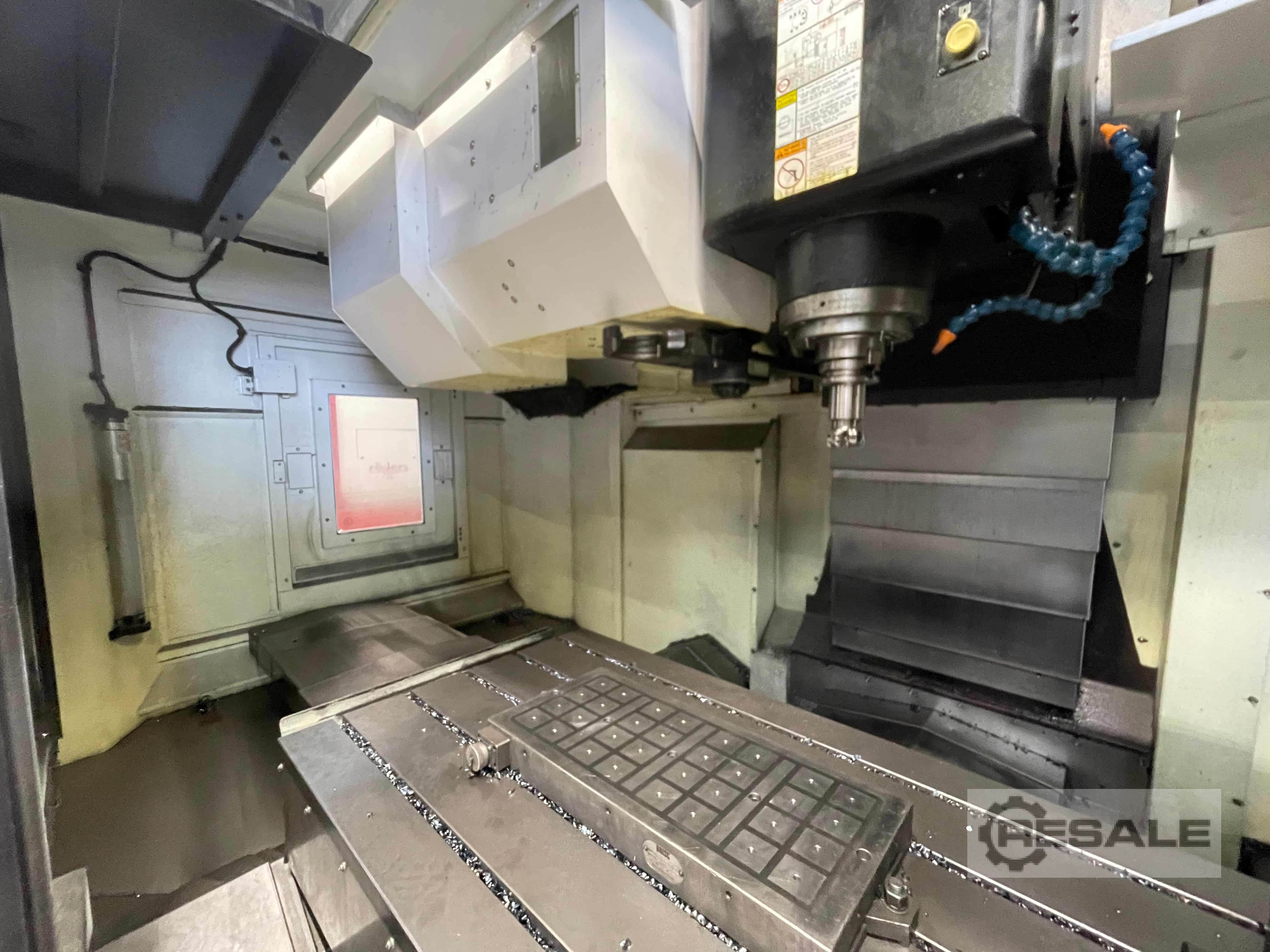

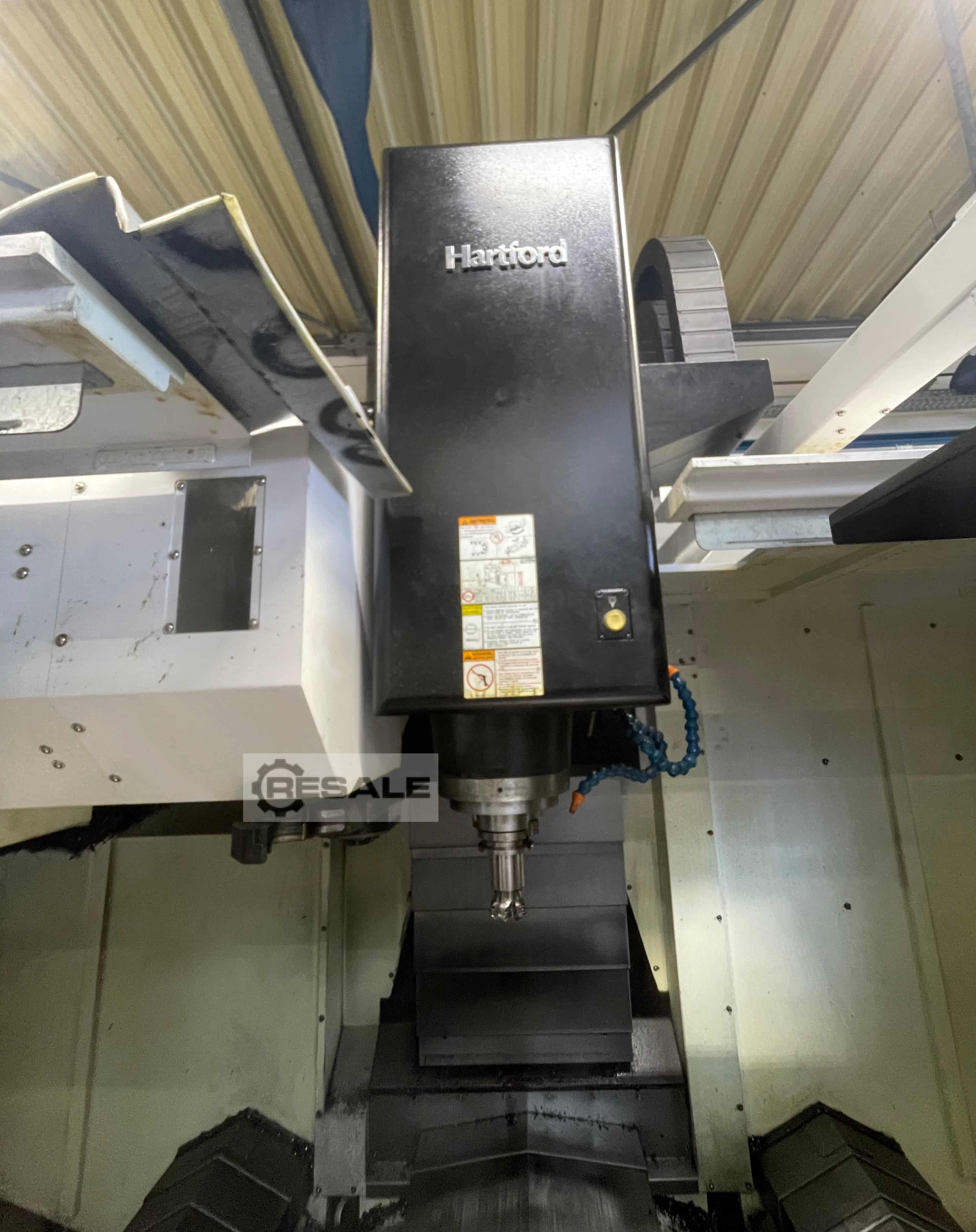

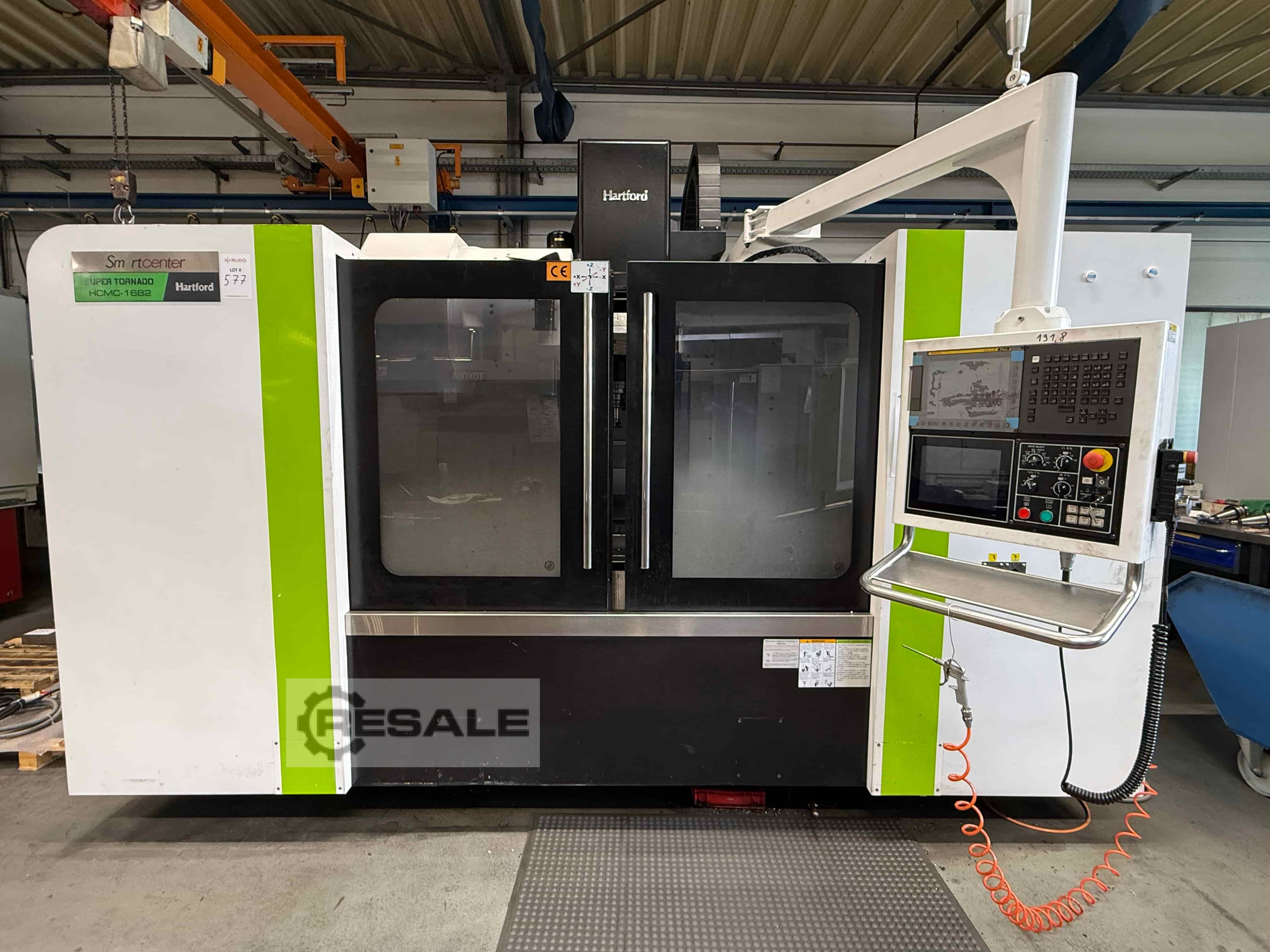

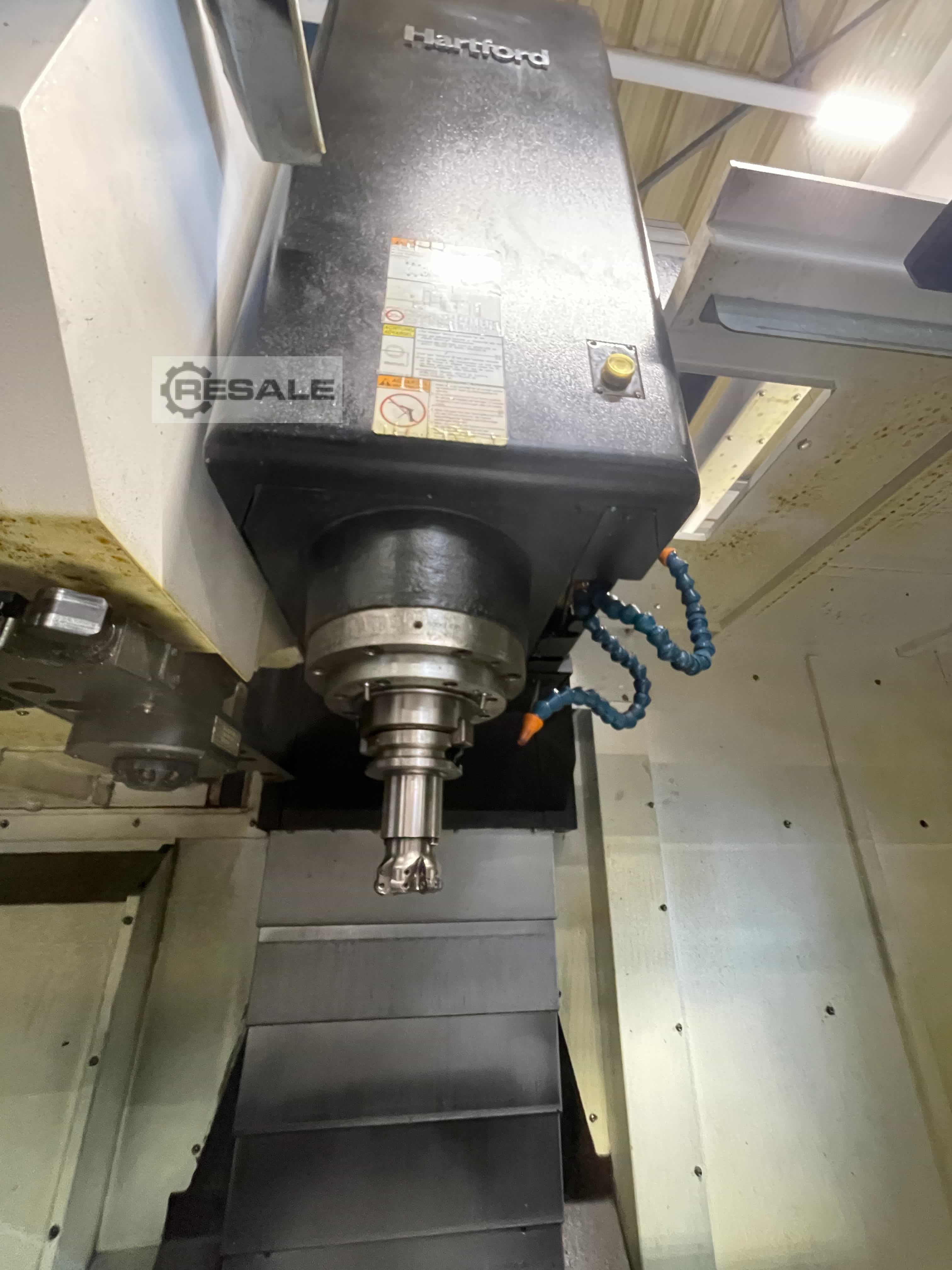

CNC Vertical Machining Center HARTFORD HCMC-1682

Hartford 3-Axis CNC Vertical Machining Center


Late-Model 3-Axis CNC Vertical Center

This 2021 Hartford HCMC-1682 offers exceptional structural rigidity and modern CNC capabilities, providing a highly efficient and reliable solution for versatile 3-axis milling.



Technical Details
‍

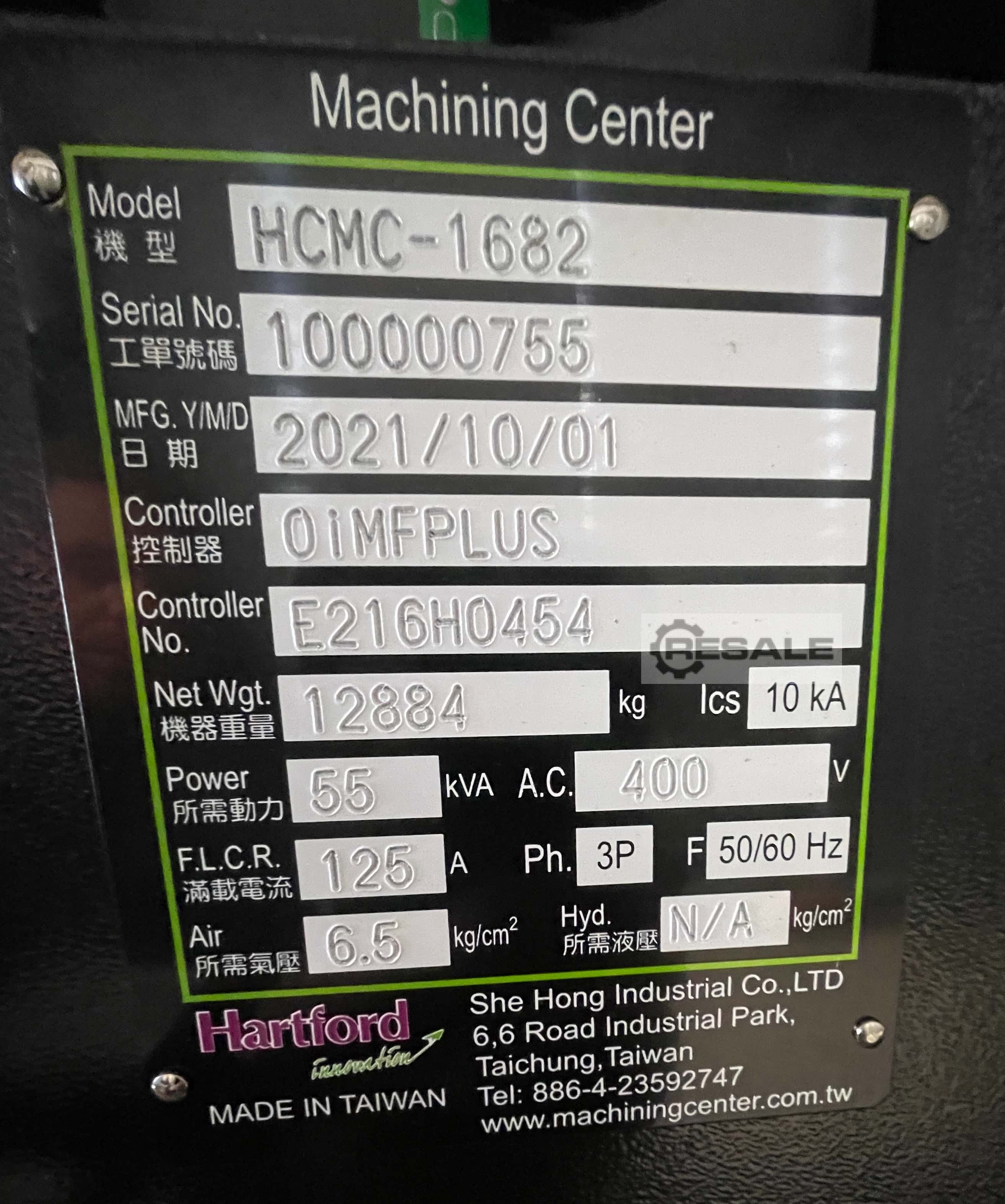

1. Machine identification data

Name: CNC Vertical Machining Center
Manufacturer: Hartford
Model: HCMC-1682
Machine number: 100000755
Year of manufacture: 2021
Controller: Fanuc OiMF PLUS

2. Operational parameters

Travel (X / Y / Z): 1,600 / 820 / 660 mm
Table Size: 1,750 x 820 mm
Max. Table Load: 2,200 kg
Spindle Taper: ISO50
Spindle Speed
Geared: 4,000 / 6,000 / 8,000 RPM
DDS: 10,000 / 12,000 RPM
Spindle Power: 11.0 / 15.0 kW (options up to 26 kW)
Rapid Traverse (X / Y / Z): 20 / 20 / 18 m/min
Number of ATC Stations: 32
Spindle Nose to Table: 150 – 810 mm
Electrical: 400 V / 3P / 125 A
3. Weights

Net weight: 12884 kg

4. Dimensions

Overall dimensions (Width x Length x Height): Approx. 2700 x 4000 x 3400 mm
seller offer No. resale 577
