Universal grinding machines HAAS UHS 1980 FL
metal working machines / grinding machines / Universal grinding machines
Haas UHS 1980 FL Universal Hand Lever Flat Grinder - Tip height 125 mm - Center width 450 mm (optional up to 600 mm) - Grinding length 350 mm - Table clamping area 800 x 115 mm - Max. workpiece weight: approx. 40 kg - Longitudinal movement (X-axis) 350 mm - Transverse movement (Y-axis) 180 mm - ...
Manufacturer: HAAS
Model:UHS 1980 FL
Type of machine: Universal grinding machines
item-No.: 169692902
Quantity: 1
Date: 14.06.2026
Year of manufacture:
Location:
Germany
76646 Bruchsal
Price:
Machine in stock:Yes

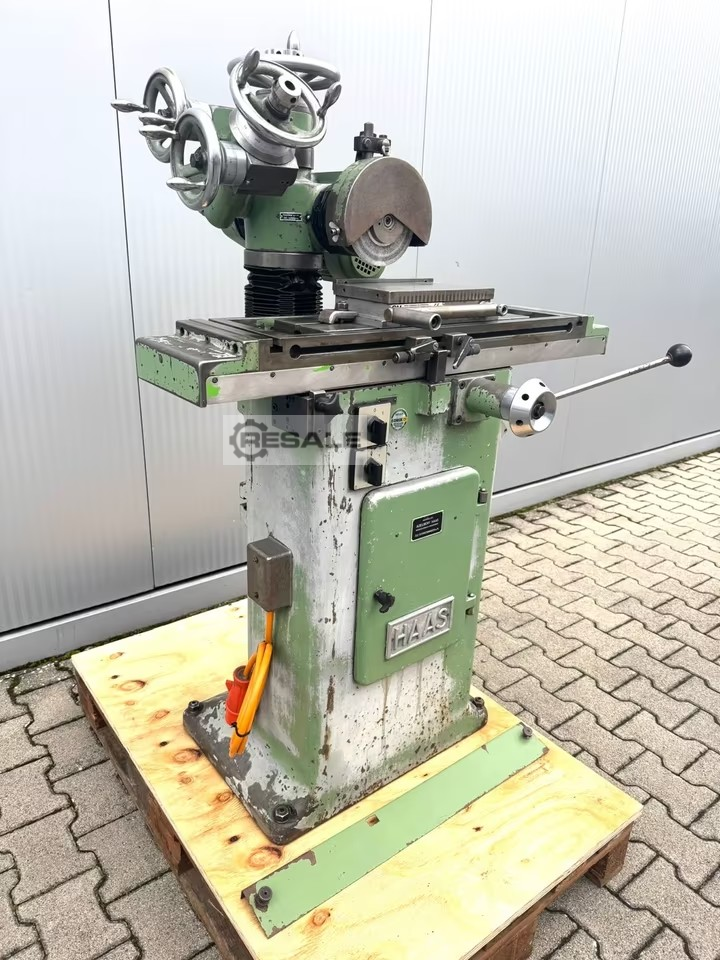

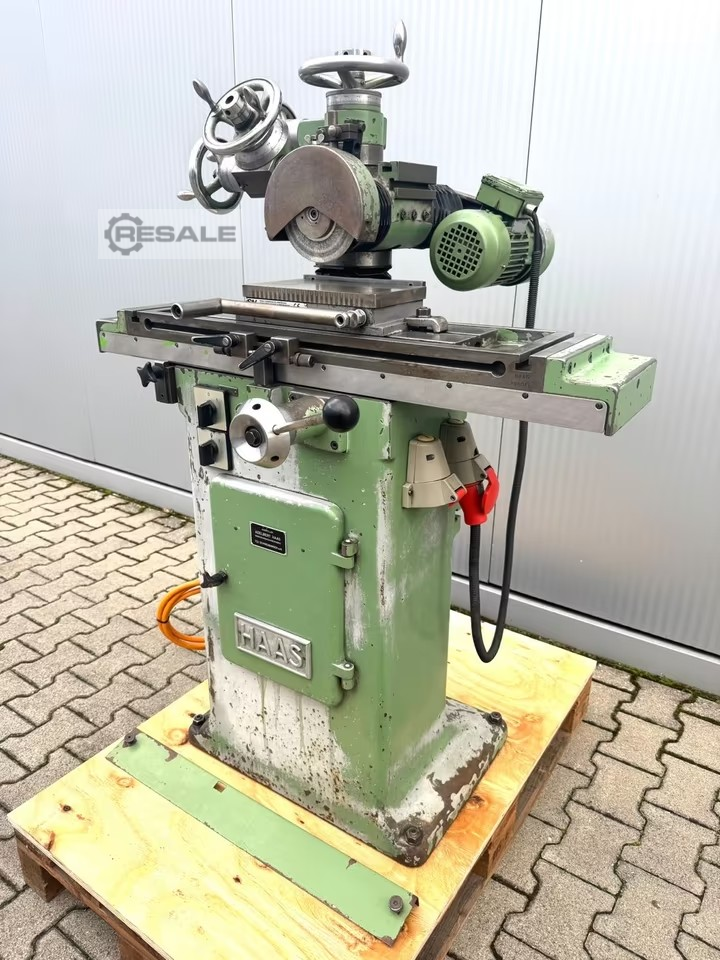

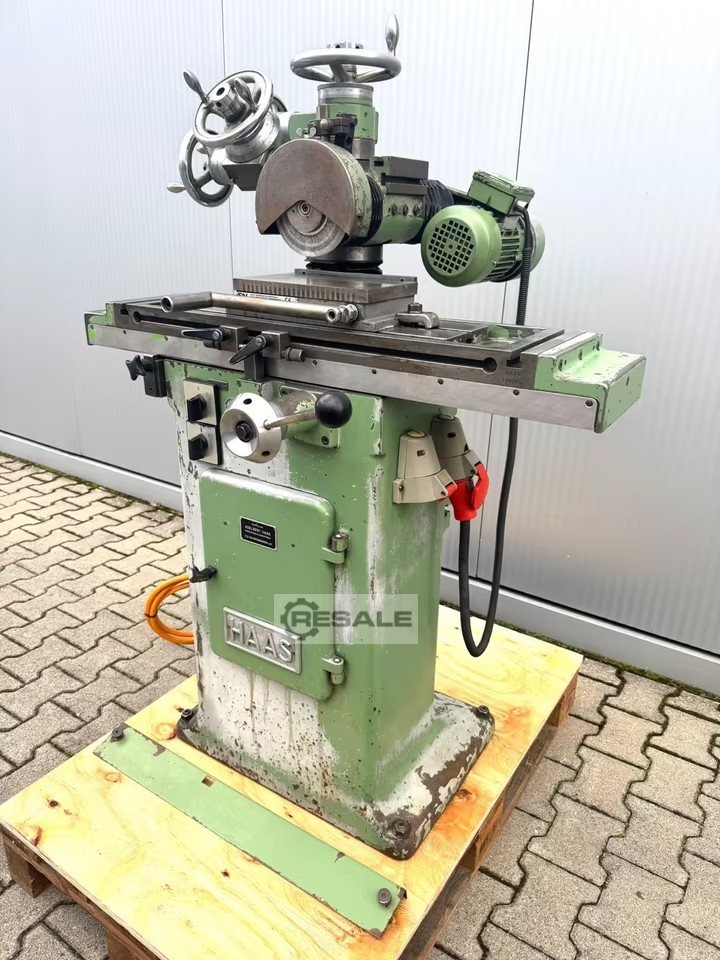

Haas UHS 1980 FL Universal Hand Lever Flat Grinder
- Tip height 125 mm
- Center width 450 mm (optional up to 600 mm)
- Grinding length 350 mm
- Table clamping area 800 x 115 mm
- Max. workpiece weight: approx. 40 kg
- Longitudinal movement (X-axis) 350 mm
- Transverse movement (Y-axis) 180 mm
- Height adjustment (Z-axis) 250 mm
- Swivel (horizontal) 360°
- Tiltability (vertical) ± 15° to 20°
- Spindle speeds 2,800 / 5,600 rpm (gradual)
- Drive power 0.75 kW - 1.1 kW
- Grinding wheel holder cone 1:10 (standard)
- Connection 400 V / 50 Hz

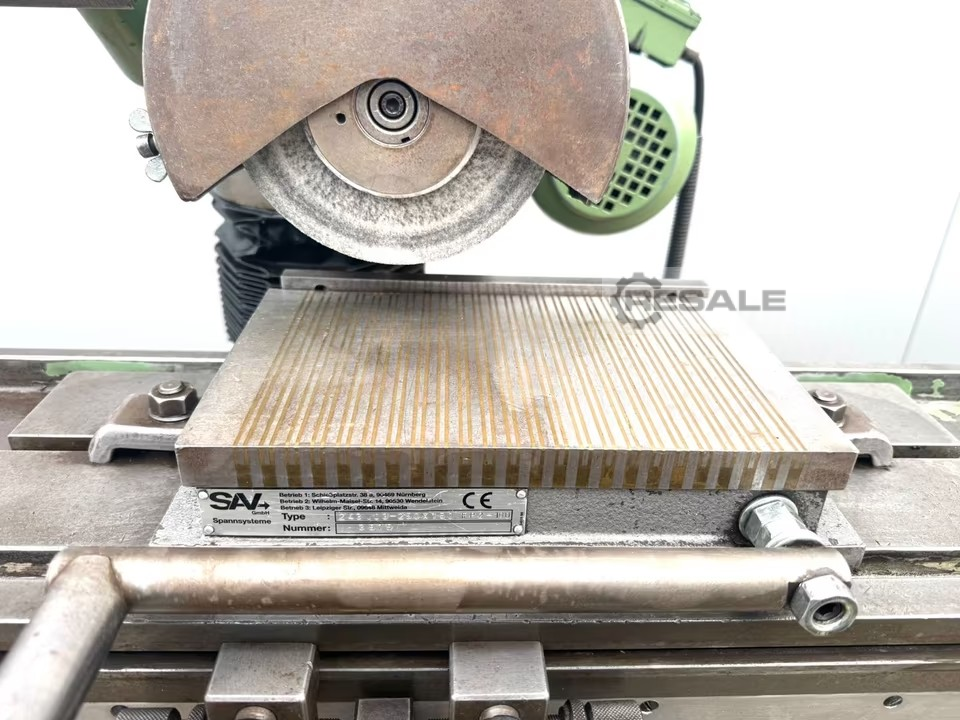

- Magnet LxW 255 x 150 mm
LxWxH 0.9x1.0x1.4 meters / Weight 650 kg
- Tip height 125 mm
- Center width 450 mm (optional up to 600 mm)
- Grinding length 350 mm
- Table clamping area 800 x 115 mm
- Max. workpiece weight: approx. 40 kg
- Longitudinal movement (X-axis) 350 mm
- Transverse movement (Y-axis) 180 mm
- Height adjustment (Z-axis) 250 mm
- Swivel (horizontal) 360°
- Tiltability (vertical) ± 15° to 20°
- Spindle speeds 2,800 / 5,600 rpm (gradual)
- Drive power 0.75 kW - 1.1 kW
- Grinding wheel holder cone 1:10 (standard)
- Connection 400 V / 50 Hz
- Magnet LxW 255 x 150 mm
LxWxH 0.9x1.0x1.4 meters / Weight 650 kg
