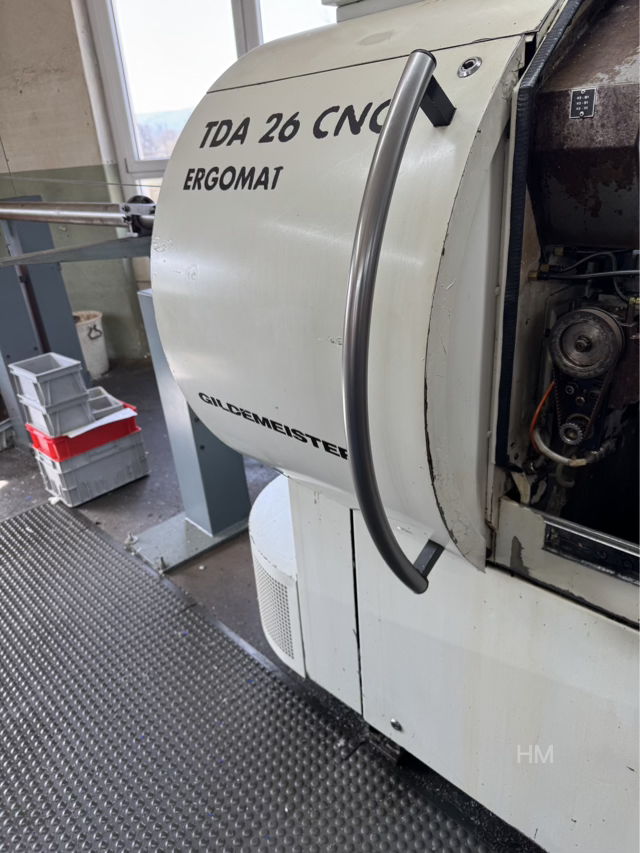

ERGOMAT TDA-26-36 CNC, Bj. `97 mit Einzelstangenvo
metal working machines / lathes
Location: Germany, Baden-Württemberg Southwest Condition: Used Model No.: TDA 26-36 CNC Year of Make: 1997 High-speed CNC automatic lathe (short lathe) Year of Make: 1997 Control: similar to Fanuc Technical data Max. rod diameter: 36 mm Standard rod passage: 26 mm Max. turning length: 100 mm Swing ...
Manufacturer: ERGOMAT
Model:TDA-26-36 CNC, Bj. `97 mit Einzelstangenvo
item-No.: 169681998
Quantity: 1
Date: 12.06.2026
Year of manufacture: 1997
Location:
Germany
Deutschland, Baden-Württemberg Südwest
Price:
Machine in stock:Yes
Seller-item-No.:IntNr231498
Location: Germany, Baden-Württemberg Southwest
Condition: Used
Model No.: TDA 26-36 CNC
Year of Make: 1997
High-speed CNC automatic lathe (short lathe)
Year of Make: 1997
Control: similar to Fanuc
Technical data
Max. rod diameter: 36 mm
Standard rod passage: 26 mm
Max. turning length: 100 mm
Swing diameter over face slide: 120 mm
Main spindle
Speed range: 100 – 6,300 rpm (infinitely variable)
Spindle power: 7.5 kW / 11 kW (continuous/peak)
Spindle Nose: A2-5
C-axis: Resolution 0.001
Number of slides: 4 linear slides (X/Z) for
Condition: Used
Model No.: TDA 26-36 CNC
Year of Make: 1997
High-speed CNC automatic lathe (short lathe)
Year of Make: 1997
Control: similar to Fanuc
Technical data
Max. rod diameter: 36 mm
Standard rod passage: 26 mm
Max. turning length: 100 mm
Swing diameter over face slide: 120 mm
Main spindle
Speed range: 100 – 6,300 rpm (infinitely variable)
Spindle power: 7.5 kW / 11 kW (continuous/peak)
Spindle Nose: A2-5
C-axis: Resolution 0.001
Number of slides: 4 linear slides (X/Z) for
