CNC Turning Machines DOOSAN S310S

turning diameter: 310 mm
turning length: 450 mm
control: Fanuc O-TC
total power requirement: kW
weight of the machine ca.: t
dimensions of the machine ca.: m
CNC control Fanuc O-TC
12-fold revolver (VDI30)
3-jaw chuck main spindle
3-jaw chuck sub spindle

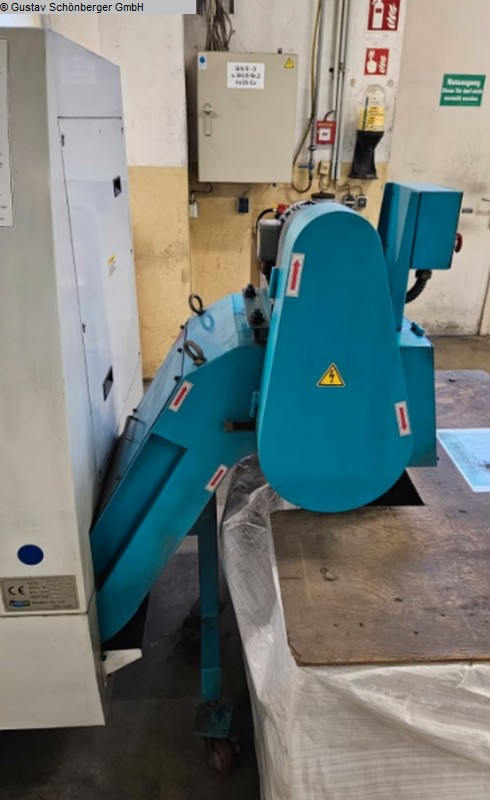

chip conveyor
tool measuring device
coolant device

Technische Daten / technical details:
Umlaufdurchmesser über Bett / rotary diameter over bed 500 mm
Umlaufdurchmesser über Planschlitten / rotary diameter over sledge 310 mm
max. Drehdurchmesser / max. turning diameter 310 mm
max. Drehlänge / max. turning lenght 450 mm
X-Weg / X-travel 200 mm
Z-Weg / Z-travel 450 mm
Drehzahl / spindle speed 4500 UpM /rpm
Werkzeugrevolver / turret head 12 fach /holes
Stangendurchlass Hauptspindel / bar diameter main spindle 50 mm
Eilgang X / rapid feed X 24 m/min
Eilgang Z / rapid feed Z 30 m/min.
Antriebsleistung Hauptspindel / drive capacity main spindle 11/9 kW
Gewicht der Maschine ca. / weight ca. 3500 kg
Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -
Technical data, accessories and description of the machine are not binding.
