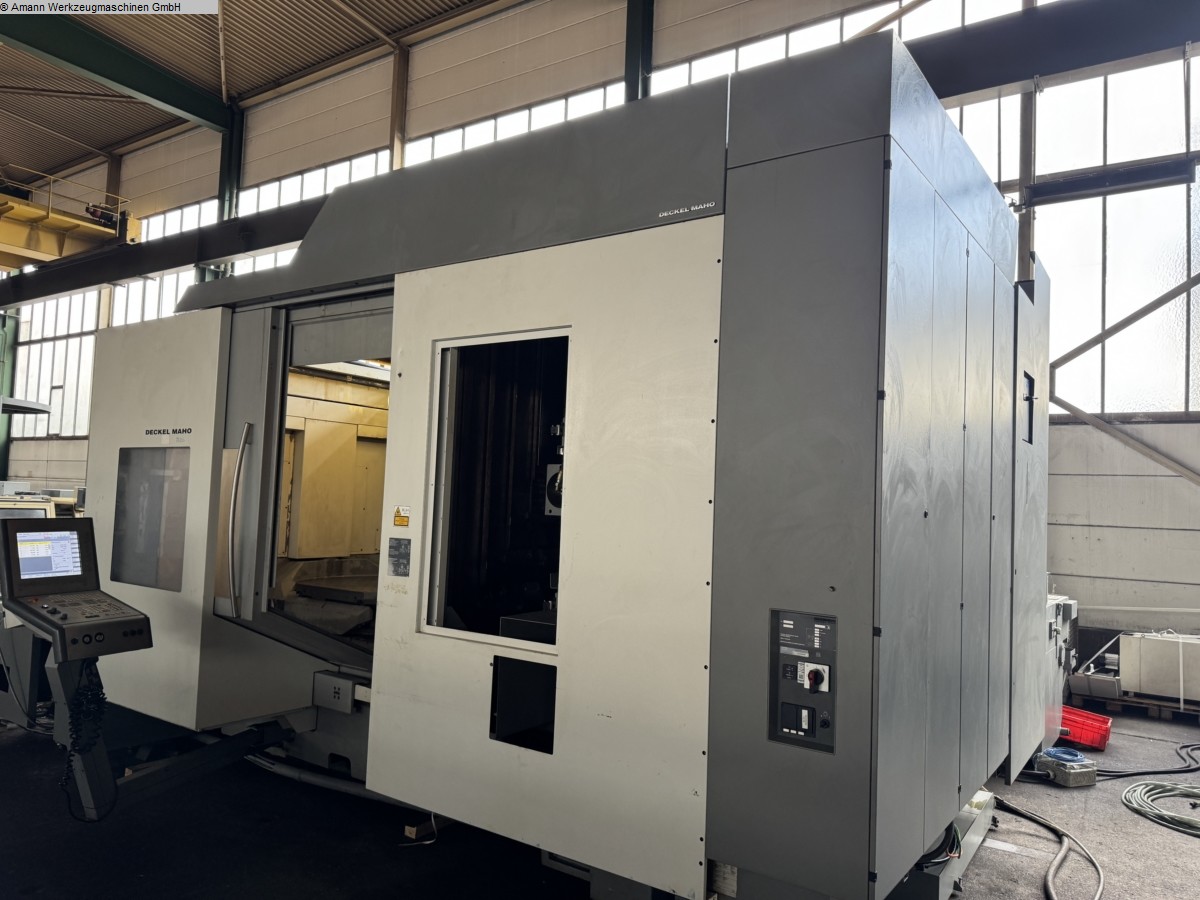

Processing Centers DECKEL-MAHO DMC160U

x-travel: 1.600 mm
y-travel: 1.250 mm
z-travel: 1.000 mm
size of pallet: 1.000 x 1.250 mm
control: SIN840D
power capacity at 40 % load: 38,00 KW
spindle turning speed - stepless: 20 - 10.000 U/min
power capacity at 100 % load: 25,00 kW
max. torque at 40% / 100% load: 288 / 187 Nm
tool taper: SK50
feed X/Y/Z/-axis: 20 - 15.000 mm/min
rapid traverse X/Y/Z: 60,00 m/min
B - axis: -150° / +80° x 0,001 °
feed B-axis: 3.600 ° / min
C-axis: 360 x 0,001 °
Rapid motion C- axis: 1 - 3.600 U / min.
table load: 3.000 Kg
tool magacine with: 240
tool diameter: 110 mm
wotkpiece diameter with 2 vacant positions: 250 mm
tool length - max.: 650 mm
weight of tools max.: 15,00 kg
total power requirement: 75,00 kW
weight of the machine ca.: 55,00 t
dimensions of the machine ca.: 12,50 x 8,00 x 4,20 m
5-axis machining center with control
SIEMENS Sinumerik 840D incl. ShopMill
electronical handwheel
operating mode 4
240-position tool magazine
4-position pallet storage system
TS641 measuring probe
BLUM laser
coolant system
coolant through the spindle
chip conveyor
coolant cooling
Machine can be inspected under power



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1006-18146
