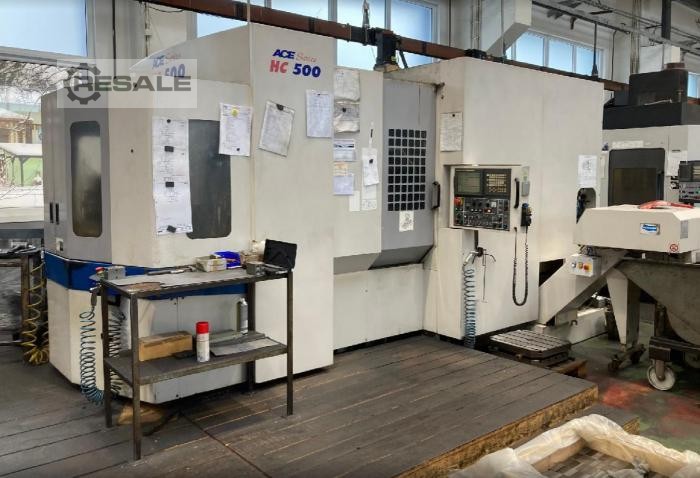

Horizontal Processing Centers DAEWOO ACE HC 500

The machine is in good technical condition, after prior agreement it is possible to test it. Spindle completely overhauled summer 2023 Ball screw replaced in Z axis in 2020. Feeds: X axis 850 mm Y axis 700 mm Z axis 750 mm Working feed 1-24000 Positioning accuracy +/- 0.005 Rapid feed – 48m/min all axes. Distance spindle face – front of table 150-900 mm Distance spindle axis – pallet surface 50-750 mm Pallet – 500 x 500 Spindle alfaP22/8000 Motor power (continuous/15') – 11/15/18.5 Spindle speed – 8000 rpm Base speed – 8000 rpm Tool clamping force – 1000 N Max. torque (15') 29.2 Nm Orientation built-in sensor Taper ISO 40, taper 7/24 Power transmission – synchronizing belt and pulley Cooling through the spindle – 70 kg/cm2, max flow 20 L/min, pump power 3.7 KW Magazine for 60 tools – chain – be careful, the catalogue incorrectly states 40.
seller offer No. resale 32123
