Beading Machines used for sale (14)

SIMMECH SIMMFORM 2000 duct beader was built in 2009 in Poland by SIMMECH s.c. The machine is used is designed to shape reinforcing beads over entire sheet metal length. This type of machining increases the stiffness of the material and its resistance to deformation while maintaining a relatively low weight. The finished sheet metal can then be used for the production of profiled sheet metal components or subjected to further machining, including plasma cutting. The SIMMECH SIMMFORM 2000 is designed for machining sheet metal with a thickness ranging from 0,55 to 1,2 mm and a maximum width of 2050 mm. The beading process is performed by gradually forming the moving material using rollers. The maximum working speed is 11 m/min, and the drive is provided by a high-performance R57SKH90L4 geared motor with a power of 1,5 kW. The machine is operated manually, with the possibility of setting  ...

: neu : 2023 : 9684 : prompt, Zwischenverkauf v : Türkei : 970 €: 1 : 1.2 mm: 100 mm: 140 nm: 7 Stk.: 62 mm: 560 mm: 220 mm: 500 mm: 50 kg7 tool setsusers manual in ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 26153 Technical data: - Max. projection 200 mm - Roller center distance 50 mm - Max. material thickness at 40 kg/mm² strength 1.25 mm - Space requirement approx. W 300 x H 1150 x D 500 mm - Weight approx. 25 kg - Various corrugated rollers

: neu : 2025 : 090069 : prompt, Zwischenverkauf v : Türkei : 840 €: 1 : 0.8 mm: 80 mm: 110 nm: 7 Stk.: 52 mm: 380 mm: 180 mm: 380 mm: 30 kg7 tool setsusers manual in ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 3 mm

Max. sheet thickness: 3 mm steel Roller center distance: 125 mm Largest radius: 500 mm Stepless speed adjustment via handwheel Clockwise and counterclockwise rotation Hydraulic infeed via foot switch Weight: approx. 550 kg Other tools on request

plate thickness: 4 mmroll-body distance: 260 mmthroat: 500 mmdistance between roll centers: 132 mmtool adaptor: 40 mmspeed: 5 m/mintotal power requirement: 2,2+0,55 kWweight of the machine ca.: 450 kgdimensions of the machine ca.: 1800x700x1600 mmDomestic equipments:- motor driven beading machine- 3 sets of bead rollers- Footswitch- Operating instructions in German- CE mark / Declaration of ConformityThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Max. sheet thickness: 3 mm steel Roller center distance: 125 mm Largest radius: 500 mm Clockwise and counterclockwise rotation Weight: approx. 500 kg Other castor sets on request

plate thickness: 2,5 mmroll-body distance: 260 mmthroat: 500 mmdistance between roll centers: 92 mmtool adaptor: 35 mmspeed: 3,5 m/mintotal power requirement: 1,5+0,55 kWweight of the machine ca.: 320 kgdimensions of the machine ca.: 1200x700x1200 mmDomestic equipments:- motor driven beading machine- 3 sets of bead rollers- Footswitch- Operating instructions in German- CE mark / Declaration of ConformityThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

with stop plate and 3 sets of rollers Projection:approx. 240 mm Color: Green Roller center distance: 63 mm Pick-up shaft: 25 mm Sheet thickness: 1.25 mm Dimensions:1200 x 800 x 1400 mm Weight: 70 kg Machine number: 7541002 Machine is repaired, checked, cleaned by a professional and is then fully functional. Test run is carried out.

plate thickness: - mmthroat: - mmdistance between roll centers: - total power requirement: - kWweight of the machine ca.: 160 kgdimensions of the machine ca.: - mNo accessories For rolling beadsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet thickness: 1.25 mm steel Roller center distance: 63 mm

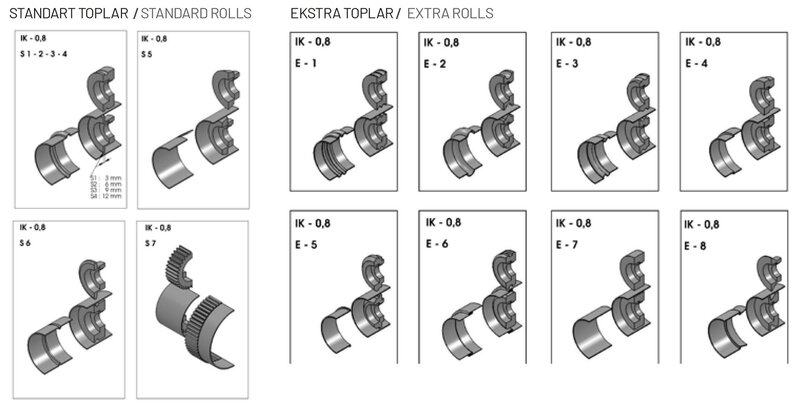

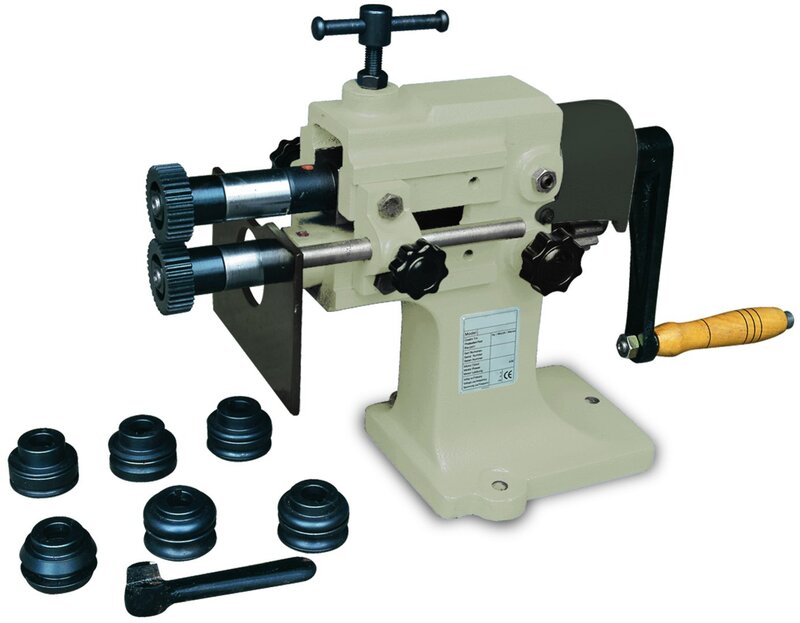

plate thickness: 1.20 mm STshaft length: 140 mmroll diameter: 62.0 mmthroat: 100 mmtotal power requirement: manuell kWweight of the machine ca.: 50.0 kgdimensions of the machine ca.: 560 x 220 x 500 mm Display machine - like new Never been used () Special price upon requestDescription:- 8 pairs of beading and flanging rollers included- For the economical production of a wide variety of bead types- High accuracy thanks to precision-mounted shafts- Lower shaft with adjustable stop- Sturdy cast iron construction with a modern design- Expanded application range thanks to 8 different, optionally available roller pairs- Adjustable upper shaftThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Working length: 1040 mm max sheet thickness: 1.5 mm aluminium: 2.0 mm stainless steel: 1.0 mm maximum opening width with segments: 95 mm maximum opening width without segments: closed 235 mm maximum passage height: 90 mm rear gauge: 530 mm bending angle: 0-140° working height: 1005 mm width: 1570 mm depth: 820 mm height: 1270 mm weight approx.: 310 kg

plate thickness: 1,2 mmroll diameter: 62 mmthroat: 100 mmweight of the machine ca.: 50 kgdimensions of the machine ca.: 560 x 220 x 500 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
