78 FASTI used machine for sale

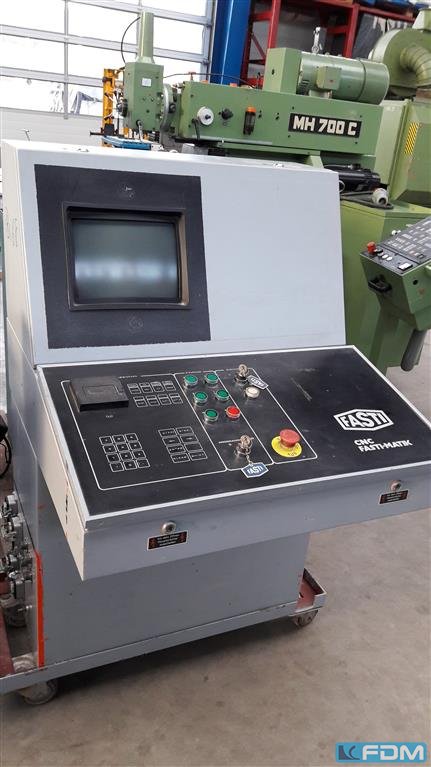

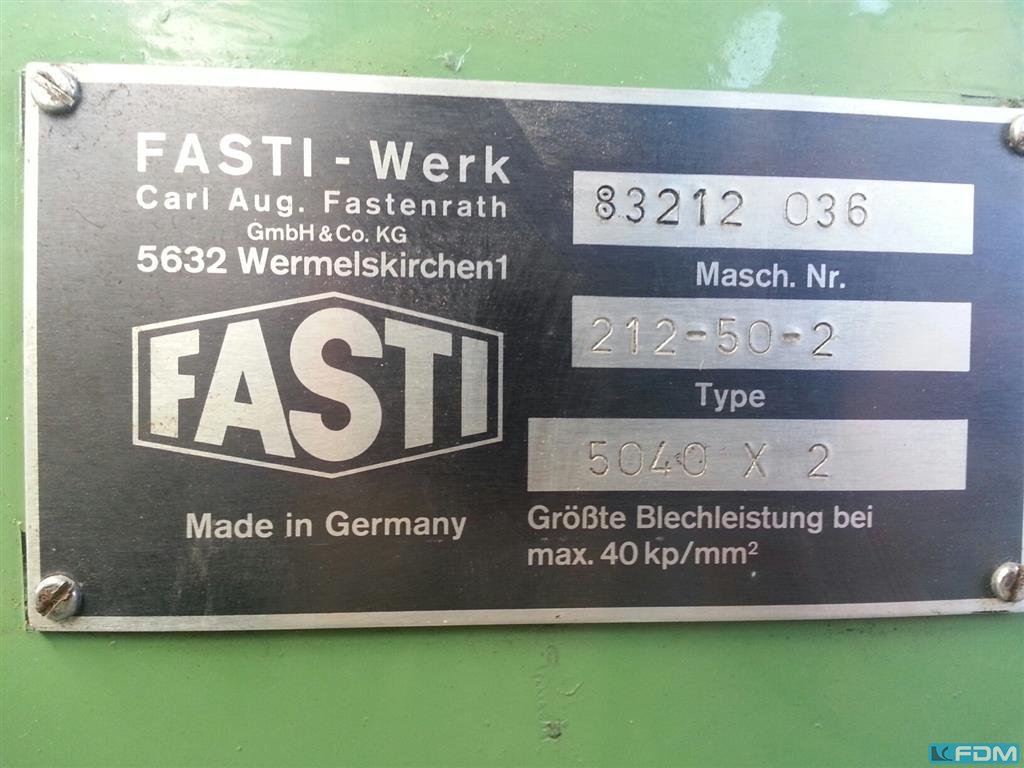

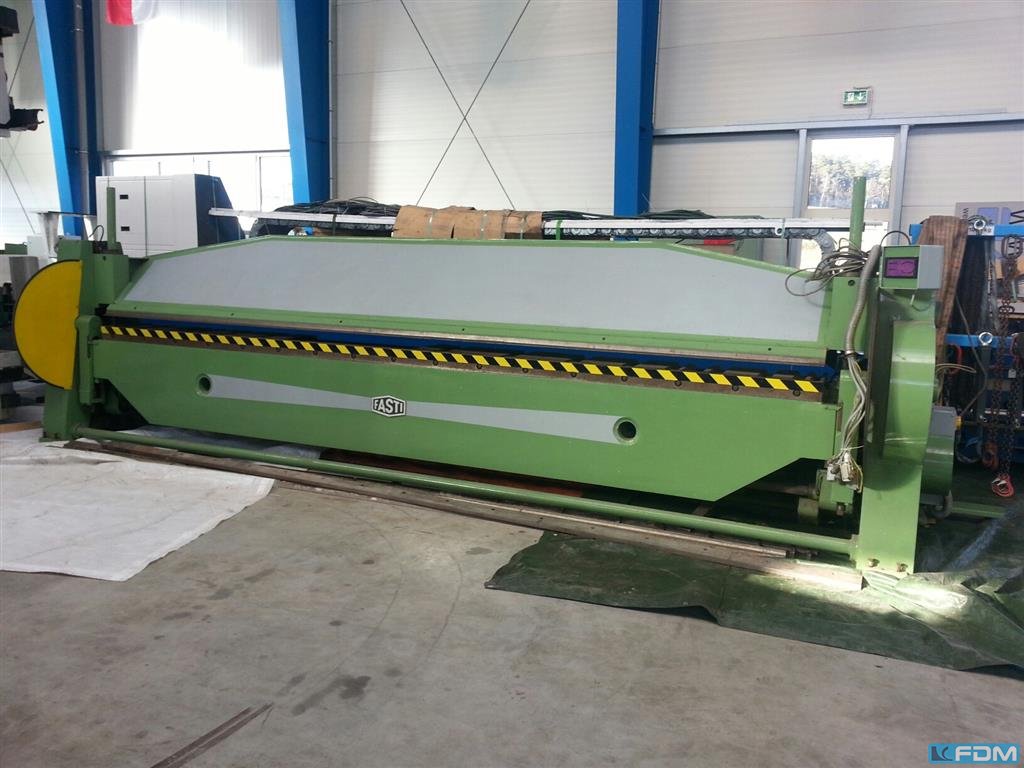

sheet width:5040 mm plate thickness:2 mm total power requirement:12 kW weight of the machine ca.:9,4 t dimensions of the machine ca.:6200× 1300 ×1900 mm working width:5000 mm control:Fasti Matik stroke of upper beam:500 mm adjustment of lower beam:u.Biegewange 80 mm control cabinet:1000 x 850 x1450 mm Documents:vorhanden

sheet width: 3240 mm plate thickness: 5,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 5,70 t dimensions of the machine ca.: m Upper Beam Stroke: 350 mm Program control via touchscreen (back gauge, bending angle adjustment, upper beam stroke, sheet thickness, piece count, etc.) Motorized height adjustment of the bending beam (for sheet thickness setting) Manual and automatic modes available Controlled back gauge with spring-loaded fingers Centralized lubrication Various additional bending and reinforcement rails Operating manual The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2520 mm plate thickness: 3.0 mm : 350 mm Swing beam adjustment: 80.0 mm back stop - adjustable: ca. 1.000 mm Control: FM 5.1 B upper clamping bar adjustment: 20.0 mm/sek bending speed: 37.0 Grad/sek total power requirement: 4.5 kW weight: ca. 3.250 kg The ideal solution for individual and series production. A modern design with particularly high rigidity. Designed for continuous performance. Features: - Dynamic, powerful electro-motorized folding machine Upper beam bending beam drive by geared brake motor Bending beam drive with roller bearings - FASTI CNC control TOUCH - FM 5.1 B Swiveling control unit, front right 11.3 color LCD touch screen display Manual / automatic mode selectable Input of actual/target values possible (X axis / angle etc.) Program memory Tool memory - CNC electro-motorized back gauge with rear sheet support surface - CNC electro-motorized fold ...

sheet width: 1250 mm plate thickness: 4,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 2,80 t dimensions of the machine ca.: m Powered Backgauge Side Stop and Table Extensions Cut Length Limitation Cutting Line Illumination Light Barrier for Rear Area Guarding The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1040 mm plate thickness: 4,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 1,70 t dimensions of the machine ca.: m Manual back gauge up to 550 mm Side gauge and table extensions Sharpened blades The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

plate thickness: max. 3 mm distance betw. rolls: 125 mm throat: max. 500 mm weight: ca. 500 kg Material thickness at 40 kg/mm² tensile strength: max. 3 mm Working width: 500 mm Working depth: 450 mm Manual adjustment of the upper roller Roller center distance: 125 mm Continuously variable working speed: 3–15 m/min Stop skirt 1 set of rollers Forward/reverse operation via foot switch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2040 mm plate thickness: 4,0 mm distance between columns: 2100 mm roll diameter: 150 mm total power requirement: 7,0 KW weight of the machine ca.: 2,2 t dimensions of the machine ca.: 2,95 x 1,0 x 1,75 mm Sheet metal bending machine with 3 rollers - 2 driven rollers - Rear roller electrically adjustable - Conical bending - Foot switch - Emergency stop device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: Fasti Model: 902-315/40 Year of Manufacture: 1990.The machine was last retrofitted in 2019. Type of Machine : Bending Machine Technical Specifications - Total Weight : 25,000 kg - Nominal Pressing Force : 3150 kN - Stroke Length: 250 mm - Working Width: 4050 mm - Maximum Working Pressure: 30 MPa - Stopping Time: 71 ms - Two-Hand Release Safety Distance : 114 mm Find more here - / Contact us at -

sheet width - max.: 3035 mm plate thickness: 4.0 mm ST plate thickness: 2.5 mm VA plate thickness: 6.0 mm ALU number of strokes - loaded: 20 Hübe/min cutting angle: 1.7 ° work height max.: 900 mm Control: ELGO total power requirement: 8.5 kW weight of the machine ca.: 4400 kg range L-W-H: 3416 x 2250 x 1760 mm Equipment: - robust NC electro-hydraulic guillotine shears - NC electro-motorized backgauge with ELGO control unit TYPE 85 - Manual cutting gap adjustment - front support table incl. recessed grips - 1x stable side stop, with scale and tilting cam - 3x stable front support arms - 1x freely movable foot switch - front finger guard - Rear metal slide - EMERGENCY OFF button at the front - Operating instructions (PDF) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3240 mm plate thickness: 2,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 3,00 t dimensions of the machine ca.: m Manual and automatic bending operation possible Bending angle adjustable via potentiometer Upper beam stroke height and material thickness selectable via DIP switches Bending rail and machine in excellent condition The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2040 mm plate thickness: 3,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 2,30 t dimensions of the machine ca.: m Manual and automatic bending operation possible Bending angle adjustable via potentiometer Upper jaw stroke height and material thickness selectable via DIP switches Manual backgauge with spring fingers The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

serial number: 70212008 weight: 3,3 t working width: 2040 mm : 4 length: 2900 mm width: 1890 mm height: 1780 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2040 mm plate thickness: 4,00 mm distance between columns: mm upper beam stroke: 350 mm total power requirement: kW weight of the machine ca.: ca.4,00 t dimensions of the machine ca.: m Manual and automatic bending sequence possible Bending angle adjustable via potentiometer Upper jaw stroke height and material thickness selectable via DIP switches Bending rail in excellent condition Manual backgauge with spring fingers The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 4040 mm plate thickness: 4,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 7,50 t dimensions of the machine ca.: m Motorized adjustable backgauge with digital display up to 1000 mm Pneumatic sheet metal support Side fence and table extensions Cut length limiter Cut edge lighting The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Folding machine FASTI type 2095-25-2,5Fabr. No. 94 295 004 Year of construction 1994Useful length 2540 mmmax. Sheet thickness 2.5 mmStroke of the upper beam 380 mmMotor power bending beam 2.2 kWWetz connection 400 Volt, 50 Hz- NC control FASTImatic FM100- one-piece pointed rail 135- controlled back gauge- continuous stop rail- controlled bending angle via control- electric foot switchesWeight 3000 kggood condition; used

Hydraulic guillotine shears FASTI type 509 - 25/4Masch. No. 5418 Year of construction 1991Cutting length 2535 mmCutting thickness 4 mmBack gauge 5-1000 mm (controlled)Cutting angle adjustableHydraulic pressure max. 290 barMotor power 7.5 kWNeching connection 400 volts, 50 Hz- Back gauge with positioning control ELGO ELECTRIC Type 85- Sheet metal holding device under the back gauge- Manual cutting gap adjustment with dial gauge display on the right and left- Stepless cutting length adjustment- Hydraulic

Pneumatic folding bending machine FASTI Type 606 - 11 - 1.0Folding machine for sheet metal folding pre-bendingFor making a fold bendFolding bending machine for thin sheet metal instead of press brakeFabr. No. 9166002 year of construction 1991Working length: 1100 mmMaterial thickness at 45 kg/mm² 1 mmCompressed air requirement 6 bar- pneum. Foot switch roller infeed via threaded toggle screwsSpace requirement L x W x H 1600 x 300 x 1050 mmWeight approx. 250 kggood conditionThe fold is the doubling of the sheet metal in the edge area, i.e. 1x folded around the

Universal Crimping Machine, Border FASTI Type 81504 - UBPB 1,5Masch. No. 828152 001 Year of construction 1982Sheet thickness max. 1.5 mmPlate thickness min. 0.5 mmBoard height max. 12 mmBoard height min. 4 mmThroughput speed 4 / 8 m/min. Roll diameter 60 mmmin. Inner radius of curvature for 90 elbow piece 100 mmDrive power 1.1 / 1.4 kWNerg connection 400 volts, 50 Hz- Sheet metal guide- Operating instructions (as copy)Space requirement L x W x H 700 x 610 x 1250 mmWeight 150 kg; used

Motor-driven circular shears FASTI type 502 - 10 - 2Masch. No. 9252 009 Year of construction 1992Material thickness max. 2 mm (400N/mm²)Maximum blank diameter 1000 mmMinimum blank diameter 100 mmCutting shaft speed 60 and 120 rpmCutting speed 12 and 24 m/min. Knife holder 20 mmKnife diameter 65 mmProjection of the clamping plate 720 mmProjection of the cutting wheel 280 mmMotor power 1.1 / 1.4 kWWeergized connection 380 volts, 50 Hz- 2 motor speeds- mechanical clamping tip-

Fasti 2040 x 5 mm Number of rolls: 3 rolls Roll capacity cold: 2040 x 5 mm Roll dia upside: 160 mm Power needed: 7,5 HP Length: 3250 mm Depth: 900 mm Hight: 1300 mm Weight: 3100 kg

Type: 108 Number of rolls: 3 rolls Roll capacity cold: 2540 x 2,5 mm Roll dia upside: 140 mm Dia under roll - side rolls: 140 mm Power needed: 5 kW Weight: 1760 kg

Type: 230 Maximale buighoek: 180° Max worklength: 2040 mm Max tickness: 1,5 mm Distance between clampblock -- ram: 100 mm Eletric motor (power): 0,75 kW Weight: 1000 kg

De plaatdikte is afhankelijk van het profiel. dop: 0,5 gt; 1,5 mm 7 stations vermogen: 2,4 kW gewicht: 430 kg

Hoort bij Lijn -gt; P.14d 15917

gt; cap: 5 ton gt; max width: 1100 mm gt; manual clamping gt; non-driven unit

Key data: 2040 mm, 6 mm

Max. bending length: 2040 mm Max. sheet thickness: 6 mm steel Upper beam stroke: 350 mm Manual and automatic bending process possible Bending angle adjustable via potentiometer Lifting height of the upper beam and material thickness can be preselected via dip switch Motorized adjustment of the bending beam with digital display (adjustment of the sheet thickness) Manual backgauge with spring fingers up to 1500 mm 5700 kg

Key data: 3 mm

Max. sheet thickness: 3 mm steel Roller center distance: 125 mm Largest radius: 500 mm Stepless speed adjustment via handwheel Clockwise and counterclockwise rotation Hydraulic infeed via foot switch Weight: approx. 550 kg Other tools on request

Highest sheet capacity at 400 N/mm2 x 1000x2 16 A plug Length 1.30 m Width 0.4 m Height 1.30 m Weight 250 kg Tools

Key data: 1030 mm, 2 mm

Used guillotine shears of the make Fasti type 1030x2.5 Built in 1969
