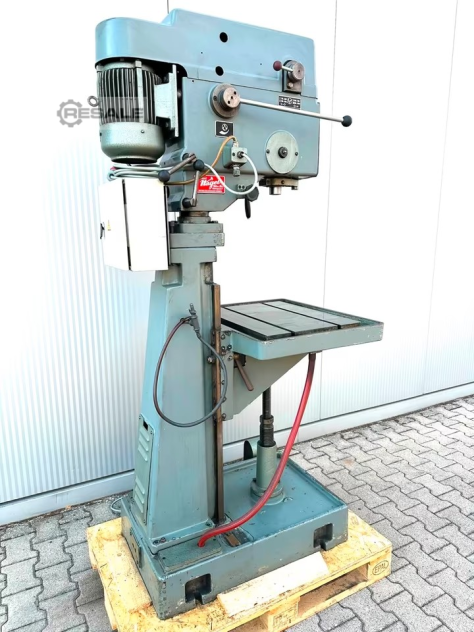

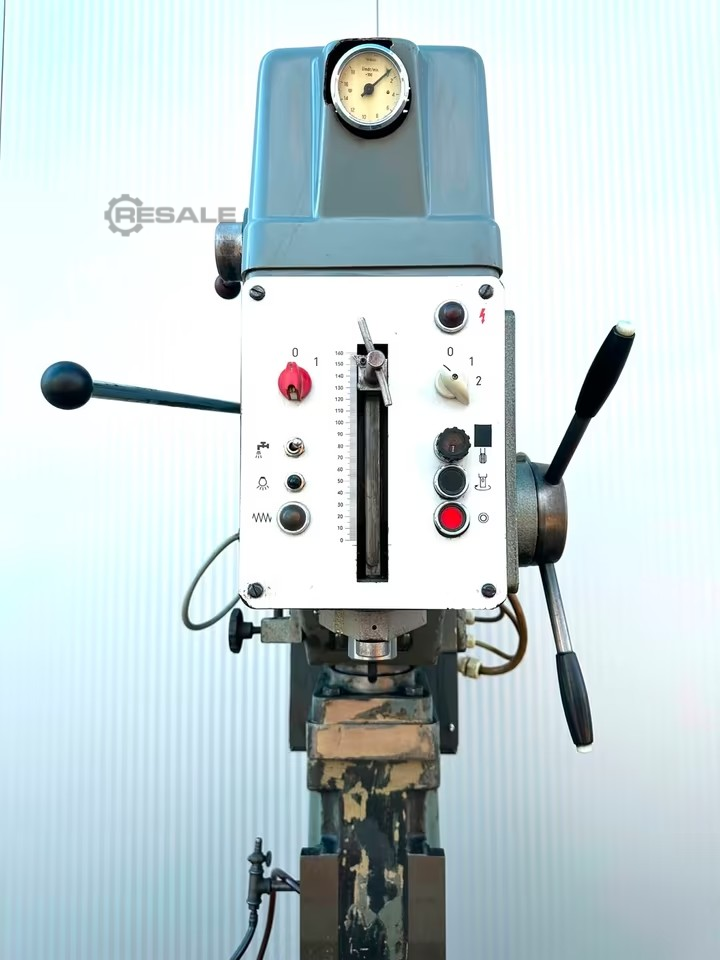

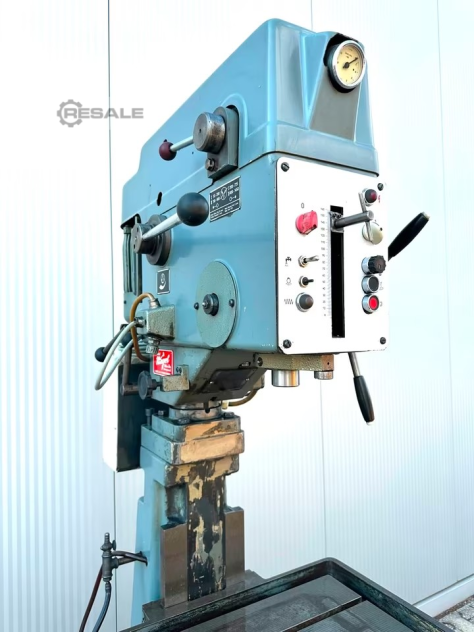

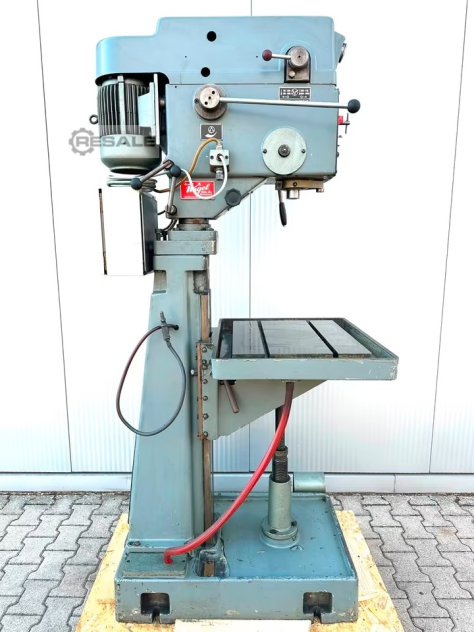

Column-Type Drilling Machines ALZMETALL AB 40 ST

ALZMETALL AB 35S Column Drilling Machine

-Drilling capacity steel: 40 mm
-Casting drilling capacity: 45 mm
- Spindle holder: MK4
-Projection: 300 mm
-Quill stroke (drilling stroke): 175 mm
-Spindle speed: 65–1,450 rpm (infinitely variable, 2 gear stages)
-Automatic feed: 0.10 / 0.20 / 0.30 mm/rev
-Table clamping surface: 600x460mm
-Table adjustment: 600 mm
-Table height-adjustable via hand crank
-T-slot clamping table
-Column diameter: 180 mm
-Distance from spindle center to base plate: 1,165 mm
-Base plate: 360 × 360 mm
-Motor power: 3.5 kW
-Operating voltage: 400 V
-Continuously variable variable transmission
-Automatic quill feed -Coolant device
-Machine lighting
-Speed display

Dimensions:
LxWxH 1.2x0.6x2.1 meters / Weight 1200Kg
seller offer No. resale 169952857
