Column-Type Drilling Machines ALZMETALL AB 35 S
metal working machines / boring mills and machining centers / Column-Type Drilling Machines
bore capacity in steel (diameter): 35 mmthroat: 300 mmbore stroke: 180 mmturning speeds: 55 - 1450 U/mintaper MK: 4 column diameter: 145 mmtotal power requirement: 2,2 kWweight: 500 kgdimensions: 800 x 1000 x 2000 mmFeatures:- Heavy-duty pillar drill - Infinitely variable speed control (V-belt)- ...
Manufacturer: ALZMETALL

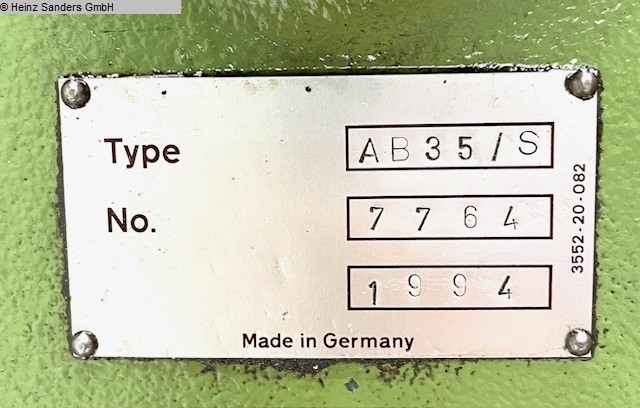

Model:AB 35 S
Type of machine: Column-Type Drilling Machines
item-No.: 170067740
Quantity: 1
Date: 26.08.2026
Year of manufacture: 1994
Location: 49779 Niederlangen
Price:
Machine in stock:Yes
Seller-item-No.:1125-3100066
bore capacity in steel (diameter): 35 mm
throat: 300 mm
bore stroke: 180 mm
turning speeds: 55 - 1450 U/min
taper MK: 4
column diameter: 145 mm
total power requirement: 2,2 kW
weight: 500 kg
dimensions: 800 x 1000 x 2000 mm
Features:
- Heavy-duty pillar drill
- Infinitely variable speed control (V-belt)
- Automatic spindle feed
with electromagnetic engagement
- Pole-changing motor
- Right/left rotation of the drill spindle
- Fixed drilling depth stop

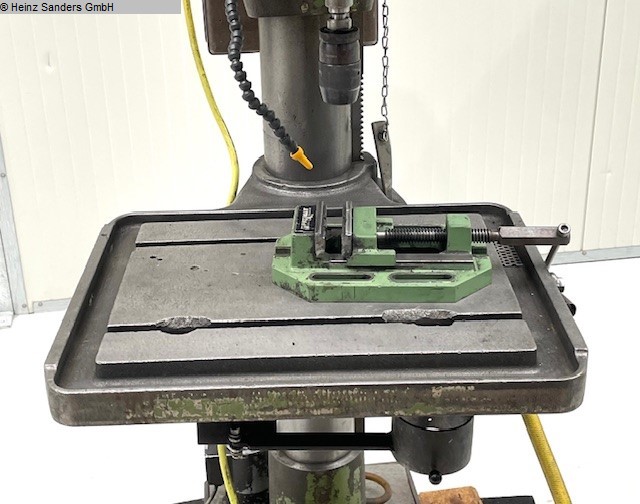

- Machine table with 2 T-slots
height-adjustable via hand crank
- Coolant system
- Machine vise
- Drill chuck
- Emergency stop
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
throat: 300 mm
bore stroke: 180 mm
turning speeds: 55 - 1450 U/min
taper MK: 4
column diameter: 145 mm
total power requirement: 2,2 kW
weight: 500 kg
dimensions: 800 x 1000 x 2000 mm
Features:
- Heavy-duty pillar drill
- Infinitely variable speed control (V-belt)
- Automatic spindle feed
with electromagnetic engagement
- Pole-changing motor
- Right/left rotation of the drill spindle
- Fixed drilling depth stop
- Machine table with 2 T-slots
height-adjustable via hand crank
- Coolant system
- Machine vise
- Drill chuck
- Emergency stop
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
