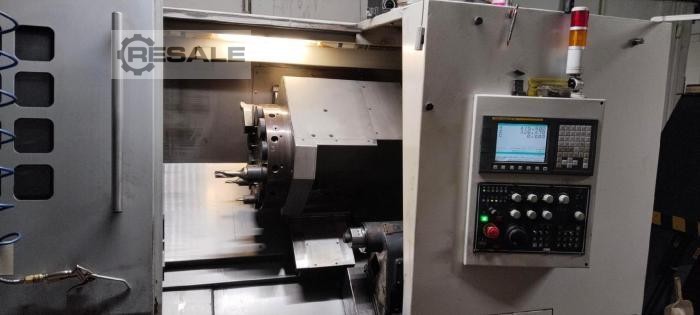

CNC Turning Machines ALEX TECH VT 21M

The machine is in good technical condition, after prior agreement it is possible to test it. designed for serial and piece production. It is one of the classic 2-axis CNC lathes (X, Z) with a turret head and is often used in the engineering production of smaller and medium-sized parts. Max. turning diameter: approx. 320 mm Max. turning length: approx. 500 mm Max. diameter above the bed: approx. 500 mm Max. diameter above the slide: approx. 300 mm Spindle Chuck diameter: 210 mm (8") Spindle passage: approx. 52–65 mm Spindle speed: up to 4500 rpm Main motor power: approx. 11–15 kW X-axis: approx. 200 mm Z: approx. 500 mm Rapid traverse: up to 20–24 m/min Turret head 8 or 12 tool positions, possibility of driven tools in the M version Control system Most common: Fanuc 0i-T / Fanuc 21i-T Machine weight approx. 4,000 – 5,000 kg
seller offer No. resale 32044
