Flat Grinding Machines ABA WERK ASCHAFFENBURG FFK Flachschleif

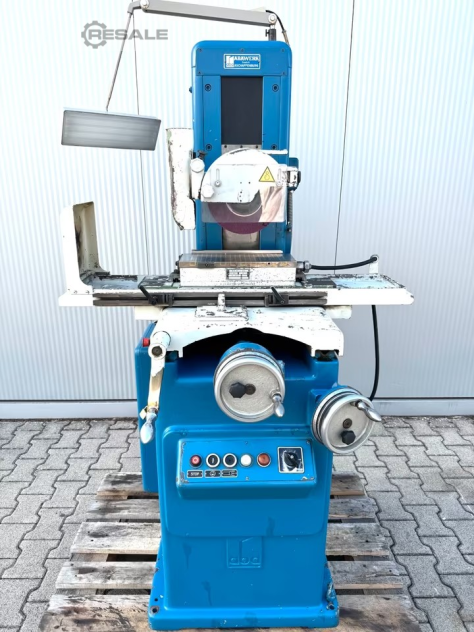

ABA-WERK Aschaffenburg Hand Lever - Surface Grinding Machine FFK

-Total power: 1.75 kW

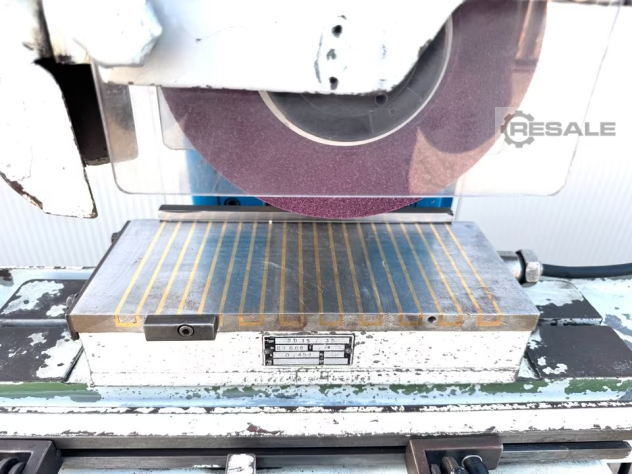

-Magnetic clamping plate: approx. 300 × 150 mm
-Working range: approx. 350 × 300 × 150 mm
-Grinding length: approx. 350 mm
-Grinding width: approx. 150 mm
-Max. workpiece height: approx. 150 mm
-Grinding wheel dimensions: approx. Ø 200 × 20 × 76 mm
-Grinding spindle speed: approx. 2,800 rpm
-Table adjustment longitudinal: manual
-Table adjustment transverse: manual
-Height adjustment: manual
-Magnetic Clamping Plate: Permanent Magnet
-Machine feet
-Grinding wheel protection
-Extraction system

Dimensions:
LxWxH 1.1x1.1x1.7 meters / Weight 700Kg
seller offer No. resale 170153623
