Turning Machines (Lathes) used for sale (94)

Year of manufacture: 1978 / overhauled: 2024 Circumferential diameter over bed... 710mm Max. workpiece length ... 4000mm Circumferential diameter via support ... 420mm Spindle speed ... 90-1000 rpm L x W x H ... 6000x1440x1560mm Machine weight ... 3500kg The machine is in very good condition - after the general overhaul. More info on request. It is possible to visit our warehouse in Brno.

turning diameter: - mmturning length: - mmswing diameter over bed slide: - mmtotal power requirement: - kWweight of the machine ca.: - tdimensions of the machine ca.: - mWEILER Bundle- RDU - LZ 330- 2 x Commodor- UD 24- DZ 67 V3The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Year of manufacture: 1979 / overhauled: 2024 Circumferential diameter over bed ... 710mm Turning length... 2000mm Max. workpiece weight ... 850kg Circumferential diameter via support ... 420mm Spindle speed ... 10-1000 rpm Main engine power ... 7.5kW Machine weight ... 3000kg L x W x H ... 4000x1440x1560mm The machine is in very good condition - after the general overhaul. More info on request. Viewing is possible at our warehouse in Brno.

spindle travel: 3000 mmspindle stroke - max.: 330 mm: 2820 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Year of manufacture: 1994 / overhauled: 2025 Circumferential diameter over bed ... 630mm Turning length ... 2000mm Circumferential diameter via support ... 340mm Main engine power ... 7.5kW L x W x H ... 4000 x 1400 x 1520mm Machine weight ... 2960kg The machine is in very good condition - after the general overhaul. More info on request. It is possible to visit our warehouse in Brno.

turning diameter: 300 mmturning length: 1700 mmswing diameter over bed slide: 600 mmtotal power requirement: 12,5 kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Circumferential diameter over bed ... 840mm Turning length ... 2750mm Max.workpiece weight ... 6000kg Circumferential diameter via support ... 530mm Spindle bore... 82mm Spindle speed ... 7-900 rpm The machine is in good condition, possible to test under power.

centre distance: 2000 mm: 600 weight of the machine ca.: 3,2 tPassage 49 mm DigitalLynetteThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 330 mm, 850 mm, 190 mm

Circumferential diameter over bed / support 330 / 190 mm Center width 850 mm Bore 36 mm Speed range 60 - 2400 1/min Tailstock quill MK 3 / stroke 100 mm incl. accessories: 4-fold holder, chip back panel, T-slots in cross support Tightening tube for collets (New machine was designed according to DIN 8605)

greates pass round over bed: 1050 mmdist. between centers: 6000 mmcentre height: 520 mmturning length: 4810 mmworkpiece weight max. (main spindle): 6000 kgMaximum workpiece weight with steady rests: 8000 kgmax. torque on the spindle: 12500 Nmnumber of spindle speeds: 2,8-560 1/minSpeed range 24 levels: feed per revolution: 0,08-56 mmchuck diameter: 630 mmMaximum travel distance of the longitudinal slide: 4810 mmMaximum travel distance of the cross slide (suppor: 530 mmMaximum travel distance of the tool slide (support: 340 mmTailstock quill diameter: 150 mmtotal power requirement: 31 kVAweight of the machine ca.: 10500 kgdimensions of the machine ca.: 7860 x 1970 x 1480 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 840 mm, 3000 mm, 490 mm

Circumferential. over bed 840 mm, over cross slide 490 mm Center width 3000 mm Speed range 10-1250 rpm, spindle nose DIN 55022 Gr. 11 Spindle bore 105 mm Feeds 0.060 - 1.4 mm // 0.024 - 0.518 mm Thread metric 1 - 224 mm Drive power 18.5 kW Quill path / cone 220 mm / MK 6 incl. Hardened and ground bed guides, electromagnetic brake of the main spindle mechanically driven upper support, rapid traverse longitudinal/transverse Multifix steel holder, fixed bezel 2-axis digital display,

turning diameter: - mmturning length: - mmswing diameter over bed slide: - mmtotal power requirement: - kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 660 mm, 3000 mm, 440 mm

Sine 330/3000 D Well-maintained conventional lathe without mounted lathe chuck but with standard accessories The construction follows the classic design however, is based on a heavy, one-piece cast machine bed. How in the case of heavy lathes here, too, the adhesion between the engine and spindle via a manual Multi-plate clutch. With integrated Features such as the removable bed bridge, rapid traverse and a Taper turning device. WORKSPACE Workpiece length 3000 mm Turning diameter over bed 660 mm Circumferential Ø over support 440 mm Turning diameter without bridge 900 mm Bridge length 320 mm Bed width 400 mm TRAVELS X-axis travel 368 mm Travel Z1 axis 230 mm Swivel range upper slide 45° MAIN SPINDLE Spindle speed 25 1/min - 1600 1/min Spindle bore 105 mm Spindle holder D1-8 RUSH COURSE Rapid traverse X-axis 2000 mm/min Rapid traverse Z-axis 4000 mm/min ...

The new Hans Schreiner infinitely variable turning lathe with leading spindle and feed rod and cross feed. Hardened and cut bed and gear wheels. Main spindle,tapered roller bearings and v-ledges.Camlock mount C4, top slide ratatable by 360°, tailstockadjustment +/- 5 mm for taper turning. Good metal-cutting performance, infinitely variable speed via electronic speed control with digital speed indicator. Incl. three-jaw chuck 160 mm and steady rest. Technical data:Center height 140mmDistance between centers 650 mmmax. turning diameter 289 mmSpindle bore 38 mmSpindle cone MK 5Clamping cone tailstock MK 3 Spindle speeds 50 - 1125 RPM and 100 to 2250 RPMSpeeds 2Main motor power 1,5 kW S6Voltage 230 VoltWeight 230 kgStandard equipment:3-jaw chuck 160 mm with changeable jaws for internal turningcenter pointOptional equipment:2 axis digital displayUnderframe w ...

Control Other GDW Spindle Passage [mm] 43 Rotary diameter. [mm] 300 Turning length [mm] 650 Main spindle: Belt spindle technology Speed 4,500 rpm Power (max.) 7.5 kW Torque (max.) 80 Nm Spindle Passage 43 mm Workpiece clamping 3-jaw chuck, Röhm ZS ø160 mm Tool carrier (X/Z): Technology slide with 4-cavity turret Tool holder ready size 1 Travel in X/Z 170/650 mm Rapid traverse in X/Z 6 m/min Tailstock: Technology Manual tailstock with handwheel Quill stroke 110 mm Quill ø 50 mm Quill Cone MK3 Equipment/accessories: Chip disposal chip tray Coolant Management KSS Pump Tool holder Div. gebr. Parat Holder Further accessories 4-jaw chuck ø160 mm, various used Baking

Precision full gear, lead, pull, shift spindle lathe, bed and gear gears hardened and ground. Main spindle, tapered roller bearings and wedge bars plan/upper slide can be adjusted. Camlock mount C5, upper slide 360 rotatable. Tailstock adjustment +/- 5 mm for taper turning,High clamping capacity, DIN acceptance protocol, operating and spare parts list.Dial rings metricWith 3-axis Sino digital display and removable bedStandard equipment:Sino 3-axis digital displayTool Quick-change holder E

Key data: 1600 mm, 3500 mm, 800 mm

For sale is: 1 Piece Used Face and Lace Lathe Manufacturer: Werkzeugmaschinenfabrik Zerbst GmbH Type: DP1 / S3 x 3500 Year of manufacture: 1994 Technical data: Largest turning diameter over bed: 1,600mm Center width: 3,500mm Spindle bore: 100mm Face plate diameter: 1,250mm Total mass of the machine: approx. 24.8t incl. documentation Further pictures and videos can be sent on request. The following things have been renewed/repaired on the machine in the last four years: At the end of 2022, the tailstock was completely overhauled. New bearing and new tip and lubrication. 2024 Cross Support regenerated. Refurbishment of the wedge strips with new sliding coating, snatchers on the guideways smoothed by scraping, Bearing seats of the spindles made smooth, wedge strips in the contact surface and covering surface scraped. Lubrication pump cle ...

Hans Schreiner Metal LatheSuperut 1500 DigitalTechnical data:Center height 250 mm, center width 1500 mm, max. turning diameter 500 mm, spindle mount Camlock 8, hollow spindle 80 mm, tailstock cone MK5, spindle speed 24 to 1600 rpm, speeds 15, main motor output power 7.5 kW, max. diameter over face slide 300 mm, max. turning diameter i.d. bridge 630 mm, longitudinal feed 0.07 - 4 mm/revolution, transverse feed 0.02 - 1.35 mm/revolution, metr. Thread 0.5 - 28 mm pitch, inch thread 56 - 1 gears/inch, module thread module 0.5 - 3.5, thread diametrically pitch 56 - 8,

Control Fanuc 32i-TB Main spindle: Motor spindle technology Speed (max.) 6,500 rpm Power (max.) 7.5 kW Bar passage 38 mm Travel in Z (longitudinal turning operation) 320 mm Workpiece Clamping Collet Chuck (Type F48) Guide Bush Synchronous Running Sub-spindle: Motor spindle technology Speed (max.) 6,500 rpm Power (max.) 5.5 kW Workpiece Clamping Collet Chuck (Type F48) Pneumatic ejector Linear slides: Number of lathe chisel stations 5 Tool holder 16 x 16 mm/ 20 x 20 mm Number of stations cross drilling rig 5 Tool holder ER16/ER20 Tool drive 6,000 rpm, 2.2 kW Cross slide: Number of stations 2 Tool holder ER16 Milling operations tool drive Residual apparatus: Number of stations 8 Tool holder Ø32 mm Number of driven stations 4 Tool holder ER16 Tool drive 6,000 rpm, 1 kW Equipment/accessories: Chip Management Chip Conveyor Coolant system IKZ syste ...

Exhibition machine! Standard equipment: SDS2-3L Sino 3-axis digital display. Base frame, halogen lamp, jaw American 160 mm, 4-jaw American 160 mm, face plate 250mm, 2 steady restsTechnical data:Tip height 160 mm, center width 900 mm, max. turning diameter 460 mm, spindle bore 38 mm, spindle cone MK5, spindle speed 65 to 1810 rpm, speeds 18, main motor output power 2 Kw S6 ( 1.5 Kw S1), weight 510 kgSymbol photoPrices subject to change, errors, printing and typesetting errors excepted

Leit & Pull Spindle Lathe "DREHMA - D410x1500mm -Demonstration machine - year 2025 -CE - Identifier -Digital display -Turning diameter over bed 410mm -Turning length 1500mm -Turning diameter over support 255mm -Turning diameter in the offset 580mm -Spindle Passage 52mm -Speed range 45-1800 rpm -Automatic longitudinal/plane feeds -Thread/Inch/Metric etc. -Tailstock Mk4 -Central lubrication -Drive power 3.5 KW -Fixed / Rotating bezel -Multifix holder with 4x inserts -Three-jaw chuck 200mm Hsbknowatv Ss Au S Tel -Four-jaw chuck 250mm -Face Plate -Lining protection -Front safety device -Coolant device -Work light -Running tip -Machine feet

Metal lathe Mammut CD6250B, good condition, built in 2006, standard equipment, 6 kW, 1500 mm center width, 250 mm center height, 2000 kgPrices subject to change, errors, printing and typesetting errors excepted

Key data: 800 mm, 4000 mm, 710 mm

Description, subject to prior sale. Conventional lathe Make: Trens (former TOS Trencin) Digital read-out Swing over bed 710 mm Swing up to 800 mm Distance between centres 4000 mm In good working condition. Machine can be inspected under power in German factory. Availability short-term. Further information, price, videos on request. Technical indications, subject to error.

Lathe Hans Schreiner MDB-S900, YOC 2015, good condition, 1.5 kW , 900 mm center height, 165 mm center height, 65-1810 rpm, 500 kgPrices subject to change, errors, printing and typesetting errors excepted

Key data: 610 mm, 375 mm

The machine is in very good condition and still under power. Pick-up can be arranged at short notice.

multifix: ja centre distance: 1500 mmdocumentation: ja weight of the machine ca.: 3 tThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Year of construction: 80s Technical data: Tip height: 295 mm Turning diameter over bed: 600 mm Turning diameter over support: 390 mm Center width: 1000 mm Spindle bore: 72 mm Speed range: 72 - 1400 rpm Drive power: 11 kW Weight, approx.: 4000 kg Equipment: - 2-axis digital display, Heidenhain ND 780 - Collet chuck - 3-jaw lathe chuck - Quick-change holder System Multifix with 2 inserts - Spindle protection - Turning steel holder protection

turning diameter: mmturning length: 300 mmswing diameter over bed slide: mmtotal power requirement: kWweight of the machine ca.: 0,4 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

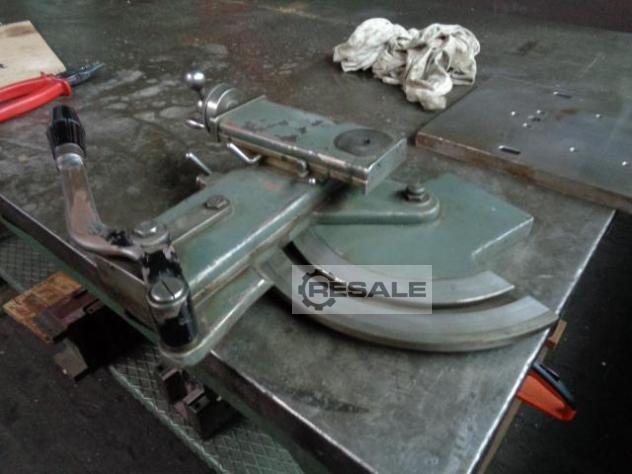

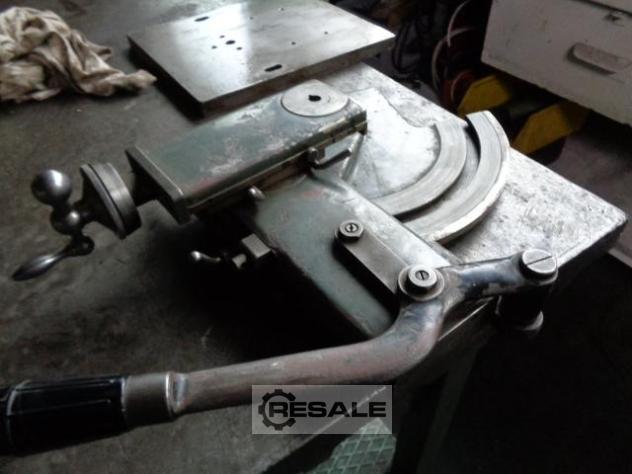

Support, traversing carriage of a Schaublin lathe, sgt. Condition, See photos ! Rotatable, feed via lever, infeed, axles are clampable! Is for a lathe brand Schaublin ! Shipping possible !

turning length: 2000 mmturning diameter: 560 mmturning diameter over slide: 350 mmturning speeds: 25 - 1500 U/minswing diameter over bed slide: 350 mmturning dia. in gap: 785 mmquill travel: 180 mmquill:: 5 MKspindle bore: 105 mmengine output: 7,5 kWspindle taper: DIN 55029 D 1-8weight of the machine ca.: 2720 kg.Equipment:- 3-axis digital display ES-12 V with LCD display- 3-jaw chuck PS3-315 mm / D8- Clamping disc 450 mm- Fixed steady rest - passage diameter max. 180 mm- Follow-on steady rest - passage diameter max. 120 mm- 2 centering points- Initial filling with Shell Tellus 46- Motor with magnetic brake in accordance with CE standard- Foot pedal with brake function in accordance with CE- Coolant system- Quick-change tool holder with 4 inserts- Protective device for quick-change tool holder- Slip clutch- LED machine light- Change gears- Reduction sleeve- Chip back wall- Operating tool ...

Lathe beds, unused Compakt 5 , Compakt 8, Compakt 11, Super 11, Interchangeable Wheels , Other EMCO Parts: Clamping tables, angle tables, steady rests, lathe spindles, milling spindles, ...

control: 840 C control: 2x 840 D : Kühlmittelsystem chip conveyor: ja kWgenerator - rated current: 95,00 Aconnected load: 65,00 kWThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

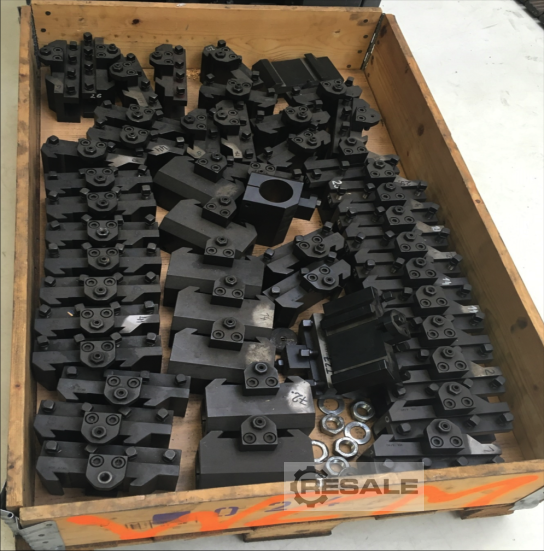

Various Tool Quick Couplers, PARAT, WDR 4 , WDL4, WD4, WB4 , Price per quantity on request

turning diameter: mmturning length: mmswing diameter over bed slide: mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Automatic straightener, shaft straightener , MAE -25RH, 1996, used Manufacturer: Maschinen- & Apparatebau Götzen GmbH, Germany Connected load: 14.5kva , Dim.: 2.5 x 1.5 x 1.8m, Weight : 5000kg

turning diameter: 430 mmturning length: 1500 mmswing diameter over bed slide: mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description Heyligenstaedt Lathe NDb-630 Details Year of manufacture 1980 Tip height above bed 630 mm Turning length 3,000 mm Turning diameter over bed 1,240 mm Turning diameter over bed slide 960 mm Max. workpiece weight without support 10,000 kg Bed width over guideways 850 mm Number of guideways 2 Bed height 650 mm Slide path 3,000 mm Face plate diameter 1,100 mm Main spindle diameter in the front bearing 280 mm Max. torque at the face plate 25,000 Nm max. workpiece weight clamped on the fly at center of gravity distance 250 mm in front of face plate 4,000 kg Main spindle speed range 2.24 - 450 rpm. Number of main spindle speeds 4 mech. Levels Power main motor 50 kW Main motor speed 100-1,000-2,500 rpm. Number of supports: 1 Cutting force support 4,000 kg Guide length front bed ...

turning diameter: 300 mmturning length: 2000 mmswing diameter over bed slide: 520 mmtotal power requirement: 7,5 kWweight of the machine ca.: 2,8 tdimensions of the machine ca.: 4745 mm x 1340 mm mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description Seiger lathe SLZ 800E x 4000 Details Machine no. 4443 Year of construction 2008 Siemens Cycle Control Spindle holder according to DIN 55027 size 11 Spindle bore Ø 130 mm Spindle diameter in the front bearing 170 mm Spindle taper 1:20 Drive power 20/28 kW Main spindle speed switching stage "I" 9-1,800 min-1 Main spindle speed switching stage "II" 9-400 min-1 Maximum torque: 3,200 Nm Center width 4,000 mm Circulation Ø above the bed 810 mm Circulation Ø above the face slide 540 mm Bed width 480 mm Machine dimensions 2,000+center width x 2,750 x 2,000 mm Permissible workpiece masses between points without setting stick 2,000 kg Permissible workpiece masses between points with a setting stick 2,200 kg Permissible workpiece masses between tips with two setting sticks 2,500 kg  ...

turning diameter: 800 mmturning length: 3000 mmswing diameter over bed slide: xx mmtotal power requirement: xx kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 900 mm, 5000 mm

Sony Digital read out 2 axis Taper Turning attachment Steady rest 4 pcs 3 jaw chuck selfcentering 4 jaw chuck independent Coolant system

turning diameter: 1040/1900 mmturning length: 2000/3000/1250 mmswing diameter over bed slide: 740 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mMake: EST-Ticinotype: 520/2000distance between centers min/max: 2000/3000 mmcenter height 520 mmMax. turning diameter over bed 1040 mmMax. turning diameter over support 710 mmmax. turning diameter/length 1900 x 1250 mmspindle passage 135 mmwith 3 jaw chuckwith 4-jaw chuckquick change holderin very good and immediately ready condition The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 8761 Type: VDF Producer: Heidenreich & Harbeck Generated: Parameters: Maximum turning length: 1500 mm Equipment: Digital measurement

turning diameter: 1250 mmturning length: 1500 mmswing diameter over bed slide: 850 mmtotal power requirement: 22 kWweight of the machine ca.: 6 tdimensions of the machine ca.: 3100x2150x1825 mBrand: JMTCLType: CW61125BDistance between centers: 1.500 mmCenterheight: 625 mmSwing over bed: 1.250 mm øSwing over support: 850 mm øMaximum turning diameter : 1.250ø x 1.500 mm øSpindle boring: 135 mm øThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Specifications: - Center height 220 mm - Turning diameter over bed 440 mm - Center height over bridge 330 mm - Turning diameter in the offset 630 mm - Center height / turning diameter via support 135 / 270 mm - Center width 1000 mm - Spindle bore 52 mm - Mounting cone of the tailstock quill MK 4 - Travel of the tailstock quill 310 mm - 18 spindle speeds 25 - 2000 rpm - Feeds longitudinal + flat - Metric Threads / Withworth Threads / Module Threads / DP Threads - Drive 400 V / 6 kW - 4-jaw chuck with interchangeable jaws and center punch, new Multifix size B with 3 inserts

turning diameter: 1120 mmturning length: 6000 mmswing diameter over bed slide: 760 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mBrand: ColomboType: VUP 2SYear of make: 1978Distance between centers: 6.000 mmCentre height: 560 mmSwing over bed: 1.120 mm øSwing over support: 760 mm ø4-Jaw chuck: 1.000 mm øDigital read-out: SonyIncluding:1 x steady rest 520 mm ø1 x steady rest 950 mm ø1 x open steady restChisel holderChisel support automatic feedRapid traverse chisel supportElectrically movable counter centerDrilling bar:length 2046 mm x 170 mm øThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Turning diameter over bed (mm) 365 Turning length (mm) 1000 Spindle bore (mm) 42.5 Max. rotary diameter over carriage (mm) 205 R.P.M. / Speed 38 - 1600 (16x) Accessories: Digital display 2 axes 3 B. chuck 250 mm, 4. B. chuck 200 mm, documentation and Multifix steel holder

turning diameter: 800 mmturning length: 1500 mmswing diameter over bed slide: 250 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mNext image can not be found: d833 tacchi mt400 (2)Brand: TacchiType: MT400Distance between centers: 1.500 mmCentre height: 400 mmSwing over bed: 800 mm øSwing over support: 250 mm øSwing in the gap: 550 mm øSpindle boring: 130 mm ø3-Jaw chuck: 390 mm øDigital read-outRapid traverse on longitudinal and cross travellingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 330 mm, 1000 mm, 198 mm

Universal lathe PROFI 1000/165 incl. 3-axis position indicator incl. RÖHM lathe chuck incl. quick-change steel holder 'Set', system Multifix with electromagnetic motor brake Ready for operation: incl. oil filling, Completely assembled and test run carried out Standard equipment - RÖHM three-jaw lathe chuck Ø 160 mm - Four-jaw face plate chuck Ø 200 mm - Clamping disc Ø 300 mm - 2 fixed centering tips - Moving center punch MK 3 - Tracking bezel - Standing bezel - Quick-change steel bracket set ME - Threaded clock and interchangeable gear set - Halogen machine lamp - Emergency stop button / zero-voltage trigger - Lathe chuck protection with safety switch - Base frame / chip tray / bulkhead - Tool Kit / Instruction Manual / CE Specifications Center width 1000 mm Center height 165 mm Turning diameter over bed 330 mm Turning diameter over slide198 mm Turnin ...

turning diameter: 880 mmturning length: 6000 mmswing diameter over bed slide: 540 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mBrand: GeminisType: GE870Distance between centers: 6.000 mmCentre height: 440 mmSwing over bed: 880 mm øSwing over support: 540 mm øSwing in the gap: 1.100 mm øSpindle boring: 85 mm øSteadys: 400 mm ø + 600 mm ø3 jaw chuckDigital read-outThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
