99 ARBURG injection molding machines used machines

Arburg 470C-2000-675 (No. 40) without picker Built: 1998 TECHNICAL DATA Screw diameter [mm]: 60 Spray weight [g]: 427 Spray pressure [bar]: 1440 Closing force [kN]: 2000 Tie bar distance [mm]: 470x470 Clamping plate size [mm]: 715x715 Tool installation height min. [mm]: 250 Control Control: Selogica Monitor: Yes Control cabinet: Yes Language: Polish, German Other Power [kW]: 45.8 Engine hours [h]: 94737 Weight [kg]: 6630 GR - EUROMAP

Arburg 420C-1000-60-150 ( 123) 2-component with robot and cage Year of production: 2004 TECHNICAL DATA Screw Dia [mm]: 18/30 Shot Weight [g]: 17/65 Injection Pressure [bar]: 2500/2210 Clamping Force [kN]: 1000 Tie Bar Distance [mm]: 420x420 Platen Size [mm]: 570x570 Mould Height min. [mm]: 250 CONTROL Type of Controls: Selogica Monitor: Yes Control Cabinet: Yes Language: German OTHER Power [kW]: 34,5 Workinghours [h]: 61792 Dimensions [m]: 4,6x1,8 Weight [kg]: 4000 CR - CORE PULL R - ROBOT ZP - AIR VALVE

We can offer Arburg injection moulding machines, 220,270,420 etc.all goog condition.Serious buyers contact us. We have many brands, models,years machines, tell me what you need seriously!

Arburg 520C-2000-675 (154) without funnel General information Item number: 154 Availability: In stock Year of construction: 1998 Brand: Arburg Specifications Spray weight: 240 g Clamping force: 2,000 kN Screw diameter: 45 mm Spray pressure: 2500 bar Spar spacing: 520 x 520 mm Clamping plate size: 715 x 715 mm Tool installation height min.: 250 mm Control: Selogica Language: German Power: 44.9 kW Operating hours: 126766 h Weight: 6630 kg Dimensions: 5.6 x 1.7 m Euromap: Yes Air valve: Yes

Arburg 520C-1300-350 (163) with bimetal plasticizing unit General information Item number: 163 Availability: In stock Year of construction: 1999 Brand: Arburg Specifications Spray weight: 194 g Clamping force: 1,300 kN Screw diameter: 45 mm Spray pressure: 1670 bar Spar spacing: 520x520 mm Clamping plate size: 715x715 mm Tool installation height min.: 250 mm Control: Selogica Language: German Power: 32.2 kW Operating hours: 95616 h Weight: 6380 kg Dimensions: 5.1x1.9 m Funnel: No Core train: Yes Euromap: Yes

Arburg 470C-1500-350(166) General information Item number: 166 Availability: In stock Year of construction: 2003 Brand: Arburg Specifications Spray weight: 210 g Clamping force: 1,500 kN Screw diameter: 45 mm Spray pressure: 1670 bar Spar spacing: 470x470 mm Clamping plate size: 650x650 mm Tool installation height min.: 250 mm Control: Selogica Language: German Power: 40.2 kW Operating hours: 83824 h Weight: 4410 kg Dimensions: 4.5 x 1.8 m Funnel: No Core train: Yes Euromap: Yes Air valve: Yes

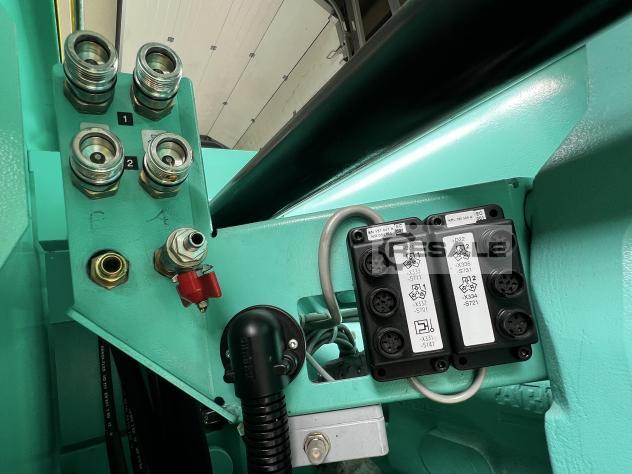

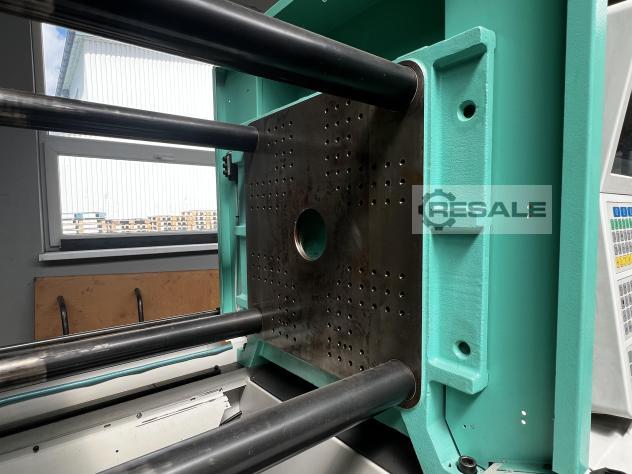

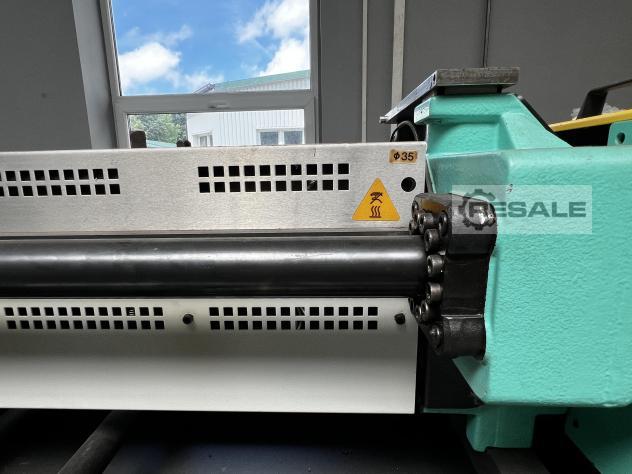

Arburg 470S-1300-350 (170) Hybrid with electric worm drive, without funnel General information Item number: 170 Availability: In stock Year of construction: 2005 Brand: Arburg Specifications Spray weight: 127 g Clamping force: 1,300 kN Screw diameter: 35 mm Spray pressure: 2500 bar Spar spacing: 470 x 470 mm Clamping plate size: 650 x 650 mm Tool installation height min.: 275 mm Control: Selogica Language: German Power: 33.9 kW Operating hours: 85,400 h Weight: 5,100 kg Dimensions: 5 x 1.8 m Funnel: No Core train: Yes Euromap: Yes Air valve: Yes

Key data: 1000 , 89 , 30

In our stock in Wellingborough, Northamptonshire is this fully refurbished Arburg 420C 1000 – 250 VU injection moulding machine with vertical clamp and injection. Ideal for insert moulding as an operator can easily and ergonomically load inserts. The vertical clamp means inserts are more likely to stay in place. This machine has a 30mm plasticising unit which gives a maximum shot weight of 89 (PS) (g). As you’d expect from us, this machine has been fully refurbished and is now completely fault & leak free. With low lifetime hours of only 23k, it really is in excellent condition throughout. The plasticising unit is holding max pressure throughout the range, the pump is quiet, the platens are in great order and we’ve done great work with the general cosmetics. Machine is now available for a full demonstration as and when required. Refurbished machines from STV Machinery undergo a ...

Arburg 420C-1000-350 (174) with challenge tape Item number: 174 Availability: In stock Year of construction: 2001 Brand: Arburg Specifications Spray weight: 210 g Clamping force: 1,000 kN Screw diameter: 45 mm Spray pressure: 1670 bar Spar spacing: 420x420 mm Clamping plate size: 570x570 mm Tool installation height min.: 250 mm Control: Selogica Language: German Power: 32.2 kW Operating hours: 89,240 h Weight: 3430 kg Dimensions: 4.4x1.7 m Funnel: No Core train: Yes Euromap: Yes Air valve: Yes

Manufacturer: Arburg Type: 270 C 300 - 100 Year of construction: 1999 Control: Selogica Closing type: Hydraulic Closing force: 300 kN Tie bar spacing: 270 mm x 270 mm Plate size: 446 mm x 446 mm Tool height: min 200 mm Opening distance: 350 mm Plate spacing max.: 550 mm Screw: 30 mm Stroke volume: 70 ccm / 59 gram PS Injection pressure: 1550 bar General Engine: 7,5 kW Heating: 4.7 kW Dimensions: 3.4 m x 1.4 m x 1.6 m Weight: 2000 kg Screen text: German

Manufacturer: Arburg Type: 320 C 500 - 150 Year of production: 2000 Control: Selogica Closing type: Hydraulic Closing force: 500 kN Tie bar spacing: 320 mm x 320 mm Plate size: 498 mm x 498 mm Tool height: min 225 mm Opening distance: 350 mm Plate spacing max.: 575 mm Screw: 35 mm Stroke volume: 106 ccm / 89 gram PS Injection pressure: 1610 bar General Motor: 15 kW Heating: 4,8 kW Dimensions: 3.4 m x 1.4 m x 1.7 m Weight: 2250 kg Screen text: German Additional equipment: Machine with handling Multilift Robotinterface Core pull hydraulic: x1 Air valve: Yes Tool heater x 6 Conveyor

Key data: 600 , 172 , 40

Manufacturer: Arburg Type: 370 C 600 - 250 Year of production: 2004 Control: Selogica Closing type: Hydraulic Closing force: 600 kN Tie bar spacing: 370 mm x 370 mm Plate size: 570 mm x 570 mm Tool height: min 250 mm Opening distance: 500 mm Max distance between plates: 750 mm Screw: 40 mm Stroke volume: 188 ccm / 172 gram PS Injection pressure: 1390 bar General Motor: 11 kW Heating: 5,5 kW Dimensions: 4,2 m x 1,5 m x 1,7 Weight: 3400 kg Screen text: German

Key data: 500 , 132 , 35

Manufacturer: Arburg Type: 320 C 500 - 250 Year of production: 2002 Control: Selogica Closing type: Hydraulic Closing force: 500 kN Tie bar spacing: 320 mm x 320 mm Plate size: 446 mm x 446 mm Tool height: min 200 mm Opening distance: 350 mm Max distance between plates: 550 mm Screw: 35 mm Stroke volume: 144 ccm / 132 gram PS Injection pressure: 1820 bar General Motor: 15 kW Heating: 6,5 kW Dimensions: 3,4 m x 1,4 m x 1,7 m Weight: 2830 kg Screen text: German Additional equipment Robot interface Core pull hydraulic: x1

Key data: 1000 , 166 , 40

Manufacturer: Arburg Type: 420 C 1000 - 350 Year of production: 2004 Control: Selogica Closing type: Hydraulic Closing force: 1000 kN Tie bar spacing: 420 mm x 420 mm Plate size: 570 mm x 570 mm Tool height: min. 250 mm Opening distance: 500 mm Max distance between plates: 750 mm Screw: 30 mm Stroke volume: 106 ccm / 97 gram PS Injection pressure: 2500 bar General Motor: 22 kW Heating: 5,8 kW Dimensions: 4,3 m x 1,6 m x 1,8 m Weight: 3700 kg Screen text: German Additional equipment: Robot Interface

Arburg 520C-2000-800 (193) Description with conveyor belt, bimetallic screw General Information SKU: 193 Availability: In stock Year of construction: 2005 Brand: Arburg Specifications Injection weight: 434 g Clamping force: 2,000 kN Screw diameter: 55 mm Spray pressure: 1650 bar Tie bar spacing: 520x520 mm Clamping plate size: 728x728 mm Tool installation height min.: 250 mm Control: Selogica Language: German Power: 44.9 kW Operating hours: 80000 h Weight: 7300 kg Dimensions: 6x2 m Funnel: No Core train: Yes Euromap: Yes

Arburg 420C-1300-350 (186) with conveyor belt, bimetallic screw General Information SKU: 186 Availability: In stock Year of construction: 1998 Brand: Arburg Specifications Injection weight: 210 g Clamping force: 1,300 kN Screw diameter: 45 mm Spray pressure: 1670 bar Tie bar spacing: 420 x 420 mm Clamping plate size: 605 x 605 mm Tool installation height min.: 250 mm Control: Selogica Language: German Power: 32.2 kW Operating hours: 88000 h Weight: 4080 kg Dimensions: 4.5 x 2 m Funnel: No Core train: Yes Euromap: Yes

Arburg April 2014 model 920H 5000-4600 500 ton Can be inspected and seen in production

Nv. Num. : 7150 Type: ALLROUNDER 275 V 250 Producer: ARBURG Generated: Parameters: Clamping force: 250 kN Height of clamping plate: 150-250 mm Ejector stroke length: 225 mm Opening the mold: 375-475 mm

Key data: 1500 kN, 487 g/PS

Arburg 520A-1500-800 (207) General information Item number: 207 Availability: In stock Year of construction: 2007 Brand: Arburg Specifications Spray weight: 487 g Clamping force: 1,500 kN Stand: Used Screw diameter: 60 mm Spray pressure: 1390 bar Tie bar spacing: 520 x 520 mm Clamping plate size: 700 x 700 mm Control: Selogica Power: 74 kW Operating hours: 63,600 h Weight: 7300 kg Dimensions: 6 m x 2.4 m Funnel: No

Key data: 1500 kN, 141 g/PS, 35 mm

Arburg 520S-1500-400 (217) General information SKU: (217) Availability: In stock Year of construction: 2008 Brand: Arburg Specifications Spray weight: 141 g Clamping force: 1,500 kN Screw diameter: 35 mm Spray pressure: 2000 bar Tie bar spacing: 520 x 520 mm Clamping plate size: 688 x 688 mm Tool installation height min.: 250 mm Control: Selogica Language: English,German Power: 33.9 kW Hours: 45343 h Weight: 6490 kg Dimensions: 4.9 x 1.7 m Funnel: No Core Train: Yes Euromap: Yes Air Valve: Yes Heating cans: Yes C90fn8e

Screw diameter; 55-35 mm Injectable volume: 558 - 139 cm3 Injection pressure: 2380-2500 bar Column width: 630 x 630 mm Mould thickness min: 300 mm max: 600 mm Aperture stroke: 600 mm Cores: 2 Robot Interface: Yes Options: Rotating base: Arburg 243849 year: 2012

Key data: 1300 , 40

Screw diameter: 40 mm Injectable volume: 182 mm Injection pressure: 2120 mm Passage between columns: 420 x 420 mm Opening stroke: 500 mm Core: 1 Blower: Robot Interface

Key data: 500 kN

Injection moulding machine Arburg 270 D 500-210 with control cabinet, functional, built in 1990, power 20kW, weight 1,850 kg, Clamping force 500 kn

B&A REF: 8759 TON: 200 SHOT WEIGHT: 297 SCREW DIAMETER: 50MM STROKE VOLUME: 353CM3 INJECTION PRESSURE: 2050AR PLATEN SIZES: 795 X 795MM DBTB: 570 X 570MM MIN MOULD HEIGHT: 300MM MOULD OPENING STROKE: 650MM MAX DAYLIGHT: 950MM EJECTOR STROKE: 225MM CONTROLS: SELOGICA AIR VALVES: 1 MOTOR: 30 HEATING CAPACITY: 12KW SCREW DRIVE: ELECTRIC

Screw diameter; 55mm Injectable volume: 427 cm3 Injection pressure: 1720 bar Passage between columns: 570 x 570 mm Minimum mould thickness: 250 mm max: 750 mm Opening stroke: 600 mm Cores: 2 Robot interface: NO Options: Electrical dosing motor
