14 INDEX CNC Turning Machines used machines

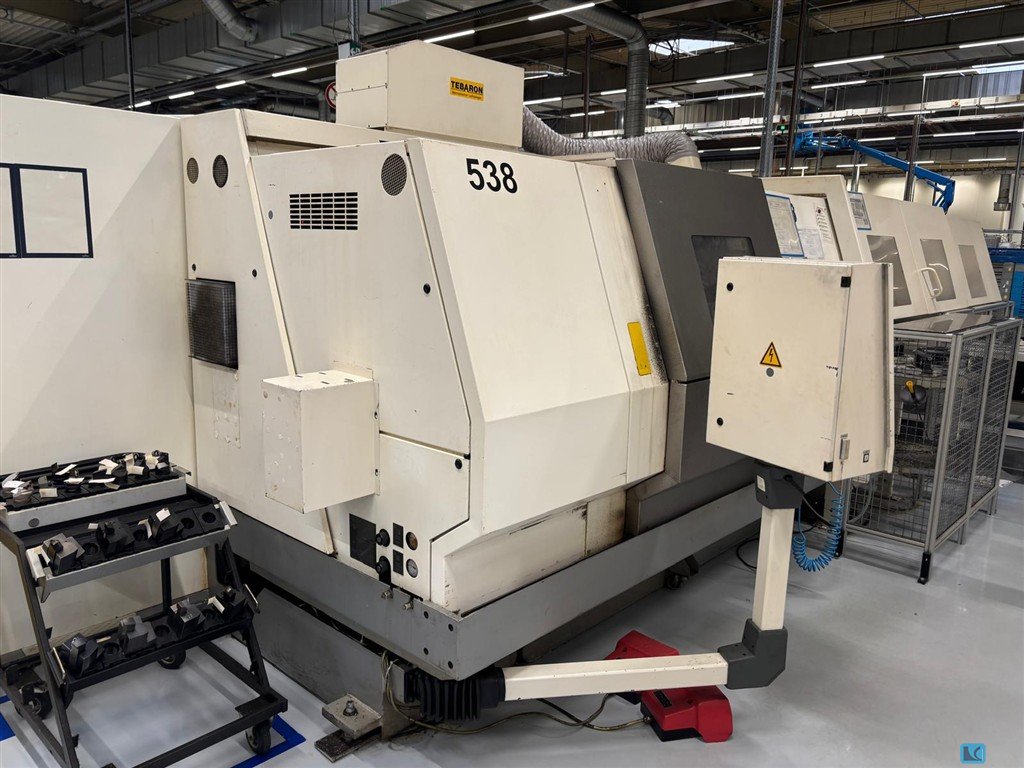

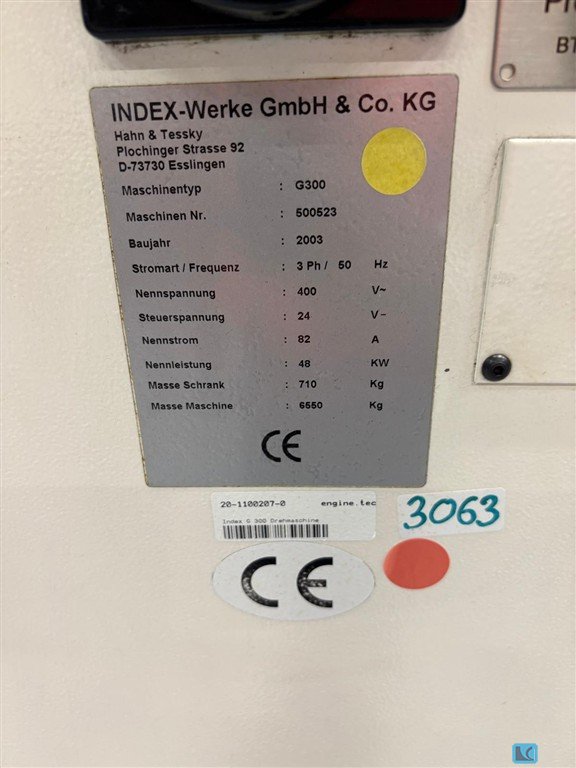

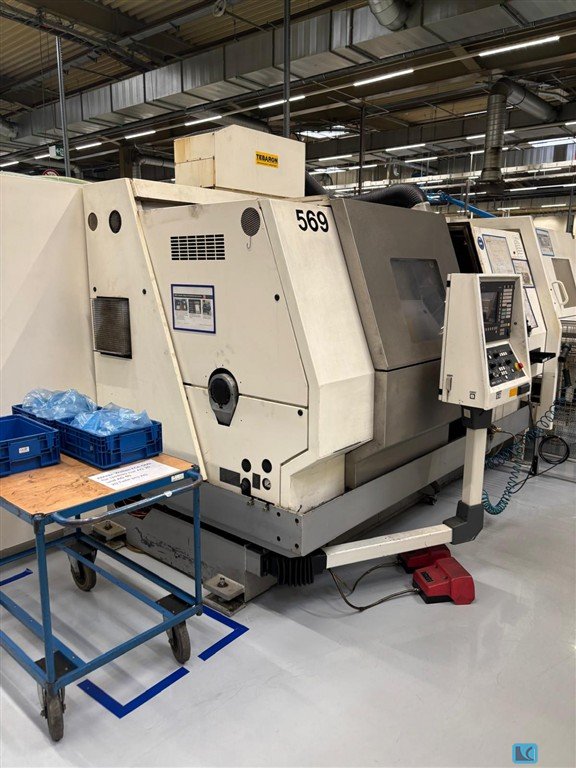

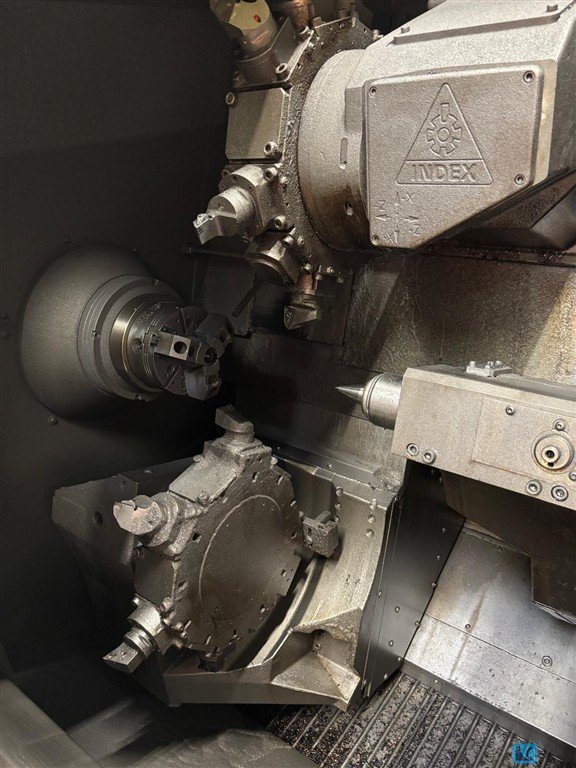

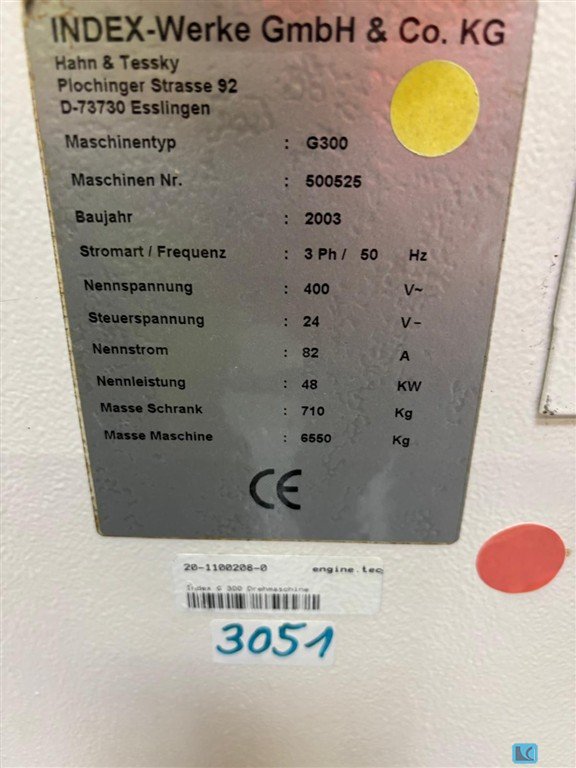

Inv. Num. : 7802 Type: G300 Producer: INDEX Created: 2003 Parameters: Control system: Siemens Maximum turning length: 710 mm Maximum turning diameter: 270 mm Number of axles: 9 pieces

Key data: 200 mm, 400 mm, 6000 1/min

Machine Manufacturer: Index-Werke KG, Esslingen Machine: CNC lathe Index G 200 Compact Machines Year of Make:2001 Availability: in advance. from CW47/2025

Control Siemens 840 Dsl Main spindle: Motor spindle technology Speed 6,000 rpm Power (max.) 20 kW Bar passage 65 mm Workpiece Clamping Collet Chuck, Hainbuch Clamping Top Modular Size 65 Tool carrier I (X/Z): Technology Turret with 8 stations Tool holder VDI25 Tool drive 6,000 rpm, 4.2 kW, 10 Nm Complete machining synchronous spindle with 3-jaw chuck, ø95 mm Travel in X/Z 90/280 mm Rapid traverse in X/Z 27/36 m/min Tool carrier II (X/Z): Technology Turret with 8 stations Dovetail tool holder Tool drive 6,000 rpm Travel in X/Z 81/80 mm Rapid traverse in X/Z 27/36 m/min Residual apparatus: Technology Rear Drilling Facility with 5 Stations Powered tools 2 stations Tool drive 6,000 rpm Equipment/accessories: Chip Management Chip Conveyor Coolant supply KSS pump with high pressure, 20 bar Raw material feed short bar loader, Breuning Irco ILS-MUK 7012 III R ...

Machine Details Warehouse number 1105-03632 Machine type CNC turning and milling center Make INDEX Type G 200 Year of construction 1997 Control type CNC Controller C200- Siemens 840 C Storage location FRANCE Country of origin Germany Delivery time immediately Freight base from location Technical details Turning diameter 200 mm Turning length 400 mm Controller C200- Siemens 840 C Circulation diameter 420 mm Rod diameter 65 mm Chuck diameter 165 mm Speed range - spindle ~ 6,000 rpm Drive power - Spindle motor 100% ED= 7.5/13/20 kW Drive power - Spindle motor 40% ED= 13.3/22/29 kW Rod diameter 65 mm Spindle bearing diameter 100 mm Chuck diameter 165 mm Speed range - spindle ~ 6,000 rpm Drive power - spindle motor 100% ED= 7.5/13 kW Drive power - Spindle motor 40% ED= 13.3/22 kW C - axis 0.001 ° Number of revolvers 2. Turret head (x-fold) 2 x 14 pos Travel - x ...

Used multi-spindle machine INDEX MS36E built in 1996 including a lot of accessories (collets, synchronizer guns, interchangeable wheels, various working curves, etc.) The plant is virtually ready for dispatch, in a dismantled state for inspection. For photos, technical data and a list of accessories, see Appendices. It has no major defects, is basically ready for operation, only the rubber hoses should be changed before commissioning and the coolant-lubricant system should be thoroughly cleaned and rinsed throughout. Accessory listing MS36E Iemca Loading Magazine Oil filter system (+3 rolls of filter paper) Collets Synchronizer Clamps (sentences) Ø 24 Ø 16 Ø 26 Ø 20 Ø 27 2x Ø 23 Ø 28 2x Ø 26 Ø 30,5 2x Ø 27,5 Ø 31 Ø 32 div. jaws Ø 33 for 3-jaw chuck Ø 34 Ø 36 SW 24 1x spindle stop (currently layer 4) 3 sets of rod guide tubes Various reductions f ...

We currently have an Index MS25 (cam-controlled multi-spindle lathe), which received completely new spindles about 6 years ago. Last year in the summer, we had it completely examined by the company Index and no defects were found.

Turning diameter: 200mm, turning length: 400mm, turning diameter: 420mm, bar diameter: 60mm, max. spindle chuck diameter: 160mm, speed: 5000rpm, turret: 2, positions: 2x14, rapid traverse X/Z: 20m/min/30m/min. Machine dimensions X/Y/Z: approx. 7500mm/2100mm/2100mm, weight: approx. 4500kg. Documentation available. On-site inspection is possible.

2 pieces (identical) used lathes Turning center milling center INDEX R200 INDEX VirtualLine Year of construction 2011 and year of construction 2009 At that time, the original price of both machines together: €1,385,647.90 gross Regular service only from the manufacturer INDEX. Service and parts exchange alone between 17.04. and 05.08.2025 in the amount of € 96,305.41 (invoices are available for inspection). Therefore, the machines are in absolutely excellent condition. Spindle hours (as of 21.11.2025) Year of construction 2011: S1: 4,114 h S2: 3,064 h S3: 2,535 h S5: 4,170 h Spindle hours (as of 21.11.2025) Year of construction 2009: S1: 2,951 h S2: 953 h S3: 3,524 h S5: 5,990 h Turning-milling centre with roller bearing slide guides Work spindles can be moved on slides. Tool carrier integrated into recesses in the machine bed, all linear axes arranged at  ...

Universal CNC lathe INDEX G 400 RATIO Line Hersteller [manufacturer]: INDEX Type [ type]: G 400 Control unit: Siemens C200-4D incl. milling of cylindrical tracks Incl. handwheel Baujahr[construction year]: 10/2004 Turning length 1250 Main spindle D102 with swing-in gear 1700 Nm Size 11 Hollow Clamping Cylinder 102 ARB-SPI ALIGNMENT. AND SWITCHING DEVICE TOOL CARRIER 1 COMPL. AXES X,Y,Z,B with turning/milling operation Disc turret VDI40 10 stations MILLING SPINDLE HSK A63 Tool carrier axles 2 XZ Disc turret VDI40 10 stations SUB-SPINDLE D102 DIRECT DRIVE 1300Nm Size 11 Hollow Clamping Cylinder 102 ARB-SPI ALIGNMENT. AND SWITCHING DEVICE DISC MAGAZINE ON THE LEFT OF THE HSK63 SINGLE-SWING GEARBOX WITH 32 TOOL HOLDERS DISC MAGAZINE RIGHT COMPL. M.32 TOOL HOLDERS HSK 63A Travel path: X= 320mm Z=1250mm Displacement measuring system X-axis glass mast. (abs) Fe ...

INDEX C 200 Horizontal lathe GENERAL Project No.: 905493 Quantity: 1 pcs. Manufacturer: INDEX Type: C 200 Control: Fanuc 31i MA Year of Make: 2009 Condition: Used machine Spindle Approx (Hrs): 23200 Program run approx. (hours): 28742 DESCRIPTION TURNING Max. chuck diameter 160 mm Max. speed main spindle 5000 1/min Max. power main spindle at ED 10-40/100% 32 kW Max. torque main spindle at ED 10-40/100% 190 Nm Spindle aperture main spindle 65 mm Spindle Flange Size Main Spindle A2-6 Axes on the main spindle unit C Hollow clamping cylinder on the main spindle Max. speed sub-spindle 5000 1/min Max. power sub-spindle at ED 10-40/100% 24 kW Max. torque sub-spindle at ED 10-40/100% 190 Nm Spindle Diffuser Sub-Spindle 65 mm Spindle flange size sub-spindle A2-6 Axes on the sub-spindle unit C/Z Revolver top left Number of stations/powered by 12/12 Tool h ...

A vertical CNC turning and milling center Index is available. Spindle bore: 65mm, spindle bore in the front bearing: 110mm, spindle speed: 5000rpm, spindle power: 20kW/27kW, travel X/Z: 850mm/260mm, tool stations: 12, control: Index C200-4, operating hours: approx. 17000h. Including pallet conveyor system.

Key data: 65 mm, 660 mm

Control: SIEMENS Spindle passage: 65 mm Max. speed: 6,000 1/min Sub-spindle Z= 700 mm TOOL CARRIER 1 with milling spindle Milling spindle: 7,200 1/min B-axis 360° 14 stations with powered tools Speed Tools 7,200 1/min Travel: X= 230 / Y= +- 65 / Z= 845 TOOL CARRIER 2 14 stations with powered tools Speed Tools 7,200 1/min Travel: X= 140 / Y= +- 45 / Z= 810 Chip conveyor Filter Bar feeder INDEX MBL

Turning diameter: 200mm, Unrun diameter: 260mm, Turning height: 200mm, Spindle clearance: 30mm, Spindle speed: 7500rpm, Power: 10kW, Torque: 49Nm. Travel X/Z: 520mm/200mm, rapid traverse X/Z: 30m/min, tool positions: 14, tool holder: VDI 30, drive tool speed: 6000rpm. Machine dimensions X/Y/Z: approx. 2100mm/2100mm/2300mm, weight: approx. 3300kg, control: Siemens Sinumerik. Documentation available. On-site inspection is possible.

Fully functional CNC turning and milling center CNC Lathe Manufacturer: Index Type: G250 G 250 Year of Make: 2004 Location of the machine: 76661 Philippsburg The machine can be viewed on site. It is still energized and works perfectly. You can make an appointment for a viewing at any time. We would love to hear from you. We will be happy to answer any questions you may have at any time. We are looking forward to a good cooperation and thank you for your interest in advance.

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

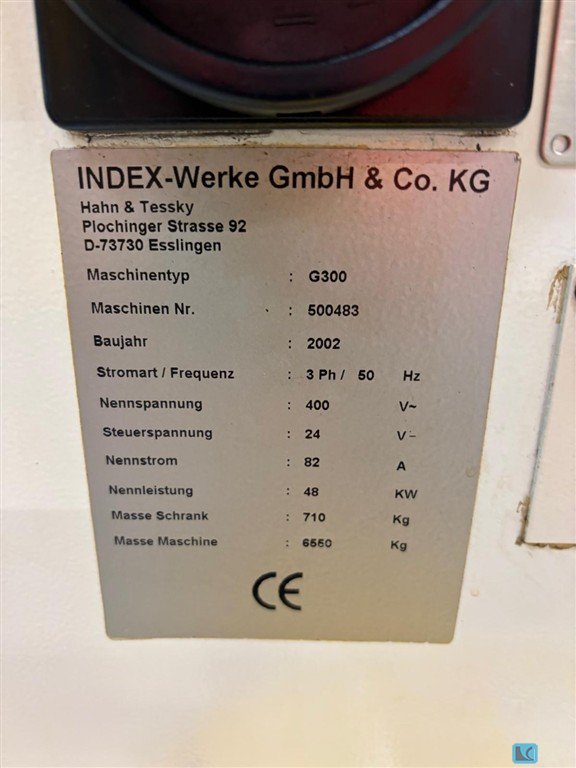

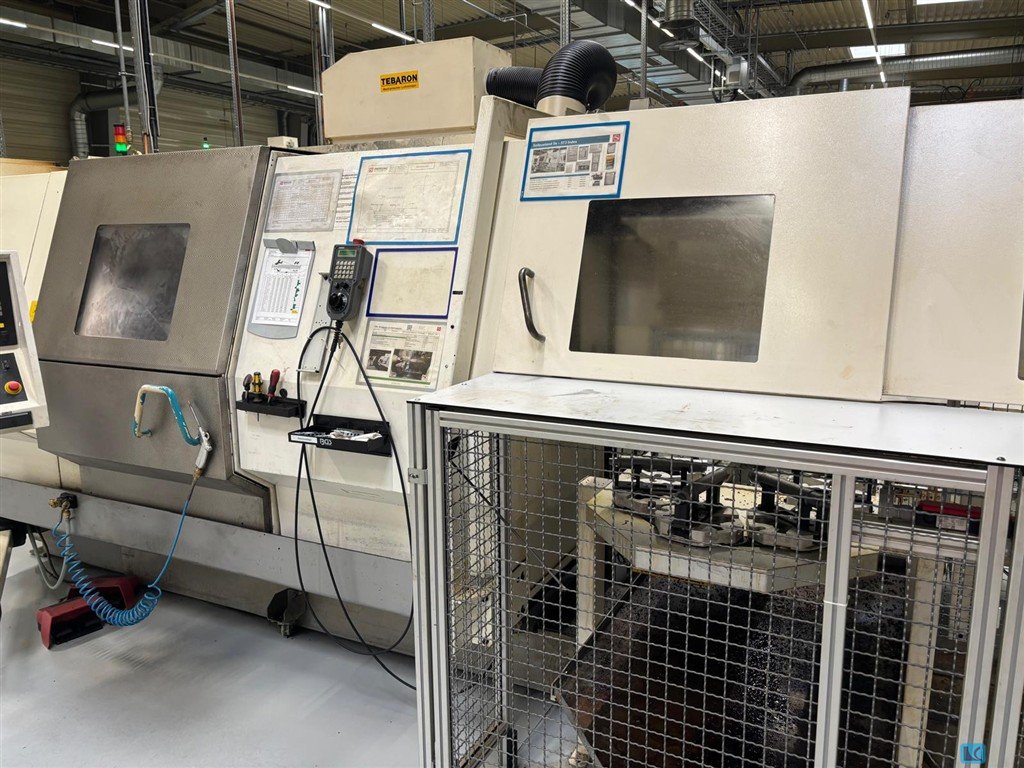

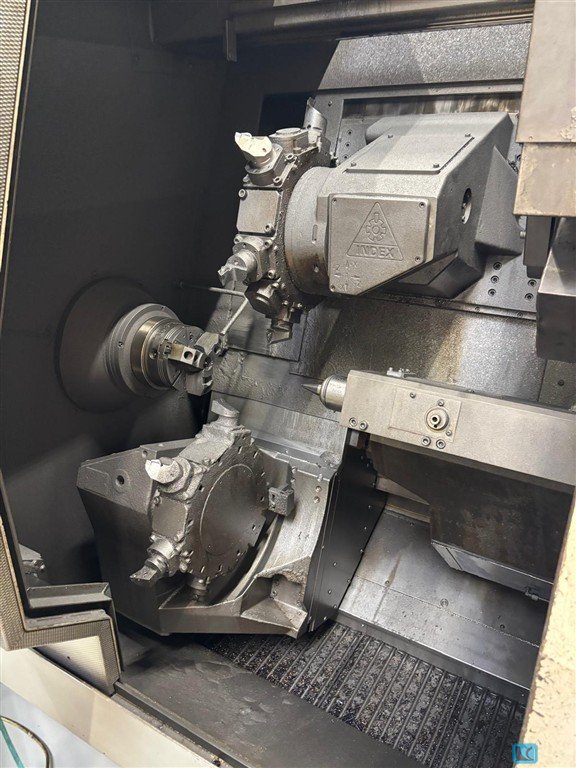

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

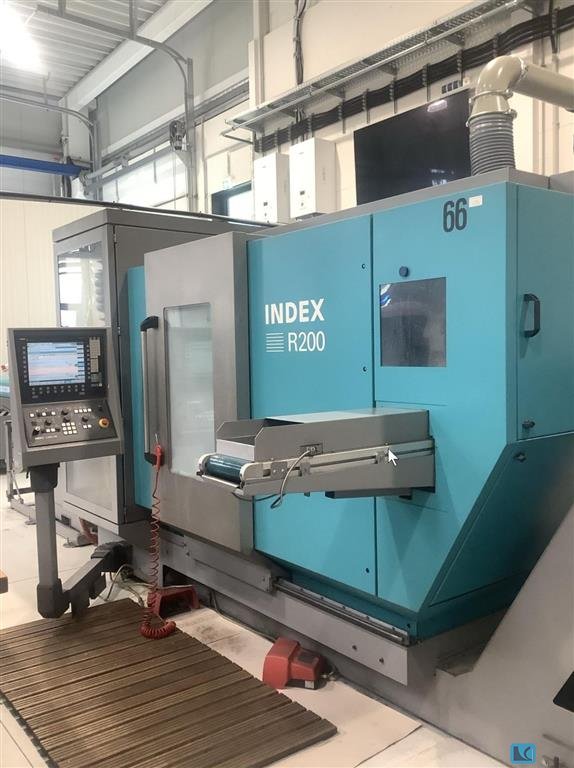

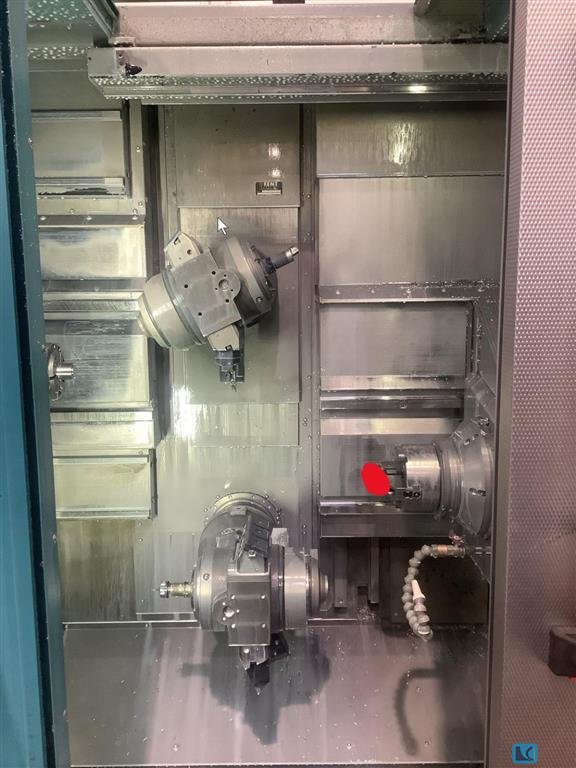

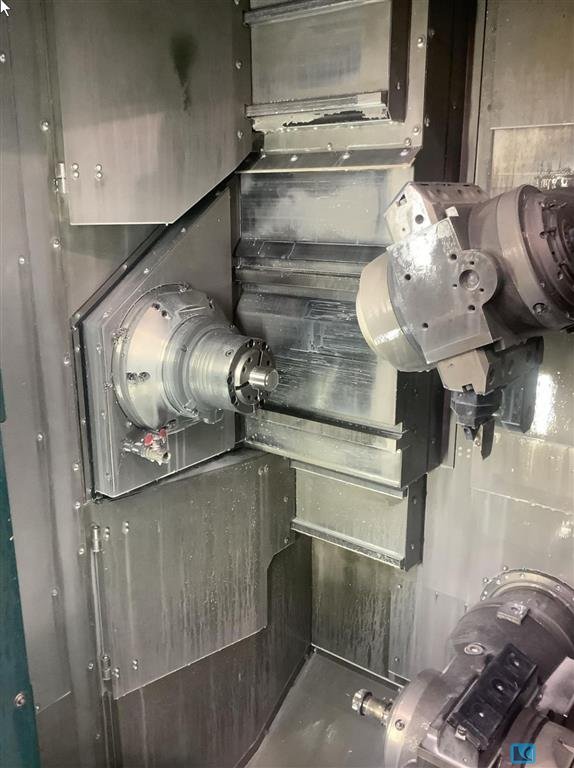

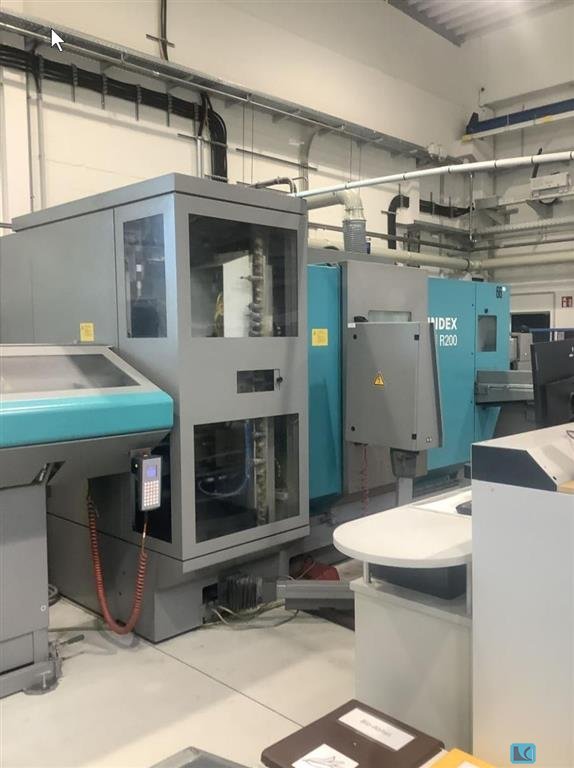

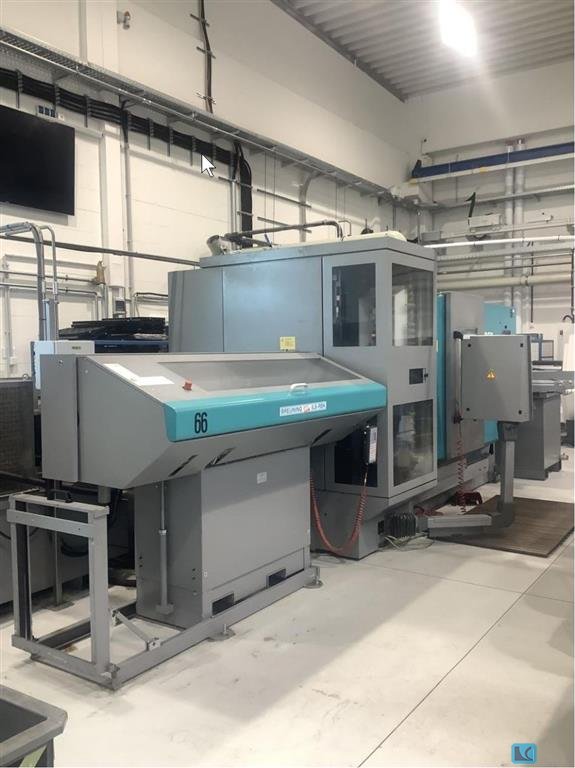

Index R 200Year of manuf. : 2009 Control : Siemens C200-4D SL ____________Description:In General:Year of construction:2009Control system:Siemens 840 Dsl (C200-4D SL)Bar capacity:65 mmMilling spindles:18,000 rpmMain spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°Z-axis:390 mmBar capacity:65 mmClamping cylinder:Hollow clamping cylinderChuck:3-jaw chuckSub spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°X-axis:600 mmZ-axis:390 mmBar capacity:65 mmChuck:3-jaw chuckTool carrier I:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40X-axis:350 mmY-axis:160 mm (+/- 80 mm)B-axis:230°Tool carrier II:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40Y-axis:160 mm(+/- 80 mm)B-axis:230°Tool magazin:Technology:Chain magazineNumber of ...

Machine Details Stock-No. 1105-04032 Type of machine Vertical Turning Machine Make INDEX Type V 160 C Year of manufacture 2005 Type of control CNC Storage location FRANCE Country of origin Germany Delivery time immediately Freight basis ex site Price Technical details turning diameter 250 mm swing diameter 300 mm turning height 210 mm control SIEMENS 840 D Travel -X Axis 490 mm Travel -Z AXIS 260 mm external spindle dia. In forward position 110 mm turning speed range - spindle 5000 rpm Turret (X-Stations) 12 weight of the machine approx. 7.3 t dimensions of the machine approx. 3.2 x 2.3 x 2.3 m Accessories Chip conveyor Coolant system Additional information CONTROL SIEMENS 840 D WHIT TURRET 12 POSITION VDI 30 AND 2 FIXED TOOLS SUPPORT EXTR MOOWING TOOLS AND C AXIS WITH LOADING AUTOMATION

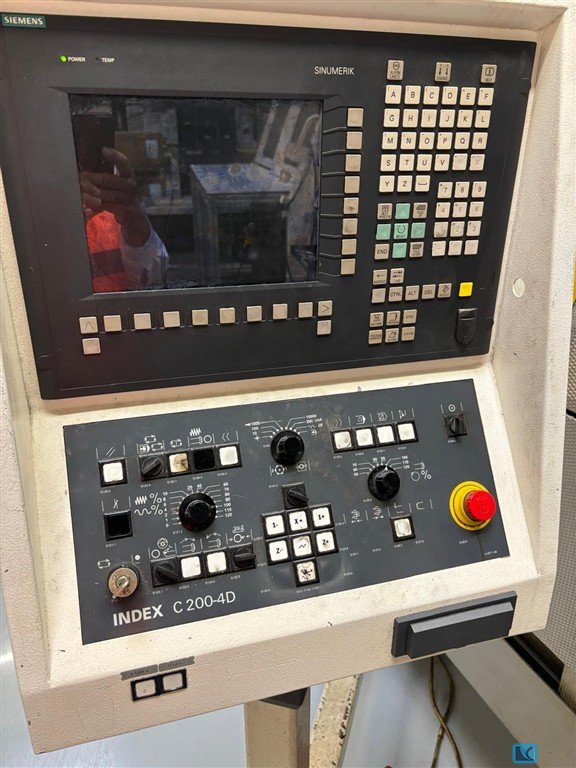

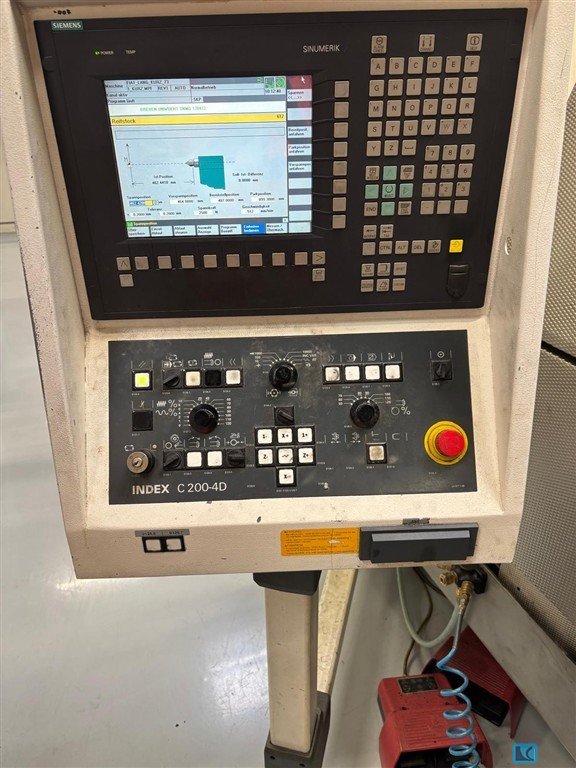

Control Siemens SINUMERIK 840D, C200-4D Speed 6000 1/min Travel X/Y/Z 280/280/145 mm- Number of revolvers: 1 with 6 seats Number of tool positions: 2x4 Conveyor Pallet Conveyor Belt Palettes

Curve lathe INDEX B60 - not complete - as spare part dispenser - see pictures

Curve lathe INDEX ER60 - see pictures More: turnover machine MANURHIN Traminer TR22B

2 pieces Revolver automatic lathes, Fabr. Index, Type OR with many accessories Specification: Largest diameter 12 mm Number of spindles 6 Number of spindle speeds: 10 pieces Minimum spindle speed 950 1/min Maximum rotation speed of the spindle 7500 1/min Weight of the machine 1 t (for more data see nameplate)

1x INDEX ER25 (built in 1974) with milling device (IRCO bar feeder with weight feed) 3x INDEX 25 (model years 1973-76) 4x INDEX C29 (years 1970-81) 3x INDEX DG12 (years 1972-75) 1x INDEX DG20 (built in 1972/73)
