29 ZEISS used machine for sale

Manufacturer: Zeiss Model: Prismo 7 HTG Type: Coordinate measuring machine Find more here - / Contact us at -

x-travel: 1200 mm y-travel: 2415 mm z-travel: 1000 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The machine was around 6 years complete overhauled and its control technologywas brought to the newest status. Technical details: Distance between portal columns: 1440mm X-travel (cross): 1200mm Y-travel (longitudinal): 2415mm Z-travel (vertical): 1000mm Feeler head: Vast Gold Regularly maintenanced through company Zeiss With housing The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

length: 1600 mm width: 1400 mm weight of the machine ca.: 2.1 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

length: 1300 mm width: 1100 mm weight of the machine ca.: 1.5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 500 mm, 500 mm, 500 mm

The system was hardly used (order omitted) CMM DuraMax 5/5/5 ZEISS CNC Coordinate Measuring Machine (CMM) in Boom Design Maximum permissible length measurement deviation (MPE) according to ISO 10360-2:2009 Djwvuszb U Has Nu Iekn - MPE_E0 (3D) = (2.4 + L/300) μm for 18 - 22 °C - MPE_E0 (3D) = (2.7 + L/250) μm for 18 - 26 °C - MPE_E0 (3D) = (2.9 + L/200) μm for 18 - 30 °C Maximum permissible scanning probing deviation (MPE) according to ISO 10360-4:2000 within maximum permissible scanning test time (MPT) MPE_THP = 2.9 μm within MPT_tau = 55 s single-probe probe deviation Shape according to ISO 10360-5:2010 MPE_PFTU = 2.4 μm shape measurement deviation according to ISO 12181:2011 (VDI/VDE 2617 Part 2.2) MPE_RONt (MZCI) = 2.4 μm

This 3-axis ZEISS Contura G2 was manufactured in 2006. It features an X-axis travel of 700 mm, Y-axis travel of 700 mm, and Z-axis travel of 600 mm. If you are looking to get high-quality measurement capabilities, consider the ZEISS Contura G2 coordinate measuring machine we have for sale. Contact us for further details.

Portal design, measuring range travels: X-axis 850 m x Y-axis 700 mm x Z-axis 600 mm, table size 1500 mm x 1700 mm, probe replacement bench with 8 places, separate control panel and granite measuring plate

Table dimensions X/Y/Z: 4800mm/3000mm, measuring range X/Y/Z: 5000mm/2600mm/2100mm, grid spacing: 50mm, travel speed: 150mm/s, weight: approx. 540kg. Documentation available. An on-site inspection is possible.

Measuring machine Zeiss MC 850 BJ 2011

Design: gantry design, measuring range X/Y/Z: 850mm/1200mm/600mm, measuring accuracy: 2.5µm/L250, repeatability: +/-3µm, machine weight: approx. 3500kg. Documentation available. An on-site inspection is possible.

Measuring machine Zeiss Vista BJ 2008

Zeiss UMESS 850 measuring machine

Zeiss UPMC 850 Carat measuring machine for sale • Travels: X = 750mm; Y = 850mm; Z = 600mm • Portal design • Pushbutton magazine with 8 slots • Measuring ball • Probe set • HP working station with monitor

Measuring machine Zeiss WMM850 BJ 1988 generalueb. 2008

Measuring machine Zeiss Prismo 7 BJ 1997 generallueb. 2024

Zeiss Pro T advance 16/21 measuring machine

Measuring range X/Y/Z: 700mm/700mm/500mm, probe ball diameter: 7.9942mm, control: Zeiss C90, touch probe: PH6/TP6, max. measuring deviation: 3.6+L/250µm, max. angle error: 0.22°, weight: approx. 1500kg. Documentation available. On-site inspection is possible.

x-travel: 9200 mm y-travel: 1600 mm z-travel: 2400 mm dia. of test piece: mm working area: mm dist. between centers: mm control: ZEISS C 99 total power requirement: kW weight of the machine ca.: 30 t dimensions of the machine ca.: 10 x 3,6 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 850 mm y-travel: 1200 mm z-travel: 600 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Universal 3D measuring center, double-column, modern software, many accessories The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Zeiss Intrabeam System Irradiation Device, Accelerator. Used in ophthalmic therapy, tumor irradiation. With PTW dosing device. Complete with instruction manual, samples, etc.

x-travel: 550 mm y-travel: 1200 mm z-travel: 450 mm control: 85er 8bit total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Zeiss LM 100 large inspection microscope The microscope has been used in the electronics industry, in the production of touch screens

Zeiss Axioskop 2 plus Fluorescence Microscope with Axiocam HRc Camera Trinocular Head with AxioCam HRc Microscopy Camera without Software (Camera Not Tested) Pair of focusable eyepieces Zeiss W-PI 10x/23 3 objectives: Zeiss Plan-NEOFLUAR 10X/0.30 Zeiss Plan-Neofluar 40x / 0.75 Zeiss Plan-Neofluar 100x / 1.30 Oil Iris ∞/0.17 Incident light – fluorescent lighting: HBO 50 power supply. 52 ac mbq power supply Transmitted Lighting: Halogen transmitted lighting 12V-100W.

ZEISS TELAVAL 31 Reverse Transmitted Light Microscope Model: TELAVAL31 Binocular Head Adjustable eyepieces: Zeiss GF-P10x 18 Annular diaphragm T31 Ph 6 V / 25 W lamp 220V 3 objectives: Achromat 5x/ 0.12 Infinity/- A, Carl Zeiss Jena, M 25 Achromat Ph 10x /0.25 Infinity/- A, Carl Zeiss Jena, M 25 Phase Contrast Achromat LDN Ph 20x /0.35 Infinity/1.2-A, Carl Zeiss Jena, M 25 Phase Contrast Tested and verified hardware In good condition Power cord

RACING X/Y/Z AXES 900/900/700 MM MEASURING PRECISION 2.2 + L/300 ?M WORKPIECE WEIGHT (MAX.) 1,200 KG CONTROL SYSTEM VAST MEASURING HEAD POINT/POINT CONTROL MODE CONTINUOUS SCAN MACHINE DIMENSIONS WIDTH 1,640 MM LENGTH 1,740 MM HEIGHT 2,700 MM WEIGHT (APPROX.) 2,000 KG

ZEISS MC 850 X-AXIS STROKE: 850 MM Y-AXIS STROKE: 1200 MM Z-AXIS STROKE: 600 MM WEIGHT APPROSS. 3800 KG DIMENSIONS (W X H X D): 1.6 X 1.56 X 2.95 MM

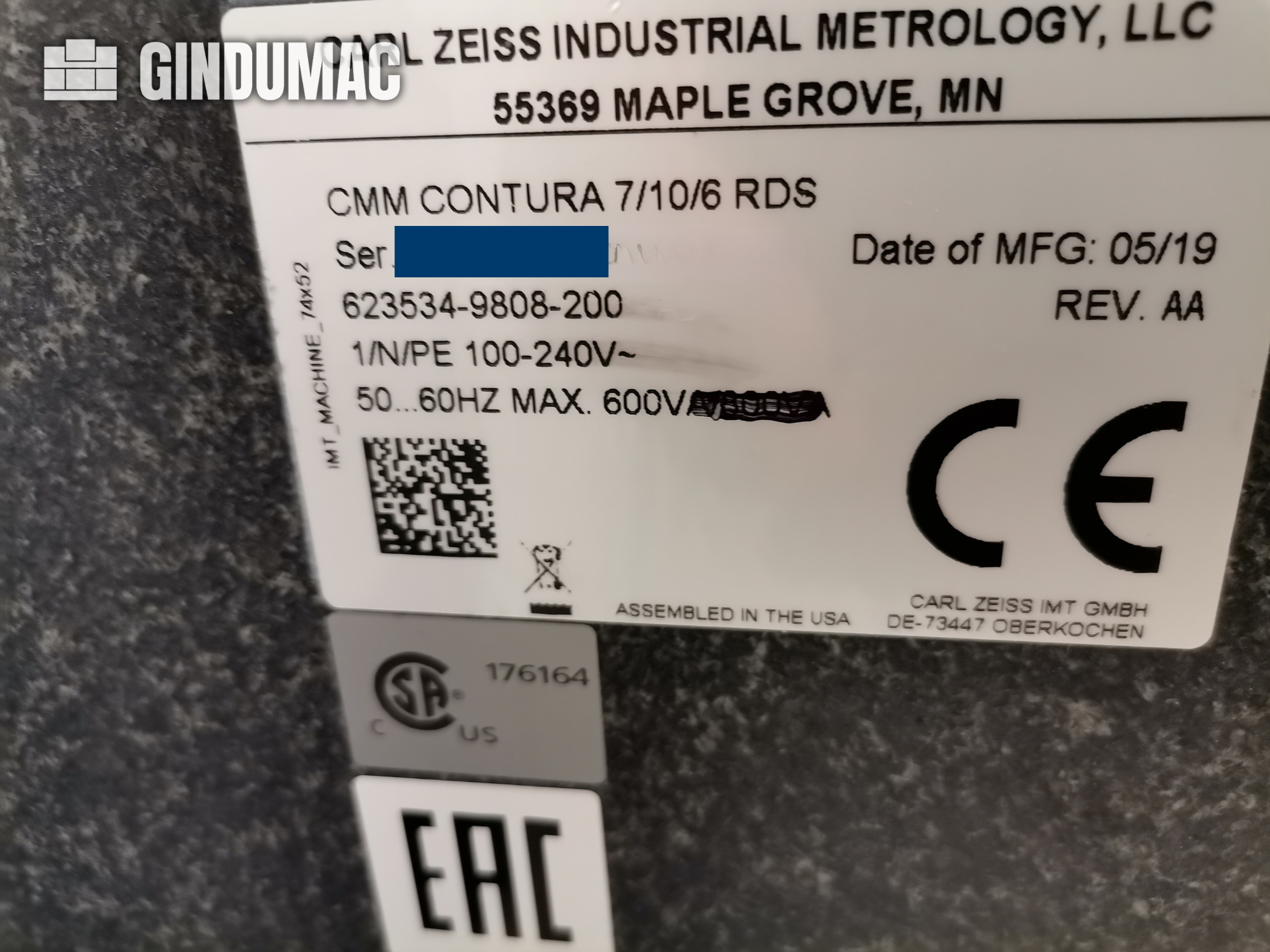

This 3-axis ZEISS Contura 7/10/6 RDS was manufactured in 2019 and features a robust motorized CNC drive system with a maximum vector speed of 465 mm/s. It includes the ZEISS RDS-C articulating head and VAST XXT TL3 sensor, capable of scanning speeds up to 150 points/second. Ideal for precise measurements with a maximum workpiece weight of 730 kg. Consider the opportunity to buy this ZEISS Contura 7/10/6 RDS CMM machine. Contact us for more information about this machine.

Software Zeiss Calypso Measuring head RDS VAST XXT Measuring range 1000,1600,600 mm Max Workpiece size 1220,1935,620 mm

Measuring range X,Y,Z 1200,1800,1000 mm Software calypso Measuring head 5 axis Vast XXT
