zayer milling machines used for sale

Fixed bed milling machine Zayer 2000BF. Table: 2500x700mm. Longitudinal travel: 2000mm. Cross travel: 1000mm. Vertical travel: 1000mm. ISO50. Speeds: 18. (28-1800rpm). Power: 15cv. Weight: 13000Kgs. Equipped with DRO Fagor.

Code 8529 Description CNC Bed milling machine Make Zayer Type 2200 BF 3 Machine nmb 52248 Year 1986 Control Fagor 8020 Table size 2200 x 800 mm Movement table (X) 1830 mm Cross traverse ram (Y) 1016 mm Vertical traverse milling head (Z) 1016 mm Spindle taper ISO 50 Max. Weight on table 4000 kg No. of spindle speeds 18 steps Spindle speeds 28 – 1800 rpm Feeds dir. Progr. X-Y-Z 3 – 5000 mm/min Rapids Longitudinal 5 m/min Cross 5 m/min Vertical 5 m/min Total Weight 10.000 kg Mainmotor 11 kW Power connection 38 KVA Voltage 380 Volt Accessories Milling head Horiz./Vert. with ISO-50 Hydr. tool clamping device Condition Machine is in good condition

x-travel: 6000 mm y-travel: 2000 mm z-travel: 3000 mm Control: heidenhain TNC 415 total power requirement: 34 kW weight of the machine ca.: 31 t dimensions of the machine ca.: 7000 mm m Stocknumber 1110055 Type of machine CNC Floortype milling machine Make ZAYER Type KCU6000 Build in 1992 Type of control Heidenhain TNC 415 X-stroke (mm) 6.000 Y-stroke (mm) 2.000 Z-stroke (mm) 3.000 Speeds (Rpm) 20 - 1.800 Admission in spindlehead BT50 Feeds X (mm/R) 5 - 5000 mm/min Feeds Y (mm/R) 5- 5000 mm/min. Feeds Z (mm/R) 5- 5000 mm/min. Rapid feeds 10.000 mm/min. Total Power (KW) 34 Lenght (mm) 11.000 Width (mm) 2.500 Height (mm) 7.000 Weight 31.000 Kg Additional information Juaristi MG6 turntable: 1500 x 1200 mm Cooling system: 2.5 Bar Tool cooling: 15 Bar The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 7770 Type: KFU 3000 Producer: Zayer Created: 1990 Parameters: Operating system: HEIDENHAIN TNC 415 B Table length: 3000 mm Table width: 1000 mm Maximum table load: 10000 kg Max. Speed: 3000 1/min Axis X: 2700 mm Axis Y: 1000 mm Axis Z: 1000 mm Machine dimensions: 4000 x 2500 x 2800 mm Weight: 18600 kg Equipment: Staples (approx. 40 pieces) Vises (2 pieces) Angle (2 pieces) Clamping Blocks (2 pieces)

x-travel: 1700 mm y-travel: 800 mm z-travel: 890 mm table surface area: 2000 x 630 mm spindle taper: SK 50 spindle turning speed range: 35 - 3000 U/min spindle drive: 26 kW feeds longditudinal/cross/vertical: 6 - 5000 mm/min rapid traverse: 15 m/min table load: max. 6000 kg control: HEIDENHAIN control: TNC 360 total power requirement: 45 kVA weight of the machine ca.: 13 t dimensions of machine L x W x H: 5,2 x 2,78 x 2,95 m Accessories: vertical head swivelling in 2 planes with hydr. tool clamping, various tool fixtures, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 6000 mm, 2000 mm, 3000 mm

Machine Type: CNC Travelling Column Milling Machine Make ZAYER Type KCU6000 Year of construction 1992 Control type Heidenhain TNC 415 X-way (mm) 6,000 Y-off (mm) 2,000 Z-off (mm) 3,000 Speeds from (rpm) 20 - 1,800 Tool holder BT50 Feed longitudinal (mm/rev) 5 - 5000 mm/min Feed Transverse (mm/U) 5- 5000 mm/min. Vertical feed rate (mm/rev) 5- 5000 mm/min. Rapid traverse 10,000 mm/min. Total power(KW) 34 Length (mm) 11,000 Width (mm) 2,500 Height (mm) 7,000 Weight 31.000 kg Information 'Juaristi MG6' rotary table: 1500 x 1200 mm With coolant pump Cooling system: 2.5 bar Tool cooling: 15 bar

x-travel: 10000 mm y-travel: 1500 mm z-travel: 3000 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m - CNC control Heidenhain TNC 415B - controlled 2-axes NC-milling head 2,5° - coolant device The machine will be sold without the plate field Accessories: ca. 20 pieces tool tapers DIN 2080 with bolts DIN 69872 some spare parts like bevel gears for the milling head and ball screw for X-axis. Technische Daten / technical details: Verfahrweg X längs / X-travel longitudinal 10000 mm Verfahrweg Y quer / Y-travel cross 1500 mm Verfahrweg Z vertikal / Z-travel vertical 3000 mm Werkzeugschaft / spindle taper SK50 Drehzahlbereich (2-stufig) / spindle speed (2-steps) 35-3000 UpM /rpm Vorschub / infeed 6-10000 mm/min Eilgang X,Y,Z / rapid feed X,Y,Z 10, 15, 10 m/min Antriebsleistung Hauptmotor 100%ED / drive capacity main motor 100%ED 37  ...

x-travel: 10000 mm y-travel: 3000 mm z-travel: 1500 mm Control: Heidenhain TNC 430CA milling head -swivable: 360.000 pos spindle turning speed range: 10 - 3000 U/min Tools changer: 40 pos. feed: 5000 mm/min Rapid Travel X / Y / Z-Achse: 10 / 15 / 15 m/min spindle motor: 37 kW total power requirement: 80 kVA weight of the machine ca.: 40 t dimensions of the machine ca.: m Traveling column milling and boring machine - Control Heidenhain TNC 430CA & HR 410 - autom. Tool changer with 40 places (SK 50) - Huron Universal milling head, automatic Positioning (A-/B-Axis each 0,001°) - Chip conveyor - OPTIONAL: Rotary Table 3000x3000mm - 30t (W-Axes: 2000mm), with independent FAGOR CNC Control The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 7000 mm y-travel: 2000 mm z-travel: 1250 mm control: Heidenhain iTNC 530 plate size: 7000 x 1500 mm tool change unit: 60 Pos turning speeds: 35 - 4500 U/min spindle motor: 37 kW rapid traverse: 20 / 10 m/min total power requirement: - kW weight of the machine ca.: - t required space: - m equipped with: - Heidenhain iTNC 530 CNC control - Tool changer for 60 tools (ISO 50) - autom. Milling head (0,001 °) - Spindle cooling 15bar with paper band filter - Chip conveyor - Renishaw RMP 60 - Extra Miling Head (Spare Part) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 10000 mm y-travel: 1500 mm z-travel: 3000 mm Control: Heidenhain TNC 430 tool taper: ISO 50 spindle turning speed - stepless: 10 - 3000 U/min feed range: 10000 mm/min rapid traverse: 15 m/min main drive motor: 37 kW total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC-control HEIDENHAIN TNC 430 40-station ATC NC-Universal Milling head, automatic positioning (A/B axis 0.001 / 0.001 deg) Chip conveyor Optional (price upon request): CNC rotary table Juaristi 3000 x 3000 mm - Table load 30 to - Longitudinal movement 2000mm - Separate CNC-control FAGOR The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 4.700 mm y-travel: 1.250 mm z-travel: 1.500 mm control: HEIDENHAIN iTNC 530 clamping table: - surface area: 5.000 x 1.000 mm max. workpiece weight: 10.000 kg T-slot number x size: 7 x 22 Abstand 140 mm Universal Milling Head: _ Swiveling area front/back level: automatisch Indexing: 0,001 x 0,001° stepless Constant Power at 100 % ED: 37 kW Speed range, stepless: 35 - 4.500 min-1 max. torque: 880 Nm tool taper: SK 50 – DIN 69871 internal coolant system feed: durch das Spindelzentrum automatic tool changer ATC: - Tool places: 60 Plätze diameter of tools max.: 125/240 mm workpiece length: 300 mm weight of tools max.: 25 kg feeds: - X-, Y- and Z-axis, stepless: 6 - 15.000 mm/min rapid in X/Y/Z: 25.000 m/min max. feed force X-Y-Z-axis: 10.000 N total power requirement: kW weight of the machine ca.: 35 t dimensions of the machine ca.: 12,7 x 5,6 x 4,2 m Equipment / Accessories:Hea ...

Automatische roterende freeskop: 90° en 45° Automatische gereedschapswisselaar met 30 posities spanentransporteur koelunit + filter maximaal werkstukgewicht 6 ton Longitudinal travel X-axe: 1700 mm Cross travel Y-axe: 1200 mm Travel Z-axe: 1000 mm Dimensions clamping space- table: 2000 x 1000 mm Max height workpiece: 934 mm Power on spindle: 22 kW Admission in millinghead (ISO): BT50 Max speedrange: 35 > 3000 rpm Control: Heidenhain Power needed (KVA): 56 kVa Length : 5300 mm Depth: 4950 mm Height: 2800 mm Weight: 18 ton

able dimensions ( x-y/mm) 6500 x 1800 Stroke ( X/mm) 6210 Stroke ( Y/mm) 3440 Stroke ( Z/mm) 1103 Type of controll heidenhain Number of spindle per minute 35 - 6000 Tool magazine yes Number of inserts in the tool magazine 60

Table surface 1,524 x 355 mm Slot width 18 mm Table longitudinal feed 3 - 1016 mm/min - Rapid feed 2,400 mm/min Table cross feed 3 - 1016 mm/min - Rapid feed 2,400 mm/min Distance between slots 100 mm Number of T-slots 3 Longitudinal stroke 1,220 mm Transverse stroke 508 mm Vertical stroke 508 mm Spindle taper ISO 50 Main motor power 7.36 Kw Voltage 380/220 V Included accessories: Dimension display, milling cutter axes, milling cutters, shims, cones, collets

Universal milling machine with automatic movement ram. Table: 1700x700. Longitudinal travel: 1320mm. Cross travel: 1016mm. Vertical travel: 560mm. ISO50. 18 speeds (28-1800rpm) 18,75 Hp. Weight: 6200Kg.

x-travel: 4700 mm y-travel: 1000 mm z-travel: 1000 mm control: HEIDENHAIN TNC355 table-size: 5000x1000 mm T-slots: 7x mm turning speed range: 2800 U/min feed: 6-5000 mm/min rapid traverse: 15000 mm/min spindle motor: 30,00 kW spindle taper: SK 50 Table load: 10.000 kg Main drive: 40 PS weight of the machine ca.: 27,00 t dimensions of the machine ca.: m With HEIDENHAIN TNC 355 control. Machine can be inspected under power. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 22.000 mm y-travel: 1.500 mm z-travel: 3.000 mm Control: SIEMENS 840 D milling head -swivable: 0,001/0,001 Grad milling head: Universalfräskopf 45° Internal cooling system: 20 bar Chip coveyor: ja Tools changer: 30 pos. coolant: 1.100 l Tool taper: DIN 69871A ISO 50 total power requirement: 45 kW weight of the machine ca.: 68 t The round table shown in the pictures as well as the plate field are not sold with ! urning Speeds 6.000 r.p.m. AutoIndex Head 45 º Head 360.000 Pos. Elbow 360.000 Pos. Main Motor Power 37 Kw. Nº Change Range 2 Ranges Automatic Tool Charger INCLUDED Tools at ATC 30 Coolant Through Tool 20 Bar INCLUDED Soluble Oil Tank with filter paper INCLUDED Head Coolant System + CF Box INCLUDED Longitudinal Chip Conveyor INCLUDED Operator?s Platformd with 2000 mm Vertical movement. INCLUDED Ready for Rotor Translating Table (Regulator + Wires) /IN ...

x-travel: 4700 mm y-travel: 1000 mm z-travel: 1000 mm control: HEIDENHAIN TNC355 table-size: 5000x1000 mm T-slots: 7x mm turning speed range: 2800 U/min feed: 6-5000 mm/min rapid traverse: 15000 mm/min spindle motor: 30,00 kW spindle taper: SK 50 Table load: 10.000 kg Main drive: 40 PS weight of the machine ca.: 27,00 t dimensions of the machine ca.: m With HEIDENHAIN TNC 355 control. Machine can be inspected under power. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 12000 mm y-travel: 2500 mm z-travel: 1000 mm control: Heidenhain TNC 415 taper ISO: 50 P.D.B. spindle speeds: 20 - 1800 mm voltage: 380 V total power requirement: 37 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer ZAYER Model 30 KMU-5000 Year 1999 CNC HEIDENHAIN TNC-430PA Table surface 4,700 x 1,200 mm. Strokes (X/Y/Z) 3,400/1,250/2,000 mm. Shaft Outlet (W Axis) 500 mm. ISO-50 Head Cone Main Motor Power 37 kW 45º Automatic Head INCLUDED Head Rotation 45º Automatic Rotation 0.001º/0.001º Head revolutions 45º 3,000 rpm 45º ISO-50 Head Cone Continuous Twist Head INCLUDED Twist head revolutions 3,000 rpm Twist Head Cone ISO-50 Ram with cane INCLUDED Shank diameter 150 mm. ISO-50 Rod Cone Internal and external cooling head 45º and rod INCLUDED External cooling twist head INCLUDED Semi-automatic head pickup INCLUDED Automatic Loading Tools INCLUDED Loader Positions Htas 60 AITEK Pickup Station for 45º head storage and Twist Head INCLUDED Chip Evacuator INCLUDED HEIDENHAIN HR-410 Portable Steering Wheel RENISHAW MP 16+SP2/1 Piece Measurement Probe Motors + ...

x-travel: 8000 mm y-travel: 2500 mm z-travel: 1000 mm control: Heidenhain TNC 355 taper ISO: 50 spindle speeds: 20 - 1800 mm voltage: 380 V total power requirement: 27,6 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

milling machine, year 1998, CNC 2400. Used machine in good condition. More info & price on IndustrialBuyer.

milling machine, year 2015, CNC 0i - MF. Used machine in good condition. More info & price on IndustrialBuyer.

Zayer 30KCU700AR (2003) with Heidenhain iTNC 530. - x, y, z = 7000, 2000, 1250 - CTS 15 bar - Controlled milling head (position accuracy 0.001) - 60 tools - 37 kW spindle motor - Rapid traverse 20/10 m/min - 4500 rpm - ISO50 - Renishaw RPM60 -Conveyor - Additional milling head (replacement)

x-travel: 3.400 mm y-travel: 1.250 mm z-travel: 2.000 mm Control: TNC-430PA table-size: 4.700 X 1.200 mm V- travel: 500 tool taper: ISO 50 milling head -swivable: 0.001º/0.001º Grad main drive: 37 kW Chip coveyor: inkl handwheel: HR-410 Tools changer: 60 pos. milling head: Automatic Head 45º weight of the machine ca.: 35 t - Automatic Head 45º INCLUDED - Automatic Head 45º 0.001º/0.001º - Head 45º Max. Speed 3.000 rpm - 45º Head Taper ISO-50 - Twist Head Contiuous INCLUDED - Twist Head Max Speed 3.000 rpm - Twist Head Taper ISO-50 - Ram with Quill - Quill Diameter 150 mm. - Quill Taper ISO-50 - Pick up station AITEK for 45º and Twist Heads - Rotary Table ZEATZ Ø 1200 INCLUDED - RENISHAW MP 16+SP2/1 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 7.000 mm y-travel: 2.000 mm z-travel: 1.250 mm Control: Heidenhain iTNC 530 Internal cooling system: 15 bar milling head: Automatisch 0,001 spindle turning speed range: 4.500 U/min spindle drive: 37 kW taper ISO: 50 tool change unit: 60 Chip coveyor: Inkl. rapid traverse: 20/10 m/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m -CTS 15 bars -Controlled milling head (pos. Accuracy 0,001) -60 tools -37 kw spindle motor -rapid 20/10 m min -4500 rpm -iso50 -Renishaw RPM60 -chip conveyor -extra milling head (spare) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 10000 mm y-travel: 1500 mm z-travel: 2700 mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 3-axis Zayer KF 4000 was manufactured in 1989. It features a large table of 4,000 × 1,000 mm, capable of handling loads up to 10,000 kg. Equipped with a spindle speed of up to 3,000 rpm and a power range of 30–37 kW, it ensures robust machining capabilities. Consider the opportunity to buy this Zayer KF 4000 universal machining centre. Contact us for more information about this machine.

This 3-axis Zayer 30KF 3000 vertical machining center was manufactured in 1997. It offers robust construction and precision for complex machining tasks. Ideal for those seeking reliable performance in a used machine. Contact us for more information.

Key data: 5005 mm, 3586 mm, 1106 mm

year of production: 2007 automatic tool change Work spaces [mm]: 5000x2500 Groove distance [mm]: 200 Travel ranges [mm]: 5005x3586x1106 Work feed [m/min]: 35m/min Rapid feed [m/min]: 40 Spindle speed [rpm]: 35 - 6000 Spindle torque [kW]: 37kW Max. torque [Nm/rpm]: 670/525 Tool clamping: HSK-A 100 Tool magazine [pcs.]: 100ks Machine control system: iTNC 530 2x univerzální úhlová hlava 45° Direct outlet head Power supply

HS9000 High Speed Milling Spindle / Angular Milling Head Type: High speed milling spindle head / angular milling attachment Manufacturer: Nikko / Nikken Model: HS9000 Application: Milling, drilling and machining operations on machining centres or special machines This item is delivered loaded on truck or container. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-47114-29

Usable for the: Milling and engraving labeling, marking Drilling, cutting Dosing and much more. (Applications require optional accessories) inclusive: Design software ConstruCAM 3D Control software KinetiC-NC incl. CAM software Estlcam Multi-zone vacuum table with recessed T-nuts sliding Control panel including step control manual central lubrication The offer here is a CNC milling machine with the above-mentioned accessories (without further ado possibly shown on the photos accessories). For operation, a milling motor is also required, which can optionally be purchased from us. echnische data: External dimensions LxWxH: 1650x1440x1950 mm Weight: approx. 650 kg Clamping surface XxY: 930x630 mm Travel XxYxZ: 900x600x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reverse play: appr ...

Work facilitation through basic equipment The basic equipment includes, for example, an ergonomic control panel, which contains the stepper motor control and an industrial PC with touch function. Software (CAD/CAM, control software, operating system Win 10 Pro) are already pre-installed. Thus, the CNC milling machine can be operated conveniently and conveniently. A multi-zone vacuum table ensures a comfortable, fast clamping of workpieces and a strong hold during milling. Furthermore, the machine is equipped with a manual central lubrication, which makes it easier for you to grease and increases the service life of the CNC milling machine. Various applications The most diverse materials can be processed on our T-Rex, whether plastic, wood, metal or stone, nothing is impossible. Whether engraving, milling, cutting, drilling, dosing, gluing, etc., no wishes remain unfulfille ...

Work facilitation through basic equipment The basic equipment includes, for example, an ergonomic control panel, which contains the stepper motor control and an industrial PC with touch function. Software (CAD/CAM, control software, operating system Win 10 Pro) are already pre-installed. Thus, the CNC milling machine can be operated conveniently and conveniently. A multi-zone vacuum table ensures a comfortable, fast clamping of workpieces and a strong hold during milling. Furthermore, the machine is equipped with a manual central lubrication, which makes it easier for you to grease and increases the service life of the CNC milling machine. Various applications The most diverse materials can be processed on our T-Rex, whether plastic, wood, metal or stone, nothing is impossible. Whether engraving, milling, cutting, drilling, dosing, gluing, etc., no wishes remain unfulfille ...

Usable for the: Milling and engraving labeling, marking Drilling, cutting Dosing and much more. (Applications require optional accessories) inclusive: Design software ConstruCAM 3D Control software KinetiC-NC incl. CAM software Estlcam Multi-zone vacuum table with recessed T-nuts sliding Control panel including step control manual central lubrication The offer here is a CNC milling machine with the above-mentioned accessories (without further ado possibly shown on the photos accessories). For operation, a milling motor is also required, which can optionally be purchased from us. Technical specifications: External dimensions LxWxH: 1970x2150x1950 mm Weight: approx. 950 kg Clamping surface XxY: 1230x1320 mm Travel XxYxZ: 1200x1300x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reve ...

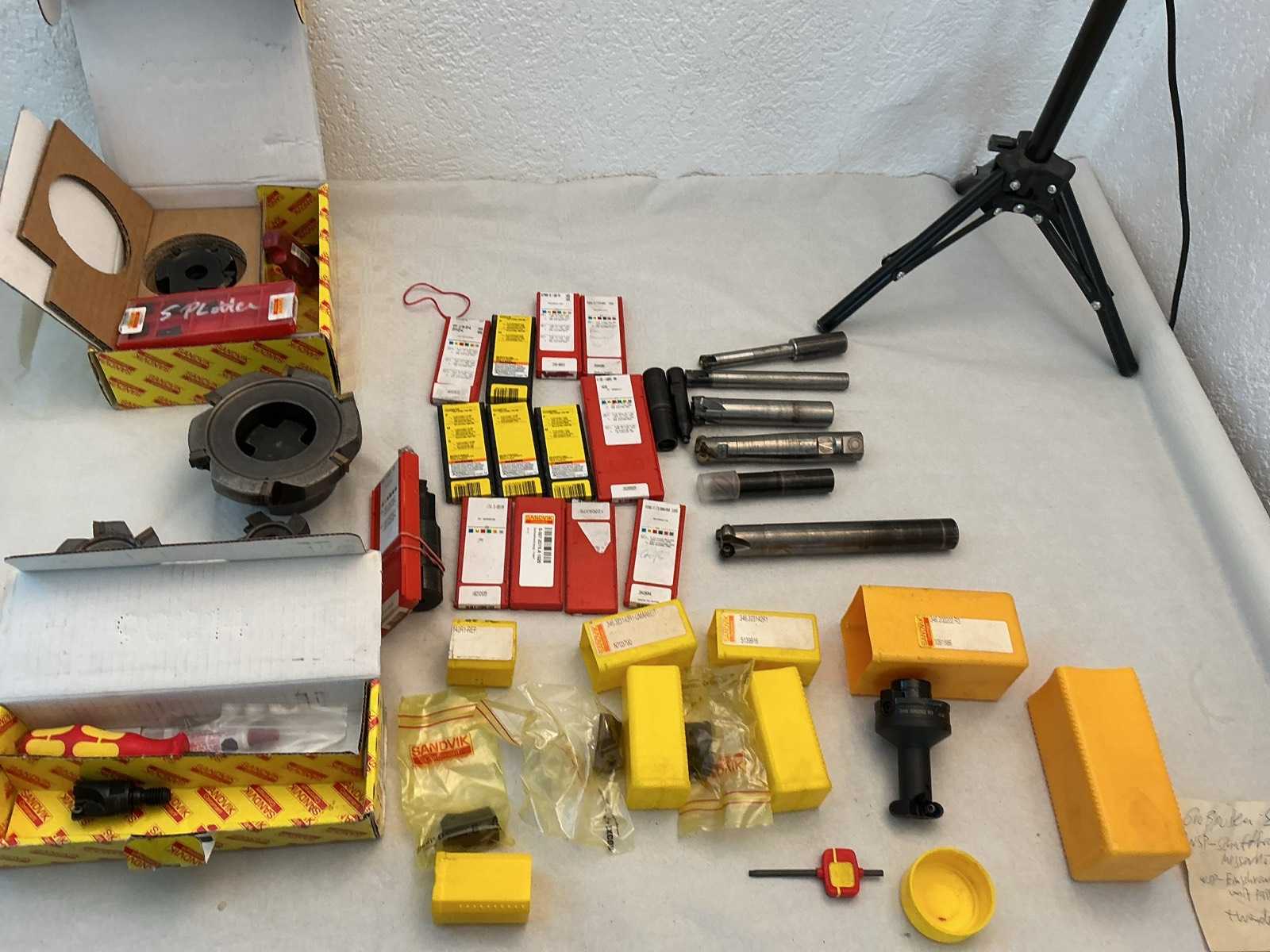

Including WSP screw-in milling cutter with matching holders, unused inserts, inserts unused.

End mill, end mill, cutter, shell cutter, milling head, angle cutter, shell angle cutter, angle end mill, prism cutter -Angle milling cutters: Attachment angle milling cutters, prism milling cutters -Type: Ø85 x 35 mm -Hole: Ø 27 mm -Quantity: 1x milling cutter available -Dimensions: Ø 85 x 35 mm -Weight: 0.8 kg

Including WSP screw-in milling cutter with matching holders, unused inserts, inserts unused. Auction-ID: A7-47109-1

Operating voltage: 400 v Ma.Nr.: 41636 HEIDENHAIN positioning and control TNC 131 / 135 Complete Dokunnetation (operating instructions, technical plans) exists. Errors excepted!

Table clamping surface: 600 x 1100 mm traverse path x: 800 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: by hand approximately 50 mm of spindle speeds: 63-3150 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x/y/z 4.5/2,6/3 m / min. Supply: 380 V, 5.5 kW space: 3000 x 2500 x 2030 mm weight: 4000 kg

Table size: 500 x 1200 mm traverse path x: 1000 mm stroke y: 550 mm traverse path z: 600 mm spindle retainer: ISO 40 spindle speeds: 60-2700 rpm spindle drive: 10 kW Electr. Supply: 380 V, 20 kVA kW space: 3200 x 2800 x 2650 mm weight: 7.3 t

Table clamping surface: 500 x 1000 mm stroke x: 630 mm traverse path y: 500 mm traverse path z: 460 mm Quill stroke: hand 45 mm spindle retainer: ISA 40 spindle speeds: 31.5-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse: x/y 6 / z 4 m/min. Supply: 380 V, 6/8 kW space: 1800 x 2120/2600 x 2020 mm weight: 3100 kg

Table clamping surface: 630 ø mm traverse path x: 600 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: hand 80 mm spindle retainer: ISO 40 spindle speeds: 20-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse rate: 4 m / min. Connection: 380V kW space: 2000 + 850 x 2000 x 2000 mm weight: 3300 kg

Stroke x: 600 mm traverse path y: 400 mm traverse path z: 400 mm spindle retainer: ISO 40 spindle speeds: 80-4000 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x & y/z 4/2.5 m / min. Supply: 380 V, 16 kVA kW space: 2450 x 2200 x 1900 mm weight: 2250 kg

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

MAHO C Axis Machine Table - Table diameter: 600 mm Good condition fully functional can be visited and tried out on site. Shipping also abroad. Sightseeing: Basically, I would like to point out that the article, in order to avoid misunderstandings, can be viewed before the purchase and tested under electricity. Please ask questions before buying to avoid ambiguity. For general questions or an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale excepted. VAT will be shown separately on my invoices. Shipping with freight forwarder.

Table clamping surface: 500 x 1600 mm table movement x: 1220 mm table movement y: 500 mm table movement z: 500 mm spindle retainer: SK 50 spindle speeds: 56-2800 rpm feeds longitudinal & cross: 10-1800 mm / min feed vertically: 2.5-450 mm / min. Supply: 400 V, 16 kVA kW space: 2000 x 2250 x 2150 mm weight: 4500 kg

Universal milling machine. Hure head. Table size: 2000x480mm. Longitudinal travel: 1700mm. Cross travel: 400mm. Vertical travel: 575mm. ISO50. Motor power: 20cv. Weight: 5500Kgs. Dimensions: 2550x2380x2680.

Universal milling machine with automatic movement ram. Table size: 1600mmx320mm. Longitudinal travel: 1200mm. Cross travel: 300mm. Vertical travel: 600mm. ISO50. Hure head. Equipped with DRO Fagor.

Universal milling machine. Table size: 1400mmx300mm. Longitudinal travel: 1200mm. Cross travel: 320mm. Vertical travel: 500mm. ISO40. Hure head. Speeds: 12. (40-1800rpm). Motor power: 7Kw.

Vertical machining center Cincinnati Millacron Traverse path x 1270 mm Y: travel 660 mm Z: travel 660 mm CNC control: Acramatic 850SX Table size: 1,370 x 660 mm Table load: 910 kg Rapid traverse x/Y/Z: 15,000 mm / min. Spindle speeds: 60-8,000 rpm. Spindle recording: ISO 40 Distance from spindle - table min/max: 150/880 mm Tool changers: 21 items Equipped with:-cooling device -Hand Council operation -Complete instructions Country of origin: England Spindle motor: 9 kW Machine weight: 8.000 kg Machine WxDxH: 3,600 x 2.900 x 3.000 mm

Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg

Technical Specifications - Bridgeport Series I Table Size / Work Surface 9" × 49" (≈ 299 mm × 1245 mm) T-slots 3 pieces, spacing 2.5" (≈ 64 mm), groove width 0.625" (≈ 16 mm) Travel X (Transverse) without Power Feed: 36" (≈ 914 mm) with power feed: 33" (≈ 838 mm) Travel Y (Transverse to Feed) 12" (≈ 306 mm) Quill Stroke (Drilling Spindle Stroke) 5" (≈ 127 mm) Knee Lift (Z-Axis of Table) 16" (≈ 406 mm) Ram Adjustment (Head Stem on Ram Slide) 12" (≈ 306 mm) Min. / Max. distance spindle axis to table nose (spindle/table nose distance) min: 2.5" (≈ 64 mm) Max: 18.25" (≈ 463 mm) Min. / Max. distance spindle to column front (minimum/maximum internal width) min: 6.75" (≈ 171 mm) max: 18.75" (≈ 476 mm) Spindle / Quill Spindle Diameter: 1.875" (≈ 48 mm) Quill Diameter: 3.375" (≈ 86 mm) Spindle holder (standard): R-8 Spindle motor / power 30 minute ...

Operating hours: 600h Specifications: Travel in X/Y/Z: 450 / 350 / 400 mm Distance from spindle nose table: 230 - 630 mm (horizontal milling spindle) Rapid traverse speed X/Y/Z: 5000 / 5000 / 5000 mm/min Working feed X/Y/Z: 10 - 2000 mm/min infinitely variable Max. feed force in X/Y/Z: 10 / 10 / 15 kN Clamping surface: 800 x 400 mm (rigid angle table) Max. table load: 30 kg (rigid angle table) Vertical milling head: Speed range: 10 - 5000 1/min Power: 10 kW Dimensions (LxWxH), approx.: 1980 x 2030 x 1990 mm Weight, approx.: 2270kg Equipment: - Swivel control panel - Shafts and gears hardened and ground - Digital display Sinumerik 828D - Clockwise / counterclockwise rotation of the main spindle - Linear guides - Four-bearing milling spindle radial/axial - All pinch points eliminated by covers - Main motor with spindle brake

AVIA FNE 40NC milling machine was built in 2001 in Poland by Fabryka Obrabiarek Precyzyjnych AVIA S.A. The machine is used for precision machining of workpieces with a maximum weight of 400 kg. The machining process is performed in three axes by means of a reliable spindle with stepless speed adjustment. The spindle, mounted on a swivel workhead, moves in the Z axis on precision vertical guides. All this is complemented by the easy-to-use HEIDENHAIN NC control system, in which even the most advanced programmes can be created in just a few steps. The AVIA FNE toolroom milling machine weighs 1900 kg. Technical data of the AVIA FNE 40NC metal milling machine - NC controller: HEIDENHAIN TNC 310 - feed in the X/Y/Z axis: 620/420/400 mm - rapid traverse in the X/Y/Z axis: 6000/4000/4000 mm/min - feed rate adjustment: stepless - maximum workpiece weight: 400 kg - horizontal work table  ...

Qty.1 Second-hand milling (scalping) line Mfc.: Torrington Type: 30" Slap Miller Speed: 500 rpm – 18 fpm Capacity: 1,9 m/dk

Universal milling machine. Table size: 1200mmx320mm. Longitudinal travel: 950mm. Cross travel: 300mm. Vertical travel: 500mm. ISO40. Hure head. DRO Fagor.

Table size: 440 x 1200 mm table movement x: 950 mm table movement y: 250 mm table movement z: 475 mm spindle retainer: ISA 40 spindle speeds: 40-1800 rpm feeds longitudinal & cross: 16-630 mm / min feed vertically: 5.6-224 mm / min. Supply: 380 V, 7.5 kVA kW space: 2150 x 2000 x 2100 mm weight: 2400 kg

Drilling capacity in steel: 32 mm Drilling capacity in cast: 40 mm Cutter head milling max.: 80 mm Projection: 220 mm Spindle speed: (12) 75-3200 RPM Spindle retainer: MK 4 Quill stroke: 125 mm Table size: 800 x 240 mm Travel (x / y): 555 / 225 mm Milling head swiveling: - 90 ° to + 90 ° Distance from spindle / table: 60-485 mm Head height: 425 mm T - slot size: 14 mm S1 motor power output 100%: 1,1 / 1,5 kW (400 V) Motor power S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions (W x D x H) : 1140 x 770 x 1500 mm Approximate weight: 287 kg without stand Features: Quick and easy change of speed using the gear selector switch Versatile application possibilities such as drilling, milling, thread cutting, … High running smoothness by polished, running in an oil bath gear gears Right - and the link run device for thread cutting Quill adjustment by means of ...

Standard ALB ear performance: 30 mm Thread cutting performance: M 20 (option) Thread: M 12 Spindle: MK 3 or SK 30 (option) Quill stroke: 100 mm Longitudinal / cross travel: 350/160 mm Distance spindle/cross table: 80 to 450 mm Table area: 600 x 240 mm Column diameter: 110 mm Total height: Max 1,920 mm Weight: 340 kg Motor pole shift bar: 0.8/1.5 kW Spindle speeds, continuous, selectable: 10 spindle speeds: 80-1,400 rpm 10 spindle speeds: 120-2,160 rpm 10 spindle speeds: 160-2,800 RPM Facilities: A versatile, accurate and handy drilling milling machine. The quiet-running drive and a perfect clamping of Quill guarantee good surfaces when milling. The headstock can be swung out. The stage is precise and precisely adjustable. Pitch 0.05 mm. clamping device for both axes. Full motor protection. Machine incl. Cabinet.

Vertical Milling Machine RAMBAUDI type RAMMATIC 600 Travel X 1260 mm Travel Y 690 mm Travel Z 600 mm Numerical Command NUM 1060 Cone SA 50 Table size 2000 x 600 mm Year of construction 1991 Voltage 380 V Depth 2500 mm Total height 4000 mm Weight approx 9 T

Vertical Milling Machine Droop & Rein type FS130 Travel X 2000 mm Travel Y 1000 mm Travel Z 1000 mm Spindle SA 50 Sensitive spindle exit: 200 mm Rotation from 31,5 to 1600 RPM Table size 2400 x 1070 mm Year of construction 1976 Throat depth 950 mm Head Tilt head Spindle motor 22 kW Scale HEIDENHAIN 3 axes New electrical panel in 2006 Voltage 380 V Width 3500 mm Depth 4700 mm Total height 4500 mm Weight 26 T

Machine type milling machine - universal brand HURON type MU 5 year 1975 control type conventional storage France country of origin France delivery immediately cargo base camp, free truck Technical details x way 1300 mm y path 700 mm z-way 550 mm table size 1500 x 460 mm spindle speeds 15-2500 RPM spindle retainer for SK 40 feed range x - direction 1,6-820 mm / min feed Empire z-direction 1,6-820 mm / min rapid traverse X + Z - axes 2.8 m/min rapid traverse y - direction of 2.8 m / m in power - spindle motor 10 kW total power 14 kW machine weight approx. 4.6 t additional information good condition with 3 axis of DIGITAL HEIDENHAIN SK 40 BUILT IN 1975

2 piece F. 17.3 2 piece F. 17.34 Milling machines with double head (duplex), with counter holder for horizontal milling

Table size: 254 x 1100 mm Table movement x: machine. u. v. hand 682 mm Table movement y: hand 380 mm Table movement z: hand 457 mm Milling head swiveling to: +/-90 or +/-45 ° Spindle retainer: ISO 40 Spindle speeds: 70-2300 rpm Quill feeds: 0.038 â 0.152 mm / min Spindle drive: 380 V, 2.2 kW Space: 1600 x 1600 x 2150 mm Weight: 1420 kg

Table surface: 300 x 1300 mm Table movement x: 950 mm Table movement y: 220 mm Table movement z: 400 mm Spindle intake: MK 5 Spindle speeds: 25-1200 rpm Prests lengthwise & across: 7.5-635 mm/min Presens vertical: 3-250 mm/min Electr. Connection: 380 V, 7.5 kW Space requirement: 1670 x 1500 x 1750 mm Weight: 2600 kg

x-280 ,y- 200 , Z 315 , Table dimensions 380x380/250x500 A lot of writings,much more than pictured

Bearing number 1105-02690 Machine type Milling machine - Universal Make HERMLE Type UWF 1000 Built in 1988 Control type CNC Storage location FRANCE Country of origin Germany Delivery time SOFORT Freight base EXW Technical details x-way 700 mm y-way 630 mm z-way 500 mm Control heidenhain 355 Tool holder SK 40 (DIN 69871) Table clamping area: 1000 x 490 mm Spindle speed Gear stage 1 25 - 400 rpm. Spindle speed Gear stage 2 401 - 1260 rpm Spindle speed Gear stage 3 1261 - 4200 rpm Feed 5 m/min Rapid speed 10 m/min Swivel of the milling head + / - 90 ° Pinole diameter 110 mm Pinole stroke 95 mm Total power requirement 18 kW Machine weight approx. 5 t Information with full cabin coolant device Sale takes place without clamping equipment approx. 8500h switch-on hours

Technical data: Fixed angular table: Fixed angular table clamping area: 800 x 400 mm Max table load: 200 kg Working spindle: Tool holder horizontally and vertically: ISO 40 Power of the main drive motor / 100% ED: 2.2 kW Vertical milling head: Speed range, tiered: (12) 50 - 2000 rpm Drill pinole, stroke: 100 mm Swivel range: +/- 90° Travel: X-axis automatic/man.: 385/400 mm Y-axis automatic/man.: 185/200 mm Z-axis automatic/man.: 365/380 mm Feeds: Feed range: 0-650 mm/min Number of feeds: infinitely adjustable Rapid response: 1000 mm/min Characteristics: - Machine accuracy according to DIN 8615 - 3-axis digital displays FAGOR® Innova (option) - Spindle run max. 0.005 mm, incl. test protocol according to DIN 8615 (rolling bearing SKF®/NSK®) - Vertical milling head can be swivelled out for horizontal milling (without d ...

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

Blade length 205 mm Max cutting performance Sheet R = 42 kg / mm2 4 mm Sheet R = 70 kg / mm2 3 mm Engine power 3 kW Number of beats / minutes 50 min Table dimension 625 x 954 mm Capacity of the oil tank 25 l Weight 500 kg The setting between the blades is fully automatic. Standard: - 1 set of knives at 30 ° (mounted on the machine) - 1 stop switch - 1 general circuit breaker - 1 stop adjustable and adjustable every 15° - Fill the first oil - Manual with installation and maintenance instructions and service keys.

x-400,y-330,z-350,angle table 630x335,SK 40, 40-6,000 rpm,measuring probe

Table clamping area: 560 x 240 mm x-way: 300 mm y-way: 275 mm z-way: 200 mm Spindle holder: ISO 40 Spindle speeds: 40 - 2000 rpm Operating voltage: 380 V Total power requirement: 1.5 kW Space requirement: 1200 x 1100 x 1700 mm Weight: approx. 750 kg

Table clamping area: 310 x 1400 mm Table movement x: 950 mm Table movement y: approx. 325/345 mm Table movement z: approx. 500 mm Spindle speeds: 20 - 1500 rpm Feeds longitudinally and transversely: 18 - 620 mm/min Feeds vertical: 18 - 620 mm/min electr. Connection: 380 V kW Space requirement: 1900 x 1600 x 1750 mm Weight: approx. 1500 kg

1 x Universall tool-feeding machine Lid FP 4 Built: c.1970 Very robust and rare conventional machine in good condition. Technical data: Travel: X: 700 Y: 400 Z: 450 mm Spindle speeds: 31.5 - 1,600 rpm (18 levels) Tool holder: ISO 40 Pinole stroke: 115 mm Feed in X/Y/Z Feed range: X/Y/Z 5 - 500 mm/min (infinitely adjustable) Rapid response: X/Y: 10 - 500 mm/min Z: 5 -250 mm/min (18 levels) swivel handling table Clamping area: 860 x 500 mm Accessories: 1 x horizontal counter bearing 5 x horizontal frond spine Bftj7cazem 10 x vertical fraes aufnahme 36 x tension tension ingesheis from 0.5 - 18 mm 0.5 mm rising 5 x Direct clamping pliers D: 12/14/16/18/20 mm 1 x machine vice Manual various distance rings and accessories for milling machines complete documentation The machine can be inspected at our warehouse under electricity. A 3-axis digital ...

Milling machine from a training workshop in very good condition Manufacturer lid Type FP1 Active

Universal milling machine vertically / horizontally from a training workshop Manufacturer Hermle Type FW801 Tool holder SK40 automatic feed in three axes Digital display in three axes Machine technically in very good condition under electricity ready for demonstration Technical data: Travel: x=350mm y=150mm z=220mm Spindle speeds from 50 to 3,150 rpm can be infinitely variable Feed speed infinitely adjustable via rotary pot from 10 to 5,000 mm/min, aisle Special price Used milling machine Hermle FW 801

- travel range: X= 485, Y= 385, Z= 380 mm - table size: 800 x 460 mm - tool holder: SK 40 - dimensions LxWxH: 2440 x 1800 x 2100 mm - weight: ca. 2.000 kg

Table clamping area: 190 x 710 mm Table movement x: 390/360 mm Table movement y: 150 mm Table movement z: 280 mm Spindle holder: SK 40 Spindle speeds: 100 - 3100 rpm Feeds longitudinal 0 - 600 mm/min electr. Connection: 380 V, approx. 1.5 kW Space requirement: 1400 x 1200 x 1500 mm Weight: approx. 680 kg

Table length: 10.800 mm Table width: 1.000 mm Table height: 200 mm Load capacity: 10 t/m Power motor spindle: 22 Kw Max. speed of turning: 1.700 rpm X Axis travel: 7.000 mm Vertical axis travel: 2.000 mm RAM travel: 1.000 mm Total installed power: 60 Kw Rapid feed rate: 15 mt/min CNC ECS 4801 Chip conveyor

REALMECA MINI C3X-CNC VERTICAL 1 phase machining milling machine Used for teaching begginers. Perfect condition

MAHO MH-700 with numeric control X, Y Table size: 800x300 Working area: X-450,Y-250,Z-300 Spindle taper: MK3 Feed range: 7-250mm/min Vertical head swiveling 90 degreess Power: 3KW Dimensions: 1300x1200x1700

CNC toolmill cover FP 3 NC Dialog 11 Used machine (very good) Control type Cnc Built 1990 Hours K.a. Dimensions 1800x1700x2000 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making • Travel distances: 400x400x400mm • Control: Dialog 11 Technical data • Control CNC Dialog 11 • Table 600x400mm • Longitudinal path (X,Y,Z axis) 400x400x400mm • Tool changer no • Tool holder: ISO 40 • Vertical spindle speeds: 31.5-3150rpm • Feeds 2-3600mm/min • Connection 50 Hz 3x 380V • Spindle motor 3.4KW

Lid FP 4 A Used machine (very good) Control mode Conventional Built in 1992 Operating hours approx. 500h Price 12,000 € net plus VAT Dimensions 2500x2500x1900 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 560/500/450mm Control : Dialog 11 Technical data Control CNC Dialog 11 Table 900x530mm Longitudinal path (X,Y,Z axis) 560/500/450mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-5000rpm

Description Universal tooling machine from Lid suitable for tooling, fixture construction, training as well as mold making Technical data Year of construction / YOM 1991 Speeds / Spindle 63 - 6300 rpm Steuerung Control CNC Grundig Dialog 11 Vorschübe / Feeds 2 - 3000mm/min Tisch / Table 910 x 530mm Recording / Taper ISO 40 Way / Travel (X,Y,Z) 600x500x500mm Weight /Weight ca 1830kg Changer / Tool changer No Dimensions / Dimension 2500x2000x2000mm Travel: 600x500x500mm Speed: 31.5 - 6300 rpm The machine comes from a tool making and has been regularly serviced.
