waldrich coburg grinding machines used for sale

Guideway Grinding Machine Waldrich Coburg -30-10 S 3640 Control: Siemens 840D Year of Make: 2012 Travel: X-axis 8,825 mm Y-axis 3,010 mm Z-axis 2,500 mm Table length 8,000 mm Table width 1,800 mm Table load: 18,000 kg Feed X-axis: 1 - 45,000 mm/min Feed Z-axis: 100 - 3,000 mm/min Universal Grinding Head S10 with 110 Degree Tilt / 2500 Rpm / 7.5 kW Vertical Grinding Head S30 with Ø 600 x 150 / 930 Rpm / 22 kW Double SIEMENS 840D controller on the left and right of the machine Automatic doors (4x) for easy access to the machine / load / clamping Hydraulic table drive with 18000 kg working load KNOLL HL650/4000 filtration system new 2023 Various grinding wheels Large Package Spare Parts/Ball Screws/Covers Renovation in 2012 for 1.5 million EUR

grinding length: 8400 mm grinding width: 1450 mm workpiece height: 1250 mm surface area: 8000 x 1250 mm table height over floor: 920 mm distance between columns: 1470 mm workpiece weight max.: 59700 kg weight of the machine ca.: 59,7 t dimensions of the machine ca.: 22 x 5 x 5 m Adjustment ranges: -Crossbeam, vertical 1250 mm -Grinding support, horizontal 3100 mm Adjustment speeds: -Machine table (X-axis) infinitely variable 1-45 m/min Table creep speed 5 m/min -Grinding support, horizontal (Y-axis) Rapid traverse 3000 mm/min Feed, step 0.001-0.099 mm Feed rate, continuous 100-3000 mm/min Creep speed 18+1 mm/min Tip infeed 0.001-0.019 mm -Crossbeam (W-axis) Rapid traverse 410 mm/min Table drive: -Oil transmission, Type Iv4 -Cylinder-Ø 185 mm -Piston rod Ø 130 mm -Drive motor 22 kW The data for this ad was created with ModulMWS - the  ...

Key data: 6000 mm, 2200 mm, 2000 mm

CNC Guideway Grinding Machine Waldrich Coburg Way Grind 2000AC Year of construction 2013 Siemens 840D controller Table width 2,000 mm Grinding width 2,200 mm Distance between stand covers 2,200 mm Grinding height 2,000 mm Grinding length 6,000 mm Table longitudinal travel 6,825 mm Table load 8,000 kg/m Total table load max. 20,000 kg Max. grinding height: Universal grinding head 2,000 mm Circumferential grinding head 1,925 mm Table speed 1.1 - 1.2 m/min. - max. 10-14 m/min. Positioning accuracy +/- 1 mm Circumferential grinding head: Max. drive power 50 kW Spindle speeds 500 - 1100 rpm Grinding wheel dimensions: Diameter (max.) 600 mm Width 150 mm Inner diameter 150 mm Universal grinding head Drive power (max). 22 kW Spindle speeds 500 - 2500 rpm. Grinding wheel dimensions: Diameter (max.) 600 mm Width 100 mm Inner diameter 250 mm Gri ...

This 3-axis WALDRICH COBURG 30-15 S 2525 grinding machine was manufactured in 1991. It features a robust structure with dimensions of 11,500 x 6,610 x 5,170 mm and a weight of approximately 45,800 kg. Capable of handling workpieces up to 11,000 kg, it offers a grinding length of 3,500 mm and a grinding width of 1,450 mm. If you are looking to get high quality grinding capabilities consider the WALDRICH COBURG 30-15 S 2525 machine we have for sale. Contact us for more information.

x-travel: 9700 mm y-travel: 3500 mm z-travel: 640 mm w-axis: 3000 mm Control: Siemens type: 840D PL spindle diameter: 200 mm Spindle capacity: 85 Kw surface area: 9000x2800 mm Table load: 40000 kg high speed spindle taper ISO: 50 chip conveyor: coolant: total power requirement: kW weight of the machine ca.: 193,8 t dimensions of the machine ca.: 22,4x10,2x8,2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

throat: 645 mm workpiece height max.: 550 mm stroke: 360 mm table diameter: 650 mm milling-head swivable +/-: 15/80 no. of strokes: 100 Hub/min total power requirement: 6 kW weight of the machine ca.: 4,3 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

throat: 1410 mm workpiece height max.: 1150 mm stroke: 1400 mm table diameter: 1400 mm milling-head swivable +/-: 10 ram - range of adjustment: 750 mm pulling power: 50000 N workpiece weight: 10000 kg Ram stroke speed: 30 m/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 10000 , 3950 , 2500

Used for machining large parts as well as many small workpieces. machine was modernized in 2021 Type of CNC FANUC control rack X axis 10000 mm Y axis 3950 mm Z axis 2500 mm Table length 8000 mm Table width 2800 mm Max load on table 60000 kg Max. spindle speed 2000 rpm ------------------- Length x width x height 171000.0 × 93300.0 × 67600.0 Weight 150000 kg The machine, equipped with a stable work table and indestructible components, allows tasks such as milling, drilling and tapping to be performed with the highest precision, guaranteeing maximum process optimization in a wide range of industries.

x-travel: 15500 mm y-travel: 6800 mm z-travel: 3400 mm Control: Siemens Sinumerik 840 D w-axis: 2000 mm table surface area: 15000 x 5000 mm passage width: 5900 mm Passage height: 5030 mm main drive motor: 150 kW spindle taper ISO: 60 milling head speed: 6-750 (2250) U/min workpiece weight: . t total power requirement: - kW weight of the machine ca.: ca 270 t dimensions of the machine ca.: - m modernized in 2008 and equipped with: - CNC control Siemens Sinumerik 840 Dsl - movable Portal - Coolant -- Coolant through spindle -- external Cooling - set of milling heads 9ea -- high speed spindle head SLA 23 / 3 SZ (2250 U/min) -- horizontal head WFU 2100 SZ / 500 S 22 -- WFU 500 SZ / 500 S 22 -- WFU 250 B / 500 S 22 -- EFK 40 E / 600 C 22 -- EFK 250 SZ / 850 S 22 -- horizontal head HSD 250 C / 1450 S 22 -- HS 800 C / 600 S 22 -- vertical head VL 300 SZ / 65 ...

x-travel: 6300 mm y-travel: 2200 mm workpiece height: 1835 mm Table area: 6000x1835 mm Rest: 2 Side head: 2 number of T-slots: 7 T-slot - distance: 240 mm T-slot - width: 28 mm bed length: 14650 mm column daylight: 2075 mm feed: 5-60 m/min workpiece weight: 15000 kg total power requirement: kW weight of the machine ca.: 55 t dimensions of the machine ca.: 14,65x4,37x4,05 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 900 mm Table load: 3000 kg Daylight: 580 stroke: 95-800 mm total power requirement: kW weight of the machine ca.: 8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 6000 mm y-travel: 3500 mm z-travel: 1500 mm total power requirement: kW weight of the machine ca.: 161 t dimensions of the machine ca.: m x-travel 6000 mm y-travel 3500 mm z-travel 1500 mm CNC control 840 D Table load 12 t Table dimensions - lengthways 5000 mm Table dimensions - crossways 2500 mm ATC tool changing device 200-pos. Tool weight max. 30 kg Tool holder HSK A 100 Tool diameter 250 mm Tool length - max. 500 mm Spindle speed: 5 - 6000 rpm C-axis -10 to 370 deg B-axis 5 to -95 deg Column distance 3000 mm Machine weight approx. 161 t Space requirement approx. 20.5 x 11 x 6.3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

workpiece diameter: 25-90 mm threading length: 3000 mm thread pitch: 2-16 mm total power requirement: 25 kW weight of the machine ca.: 10,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 9154 Type: 17-10 FP NC/5 Producer: Waldrich Coburg Created: 1985, GO 2011 Parameters: Operating system: Sinumerik 840 Table length: 5000 mm Table width: 2500 mm Max. workpiece weight: 60000 kg Weight: 125000 kg Coolant leaks out in the spindle area of the machine. GOs were carried out on the machine in 1997/2008/2011.

- Guideway / Slide way / Surface Grinding Machine - Universal grinding head S10 with 110 Degree tilting / 2500 Rpm / 7.5 kW - Vertical grinding head S30 with Ø 600 x 150 / 930 Rpm / 22 kW - Double SIEMENS 840D Controll panel Left & Right side machine - KNOLL HL650/4000 Filtration system new 2023 - Automatic doors (4x) for easy machine / load / clamping acces - Hydraulic table drive with 18000 Kg Work load - Rebuild in 2012 for 1.5 Mil EUR - Large package flanches and stones - Large package spare parts / ballscrews / measuring / protection covers

Upper support, cross support, cross table, cross slide table -Upper support comes from a Waldrich Coburg portal milling machine type: 12 D 3232-550 HL -Table surface: mm -Travel: x 350 mm/y 220 mm -Dimensions: 1380/1000/H800 mm -Weight: 800 kg

x-travel: 6000 mm y-travel: 3500 mm z-travel: 1500 mm Control: 840 D table load: 12 t height over floor: 6300 mm table dimension - longitudinal: 5000 mm table dimension - cross: 2500 mm tool change unit: 200- fach weight of tools max.: 30 kg tool taper: HSK A 100 tool diameter: 250 mm tool length - max.: 500 mm spindle speed:: 5 -6000 U / min c-axis: -10 bis 370 ° b-axis: 5 bis -95 ° column daylight: 3000 mm total power requirement: kW weight of the machine ca.: 161 t dimensions of the machine ca.: 20,5 x 11 x 6,3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 5-axis WALDRICH COBURG 17-10 FP NC/5 was manufactured in 1985 and lastly retrofitted in 2011. It features a maximum workpiece weight of 60 tons and a substantial table size of 2,500 mm by 5,000 mm. The machine is equipped with a Sinumerik 840 control system, ensuring precision in operations. If you are looking to get high-quality milling capabilities, consider the WALDRICH COBURG 17-10 FP NC/5 gantry milling machine we have for sale. Contact us for further details.

The machine was originally manufactured in collaboration between Waldrich Coburg and Waldrich Siegen as a heavy CNC gantry milling machine for the industrial large-part and heavy-duty machining sector. 63 kW milling and drilling unit NC universal milling head B and C axis Automatic tool changer 60-slot tool magazine ISO50 / SK50 IKZ Enclosed work area Heavy industrial construction Electronic handwheel Siemens Sinumerik 840D Heavy CNC gantry milling machine from Waldrich Siegen for machining large and heavy workpieces. The machine comes from an ongoing industrial project / plant closure and is already dismantled or prepared for transport. Particularly interesting for: Heavy-duty machining Large-part machining Mechanical and plant engineering Steel construction Tool and mold making Important note: The machine must be picked up from Rüsselsheim by the end/mid-June at the latest due to sho ...

Waldrich Coburg 17 S-10 FP 300 NC / 5 m – CNC Gantry Milling Machine Machine: 17-10 FP 300 NC / 5 m Serial Number: 2.8304.06 Original Year of Manufacture: 1983 In 2016, it was comprehensively overhauled and modernized by the manufacturer Waldrich Coburg. The machine is equipped with a modern Siemens SINUMERIK 840D sl control system and is ideally suited for heavy-duty machining of large and complex workpieces in machine, tool, mold, and power plant construction. The delivery includes a Universal Fork Milling Head USP 300 C 350 with B-axis as well as an additional Angle Milling Head WFU 500 SZ 400 F17 , ensuring versatile machining capabilities for demanding milling tasks. The machine features a modern full protective enclosure, coolant system, chip conveyor technology, and extensive technical documentation including circuit diagrams and overhaul documentation. The system  ...

WALDRICH SEIGEN WST IV H80 X 12000 ROLL GRINDER YEAR: 1981 / INSTALLED 1982 MAXIMUM GRINDING DIAMETER: 78” ( 1981.2 mm) WITH 32” (812.8 mm) DIAMETER WHEEL MAX DIAMETER CAPABILITY: 2500mm DISTANCE BETWEEN CENTERS: 472.40” (12000mm) MAXIMUM WORKPIECE WEIGHT: 176000 lbs. (80t) WHEEL OD MAXIMUM: 32.00” WHEEL WIDTH MAXIMUM: 4.00” WHEEL ID: 12.00” WHEEL SPINDLE POWER: 27 - 59/59 HP WHEEL DRESSER: BED MOUNTED ROLL WHEELHEAD TRAVEL: 25.60” TABLE TRAVEL: (WHEEL HEAD TRAVEL) 488.40”( 12405 mm) TABLE SPEED: (WHEELHEAD SPEED) 157.5 in/min (4000 mm/min) WHEEL SPINDLE SPEED: 450 - 1800 RPM Infinitely Variable WORKHEAD POWER: 1.9 - 59/59 HP WORKHEAD SPEED: .5 - 300 RPM WAYS: CAST IRON FULL HYDROSTATIC SLUDGE CONVEYOR: NONE COOLANT: YES FILTRATION SYSTEM: COMBINATION 2 CARTRIDGE AND FABRIC FILTER WAY COVERS: METAL TELESCOPIC POWER 3PHASE / 50-60 Hz / 200 - 50 ...

grinding diameter: 140 -1260 mm grinding length: 5000 mm swing diameter: mm centre height: 1000 mm centre distance: 8000 mm grinding wheel size: 800 x 80 x 305 mm Control: Allen Bradley PLC workpiece weight max.: 35000 kg spindle drive: 30 kW grinding wheel turining speeds: 720 - 1800 U/min feeds of grinding head: 60 - 4000 mm/min grinding feed: 0,0125 mm/U working spindle drive: 45 kW work piece spindle speed: 240 - 2400 U/min total power requirement: - kW weight of the machine ca.: - t 2008 Electrical Upgrade Computer Controlled Allen Bradley Powerflex Digital Drives Allen Bradley 1606-XL Power Supply N-Tron 508 XT Ethernet Card Allen Bradley Panelview Plus 1250 Digital Readouts Allen Bradley PLC CompactLogix L32E - Crowning and Cambering Capabilities - Stationary Rotating Roll with Travelling Grinding Carriage - 2 Steadies - Servo Drives: Headstock & Grinding Wheel, - Rapid Traverse C ...

This 4-axis WALDRICH KLEINKNECHT WS III C 6.00 X 5000 CNC was manufactured in 2017. It features a maximum grinding length of 5,000 mm and a roll diameter capacity of approximately 600 mm. The machine is equipped with a modern CNC control system and includes essential safety equipment. If you are looking to get high-quality grinding capabilities, consider the WALDRICH KLEINKNECHT WS III C 6.00 X 5000 CNC cylindrical grinding machine we have for sale. Contact us for further details.

x-travel: 19000 mm y-travel: 7600 mm z-travel: 2000 mm w-axis: 5000 mm table surface area: 18500 x 5000 mm table load: max. 500 t distance between columns: 5500 mm power capacity - milling spindle: 110 kW tool taper: CAT #60 Control: FANUC 15i MB total power requirement: - kW weight of the machine ca.: 650 t Overhauled & modernized in 2007 equipped with: - CNC control FANUC 15i MB - 5 heads The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 14000 mm y-travel: 4480 mm z-travel: 3000 mm w-travel: 300 mm table:: table load: (145) 450 t table width: 3100 mm table length: 14770 mm Passage height: 3800 mm passage width: 3200 mm diameter of quill: 305 mm spindle turning speed range: max. 600 U/min spindle motor: 100 kW rapid travel x/y/z: 12 / 6 / 6 m/min output: 100 kW quill:: ISO 60 control: SIEMENS 840 D Powerline total power requirement: - kW total wight: - t dimensions of the machine ca.: - m Complete retrofit in 2010 - Siemens 840D powerline CNC control - Table guide: hydrostatic -- Hydrostatic system redesigned for max. load of 450 tonnes (with even load distribution) - Orthogonal milling head ISO 60 - Angle milling head ISO 60 - Additional attachment heads available that have not been used to date (extra option) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC portal milling machine TYPE: LF3550/4000CS Year of manufacture: 1966 / overhauled 2010 Manufacturer: Waldrich Siegen Control: CNC840D-Powerline Routes: X-axis 14,000mm table longitudinal Y-axis 4.480mm slider-transverse Z-axis 3,000mm crossbeam vertical W-Axis 300mm Quill Vertical Max. Passage: transverse 3.200mm high 3.800mm Machine table: Length 14.770mm Width 3,100mm max. table load: 145 to Quill: Tool Taper: ISO60 Power: 100KW Max. torque: max. speed 600 rpm Rapid traverses: X-axis 12m/min Y; Z-axis 6m/min Attachment heads: Voltage: manual Description: Right angle milling head (ISO60) Orthogonal milling head (ISO60) Notes: Table guide hydrostatic

Steel Holder Head Waldrich Stand Metal Long Planer Slotting Machine Schepping Total weight approx. 100 to 150 kg. Good used condition, worked until the end, only the spur gear at the rear shows signs of wear. The offer is for the head, which is height-adjustable with the handwheel. It was dismantled from the actual machine. The support plate on the boom, which is connected to the large trapezoidal spindle is NOT included. The side head is also still in stock, but NOT included in this offer. With a heavy heart, I dismantled the parts from a superbly preserved planing machine. The machine was in the basement of a machine factory and it was not economically possible to replace this . It was apparently put there earlier and then a wall was bricked up. You will receive an invoice in paper form. Differential taxation according to paragraph 25a of the German VAT Act.  ...

An old plano milling machine (guideway grinding machine) Waldrich Coburg is available. Bed length: 5500mm, bed width: 750mm, machine dimensions X/Y/Z: approx. 12000mm/300mm/3000mm, weight: approx. 37500kg. An on-site inspection is possible.

Key data: 2500 mm, 2100 mm, 20000 mm

Max Workpiece Diameter: 2,500 mm (over bed) / 2,100 mm (over carriage) Max Turning Length: 20,000 mm Max Workpiece Weight: 50,000 kg (50 metric tons) Main Motor: SIEMENS (164 kW)

Universal milling head, milling adapter, milling extension, angle milling head -Manufacturer: Waldrich -Spare part: comes from a milling machine -Milling head: swiveling -quill stroke: 150 mm -Spindle mount: SK50 -Motor: 11 kW 1470 rpm -Spindle speed: 25 - 560 rpm -Transport dimensions: 1550/600/H460 mm -Weight: 636 kg

Code 0776 Description Surface grinding machine Make ELB Type SWBD 030 MCNC82 Machine No. 18.346.0383 Manufacturing date 1983 Control MCNC / 82-PC Tablesize 3520 x 600 mm Table grinding size L x B x H 3000 x 600 x 600 mm Magnetical plate size L x B 3000 x 400 mm Speed table movement 0,2 – 6 m/min. Max. distance table – centre grinding wheel 850 mm Speeds vertical 3 – 375 mm/min. Speeds cross 1,2 m/min. Speeds grindingwheel stepless 750 – 1400 omw/min Grindingstone: Ø 600 x Wide:100 x Bore: 200 mm Weight 18.000 kg Motor power 37 kW – 380 Volt Accessoiries Electro table 3000 x 400 mm Grinding unit with water cooling Filtering unit with paperfilter Profile grinding unit Condition Machine is in very good condition

GER RS-12/50 surface grinding machine. Grinding area: 1200x550mm. Distance table-centre of spindle: 625mm. Table speed: 2 to 25m/min. Maximum table travel: 1250mm. Maximum work weight: 1200Kgs. Maximum cross travel: 500mm. Grinding wheel size: 400x80x127mm. Manual diamond grinder. Vertical orientable headstock. Vertical automatic feed. Power of grinding spindle: 12,5cv. Weight: 4500Kgs.

220627 Code Description Universal Cylindrical Grinder Make Jones - Shipman Model 1310 ( 8" x 18" ) Serial No. Year ? Grinding length, max. 450 mm Grinding diameter, max. 203 mm Center height 103 mm Weight workpiece kg Table tilting angle - 15 ° till + 15° Diam. Grinding wheel 350 mm Width Grinding wheel, max. 40 mm Motor power grindingwheel 1.5 kW Speeds Grindingwheel 1750 / 2300 rpm Speeds workpieceholder ( 6x ) 30 – 415 rpm Total power 3.5 kVA 380 Volts Machine size L x W x H 1.7 x 1.2 x 1.75 meters Weight 1800 kg Accessories internal grinding ( 10500-16500-24500 rpm ) coolant some tooling Condition Machine is in good condition

Machine overhaul , Repairs , On-site maintenance at the user's site , Spare parts supply , We specialize in the overhaul and repair of Kellenberger and Strausak universal grinding machines. We have the production and license rights of the company Strausak for the Type 57 U / W the resulting Special machines 82 S , multi-spindle fine milling machines, as well as CNC machines built from type 57 U / W We manufacture special machines especially for the ceramics and carbide industry.

In 2001 we acquired the license and production rights of Strausak. These rights include the entire 57 U / W conventional series as well as the CNC machines of the type U / W CNC in the tool grinding range 3 G / 4 G / 5 G as well as in the universal cylindrical grinding area, the 2 axes / 3 axes and 4 axes CNC machine and special machines 81 CNC. We have an extensive stock of spare parts. Our specialization is the general overhaul of these machines, as well as the new production of the above-mentioned machine types and the production of special machines.

NC – controlled precision rotary table face grinding machine with vertical grinding spindle and cup grinding wheel - brand new Rotary table diameter 400 mm Largest grindable diameter 400 mm Rotary table speeds 0 to 50 rpm infinitely variable Maximum workpiece weight 75 kg Cup grinding wheel Ø 200 mm x H 80 mm Grinding wheel speed 280 to 2,800 rpm infinitely variable Maximum workpiece height 170 mm Smallest programmable infeed dimension of the grinding wheel 0.001 mm Grinding wheel drive power 3 kW Rotary table drive power 0.5 kW Weight approx. 650 kg

ELB Perfect BD 15 PLC surface grinding machine, grinding area 1500 x 550 mm, grinding wheel 400 x 100 mm, electric perm magnetic clamping plate 1500 x 550 mm, automatic dresser with compensation, paper belt filter, the machine is overhauled, grinding spindle rebeared, guideways are scraped, meets the tolerance of a new machine. We are happy to take over the installation / training on site, as well as the subsequent service

Magnetic table 455 x 170 mm Digital Water tank Pulling device Wet grinding device

Precision Surface and Profile Grinding Machine FS1570 SL Grinding area: 1500 x 700 x 650 mm Grinding spindle motor: 18 KW Table drive: hydraulic Transverse drive: electromechanical Paintwork: RAL 6011 – reseda green Equipment: •Central lubrication • Wet grinding device • Fine adjustment knob on the transverse path handwheel • Dressing Diamond • Electro magnetic clamping plate 1500 x 750 mm • Magnetic plate adhesive force control Accessories: • Vertical automatic type SL with "LCD" flat screen and membrane keypad • Electric Straight Dresser • Stepless change of speed • Universal paper filter machine • Machine light • Column elevation by 200 mm • Precision balancing scale • 2 new grinding wheels Machine has been overhauled in 08/2018 "Invoice is available" Here's what was done: •Timing belt •Storage • Ball screw •  ...

ELB Perfect BD 10 750 PLC, Year of construction 2008 Control Siemens STC Grinding area 1000 x 750 mm Grinding wheel 400 x 100 mm Grinding spindle 10 KW Electro Perm Magnetic Clamping Plate 1000 x 750 mm Automatic straight-dressing device with compensation Coolant system with paper belt filter Machine is immediately ready for use CE compliant Installation / on-site training included

Condition of the machine: The machine is currently in a used, unoverhauled condition. All machine wear parts are replaced, including the feed spindle in the X-axis, and all assemblies are restored to like-new condition. After the overhaul, the machine can be easily compared to a new machine. Geometry: The machine is completely dismantled except for the guides. Before the geometry of the individual tables and assemblies can be restored, the two guides of the Z and X axes are scraped by hand and restored to mint condition. After completion of the work, the machine receives a measurement report according to the original specifications of the manufacturer. Electronics: The electronics and the control cabinet housing will be completely replaced. All electrical parts are replaced, including the motors. Hydraulics: The entire lubrication system, including the lubrication un ...

Favretto 500, Rotary table surface grinding machine, horizontal spindle, dia 500mm, electric elettrico with DRO

Cylindrincal grinding machine, KNUTH RSM 750, interna/external, DRO, This machine can be inspected under power in our warehouse., Mimu Machine Tools, Gussago BS Italy

CNC cylindrical grinding machine, STUDER S31 CNC LeanPro, with Pictogramming, Distance between centers: 1000mm, Center heigh 175mm, Grinding Wheel head rotation (B) 360° (1°), 2 ext Grinding Wheels, 1 int Grinding Wheel, Ext Grinding wheel, 400 mm x 40 mm x 127 mm, overhauled spindle > see photos, Workhead, CM 4, 0-1000 RPM, CNC Fanuc, Programming: Pictogramming, Heidenhain linear encoders, This machine can be inspected under power in our warehouse in Gussago BS Italy

grinding diameter: 360 mm grinding length: 1600 mm centre height: 180 mm internal diameter: 0 mm grinding depth: 0 mm swing diameter: 0 mm total power requirement: 40 kW weight of the machine ca.: 10000 kg dimensions of the machine ca.: m K A R S T E N S (Germany) Universal CNC” - Cylindrical Internal and Face Grinding Machine also for grinding excentric and cam profiles and polygons and even suitable for Threadgrinding Model K 51 – 1500 Year 2000 Serial No. 99 093 Height of centres 180 mm Distance between centres / grinding length 1,700/1.600 mm Cylindrical Grinding: Grinding Ø, approx. 5 - 360 mm Grinding wheel: Ø x width x bore 500 x 100 x 127 mm Grinding spindle speeds (35 m/s / 50 m/s) 1.900 / 2.200 rpm Drives of cyl./int/face spindle units 7.5/4,0/7,5 kW Grinding Wheelhead: 3  ...

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während des Schleifprozesses) Hierdurch werden Schleifzeiten reduziert und Abrichtzeiten eingespa ...

The machine underwent a general overhaul in 2015 The following tasks were performed as part of the overhaul: repair of the electrical cabinet and hydraulics, scraping of the bed and table, replacement of bearings in the headstock, new springs for the axial bearings, new table piston rod and sleeves, installation of sludge separators. Documentation for the machine is available. Year of manufacture: 1980.

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm Control: total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Mit komplett neuem Schaltschrank und neuer Steuerung mit BEMA Schleifsoftware Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während de ...

workpiece diameter: 300 mm workpiece weight: 999 kg workpiece height: 999 mm grinding length: mm grinding width: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Ausstattung: -Digitalanzeige senkrecht Achse -Automatische Zustellung -Automatische Endabschaltung programmierbar -Schleifspindelantrieb mit stufenloser, elektronischer Drehzahlregelung -stufenlos regelbarer Quervorschub, und Tischdrehung -24V Magnetspannplatte 300 mm -diverse Arbeitsschutzeinrichtungen z.B. Schutzhaubenüberwachung, Betriebszustandsanzeige per Ampel -Schmierölstandsüberwachung -die Maschine wurde 2015 generalüberholt, damals Austausch der gesamten Elektrik auf SPS-Steuerung und 24V Steuerspannung -Papierbandfilteranlage speziell für diese Maschine passend Folgende Arbeiten wurden nun noch durchgeführt: -Austausch Faltenbalg und Riemen -Schleifspindel neu gelager ...

GENERAL Project No.: 905789 Quantity: 1 pcs. Manufacturer: BUDERUS Type: BDG 220 Control: Siemens 840 D solutionline Year of Make: 2020 Condition: Used machine Spindle Approx (hrs): 3000 Shifts machine one approx. (hour): rarely used DESCRIPTION GRINDING Max. workpiece diameter 440 mm Max. workpiece height 150 mm Travel in X 170 mm Max. rapid traverse speed in X/Z 30 m/min Max. feed speed in X 0.01-15 mm/min Max. speed workpiece spindle 1000 1/min OTHER EQUIPMENT Workpiece probes for measuring thickness deviation Gate sensor Splash protection cladding with fully encapsulated working area Automatic work room door Lighting in the work area Mechanical oil/emulsion mist extraction system Coolant device with paper belt filter High pressure pump 25 bar Mobile control unit for set-up operation with electronic handwheel Machine condition light Au ...

Very good surface grinding machine Table surface / working area 200 x 600 mm

grinding height: mm grinding width: mm grinding wheel diameter: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 1000 mm centre height: 175 mm b-axis: 1 ° max. dia. of grinding wheel: 500 mm internal grinding spindles: 60000 U/Min c-axis: 0.001 ° weight of the machine ca.: 5.7 t dimensions of the machine ca.: 4.25 x 2.2 x 2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

rotary table diameter: 600 mm grinding height: 600 mm grinding head - power requirement: kW workpiece weight: 300 kg grinding wheel diameter: 600 mm power spindle motor: 15 kW grinding height: 600 mm Control: SIEMENS STC weight of the machine ca.: 19 t dimensions of the machine ca.: 4,7 x 3,6 x 2,5 m Equipment & Accessories ? Wet grinding unit with universal paper belt filter, discharge container and magnetic separator, tank capacity approx. 500 l ? Electrical cabinet with digital drives SIMODRIVE 611D ? Coolant Mist extractor ? Recooling unit for grinding spindle motor ? Fully closed machine enclosure ? Central lubrication ? Swivebale Control Panel with SIEMENS Simatic 10” Touch HMI mounted at front of the machine ? Electro-permanent magnetic plate Ø 600 mm with 4mm pitch, absolute accuracy due to lack of heat, incl. Adhesion control (30-100%), autom. magnet pole switching via push b ...

workpiece diameter: - mm workpiece weight: - kg workpiece height: - mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

voltage: 380 V connected load: 7,5 kVA dimensions: 2725 x 1930 x 1773 mm weight of the machine ca.: 2500 kg --> Technical data Main data: --> Table surface: 605 x 300 mm --> Table longitudinal movement max. (manual): 750 mm --> Table transverse movement: 340 mm --> Grinding height between table/new grinding wheel min/max: 22.5 / 322.5 mm --> Standard size of magnetic clamping plate: 600 x 300 mm --> Workpiece weight incl. magnet: 420 kg --> X-axis / longitudinal movement: --> T-slots (number x width): 3 x 17 mm --> Table feed, hydraulic: 0.3 - 25 m/min --> Travel per handwheel revolution: 47 mm --> Y-axis / height movement: --> Automatic vertical feed - coarse in 12 steps: 0.001 - 0.03 mm --> Automatic vertical feed - fine in 8 steps: 0.001 - 0.01 mm --> Distance per handwheel revolution (x1/x10): 0.1 / 1.0 mm --> Graduation on handwheel (x1/x10): 0.001 / 0.1 mm --> Trigger strokes: 0 - ...

CNC cylindrical grinding machine, (carousel) for internal, external and surface grinding. A lot of accessories, such as grinding wheels of different types and sizes. Retrofitted 2007 . Magnetic clamping plate dia 1500mm, Circumferential diameter 1800mm, Largest grinding diameter 1600mm Maximum grinding height 880mm Max. workpiece weight 5to Swivel angle of the grinding spindle: 90° left, 60° right

internal grinding spindles: . centre height: 125 mm grinding length: 1000 mm grinding wheel diameter: 400 & 225 mm weight of the machine ca.: 3.1 t Internal grinding attachment with grinding spindle Misc.accessories www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ELB ELB Super Rubin 020 VA II CNC surface grinder High-precision horizontal surface grinder, specialized for profile punches grinding. With 4 added digital axes CNC Control Wireless Handwheel Bluetooth control Magnetic Table 600 x 300 mm Movements axis X/Y/Z: 650/300/250 mm 4th axis- rotational Grinding wheel: -Dia 300 mm -width 40-50 mm -bore size 76,2 mm Spindle speed 1400-2800 rpm Total power requirement 5,5 kW Weight of the machine ca. 3,4 t 4th axis devices: -Punch former PF350 V-block -Punch former PF650-ER20 -Punch former PFD-ER40 -Punch grinder PGAS- centreless Accessories: Collets Radius and angle dresser RDC Sinusoidal-table for devices SPF 50 Balancing rack for wheels LBS 14 surface grinder High-precision horizontal surface grinder, specialized for profile punches grinding. With 4 added digital axes CNC Control Wireless Handwheel Bluetooth c ...

Technical data Machine Type: Grinding workstation with belt sanding machines and double grinding machine Manufacturer: Metabo, Optimum Maschinen Germany Model belt sander: Metabo BS 175 Model belt sander: Optimum SL-2 Model Double Grinding Machine: Optimum OPTIgrind GU 25S Configuration Workbench with grinding workstation 2 belt sanders available Double grinding machine available AEG angle grinder available Machine vise available Signs of use and dirt present Auction-ID: A7-47277-3113

Technical data Machine Type: Grinding workstation with belt sanding machines and double grinding machine Manufacturer: Metabo, Optimum Maschinen Germany Model belt sander: Metabo BS 175 Model belt sander: Optimum SL-2 Model Double Grinding Machine: Optimum OPTIgrind GU 25S Configuration Workbench with grinding workstation 2 belt sanders available Double grinding machine available AEG angle grinder available Machine vise available Signs of use and dirt present

Pot discs - diameter:175 mm spindle extension:180 mm operating voltage:400 V Machine weight approx.:300 kg room requirements approx.:0.90 x 0.60 x 1.80 m

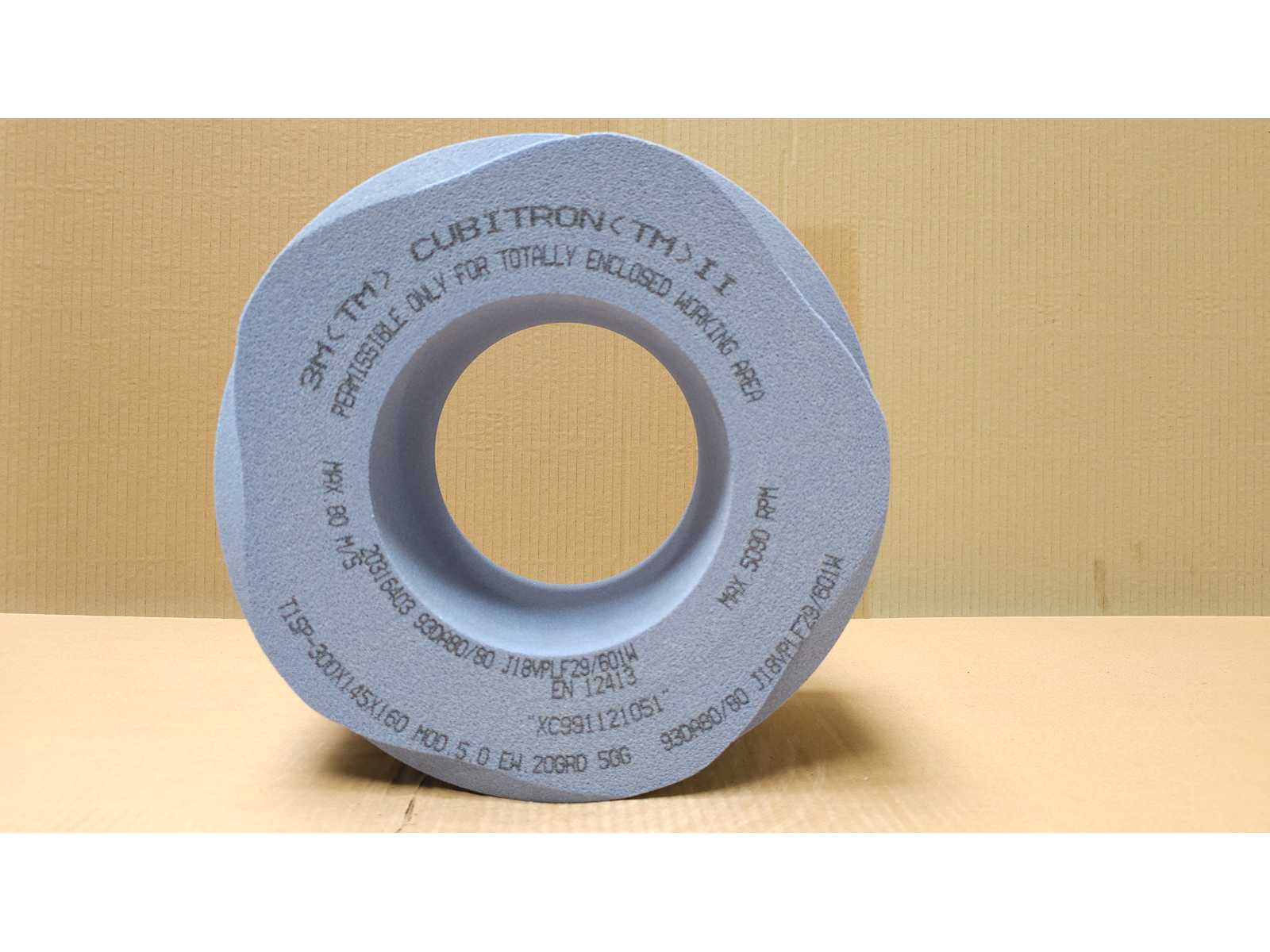

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M5 EW20° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools

-High performance -Belt grinding device height-adjustable 0-90° -Maximum usable face grinding surface -Belt adjustment with fine adjustment -Combined belt grinding/grinding machine -Longitudinal stop for material guidance -Perfectly balanced and low vibration -Double-sided connection for dust extraction Ø 50 mm -Motor circuit breaker with undervoltage trigger -Fixed stop -1 sanding belt standard (brown), grain 80 -1 grinding wheel 250 x 40 x 51 mm, grain 80 -Spark protection -Connection cable with CEE plug -with machine stand, EMERGENCY STOP push button, brake and suction Delivery: in Germany free domicile incl. packaging

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M1,5 EW20° 4GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-2

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M6,5 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-37

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M7 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-40

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M2,25 EW20° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-5

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M6 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-33

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M4 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-18

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M3 EW20° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-10

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M0 EW00° 0GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-41

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M4,5 EW21,5° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-24

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M2 EW20° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-4

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M3,5 EW20° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-12

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M5 EW20° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-27

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M5,5 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-29

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M5,75 EW22° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-31

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M4,5 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-22

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M3 EW20° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-9

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M6,5 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-36

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M4,5 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-23

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M4,7 EW20° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-25

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M3,5 EW17,5° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-11

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M7 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-39

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M6 EW22° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-35

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M6,5 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools Auction-ID: A1-47282-38
