peddinghaus sheet metal working used for sale

This cube has 3 magnetic clamping area. Dimension each area: Length: 2,000 mm Width: 2,000 mm Height: 2000 mm

Scissors: for flat steel: 80 x 10 mm Shear: For L & t 90 / 45 ° 70 x 70 x 7/50 x 50 x 6 mm Rod steel scissors around until: 28 mm square up: 25 mm Notching device for material thickness up to: 7 mm Drive motor: 380 V, 1.3 kW Weight: 400 kg Space: 1000 x 650 x 1480 mm

Complete range of well-preserved stamps and dies in the same number and diameter as in the brochure shown.

Separating tool, punching tool, punch, punch die, punch stamp, gill forming tool -Punching tool for: holding dies -Borry hole diameter: 50 mm -Dimensions: 335/220/H180 mm -Weight: 42 kg

Mechanical punch with a punching force of 1000kN. tool holder for stamps up to 90 mm can be mounted on request. A wide range of stamps and dies is included in the scope of delivery.

Professional steel shears for tin locksmiths, assembly plants, Teaching work pieces, particularly stable construction stable application with shear encoder made of encoded steel tooth lever translation lever securing via rotary spring knives made of high-quality tool steel, hoisted and ground continuously adjustable holder cuts of sheets, flat steel steel mm: 18 knife length mm: 175 Net weight kg: 47.5 room requirements approx.0.5x0.25x2 m; ready for use

Maximum punching force: 1100 kN Maximum shear force: 1700 kN punch ing: 510 mm support table hole 31 in 25 mm flat steel: 500 x 22 mm hydraulic holder for the flat steel knife kago n weight: approx. 5000 kg ; Very good

Maximum punching force: 650 kN More performance data see nameplate or on request Inclusive range of punches and matrices

round bar steel: 50 mm square edge steel: 40 x 40 mm L-beam: 140 x 13 mm Punch power: 900 kN hole punching press: throat: 510 mm hole punching press: max. length of stroke: 29 mm hole punching press: capacity (dia. x thick.): 31 x 20 mm notching: l + T material: 80 x 14 mm no. of strokes: 40 / 45 Hub/min total power requirement: 4 kW weight of the machine ca.: 3,7 t dimensions: 2,1 x 0,7 x 2,12 m Accessories: various punches and dies The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hand lever plate shears and profile steel shears Knife length 400mm Cuts sheets up to 5mm Cuts round steel up to 13mm Heavy and stable design with foldable storage table. Mounted on base More hand lever plate shears in stock, also for round steel and profiles!

round bar steel: 25 mm square edge steel: 22 mm L-beam: 70 x 7 mm cutting capacity: 100 x 10 mm plate thickness: 10 mm total power requirement: 1,3 kW weight of the machine ca.: 0,6 t dimensions of the machine ca.: 1,1 x 0,65 x 1,5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Large stock of punching material (dies/stamps), spare parts

Scissors for reinforcing steel or bars max 32mm

Specifications: - Printing capacity 50 T - Outreach approx. 360 mm - Installation height approx. 240 mm - Drive 400 V / 7.5 kW - punches in ST 40 e.g. up to 25 mm Ø in 16 mm - up to 20 mm Ø in 19 mm - Space requirement approx. W 1000 x H 1900 x D 1000 mm - Weight approx. 1800 kg

• Machine number: 4221875989007 • Punching force max: 800kN • Material thickness max: 25 mm • Punching device max: Ø 90 mm • Accessories according to photos (sold separately on request)

Punching force: 1000 kN Weight: 2400 kg For example, punches a 40 mm hole in 20 mm steel Stroke release via foot switch Includes viewfinder for graining and setup Assortment of tools is included in the price

Separating tool, punching tool, punch, punching die, punching punch, gill forming tool -Manufacturer: Peddinghaus, punching tool for: holding matrices -Bore diameter: 97 mm -Dimensions: 220/335/H115 mm -Weight: 32 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -Counter bearing: for shear tool -Type: 441215124903 -1x dimensions: 270/200/H47 mm -Weight: 5.5 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -Counter bearing: for shear tool -Type: 441215124903 -1x dimensions: 270/200/H47 mm -Weight: 5.5 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -Counter bearing: for shear tool -Type: 441215124903 -1x Dimensions: 270/200/H47 mm -Weight: 5.5 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -Counter bearing: for shear tool -Type: 441215124603 144876 -1x Dimensions: 270/200/H47 mm -Weight: 5.5 kg

Separating tool, punching tool, punch, punching die, punching punch, gill forming tool -Punching tool: for holding matrices -Bore diameter: 100 mm -Dimensions: 325/335/H115 mm -Weight: 50 kg

Triangular notching tool, notching side knife, die holder, parting tool, punching tool, punch, punching die, punching die -Punching Tool: Angle Notching Tool -Remark: only counter knife, without release unit -Dimensions: 185/172/H95 mm -Weight: 9.3kg

Punch holder, die holder, punching tool, punch, punching die, punching punch -Matrix size: 13.7 mm -Matrix holder: for punching in the legs -Dimensions: 200/120/H90 mm -Weight: 8.7 kg

Offer 22646 Hydraulic profile and bar steel shears with notching device and hole punch Specifications: - Flat steel scissors - Flat steel - 400 x 16 mm - or: 300 x 18 mm - Profile steel shears - L- and T-irons at 90° 130 x 12 mm - Square steel / round steel 40 / 40 mm - Notcheter - with square clinker for sheet metal up to approx. 13 mm - Latch depth approx. 70 mm - Latch width approx. 52 mm - Hole punch - Punching force approx. 60 t - Projection 400 mm - Stroke approx. 10 to 50 mm - perforated in steel up to Ø 31 in 15 mm - Material stop - div. 10 pcs punches + matrices - Drive 400 V / 5.5 kW - Dimensions W 1100 x H 2000 x D 1700 mm - Weight approx. 2100 kg

Die holder, cutting tool, punching tool, punch, punching die, punching punch, gill forming tool -Punching tool: die -Punching dimensions: 15 x 25 mm square -Dimensions: 115/115/H115 mm -Weight: 3.4 kg

Die holder, cutting tool, punching tool, punch, punching die, punching punch, gill forming tool -Punching tool: for holding matrices -Bore diameter: 50 mm -Dimensions: 200/120/H80 mm -Weight: 5.6 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -only one tool available (counter tool missing) -Shearing tool for channel steel: 30 mm, 60 mm -Type: 441216084902 -1x dimensions: 210/220/H30 mm -Weight: 9.9 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -Shearing tool for U-steel: 80 mm -Type: 441215124701 -Type: 441215124702 -1x dimensions: 215/205/H30 mm -1x dimensions: 210/220/H30 mm -Weight: 19 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -Shearing tool for channel steel: 120 mm -Type: 441215124901 -Type: 441215124902 -1x dimensions: 215/205/H30 mm -1x dimensions: 210/220/H30 mm -Weight: 19 kg

Max. punching capacity: 600 kN Max. shear power: 800 kN Punches 27 mm holes in 16 mm steel Shears on the flat steel shears to 400 mm up to material thickness of 16 mm steel Hydraulic hold-down device on flat steel shears Further technical data on request With an assortment of punches and dies as desired Weight: approx. 2,000 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -Shearing tool for channel steel: 50 mm -1x dimensions: 140/140/H30 mm -1x dimensions: 135/135/H30 mm -Weight: 8 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -Shearing tool for channel steel: 50 mm -Type: 440065124502 -Type: 440065124501 -1x dimensions: 136/130/H25 mm -1x dimensions: 128/132/H25 mm -Weight: 6 kg

Punch holder, die holder, punching tool, punch, punching die, punching punch -Die cut size: 9 x 25 mm -Groove between punch and scraper: 5 mm -Dimensions: 200/140/H170 mm -Weight: 12 kg

Profile steel shear, profile shear, punch, punching machine, hole punch -Pressure force: 40 tons -Punching -scissors -cut -disengage -mechanical release -Foot switch: 1 -various stamps and dies -Dimensions: 800/1250/H1800 mm -Weight: 1112 kg

Max. punching capacity: 600 kN Max. shear capacity: 1000 kN Punches 20 mm holes in 19 mm steel Shears on flat steel shears to 500 mm up to material thickness of 12 mm steel Further technical data on request With an assortment of stamps and dies as desired

Vise, bench vise, locksmith vise, parallel vise, heavy-duty vise -Parallel vise: jaw width 150 x 30 mm -Wingspan: 190 mm -Quantity: 1 available -Dimensions: 485/210/H190 mm -Weight: 26 kg

Max. punching capacity: 600 kN Max. shear capacity: 800 kN Punches 27 mm holes in 16 mm steel Shears on the flat steel shear to 400 mm up to material thickness of 16 mm steel Hydraulic hold-down device on flat steel shear Large support table on the punching side with stops Further technical data on request With an assortment of stamps and dies as desired Weight: approx. 2,000 kg

Punch holder, die holder, notching tool, punching tool, punch, punching die, punching stamp, for eccentric press, hydraulic press -Punching tool: slot 10 x 26 mm -Punching dimensions: see photo with dimensions -Hole: Ø 40 mm -Dimensions: 400/90/H205mm -Weight: 7.5kg

Punch holder, die holder, notching tool, punching tool, punch, punching die, punching stamp, for eccentric press, hydraulic press -Punching tool: Long hole type S27-40 -Hole: Ø 40 mm -Dimensions: 300/150/H250 mm -Weight: 12.4 kg

Punch, punching machine, hole punch, eccentric punch -Manufacturer: Peddinghaus, hole punch -Type: 225B/45 -Pressure force: 45 tons. -Punching capacity: see photo of nameplate -Projection: 360 mm Accessories: incl. punching tool and 2nd table (see photos) -Dimensions: 1540/700/H1510 mm -Weight: 1410 kg

Punching tool, punch, scraper, hold-down device -Scraper: hold-down device for punching -Holder: Ø16 x 210 mm -Dimensions: 265/100/H95 mm -Weight: 3.1 kg

Punching tool, punch, scraper, hold-down device -Scraper: hold-down device for punching -Holder: Ø17 x 210 mm -Dimensions: 265/100/H90 mm -Weight: 2.9 kg

Punching tool, punch, scraper, hold-down device -Scraper: hold-down device for punching -Holder: Ø22/25 x 215 mm -Dimensions: 315/65/H85 mm -Weight: 1.9 kg

Punching tool, punch, scraper, hold-down device -Handover: in current condition as seen -Bracket: Damage see photos -Scraper: hold-down device for punching -Receptacle: Ø26/22 x 210 mm -Dimensions: 315/125/H95 mm -Weight: 4.2 kg

Separating tool, punching tool, punch, punching die, punching die, gill forming tool -Manufacturer: Peddinghaus, punching tool for: holding matrices -Bore diameter: 70 mm -Dimensions: 220/320/H115 mm -Weight: 32 kg

Separating tool, punching tool, punch, punching die, punching die, gill forming tool -Manufacturer: Peddinghaus, punching tool scraper -Holes: Ø 13 mm -Threaded hole: M15 -Dimensions: 150/100/55 mm -Weight: 1.8 kg

Punching force: 500 kN For example, punches a 20 mm hole in 18 mm steel Stroke release via foot switch Range of tools is included in the price

1 piece of used, technically overhauled reinforcing steel shears. The scissors work electromechanically. The engine was remounted. V-belt renewed. Machine painted. Cut is triggered by means of a footswitch on the front. Max. cutting capacity: 1 piece 32mm. D. Reinforcing steel bars. Connected load: 3KW/400V/16A

Linear rail with folding cam Height-adjustable for mounting on hole punches

bench vice, metalworker & vice, parallel vice -Jaw width: 135 mm -Wingspan: 215 mm -Number: 3x vices available -Price: per piece -Dimensions: 440/200/H490 mm -Weight: 26 kg

Used, technically overhauled reinforcing steel bending machine. Rotation of the bending plate 5/7.5/10/15 Power requirement 3.15/3.65 KW 2 footswitches with emergency stop function. Bending capacity max. 1 piece 45mm D. Reinforcing steel or 3 bars 28mm D. The control system is upgraded to Siemens Touch Display CC. Latest standard. 1 set of standard bending tool.

Punch holder, die holder, notching tool, punching tool, punch, punch die, punching die, for eccentric press, hydraulic press -Stamp holder: with slotted punch tool, without die -Socket: Ø 51 mm / Bolt circle Ø 110x18 mm see photos -Punch tool: Slotted hole 22.5x50 -Dimensions: Ø 135 x 180 mm -Weight: 6.7 kg

Separating tool, punching tool, punch, punch die, punch stamp, gill forming tool -Manufacturer: Peddinghaus, die-cutting tool for holding dies -Type: unfortunately without a type designation -Dimensions: see photos -Dimensions: 350/340/H245 mm -Weight: 58.5 kg

Separating tool, punching tool, punch, punch die, punch stamp, gill forming tool -Manufacturer: Peddinghaus, die-cutting tool for holding dies -Type: SM078 5905 -Mounting: Hole spacing 170 mm / M16 -Dimensions: see photos -Dimensions: 200/65/H130 mm -Weight: 8.4 kg

suitable for Peddinghaus profile steel shears Effective length 2,000 mm

Punching force: 250 kN For example, punch a 16 mm hole in 12 mm steel Viewfinder via handwheel Range of tools is included in the price

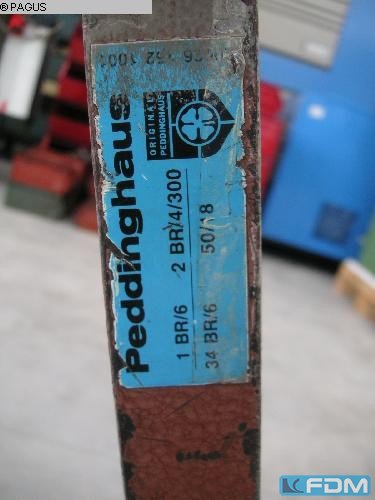

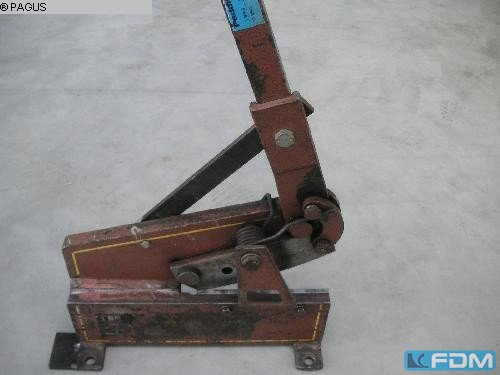

Hand lever shears Pagus 1 BR/6 Sheet thickness: 4 mm Knife length: 180 mm Dimensions: 400x100x1500 Year of construction 1995

Separating tool, punching tool, punch, punching die, punching punch, gill forming tool -Punching tool for: holding matrices -Bore diameter: 70 mm -Dimensions: 220/317/H115 mm -Weight: 32 kg

Manufacturer: Peddinghaus Model: FDB 600 Type of Machine: Flat steel drilling and burning machine Find more here - / Contact us at -

round bar steel: 28 mm square edge steel: 25 mm L-beam: 80 x 8 mm cutting capacity: 35 t shear : steel sheet: max. 10 mm shear: flat material: 100 x 11 mm blade length: 175 mm triangle notching device for sheet until: 8 mm no. of strokes: max. 35 Hub/min work stroke: ca. 35 mm total power requirement: 1,5 kW weight of the machine ca.: 535 kg dimensions of the machine ca.: 0,97 x 0,45 x 1,55 m Condition: ready for operation: Electric 380 Volt: Triangle notching device: Length stop electr.: Rotary base: Moveable: Foot switch: Motorized 4-way profile steel shear on a rotating base and mobile. The machine can also be used for hole punching by purchasing a hole punching device (instead of a notcher). Photo 5 shows which tools the punching device can optionally be equipped with. All performance specifications refer to a material strength of 450N/mm². Machine dealer with own stock of 16 ...

pressure: 100 t punching cross-cut in cmm: -- stroke: 100 mm throat: 510 mm work height max.: 1100 mm Twist power: 31 Durchm. in 25 mm channels - flange: 100-400 mm Number of ventilators: 80-400 mm : 100-400 mm : 100-550 mm punch stroke: bei 20 mm Hub: 60 p.Min sheet thickness max.: bei Luftbiegung: 10 mm total power requirement: 7,5 kW weight of the machine ca.: 2,4 t dimensions of the machine ca.: 1,7 x 0,9 x 2,3 m Video available on our website.: Condition: ready for operation: Electric 380 Volt: Diverse punches and dies: Foot pedal: Machinefeets: Machine dealer with own stock of 1600 m². The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Type 210 standard 13 Shear: 13 mm Flat steel: 150 x 16 mm Punching:nbsp; example: dia 25 in 16 mm Stroke: 27 mm 50 ton Notching: 12 mm L/T steel: 80 x 10 mm U steel: 140 mm I steel: 160 mm round bar steel: 42 mm square bar steel: 38 mm L-profile 90°: 110 x 10 mm L-profile 45°: 90 x 9 mm Punching pressure: 50 ton Power needed: 3 kW Length: 1270 mm Depth: 800 mm Height: 2180 mm Weight: 2 ton

Offer 25086 Specifications: - Flat steel shears - Flat steel - 400 x 120 mm - or: 300 x 22 mm - Profile steel shears - L- and T-irons at 90° 150 x 12 mm - Square steel / round steel 40 / 40 mm - Notches - With square clinker for sheet metal up to approx. 13 mm - Latch depth approx. 70 mm - Latch width approx. 52 mm - Hole punch - Punching force approx. 100 t - Projection 510 mm - Stroke approx. 10 to 50 mm - Perforates in steel up to Ø 31 in 25 mm - E. contact stop - div. 10 pcs. punches + dies - Drive 400 V / 5.5 kW - Space required: W 1100 x H 2000 x D 1700 mm - Weight approx. 2100 kg

Overhauled: 1999 Shear force: 2000KN Cycle rate: 59/min Achievement; Round steel up to D 63 mm, square steel up to 55 mm Machine weight: 7350 kg Dimensions:2260 x 2920 x 1770 mm Hewvu Nev Ta Ucju Isk Bar feeder with separation: Max. pole length: 6m Dimensions: 6.3 x 1.75 x 2.25 m Weight: 4000 kg Machine is still energized.

: 5 weight: 5 t : . The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

plate thickness:4 mm blade length:180 mm weight of the machine ca.:21 kg dimensions of the machine ca.:400 x 100 x 1500 mm

round bar steel: 63 mm square edge steel: 55 mm flat steel: 100 x 25 mm : engine: 380 V, 6,3 kW weight: ca. 2.450 kg Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Max. punching and shearing capacity: 400 kN For example, punches 20 mm holes in 15 mm steel Shears on the flat steel shear on 120 mm to 12 mm steel Further technical data on request With an assortment of stamps and dies as desired

Inv. Num. : 8405 Type: Peddimax No 1 Producer: Peddinghaus Created: 2019 Parameters: Operating hours: 150 h Strength: 140 t Pressure: 300 bar Equipment: Flaps

A Peddinghaus cutting and notching system for mitre cutting and weld bevel preparation is available. The main component of the system is the CNC 5-axis notching machine Peddinghaus SACM-1250/A, year of manufacture: 2019. The system is suitable for small to medium-sized steel construction. Intended use: Standard notching, flange thinning, web openings and other common notching shapes. Documentation available. On-site inspection is possible.

round bar steel: 50 mm square edge steel: 45 mm L-beam: 150 x 14 mm total power requirement: 4 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,3 x 1 x 2,1 m No. 3418 5-fold combined profile steel shears with flat steel shears PEDDINGHAUS 210 Super 16 pressure capacity 80 to Round steel 50 mm Square steel 45 mm angle steel 150 x 14 mm Punching up to 90 mm diameter 5.5 HP Space requirement 2.30 x 1.0 x 2.1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 45 mm square edge steel: 40 mm L-beam: 120 x 13 mm flat steel: 500 x 12 mm punching pressure: 60 t throat: 510 mm : 500 x 12 oder 400 x 16 mm punch diameter: 27 in 17 mm punch diameter: 39 in 12 mm oil volume: 80 l total power requirement: 7,5 kW weight of the machine ca.: 2,4 t dimensions of the machine ca.: 1,8 x 0,9 x 1,8 m Hydraulic machine with 5 stations so punching, notching, shearing flat iron, angle iron, solid material, punching with hand lever, profile steel side with foot switch. Punching discharge: 510 mm! All performance data refer to a material strength of 450 N / mm². Electric 380 volt The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: div mm square edge steel: div mm L-beam: div mm No. 2984: 1 used plate, profile and bar shear with notcher 50 to manufactured by PEDDINGHAUS, type 210 / 13 Standard, built 1965 No. 3418: 1 used combined section shear 80 tonnes manufactured by PEDDINGHAUS, type 210 Super 16, built ca85 Cuonnbjt0a No. 3668: 1 used steel section shear + punching machine 95 to PEDDINGHAUS, type 210 Super 20, year of construction 1978 Space requirement 2.20 x 1.00 x 2.35 m, weight approx. 4.5 tonnes No. 3286: 1 used steel profile shear 65 to MUBEA / MUHR & BENDER, type KBL 16 N No. 1096 1 used hole punch 26 to EDEL SMO 26, various accessories The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 28 mm square edge steel: 25 mm L-beam: 80 x 8 mm notching cap. mild steel max.: 7 mm cutting capacity of the vertical shear: 350 kN Punch power: 190 kN shear: flat material: 100 x 11 mm shear: length of knifes: ca. 175 mm total power requirement: 1,5 kW weight of the machine ca.: 0,5 t dimensions of machine L x W x H: 1,0 x 0,5 x 1,5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: - mm square edge steel: - mm L-beam: - mm total power requirement: 7,5 kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: 2,212,35 m div. punches and dies Foot switch Spare blade The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 42 mm square edge steel: 38 mm L-beam: 110 x 10 mm cutting capacity: 150 x 16 mm pressure: 60 t hole punching press: throat: 370 mm hole punching press: capacity (dia. x thick.): 25 x 16 / 20 x 19 mm : 720 x 420 mm total power requirement: kW weight of the machine ca.: 2,1 t dimensions of the machine ca.: 1,8 x 1,6 x 1,85 m Profilstahlschere - inkl. Fußschalter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

hydraulic: ja : 100 t weight of the machine ca.: 2,9 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Max. punching and shearing capacity: 800 kN For example, punches 25 mm holes in 20 mm steel Shears on the flat steel shear on 350 mm to 15 mm steel Further technical data on request With an assortment of stamps and dies as desired

used, technically overhauled reinforcing steel bending machine. PCN control unit Rotations of the bending disc 8/16 rpm. Connection 16 A Single bend max. 1 piece of reinforcing steel 28mm D. Standard bending tool 2 pieces of foot switch with emergency stop function.

used, technically overhauled cutting machine Peddinghaus Simplex 60 H Hydraulic hold-down. The cut is triggered by a footswitch with emergency stop function. The shears are electro-hydraulically driven. Connected load 11KW 400V/32A Max. cutting capacity 3 bars 28mm diameter reinforcing steel.

used, technically overhauled reinforcing steel bending machine. PCN control unit Rotations of the bending disc 8/16 rpm. Connection 16 A Single bend max. 1 piece of reinforcing steel 28mm D. Standard bending tool 2 pieces of foot switch with emergency stop function.

punching pressure: 28.0 t punching cross-cut in cmm: 31 in 7.0 mm ST throat: 250 mm dayligth: 223 mm no. of strokes: 10 - 30 Hub/min oil volume: 32.0 ltr. work height max.: 1033 mm total power requirement: 3.0 kW weight of the machine ca.: 553 kg dimensions of the machine ca.: 730 x 540 x 1530 m Furnishing: - Punch quick-change device up to Ø 31 mm - green series - installed: round punch no. 5 Ø 25.0 mm and round die no. 3 Ø 25.7 mm - Free: LED lighting in the punching area - Swiveling scraper (plates exchangeable) - Various material support tables are available separately - Brace - 2-step foot switch, with double press for grain search function - electrical controls - Stroke length and stroke position continuously adjustable - integrated hydraulic unit with oil filling - Performance specifications apply to a material strength of 450 N/mm² - Main connection cable and plug for 16 amp ...

pressure: 100 t punching cross-cut in cmm: Ø 31 in 25 mm stroke: 10 - 50 mm column arm: 510 mm work height max.: 1100 mm no. of strokes: 14 - 45 Hub/min punch diameter: max. Ø 90.0 mm oil volume: 103 l total power requirement: 7.5 kW weight of the machine ca.: 2400 kg. range L-W-H: 1750 x 1020 x 2050 mm maintained condition () New price without accessories approx. 25.000 euros Special price on request Furnishing: - heavy / robust electro-hydraulic hole punch, with large throat - Punching station with material/sheet metal scraper - stepless stroke adjustment .. 10-50 mm - freely movable foot switch including protective cover - hydraulic low pressure finder for foot switch operation - Crane hanging eye for easy transport - side storage area - Hydraulic unit, integrated - Three-phase motor, 400 volts, 50 Hz - original instruction manual The data for this ad was created with ModulMWS ...

pressure: 80,0 t punching cross-cut in cmm: 31,0 in 25 mm shear: flat material: 500x18 / 300x22 mm L-beam: 150 x 12 mm round bar steel: 50 + 25 mm square edge steel: 50 + 30 mm throat: 510 mm blade length: 500 mm work height max.: ca. 1.100 mm total power requirement: 7,5 kW weight of the machine ca.: 3200 kg dimensions of the machine ca.: 2000 x 1000 x 2100 mm from a maintenance workshop Furnishing: - Robust electro-hydraulic combined profile steel shears - Notcher, hole punch, bar steel knife, profile knife and tin snips - Stop table at the hole punch, with blank holder - Stop table at the notcher - 2x floating footswitches - Stroke adjustment for fast stroke sequence - 1x PEDDINGHAUS contact length stop: 1.000 mm - Safety devices - Operating instructions in German The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

blade length: oben 211/unten 180 mm plate thickness: max. 6 mm round bar steel: max. 13 mm weight: ca. 19 kg Sturdy shears body of quenched and tempered steel. Moving blade guides free of play (with low friction losses), blades of special tool steel, specially hardened and ground. Lever arm with counterweight spring for protection in the event of accidents, all pivot pins adjustable, all models with steplessly adjustable clamping arm. With compound action. Cuts sheet metals and round steel bar. Colour: Red-brown The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
