ops ingersoll milling machines used for sale

OPS 550 from the company OPS INGERSOLL Funkenerosion, built in 2008. the machine includes adjustable feet and 3 chucks. Find more here - / Contact us at -

x-travel: 550 mm y-travel: 400 mm z-travel: 400 mm Control: INGERSOLL ANDRONIC total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Highly dynamic precision milling machine OPS-INGERSOL EAGLE-V5 / Precision-Line Year of Make: 2025 Travel distances: X= 550 mm, Y= 400 mm, Z= 400 mm Table Type: Swivel Rotary Table / Torque Drives Spindle holder: HF spindle HSK-E40 with DDF; Fisherman Spindle speed: 1 - 42,000 rpm Spindle power: 15kw Torque S6 (60%) 6.7Nm Tool magazine: 100 places Control: HEIDENHAIN Weight: 8500Kg

A CNC high-speed machining center OPS Ingersoll in gantry design is available. Materials: graphite/copper/aluminum/plastics/hard machining, travel X/Y/Z: 700mm/550mm/450mm, table dimensions X/Y: 850mm/700mm, max. workpiece weight: 2000kg, tool holder to table distance range: 20mm-520mm, tool holder: HSK-E40, spindle: Fischer mW 9/10-4, speed: 42000rpm, spindle power: 17kW, spindle runout accuracy: µm, rapid traverse: 30m/min. Machine dimensions X/Y/Z: approx. 3200mm/2500mm/2700mm, weight: approx. 9000kg, control: Andronic 2060. Documentation available. An on-site inspection is possible.

OPS INGERSOLL GANTRY EAGLE 800 Year of construction 2013 EAGLE Powertec PC/NC Controller 3060 22" screen with touchscreen operation MultiProg Powertec technology programming on PC/NC Powertec Easy Burn Quick Programming Powertec Handheld Multifunctional Handheld Controller Manual EDM with Powertec Handheld EAGLE Powertec - Fine Finishing Generator PT 60, 60 Ampere High Speed Jump max. 18,000 mm/min. Travel (X, Y, Z) 550 x 850 x 450 mm Distance table / electrode chuck min. 135 mm / max. 585 mm Electrode changer 20-fold pick-up disc magazine Work container (W x D x H) 800 x 1,100 x 480 mm Work table (W x D) 760 x 1,000 mm Load capacity 2,000 kg Top load 200 kg Machine dimensions W x D x H 1,436 x 2,940 x 2,730 mm Integrated cartridge filter system Accessories: CO2 fire extinguishing system incl. fire damper Electrode clamping system EROWA ITS ECOTEC Energy Saving Func ...

Control PC-NC Dialog Travel X/Y/Z: 1000/1510/700 mm C-axis 30-fold electrode changer Hirschmann clamping system Bearing surface WxD 1140/1640 mm Load capacity 7500 kg Filter system Fire extinguishing system

This 5-axis OPS INGERSOLL Eagle V5 was manufactured in 2017, featuring a robust vertical machining center design. It boasts a high-speed Fisher HSK E40 spindle with speeds up to 42,000 rpm and a 32-tool magazine. The machine includes a 4/5-axis tilting rotary table, enhancing its versatility for complex machining tasks. Consider the opportunity to buy this OPS INGERSOLL Eagle V5 vertical machining center. Contact us for more information about this machine.

2011 OPS Ingersoll Gantry Eagle 5 (often referred to as the Eagle G5 or Gantry Eagle 500) is a high-precision Sinker EDM (Electric Discharge Machining) machine. Feature Specification X / Y / Z Travels 525 mm / 400 mm / 450 mm Work Tank Type Drop-tank (rises/falls for easy access) Max Workpiece Weight 1,000 kg (2,205 lbs) Generator Eagle PowerSPARK (60 Amp standard, 110 Amp optional) Z-Axis Jump Speed 18 m/min (This is exceptionally fast for EDM) Find more here - / Contact us at -

Key data: 1770 A, 1220 , 70

The OPS INGERSOLL EDM machine GANTRY 1200 HSJ / 64 bit, built in 2006, has been comprehensively and professionally overhauled in our company and is in very good condition, both technically and visually. In the course of the overhaul, more than 70% of the machine was dismantled. All relevant wear parts have been carefully checked. The following overhaul work was carried out on the above-mentioned machine: Replacement of ball screw and ball bearings of the X, Y and Z axis. Replacement of all (4) ball screws of the tank drive. Inspection and test of the C-axis for tightness and accuracy Geometric verification of all axes according to OPS INGERSOLL protocol. Basic cleaning of the complete machine base. Cleaning of the complete working tank including replacement of the felt scrapers. Complete painting of the machine. Overhaul of the dielectric pumps. Replacemen ...

Key data: 750 mm, 650 mm, 60 A

Refurbished OPS Ingersoll Gantry 500 Eagle die-sinking EDM machine – technically and visually in top condition The machine has been comprehensively and professionally overhauled in our company and is in very good condition, both technically and visually. In the course of the overhaul, more than 70% of the machine was dismantled. All relevant wear parts were carefully checked and replaced if necessary, including ball rollers and drive spindles. This was followed by a complete geometric measurement, alignment and additional control using a laser measuring system. The machine bed and the entire base were thoroughly cleaned. All pumps were disassembled, cleaned and overhauled. All hoses, including hydraulic and compressed air hoses, have been completely renewed. In addition, the machine has been completely repainted and also presents itself visually in a very neat condition.  ...

Key data: 1000 A, 760 , 60

Refurbished OPS Ingersoll Gantry 800 Eagle die-sinking EDM machine – technically and visually in top condition The machine has been comprehensively and professionally overhauled in our company and is in very good condition, both technically and visually. In the course of the overhaul, more than 70% of the machine was dismantled. All relevant wear parts were carefully checked and replaced if necessary, including ball rollers and drive spindles. This was followed by a complete geometric measurement, alignment and additional control using a laser measuring system. The machine bed and the entire base were thoroughly cleaned. All pumps were disassembled, cleaned and overhauled. All hoses, including hydraulic and compressed air hoses, have been completely renewed. In addition, the machine has been completely repainted and also presents itself visually in a very neat condition.  ...

Key data: 1000 A, 760 , 60

Refurbished OPS Ingersoll Gantry 800 Eagle die-sinking EDM machine – technically and visually in top condition The machine has been comprehensively and professionally overhauled in our company and is in very good condition, both technically and visually. In the course of the overhaul, more than 70% of the machine was dismantled. All relevant wear parts were carefully checked and replaced if necessary, including ball rollers and drive spindles. This was followed by a complete geometric measurement, alignment and additional control using a laser measuring system. The machine bed and the entire base were thoroughly cleaned. All pumps were disassembled, cleaned and overhauled. All hoses, including hydraulic and compressed air hoses, have been completely renewed. In addition, the machine has been completely repainted and also presents itself visually in a very neat condition.  ...

Manufacturer: OPS-Ingersol Model: EAGLE-V5 Precision-Line Year of Manufacture: 2025 Type of Machine : Milling Machine with Multi Change Automation Condition: Used.Ready for operation, connected to power Travel Distances - X axis: 550 mm - Y axis: 400 mm - Z axis: 400 mm Rotary Table - Swivel/rotary table with torque drives Spindle - Spindle type: HF spindle HSK-E40 with DDF by Fischer - Spindle speed: 1 to 42,000 rpm - Spindle power: 15 kW - Torque S6 (60%): 6.7 Nm Tool Magazine and Control - Tool magazine capacity: 100 positions - Control: Heidenhain - Weight: 8,500 kg Extra Accessories can be negotiated into the offer. - 20x Erowa ITS 148 Palette Type G with clamping studs for automation - 13x HSK E40 shrink fit chuck d3 by Haimer - 28x HSK E40 shrink fit chuck d4 by Haimer - 14x HSK E40 shrink fit chuck d5 by Haimer Find more here - / Contact us at -

Key data: 13750 mm, 5000 mm, 1000 mm

Ingersoll MasterHead 5-Axis CNC Planer Mill Model : MasterHead Age : 2016 SERIAL NO.: 28806 (27-01) FEATURES: FANUC 31I 5-AXIS NEW 2016 DOUBLE HOUSING ADJUSTABLE RAIL AUTOMATIC TOOL CHANGER AUTOMATIC ATTACHMENT CHANGER 2-AXIS MILLING HEAD ATTACHMENT 5-SPINDLE UNITS TRAVELS: X-AXIS, TABLE TRAVEL 541.1" (13750mm) Y-AXIS, HORIZONTAL HEAD TRAVEL 196.85" (5000mm) Z-AXIS, RAM STROKE 39.37" (1000mm) W-AXIS, VERTICAL TRAVEL OF CROSS RAIL 98.42" (2500mm) A-AXIS, HEAD ROTATION, 360 DEGREE 360,000 POSITIONS B-AXIS, HEAD SWIVEL, 180 DEGREE 360,000 POSITIONS SPECIFICATIONS: TABLE SIZE, JOINED 137.79" X 509.4" (3500 x 12940mm) TABLE SIZE, UN-COUPLED FRONT 137.79" X 255.5" TABLE SIZE, UN-COUPLED BACK 137.79" X 253.9" DISTANCE BETWEEN TABLE SECTIONS 39.37" DISTANCE BETWEEN COLUMNS 147" RAM CROSS SECTION 23.62" X 23.62" MAXIMUM HEIGHT TABLE TO RAM FACE 127.95"  ...

Key data: 800 mm, 670 mm, 500 mm

High-speed milling machine for graphite machining Year of manufacture 2004 with a lot of accessories such as collets, graphite vacuum cleaners, etc.

End Mill, Milling Cutter, Shank Thread Mill, Thread Cutter, Threading Tool, Indexable Thread Mill -Manufacturer: Ingersoll, indexable insert thread milling cutter M40 x 4.5 unused original packaging -Type: SR 0040 L30-2 -Art. No.: 3026150 12Y1SO40070W6R00 -Intake: Ø 32 mm -Dimensions: Ø40 x 130 mm -Weight: 0.7 kg

Year of manufacture 2001 generator multi pulse - 70 amp + 100 amp booster Control Mitsubishi 32 bit - CNC travel (X, Y, Z) 900 x 1,780 x 550 mm Bowl (W x D x H) 1300 x 2200 x 730 mm workpiece clamping table (B x T) 1150 x 2050 mm accessories 13-fach pick-up linear changer, CO2 fire extinguishing status completely overhauled

EDM machine Gantry Eagle 500 Year 2011 Travel: x/y/z = 525x400x450 Changer: 24 times Weight: 5000 kg

This 5-axis INGERSOLL High Speed Eagle V5 was manufactured in 2018. It features a Heidenhain TNC 530 control, a 15 kW spindle, and 100 tool slots. With travel dimensions of X: 550mm, Y: 850mm, and Z: 450mm, this vertical machining centre represents a robust opportunity for precision machining. Only machine is included. Yaskawa robot and other parts of the automation shown in the video not scope of supply. Contact us for further details regarding this vertical machining centre.

Manufacturer: Ingersoll Model: OPS Center 400 Type: Sinker EDM Year of Manufacture: 2000 Find more here - / Contact us at -

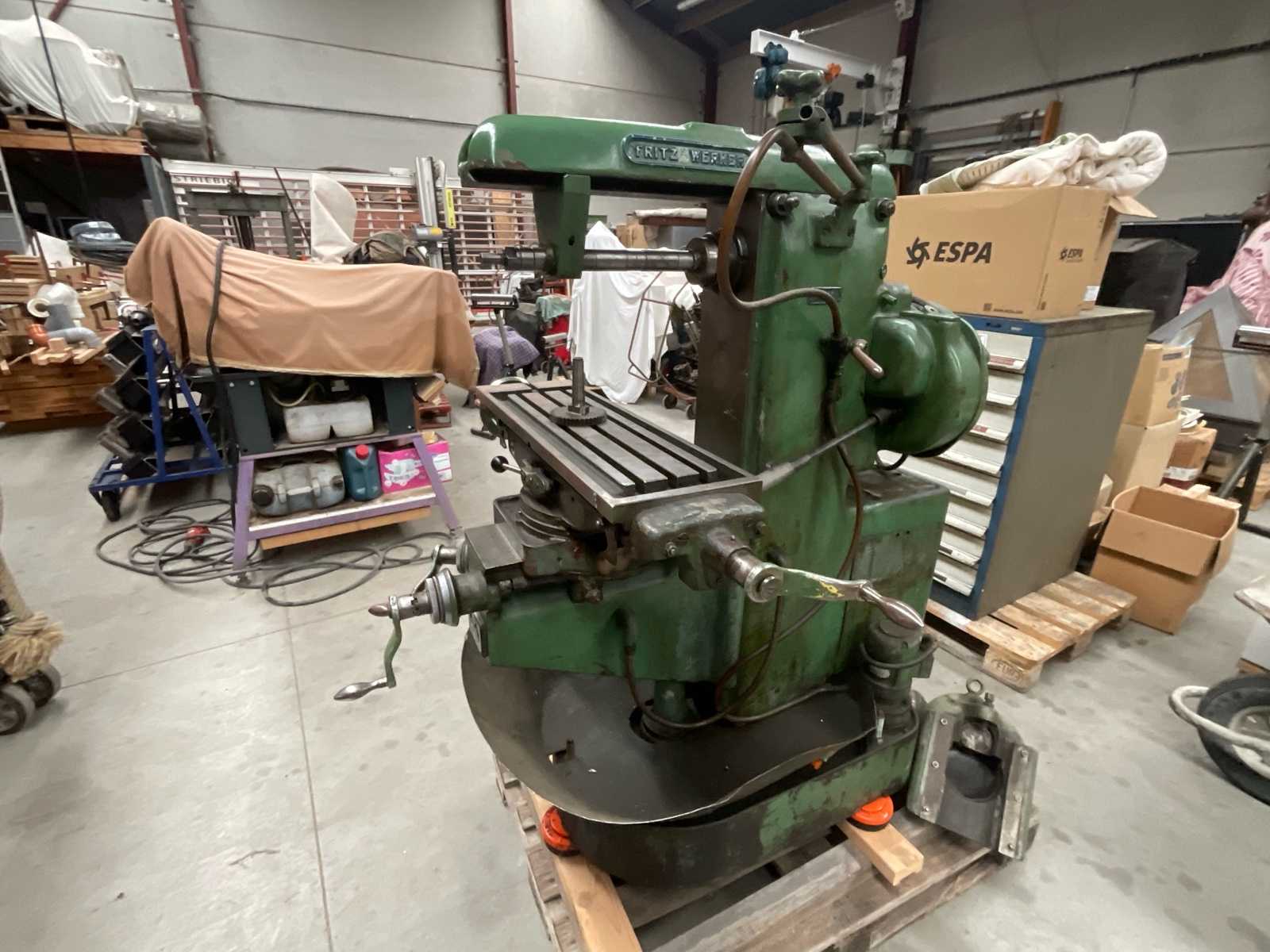

Universal horizontal milling machine – FRITZ WERNER German-made machine tool renowned for its robustness. Universal horizontal milling machine ideal for surfacing, grooving and tooling work. Heavy cast iron construction for excellent stability. Features: Brand: Fritz Werner Type: Universal horizontal milling machine 3-axis cross-table with rotation Horizontal spindle with cutter holder Prismatic slides Integrated mechanical feed box (gears visible in photo) Siemens motor with 400–500 V power supply Manual handwheel controls Disassembled side cover supplied with the machine Complete machine with levers, handwheels and guards Estimated dimensions: Table: approx. 700 × 250 mm Estimated weight: 900 – 1200 kg Status: Antique but functional machine, ideal for mechanical workshop, restoration, or machine tool collector. Wear consistent with age.

Complete system with all accessories required for installation and operation, see below! Travels x = 7000 y = 1600 z = 800 / quill stroke w = 600mm General overhaul in 2007, year of production 1991: New control system Siemens Sinumerik 840D, new drive motors, guideways refurbished, new control cabinets. ECOCUT 1 was only operated for a few months thereafter Feed rate 12000 mm / min // w axis 6000 mm / min Xua2eg8fx Rotary table TDV 2 max. Workpiece weight 6t / clamping surface 1000x1000 Rotary table TDV 3 max. Workpiece weight 12t / clamping surface 1250x1600 Accessories: 2 like new angular crankset / chain tool change system / plate field / complete housing / Knoll funnel feeder / extraction / coolant system with belt filter All BWF fixators for installation of machine bed and panel

Usable for the: Milling and engraving labeling, marking Drilling, cutting Dosing and much more. (Applications require optional accessories) inclusive: Design software ConstruCAM 3D Control software KinetiC-NC incl. CAM software Estlcam Multi-zone vacuum table with recessed T-nuts sliding Control panel including step control manual central lubrication The offer here is a CNC milling machine with the above-mentioned accessories (without further ado possibly shown on the photos accessories). For operation, a milling motor is also required, which can optionally be purchased from us. echnische data: External dimensions LxWxH: 1650x1440x1950 mm Weight: approx. 650 kg Clamping surface XxY: 930x630 mm Travel XxYxZ: 900x600x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reverse play: appr ...

Work facilitation through basic equipment The basic equipment includes, for example, an ergonomic control panel, which contains the stepper motor control and an industrial PC with touch function. Software (CAD/CAM, control software, operating system Win 10 Pro) are already pre-installed. Thus, the CNC milling machine can be operated conveniently and conveniently. A multi-zone vacuum table ensures a comfortable, fast clamping of workpieces and a strong hold during milling. Furthermore, the machine is equipped with a manual central lubrication, which makes it easier for you to grease and increases the service life of the CNC milling machine. Various applications The most diverse materials can be processed on our T-Rex, whether plastic, wood, metal or stone, nothing is impossible. Whether engraving, milling, cutting, drilling, dosing, gluing, etc., no wishes remain unfulfille ...

Work facilitation through basic equipment The basic equipment includes, for example, an ergonomic control panel, which contains the stepper motor control and an industrial PC with touch function. Software (CAD/CAM, control software, operating system Win 10 Pro) are already pre-installed. Thus, the CNC milling machine can be operated conveniently and conveniently. A multi-zone vacuum table ensures a comfortable, fast clamping of workpieces and a strong hold during milling. Furthermore, the machine is equipped with a manual central lubrication, which makes it easier for you to grease and increases the service life of the CNC milling machine. Various applications The most diverse materials can be processed on our T-Rex, whether plastic, wood, metal or stone, nothing is impossible. Whether engraving, milling, cutting, drilling, dosing, gluing, etc., no wishes remain unfulfille ...

Usable for the: Milling and engraving labeling, marking Drilling, cutting Dosing and much more. (Applications require optional accessories) inclusive: Design software ConstruCAM 3D Control software KinetiC-NC incl. CAM software Estlcam Multi-zone vacuum table with recessed T-nuts sliding Control panel including step control manual central lubrication The offer here is a CNC milling machine with the above-mentioned accessories (without further ado possibly shown on the photos accessories). For operation, a milling motor is also required, which can optionally be purchased from us. Technical specifications: External dimensions LxWxH: 1970x2150x1950 mm Weight: approx. 950 kg Clamping surface XxY: 1230x1320 mm Travel XxYxZ: 1200x1300x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reve ...

End mill, end mill, cutter, shell cutter, milling head, angle cutter, shell angle cutter, angle end mill, prism cutter -Angle milling cutters: Attachment angle milling cutters, prism milling cutters -Type: Ø85 x 35 mm -Hole: Ø 27 mm -Quantity: 1x milling cutter available -Dimensions: Ø 85 x 35 mm -Weight: 0.8 kg

Product information \"Henninger Schnellauf - Milling Spindle Type 814 \" However, the Henninger quick-opening milling spindles are not highly sensitive devices. They are suitable for everyday production The Henninger quick-opening milling spindles are not only used with carbide milling cutters or when processing non-ferrous metals, but also for processing steel and casting. Even if the machines reach the required speeds, , people like to use the high-speed milling spindle to clean the machines. and to prevent dimensional deviations due to heating of the headstock. - Type: Quick-run - Milling spindle type 814 - Tool holder SK 40 - Tool holder collets: yes - Collet range: Ø 4 - 25 mm - Gear ratio: 1:6 - Maximum speed ED 10%: 12,000 1/min - Maximum speed ED 80%: 10,000 1/min Auction-ID: A1-48483-31

Product information \"Henninger Schnellauf - Milling Spindle Type 801 \" However, the Henninger quick-opening milling spindles are not highly sensitive devices. They are suitable for everyday production The Henninger quick-opening milling spindles are not only used with carbide milling cutters or when processing non-ferrous metals, but also for processing steel and casting. Even if the machines reach the required speeds, , people like to use the high-speed milling spindle to clean the machines. and to prevent dimensional deviations due to heating of the headstock. - Type: Quick-run - Milling spindle type 801 - Tool holder SK 40 - Tool holder collets: yes - Collet range: Ø 2 - 16 mm - Gear ratio: 1:6 - Maximum speed ED 70%: 6,000 1/min Auction-ID: A1-48483-28

Operating voltage: 400 v Ma.Nr.: 41636 HEIDENHAIN positioning and control TNC 131 / 135 Complete Dokunnetation (operating instructions, technical plans) exists. Errors excepted!

Table clamping surface: 600 x 1100 mm traverse path x: 800 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: by hand approximately 50 mm of spindle speeds: 63-3150 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x/y/z 4.5/2,6/3 m / min. Supply: 380 V, 5.5 kW space: 3000 x 2500 x 2030 mm weight: 4000 kg

Table size: 500 x 1200 mm traverse path x: 1000 mm stroke y: 550 mm traverse path z: 600 mm spindle retainer: ISO 40 spindle speeds: 60-2700 rpm spindle drive: 10 kW Electr. Supply: 380 V, 20 kVA kW space: 3200 x 2800 x 2650 mm weight: 7.3 t

Table clamping surface: 500 x 1000 mm stroke x: 630 mm traverse path y: 500 mm traverse path z: 460 mm Quill stroke: hand 45 mm spindle retainer: ISA 40 spindle speeds: 31.5-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse: x/y 6 / z 4 m/min. Supply: 380 V, 6/8 kW space: 1800 x 2120/2600 x 2020 mm weight: 3100 kg

Table clamping surface: 630 ø mm traverse path x: 600 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: hand 80 mm spindle retainer: ISO 40 spindle speeds: 20-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse rate: 4 m / min. Connection: 380V kW space: 2000 + 850 x 2000 x 2000 mm weight: 3300 kg

Stroke x: 600 mm traverse path y: 400 mm traverse path z: 400 mm spindle retainer: ISO 40 spindle speeds: 80-4000 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x & y/z 4/2.5 m / min. Supply: 380 V, 16 kVA kW space: 2450 x 2200 x 1900 mm weight: 2250 kg

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

MAHO C Axis Machine Table - Table diameter: 600 mm Good condition fully functional can be visited and tried out on site. Shipping also abroad. Sightseeing: Basically, I would like to point out that the article, in order to avoid misunderstandings, can be viewed before the purchase and tested under electricity. Please ask questions before buying to avoid ambiguity. For general questions or an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale excepted. VAT will be shown separately on my invoices. Shipping with freight forwarder.

Table clamping surface: 500 x 1600 mm table movement x: 1220 mm table movement y: 500 mm table movement z: 500 mm spindle retainer: SK 50 spindle speeds: 56-2800 rpm feeds longitudinal & cross: 10-1800 mm / min feed vertically: 2.5-450 mm / min. Supply: 400 V, 16 kVA kW space: 2000 x 2250 x 2150 mm weight: 4500 kg

Universal milling machine. Hure head. Table size: 2000x480mm. Longitudinal travel: 1700mm. Cross travel: 400mm. Vertical travel: 575mm. ISO50. Motor power: 20cv. Weight: 5500Kgs. Dimensions: 2550x2380x2680.

Universal milling machine with automatic movement ram. Table size: 1600mmx320mm. Longitudinal travel: 1200mm. Cross travel: 300mm. Vertical travel: 600mm. ISO50. Hure head. Equipped with DRO Fagor.

Universal milling machine. Table size: 1400mmx300mm. Longitudinal travel: 1200mm. Cross travel: 320mm. Vertical travel: 500mm. ISO40. Hure head. Speeds: 12. (40-1800rpm). Motor power: 7Kw.

Vertical machining center Cincinnati Millacron Traverse path x 1270 mm Y: travel 660 mm Z: travel 660 mm CNC control: Acramatic 850SX Table size: 1,370 x 660 mm Table load: 910 kg Rapid traverse x/Y/Z: 15,000 mm / min. Spindle speeds: 60-8,000 rpm. Spindle recording: ISO 40 Distance from spindle - table min/max: 150/880 mm Tool changers: 21 items Equipped with:-cooling device -Hand Council operation -Complete instructions Country of origin: England Spindle motor: 9 kW Machine weight: 8.000 kg Machine WxDxH: 3,600 x 2.900 x 3.000 mm

Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg

Technical Specifications - Bridgeport Series I Table Size / Work Surface 9" × 49" (≈ 299 mm × 1245 mm) T-slots 3 pieces, spacing 2.5" (≈ 64 mm), groove width 0.625" (≈ 16 mm) Travel X (Transverse) without Power Feed: 36" (≈ 914 mm) with power feed: 33" (≈ 838 mm) Travel Y (Transverse to Feed) 12" (≈ 306 mm) Quill Stroke (Drilling Spindle Stroke) 5" (≈ 127 mm) Knee Lift (Z-Axis of Table) 16" (≈ 406 mm) Ram Adjustment (Head Stem on Ram Slide) 12" (≈ 306 mm) Min. / Max. distance spindle axis to table nose (spindle/table nose distance) min: 2.5" (≈ 64 mm) Max: 18.25" (≈ 463 mm) Min. / Max. distance spindle to column front (minimum/maximum internal width) min: 6.75" (≈ 171 mm) max: 18.75" (≈ 476 mm) Spindle / Quill Spindle Diameter: 1.875" (≈ 48 mm) Quill Diameter: 3.375" (≈ 86 mm) Spindle holder (standard): R-8 Spindle motor / power 30 minute ...

AVIA FNE 40NC milling machine was built in 2001 in Poland by Fabryka Obrabiarek Precyzyjnych AVIA S.A. The machine is used for precision machining of workpieces with a maximum weight of 400 kg. The machining process is performed in three axes by means of a reliable spindle with stepless speed adjustment. The spindle, mounted on a swivel workhead, moves in the Z axis on precision vertical guides. All this is complemented by the easy-to-use HEIDENHAIN NC control system, in which even the most advanced programmes can be created in just a few steps. The AVIA FNE toolroom milling machine weighs 1900 kg. Technical data of the AVIA FNE 40NC metal milling machine - NC controller: HEIDENHAIN TNC 310 - feed in the X/Y/Z axis: 620/420/400 mm - rapid traverse in the X/Y/Z axis: 6000/4000/4000 mm/min - feed rate adjustment: stepless - maximum workpiece weight: 400 kg - horizontal work table  ...

Qty.1 Second-hand milling (scalping) line Mfc.: Torrington Type: 30" Slap Miller Speed: 500 rpm – 18 fpm Capacity: 1,9 m/dk

Universal milling machine. Table size: 1200mmx320mm. Longitudinal travel: 950mm. Cross travel: 300mm. Vertical travel: 500mm. ISO40. Hure head. DRO Fagor.

Table size: 440 x 1200 mm table movement x: 950 mm table movement y: 250 mm table movement z: 475 mm spindle retainer: ISA 40 spindle speeds: 40-1800 rpm feeds longitudinal & cross: 16-630 mm / min feed vertically: 5.6-224 mm / min. Supply: 380 V, 7.5 kVA kW space: 2150 x 2000 x 2100 mm weight: 2400 kg

Drilling capacity in steel: 32 mm Drilling capacity in cast: 40 mm Cutter head milling max.: 80 mm Projection: 220 mm Spindle speed: (12) 75-3200 RPM Spindle retainer: MK 4 Quill stroke: 125 mm Table size: 800 x 240 mm Travel (x / y): 555 / 225 mm Milling head swiveling: - 90 ° to + 90 ° Distance from spindle / table: 60-485 mm Head height: 425 mm T - slot size: 14 mm S1 motor power output 100%: 1,1 / 1,5 kW (400 V) Motor power S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions (W x D x H) : 1140 x 770 x 1500 mm Approximate weight: 287 kg without stand Features: Quick and easy change of speed using the gear selector switch Versatile application possibilities such as drilling, milling, thread cutting, … High running smoothness by polished, running in an oil bath gear gears Right - and the link run device for thread cutting Quill adjustment by means of ...

Standard ALB ear performance: 30 mm Thread cutting performance: M 20 (option) Thread: M 12 Spindle: MK 3 or SK 30 (option) Quill stroke: 100 mm Longitudinal / cross travel: 350/160 mm Distance spindle/cross table: 80 to 450 mm Table area: 600 x 240 mm Column diameter: 110 mm Total height: Max 1,920 mm Weight: 340 kg Motor pole shift bar: 0.8/1.5 kW Spindle speeds, continuous, selectable: 10 spindle speeds: 80-1,400 rpm 10 spindle speeds: 120-2,160 rpm 10 spindle speeds: 160-2,800 RPM Facilities: A versatile, accurate and handy drilling milling machine. The quiet-running drive and a perfect clamping of Quill guarantee good surfaces when milling. The headstock can be swung out. The stage is precise and precisely adjustable. Pitch 0.05 mm. clamping device for both axes. Full motor protection. Machine incl. Cabinet.

Vertical Milling Machine RAMBAUDI type RAMMATIC 600 Travel X 1260 mm Travel Y 690 mm Travel Z 600 mm Numerical Command NUM 1060 Cone SA 50 Table size 2000 x 600 mm Year of construction 1991 Voltage 380 V Depth 2500 mm Total height 4000 mm Weight approx 9 T

Vertical Milling Machine Droop & Rein type FS130 Travel X 2000 mm Travel Y 1000 mm Travel Z 1000 mm Spindle SA 50 Sensitive spindle exit: 200 mm Rotation from 31,5 to 1600 RPM Table size 2400 x 1070 mm Year of construction 1976 Throat depth 950 mm Head Tilt head Spindle motor 22 kW Scale HEIDENHAIN 3 axes New electrical panel in 2006 Voltage 380 V Width 3500 mm Depth 4700 mm Total height 4500 mm Weight 26 T

Machine type milling machine - universal brand HURON type MU 5 year 1975 control type conventional storage France country of origin France delivery immediately cargo base camp, free truck Technical details x way 1300 mm y path 700 mm z-way 550 mm table size 1500 x 460 mm spindle speeds 15-2500 RPM spindle retainer for SK 40 feed range x - direction 1,6-820 mm / min feed Empire z-direction 1,6-820 mm / min rapid traverse X + Z - axes 2.8 m/min rapid traverse y - direction of 2.8 m / m in power - spindle motor 10 kW total power 14 kW machine weight approx. 4.6 t additional information good condition with 3 axis of DIGITAL HEIDENHAIN SK 40 BUILT IN 1975

2 piece F. 17.3 2 piece F. 17.34 Milling machines with double head (duplex), with counter holder for horizontal milling

Table size: 254 x 1100 mm Table movement x: machine. u. v. hand 682 mm Table movement y: hand 380 mm Table movement z: hand 457 mm Milling head swiveling to: +/-90 or +/-45 ° Spindle retainer: ISO 40 Spindle speeds: 70-2300 rpm Quill feeds: 0.038 â 0.152 mm / min Spindle drive: 380 V, 2.2 kW Space: 1600 x 1600 x 2150 mm Weight: 1420 kg

Table surface: 300 x 1300 mm Table movement x: 950 mm Table movement y: 220 mm Table movement z: 400 mm Spindle intake: MK 5 Spindle speeds: 25-1200 rpm Prests lengthwise & across: 7.5-635 mm/min Presens vertical: 3-250 mm/min Electr. Connection: 380 V, 7.5 kW Space requirement: 1670 x 1500 x 1750 mm Weight: 2600 kg

x-280 ,y- 200 , Z 315 , Table dimensions 380x380/250x500 A lot of writings,much more than pictured

Bearing number 1105-02690 Machine type Milling machine - Universal Make HERMLE Type UWF 1000 Built in 1988 Control type CNC Storage location FRANCE Country of origin Germany Delivery time SOFORT Freight base EXW Technical details x-way 700 mm y-way 630 mm z-way 500 mm Control heidenhain 355 Tool holder SK 40 (DIN 69871) Table clamping area: 1000 x 490 mm Spindle speed Gear stage 1 25 - 400 rpm. Spindle speed Gear stage 2 401 - 1260 rpm Spindle speed Gear stage 3 1261 - 4200 rpm Feed 5 m/min Rapid speed 10 m/min Swivel of the milling head + / - 90 ° Pinole diameter 110 mm Pinole stroke 95 mm Total power requirement 18 kW Machine weight approx. 5 t Information with full cabin coolant device Sale takes place without clamping equipment approx. 8500h switch-on hours

Technical data: Fixed angular table: Fixed angular table clamping area: 800 x 400 mm Max table load: 200 kg Working spindle: Tool holder horizontally and vertically: ISO 40 Power of the main drive motor / 100% ED: 2.2 kW Vertical milling head: Speed range, tiered: (12) 50 - 2000 rpm Drill pinole, stroke: 100 mm Swivel range: +/- 90° Travel: X-axis automatic/man.: 385/400 mm Y-axis automatic/man.: 185/200 mm Z-axis automatic/man.: 365/380 mm Feeds: Feed range: 0-650 mm/min Number of feeds: infinitely adjustable Rapid response: 1000 mm/min Characteristics: - Machine accuracy according to DIN 8615 - 3-axis digital displays FAGOR® Innova (option) - Spindle run max. 0.005 mm, incl. test protocol according to DIN 8615 (rolling bearing SKF®/NSK®) - Vertical milling head can be swivelled out for horizontal milling (without d ...

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

Blade length 205 mm Max cutting performance Sheet R = 42 kg / mm2 4 mm Sheet R = 70 kg / mm2 3 mm Engine power 3 kW Number of beats / minutes 50 min Table dimension 625 x 954 mm Capacity of the oil tank 25 l Weight 500 kg The setting between the blades is fully automatic. Standard: - 1 set of knives at 30 ° (mounted on the machine) - 1 stop switch - 1 general circuit breaker - 1 stop adjustable and adjustable every 15° - Fill the first oil - Manual with installation and maintenance instructions and service keys.

x-400,y-330,z-350,angle table 630x335,SK 40, 40-6,000 rpm,measuring probe

Table clamping area: 560 x 240 mm x-way: 300 mm y-way: 275 mm z-way: 200 mm Spindle holder: ISO 40 Spindle speeds: 40 - 2000 rpm Operating voltage: 380 V Total power requirement: 1.5 kW Space requirement: 1200 x 1100 x 1700 mm Weight: approx. 750 kg

Table clamping area: 310 x 1400 mm Table movement x: 950 mm Table movement y: approx. 325/345 mm Table movement z: approx. 500 mm Spindle speeds: 20 - 1500 rpm Feeds longitudinally and transversely: 18 - 620 mm/min Feeds vertical: 18 - 620 mm/min electr. Connection: 380 V kW Space requirement: 1900 x 1600 x 1750 mm Weight: approx. 1500 kg

1 x Universall tool-feeding machine Lid FP 4 Built: c.1970 Very robust and rare conventional machine in good condition. Technical data: Travel: X: 700 Y: 400 Z: 450 mm Spindle speeds: 31.5 - 1,600 rpm (18 levels) Tool holder: ISO 40 Pinole stroke: 115 mm Feed in X/Y/Z Feed range: X/Y/Z 5 - 500 mm/min (infinitely adjustable) Rapid response: X/Y: 10 - 500 mm/min Z: 5 -250 mm/min (18 levels) swivel handling table Clamping area: 860 x 500 mm Accessories: 1 x horizontal counter bearing 5 x horizontal frond spine Bftj7cazem 10 x vertical fraes aufnahme 36 x tension tension ingesheis from 0.5 - 18 mm 0.5 mm rising 5 x Direct clamping pliers D: 12/14/16/18/20 mm 1 x machine vice Manual various distance rings and accessories for milling machines complete documentation The machine can be inspected at our warehouse under electricity. A 3-axis digital ...

Milling machine from a training workshop in very good condition Manufacturer lid Type FP1 Active

Universal milling machine vertically / horizontally from a training workshop Manufacturer Hermle Type FW801 Tool holder SK40 automatic feed in three axes Digital display in three axes Machine technically in very good condition under electricity ready for demonstration Technical data: Travel: x=350mm y=150mm z=220mm Spindle speeds from 50 to 3,150 rpm can be infinitely variable Feed speed infinitely adjustable via rotary pot from 10 to 5,000 mm/min, aisle Special price Used milling machine Hermle FW 801

- travel range: X= 485, Y= 385, Z= 380 mm - table size: 800 x 460 mm - tool holder: SK 40 - dimensions LxWxH: 2440 x 1800 x 2100 mm - weight: ca. 2.000 kg

Table clamping area: 190 x 710 mm Table movement x: 390/360 mm Table movement y: 150 mm Table movement z: 280 mm Spindle holder: SK 40 Spindle speeds: 100 - 3100 rpm Feeds longitudinal 0 - 600 mm/min electr. Connection: 380 V, approx. 1.5 kW Space requirement: 1400 x 1200 x 1500 mm Weight: approx. 680 kg

Table length: 10.800 mm Table width: 1.000 mm Table height: 200 mm Load capacity: 10 t/m Power motor spindle: 22 Kw Max. speed of turning: 1.700 rpm X Axis travel: 7.000 mm Vertical axis travel: 2.000 mm RAM travel: 1.000 mm Total installed power: 60 Kw Rapid feed rate: 15 mt/min CNC ECS 4801 Chip conveyor

REALMECA MINI C3X-CNC VERTICAL 1 phase machining milling machine Used for teaching begginers. Perfect condition

MAHO MH-700 with numeric control X, Y Table size: 800x300 Working area: X-450,Y-250,Z-300 Spindle taper: MK3 Feed range: 7-250mm/min Vertical head swiveling 90 degreess Power: 3KW Dimensions: 1300x1200x1700

CNC toolmill cover FP 3 NC Dialog 11 Used machine (very good) Control type Cnc Built 1990 Hours K.a. Dimensions 1800x1700x2000 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making • Travel distances: 400x400x400mm • Control: Dialog 11 Technical data • Control CNC Dialog 11 • Table 600x400mm • Longitudinal path (X,Y,Z axis) 400x400x400mm • Tool changer no • Tool holder: ISO 40 • Vertical spindle speeds: 31.5-3150rpm • Feeds 2-3600mm/min • Connection 50 Hz 3x 380V • Spindle motor 3.4KW

Lid FP 4 A Used machine (very good) Control mode Conventional Built in 1992 Operating hours approx. 500h Price 12,000 € net plus VAT Dimensions 2500x2500x1900 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 560/500/450mm Control : Dialog 11 Technical data Control CNC Dialog 11 Table 900x530mm Longitudinal path (X,Y,Z axis) 560/500/450mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-5000rpm

Description Universal tooling machine from Lid suitable for tooling, fixture construction, training as well as mold making Technical data Year of construction / YOM 1991 Speeds / Spindle 63 - 6300 rpm Steuerung Control CNC Grundig Dialog 11 Vorschübe / Feeds 2 - 3000mm/min Tisch / Table 910 x 530mm Recording / Taper ISO 40 Way / Travel (X,Y,Z) 600x500x500mm Weight /Weight ca 1830kg Changer / Tool changer No Dimensions / Dimension 2500x2000x2000mm Travel: 600x500x500mm Speed: 31.5 - 6300 rpm The machine comes from a tool making and has been regularly serviced.

Lid FP 4 MA Used machine (Very good) Control type CNC Built in 1990 Operating hours n/a Price 8,000 net plus VAT Dimensions 2500x2000x2500 Weight 1800 kg Location Haiger Description Universal tool ingescent machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 465x385x380mm Control: Contour 2 Technical data Technical data: Lid FP4 MA (527) Built in 1992 Control CNC Hand / Contour 2 Table 800x465mm Laengsweg (X,Y,Z axis) 465x385x380mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-3150rpm Vorschuebe 2-4000mm/min Connection 50 Hz 3x 380V Spindle motor 4KW Machine weight approx. 1900kg Dimensions 2800x2000x2500mm

Description x-path: 300 mm y-way: 150 mm z-way: 340 mm Clamping area: 600 x 210 mm T-slots: 5 T - slot width: 12 mm Speed range - vertical: 250 - 2000 rpm Speed range - horizontal: 40 - 315 rpm Speed levels working spindle: 8 Feed range: 10 - 500 mm/min Feed levels: 8 Pinolene stroke: 60 mm Spindle holder: SK 40 Total power requirement: 1.7 kW Machine weight approx.: 0.8 t Space requirement approx.: 0.90 x 1.10 x 1.55 m Universal tool milling machine in very good condition, vertical head rotatable +/- 90° incl. drill pin with stroke 60 mm, horizontal spindle, automatic feed in X and Z direction, universal swivel table, turning and tilting range+/- 30°, swivel range+/- 90°, separate control cabinet + main switch incl. digital display (new)

Lid FP 1 in very nice condition x-path: 300 mm y-way: 150 mm z-way: 340 mm Clamping area: 600 x 210 mm T-slots: 5 T - slot width: 12 mm Speed range - vertical: 250 - 2000 rpm Speed range - horizontal: 40 - 315 rpm Speed levels working spindle: 8 Feed range: 10 - 500 mm/min Feed levels: 8 Pinolene stroke: 60 mm Spindle holder: SK 40 Digital display Z-502 Total power requirement: 1.7 kW Machine weight approx.: 0.8 t Space requirement approx.: 0.90 x 1.10 x 1.55 m Universal tool milling machine in good condition, vertical head rotatable +/- 90° incl. drill pin with stroke 60 mm, horizontal spindle, automatic feed in X and Z direction, universal swivel table, turning and tilting range+/- 30°, swivel range+/- 90°, separate control cabinet + main switch

CME FU2 universal milling machine. Table: 1400x300mm. Longitudinal travel: 1050mm. Cross travel: 300mm. Vertical travel: 500mm. ISO40. Hure head. Speeds range: 12. (40-1800rpm). Motor power: 7,5Kw. DRO Fagor for 3 axis.

Table clamping area: 290 x 1250 mm Table movement x: 800 mm Table movement y: 360 mm Table movement z: 450 mm Milling head pivotable: 90/45 ° Spindle holder: ISA 40 Spindle speeds: 56 - 4500 rpm Pinolene stroke: 125 mm Pinolene feeds: 0.035; 0,14; 0.7 mm/min Spindle drive: 1.8/2.4 kW Space requirement: 2000 x 1900 x 2300 mm Weight: 1700 kg

New drive shafts for Vertical and Universal Fraeshead FU 400 - FW 400 HECKERT Germany Price 900,-- Euro per square plus VAT

Qty. 1 Second-hand milling and scalping machine – Copper and brass strip – stopped in 2010 Mfc.: Torrington Type: FR1 Built: 1976 Milling and scalping from the upper and lowe sides Strip width: 508 - 770 mm Strip thickness: 10.0 – 13.5 mm Coil weight: 6.5 Ton Capacity: approx. 200 000 T/annum

A used S O R A L U C E CNC driving stand milling and drilling center FS 16000 Built in 2000 MAIN TECHNICAL DATA: Travel: Longitudinal (X): mm 16000 Senkr. (Z): mm 1600 Cross (Y): mm 1500 Milling and drilling spindle: Tool holder: ISO 50, DIN 69871 Auto. Tool tension: clamping force 15000 N Tightening bolt: DIN 69872 Form B (BT50) Spindle speeds: Special speeds: rpm 20-3000 Feeds: Feed range: mm/min 2-5000 Rapids: X-axis: mm/min 12000 Y- and Z-axis mm/min 15000 The machine is equipped with: - HEIDENHAIN control TNC 426 M. - Operator's platform in the X-direction with sliding door and Viewing windows against chip flight and splashing water. - Operator's console swivels mounted on the stage. - Automatic thermal expansion compensation of the Milling sliders. - Automatically indexing milling head. This milling head enables the fully automatic m ...

Table clamping area: 350 x 700 mm x-path: 500 mm y-way: 320 mm z-way: 400 mm Spindle holder: SK 40 Spindle speeds: 30 - 2500 rpm Operating voltage: 380 V Total power requirement: 2.2 kW Space requirement: 1500 x 1500 x 1800 mm Weight: approx. 1700 kg

Matsuura MC600VF Vertical Machining Centre in great working condition ready to use. COOLING TROUGH SPINDLE YEAR: 1997 with Yasnaz i80M Control, Table size 870 x 400mm, 20 Position ATC, BT40 Taper, Spindle Chiller, Coolant Tank, X = 600 Y = 410 Z = 470mm, Spindle Speeds 30 – 8000rpm. S/No. 970112285 including Large Qty of BT40 Tooling (33 TOOLS, Universal 3D Tester. Country of Origin: Japan. INCLUDED AS WELL BACK UP PARAMETERS.
