mori say lathes used for sale

Codice: 0222 - AI

multi spindle bar automatic, Mori Say 8/42 - YOM 2006, CONFIGURATION, - HIRTH coupling for drum locking, - 8 front slides and 8 radial slides, - 4 Compond slides in stations 1, 2, 5, 6, - CUCCHI Pietro bar loader (2007), - Bundle for CUCCHI BLT BUNDLE bar loader (2018), - Pick-up spindle, hydraulic in pos. 8, - preparation for oil fume extraction

Number of spindles: 6, Max bar diameter [mm]: 25, Spindle speed [rpm]: 4.250, Weight of the machine ca. [kg]: 7.150, Auto bar loader: Cucchi BLT Multi F-6

Number of spindles: 6, Max bar diameter [mm]: 20, Spindle speed [rpm]: 500 - 6.000, Weight of the machine ca. [kg]: 5.000, Auto bar loader: Iemca SIR 25 P 33

- spindle drum locking by means of a triad of HIRTH-type rings, - central lubrication system, - spindle stop attachment for main spindles, - cross drill device pos. 4, - 6 indipendent frontal slides, - 4 compound slides in pos. 1, 2, 4, 5, - 2 radial slides in pos. 3, 6, - double slide in pos. 6, - pick-up spindle pos. 6, - pick-up spindle stop attachment pos. 6, - conveyor belt for finished parts, - chip conveyor, hinged belt type, - high pressure coolant system, - removable coolant fluid tank, - bar stock reel for bar length 3 m, - various camms, - various gears, Number of spindles: 6, Max bar diameter [mm]: 32, Spindle speed [rpm]: 250 - 4.250 (250 - 3.350), Spindles interaxis [mm]: 276, Max bar feed [mm]: 125, Weight of the machine ca. [kg]: 9.500

- spindle drum locking by means of a triad of HIRTH-type rings, - central lubrication system, - spindle stop attachment for main spindles, - 2x spindle positioning attachment (pos. 6 + 7), - 8 indipendent frontal slides, - 4 compound slides in pos. 1, 2, 5, 6, - 4 radial slides in pos. 3, 4, 7, 8, - double slide in pos. 8, - 2x pick-up spindle (pos. 4 + 8), - 2x pick-up spindle stop attachment (pos. 4 + 8), - threading attachment, - chip conveyor, hinged belt type, - high pressure coolant system, - removable coolant fluid tank, - bar stock reel for bar length 3 m, - various camms, - various gears, - electrical preparation for auto bar loader, Number of spindles: 8, Max bar diameter [mm]: 32, Spindle speed [rpm]: 270 - 3.750 (270 - 3.200), Spindles interaxis [mm]: 360, Max bar feed [mm]: 125, Weight of the machine ca. [kg]: 11.500

- spindle drum locking by means of a triad of HIRTH-type rings, - central lubrication system, - 8 indipendent frontal slides, - 4 compound slides in pos. 1, 2, 5, 6, - 4 radial slides in pos. 3, 4, 7, 8, - double slide in pos. 8, - 2x pick-up spindle (pos. 4 + 8), - 2x pick-up spindle stop attachment (pos. 4 + 8), - chip conveyor, hinged belt type, - high pressure coolant system, - removable coolant fluid tank, - bar stock reel for bar length 3 m, - various camms, - various gears, - electrical preparation for auto bar loader, Number of spindles: 8, Max bar diameter [mm]: 32, Spindle speed [rpm]: 270 - 3.750, Spindles interaxis [mm]: 360, Max bar feed [mm]: 125, Weight of the machine ca. [kg]: 11.500

Mori Say TM626 AC, - 5 axial slides, - 4 cross slides, - double slide pos. 6, - pickup spindle, - swarf conveyor with vibrating filter device, - high pressure coolant system, - set of tool holders, - IEMCA PRA auto bar loader L = 3 m, Country of origin: Czech Republic, Operating hours: 23.950, Number of spindles: 6, Max bar diameter [mm]: 26, Spindle speed [rpm]: 500 - 6.000, Spindle motor [kW]: 20, Total power requirement [kVA]: 40, Weight of the machine ca. [kg]: 5.500, Auto bar loader: Iemca PRA 40/33 P

Number of spindles: 6, Max bar diameter [mm]: 20, Spindle speed [rpm]: 500 - 6.000, Weight of the machine ca. [kg]: 5.000, Auto bar loader: CUCCHI BLT Typ MULTI F-6, Model AN / PB20, Version 3,3 M, Working hours: 1996

Key data: 50 kg

Say-Mak SPH 50 - Pneumatic Forging Hammer - Welded steel structure - Regular beating with valve adjustment - Pneumatic working system with 2 pistons -Hour meter - All dies and Sal-Block replaceable, Sal-Block adjustable in 8 directions - Adjustable sal block for the operator's working angle - Simple and functional automatic lubrication system for front and rear pistons - Adjustable foot pedal depending on working height and foot protection cover - 360° adjustable flanged plunger and plexiglass cover - Incl. steel foundation Specifications - Operating mode: pneumatic - Drop weight: 50 kg - Lifting height: 185 mm - Motor power: 4 kW - Weight: 1000 kg - Dimensions WxHxD: 730 x 1450 x 1750 mm

CNC CONTROL: MSD 501 II, FANUC FEATURES: DIAMETER ADMITTED ON THE BED, MM 680 MAXIMUM TURNING DIAMETER 440 MM N1 MAXIMUM TREATMENT DIAMETER N2 322 MM MAXIMUM TURNING LENGTH, MM 471 THE STANDARD MACHINING DIAMETER MM170 MAIN SPINDLE: STEP PANEL 45 MM COUNTER SPINDLE: HOLE PITCH LINE 43 MM TURRET 1: POSITION N12 ALL MOTORIZED TOWER 2: POSITION N12 ALL MOTORIZED

MAchine is in good working condition.

DMG MORI NLX2500/700 with tool drive and C-axis Universal lathe with 3-axis Turning length 700 mm Main spindle with integrated motor spindle ISM (rod diameter in mm) Hydr. Clamping devices, clamping cylinders, chucks C-axis with hydr. Spindle brake 10-speed BMT star revolver 10-speed tool drive NC tailstock CELOS with Mitsubishi control M730UM

For sale Mori Seiki CNC lathe type DL-15 in good condition. Equipped with 2 x 12 positions turret and left and right spindle. Maximum speed 6,000 rpm of both spindles. Fanuc MSC-516 control. Chip conveyors and bar feeders. Still in good condition and still under power, subject to prior sale

High-precision lathe DMG Mori Wasino G 100/480 Year of Make: 2017 Control: Fanuc COMPACT line Temperature response (cold start): ø 2.0 μm Roundness: 0.5 μm Technical data: Spindle speed: Drive power: Turning diameter: 285mm Turning length: 280mm Bar Passage: 38mm Travels: X-axis: 480mm Z-axis: 285mm Accessories - 3 pcs of powered tools - Package rigid tool holders - Fire extinguishing system - machine only ran under oil - Chip conveyors

MORI SEIKI SH-500/40 Horizontal Machining Center was built in Japan in 1999 by MORI SEIKI CO., LTD. The machine is equipped with a numerical control type MORI SEIKI MSC-502. The milling machine has a table size of 500 x 500 mm and processes workpieces weighing up to 500 kg. The travel range of its X, Y, Z axes is 630 x 600 x 650 mm, respectively. The machine spindle rotates at 12,000 revolutions per minute. The milling machine is equipped with a magazine for forty tools with a maximum tool diameter of 150 mm, length 360 mm and a weight of 12 kg. The milling center is offered at a price with different types of holders. Technical parameters of the MORI SEIKI SH-500/40 CNC milling machine - CNC control: MORI SEIKI MSC-502 Travel range: - X axis (table travel length): 630 mm - Y axis (vertical movement of the spindle head): 600 mm - Z axis (cross table movement): 650 mm - distan ...

Machine Details Stock-No. 1105-03860 Type of machine CNC Lathe Make MORI SEIKI Type SL 150 Year of manufacture 1996 Type of control CNC Storage location Warehouse Country of origin Japan Delivery time immediately Freight basis ex Warehouse, free on truck Price Technical details turning diameter 420 mm centre distance 580 mm Turning length max. 500 mm Travel X / Y 230 / 520 mm spindle turning speed range 50 - 5000 rpm spindle nose JIS A2-5 bar diameter round max 42 mm spindle bearing diameter 90 mm tool turret - number of stations 12 (12) Tool Taper 20 x 20 tailstock adjustment 515 mm tailstock quill diameter 85 mm tailstock quill taper MT 4 tailstock travel 120 mm Rapid Travel - Longitudinal/Face 24 / 18 m/min Coolant Tank 160 L connected load 21 kVA Weight of the machine approx. 4.1 t dimensions of the machine approx. 7.5 x 2.5 x 1.8 m Additional infor ...

Machine Details Stock-No. 1105-03874 Type of machine CNC Lathe - Inclined Bed Type Make MORI SEIKI Type SL 15 Year of manufacture 1991 Type of control CNC Storage location FRANCE Country of origin Japan Delivery time by arrangement Freight basis ex stock HAGUENAU FRANCE Technical details Travel -X AXIS 230 mm turning diameter 450 mm turning length 525 mm control FANUC 15TF Spindle Bore: Ø 42 mm Number of Turrets: 1 piece no. of tools in turret 1 12 Stück power capacity 7,5 kW spindle nose A2-5 tailstock quill taper MT 4 feed range 1 - 15000 mm/min Rapid Traverse 15 m/min Additional information Machine in good condition CONTROL FANUC 15 TF CHIP CONVOYER TAILSTOCK NICE MACHINE

Mori Seiki NT 1000 multitasking lathe :::SPECIFICATIONS::: CNC Model: Mori Seiki - CNC Version: Mapp - Spindle Nose: ASA 5 - Spindle Power: 11Kw - Main Spindle Speed: 6000 Turning diameter: 370mm - Self-centering diameter: 210mm - Bar passage: 42mm - Turning length: 424mm - Number of tools: 90 Tool holder: CAPTO C4 Spindle speed: 12000 X-axis travel: 380mm Y-axis travel: +105 -105mm Z-axis travel: 460mm Swivel B-axis travel: +120° -120° degrees Rapid feeds linear axes X Y Z: X 40 Y 40 Z 50m/min High refrigerant pressure: yes Pressure value: 50bar External tank system with filter: yes Number of Tool Turrets: 1 Number of first turret tool slots: 10 Number of fixed tool positions in the first turret: 10 First Turret X-Axis Travel: 155mm First Turret Z-Axis Travel: 610mm Sub-spindle: yes Sub-spindle speed: 5000 Sub-spindle power: ...

X-AXIS STROKE: 840 MM Y-AXIS STROKE: 860 MM Z-AXIS STROKE: 840 MM TABLE SIZE: 630 X 630 MM TABLE CAPACITY: 1,200 KG SPINDLE POWER: 30/25 KW ROTATION SPEED: 12,000 RPM ATTACHMENT: BT 50 NASOMANDRINO/PALLET DISTANCE: 50-810 MM SPINDLE-PLANK DISTANCE: 150-990 MM TOOL WAREHOUSE: 120 STATIONS MAX. WORKPIECE HEIGHT: 1000 MM CONTROL: MSG-502 YEAR OF BUILD: 2002

COURSE AXIS X: 840 MM COURSE ASSE Y: 860 MM COURSE ASSE Z: 840 MM TAVOLA SIZE: 630 X 630 MM TABLE RANGE: 1,200 KG TABLE INDEX: 1ST MANDRINO POWER: 30/25 KW ROTATION SPEED: 12,000 GIRI/MIN ATTACK: BT 50 NASOMANDRINO/PALLET: 50-810 MM MANDRINO - TAVOLA: 150-990 MM TOOL WAREHOUSE: 120 STATIONS MAXIMUM HEIGHT OF THE PIECE: 1000 MM CONTROL: MSG-502 BUILT: 2002

Machine-Details Stock-No. 1105-04006 Type of machine Machining Center - Vertical Make DMG MORI Type M 1 Year of manufacture 2022 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Germany Delivery time IMMEDIATELY Freight basis EX WORK Price Technical details X-Travel 550 mm Y-Travel 550 mm Z-Travel 510 mm table-size 790 x 560 mm spindle taper ISO SK 40 turning speed range 10000 1/min Feeds longditudinal/cross/vertical 1 - 30000 mm/min Rapid Motion -Longitudinal/Cross/Vertical 30 m/min No. of tools in magazin 20 Workpiece diameter at full load 80 mm Wotkpiece diameter with 2 vacant positions 140 mm Workpiece length 300 mm Weight of tools max. 7 kg Table Load 600 kg spindle drive 9 / 11 kW control SIEMENS 828D total power requirement 30 kVA Additional information cnc SIEMENS 828 D ONLY 1400 SPINDEL HOURS VERY NICE El. handwheel, CH ...

COURSE AXIS X: 840 MM COURSE ASSE Y: 860 MM COURSE ASSE Z: 840 MM TAVOLA SIZE: 630 X 630 MM TABLE RANGE: 1,200 KG TABLE INDEX: 1ST MANDRINO POWER: 30/25 KW ROTATION SPEED: 12,000 GIRI/MIN ATTACK: BT 50 NASOMANDRINO/PALLET: 50-810 MM MANDRINO - TAVOLA: 150-990 MM TOOL WAREHOUSE: 120 STATIONS MAXIMUM HEIGHT OF THE PIECE: 1000 MM CONTROL: MSG-502 BUILT: 2002

Deckel Maho DMG DMU 70eVolution 5Axis simultaneous Machining center CNC Hersteller [manufacturer]: DMG Deckel Maho Type [ type]: 70eVolution Control unit: Heidenhain iTNC 530 Incl. handwheel Baujahr[construction year]: 12/2006 - Renewed/renewed spindle - IKZ integrated cooling system for water 40bar and air (both possible) Travel X/Y/Z 750/600/520 mm B-axis 0 to 180° degrees C-axis n x +-360° degrees Table load up to 350kg Spindle speed range 20 to 18,000 1/min. Tool holder SK 40 DIN 69871 Weight [weight]: 10.000kg Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Tel. 017621834834Price, from stock here plus VAT Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - upon receipt of invoice Prior sale, errors excepted.  ...

YEAR: 08/2004 LONGITUDINAL CORSA: X 800 MM TRANSVERSE COURSE: Y 700 MM VERTICAL COURSE: Z 700 MM ASSE B INDEXED 1st PALLET (2) 500X500 MM CNC MAPPS MSG-501 TOOL WAREHOUSES 60 LOCATIONS ATTACK MANDRINO BT40 MANDRINO MASSIMA VELOCITY 12000 RPM POWER OF MANDRINO'S POWER 26 KW

Mori seiki MT 2000 multitasking lathe :::TECHNICAL SPECIFICATIONS::: CNC model: Mori Seiki - CNC version: MSC 501 - Spindle nose: ASA 6 - Spindle power: 22Kw Number of main spindle speeds: 6000 - Turning diameter: 540mm - Bar passage: 65mm - Turning length: 1020mm Number of tools: 60 Tool holder: CAPTO C6 Spindle power: 18Kw Number of spindle speeds: 8000 X-axis travel: 565mm Y-axis travel: +-80mm Z-axis travel: 1077mm Swivel B-axis travel: + - 120 ° degrees Fast feeds for linear axes X Y Z: 24m/min High refrigerant pressure: yes Pressure value: 80bar External tank system with filter: yes Number of tool turrets: 1 Number of tool positions for the first turret: 12 Number of Motorized First Turret: 12 First turret X-axis travel: 155mm First turret Z-axis travel: 1067mm Sub-spindle: yes Spindle nose: ASA 5 Number of counter ...

Key data: 490 mm, 515 mm

tock-No. 1105-04043 Type of machine CNC Turning- and Milling Center Make MORI SEIKI Type NL1500SY/500 Year of manufacture 2006 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Japan Delivery time immediately Freight basis ex Warehouse Price Technical details turning diameter 490 mm turning length 515 mm control MSX-850 max. bar capacity 52 mm Travel -X Axis 280 mm Travel -Z AXIS 490 mm max. speed main spindle 6000 min-1 spindle taper 1 A2-6 C - Axis 0.001 ° Spindle bearing diameter 110/75 mm No. of tools in turret 1 12 Shaft Cross Cut 25 x 25 mm Shank diameter 50 / 32 mm Turret Change Time 0.25 s max. spindle speed driven tools 6000 min-1 rapid power traverse in X-and Z direction 30 m/min Rapids C - Axes 400 min -1 drive capacity - spindle motor 18.5 kW power capacity - driven tools 5.5 kW swing diameter over face slide 278 mm gre ...

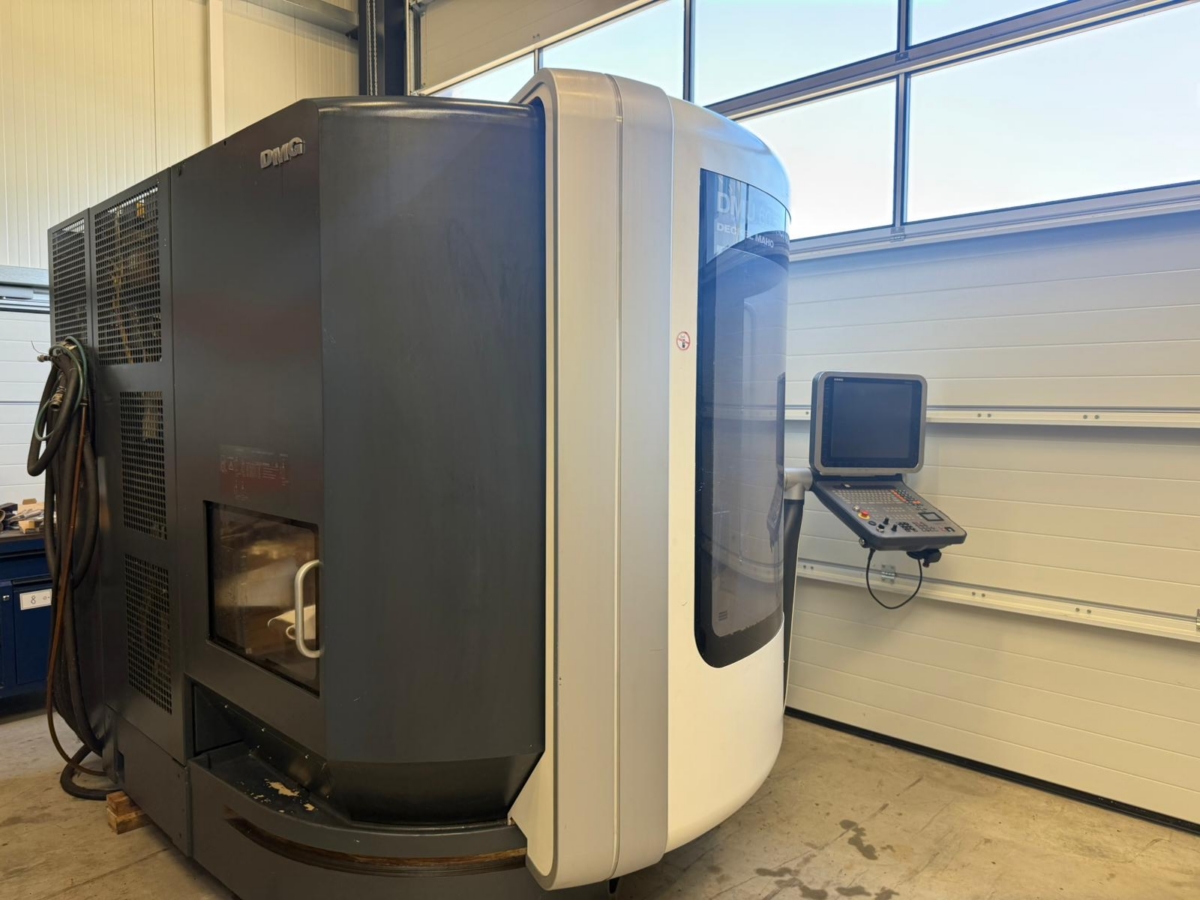

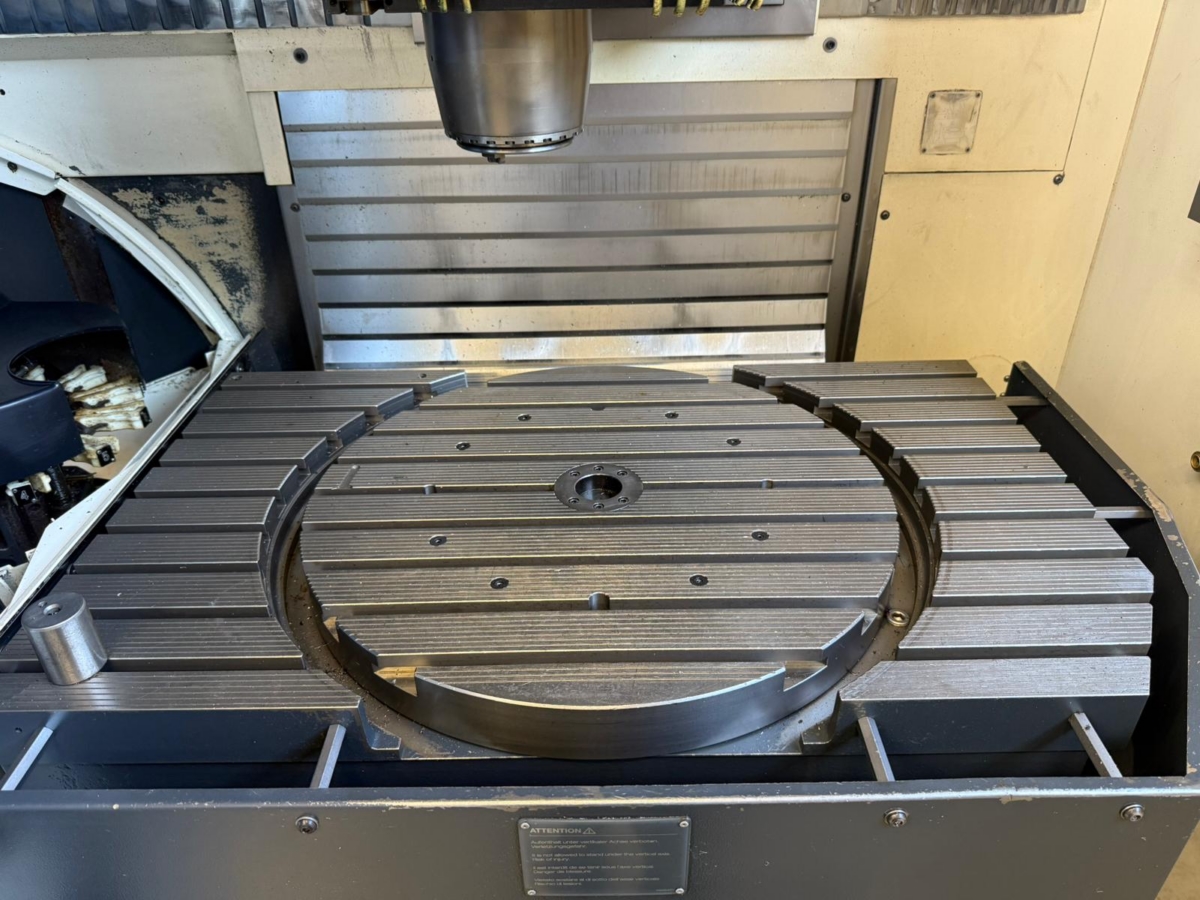

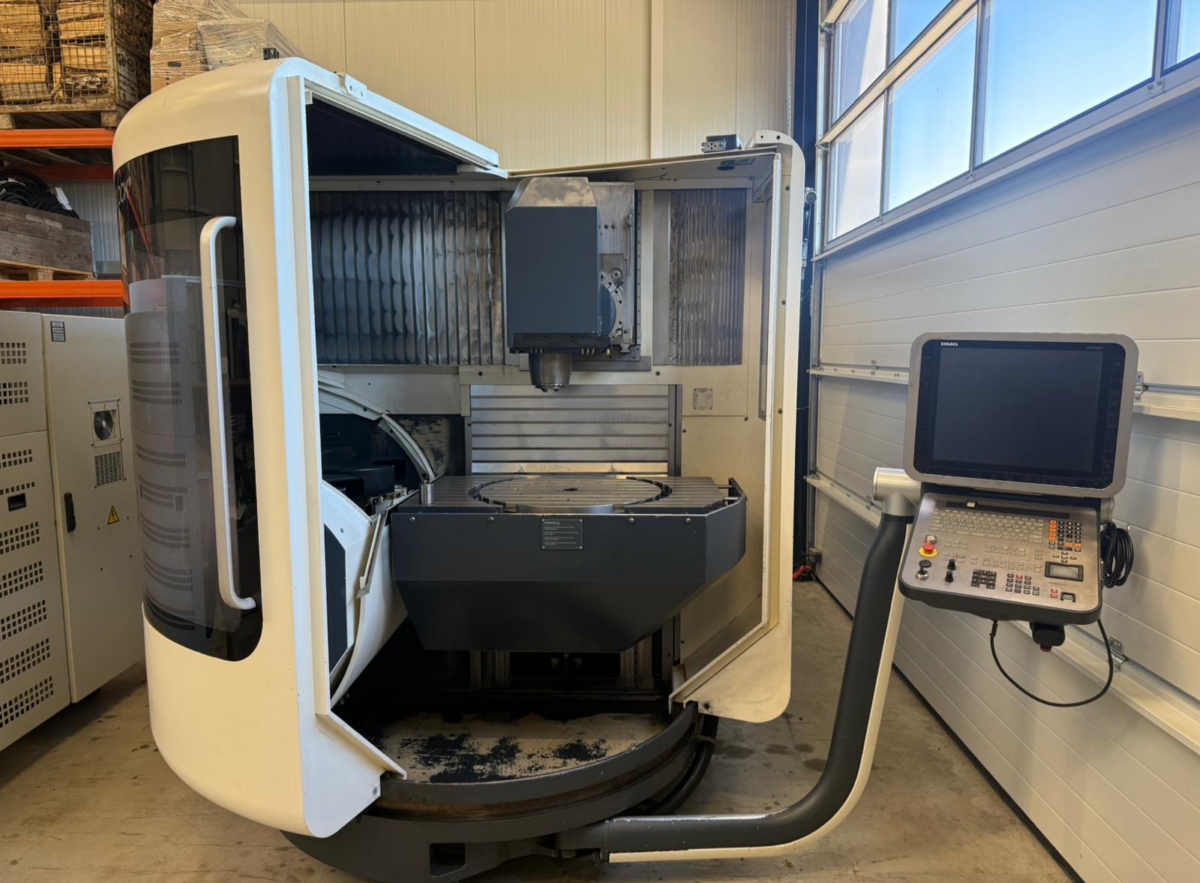

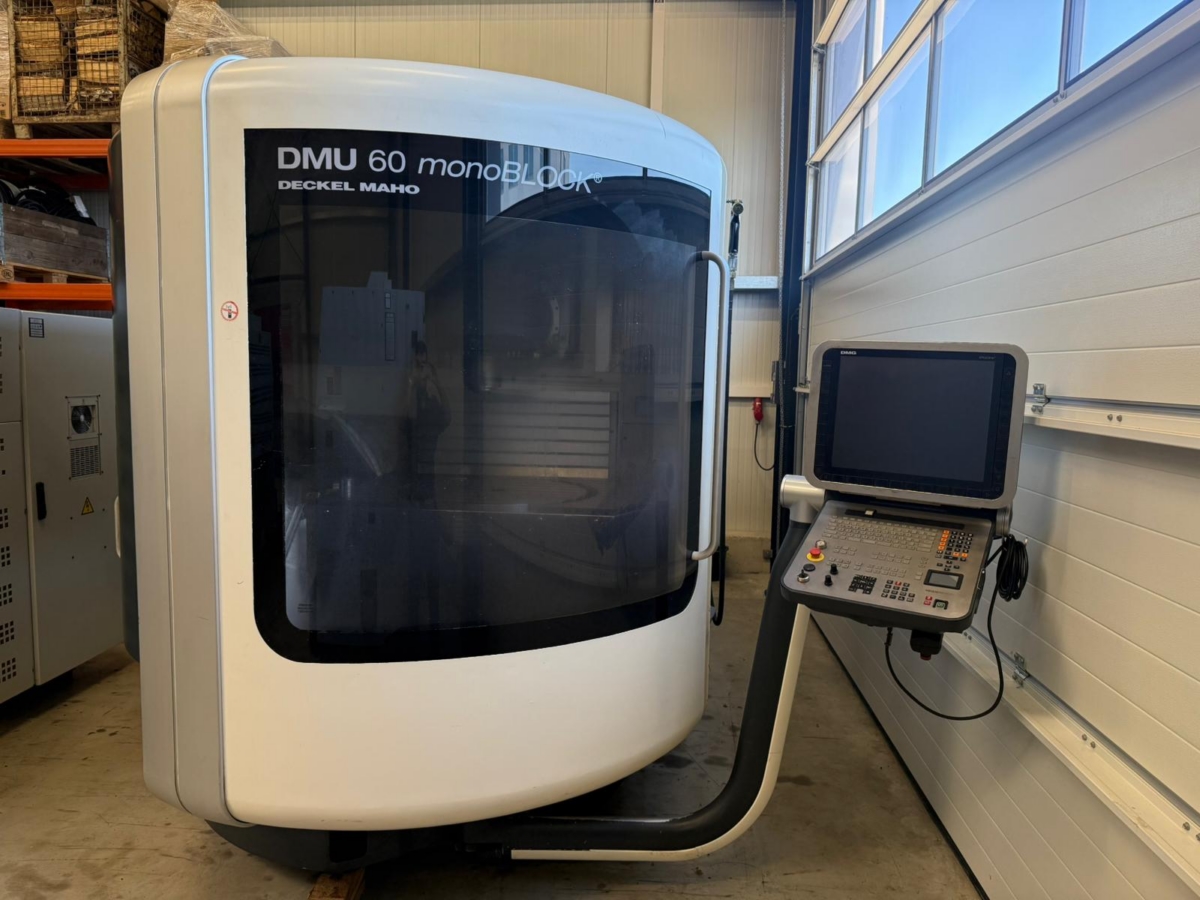

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Cross650 mmLongitudinal735 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools90 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.12400 KgNC swivel rotary table integrated in rigid tableType of Measuring system Direct measuring systemTable surface 800 x 650 (Ø 650) mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 9Rotation Speed 5. Axis 20 rpm5. Axes (swivelling range) +120/-120 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeRot ...

GeneralUniversal Machining Centre in monoBLOCK construction - MPC Machine Protection Control; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal750 mmCross650 mmVertical560 mmTechnical DataDrive power (100% DC)25 kWDrive power (40% DC)35 kWTorque (100% DC)86 NmTorque (40% DC)130 NmSpeed range- 20000 rpmSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmMiscellaneousClamping SystemHSK-A 63 Floor space/WeightWeight approx.12300 KgNC swivel rotary tableTable surface 800 x 650 (Ø 650) mmCentre bore 50h6 mmMaximum load (table centre) 600 KgDirect measuring systemDir ...

GeneralUniversal machining centre; Control: Siemens 840D-Powerline ShopMill Classic Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Cross1000 mmLongitudinal1250 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 100 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machiningProd. package 40 bar/23 l/minCoolant through spindle centre form AD 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) clear-view rotating window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar / 90 psi) (6 water jets, 4 air jets) pumpNC rotary table with pallet changerType of Measuring system Direct measuring  ...

GeneralUniversal machining centre New DMG MORI Design; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical50/50/50 m/minWorking area 1Longitudinal400 mmCross400 mmVertical375 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools60 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightDimensions (L x W x H)6,21 x 6,58 x 2,69 (6,21 x 7,38 x 2,69) mWeight approx.7200 KgDie and Mold Package linearDie and Mold Package linear Dynamic package V-type Eagle timing belt for Z axisPackage Mill / TurnPackage Mill / Turn (only available for Siemens 840D solutionline) NC-Mill-turn table 450x450 mm / 17.7x17.7 in rounded down to d460 mm / 18.1 in C ...

GeneralHorizontal universal machining center; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal650 mmCross700 mmVertical950 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDriveNC swivel rotary table direct drive Table plate: d 650 mm / 25.6 in 1 x T-slot 14 H7 / 0.55 H7 (alignment groove, table centre) 8 x T-slot 14 H12 / 0.55 H7 (clamping grooves) Permissible load: 600 kg / 1,323 lbs Rotary-axis: 80 min-1 direct drive Swivel-aKinematics a ...

GeneralHorizontal machining center; Control: Control M730BM CharacteristicsSpeed max.15000 rpmDimensions (L x W x H)2,72 x 4,22 x 2,52 mSpindle taperBT 40 Tool Magazine with40 PositionsRapid feed X / Y / Z60/6060 m/minMovement X / Y / Z560/560/660 mmPalett changer with2 PalletMaximum load (table centre)400 KgSwivelling range360 x 0,001 degreeTable size400x400 mmDrive power (100% DC)18,5 kWWeight approx.7600 Kg(For Europe) European Edition(For Europe) European Edition (NHC4000) Full 4th axis rotary table Interface for Through-spindle coolant system (7.0 MPa, Variable Pressure Steps) (KNOLL) Coolant gun for setup station side In-machine measuring system (spindle) optical signalInterface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit)Interface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit) Interface for mountin ...

GeneralHorizontal machining center; Control: Control M730BM CharacteristicsSpeed max.15000 rpmWeight approx.11100 KgSpindle taperBT 40 Tool Magazine with40 PositionsRapid feed X / Y / Z60/6060 m/minMovement X / Y / Z730/730/880 mmPalett changer with2 PalletMaximum load (table centre)500 KgSwivelling range360 x 0,001 degreeTable size500x500 mmDrive power (100% DC)18,5 kWDimensions (L x W x H)3,1 x 4,86 x 2,84 m(For Europe) European(For Europe) European Edition (NHC5000) Full 4th axis rotary table Interface for Through-spindle coolant system (7.0 MPa, Variable Pressure Steps) (KNOLL) Coolant gun for setup station side In-machine measuring system (spindle) optical signal transmissioInterface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit)Interface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit) Interface for mou ...

Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minGeneralHorizontal 5-axis universal machining centre; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal850 mmCross900 mmVertical1150 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDrive CNC swivel rotary table direct drive C-axis with pallet carrier Permissible load: 800 kg / 1,760 lbs C-axis: 80 min-1 direct drive A-axis: 15 min-1 single drive Rotation C axis: endlessly turning Swivel range A axis: +120°/-120° (replacement of base machKi ...

GeneralCNC Turning Centre; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways620 mmTransverse stroke260 mmLongitudinal stroke795 mmClamping chuck diameter max.315 mmWork spindle (left)Spindle bore91 mmSpindle diametre on front bearing140 mmMain drive 1Drive power (100% DC)22 kWSpeed range- 4000 rpmMax. torque (40% DC)525 NmTorque (100% DC)410 NmAccuracy at point stopping0,001 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-6000 rpmPower max. (100% DC)10 kWFloor space/WeightDimensions (L x W x H)3,99 x 2,03 x 2,2 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the application of an alternating speed for vibration sensitive set-ups (Only in conjunction with Siemens control)Y-Axis PartingTechnology cycle to parting off the workpiece by the Y-axis to ac ...

GeneralMilling Specification; Control: Control M730UM with CELOS CharacteristicsMax machining diameter278 mmDimensions (L x W x H)2,82 x 2,09 x 2,15 mDrive power tool spindle5,5/5,5/3,7 kWDrive power main spindle11/15/15 kWRapid feed X / Z30/30 m/minInput precision of C-axis on Mainspindle0,001 degreeRotary tool spindle speed10000 rpmMovements X / Z260/590 mmNumber of tool stations12 Speed max.6000 rpmBar diameter max.52 mmSwing- Ø, max.755 mmMax. Turning Length192 mmWeight approx.4900 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and pHigh-output spindle (Left Spindle) 15/ 11 kW, 6,000 min-1(Left Spindle) High-Output Spindle 15/11 kW (20/15 HP), 6,000 min-1 The NLX ...

GeneralCNC Turning Centre with C axis and tool drive; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways700 mmTurning diameter410 mmLongitudinal stroke850 mmTransverse stroke300 mmMax. Turning Length800 mmClamping chuck diameter max.315 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle diametre on front bearing130 mmSpindle bore87 mmMain drive 1Drive power (100% DC)33 kWSpeed range20 - 4000 rpmTorque (100% DC)580 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)225 NmAccuracy at point stopping0,01 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)11,3 kWFloor space/WeightDimensions (L x W x H)3,99 x 2,69 x 1,99 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the  ...

GeneralCNC Turning Centre with C axis and tool drive; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways700 mmTurning diameter410 mmTransverse stroke300 mmLongitudinal stroke850 mmMax. Turning Length800 mmClamping chuck diameter max.315 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWSpeed range25 - 5000 rpmTorque (100% DC)280 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)225 NmAccuracy at point stopping0,01 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)11,3 kWFloor space/WeightDimensions (L x W x H)4,46 x 1,88 x 2,30 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the  ...

GeneralTwo spindle turning/milling centre with - Main and counter spindle; Control: CELOS with Siemens 840D sl Operate Tool holder 2Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.4000 rpmPower max. (40% DC)10 kWTool magazineNumber of tools24 Max. tool length230 mmMax. tool diameter80 mmMax. tool weight7 KgTurning-milling spindleSpindle taperHSK-A 63 Spindle speed-12000 rpmDrive power (100% DC)19 kWDrive power (40% DC)22,5 kWTorque (100% DC)85 NmTorque (40% DC)120 Nmlocking moment1000 NmSwivelling range+/-110 degreeSlide 3Longitudinal stroke1200 mmSlide 2Longitudinal stroke1200 mmTransverse stroke195 mmSlide 1Transverse stroke490 mmLongitudinal stroke1200 mmY axis, vertical+/- 100 mmHeadstock, rightClamping chuck Ø315 mmSpindle nose diameter170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmDrive power (100% DC)25 kWDri ...

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways500 mmMax. Turning Length1200 mmTurning diameter500 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 ...

Working areaSwing diameter over guide ways500 mmTurning diameter500 mmMax. Turning Length1200 mmBar diameter max.65 mmGeneral- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Work spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 ...

GeneralIntegrated Mill Turn Center; Control: Control F31iB5 with CELOS CharacteristicsSwing- Ø, max.700 mmMilling spindle upper side1 Bar diametre80 mmSpeed max.4000 rpmMax. Turning Length1530 mmMax machining diameter670 mmDrive power tool spindle5,5/3,7 kWDrive power milling spindle28/23 kWDrive power main spindle18,5/15 kWMovements X / Z200/1542 mmLower Turret10 PositionsNumber of Toolmagazine positions38 Speed max.12000 rpmSlewability of B-Axis±120 degreeMovements X / Z / Y675/1562/300 (±150) mmWeight approx.18500 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and p(Left Spindle) through-spindle hole dia. 91 mm, 4,000min-1 (STD)(Left Spindle) Through-spindle Hol ...

GeneralCNC Turning Centre; Control: Control M730UM with CELOS CharacteristicsMax machining diameter406 mmDimensions (L x W x H)3,35 x 2,11 x 2,2 (3,99 x 2,11 x 2,2) mDrive power main spindle22/18,5 kWRapid feed X / Z30/30 m/minMovements X / Z260/795 mmRotary tool spindle speed10000 rpmNumber of tool stations12 Speed max.2500 rpmBar diameter max.102 mmSpindle bore111 mmMax. Turning Length705 mmWeight approx.6400 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and pLeft Spindle through-spindle hole dia. 111 mm (spindle speed 2,500 min-1, 22/ 18.5 kW)(Left Spindle) Through-Spindle Hole Dia. 111 mm (4.37-inch) (Spindle Speed 2,500 min-1, 22/18.5 kW) The NLX 2500 adopts a h ...

MORI SEIKI SH-400 Horizontal Machining Center was manufactured in 2000 in Japan by Mori Seiki CO., LTD. The CNC milling machine is equipped with Mori Seiki MSC-501 numerical control. The price of the machine includes various types of frames. Technical data of the MORI SEIKI SH-400 CNC milling machine - CNC control: MORI SEIKI MSC-501 - machine weight: 10100 kg

4 pcs. rope pulleys for counter weight of a FB 225 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways500 mmMax. Turning Length1200 mmBar diameter max.65 mmTurning diameter500 mmWork spindle (left)Diametre of spindle nose170h5 mmSpindle noseFlat flange Spindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 ...

Machine Details Warehouse number 1105-03545 Machine Type Machining Center - Vertical Mori SEIKI brand Type MV 40 B Year of construction 1991 Control type CNC Controller (FANUC 16M) MSG M 4 Storage location FRANCE Country of origin Japan Delivery time immediately Freight base from stock HAGUENAU FRANCE Price Technical details x-travel 800 mm y-travel 410 mm z-travel 510 mm Controller (FANUC 16M) MSG M 4 Rapid traverse X-axis 20 m/min Rapid traverse y - direction 20 m/min Rapid traverse Z-axis 15 m/min Table area 1150 x 450 mm Tool holder BT 40 Number of tool holders 30 tool diameter 80 mm tool length 250 mm tool weight 8 kg Speed range 10000 1/min Total power requirement 5.5 / 7.5 kW Machine weight approx. 6 t Information SUPER MACHINE CNC MORI MSG M 4 FANUC 16 WITH 4 AXIS NIKKEN

MORI SEIKI NT6600 CNC INTEGRATED MILL TURN CENTER WITH LIVE MILLING MAXIMUM SWING OVER BED: 42" MAXIMUM WORK PIECE DIAMETER: 42" MAXIMUM WORK PIECE LENGTH: 239" MAXIMUM BAR DIAMETER: 6.4" SPINDLE BORE: 7" X AXIS TRAVEL: 41" Y AXIS TRAVEL: 26" Z AXIS TRAVEL: 242" B AXIS: +/- 120 DEG. MAIN SPINDLE SPEED: 1500 RPM MAIN SPINDLE MOTOR: 40 HP MILLING SPINDLE SPEED: 8000 RPM MILLING SPINDLE MOTOR: 40 HP ELECTRICS: 220V/3P/60Hz/216A OAD (APPROXIMATE): 490" X 182" X 169" HIGH WEIGHT (APPROXIMATE): 120,560 LBS. EQUIPPED WITH: C AXIS YAXIS B AXIS LIVE TOOLING/MILLING 20" CHUCK FS-31iA5 CNC CONTROL 140 POSITION AUTOMATIC TOOL CHANGER PROGRAMMABLE TAILSTOCK COOLANT THROUGH SPINDLE (HIGH PRESSURE) CHIP CONVEYOR Additional Control Options: Automatic Power Shut-Off MAPPS 4 System Part Program Storage: 8mb Stored Programs: 1000 Remote Communication Function ATA Flash M ...

Machine Details Stock-No. 1105-03607 Type of machine CNC Turning and Milling Center Make MORI SEIKI Type SL 150 SMC Year of manufacture 1997 Type of control CNC Storage location FRANCE Country of origin Japan Delivery time immediately Freight basis ex stock Technical details turning diameter 420 mm turning length 560 mm control fanuc 16 T swing dia. 455 mm rapid power traverse in X-and Z direction 18/24 m/min Travel x/z 220 / 520 mm bar material dia. 45 mm spindle drive 11 / 7.5 kW Spindle RPM 50 - 5000 U/min Spindle Torque 143 Nm spindle nose JIS A2-5 Turret positions 12 supspindel wiht 3 jaw chuck sup spindle Travel 450 mm total power requirement 25 kW Additional information WHIT FANUC 16 T CONTROL SUP SPINDLE C AXIS LIVE TOOLS X 5 PARTS CATCHER COLLECT CUCK OFF MAIN SPINDLE AND 3 JAW CHUCK OFF SUP SPINDLE - coolant equipment SHIP CONVEYOR

Machine Details Warehouse number 1105-03650 Machine Type Machining Center - Vertical Mori SEIKI brand Type MV 40 E Year of construction 2001 Control type CNC Control msc 500 (FANUC 16M) Storage location FRANCE Country of origin Japan Delivery time immediately Freight base EX WORK Technical details x-travel 560 mm y-travel 410 mm z-travel 460 mm Control msc 500 (FANUC 16M) Rapid traverses x/y/z 20/20/15 m/min Table area 900 x 450 mm Tool magazine: 30 BT 40 tool diameter 80 mm tool length 250 mm tool weight 8 kg Spindle speed 8000 1/min Spindle motor 7.5 kW Total power requirement 30 kW Machine weight approx. 5 t Space requirement approx. 2.48 x 2.25 x 2.8 m Information FANUC 16 M 2 SPAENEFOERDERER

CNC controller: Mitsubishi M-720BM (MAPPS 2) Capacity X-axis travel mm: 260 Z-axis travel mm: 520 C-axis: 360º (0.001°) Turning length mm: 515 Max. turning diameter mm: ø: Ø356 Upper turret Tool holder: 12 Main spindle Speed spindle rpm: 5000 Drive power spindle kW: 15/11 Spindle bore mm: 73 Manufacturer: KITAGAWA Counter spindle Counter spindle travel mm: 525 Equipment Chip conveyor Signal lamp Tool measuring arm Workarea light Working time hours Under power: 7.456 Cutting Time: 5.423 Basic machine dimensions / weight Length mm: 3.495 Width mm: 2.050 Height mm: 2.230 Weight kg: 5.800

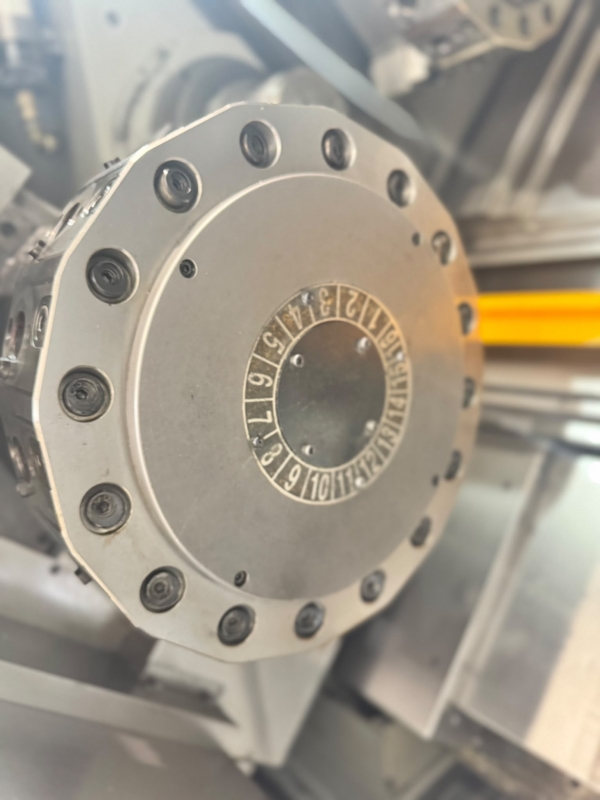

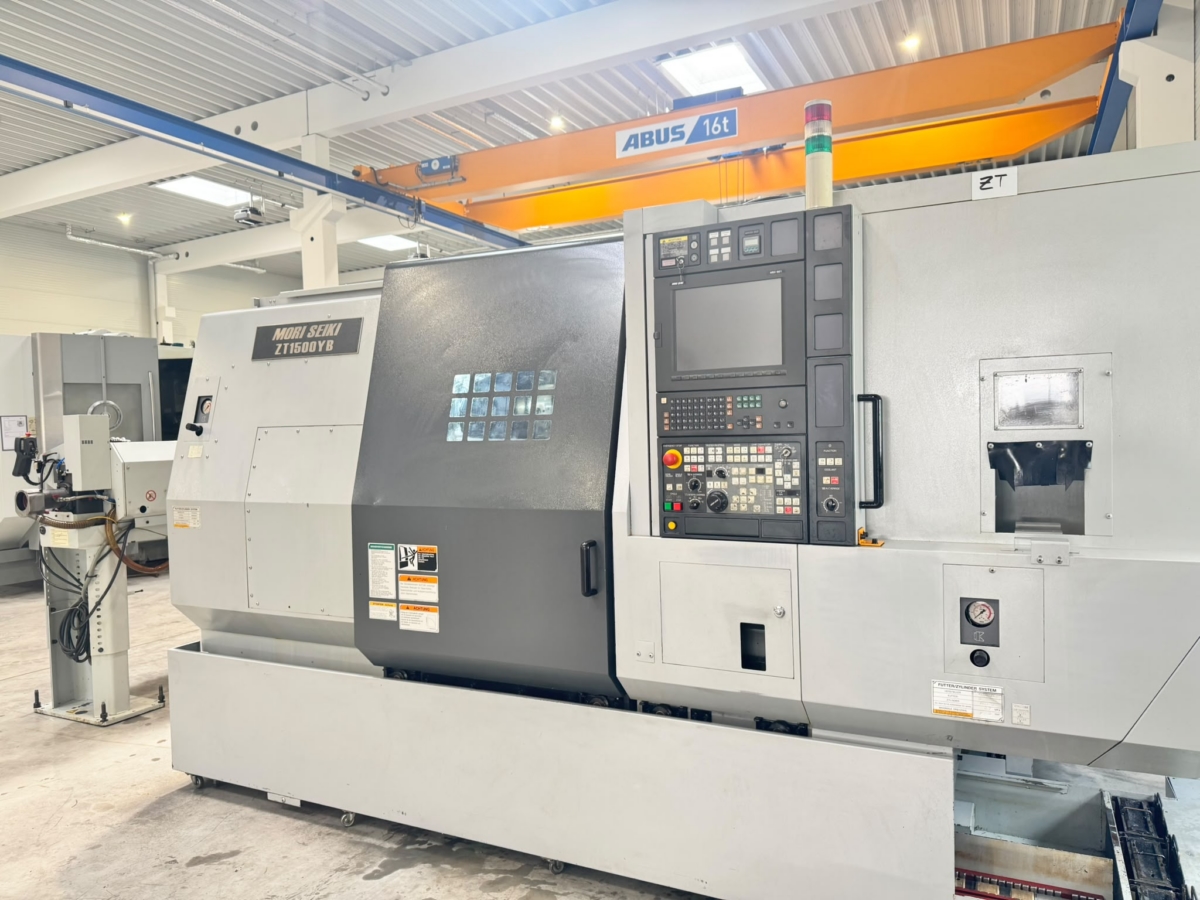

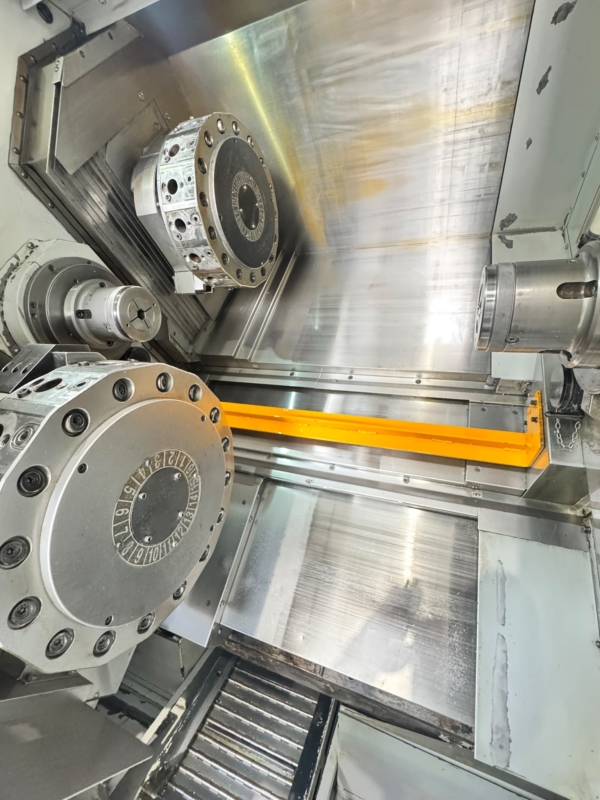

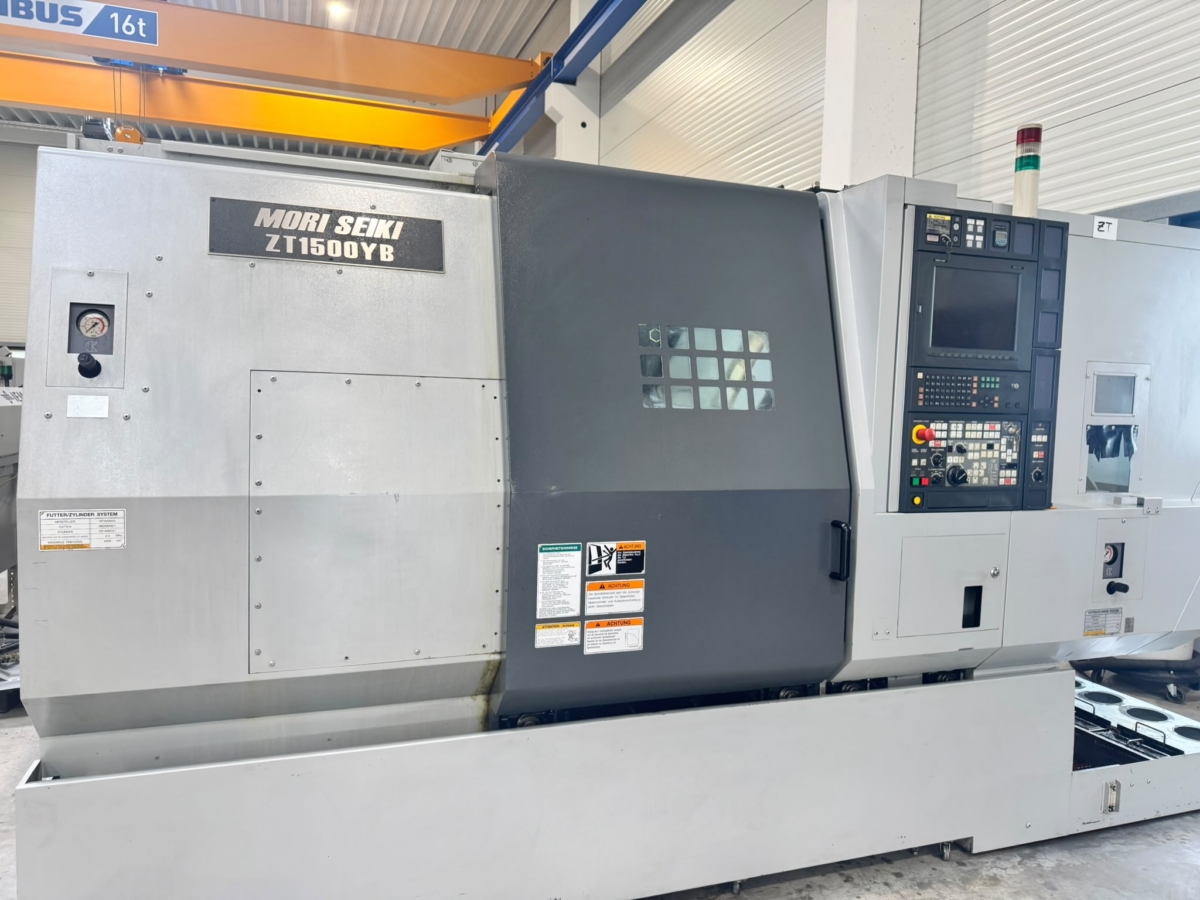

Mori Seiki ZT 1500YB in operation, can be viewed during operation. 2002 yes Mori CL 2000 can be viewed under power. Currently not in operation 2004 yes Mori Seiki SL-204 can be viewed under power. Currently not in operation 2001 yes Mori Seiki SL-204 can be viewed under power. Currently not in operation 2003 yes

Mori Seiki ZT 1500YB in operation, can be viewed during operation. 2002 yes Mori CL 2000 can be viewed under power. Currently not in operation 2004 yes Mori Seiki SL-204 can be viewed under power. Currently not in operation 2001 yes Mori Seiki SL-204 can be viewed under power. Currently not in operation 2003 yes Tsugami NP-32 can be viewed under power. Currently not in operation 1992 yes Riello in operation, can be viewed during operation. 2002 yes Muratec MW 120 GT 2012

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Working areaTurning diameter500 mmSwing diameter over guide ways500 mmMax. Turning Length1200 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 Spindle speed-12000 rpmDrive power (100% ...

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways500 mmTurning diameter500 mmMax. Turning Length1200 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 Spindle speed-12000 rpmDrive power (100% ...

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways500 mmMax. Turning Length1200 mmTurning diameter500 mmBar diameter max.65 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 ...

CNC controller: MITSUBISHI MSX-853 IV Axes X-axis travel mm: 560 Y-axis travel mm: 560 Z-axis travel mm: 660 Distance spindle nose - table surface mm: 80-640 Feed rates m/min: 0-60 Worktable Number of pallets: 2 Table dimensions mm: 400 x 400 Maximum workpiece size (D x H) mm: 630x900 Max. workpiece weight kg: 400 APC time s: 9 División estandar Grados: 360 - 0.001º Spindle Spindle speed rpm: 12.000 Spindle drive power kW: 15/11 Spindle torque Nm: 110 Bearing Inner Diameter mm.: 80 Tipo: SJ-2B4351TK Tool system Tool magazine slots: 40 Max. Tool Diameter: 70 With free neighboring places mm: 170 Max. Tool Length mm: 450 Max tool weight kg: 8 Tool Shanks : MAS-BT40 Equipment Chip conveyor Workarea light 4th axis Cooling Tank capacity: 170L High-pressure bar: 15 Machine running times Under power: 64.734 Rated power kVA: ...

Machine Details Stock number 1105-03758 Machine type CNC lathe - inclined bed machine Brand MORI SEIKI Model SL 250 BMC Year of construction 1999 Control type CNC Control FANUC MSC 503 Storage location FRANCE Country of origin Japan Delivery time immediately Freight base EXW (Incoterms 2000) free Technical details Turning diameter 356 mm Turning length 500 mm Control FANUC MSC 503 Turning diameter over bed 520 mm Turning diameter above the paddling carriage 275 mm Center width 525 mm Travel - x 260 mm Travel - z 550 mm Spindle speeds 42 - 4000 rpm Spindle bore 85 mm Turret head (x-fold) 12-fold Shank cross-section 25 Shank diameter 50 mm Rapid traverse longitudinal 15000 mm/min Rapid traverse plan 12000 m/min tailstock stroke 491 mm Motor power 15 / 11 kW Total power requirement 30 kW Machine weight ca. 5.5 t Information VERY well maintained machine wit ...

Machine Details Stock number 1105-03760 Machine type machining center - vertical Brand MORI SEIKI Type MV 40 Year of construction 1999 Control type CNC Control msc 501 (FANUC 16M) Storage location FRANCE Country of origin Japan Delivery time immediately Freight Base EX WORK Price Technical details x-travel 560 mm y-travel 410 mm z-travel 460 mm Control msc 501 (FANUC 16M) Rapid traverse x/y/z 20/20/15 m/min Table surface 900 x 450 mm Tool magazine: 30 BT 40 tool diameter 80 mm tool length 250 mm tool weight 8 kg Spindle speed 8000 1/min Spindle motor 7.5 kW Total power requirement 30 kW Machine weight ca. 5 t Space requirement approx. 2.48 x 2.25 x 2.8 m Information The machine IS IN GOOD CONDITION CONTROL MSG 501

Machine Details Stock number 1105-03771 Machine type CNC lathe Brand MORI SEIKI Type SL 25 B/500 Year of construction 1992 Control type CNC Control mori Fanuc MF T6 T6 fanuc mori Storage location FRANCE Country of origin Japan Delivery time immediately Freight base from site Technical details Turning diameter 260 mm Turning length 625 mm Control mori Fanuc MF T6 T6 fanuc mori Circumferential diameter over bed 520 mm Orbital diameter via slide 350 mm Turning length 530 mm Travel - x 160 mm Travel - z 590 mm Speed 35-3500 rpm Spindle nose A2-6 Spindle bore 80 mm Bearing diameter 130 mm Turret head 10 pos. VDI Tool change time 0.7 sec Rapid traverse X-axis 12 m/min Rapid traverse Z-axis 15 m/min Quill diameter 110 mm Quill stroke 100 mm Tailstock displacement 491 mm Drive power - spindle motor 15/11 kW Total power requirement 40 kW Machine weight ca. 5 t  ...

CNC controller: Siemens 840D sl with CELOS ERGOline Capacity X-axis travel mm: 480 (–10) Y-axis travel mm: ±100 Z-axis travel mm: 845 B-axis travel mm: ±110° (0,001º) C-axis: 360º (0,001º) Turning length mm: 800 Max. turning diameter mm: ø: 500 Distance between spindle centers mm: 1.020 Turn-mill spindle Speed spindle rpm: 12.000 Drive power kW: 22 / 19 Tool magazine Magazine places: 24 Tool holder: HSK-A63 Tool length max. mm: 300 Tool diameter max. mm: 125 Tool weight max kg: 7 Main spindle Speed spindle rpm: 5.000 Drive power spindle kW: 25 / 34 (100 / 40%) Spindle bore mm: 67 Maximun torque Nm: 380 / 280 Counter spindle Speed spindle rpm: 6.000 Drive power spindle kW: 20 / 27 (100 % / 40%) Spindle bore mm: 52 Maximun torque Nm: 170 Counter spindle travel mm: 800 Coolant system Tank capacity liter: 600 L High-pre ...

GeneralCNC Turning Centre with C axis and tool drive; Control: CELOS with Siemens 840D sl Operate Work spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmWorking areaSwing diameter over guide ways700 mmTurning diameter410 mmTransverse stroke300 mmLongitudinal stroke850 mmClamping chuck diameter max.315 mmMax. Turning Length800 mmBar diameter max.65 mmMain drive 1Drive power (100% DC)33 kWSpeed range20 - 4000 rpmTorque (100% DC)580 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)225 NmAccuracy at point stopping0,01 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)11,3 kWFloor space/WeightDimensions (L x W x H)3,99 x 2,69 x 1,99 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the  ...

Key data: 700 mm, 420 mm, 380 mm

Specifications: Manufacturer: DMG MORI Type: Milltap 700 Year of Make: 2016 Control: Siemens 840D SL Travel: X 700 mm Y 420 mm Z 380 mm Switch-on hours: 32,722 h Program runtime: 24,284 h Spindle running time: 12,539 h Spindle Speed: 10,000 rpm Tool holder: DIN30 NC swivel rotary table Table load: max. 100 kg Swivel range A: -100/+120° Rotation range C: 360° Dimensions and weight Dimensions: 2,500 mm x 1,650 mm x 2,950 mm Weight: approx. 3,400 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Tool Changer Conveyor IKZ Internal tool cooling with high-pressure system Preparation for automation

Machine Details Stock number 1105-03807 Machine type CNC turning and milling center Brand Mori Seiki Type NL 2000 SY Year of construction 2005 Control type CNC Control MSX 850 Mapps 3 Storage location FRANCE Country of origin Japan Delivery time immediately Freight Base EX WORK Technical details turning diameter 356 mm Turning length 510 mm Control MSX 850 Mapps 3 Swing diameter 755 mm Standard turning diameter 275 Rod diameter 65 mm Travel - x 260 mm Travel - z 590 mm Spindle drive 15 kW Spindle speed 5000 1/min Turret stations / powered 12/12 Rapid traverse - longitudinal/flat 30 m/min Total power requirement 32 kW Machine weight ca. 5,8 t Space requirement approx. 2320 x 1783 x 1819 mm Accessories Conveyor High-pressure cooling 5 bar Workpiece counter Total counter Double foot switch Information High performance CNC lathe SUP SPINDLE + C AXIS + ...

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 100 mm - B-axis ±110° with pneumatic locking - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 5 bar; 20l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor - USB interface, Ethernet interface; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways500 mmTurning diameter500 mmMax. Turning Length750 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWTorque (100% DC)280 NmSpeed range- 5000 rpmDrive power (40% DC)32 kWMax. torque (40% DC)360 NmC-Axis Speed-5000 rpmTorque of C-Axis (holding torque)280 NmT ...

DMG Mori Seiki LaserTec 50 FineCutting Sauer CNC Laser Precision Machine Year / Model: 2019 Control: Celos with Siemens 840D sl Operate CELOS with Siemens 840D sl Operate including 2l .5 ERGOline Control with multi-touch screen CNC Laser Precision Machine with High Speed Machining LASERTEC 50 FineCutting for laser fine cutting, laser drilling, laser welding NC swivel rotary table highly dynamic and precise Travel: 500 mm x 500 mm x 700 mm travel integrated ytterbium cw fiber laser 450W qcw ytterbium fiber laser with 4500W Pulse peak power and 450 W power Processing head (80 mm focal length), 5-axis transformation 100 working hours (new-new) Kaufpreis neu/Buying price in year 2020: 890.000,- Eur, Made in DMG Germany. Included: Fanuc robot automation + Keller autom. Extraction system solid machine base frame made of mineral casting, Camera through optical path for fib ...

DMG MORI NTX 2000/1500 SZM CNC turn-mill center was built in 2018 in Japan by DMG MORI CO., LTD. The machine on offer is an excellent choice for the mass production of precision parts, which are used in such industries as automotive or aerospace. This is because the NTX 2000/1500 SZM enables simultaneous turning and milling of workpieces with even the most complex geometries, in a single working cycle. The combination of these two processes significantly reduces production costs, as well as overall working time. The machining process is performed by using the state-of-the-art technology available on the market. It includes, among others, two spindles with a labyrinth cooling system. This system was designed for frequent use of high-pressure coolant. It ensures a constant zero-point height throughout the working cycle, regardless of the amount of generated heat. To limit the effect of  ...

GeneralUniversal Milling Machining Centre - Linear pallet changer with 2 pallets - Coolant tank 2,500 lt / 660 gallon - Chip conveyor - Rotating clear-view window - Electronic handwheel; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical60000/30000/40000 mm/minRapid traverse longitudinal/transverse/vertical60/30/40 m/minWorking area 1Longitudinal3400 mmCross3400 mmVertical2000 mmTool changerType of magazineWheel Tool changer planevertical Type of gripperDouble gripper Clamping surface: 2,000 mm x 2,500 mm / 78.7 in x 98.4 in (DIN 55201 - A2) centre bore: d 100 mm H6 / d 4 in H6 level bush: d 25 mm H6 / d 0.9 in H6 Number of T-slots: 1x 22 H7 (alignment groove, table centre) 8x 22 H12 (clamping grooves) Distance betweeUniversal head with controlled B-axisContinuously positioning universal milling head (B axis) with integrated motor spindle for  ...

GeneralUniversal Milling Machining Centre - Linear pallet changer with 2 pallets - Coolant tank 2,500 lt / 660 gallon - Internal coolant supply 40 bar / 580 psi through spindle centre (AD) - Chip conveyor - Rotating clear-view window - Electronic handwheel; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical60000/30000/40000 mm/minRapid traverse longitudinal/transverse/vertical60/30/40 m/minWorking area 1Longitudinal3400 mmCross3400 mmVertical2000 mmTool changerType of magazineChain Tool changer planevertical Type of gripperDouble gripper Clamping surface: 2,000 mm x 2,500 mm / 78.7 in x 98.4 in (DIN 55201 - A2) centre bore: d 100 mm H6 / d 4 in H6 level bush: d 25 mm H6 / d 0.9 in H6 Number of T-slots: 1x 22 H7 (alignment groove, table centre) 8x 22 H12 (clamping grooves) Distance betweeCabineFull protection cabinExtension Z travel range to 2 ...

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways500 mmTurning diameter500 mmMax. Turning Length1200 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 ...

Working areaSwing diameter over guide ways500 mmTurning diameter500 mmMax. Turning Length1200 mmBar diameter max.65 mmGeneral- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Work spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle speed-12000 rpmSpindle  ...

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways500 mmTurning diameter500 mmMax. Turning Length1200 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 Spindle speed-12000 rpmDrive power (100% ...

turning diameter: max. 320 mm turning length: 810 mm control: MSX 701 MAPPS III standard turning dia.: 200 mm Main spindle:: Number of revolutions: max. 6.000 min/-1 power capacity - main spindel: 22 / 18,5 kW Bar feed: max. 52 mm spindle bore: 61 mm C-Axis: 0,001 ° Subspindel:: Number of revolutions: max. 6.000 min/-1 power capacity - Sub spindle: 22 / 18,5 kW Bar feed: max. 52 mm spindle bore: 61 mm C-Axis: 0,001 ° Turret 1 + 3:: number of toolpositions: je 16 pos. Number of driven toolspositions: je 16 pos. Spindle speed - driven tools: max. 6.000 min -1 power capacity - driven tools: 7,5 / 5,5 kW Y - Axis: 110 (+65 / -45) mm Turret 2:: number of toolpositions: 16 pos. Number of driven toolspositions: 16 pos. Spindle speed - driven tools: max. 6.000 min -1 power capacity - driven tools: 7,5 / 5,5 kW Y - Axis: 110 (+45 / -65) mm axis stroke:: x-travel: 1-3: 210 mm y-travel: 1-3: ...

GeneralUniversal Machining Centre Vertical headstock Tool change system double gripper NC-Swivel rotary table with pallet carrier 3 pallets 500 mm x 500 mm / 19.7 in x 19.7 in T-slots according to DIN 55201-A2 linear pallet changer coolant tank 500 l / 132 gallon chip conveyor with netting band filter integrated, coolant ring jet; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmFloor space/WeightWeight approx.17800 KgDirect measuring systemDirect path measuring systemCabineFull protection cabinPackage Mill / Turn HSK-A 63Package Milling / Turning: Upgrade NC-swivel rotary table to Milling - Turning / direct drive Pallet C-axis d 630 mm / 24.9 in Speed C-axis 1.000 rpm Integrated balancing sensor  ...

GeneralUniversal turning-/milling center; Control: CELOS X with Siemens SINUMERIK ONE Working areaSwing diameter over guide ways580 mmTurning diameter550 mmMax. Turning Length1600 mmBar diameter max.104 mmWork spindle (left)Spindle bore118 mmSpindle diametre on front bearing160 mmMain drive 1Drive power (100% DC)32 kWDrive power (40% DC)36 kWSpeed range- 4000 rpmBench speed510 rpmTorque (100% DC)600 NmMax. torque (40% DC)720 NmTurning-milling spindleSpindle speed-12000 rpmDrive power (100% DC)8,8 kWDrive power (40% DC)10,5 kWSpindle taperHSK-T 63 Torque (100% DC)73 NmTorque (40% DC)90 Nmlocking moment800 NmSwivelling range+/- 120 degreeTool magazineType of magazineChain Number of tools30 Max. tool diameter78 mmMax. tool-Ø with free adjacent pockets130 mmCounter spindle ISM 102, A2-8Counter spindle as integrated spindle motor, ISM 102, A2-8 - Drive power 32/36 kW (S1-100%ED / S3-40%ED)  ...

Tool pressetter Needs new computer and software Estimated price 2022 from producer € 4500,--

CNC lathe DMG MORI ecoTurn 450 With Siemens 840 D SLIMline controller Year of Make: 2016 Max. rotatable diameter: 315 mm Wheelbase: 685 mm Travel X : 224 mm Travel Z : 600 mm Spindle bore: 91 mm Max. spindle speed: 4000 rpm With the following accessories: Slide protection with interior lighting 12-speed turret with 12 driven stations C axis , Y axis +/- 50 mm 5 pcs of VDI 40 powered tools 60 VDI 40 tool holders Hydraulic Collet Chuck HAINBUCH with Foot Switch Tool measuring device in the work area Workpiece pick-up device Tailstock with quill Signal light 4 colour Chip conveyor Rinsing gun Coolant device with reinforced pump 20 bar Operating Instructions

Key data: 510 mm, 510 mm, 510 mm

Machine Details Stock-No. 1105-03907 Type of machine Machining Center - Vertical Make MORI SEIKI Type CV 500 Year of manufacture 1998 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Japan Delivery time CALL ME Freight basis EXW (Incoterms 2010) loaded on Technical details X-Travel 510 mm Y-Travel 510 mm Z-Travel 510 mm control MSC 803 number of spindle speeds 8000 spindle drive 7.5 kW Rapid Travel X/Y/Z 42/32 mm/min table-size 750 X 550 mm tool changing time 1.5 sec tool magazine: 25 BT 40 total power requirement 51 kW Weight of the machine approx. 4 t Accessories Memory 640 m Helical Interpolation Cylinder interpolation Additional information ROTARY DOUBLE TABLE CNC MSG 803 Technical details and information subject to amendments and errors.

GeneralUniversal Milling / Turning Machining Centre with duoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal800 mmCross1050 mmVertical850 mmTool changerApplicationUniversal Type of magazineWheel Tool changer planehorizontal Type of gripperDouble gripper Number of tools63 Floor space/WeightWeight approx.18500 KgUniv. milling head w. controlled B-axis HSK-A 100Universal milling head with controlled B-axis HSK-A 100 (only with motor spindle HSK-A 100)NC milling/turning tableNC mill-turn table 1 x T-slot as cross slot 12 x T-slots as starslots / 22,5 ° with integrated balancing sensorCoolant supply ICSCoolant through spindle centre form AD, 40 bar/23 l/min Multi-jet unit at milling head, switchable from coolant ...

MORI SEIKI MV 65-50 Year 1986 - STROKES (mm) X = 1270 Y = 650 Z = 650 -FANUC 11M CNC control -Tool holder -30 tool warehouse

General- partial hollow clamping device (hydraulic), - C-axis and spindle brake (hydr.) - upper compound slide with turning-/ milling spindle, with hydraulic locking reception HSK-A63, DIN 69893 - Y-axis ±210 mm - B-axis ±120º interpolating, Torque motor - tool magazine 36-fold disc magazine, ergonomic front load - absolute, direct measuring systems in X-, Y-, Z1-axis - cooling pump 6 bar;20 l/min,; Control: CELOS X with Siemens 840D SL Operate Main drive 1Drive power (100% DC)33 kWDrive power (40% DC)40 kWSpeed range- 4000 rpmTorque (100% DC)580 NmMax. torque (40% DC)700 NmC-Axis Speed-4000 rpmTorque of C-Axis (holding torque)1100 NmAccuracy at point stopping0,001 degreeWorking areaSwing diameter over guide ways700 mmTurning diameter630 mmClamping chuck diameter max.400 mmDistance between spindles2260 mmBar diameter max.102 mmTurning-milling spindleSpindle taperHSK-A 63 DIN 69 ...
