mikron milling machines used for sale

Table clamping surface: 500 x 1000 mm stroke x: 630 mm traverse path y: 500 mm traverse path z: 460 mm Quill stroke: hand 45 mm spindle retainer: ISA 40 spindle speeds: 31.5-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse: x/y 6 / z 4 m/min. Supply: 380 V, 6/8 kW space: 1800 x 2120/2600 x 2020 mm weight: 3100 kg

x-travel: 800 mm y-travel: 500 mm z-travel: 460 mm table surface area: 1000 x 500 mm spindle taper: SK 40 control: HEIDENHAIN TNC 150 spindle turning speed range: 31,5 - 3150 U/min feeds longditudinal/cross/vertical: 1 - 3000 mm/min rapid traverse longitudinal and cross: 6 m/min rapid traverse vertical: 4 m/min quill stroke: 110 mm distance spindle nose and table: max. 559 mm table load capacity: max. 500 kg total power requirement: 14 kW weight of the machine ca.: 3,1 t dimensions of machine L x W x H: 2,15 x 1,8 x 2,15 m Accessories: vertical head with hydr. tool clamping and quill retraction, solid table, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mm y-travel: 500 mm z-travel: mm Control: Heidenhain tool taper: SK 40 : 13,5 kw turning speeds: 3150 U/min total power requirement: kW weight of the machine ca.: 3 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Mikron C Axis Machine Table - with Heidenhain control 430 - Siemens server motor - Table: 60 x 110 cm - 4th axis, diameter: 50 cm - Weight: 650 kg Good condition fully functional can be visited and tried out on site. Shipping also abroad. Sightseeing: Basically, I would like to point out that the article, in order to avoid misunderstandings, can be viewed before the purchase and tested under electricity. Please ask questions before buying to avoid ambiguity. For general questions or an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale excepted. VAT will be shown separately on my invoices. Shipping with freight forwarder.

WE OFFER VERY NICE CONDITION - MIKRON WF3 S technical details: X-travel longitudinal 500 mm Y-travel cross 500 mm Z-travel vertical 380 mm spindle speed 12-steps 50-2240 UpM /rpm feed 1-750 mm/min spindle taper SK40 table size 800x445 mm drive capacity 7 kW weight 1650 kg

Gear milling machine Micron 106 16 A 380 V

Key data: 420 mm, 250 mm, 350 mm

with Heidenhain TNC 114 digital display Tool holder ISO 40/M16 Travel X/Y/Z 420 x 250 x 350 m 12 spindle speeds from 50 - 2240 Weight approx. 900 kg Central lubrication Bellows NEW! Accuracy in: X-axis 0.005/300 mm Y-axis 0.006/250 mm Z-axis 0.01/300 mm Spindle concentricity 0.003 mm Angular accuracy 0.01/250 Spindle clearance X 0.12, Y 0.04, Spindle noise: very good Very good overall condition!

WE OFFER AN BRAND NEW MACHINE, MACHINE WAS NEWR USED FOR WORK ATTACHED PHOTOS MACHINE IS AWAILIBLE IMEDIATELY

Type: Milling Machine/Machining Center Ident Number: 22367 Category: Milling Machines Manufacturer: Mikron Model: HSM 500 Year of construction: 2006 Travel: 500 x 450 x 360 mm [ X x Y x Z ] HSC Machine Number of axles: 3 Control: Heidenhain iTNC 530 Spindle mount: HSK 32 E Spindle speed: 54000 rpm Table size X: 550 mm Table size Y: 450 mm max. workpiece weight: 200 kg Tool changer: 40 speed Conveyor Laser probes for tools Probe PS 32 Infrared / HSK 32 E Minimal lubrication Oil Mist Extraction Device APS Advanced Process System ITC Intelligent Heat Control Mobile handwheel

MIKRON Cutter Mod. VCP 1000 Machinable dimensions: square = 125x125 round 152 Machine visible in operation, in excellent condition.

x-travel: 560 mm y-travel: 500 mm z-travel: 400 mm total power requirement: 7,5 kW weight of the machine ca.: 2,3 t dimensions of the machine ca.: 2,22,22,2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Fully functional Mikron Milling Machine Location of the machines: 76661 Philippsburg The machines can be viewed on site at any time. They are in our warehouse and work perfectly. You can make an appointment for a viewing at any time before bidding on +49 (0) 72 55 / 39 73 337. We would love to hear from you.

Table dimensions: 0/ mm Motor output: 0/ kW Spindle diameter: mm reus: U/min Weight: kg Year: Control: Haidenhain TNC 355 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel 600 mm y-travel 500 mm z-travel 450 mm Control TNC 415 Heidenhain Main spindle: Speed range - milling 20 - 5,000 rpm Drive power - milling spindle 6 / 9 kW Tool holder SK 40 Quill stroke 90 mm Gear stages 4 swivel +/-90 ° Workbench: Bsi0Cso09Qu Table size 900 x 530 mm T-slots 7 T-slots - spacing 63 mm T-slots - width 14-H7 mm max. table load 400 kg Tool Changer: Number of tool positions 18 pos. Tool holder SK 40 max. tool diameter 85 mm max. tool diameter. with a free neighboring box. 150 mm max. tool length 300 mm max. tool weight 10 kg Tool change time max. 15 sec Feeds: Feed rate - fine adjustment 2 ~ 4000 mm/min Rapid traverse X-axis 6,000 mm/min Rapid traverse Y-axis 6,000 mm/min Rapid traverse Z-axis 5,000 mm/min Total power requirement 15 kW Machine weight approx. 3.6 t Dimensions approx. 3.4 x 3.6 x 2.2 m Tool Milling Machine - Universa ...

Specifications: Travels X/Y/Z 400 x 400 x 375 mm Max. clamping area 350 x 800 mm Speed range (12) 50 - 2240 min-1 Feed, infinitely variable 1 - 630 mm/min Rapid traverse, max. 1.4 m/min Total connected load 4.7 kW Dimensions (LxWxH), approx. 1300 x 1215 x 1700 mm Weight with pallet, approx. 1700 kg Equipment: Digital Rigid angle table Coolant Setup

- Travel X/Y/Z: 500/500/380 mm - Speed range: 50 - 2240 rpm -Power. 1.8 / 2.6 KW - Spindle brake - Feed: X-Y-Z infinitely variable 1-750 mm/min - Rapid traverse X-Y-Z 1400 mm/min - Rigid angle table 450 x 800 mm - Spindle holder SK 40 M16 (ISO 7388-1) - Weight approx. 1650 kg - Space requirements: L x W x H: approx. 1700 x 1800 x 1800 mm

x-travel 800 mm y-travel 500 mm z-travel 460 mm Table size 1000 x 500 mm Spindle holder ISO SK 40 Spindle speeds - infinitely variable 31.5 - 6150 rpm Operating voltage 380 V CNC control heidenhain 425 Rapid traverses 6000 mm/min Quill stroke 90 mm Coolant tank l Total power requirement 13.5 kW Machine weight approx. 3.1 t Dimensions approx. 2.20x2.70x2.35 m Hydraulic tool clamping full 4th axis + 5th axis +45° -20°

Key data: 630 mm, 500 mm, 460 mm

Speed range: 31.5 - 3150 rpm Control Heidenhain TNC 155 Feed speed: 1 - 3000 mm/min. in rapid traverse X -Y: 6000 mm/min. in rapid traverse Z: 4000 mm/min.

Mikron WF 32 CH universal milling machine Machine with chips and splash guard cabin Equipped with a Heidenhain TNC355 controller Specifications Manufacturer: Mikron Type: WF 32 CH Control: Heidenhain TNC355 Travel: X 560 mm Y 500 mm Z 400 mm Clamping area: 530 x 900 mm Rapid traverses : X, Y 6,000 mm/min, Z 5,000 mm/min Spindle speed: 20 – 6,300 rpm Dimensions: 2,700 x 2,000 x 2,400 mm Weight: 2,400 kg More items - new and used - can be found in our shop! International shipping costs on request!

Mikron WF31D Precision Milling and Drilling Machine Machine with chips and splash guard cabin Equipped with a Heidenhain TNC355 controller Technical Specification The WF 31 D is a precision milling and drilling machine for series production and CNC training. Driven by an automatically shifting step gearbox and Poly-V belts. Vertical spindle can be extended by 90 mm; Conversion from vertical to horizontal machining possible. Ball screws with DC drives allow simultaneous feed movements. Guides are protected against dust, chips and coolant. Specifications Manufacturer: Mikron Type WF31D Control: Heidenhain TNC 355 Longitudinal movement (X): 560 mm Transverse movement (Y): 500 mm Perpendicular movement (Z): 400 mm. Drive power: 3.3/4.0 kW Speed range: 40-4000 rpm Feed speed: 2-3000 mm/min Rapid traverse speed X/Y: 6000 mm/min, Z: 5000 mm/min. Electrical equip ...

x-travel: 400 mm y-travel: 400 mm z-travel: 380 mm total power requirement: 2,6 kW weight of the machine ca.: 1,5t t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Heidenhain TNC 530, Table size 700 x 500 mm, Spindle holder CAT40, 24-position automatic, 10,000 rpm spindle Machine weight 7,500 kg, Connection 16 kW

Key data: 530 mm, 450 mm, 450 mm

5-Axis CNC Machining Center Mikron UCP 600 Year of Make: 2004 Control: Heidenhain iTNC 530 x-travel: 530 mm y-travel: 450 mm z-travel: 450 mm Spindle: SK 40 Speed: 12,000 rpm Swivel table STP: Ø 400 mm Tool changer: 30 x Weight: approx. 6.5 t Switch-on hours: approx. 49,000 h Spindle hours: approx. 2,500 h

Milling machine Mikron UM600 BJ 1998 defective

Milling machine Micron VCP 800 Heidenhain TNC 426 Year of manufacture 1999 Table size 1050 x 590 X 800 / Y 450 / Z 450 Maximum speed 20,000 RPM Maximum table load 400 kg Machine weight 6,500 kg Machine size 3,200 x 3,200 x 2,800 mm Spindle holder: HSK-63A Magazine slots: 30 Tool changers, all places have been renewed and adjusted. X-axis spindle replaced Without tools and vices

MIKRON WF 3 DCM Universal Milling Machine Heidenhain TNC 151 control Table 800x380 mm x-travel 500 mm y-travel 500 mm z-travel 400 mm speed range 3150 rpm drive power 4 kW SK 40 Weight 1700 kg Many Accessories and tools

x-travel: 500 mm y-travel: 500 mm z-travel: 400 mm table-size: 900 x 530 mm control: Heidenhain TNC 355 tool adaptor: ISO 40 | | turning speed range: 40- 4000 U/min rapid speed: 5 / 6 m/min feed speeds: 2 - 3000 | mm/min | power requirement: 6 kW table load: 350 kg dimensions: 2,6 x 1,8 x 2,2 m weight: 2,6 t Univers. milling machine 3 axis - external electric handweel - housing - universal head The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

For sale is a high-quality universal tool milling machine from the renowned Swiss manufacturer Mikron, model WF 2 SA. The machine impresses with its high precision, stable construction and versatile applications and is in a well-maintained and functional condition. Ideally suited for toolmaking, single part production, repair work and training companies. General information: Machine Type: Universal Tool Milling Machine Manufacturer: Mikron Model No.: WF 2 SA Year of construction: approx. 1985 Condition: Used, well maintained, fully functional Availability: Immediately available Technical data: Travel (X/Y/Z): approx. 420 / 250 / 340 mm Table size: approx. 635–700 × 250 mm Spindle speed: 50 – 2,240 rpm Tool holder: SK40 (ISO 40) Feed: infinitely variable Rapid traverse: approx. 1,400 mm/min Motor power: approx. 3.5 kW Machine data: Weight: approx. 1,0 ...

Mikron UM 710/900 Universal Milling Machine High-precision universal tool milling machine from the Swiss quality manufacturer MIKRON, model UM 710/900. The machine comes from a well-groomed operation and impresses with the proverbial micron precision as well as the generous working range (up to 900 mm travel in X). It is ideal for toolmaking, prototyping, training or demanding repair shops. Technical data at a glance (manufacturer's specifications): Working range & axes: Longitudinal travel (X-axis): 710 / 900 mm Transverse travel (Y-axis): 630 mm Vertical travel (Z-axis): 500 mm Working spindle: Tool holder: SK 40 / DIN 69871 Gear stages: 4 Speed range: adjustable (vertical & horizontal) Main Drive & Feed: Drive power spindle: 11 kW (at 44% ED) / 7.5 kW (at 100% ED) Feed speed (X, Y): 0 – 10,000 mm/min (programmable) Feed speed (Z): 0 – 8,000 mm/min  ...

Mikron WF 41C CNC Universal Milling and Drilling Machine Professional, extremely robust CNC universal milling and drilling machine MIKRON WF 41C Due to its stable design, the machine is ideal for workshops, prototype construction, maintenance or demanding toolmaking. The machine is equipped with the proven HEIDENHAIN TNC 155 web control system Thanks to plain text dialog guidance, it is extremely easy to program directly on the machine, masters graphical simulations and allows easy loading of external CNC programs via the serial interface (ideal for CAD/CAM use). Technical data at a glance CNC control Model: HEIDENHAIN TNC 155 Operating modes: manual operation (such as digital display), positioning with manual input, single set, sentence sequence, program test (graphic simulation) Interface: V.24/RS-232-C for data transmission Feed Drives & Travel Paths Travel  ...

Milling machine Mikron VCP 800 BJ 2000

x-travel: 710 mm y-travel: 500 mm z-travel: 460 mm table surface area: 1000 x 500 mm spindle taper: SK 40 control: HEIDENHAIN TNC 155 spindle turning speed range: 31,5 - 3150 U/min feeds longditudinal/cross/vertical: 1 - 3000 mm/min rapid traverse longitudinal and cross: 6 m/min rapid traverse vertical: 4 m/min quill stroke: 110 mm distance spindle nose and table: max. 559 mm table load capacity: max. 500 kg total power requirement: 14 kW weight of the machine ca.: 3,3 t dimensions of machine L x W x H: 2,20 x 2,30 x 2,15 m Accessories: vertical head with hydr. tool clamping and quill retraction, solid table, electron. handwheel, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 560 mm y-travel: 500 mm z-travel: 400 mm total power requirement: 7,5 kW weight of the machine ca.: 2,3 t dimensions of the machine ca.: 2,22,22,2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 400 mm z-travel: 400 mm Control: Heidenhain turning speeds: 3150 U/min table surface area: 700x350 mm Table load: 400 kg spindle taper ISO: 40 total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solutio ...

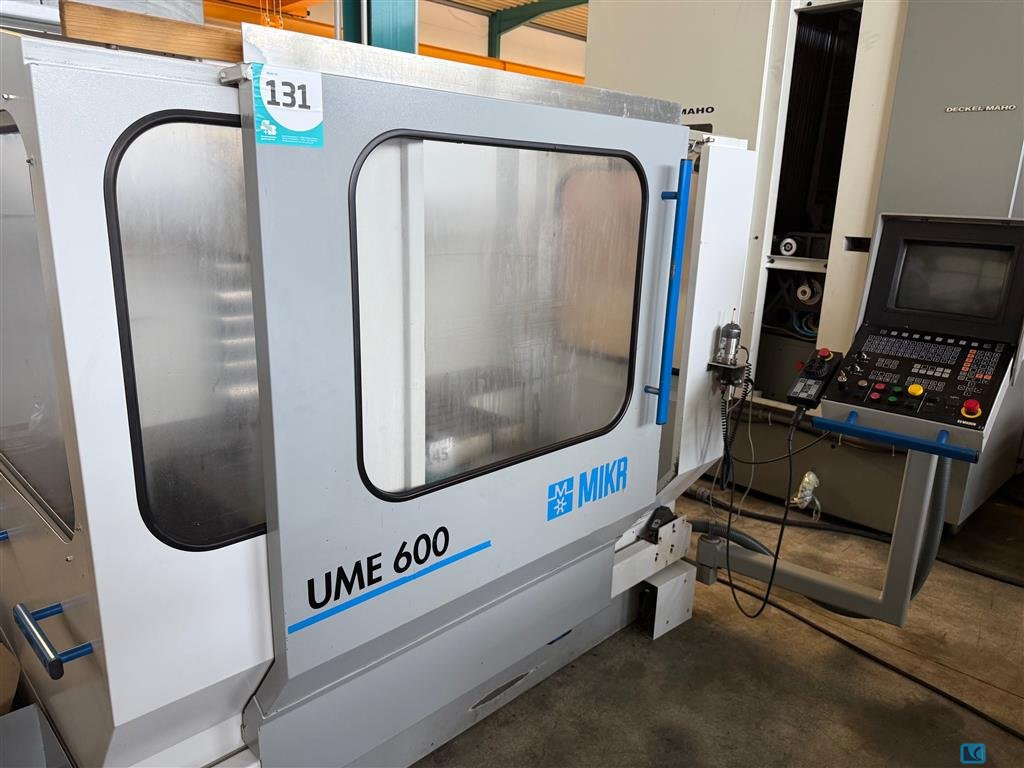

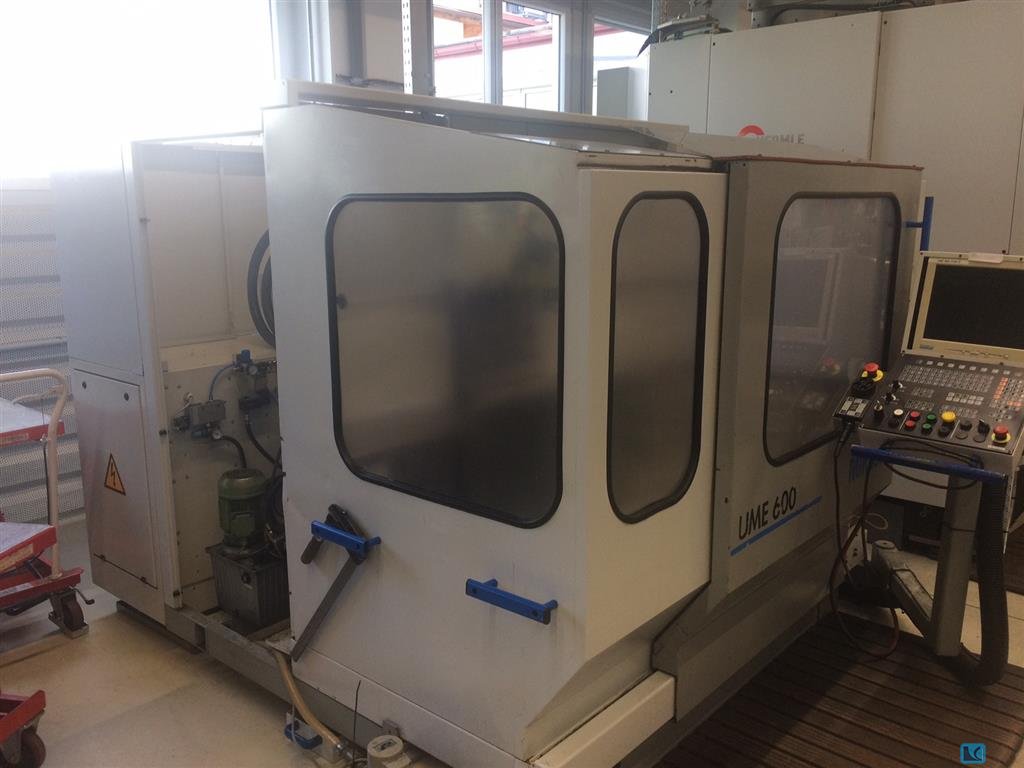

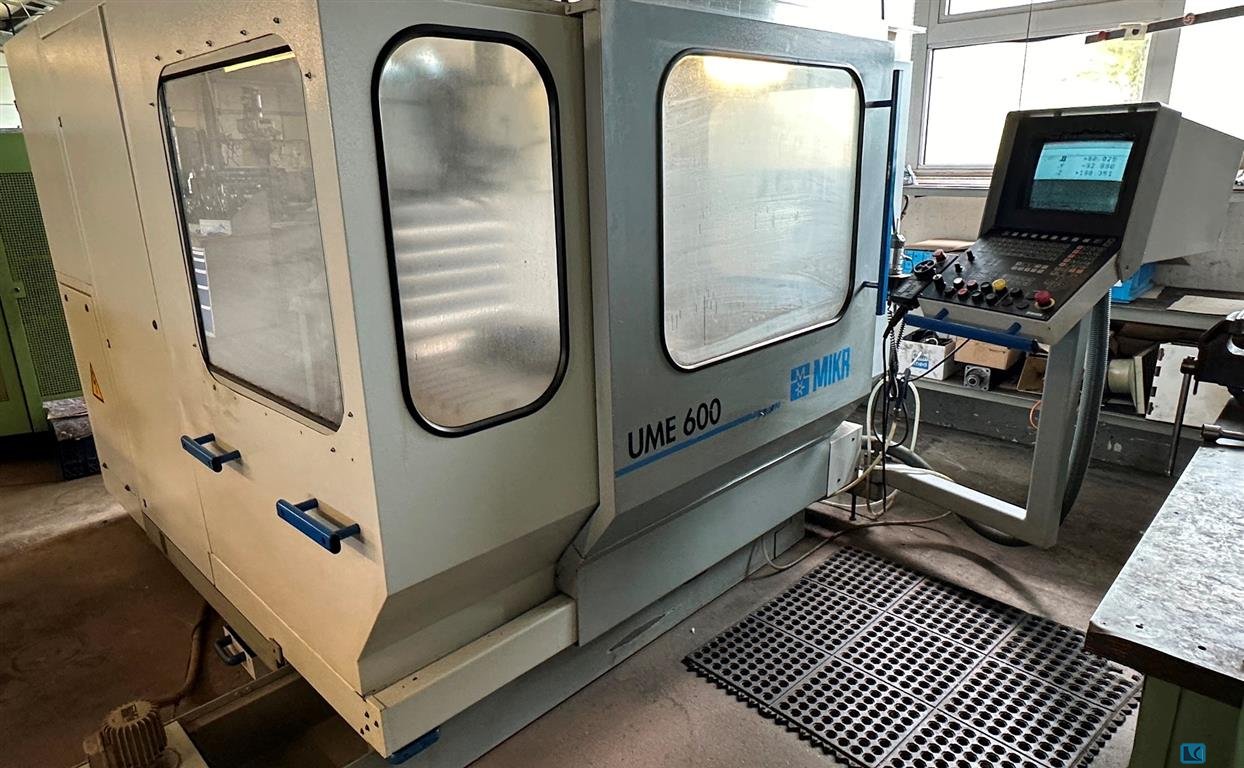

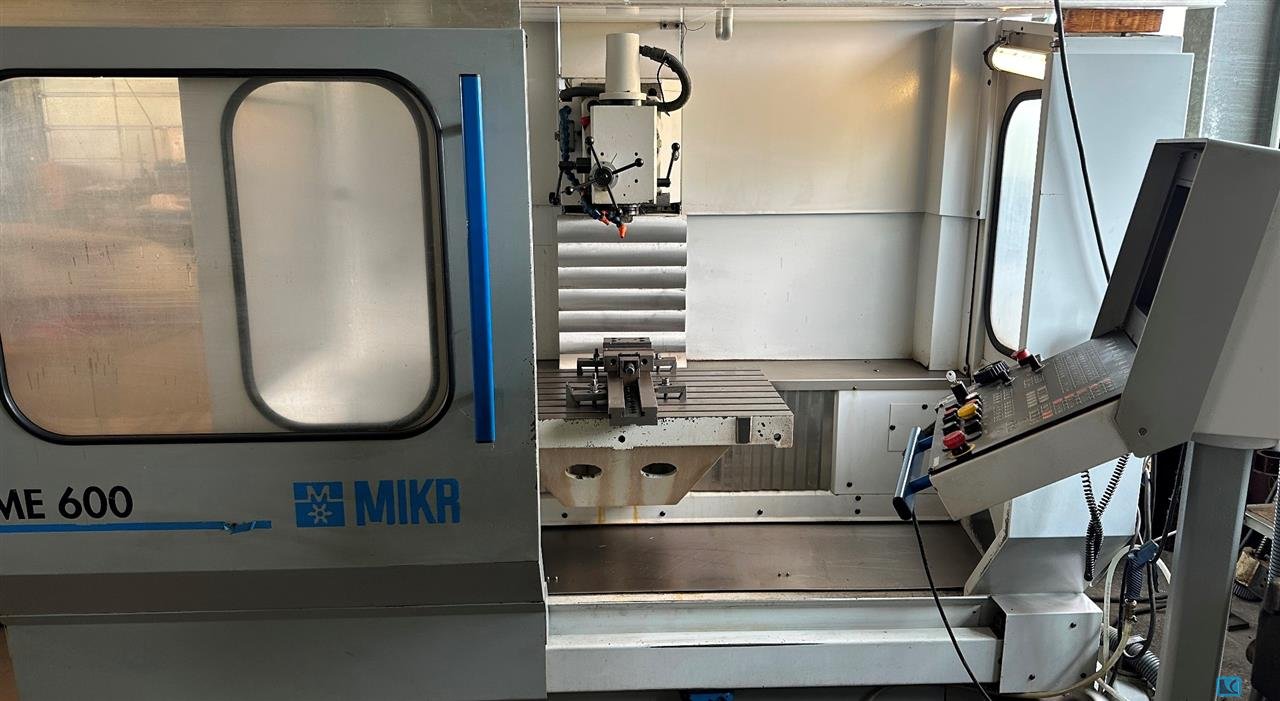

Mikron UME 600 - Vertical Machining Center Mount: SK40 X/Y/Z: 600 / 500 / 450 mm - Heidenhain TNC 407 CNC control - SARA UC1 SD3 Air Purifier - Coolant device - Chip conveyors - Year of construction 1997 Technical data - Spindle holder: SK40 - X-axis travel: 600 mm - Y-axis travel: 500 mm - Travel Z-axis: 450 mm - Feed range: 0 - 10000 mm/min - Spindle speed: 5 - 5000 rpm - Quill stroke: 90 mm - Table size: 900 × 530 mm - Spindle power: 6 kW - Total power requirement: 9 kW - Operating voltage: 400 V - Space requirement with control & extraction WxHxD: 3500 x 3000 x 3500 mm - Dimensions without control & extraction WxHxD: 2400 x 2100 x 2700 mm - Total weight: approx. 3400 kg

x-travel: 560 mm y-travel: 500 mm z-travel: 400 mm Control: TNC 360 spindle speed:: 40-4.000 U / min total power requirement: 7,5 kW weight of the machine ca.: 2,6 t dimensions of the machine ca.: 2,6 x 1,8 x 2,2 m X-axis travel: 560 mm Y-axis travel: 500 mm Z-axis travel: 400 mm Control system: Heidenhain TNC 360 Spindle speed range: 40 – 4,000 rpm Total power requirement: 7.5 kW Machine weight: approx. 2.6 t Space requirement (L × W × H): approx. 2.6 × 1.8 × 2.2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 560 mm y-travel: 500 mm z-travel: 400 mm total power requirement: 7,5 kW weight of the machine ca.: 2,5 t dimensions of the machine ca.: 2,5 x 2,5 x 2,2 m No. 4614 Mikron WF 31 SA Universal tool milling machine Working area: 560 x 500 x 400 Control: Heidenhain TNC 114 - active digital display Rigid angular table Spindle holder SK 40 Coolant device Speed range 40 - 4000 rpm Weight approx. 2450 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 560 mm y-travel: 500 mm z-travel: 400 mm control: Heidenhain TNC 114 Aktiv turning speed range: 40 - 4000 U/min spindle drive, 2-steps: 3,3 / 4 kW total power requirement: 9 kW weight of the machine ca.: 2,3 t dimensions of the machine ca.: 2,3 x 2,3 x 2,1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MIKRON UMS 710 ist eine CNC Fräsmaschine mit hoher Präzision, ausgelegt für große Genauigkeit und Zuverlässigkeit. Arbeitsfähigkeit: Tisch 1200x600 mm; Verfahrwege X710 Y630 Z500 mm; Werkzeugwechsler 20 Plätze. Technische Daten: Spindeldrehzahl bis 6300 (42'000 HF-Option); Vorschübe bis 15.000 mm/min; Frässpindelmotor 11 kW; Gewicht ~4.690 kg; Abmessungen L4700 x B2100 x H2700 mm. Zubehör: starrer Tisch, Hochfrequenzspindel (FISCHER), Satz Werkzeughalter, Ölnebelabsaugung FIBARON. Erreicht enge Toleranzen; typische Branchen: Automotive, Uhrenindustrie, Werkzeugbau, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

MIKRON UME 560 ist eine CNC-Fräsmaschine mit hoher Präzision, hoher Genauigkeit und Zuverlässigkeit. Kapazitäten: Tisch 900×530 mm; Wege X 560 mm, Y 500 mm, Z 400 mm. Technische Daten: Spindelaufnahme ISO SK40 DIN 69871, Drehzahlen horiz./vert. 5–5000 t/min stufenlos; Vorschübe 1–8000 mm/min (X/Y/Z); Eilgang 10 m/min; Anschluss 50 Hz 3x 380 V; Gewicht ca. 3350 kg; Abmessungen L 3930 (2625) × B 2650 × H 2140 mm. Zubehör: elektronisches Handbedienpult, Kühlmitteleinrichtung. Ermöglicht enge Toleranzen; geeignet für Automotive, Luftfahrt, Medizintechnik, Uhrmacherei und Werkzeugbau Technische Daten ohne Gewähr

MIKRON A 60 ist eine Fräserschleifmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Kapazitäten: Fräser-Ø 8–80 mm, Fräserbreite max. 100 mm, Schleifscheibe Ø max. 100 mm, Hub einstellbar 5–135 mm; Hubgeschwindigkeit stufenlos bis 70 c/min; Schleifscheibendrehzahlen 3 Stufen 3250–6200 t/min. Technische Daten: Anschluss 50 Hz 3x380 V, Antrieb 1 CV, Gewicht ca. 450 kg, Abmessungen L800×B800×H1200 mm. Ausstattung: Lampe und Kühlmitteleinrichtung. Erreicht enge Toleranzen; geeignet für Automotive, Werkzeugbau, Luftfahrt, Medizintechnik und Uhrenindustrie. Technische Daten ohne Gewähr

MIKRON 121 ist eine Fräserschleifmaschine, entwickelt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Arbeitsbereiche: Fräser-Ø 16–53 mm, max. Fräserbreite 25 mm, Schleifscheiben-Ø max. 76 mm; Teilungen: 5 (von 10 bis 30). Technische Daten: Anschluss 50 Hz, 3x 380 V; Antrieb 1,0 CV; Maschinengewicht ca. 210 kg; Abmessungen L800 × B800 × H1300 mm. Zubehör: Werkzeugschrank, Satz Wechselräder, Satz Bedienungsschlüssel. Ermöglicht enge Toleranzen; typische Einsatzbereiche: Automotive, Uhrmacherei, Werkzeugmaschinenbau, Luft- und Raumfahrt, Medizintechnik. Technische Daten ohne Gewähr

max. wheel diameter: 200 mm gear width: 400 mm max. module: 4,5 min. module: 0,3 weight of the machine ca.: 6 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 600 mm y-travel: 450 mm z-travel: 450 mm b-axis: +-115/+30 c-axis: nx360 turning speeds: 20.000 U/min Tool adapter: HSK A 63 rapid traverse: 20 m/min Tools changer: Random 75 Pos. table-size: 350×350 mm table weight: 200 Kg Control: HEIDENHAIN iTNC 530 total power requirement: kW weight of the machine ca.: 7,7 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 120 mm gear width: 130 mm max. module: 2 no. of teeth to be hobbed: 6-325 Z min/max. spiral pitch: 20-5000 mm hobbing length: 130 mm weight of the machine ca.: 860 kg Universal hobbing machine MIKRON 102.05 MPS > External surface gearing Technical Data Maximum millable workpiece diameter: 120 mm Maximum millable length: 130 mm Maximum number of modules: 2 Number of millable teeth: 6-399 (with gear ratio 80:5) Pitch of the spirals: 20 - 5000 mm Pitch angle of the spirals (left or right): 0 - 90° 14 milling cutter revolutions (50c/s): 140 - 1870 rpm 13 Axial feeds: 0.05 - 3.0 mm/w.p.rev. Main motor speed: 1500 rpm Main motor power: 1.1 kW Connected load: 3 x 380 VAC Frequency: 50 Hz Control unit: Omron CP1L Machine dimensions L/W/H: 1030/800/1520 mm Weight of the machine: 880 kg Colour of the machine: black The data for this ad was created with ModulMWS - the softwa ...

max. wheel diameter: 53 mm gear width: 25 mm max. module: 3 min. module: 0,1 total power requirement: 0,8 kW weight of the machine ca.: 0,21 t dimensions of the machine ca.: 600x460x1200 mm Resharpening machine MIKRON 121 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1.200 mm y-travel: 600 mm z-travel: 675 mm Control: Heidenh.iTNC 620 HSCI FS table-size: 1.220 x 620 mm : 40 fach Distance between table and spindle: 735 mm turning speeds: 10.000 U/min spindle drive: 18 kW Internal cooling system: 30 bar total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m -Electronic steering wheel. -LINEAR RULES. -Laser probe measuring tools. -Preparation for piece measuring probes. PROBE NOT INCLUDED. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MIKRON 60.012 ist eine Rundtakt Transfermaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Angaben zu Arbeitskapazitäten (Durchmesser, Module, Längen, Hübe, Werkstückmaße) liegen nicht vor. Hauptspezifikationen (Spindeldrehzahlen, Vorschübe, Stromversorgung, Abmessungen, Gewicht) sind nicht angegeben. Ermöglicht enge Toleranzen und findet typischerweise Anwendung in Automotive, Uhrenindustrie, Werkzeugmaschinen, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr

MIKRON 50.004 ist eine Rundtakt Transfermaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit im Fertigungsprozess. Konkrete Arbeitsbereiche (Durchmesser, Module, Längen, Verfahrwege, Werkstückmaße) sind nicht angegeben. Wesentliche technische Daten (Spindeldrehzahlen, Vorschubraten, Stromversorgung, Abmessungen, Gewicht) liegen nicht vor. Entwickelt, um enge Toleranzen zu erreichen, geeignet für hochpräzise industrielle Anwendungen. Technische Daten ohne Gewähr

MIKRON 50.004 ist eine Rundtakt Transfermaschine mit hoher Präzision, großer Genauigkeit und Zuverlässigkeit. Konkrete Arbeitsdaten (Durchmesser, Module, Längen, Hübe, Werkstückmaße) sind nicht angegeben. Technische Angaben (Spindeldrehzahlen, Vorschübe, Stromversorgung, Abmessungen, Gewicht) liegen nicht vor. Keine spezifischen Zubehörteile aufgeführt. Ermöglicht enge Toleranzen; typische Einsatzbereiche: Automobil, Uhrmacherei, Werkzeugmaschinenbau, Luft- und Raumfahrt, Medizintechnik. Technische Daten ohne Gewähr

MIKRON 134 ist eine Wälzstossmaschine für präzise Bearbeitung mit hoher Genauigkeit und Zuverlässigkeit. Arbeitsbereich: Modul bis 1.25 / 1.50, Schrägungswinkel +30 / -30°, grösste Verzahnungsbreite 28 mm; Max. Stosslänge 440 mm, Breite 28 mm; Zahnstangenstoss-Einrichtung vorhanden. Hauptspezifikationen: 3 Stösselhublängen; Stösselhub min. 10 oder 20 mm, max. 28 mm; Stösselhubgeschwindigkeiten 7 Stufen von 165 bis 750 c/min; Tischleitspindelvorschübe 5 Gänge (Werte nicht angegeben); Anschluss 50 Hz 3x380 V; Maschinengewicht ca. 225 kg; Abmessungen L900×B750×H1300 mm. Ermöglicht enge Toleranzen; typ. Branchen: Automotive, Uhrentechnik, Maschinenbau, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

Gear cutting data: --> max. millable module for hobbing: 2.5 mm --> max. millable module for high-performance milling: 2.0 mm --> Number of teeth: 1 - 999 teeth Workpiece data: --> max workpiece Ø automatic loading: 60 mm --> max workpiece Ø manual loading: 100 mm --> max workpiece length automatic loading: 200 mm --> max workpiece length manual loading: 300 mm

x-travel: 500 mm y-travel: 500 mm z-travel: 350 mm table surface area: 800 x 450 mm spindle taper: ISO: 40 quill stroke: mm feed - longitudinal/cross: mm/min feeds vertical: mm/min turning speed range: max. 3150 U/min voltage: 380 V / 50 Hz power capacity: 4 kW weight of the machine ca.: 1,7 t dimensions of the machine ca.: 2,5 x 2,3 x 2,0 m • HEIDENHAIN TNC 155 - control, • with electrical hand wheel, • several tool tapers, • new set of bevel gears, The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel:600 mm y-travel:500 mm z-travel:450 mm weight of the machine ca.:3,5 t

Travel X/Y/Z: 560mm/500mm/400mm, speed: 5000rpm, table dimensions X/Y: 900mm/530mm, feed rate: 8m/min, rapid traverse: 10m/min, tool stations: 22, tool holder: SK40. Machine dimensions X/Y/Z: approx. 3950mm/2650mm/2150mm, weight: approx. 3000kg, control: Heidenhain TNC 407/415, operating hours: 29647h. The central lubrication system shows issues. Documentation available. An on-site inspection is possible.

Five older thread milling machines Mikron are available, 2x Hydraulic Thread Milling Machine Mikron 132.02, 1x Mikron 132-01, 1x Mikron 104-01 and 1x Short Thread Milling Machine Mikron 106.01, an on-site inspection is possible.

Verfahrweg X/Y/Z: 710mm/500mm/460mm, Tischabmessungen X/Y: 1000mm/500mm, Tischbelastung max: 500kg, Werkzeughalter: SK40, Drehzahl: 4000rpm, Maschinenabmessungen X/Y/Z: ca. 2000mm/2600mm/2250mm, Gewicht: ca. 3400kg, Steuerung: Heidenhain TNC 355, Betriebsstunden: ca. 34000h. Inklusive Kühlmitteleinrichtung, kompletter Arbeitsraumeinhausung, ca. 34x SK40 Werkzeughalter, Schlitten und Wellen zum Abrollen. Dokumentation vorhanden. Besichtigung vor Ort ist möglich.

Universal machining center, CNC tool milling machine, milling machine, universal milling machine, tool milling machine, drilling and milling machine -function tested -Clamping table: 800 x 445 mm -Travel: X/Y/Z 500/500/385 mm -Spindle holder: SK40 -quill stroke: 90 mm -Speeds from: 31.5 to 3150 rpm -Coolant device -Dimensions: 1475/1770/H2000 mm -Weight: 1966 kg

Main spindle with drive motor, universal milling head, milling holder, milling extension, angle milling head, upper support, upper slide, dovetail guide, tool slide, cross table -Manufacturer: Mikron, upper support tool slide from CNC milling machine Mikron WF 51C/155 -Motor: AEG 380V 8 kW 1400/2850 rpm -Dimensions: see photos / technical. drawing -Dimensions: 1700/580/H700 mm -Weight: approx. 525 kg

Main spindle with drive motor, universal milling head, milling holder, milling extension, angle milling head, upper support, upper slide, dovetail guide, tool slide, cross table -Manufacturer: Mikron, upper support tool slide from CNC milling machine Mikron UME 600 -Motor: Siemens 380V 3.7/5.25 kW see photo nameplate -Speed: 1500/9000 rpm -Spindle head: SK40 mount -Dimensions: 1550/560/H735 mm -Weight: 555 kg

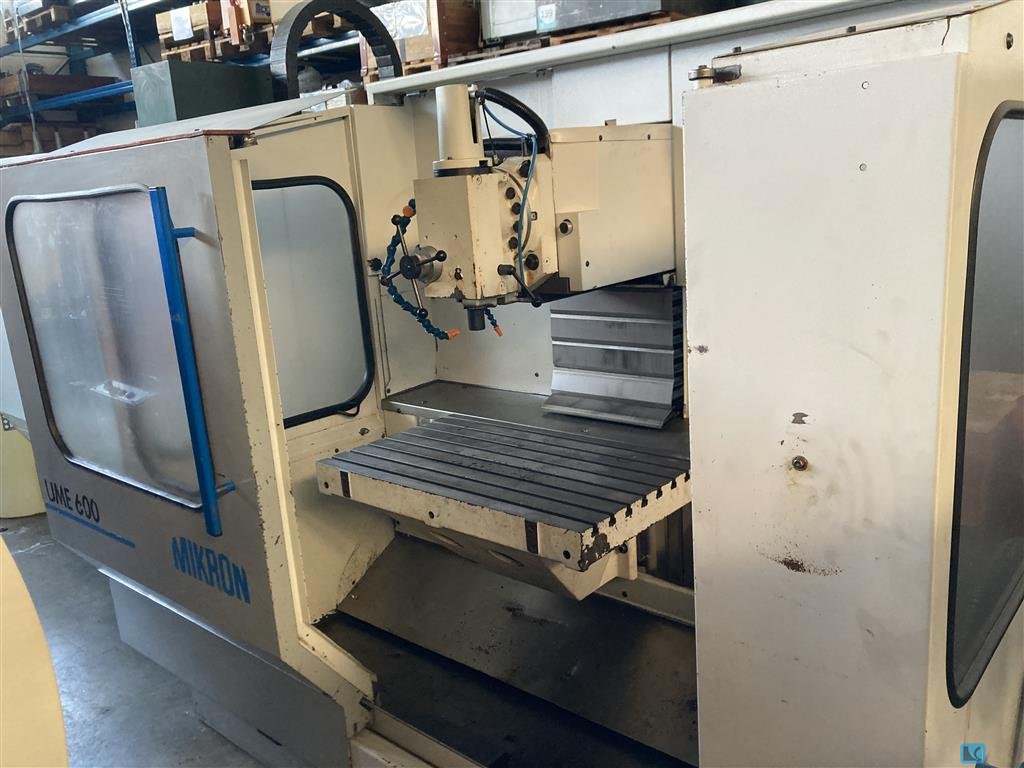

Manufacturer: Mikron Model: UME600 Year of manufacture: 1995 Type of Machine: CNC milling machine Control unit: Heidenhain TNC407 Spindle taper: SK 40 Spindle speed: max. 5,000 rpm Feed rate: max. 10,000 mm/min Table size: approx. 900 × 530 mm Travel paths: X 600 mm / Y 500 mm / Z 450 mm without automatic tool changer Motor power: max. 9 kW Weight: approx: 3,200 kg Condition: - Used, good overall condition - Fully functional and ready for use Equipment / Accessories: - coolant pump - machine vice - 3D probe - Various collet sets / tool holders SK 40 - Toolbox with worktop and hand vice - Further accessories available upon request Find more here - .ucymachines/ Contact us at - sales@ucymachines

Main spindle with drive motor, universal milling head, milling chuck, milling extension, angle milling head, top slide, top slide, dovetail guide, tool slide, cross table -Manufacturer: Mikron, upper tool slide from Mikron VC500D CNC milling machine -Motor: INNDRAMAT 165V 5.5 kW see photo type plate 100C-B050B1-AS03 -Speed: 1500/8000 rpm -Spindle head: SK40 mount -Dimensions: 910/1120/H510 mm -Weight: 365 kg

MIKRON VCP 800W Duro CNC vertical machining center was built in 2004 in Switzerland by Mikron Comp-Tec AG. The machine is designed for precise machining of steel, aluminium and the production of moulds and tools. The machining process is performed by means of a reliable spindle and precision cutting tools. The spindle, driven by a powerful motor, rotates at a maximum speed of as much as 20000 rpm, ensuring rapid machining while maintaining high efficiency at the same time. Inside the fully illuminated workspace, there is also a large work table with T-slots for easy workpiece and tooling mounting. All this is complemented by an advanced HEIDENHAIN iTNC 530 CNC control with an intuitive interface and an access to many advanced functions. The MIKRON VCP CNC machining center weighs 9120 kg. The MIKRON VCP 800W Duro is offered with an extensive range of equipment, including, among others, ...

Rotational speed: 0-3150/min, power supply: 20A, connected load: 9kW, control: Heidenhain TNC 155, length: 2700mm, width: 2900mm, height: 2000mm, weight: 2.3t. An on-site inspection is possible.

X-axis: 600mm, y-axis: 600mm, z-axis: 450mm, infinitely variable speed range (vertical and horizontal): 10-6,300rpm, AC main spindle drive power at 44% duty cycle: 9kW, drive power at 100% duty cycle: 6kW, max. torque: 800Nm, braking: electrical, number of gearbox stages: 4, max. spindle torque at 44% duty cycle: 800Nm, tool holder: SK40/ DIN69871, retention knob: DIN69872 B, min. clamping force: 12,000N, min. unclamping force: 3,000N, clamping surface of angle table: 530x900mm, number of T-slots: 8, T-slot width: 14H7, T-slot spacing: 63mm, max. workpiece weight: 400kg, coolant tank capacity: 150l, flow rate: 20l/min, connected load: 15kW, with tool holders and documentation. An on-site inspection is possible.

MIKRON VCE 1000X PRO CNC machining center was manufactured in 2012 (launched in 2013) in Switzerland by Mikron Agie Charmilles AG. The machine is designed for the precision machining of workpieces made of, among others, steel, cast iron and aluminium. The combination of a stable design and high-quality components guarantees the best machining results. This makes the CNC milling machine ideal for use in production plants, both for unit and series production. Workpieces are machined by means of a efficient spindle with a maximum speed of 16000 rpm, which ensures fast and precise cutting of the material. The process is further streamlined by a 40-position tool magazine, which minimises machine downtime during operation. Inside the fully illuminated work space, there is a large worktable with T-slots designed for the easy mounting of workpieces and fixtures. The MIKRON VCE 1000X PRO is ...

Gear hobbing machine MIKRON 102 Max. workpiece diameter 120 mm Max. Modul 2 Max. lenght of teeth 130 mm Min./max.nr of teeth 6 – 325 Angle on helical gears 0 – 90 °

24 stations, with saege unit

X-travel: 700 mm Y-travel: 550 mm Z-travel: 450 mm Control Heidenhain Atek HS Plus Spindle taper HSK 40E Spindle speed 42.000 rpm ATC 24 positions Clamping table 900 x 550 mm Weight of the machine ca. 6,5 t VIDEO: abcs://youtu.be/V4PdQu-AYcA

Tool changer chain, chain magazine, tool changing system, tool magazine -Manufacturer: Mikron, tool changer from CNC machining center Mikron UME 600 -for: max. 22 shots -Intake: SK40 -Dimensions: 1200/1150/H860 mm -Transport weight: 294 kg

Computer monitor, screen, TFT industrial monitor -Monitor: TFT industrial monitor from CNC milling machine Mikron UME 600 -Type: 12.1 TFT industrial monitor 2363130 -Dimensions: 400/320/100 mm -Weight: 3.1 kg

Clamping table, clamping angle, T-slot table, rotary table, milling machine table -Manufacturer: MIKRON, milling machine table T-slot table from CNC machining center type VC500D -Table surface: 400 x 900 mm -T slots: Slot width 18 mm, slot spacing 125 mm -Transport dimensions: 400/900/H175 mm -Weight: 288 kg

Tool changer chain, chain magazine, tool changing system, tool magazine -Manufacturer: Mikron, tool changer from CNC machining center Mikron VC500D -for: max. 16 recordings -Recording: SK40 -Individual components: see photos -Transport dimensions: Ø 780 x 540 mm -Weight: 56 kg

x-travel: 450 mm y-travel: 400 mm z-travel: 400 mm : control: Heidenhain 355 cooling: total power requirement: 4 kW weight of the machine ca.: 2,4 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tool changer chain, chain magazine, tool changing system, tool magazine -Manufacturer: Mikron, RAM POWER pressure amplifier from a Mikron VC500D CNC machining center -Type: 152 284 4 RP 9813 -Individual components: see photos -Transport dimensions: 580/215/220 mm -Weight: 12.6 kg

x-travel: 600 mm y-travel: 600 mm z-travel: 460 mm total power requirement: 4 kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Travel distances: 500 x 450 x 400 mm [ X x Y x Z ] Number of axles: 5 Rotary swivel table HEM 500 U 3+2 Control: Heidenhain iTNC 530 Spindle holder: ISO 40 / BT 40 Spindle speed: 12000 rpm Tool changer: 30 - fold Drive power : 20 kW Torque : 75 Nm Rapid traverse: 30 m/min Spindle cooling Conveyor Diameter 500 mm IKZ 20 bar ITC 5X Intelligent Thermal Control Oil trap Minimum quantity lubrication Oil mist extraction Blowing air through tool screw Mobile handwheel Glass scales Encoder B-axis Encoder C-axis Tool probing system (TS27R OMP40 Probe

x-travel: 1600 mm y-travel: 900 mm z-travel: 800 mm Control: Heidenhein iTNC table-size: 1700x850 mm taper ISO: ISO 40 turning speeds: 10000 U/min workpiece: Random 30 pos. table weight: 2000 Kg rapid traverse:: 20 m/min Internal cooling system: 20 bar total power requirement: 18 kW weight of the machine ca.: 18600 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

surface area: 1200 x 600 ( x 500 ) mm no. of flutes: 9 groove width: 14 / x 62,5 mm total power requirement: 0 kW weight of the machine ca.: ? t Packing: Holzkiste 1400850700 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

surface area: 805 405 (x 340 ) mm no. of flutes: 8 groove width: 12 / x 45 mm total power requirement: 0 kW weight of the machine ca.: ? t dimensions of the machine ca.: ? m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

surface area: 800 x 425 mm no. of flutes: 6 groove width: 14 mm table length: 800 mm table width: 425 mm table load: 0,3 t total power requirement: kW weight of the machine ca.: 0,34 t dimensions of the machine ca.: 0,80,60,6 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

surface area: 700 250 mm no. of flutes: 5 groove width: 12 mm total power requirement: 0 kW weight of the machine ca.: 75 kg dimensions of the machine ca.: 700250320 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 800 mm, 650 mm, 500 mm

CNC Vertical Machining Center MIKRON VCP 800 W With track control Heidenhain iTNC 530 Year of Make: 2002 Travel: X 800 Y 650 Z 500 Speed range: 0 – 20,000 rpm infinitely variable With the following accessories: Rigid angle table 900 mm x 600 mm clamping surface Vertical tool changer with 30 magazine positions ( HSK 63 ) Full protection cabin with sliding doors and interior lighting Electronic handwheel Tool measurement in the work area ( BLUM Laser ) 3 D Probe Infrared Renishaw Conveyor Coolant Setup 4 Height Adjustable Machine Shoes Operating instructions
