mazak milling machines used for sale

x-travel: 6200 mm y-travel: 1500 mm z-travel: 508 mm Control: Mazatrol type: M 32 workpiece height: 708 mm Tool changer: 60 spindle taper ISO: 50 table surface area: 6200x750 mm total power requirement: kW weight of the machine ca.: t The tech. Data are manufacturer or operator information and therefore for us not binding. We reserve the right to prior sale, it apply only our business and conditions of sale. About Us more than 400 own machines in stock over 12000 m² storage area, crane capacity 70 t more than 10000 articles accessories for your workshop You want to sell machines, production lines or your company, Then contact us. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 1875 mm, 1550 mm, 1345 mm

CNC Vertical Multitasking Machine CNC Control Mazatrol Matrix 2 Turning diameter 2000 mm Turning speed 10-300 R/min Milling head speed 25-5000 R/Min Movement X-Y-X-axis 1875-1550-1345 mm B-axis travel -30/120° C-axis indexing 360/0,0001° Tool taper Capto C8 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

X-axis: 3000 mm Y-axis: 800 mm Z-axis: 720 mm Rapid traverse: X/Y/Z axis: 50m/min Control: SIEMENS 840D Recording: SK40 Speed: 18,000 rpm Mileage: total approx. 5,000 hours (of which approx. 500 hours since the overhaul) Spindle motor: 321V - 116 A Work table: W 3500 x L 820 mm Dimensions: L 5250 x W 4046 mm Drives: SIEMENS The machine is a 5-axis machine, where the turntable is both vertical, as well as horizontally. - Subject to technical errors and prior sale. -

A Mazak CNC 5-axis turning and milling center with counter spindle is available. Swing diameter: 820mm, machining diameter: 820mm, machining length: 1500mm, max. workpiece weight in chuck/between centers: 650kg/150kg, main spindle speed: 1600rpm, spindle bore: 185mm, power: 30kW/40kW, tailstock force: 15kN, quill stroke: 1466mm, tool holder: BT50, spindle speed: 10000rpm, travel X/Y/Z: 870mm/500mm/1600mm, rapid traverse: 40m/min. Machine dimensions X/Y/Z: approx. 6500mm/3700mm/3200mm, weight: approx. 26000kg, control: Mazatrol Matrix. Documentation available. An on-site inspection is possible. The machine is located in China.

Stock number: 4000 PROCESSING Manufacturer: MAZAK, Type: VCN 510 C Year of Make: 2006 Specifications: Table size 1350 x 550 mm Large table load 1000 kg Longitudinal movement (X) 1050 mm Transverse movement (Y) 510 mm Vertical movement (Z) 510 mm Spindle cone MAS 40 Infinitely variable spindle speeds 12000 rpm Tool changer 30 places Control Fusion 640 Fabr. Operating hours spindle 7419 hours Accessories: Cooling by spindle 15 bar Chip conveyance. Length: 2800 mm, Height: 2800 mm, Width: 2900 mm, Weight: 7100 kg

Stock number: 4001 PROCESSING Manufacturer: MAZAK, Type: VCN 410A-II Year of Make: 2009 Specifications: Table size 900 x 410 mm Longitudinal movement (X) 560 mm Transverse movement (Y) 410 mm Vertical movement (Z) 510 mm CAT 40 spindle cone Infinitely variable spindle speeds 12000 rpm Spindle motor 11/7.5 Kw Tool changer 30 places Control Mazak Matrix Fabr. Controlled in axes 3 Operating hours spindle 7746 hours Accessories: Cooling by spindle 15 bar Chip conveyance. Tool Measuring Length: 2600 mm, Height: 2800 mm, Width: 2000 mm, Weight: 5010 KG

I'm selling a Mazak FH-4800 pallet machining center. The machine is in very good condition. The spindle and axes operate quietly. A chip extractor and coolant tank are included. Machine parameters: X-axis travel: 560 mm Y-axis travel: 610 mm Z-axis travel: 560 mm Rotary table: 360/1 degrees Mazatrol PC Fusion CNC 640 M control Table length: 400 mm Table width: 400 mm Max. workpiece weight: 400 kg Tool magazine: 40 Spindle taper: SK40 Max. spindle speed: 12,000 rpm Spindle motor power: 22 kW Length x width x height: 2680.0 x 4160.0 x 2635.0 Weight: 9400 kg

MAZAK MTV 414 CNC vertical machining center was built in 1992 in the United Kingdom by YAMAZAKI MACHINERY UK LTD. The offered machine is an excellent choice for machining workpieces with a maximum weight of 500 kg. Thanks to its reliable components and extremely rigid design, the MAZAK MTV 414 guarantees the best machining results throughout its service life. The machining process is performed inside a large work area with a work table with a length of 900 mm and a width of 410 mm, a spindle and a capacious tool magazine. The spindle, driven by a powerful motor, rotates at a maximum speed of 7000 rpm and operates in three X,Y,Z axes with feeds of 560 mm, 410 mm and 460 mm respectively. All cutting tools are stored in a 24-position tool magazine with an automatic tool changing system (ATC). All this is complemented by the intelligent MAZATROL M32B CNC controller with its intuitive interfa ...

milling machine, year 2001, CNC Mazatrol PC Fusion. Used machine in good condition. More info & price on IndustrialBuyer.

milling machine, year 2002. Used machine in good condition. More info & price on IndustrialBuyer.

milling machine, year 2015, CNC Fusion 640M. Used machine in good condition. More info & price on IndustrialBuyer.

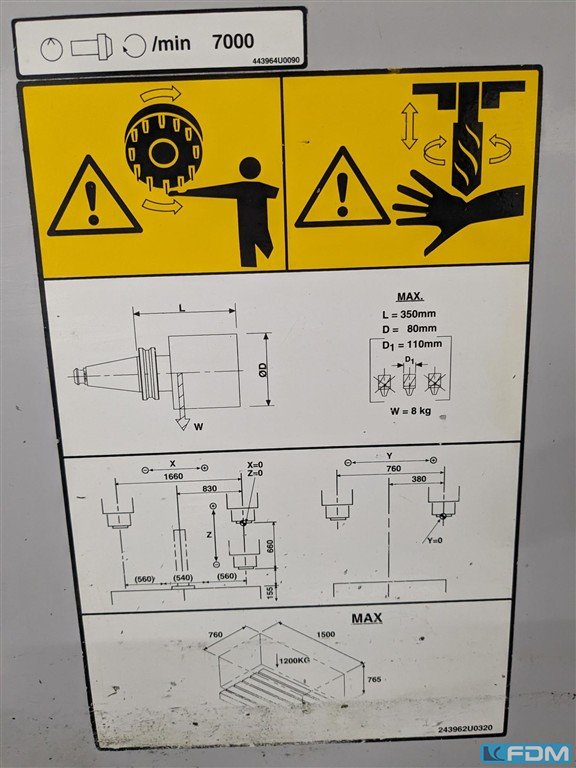

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

MAZAK laser cutting machine STX510 MKIII 4kW TOP CONDITION - LIKE NEW - ONLY 700 RUNNING HOURS year: 2012 refurbished, MAZAK lasercutting machine with 2500W table size: 3000mm x 1500mm machine dimension 2,9m x 7,3m chip conveyor LAN / USB connection automatic nozzle change fast piercing in heavy materials piercing sensor plasma sensor for stainless steel cutting burning sensor for mild stelle cutting full covered machine table FE: 22mm VA: 15mm ALMG: 10mm plastics possible to cut incl. software incl. exhauster option: warranty, setup, training option: fully automatic loading/unloading CELL system

TOP STATE - OVERHAUL IN 2016! Year of construction: 2001 2D table format: 2500 x 1250 3D Max processing size: 900 mm x 2150 mm x 300 mm Power: 2000W Control: FANUC incl. cooler incl. 2D programming software + chamfer module + tube/profile module incl. training incl. commissioning incl. quick penetration incl. ball roller table with 3D cutting head incl. CNC tube axle tube and profile up to 160 mm diameter plates, chamfering 3D molded parts, tubes and profiles FE: up to 15mm Oxide-free VA: up to 8mm designed for high pressure cutting up to 20 bar no foundation required! Optional automatic loading and unloading by Mazak FMS48 is available always regularly serviced with warranty / commissioning / training

MAZAK laser cutting system NTX510 1, 5kW Year of construction: 2000 very well preserved, fully reconditioned MAZAK laser machines with 1500W Panel sizes: 3000 mm x 1500 mm minimal footprint by 2, 9 m x 7 m Small part conveyor completely encapsulated engine cover FE: up to 12 mm VA: up to 6mm Plastic can incl. software including warranty incl. extraction system incl. commissioning + training = optional with automatic loading and unloading.

Laser cutting machine MAZAK Year of manufacture: 1999 Laser power 1,5 KW CNC MAZATROL Working range: 2500 x 1250 x 100 mm Max sheet dimensions: 2500 x 1250 x 12 mm Cooling system Extraction system Transformer Pneumatic sheet metal clamp Ball support for easier positioning of the plate Technical documentation available

MAZAK laser cutting system STX510 MKII 2, 5kW very well preserved, fully reconditioned MAZAK laser machines with 2500W Panel sizes: 3000 mm x 1500 mm minimal footprint by 2, 9 m x 7, 3 m Small part conveyor Ball roller table completely encapsulated engine cover casting bed, no foundation necessary FE: up to 20mm VA: up to 10mm ALMG: up to 8mm Plastic can including CAD / CAM software 2018 version including warranty incl. commissioning + training To test power ready to delivery ready to use = optional with automatic loading and unloading MAZAK CELL =.

TOP STATE - UEBERHOLT IN 2020 ! Built: 2006 Table size: 3000 x 1500 x 100mm Power: 4000W Control: Mazatrol Preview with LAN / USB incl. cooler incl. linear drives on all axes incl. programming software incl. training incl. commissioning incl. fast puncture incl. ball roller table incl. 4 fold head change magazine incl. 2 cutting heads incl. 10x automatic nozzle changer FE: up to 24mm VA: up to 15mm free of oxide designed for high-pressure cutting up to 20bar no foundation ! necessary Optional automatic loading and unloading by Mazak CELL510 can be offered with warranty / commissioning / training always regularly maintained

MAZAK CO2 Laser Cutting Machine STX510 MKIII 4kW -made in Japan- ! SOFORT EINSATZBEREIT ! over-recovered, very well-preserved MAZAK laser machine with 4000W Panel size: 3000mm x 1500mm minimum set-up area of 2.9m x 7.3m Puncture sensor Plasma sensor Burning Sensor automatic nozzle change Small parts conveyor belt Ball roller table Fast-punching fully encapsulated machine cover Cast bed, no foundation needed FE: up to 20mm VA: up to 15mm ALMG: up to 10mm Plastic, wood cutable incl. CAD / CAM Software 2020 Version incl. 12 months warranty (within Dtl.) incl. delivery incl. commissioning + training Testing under electricity ready for delivery immediately immediately ready for use =optional with fully automatic loading and unloading MAZAK CELL=

Top CONDITION - UEBERHOLT IN 2020 ! Built: 2007 Panel size: 3000 x 1500 x 100mm Power: 2500W Control: Mazatrol Preview with LAN / USB incl. cooler incl. linear drives on all axes incl. programming software incl. training incl. commissioning incl. rapid puncture incl. ball roller table incl. 4 fold head change magazine incl. 2 cutting heads incl. 10x automatic nozzle changer FE: up to 20mm VA: up to 12mm oxide-free designed for high-pressure cutting up to 20bar no foundation ! necessary Optional automatic loading and unloading by Mazak CELL510 is offered with delivery / warranty / commissioning / training always regularly serviced

Top CONDITION - UEBERHOLT IN 2020 ! Built: 2006 Panel size: 3000 x 1500 x 100mm Power: 2500W Control: Mazatrol Preview with LAN / USB incl. cooler incl. linear drives on all axes incl. programming software incl. training incl. commissioning incl. rapid puncture incl. ball roller table incl. 4 fold head change magazine incl. 2 cutting heads Bjgcgttd8s incl. 10x automatic nozzle changer FE: up to 20mm VA: up to 12mm oxide-free designed for high-pressure cutting up to 20bar no foundation ! necessary Optional automatic loading and unloading by Mazak CELL510 is offered with delivery / warranty / commissioning / training always regularly serviced

TOP CONDITION - OVERHAULED IN 2022 ! - 1 year warranty Year of construction: 2007 Panel format: 3000 x 1500 x 100mm Power: 4000W Control: Mazatrol Preview with LAN / USB incl. cooler incl. linear drives on all axes incl. programming software incl. training incl. commissioning incl. quick puncture incl. ball roller table incl. 4x head change magazine incl. 2 cutting heads incl. 10x automatic nozzle changer FE: up to 24mm VA: up to 15mm oxide-free designed for high-pressure cutting up to 20bar no foundation ! necessary Optional automatic loading and unloading by Mazak CELL510 can be offered with warranty / commissioning / training always regularly maintained

workpiece length ... 3050mm max. šWorkpiece width ... 1525mm sheet thickness ... 19mm Laser power... 2500W Axis Z ... 300mm Axis A ... 360° Axis B ... 1.5M Axis C ... 360° Control Mazatrol L x W x H ... 9800x5000x2300mm Machine weight ... 14500kg The machine is in good condition, possible to test under power.

Machine Details Warehouse number 1105-03676 Machine type CNC lathe Make MAZAK Type SQT 200 Year of construction 1998 Control type CNC Control Mazatrol fusion 640T Storage location FRANCE Country of origin Japan Delivery time ON REQUEST Freight base EX WORK Price Technical details Turning diameter 350 mm Turning length 514 mm Control Mazatrol fusion 640T Circulation diameter 530 mm Spindle nose A2-6, 62mm Spindle bore 51 mm Speed 35-5,000 rpm Turret head (x-fold) 12-fold x-travel 166 mm z-travel 530 mm Total power requirement 18.5 kW Machine weight approx. 5.65 t Information 2-axle, WITH tailstock, WITH SPAENEFOERDER WITH MAZAROL T PLUS

Machine Details Stock number 1105-03735 Machine type CNC lathe Brand MAZAK Type QT 20 N Year of construction 1995 Control type CNC Control Mazatrol T PLUS Storage location FRANCE Country of origin Japan Delivery time immediately Freight base from site Technical details Turning diameter 440 mm Turning length 451 mm Control Mazatrol T PLUS Turning diameter via bed carriage 300 Tailstock holder MK 4 Quill stroke 130 mm Tailstock displacement 500 mm x-axis 180 mm z-axis 510 mm Spindle bore 62 mm Speed range 12-4500 rpm Total power requirement 40 KVA Machine weight ca. 4,2 t Information WITH MAZATROL T PLUS Good Macschine All prices plus VAT. VAT.. Changes and errors in the technical details and information reserved.

CO2 2d laser Model MAZAK NTX48 Champion Year 1999 Hours worked 53052 Power 1500 watts Hybrid type axis movement (X axis table movement, Y and Z axis head movement) X-axis longitudinal travel 2650 mm Y-axis transverse travel 1270mm Z-axis travel 100mm Machinable dimensions 2500x1250mm Head with capacitive sensor Mazatrol L-32B CNC Control Maximum machinable thicknesses with 5-inch head now supplied --6.0mm iron -3.0mm stainless steel -2.5 mm aluminum (with 7.5 inch head Iron 12.0mm Stainless 6.0mm theoretical) External dimensions: Length 5563mm

TOP CONDITION - OVERHAULED IN 2022 ! - 1 year warranty Year of construction: 2007 Panel format: 3000 x 1500 x 100mm Power: 4000W Control: Mazatrol Preview with LAN / USB incl. cooler incl. linear drives on all axes incl. programming software incl. training incl. commissioning incl. quick puncture incl. ball roller table incl. 4-fold head change magazine incl. 2 cutting heads incl. 10-fold automatic nozzle changer FE: up to 24mm VA: up to 15mm oxide-free designed for high-pressure cutting up to 20bar no foundation needed ! Optional automatic loading and unloading by Mazak CELL510 can be offered with warranty / commissioning / training Always regularly serviced

MAZAK SUPER TURBO X48 MK II laser was built in 2001 in Japan. The compact laser cutting machine is designed for precise cutting of pre-programmed shapes in sheet metal made of structural steel, stainless steel and aluminium. The machine’s small dimensions and components integrated into the machine frame, such as the chip conveyor and the MAZATROL L32B CNC control, allow it to be used to its full potential both in small factories and in series production. The MAZAK ST-X 48 MKII gas cutting machine can process sheets with a maximum thickness of 15 mm (S235 structural steel), 6 mm (stainless steel) and 3 mm (aluminium). High cutting speed as well as excellent machining quality and accuracy over the entire working area at low operating costs are achieved thanks to the YB-L150A 8M resonator, characterised by high energy efficiency, allowing the laser beam power to be adjusted in the rang ...

turning diameter: 350 mm turning length: 532 mm control: Mazatrol Smart total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Mazatrol Smart CNC control 3-jaw chuck C-axis driven tools 12-fold revolver Tool Eye tail stock coolant device chip conveyor Technische Daten / technical details: max. Umlaufdurchmesser / max. swing diameter 660 mm max. Drehdurchmesser/ max. turning diameter 350 mm max. Drehlänge / max. turning length 532 mm Planweg (x) / cross way (x) 225 mm Längsweg (z) / longitudinal way (z) 560 mm Drehzahlbereich / spindle speed 5000 UpM /rpm Drehzahl angetriebene Werkzeuge / speed of driven tools 4500 UpM / rpm Werkzeugrevolver / turret head 12 fach /holes Eilgang X/Z / rapid feed X/Z 30/33 m/min Antriebsleistung Spindel / drive capacity spindle 15 kW Gewicht der Maschine ca. / weight 4500 kg Technische Daten, Zube ...

Year of construction: 2006 Burning hours: approx. 11,500 h! Power: 4kW CNC control: Mazatrol PREview Resonator: Panasonic Sheet size: 3000x1500mm In recent years, spare parts have been replaced for about 28,000 €. Additional equipment: Rotary head that makes it possible to mount different nozzles and lenses to cut different materials without having to retool the machine. Automated system for sheet metal loading and unloading

Machine Details Stock-No. 1105-03886 Type of machine CNC Lathe Make MAZAK Type QT 20 N Year of manufacture 1998 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Japan Delivery time short-term Freight basis ex works Price Technical details turning diameter 440 mm turning length 451 mm control Mazatrol T PLUS turning diameter over bed slide 300 tailstock taper MT 4 Quill Stroke 130 mm tailstock adjustment 500 mm X-AXIS 180 mm Z-AXIS 510 mm Spindle Bore 62 mm turning speed range 12-4500 rpm total power requirement 40 KVA Weight of the machine approx. 4.2 t Additional information NICE MACHINE WITH BAR FEEDER IEMCA SERCI III

34"/44" x 60" Mazak gap bed lathe Model: Rex, Specifications: Swing over bed ways . 34" Swing in removable gap .. 44" Swing over cross slide .. 24-1/2" Distance between centers 60" Hole thru spindle ... 4-1/16" Spindle nose D1-11" camlock Width of bed 22" Spindle speed range (16) 12 - 1200 rpm Longitudinal feed range . .00217" - .0331" ipr Cross feed range half of longitudinal setting Inch threading range (40) ... 4 - 56 tpi Metric threading range (23) . .5 - 7 mm Tailstock spindle travel 8" Tailstock spindle taper . #6mt Approximate floor space . 144"L x 60"W x 60"H Approximate weight .. 12,500 lbs

MAZAK Laser Cutting Machine STX3015 4kW TOP CONDITION – OVERHAULED IN 2023 Year of construction: 10/2015 very well preserved, overhauled MAZAK laser machine with 4000W Panel format: 3000mm x 1500mm minimum installation area of 2.9m x 7.3m Small parts conveyor belt LAN/USB connection automatic nozzle change automatic focus position adjustment Quick piercing into thick materials Plasma sensor for stainless steel cutting Piercing sensor for piercing Burning sensor for monitoring when cutting structural steel Completely encapsulated machine cover no foundation necessary FE: up to 22mm VA: up to 15mm ALMG: up to 10mm Plastic possible incl. software incl. warranty incl. suction incl. commissioning + training =optional with fully automatic loading and unloading=

turning diameter: 510 mm turning length: 1000 mm control: Mazatrol type: Mazatrol T plus turning speeds: 35-3500 U/min spindle passage: 88 mm Tool changer: 20 Pos. Spindle capacity: 35 KW centre distance: 1029 mm x-travel: 450 mm z-travel: 1029 mm total power requirement: kW weight of the machine ca.: 7,5 t orbital diameter : 510 mm - Standard machining diameter : 510 mm - Max. machining length : 1000 mm - Spindle power : 35/30 HP - Spindle Bore: 88mm - Spindle nose : A2-8 - Spindle speed range: 35 - 3500 rpm - Distance between centers : 1029 mm - Axis C - X axis travel : 450 mm - Y axis Travet : +/- 90 mm - Z axis travel : 1029 mm - max feed : X = 12 m/min - Y = 10 m/min - Z = 18 m/min - Tool charger : 20 positions The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Technical information Swing over bed 420 mm Distance centre tot centre 1000 mm Max longitudinal travel Z-axis 1028 mm Max cross travel X-axis 335 mm Spindle coneA2-6 Dia of spindle bore 56 mm Power on the spindle20/25 hp Number of speeds16 - 4000 rpm CommandMazatrol Cam T3 Total power needed18,5 kW - 32,9 kVa Length 3734 mm Width 1893 mm Height 2401 mm Weight 4400 kg Toolchanger yes Number of tools 16x - rotating yes milling tools C-axis Robo flex automatic loading system tooling included Measuring arm included MAZATROL CAM T-3 CNC Accessories Tailstock, Evoquator, Tool Attachments, Presetting Machine weight 4700 kg Axis C Yes

Key data: 420 mm, 1233 mm, 3300 1/min

Mazatrol SMART Control Max. rotary diameter: 420 mm Max. turning length: 1,233 mm Travel X/Z: 240/1,350 mm Spindle motor 30 kW Max. spindle speed: 3,300 rpm Max. bar passage: 102 mm 12-speed revolver Driven tools AC 7.5 kW Max. speed: 4,000 rpm 3-jaw chuck Kitagawa BR12 Bezel SMW Autoblok type K3-FSW, clamping range 65 – 235 mm Djgned 15 bar high pressure pump

Key data: 300 mm

Mazatrol PC Fusion 640 T Travel X/Y/Z/B: 180/100/575/585 mm max. turning diameter 300 mm Bar passage 51 mm Main spindle 18.5 kW, max. 5,000 rpm Spindle nose A2-6 Sub-spindle 7.5 kW, max. 5,000 rpm Bcpr3pc7jma 16-speed turret, all stations for driven tools Max. speed: 4,500 rpm Tooleye Parts catcher Interface for bar feeder LNS Quick Load Servo III Bar Feeder Conveyor Streamware High Pressure Pump, 20 bar Coolant Temperature Control, Parker Hiross Hyperchill ICE005/230/1/5 Oil mist extraction Hainbuch Collet chuck for main and sub-spindle Tool Holder Package

Key data: 380 mm, 540 mm, 4 1/min

1 pc CNC lathe MAZAK QT Nexus 250-II MSY Year of construction 2016 Mazatrol Matrix II Max. turning diameter 380 mm Max. swing diameter 695 mm Distance between jaws 539.5 mm Max. bar passage 80 mm Travel X/Y/Z/W 234/100/625/585 mm Main spindle 26/22 kW Main spindle Max. speed 4,000 rpm Main spindle spindle nose A2-8 Sub-spindle 11/7.5 kW Sub-spindle Max. speed 6,000 rpm Sub-spindle spindle nose A2-5 12-speed tool turret 12 driven tool stations, 5.5 kW Driven tools max. speed 5,000 rpm Toolsetter Parts catcher Chip Conveyor, Right Discharge High-pressure pump, 15 bar Interface for bar feeder Bar Feeder 1 pcs bar loading magazine 1 set of tool holders, 8 fixed + 3 driven tool holders CE mark Documentation

Key data: 360 mm, 497 mm, 4000 1/min

CNC Lathe MAZAK QT SMART 250 ML (500U) Year of construction 07-2015 Mazatrol Smart Control Travel X/Z: 225 mm/605 mm. Max. turning diameter 360 mm Max. swing diameter 660 mm Max. turning length 497 mm Max. bar passage 80 mm Spindle motor AC18.5 kW Max. spindle speed 4,000 rpm 12-speed tool turret 12 driven tool stations AC 5.5 kW Driven tools max. speed 4,500 rpm Toolsetter Automatic Parts Catcher Tailstock High Pressure Pump Interface for bar feeder Conveyor CE mark

Key data: 500 mm, 1000 mm, 5000 1/min

Machine Details Stock-No. 1105-04017 Type of machine CNC Lathe - Inclined Bed Type Make MAZAK Type SQT 200 L Year of manufacture 2003 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Japan Delivery time Immediatly Freight basis Ex site Price Technical details turning diameter 360 mm turning length 1000 mm control MAZATROL FUSION 640 T swing diameter 350 mm spindle turning speed - stepless 5000 rpm Spindle Motor 15 kW Bar Material Dia. 51 mm X-Axis 190 mm Z-AXIS 1000 mm weight of the machine approx. 5 t dimensions of the machine approx. 3.6 x 1.8 x 2.0 m Accessories 12 - Tool Turret Tool - Eye tailstock

Key data: 350 mm, 500 mm

Stock number: 3920 CNC LATHE Manufacturer: Mazak , Type: Quick Turn Smart 200 Year of Make: 2012 Specifications: Max. circumferential diameter 350 mm dia. Max. turn. About Bed 660 mm Dia. Turning length 500 mm Main motor power 15 kw Spindle bore 65 mm dia. X axis movement 195 mm Z ash movement 560 mm Tool turret with 12 stations Controlled in 2 Axes Accessories: Hydraulic Main Centering Chuck 200 mm dia. Various tool holders. Cooling water system. Hydraulic tailstock. Length: 2700mm, Height: , Width: 1680mm, Weight: 4410 kg

MAZAK Quick Turn 15, built in 1989 fully functional with immediate effect.

Key data: 300 mm, 570 mm, 5000 1/min

Machine Details Stock-No. 1105-04044 Type of machine CNC Lathe Make MAZAK Type QT NEXUS 200 Year of manufacture 2009 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Japan Delivery time immediately Freight basis ex work Technical details turning diameter 350 mm turning length 575 mm Diameter bar 76 mm swing dia. 475 mm control Mazatrol Fusion 640 T X-Axis 190 mm Z-AXIS 570 mm total power requirement 26/22 kW weight of the machine approx. 5 t dimensions of the machine approx. 3.4 x 1.8 x 1.9 m Additional information mazatrol fusion 640 t 2 AXIS tool eyes chip convoyer tailstock

Inv. Num. : 8139 Type: QTN-200M Producer: MAZAK Created: 2005 Parameters: Control system: Mazatrol Fusion 640 T Nexus Maximum turning length: 538 mm Maximum turning diameter: 210 mm Maximum Spindle Speed: 35-5000 1/min Tool magazine: 12 pieces Maximum length of travel in the X-axis: 230 mm Maximum feed in the Z-axis: 575 mm Number of axes: 3 pieces Chuck Size: 8 (Kitagawa BB208) Power consumption: 37 kW Length: 2485 mm Width: 1780 mm Height: 1840 mm Weight: 4380 kg

Key data: 420 mm, 1538 mm, 3300 1/min

Stock number: 3962 CNC LATHE Manufacturer: MAZAK, Type: QTN 350 MY NEXUS Machines NO.: 202640, Year of manufacture: 2008 Specifications: Max. circumferential diameter 420 mm dia. Max. turn. About bed 700 mm DIA. Turning length 1538 mm Main motor power 30 kw Main spindle speed range 3300 rpm Spindle bore 102 mm dia. C axis - head spindle movement 0.001 degrees Z Ash Movement 1607 mm Y axis 150 mm Tool turret with 12 stations Powered stations revolver 1 12 pieces. Motor Power Driving Tools 7.5 Kw Powered tools. 4500 rpm Controlled in X-Z-C-Y axes Accessories: Hydr. Chuck main spindle 300 mm dia Driving angle tools 2 pieces Driving Tools Straight 2 pcs. Various tool holders. Tool setter Chip conveyance. Delivery time: Feb. 2025 Length: 4300 mm, Height: 2400 mm, Width: 2600 mm, Weight: 8 ...

Key data: 420 mm, 1524 mm, 3300 1/min

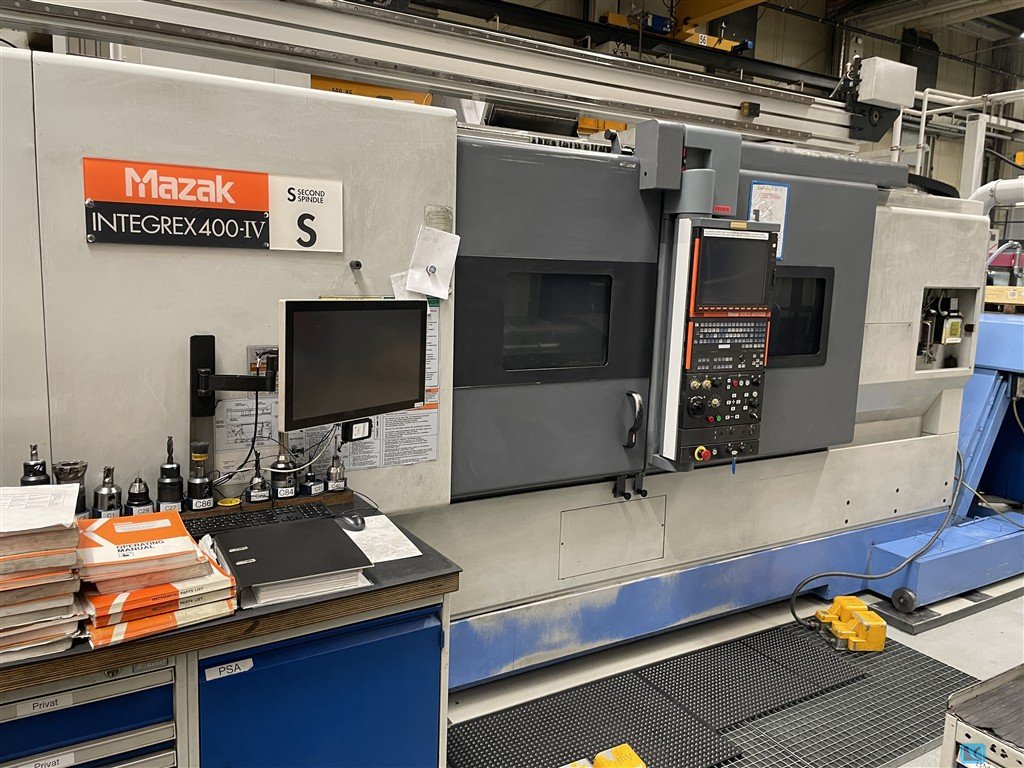

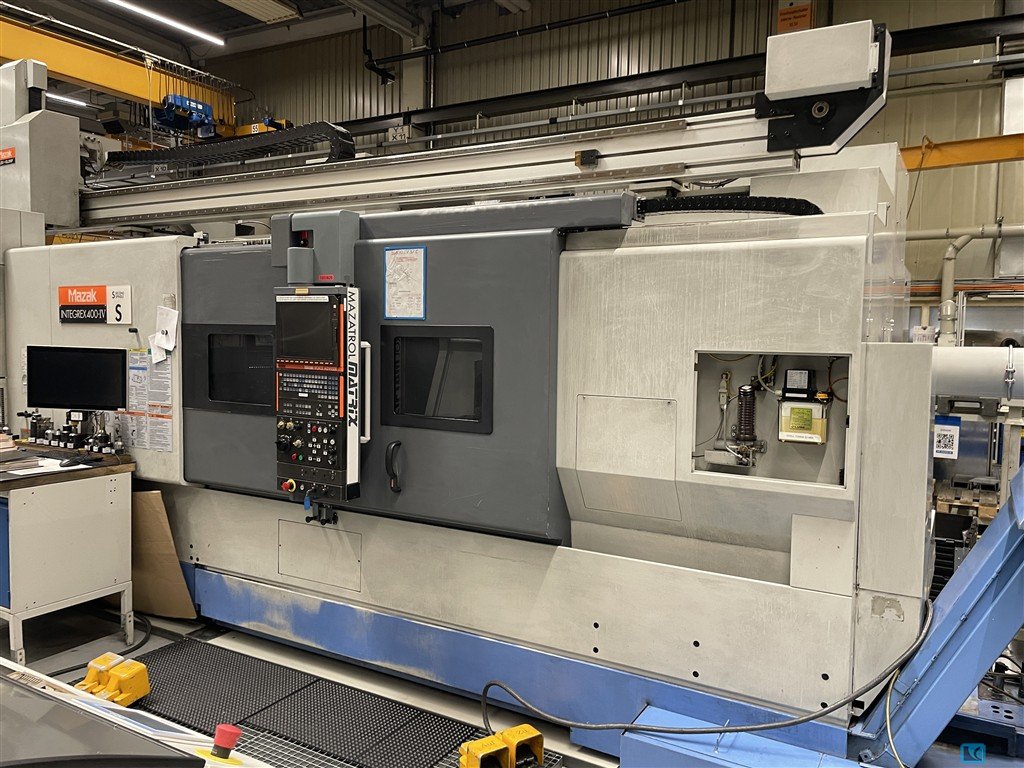

Stock number: 3963 CNC LATHE Manufacturer: MAZAK, Type: INTEGREX 400 III-S Machine NO.: 173882, Year of manufacture: 2005 Specifications: Max. circumferential diameter 420 mm dia. Max. turn. About Bed 850 mm Dia. Turning length 1524 mm Main motor power 30 kw Main spindle speed range 3300 rpm Drilling through drawing tube 102 mm dia. C axis - head spindle movement 0.001 degrees Y axis +/- 115 mm B Axis Movement -30/+195 degrees B axis spindle speed 12000 rpm B axis spindle effect 18.5 B axis tool system Capto C6 Sub-spindle C axis - counter pindle movement 0.001 degrees Engine power sub-spindle 26/22 Kw Total Power Consumption 99.9 kva Control Mazatrol 640 Fabr. Spindle Hours 7167 Hours Controlled in 6 Axes Accessories: ATC Tool magazine with 40 stations Hydr. Chuck main spindle 300 mm dia Hydr. Chuck Subspindle 300 mm dia  ...

Key data: 420 mm, 1500 mm, 3000 1/min

Stock number: 3979 CNC LATHE Manufacturer: MAZAK, Type: QTN 350 M Year of Make: 2005 Specifications: Max. circumferential diameter 420 mm dia. Max. turn. About bed 700 mm DIA. Turning length 1500 mm Main motor power 30 kw Spindle bore 102 mm dia. C axis - main spindle movement 0.001 degrees Tool turret with 12 stations Motor Power Driven Tools 7.5 Kw Powered tools. 25-4500 rpm Control Mazatrol 640T NEXUS Fabr. Controlled in 3 Axes Accessories: Various tool holders. Tool setter Chip conveyance. Cooling water system. Length: 4300mm, Height: 2400mm, Width: 2600mm, Weight: 7900 kg

Turning diameter 350 mm Turning lenght 550 mm Spindle speed 5000 rpm Bar work diameter 65 mm Controller MAZATROL smart

Key data: 380 mm, 575 mm, 5000 1/min

Smooth G control Travel X/Y/Z/W 230/100/625/575 mm Main spindle Max. speed 5,000 rpm Main spindle spindle nose A2-6 Sub-spindle Max. speed 6,000 rpm Sub-spindle spindle nose A2-5 16-cavity tool turret, VDI 16 driven tool stations 5.5 kW Max. speed ang. Tools: 5,000 rpm Toolsetter Parts catcher Full C-axis on main and counter spindle Cylinder interpolation Synch. Tapping Preparation Renishaw OMP Conveyor Interface for bar feeder 15 bar high pressure pump

The machine is in good technical condition, a test run is possible by prior arrangement. Accessories included.

Mazak NTX 48 Turbo CO 2 Laser cheap MAZAK laser cutting machine NTX48 1.5kW Year of Make: 1998 well-preserved, overhauled MAZAK laser machine with 1500W Panel size: 2500mm x 1250mm Minimum installation area of 2.6m x 6m Completely encapsulated machine cover FE: up to 15mm VA: up to 6mm Plastic possible Wood possible incl. software incl. suction Machine was completely overhauled by Mazak 1,000 hours ago (lenses, mirrors, oils). Includes Acer Laptap with software Si Cam including dongle Video on request To be visited under power

table length: 3050 mm table width: 1525 mm burner heads: 1 Control: Mazatrol PreviewG workpiece weight: 930 kg traversing speed: 120 m/min laser capacity in Watt: 6 kW cutting width: bis 25 mm x-travel: 3110 mm y-travel: 1595 mm z-travel: 110 mm weight: 15200 kg total power requirement: 41 kW dimensions of the machine ca.: mm NEW and UNUSED Machine Laser cutting machine with automatic shuttle table - Mazatrol PreviewG CNC control - 2 pallets - Multicontrol cutting head (Optiflex) - Donaldson DFPRE-4L SPKTRP (7,5kW) extraction system - CE The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Year of construction 2017 Machine made in Japan! Mazatrol Smooth G Max. turning diameter: 380 mm Jaw spacing: 539.5 mm Max. bar passage: 80 mm Travel X/Y/Z/W 234/100/625/585 mm Main spindle 26/22 kW Max. speed: 4,000 rpm Spindle Nose: A2-8 Sub-spindle 11/7.5 kW Max. speed: 6,000 rpm Spindle Nose: A2-5 12-speed revolver 12 driven tool stations, 5.5 kW Max. speed: 5,000 rpm Tooleye Part catcher for main and sub-spindle Conveyor Bar Feeder Interface 1 set of tool holders, 8 static + 3 driven 15-bar high-pressure pump 1 piece 3-jaw chuck, Kitagawa B210, diameter 254 mm 1 piece collet chuck for counter spindle CE marking Documentation

Mazatrol SMART Control Max. turning diameter: 420 mm Max. turning length: 1,233 mm Travel X/Z: 240/1,350 mm Spindle motor 30 kW Max. spindle speed: 4,000 rpm Spindle nose A2-8 Max. bar passage: 80 mm 12-speed revolver 3-jaw chuck Kitagawa BB210 Conveyor Manuals CE mark Switch-on time: about 4,000 hours

Mazatrol SMART Control Max. turning diameter: 420 mm Max. turning length: 1,233 mm Travel X/Z: 240/1,350 mm Spindle motor 15 kW Max. spindle speed: 5,000 rpm Spindle nose A2-8 Max. bar passage: 65 mm 12-speed revolver 3-jaw chuck Kitagawa BB208 Conveyor Manuals CE mark

Control Mazatrol Smooth G Max. turning diameter 380 mm Travel X/Y/Z: 234/100/625mm Main spindle Max. speed: 4,000 rpm Spindle motor drive power: 26 kW Max. bar passage: 80 mm Tool turret 12 tool stations 12 driven tool stations, 5.5 kW Max. speed: 5,000 rpm More options Prog. Tailstock 3-jaw chuck Kitagawa BB210 Parts catcher Interface for rod magazine Tool holder package, 3 powered holders + 8 fixed holders Coolant high-pressure pump, 15 bar Conveyor

Inv. Num. : 8714 Type: SQT 100 Producer: MAZAK Created: 2002 Parameters: Maximum turning length: 305 mm Maximum turning diameter: 280 mm Maximum spindle speed: 6000 1/min Spindle bore: 52 mm Weight: 3600 kg Equipment: Conveyor Bar Feeder

The machine is in good technical condition, testing is possible by prior arrangement.

turning diameter: . mm turning length: . mm control: Mazatrol type: . . turning speeds: . U/min spindle passage: . mm Tool changer: . Pos. Spindle capacity: . KW centre distance: . mm x-travel: . mm z-travel: . mm total power requirement: kW weight of the machine ca.: 4,75 t Super Quick Turn The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created wit ...

Key data: 380 mm, 1000 mm, 4000 1/min

Stock number: 3961 CNC LATHE Manufacturer: MAZAK, Type: QTN 250-1000L Year of Make: 2004 Specifications: Max. circumferential diameter 380 mm dia. Max. turn. About Bed 610 mm Dia. Turning length 1032 mm Main motor power 26 kw Main spindle speed range 4000 rpm Hole through drawing pipe 80 mm dia. X axis movement 230 mm Z ash movement 1000 mm Tool turret with 12 stations Total power consumption 50 kva Control 640 T Nexus Fabr. Spindle Hours 6091 Hours Controlled in X-Z axes Accessories: Hydraulic Main Center Chuck Kitagawa B-212 15X (300mm) mm dia. Various tools pcs. Tool setter Chip conveyance. Length: 3550 mm, Height: 1870 mm, Width: 2000 mm, Weight: 5200 kg

The machine is in good technical condition, testing is possible by prior arrangement.

Lathe Mazak QT10B 1997

The machine is in good technical condition, after prior agreement it is possible to test it. Max swing diameter 660 mm Max turned diameter 660 mm Main spindle: Speed ​​range 35-5000 Main drive power 22/15 kW Max torque 349Nm Spindle bore 76 mm Chuck diameter 210 mm Indexing (C axis) 0.0001 Second spindle: Speed ​​range 35-5000 rpm Power (10 min/constant) 18.5/15 kW Max torque 326 Nm Chuck diameter 210 mm Indexing (C axis) 0.0001 Coolant tank capacity 300 l Machine power 66 kVA Operating voltage 400 V / 50Hz Air pressure 5 bar, 500 l/min Control system MAZATROL Fusion 640 MT Flush cooling: Pump capacity 20 l / min Pump pressure 5 bar Accessories Technical documentation, chip conveyor with cooling, magazine for 20 tools B axis (positioned in 0.001, C axis, Y axis Indexing of the rotation position of the second spindle, Synchronization of the main and second spindles Tool pre-settin ...

turning diameter: 340 mm turning length: 1000 mm control: Mazatrol SmoothC total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The machine is in good technical condition, after prior agreement it is possible to test it. ideal machine for complete machining in one clamping (turning + milling). Equipment and parameters: - main spindle + counter spindle (complete machining from both sides) milling spindle with B axis Mazatrol SmoothG control 36-position tool magazine Capto C6 / PSC63 internal cooling large number of accessories (jaws, clamps, holders, etc.) a functional postprocessor for SolidCAM is included in the sale significant time and cost savings when introducing the machine into production

Mazak Quick Turn Smart 250M L Turning-Milling Center CNC Model Hersteller [manufacturer]: Mazak Germany Type [ type]: Quick Turn Smart 250M L Control unit: Mazatrol smart Incl. handwheel Baujahr[construction year]: 10/2016 Weight [weight]: 6500kg Approx. (L x D x H): 3.4m x 2.0m x 2.0m Full documentation is available. Various accessories after consultation. Top Zustand / condition From first hand, from Germany. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Price, from stock here plus VAT. Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - upon receipt of invoice Prior sale, errors excepted. We ask for your order. Other machines and systems available from stock – please inquire. We look forward to seeing you.

very well preserved, fully reconditioned MAZAK laser machines with 1500W Table format: 2500 x 1250 mm minimal footprint by 2, 6 m x 6, 5 m Small part conveyor completely encapsulated engine cover FE: up to 12mm VA: up to 6mm Plastic can incl. software including warranty incl. extraction incl. commissioning + training

Control for Mazak Intergrex (new) Technical data see pictures Good condition fully functional can be visited on site and tried out. Shipping abroad. Visit: Basically I would like to point out that the article may be viewed and tested under power to exclude misunderstandings, like before you buy. Please ask questions before you purchase to avoid ambiguity. For general questions or an appointment for a visit I am at the below telephone number, available. Errors in the description and intermediate sale is reserved. Shipping with freight forwarding.

with palletech Table size 800 x 800 mm Table NCRT Number of pallets 14 Movement x-Axis 1300 mm y-Axis 1100 mm z-Axis 1000 mm Table indexing 0,001° Number in tools in magazine 237 pieces Maximum spindle speed 35-7.000 min Tool taper DIN 69871A-50 CNC control M-plus

I'm selling a Mazak Multiplex 6200 lathe-mill. It's in very good condition, still powered up. Inspections are available by appointment. The machine is highly efficient, with two spindles, two independent heads, and a milling capability (C-axis). It's equipped with a partition wall that automatically closes from the control panel. When the wall is closed, the machine can operate as two independent lathes. It can also operate as a standard lathe with a retractable handle. I can send videos and more detailed photos of the machine. Transportation and training are available. I also have other machines for sale. Technical Specifications 640 Control (Windows) Milling Two spindles Two independent tool heads Mazatrol 640T Control Year of Manufacture: 2000 Spindle speed: 0-5000 rpm Milling speed: 0-4500 rpm Turning diameter: 320 mm Turning length: 440 mm Number of tools: 2 x 1 ...

Driven tool for Mazak Integrex Item description see nameplate. Good condition fully functional can be visited on site and tried out. Shipping abroad. Visit: Basically I would like to point out that the article may be viewed and tested under power to exclude misunderstandings, like before you buy. Please ask questions before you purchase to avoid ambiguity. For general questions or an appointment for a visit I am at the below telephone number, available. Errors in the description and intermediate sale is reserved. Shipping with freight forwarding.

Driven tool for Mazak Integrex Item description see nameplate. Good condition fully functional can be visited on site and tried out. Shipping abroad. Visit: Basically I would like to point out that the article may be viewed and tested under power to exclude misunderstandings, like before you buy. Please ask questions before you purchase to avoid ambiguity. For general questions or an appointment for a visit I am at the below telephone number, available. Errors in the description and intermediate sale is reserved. Shipping with freight forwarding.

Driven tool for Mazak Integrex Item description see nameplate. Good condition fully functional can be visited on site and tried out. Shipping abroad. Visit: Basically I would like to point out that the article may be viewed and tested under power to exclude misunderstandings, like before you buy. Please ask questions before you purchase to avoid ambiguity. For general questions or an appointment for a visit I am at the below telephone number, available. Errors in the description and intermediate sale is reserved. Shipping with freight forwarding.

Driven tool for Mazak Integrex Item description see nameplate. Good condition fully functional can be visited on site and tried out. Shipping abroad. Visit: Basically I would like to point out that the article may be viewed and tested under power to exclude misunderstandings, like before you buy. Please ask questions before you purchase to avoid ambiguity. For general questions or an appointment for a visit I am at the below telephone number, available. Errors in the description and intermediate sale is reserved. Shipping with freight forwarding.

Table size: 410 x 900 Traverse path x/y/z: 560/410/380 mm spindle retainer: SK 40 spindle speeds: 22-6000 rpm feeds: x & z to 10000, y up to 240 mm / min space: 2600 x 2000 x 2300 mm weight: 3500 kg

MAZAK INTEGREX 200 SY + FLEX GL-100C. 2001. MAZATROL 640 MT control maximum turning diameter 540 mm Z-axis travel 1,065 mm Main spindle maximum RPM 5,000 rpm Main spindle full C-axis Counter-spindle maximum speed 6,000 rpm Y-axis +/-80 mm Milling spindle for turning and milling Spindle maximum speed 6,000 rpm Full B-axis, 225° Tool changer with 40 tool positions KM-63 tool mount Tooleye 1 x 3 - jaw Chuck, diameter 210 mm 1 x 3 - jaw Chuck, diameter 170 mm Gantry loader Flex GL-100 C. High pressure cooling through spindle, 20 bar Chip conveyor CE mark

MAZAK INTEGREX turning/milling center 200Y Bu. 1999 Mazatrol fusion control Max Drehdurchm. 520 mm Max Schwingdurchm. 540 mm Maximum turning length 1,018 mm Bar passage 51 mm C-axis + angetr. Tools Y-axis +/-70 mm Distance between the top 500 mm Drive 30 kW Maximum main spindle spindle speed 5,000 rpm Maximum speed milling spindle 6,000 rpm Tool changer with 40 stations 3-jaw Chuck 200 mm Tool measuring arm Tailstock Chip conveyor Total connected load 31 kVA Machine dimensions 3.50 m x 2.10 m x 2.50 m Machine weight 6,800 kG 25 tool holder KM 36 duty hours approx. 36,000

Key data: 1150 , 650 , 500

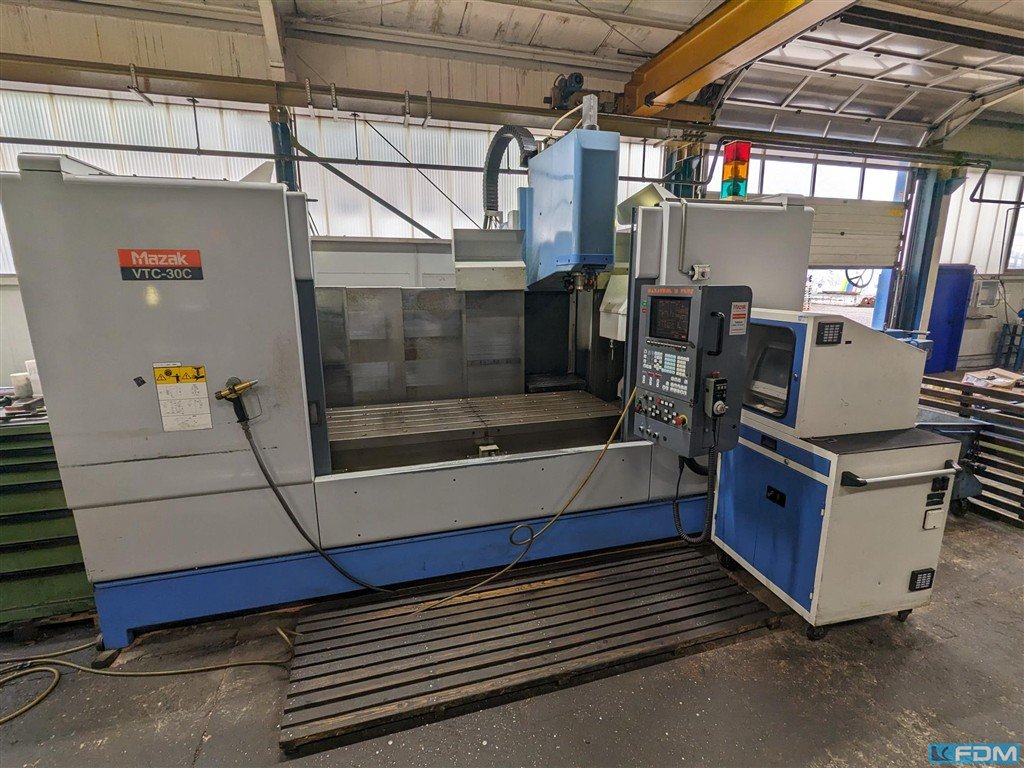

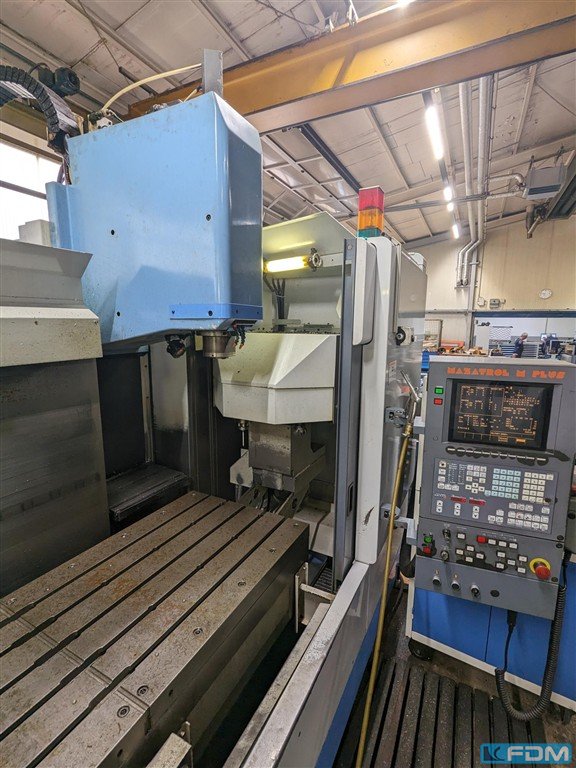

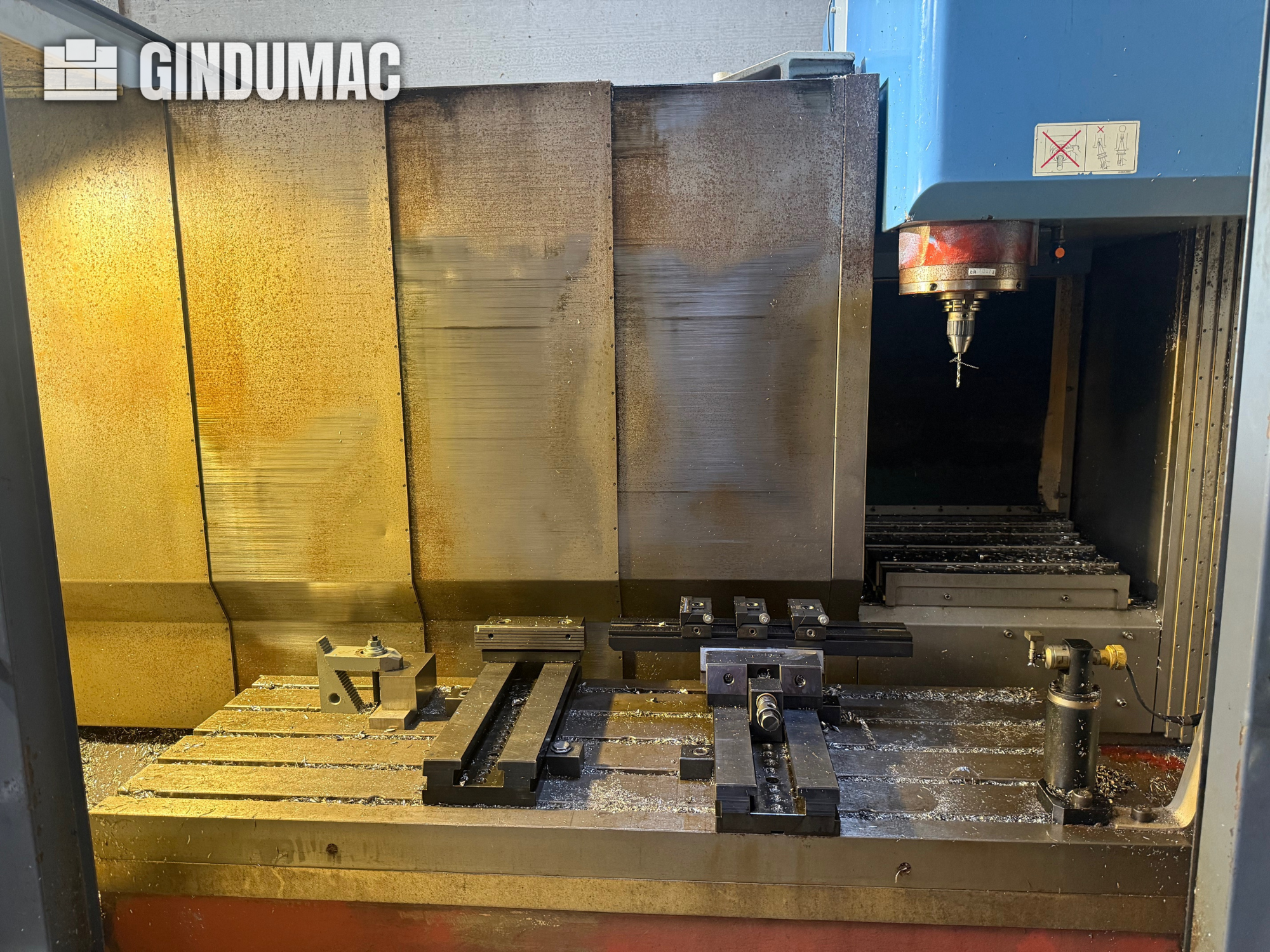

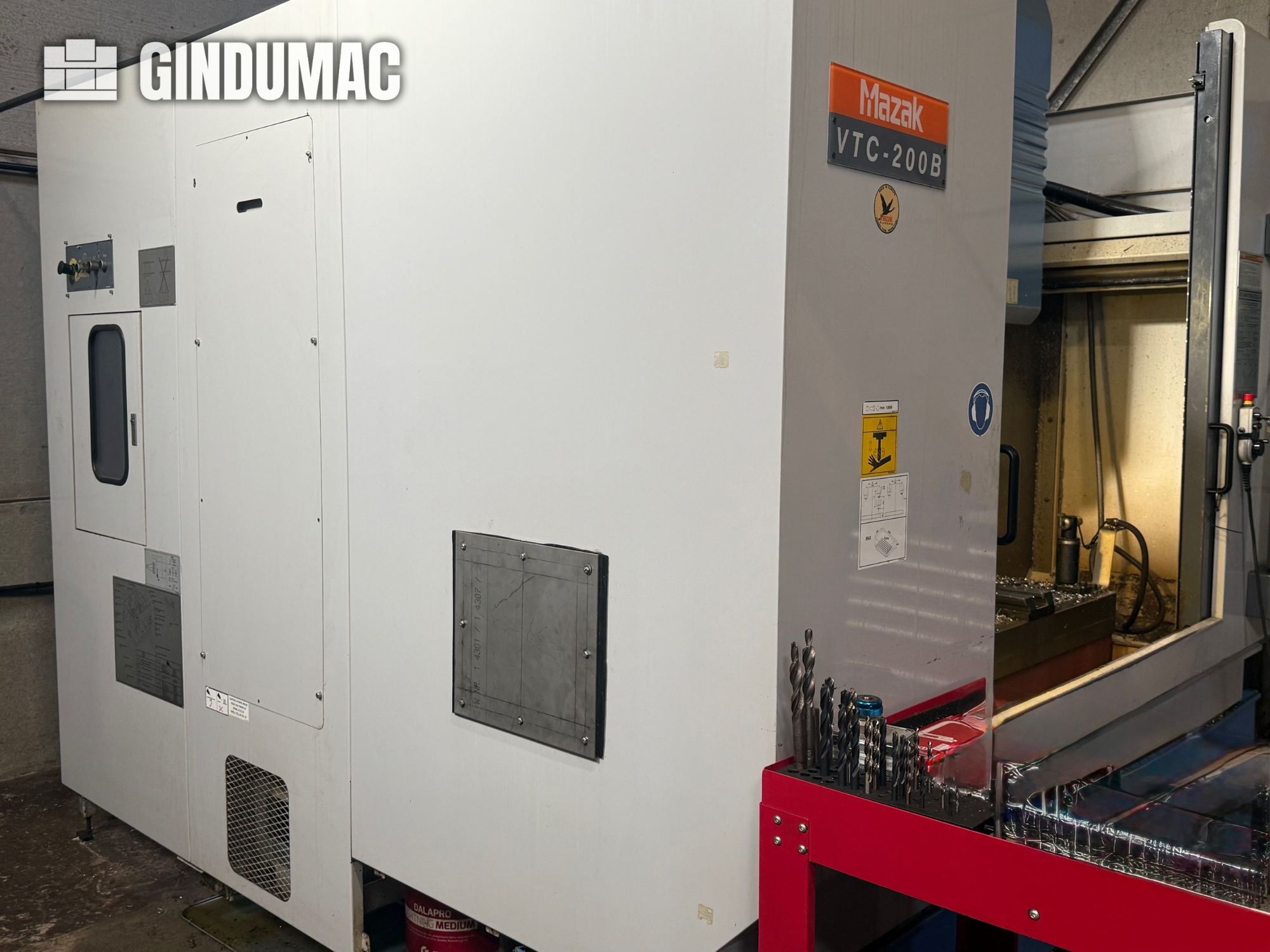

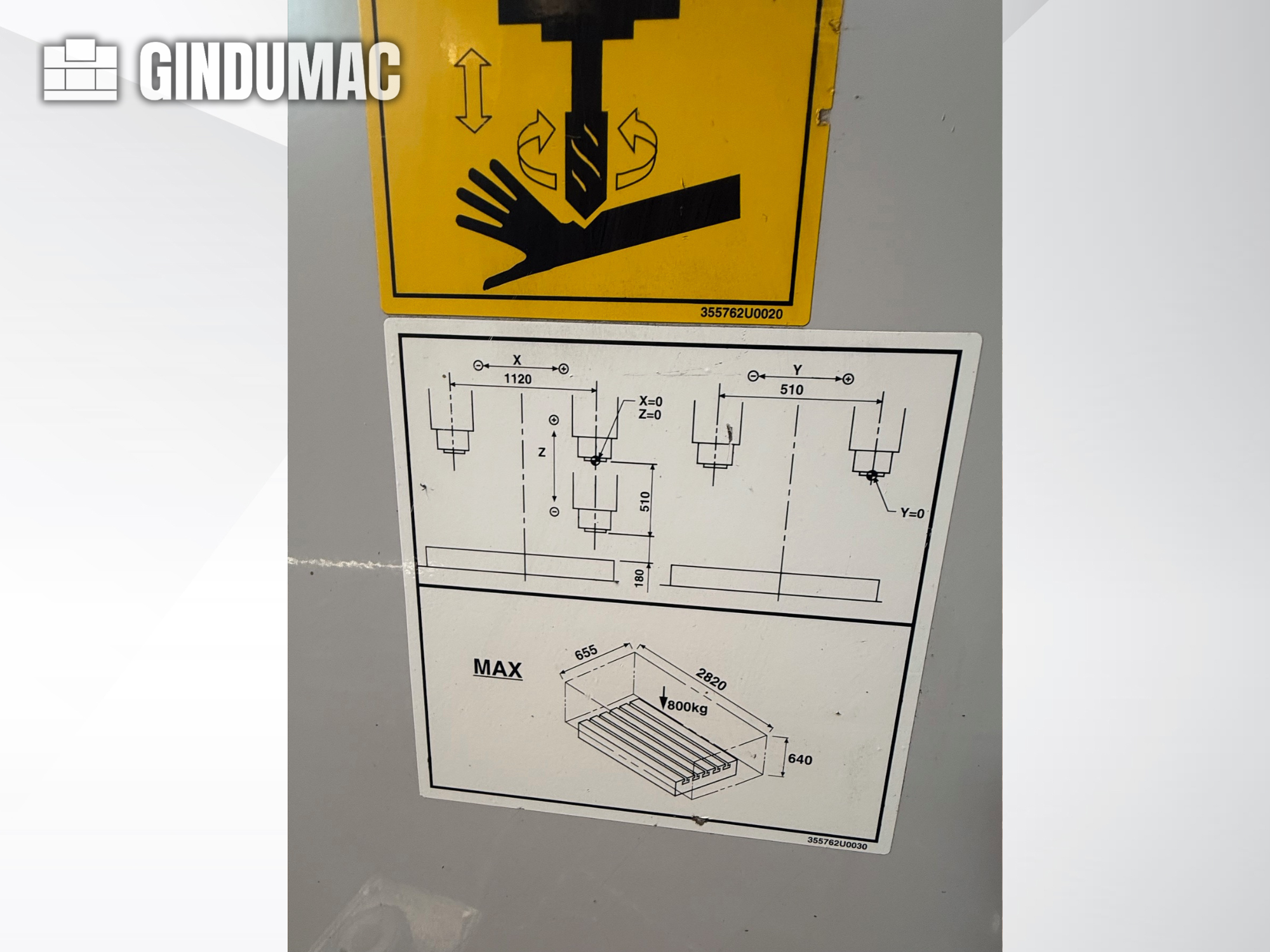

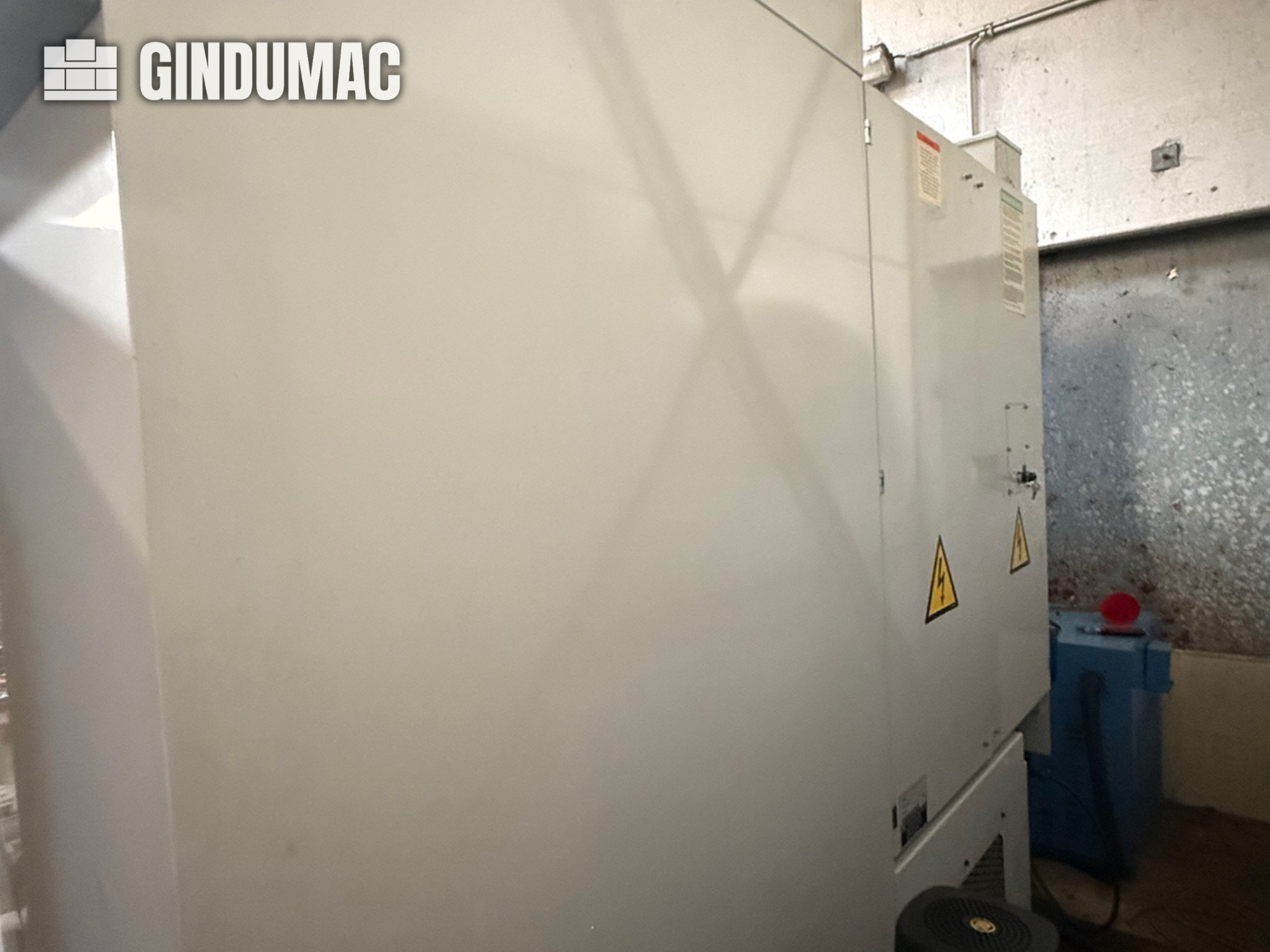

Machine details Bearing number 1105-02989 Machine type Machining Center - Vertical Make MAZAK Type VTC 20 B Built in 1996 Control type CNC Warehouse FRANCE Country of origin Japan Delivery time immediately Freight base from stock Technical details Information CNC control MAZATROL M PLUS , 24 X-fold tool changer, coolant device 10000 R/MIN

Tool Revolver 8-speed Mazak Quick Turn 10N Machine used, good condition from assembly of a MAZAK Quick Turn 10N CNC lathe My. 1985 satted with 8 tool-places Turret 290 mm Space requirement LxWxH: 580 x 460 x 380 mm Price is understood plus VAT freely loaded warehouse Casting - shipping possible after arrangement and assumption of costs Changes / errors in the technical data as well as intermediate sale reserved Seller Offer No. resale 8904
