dmg mori seiki lathes used for sale

This 4-axis DMG Mori Seiki SL 2500 Y was manufactured in 2005. It features a maximum swing diameter of 755 mm and a machining diameter of 390 mm, with a maximum machining length of 655 mm. The machine includes a 12-station turret and a programmable hydraulic tailstock. If you are looking to get high-quality turning and milling capabilities, consider the DMG Mori Seiki SL 2500 Y turn-mill centre we have for sale. Contact us for further details.

DMG MORI SEIKI DMC 635 V Ecoline CNC machining center was built in 2013. The machine, designed for precision machining of workpieces, is distinguished by its extremely stable construction made of high-quality cast iron, which perfectly dampens any vibrations and oscillations. To achieve the highest precision and accuracy, reliable components in the form of cutting tools and a high-speed spindle are used in the machining process. Tools are changed in a very short time, so that the overall milling time is significantly reduced. The DMG DMC 635 V ECO CNC vertical machining center is offered with a modern touchscreen control panel and integrated chip conveyor. To this date, the machine has only worked for 9069 hours. The DMC 635 V ECOLINE milling center weighs 3900 kg. Technical specifications of the CNC milling machine DMC 635 V ECO - number of axes: 3 (X,Y,Z) - feed in the X/Y/Z ax ...

x-travel: 635 mm y-travel: 510 mm z-travel: 460 mm Control: Siemens 840D total power requirement: kW weight of the machine ca.: 4 t dimensions of the machine ca.: 3,4 x 2,4 x 2,8 m Brand DMG Mori Seiki Machine no F666 Type DMC 635 V Ecoline Control Siemens 840D Year of make 2012 Table length 790 mm Table width 560 mm X 635 mm Y 510 mm Z 460 mm Spindle taper SK40 Speed maximum 12.000 RPM Chip transport Machine size 3.400 x 2.400 x 2.800 mm Machine weight 3.950 kg Tool magazine positions: 30 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 500 mm y-travel: 450 mm z-travel: 400 mm control: Siemens 840D total power requirement: 13/9 kW weight of the machine ca.: 4,7 t dimensions of the machine ca.: 3,4 x 2,5 x 2,2 m Brand DMG Mori Seiki Machine no F652 Type DMU 50 Ecoline Control Siemens 840D Year of make 2012 Table width 500 mm Table diameter 630 mm ø Table adjustable in degrees X 500 mm Y 450 mm Z 400 mm Spindle taper SK40 Speed minimum 20 RPM Speed maximum 10.000 RPM Maximum table load 200 kg Chip transport Machine size 3.400 x 2.500 x 2.200 mm Machine weight 4.700 kg Tool magazine positions: 30 B-as: -5/+110 ° C-as: 360 ° Engine power: 13/9 Kw The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 3s DMG Mori Seiki NLX1500MC/500 horizontal turning machine was manufactured in 2014. It features a maximum turning diameter without interference of 366 mm, X-axis travel of 260 mm, and Z-axis travel of 590 mm. With a spindle speed of 6,000 rpm and a turret with 12 driven stations, consider the opportunity to buy this DMG Mori Seiki NLX1500MC/500 horizontal turning machine. Contact us for further details.

This 5-axis DMG Mori Seiki LaserTec 50 was manufactured in 2019. It features a Celos with Siemens 840D sl Operate control, integrated ytterbium cw fiber laser, and a compact design with a 4 m² footprint. Ideal for machining diamond tools with dimensions up to Ø 355 mm and 420 mm in length. If you are looking to get high-quality laser machining capabilities, consider the DMG Mori Seiki LaserTec 50 machine we have for sale. Contact us for more information.

Horizontal turning machine manufactured in 1998. This DMG Mori Seiki CL-200B features an X-axis travel of 398 mm and Z-axis travel of 214 mm. It is equipped with a Renishaw tool setter and a workpiece catcher that has never been used. The machine has approximately 10,000 operating hours and has always been operated in a single-shift environment. If you are looking to get high-quality turning capabilities, consider the DMG Mori Seiki CL-200B machine we have for sale. Contact us for further details.

x-travel: 885 mm y-travel: 600 mm z-travel: 600 mm c-axis: 360 ° b-axis: +10 / -110 ° control: Heidenhain iTNC 530 : : 42000 min/-1 : 20 / 15 kW table surface area: dia 750 mm max. table load: 800 kg : : 30 pos. tool taper: HSK E 50 feeds:: feed speeds: max. 90.000 mm/min rapid traverse: 90 m/min total power requirement: 73 kVA weight of the machine ca.: 11 t dimensions of the machine ca.: 3,3 x 2,9 x 3,1 m High dynamic 5-Axis-Precision Center equipped with: - CNC ControlHeidenhein iTNC 530 - ATC 30-fold (HSK E50) - Chip Conveyor approx 57000H working hours The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 750 mm y-travel: 210 mm z-travel: 1150 + 100 mm control: Fanuc MSX-701III Maximum turning diameter: 660 mm Max. turning length: 1498 mm Diameter over cross slide max.: 400 mm number of spindle speeds: 3000 U/min tool piece magazine with: 40 Plätzen turret: 10 Fach total power requirement: 90 kVA weight of the machine ca.: 26,6 t dimensions of the machine ca.: 5301 x 2997 x 2788 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 735 mm y-travel: 650 mm z-travel: 560 mm control: 840D sl FD operate Siemens Main spindle:: turning speed range - main spindle: max. 18.000 min/-1 power capacity - main spindel: 35 / 24 kW max. Torque: 119 Nm tool taper: HSK-A63 DIN 69893 swiveling-rotary-table:: table diameter: 680 mm max. table load: 600 kg max. workpiece sizes: 650 x 650 x 500 mm swivellable: +/- 120 ° rotatable: 360 ° tool magazin:: number of toolpositions: 30 pos. tool taper: HSK-A63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool length: 315 mm max. tool weight: 8,0 kg change-time chip to chip: ca. 4,9 sec feeds:: feed speeds: max. 40.000 mm/min rapid traverse: 40 m/min total power requirement: 65 kVA weight of the machine ca.: 11,6 t dimensions of the machine ca.: 4,0 x 3,0 x 2,95 m Documents: Chip conveyor: Coolantsystem: 600 L through spindle coolant: 40 bar paper ba ...

CNC CONTROL: MSD 501 II, FANUC FEATURES: DIAMETER ADMITTED ON THE BED, MM 680 MAXIMUM TURNING DIAMETER 440 MM N1 MAXIMUM TREATMENT DIAMETER N2 322 MM MAXIMUM TURNING LENGTH, MM 471 THE STANDARD MACHINING DIAMETER MM170 MAIN SPINDLE: STEP PANEL 45 MM COUNTER SPINDLE: HOLE PITCH LINE 43 MM TURRET 1: POSITION N12 ALL MOTORIZED TOWER 2: POSITION N12 ALL MOTORIZED

MAchine is in good working condition.

For sale Mori Seiki CNC lathe type DL-15 in good condition. Equipped with 2 x 12 positions turret and left and right spindle. Maximum speed 6,000 rpm of both spindles. Fanuc MSC-516 control. Chip conveyors and bar feeders. Still in good condition and still under power, subject to prior sale

Description WE OFFER AN HIGH TECH CNC LATHE TURNING AND MILLING CENTRE MACHINE IS COMMING OUT FROM FORMULA 1 - MERCEDES WORKSHOP MACHINE WAS FROM NEW HIGEST POSSIBLLE MAINTAINED WITH OFFICAL MORI SEIKI TECHNICAL DATA: Mori Seiki MT2000 CNC Lathe Description: Swing over bed - 700mm, Distance between centres - 1080mm, Max turning dia meter - 550mm, Max turning length - 1020mm, Bar capacity - 65mm, X Travel - 565mm, Y Travel - +/-80mm, Z Travel - 1077mm, B Indexing - +/-120deg, X Travel Turret 2 - 155mm, Z Travel Turret 2 - 1067mm, Spindle Speed - 4500rpm, Spindle nose - JIS A2-6, Tool Spindle Speed - 6000rpm, Tool Spindle type - Capto C6, ATC - 40 Tools, Max tool length - 280mm, Max tool weight - 7kg, Turret 2 Tools - 12, Square shank - 25mm, Boring bar shank diameter - 40mm, ...

X-AXIS STROKE: 840 MM Y-AXIS STROKE: 860 MM Z-AXIS STROKE: 840 MM TABLE SIZE: 630 X 630 MM TABLE CAPACITY: 1,200 KG SPINDLE POWER: 30/25 KW ROTATION SPEED: 12,000 RPM ATTACHMENT: BT 50 NASOMANDRINO/PALLET DISTANCE: 50-810 MM SPINDLE-PLANK DISTANCE: 150-990 MM TOOL WAREHOUSE: 120 STATIONS MAX. WORKPIECE HEIGHT: 1000 MM CONTROL: MSG-502 YEAR OF BUILD: 2002

COURSE AXIS X: 840 MM COURSE ASSE Y: 860 MM COURSE ASSE Z: 840 MM TAVOLA SIZE: 630 X 630 MM TABLE RANGE: 1,200 KG TABLE INDEX: 1ST MANDRINO POWER: 30/25 KW ROTATION SPEED: 12,000 GIRI/MIN ATTACK: BT 50 NASOMANDRINO/PALLET: 50-810 MM MANDRINO - TAVOLA: 150-990 MM TOOL WAREHOUSE: 120 STATIONS MAXIMUM HEIGHT OF THE PIECE: 1000 MM CONTROL: MSG-502 BUILT: 2002

COURSE AXIS X: 840 MM COURSE ASSE Y: 860 MM COURSE ASSE Z: 840 MM TAVOLA SIZE: 630 X 630 MM TABLE RANGE: 1,200 KG TABLE INDEX: 1ST MANDRINO POWER: 30/25 KW ROTATION SPEED: 12,000 GIRI/MIN ATTACK: BT 50 NASOMANDRINO/PALLET: 50-810 MM MANDRINO - TAVOLA: 150-990 MM TOOL WAREHOUSE: 120 STATIONS MAXIMUM HEIGHT OF THE PIECE: 1000 MM CONTROL: MSG-502 BUILT: 2002

YEAR: 08/2004 LONGITUDINAL CORSA: X 800 MM TRANSVERSE COURSE: Y 700 MM VERTICAL COURSE: Z 700 MM ASSE B INDEXED 1st PALLET (2) 500X500 MM CNC MAPPS MSG-501 TOOL WAREHOUSES 60 LOCATIONS ATTACK MANDRINO BT40 MANDRINO MASSIMA VELOCITY 12000 RPM POWER OF MANDRINO'S POWER 26 KW

MORI SEIKI SH-500/40 Horizontal Machining Center was built in Japan in 1999 by MORI SEIKI CO., LTD. The machine is equipped with a numerical control type MORI SEIKI MSC-502. The milling machine has a table size of 500 x 500 mm and processes workpieces weighing up to 500 kg. The travel range of its X, Y, Z axes is 630 x 600 x 650 mm, respectively. The machine spindle rotates at 12,000 revolutions per minute. The milling machine is equipped with a magazine for forty tools with a maximum tool diameter of 150 mm, length 360 mm and a weight of 12 kg. The milling center is offered at a price with different types of holders. Technical parameters of the MORI SEIKI SH-500/40 CNC milling machine - CNC control: MORI SEIKI MSC-502 Travel range: - X axis (table travel length): 630 mm - Y axis (vertical movement of the spindle head): 600 mm - Z axis (cross table movement): 650 mm - distan ...

MORI SEIKI SH-400 Horizontal Machining Center was manufactured in 2000 in Japan by Mori Seiki CO., LTD. The CNC milling machine is equipped with Mori Seiki MSC-501 numerical control. The price of the machine includes various types of frames. Technical data of the MORI SEIKI SH-400 CNC milling machine - CNC control: MORI SEIKI MSC-501 - machine weight: 10100 kg

4 pcs. rope pulleys for counter weight of a FB 225 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MORI SEIKI NT6600 CNC INTEGRATED MILL TURN CENTER WITH LIVE MILLING MAXIMUM SWING OVER BED: 42" MAXIMUM WORK PIECE DIAMETER: 42" MAXIMUM WORK PIECE LENGTH: 239" MAXIMUM BAR DIAMETER: 6.4" SPINDLE BORE: 7" X AXIS TRAVEL: 41" Y AXIS TRAVEL: 26" Z AXIS TRAVEL: 242" B AXIS: +/- 120 DEG. MAIN SPINDLE SPEED: 1500 RPM MAIN SPINDLE MOTOR: 40 HP MILLING SPINDLE SPEED: 8000 RPM MILLING SPINDLE MOTOR: 40 HP ELECTRICS: 220V/3P/60Hz/216A OAD (APPROXIMATE): 490" X 182" X 169" HIGH WEIGHT (APPROXIMATE): 120,560 LBS. EQUIPPED WITH: C AXIS YAXIS B AXIS LIVE TOOLING/MILLING 20" CHUCK FS-31iA5 CNC CONTROL 140 POSITION AUTOMATIC TOOL CHANGER PROGRAMMABLE TAILSTOCK COOLANT THROUGH SPINDLE (HIGH PRESSURE) CHIP CONVEYOR Additional Control Options: Automatic Power Shut-Off MAPPS 4 System Part Program Storage: 8mb Stored Programs: 1000 Remote Communication Function ATA Flash M ...

This 12-axis MORI SEIKI NZ2000 ST3Y3 was manufactured in 2011. It features a maximum machining diameter of 200 mm and a maximum machining length of 260 mm. The machine is equipped with twin spindles and three turrets, providing efficient multi-spindle turning capabilities. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NZ2000 ST3Y3 multi-spindle turning machine we have for sale. Contact us for further details.

MORI SEIKI NTX2000SZ 1500 multitasking turning center, year 2012, for complete machining of complex workpieces. The machine is located in Norway. Further details, technical data, photos and video on request.

x-travel:800 mm y-travel:460 mm z-travel:510 mm total power requirement:20 kW weight of the machine ca.:8 t Vertical Processing Centre 20kW is the nominal value. The spindle only needs 7.5kW. It looks like 15kW will be enough.

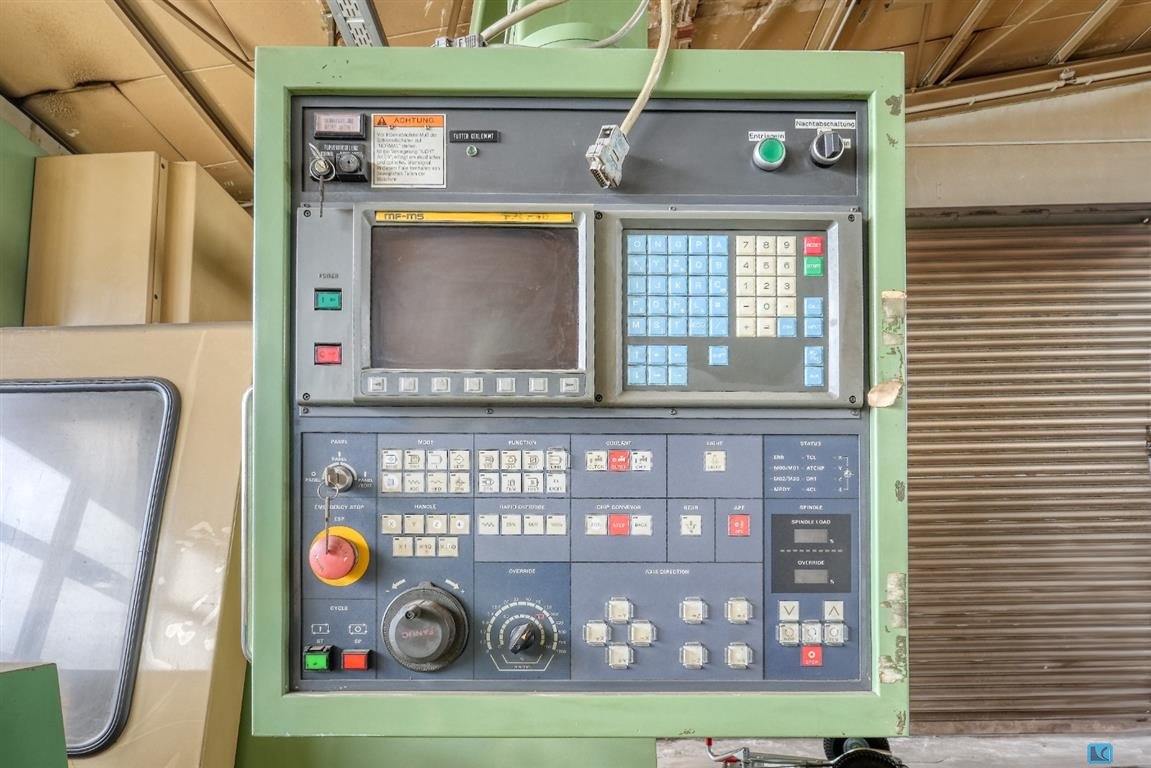

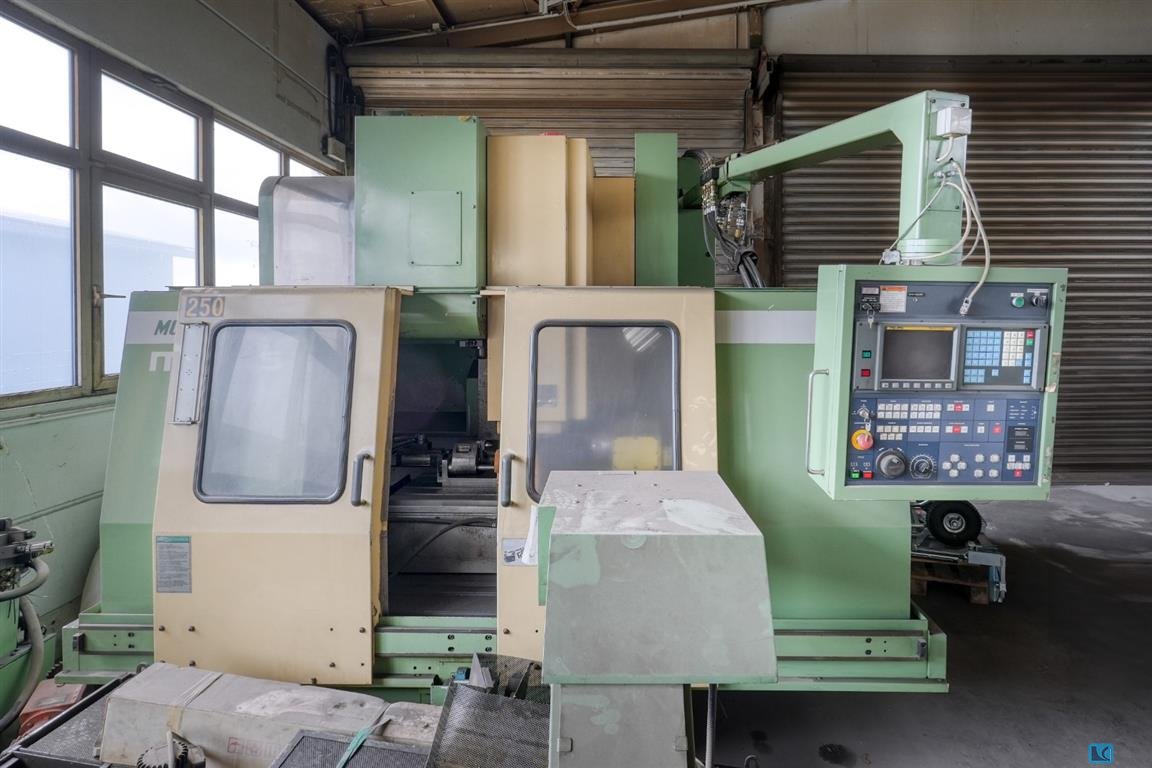

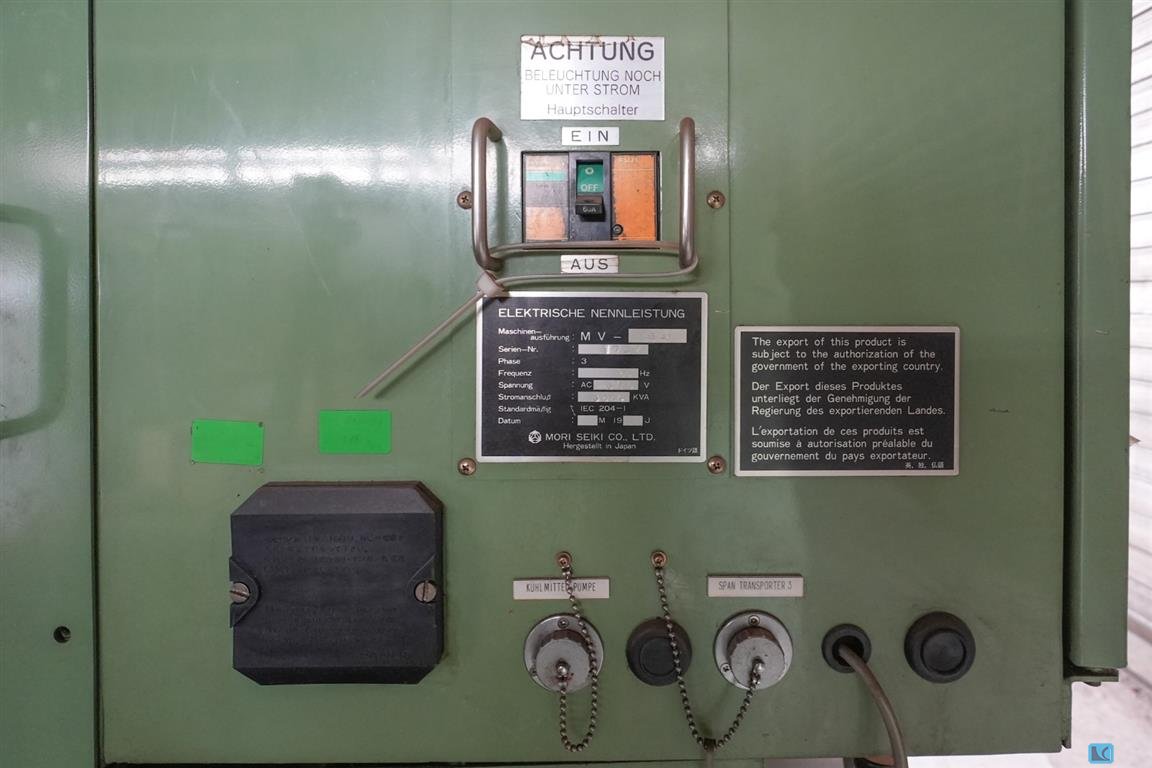

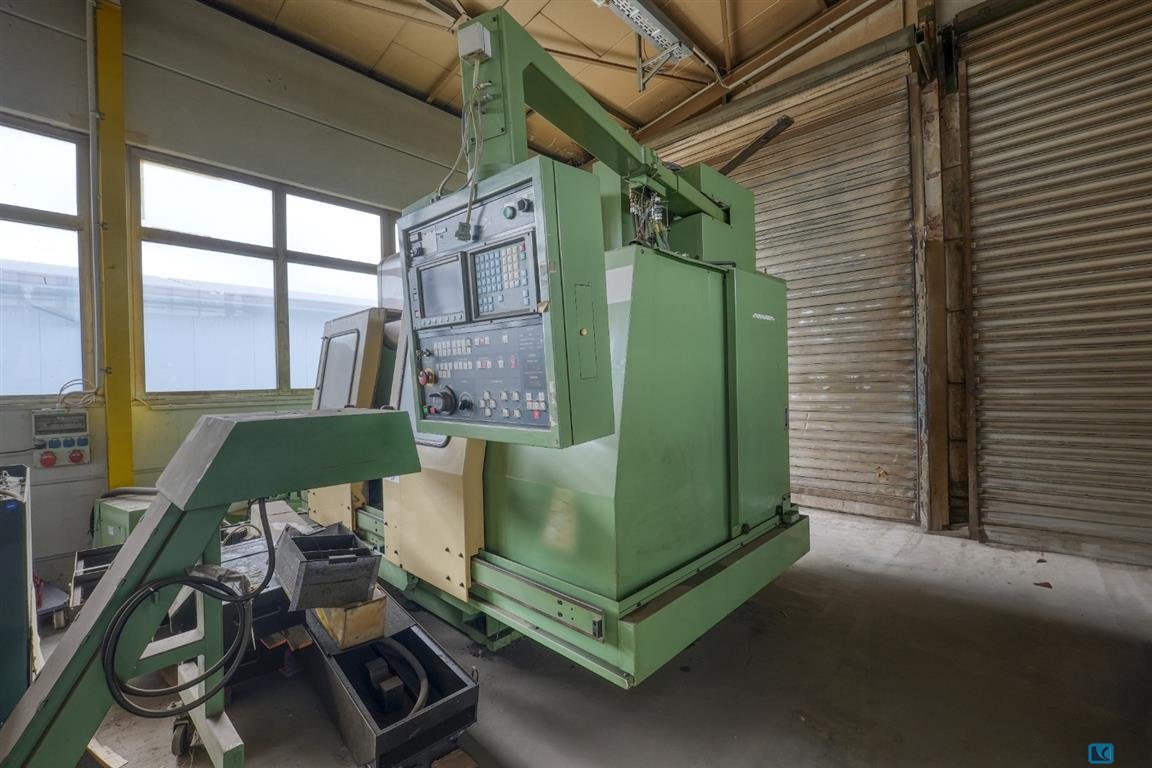

MORI SEIKI MV 65-50 Year 1986 - STROKES (mm) X = 1270 Y = 650 Z = 650 -FANUC 11M CNC control -Tool holder -30 tool warehouse

Key data: 1400 mm, 1200 mm, 1350 mm

A horizontal machining center from the manufacturer Mori Seiki NH 8000 DCG is offered here. The machine is in good condition and can be visited. Make: Mori Seiki Huzvdlw Type: NH 8000 DCG Year of Make: 2008 Control: Fanuc MSX-701III Specifications: Travel: X-axis 1400 mm Y-axis 1200 mm Z-axis 1350 mm B-axis rotary table 360x0.001° automaton. Tool changer with 60 tool positions Tool holder HSK 100 2-fold pallet changing system Pallet dimensions 800 mm x 800 mm max. tool length 800 mm max. tool weight 30 kg Spindle power 37 KW Max. spindle speed 8000rpm. IKZ cooling system

CNC controller: Fanuc FS31IA5 (MAPPS 4) Capacity Turning length mm: 800 Max. turning diameter mm: ø Ø430 Turn-mill spindle X-axis travel mm: 455 Y-axis travel mm: ±105 Z-axis travel mm: 800 B-axis degree: ±120 (0.001º) Speed spindle rpm: 12.000 Drive power kW: 9/5.5 Tool magazine Magazine places: 76 Tool holder: Capto C5 Tool length max. mm: 250 Tool diameter max. mm: 70/130 Tool weight max kg: 5 Lower turret X-axis travel mm: 160 Z-axis travel mm: 730 Number of tool slots St .: 10 Main spindle Speed spindle rpm: 6.000 Drive power spindle kW: 11/7.5 Spindle bore mm: 73 Chuck type: Hollow Chuck (8") Manufacturer: KITAGAWA Counter spindle Speed spindle rpm: 6.000 Drive power spindle kW: 7.5/5.5 Chuck type: Solid Chuck (8") Manufacturer: KITAGAWA Equipment Chip conveyor Signal lamp High pressure pump Chuck foot switch (double) for main and counter sp ...

CNC Machining Center Manufacturer: MORI SEIKI Type: Partner M300 A-1 Year of Make: 1990 Control: FANUC O-M Travels: X/Y/Z: 400 x 300 x 495 mm Distance between spindle center and pallet table (Y-axis) 25 – 325 mm Distance between spindle nose and pallet table (Z-axis) 125 – 620 mm Rapid traverse movement: 24 m/min Feed movement up to 5 m/min Spindle: Ball screw: 36 mm diameter Feed Actuators FANUC AC X/Y-Axis Model 5 Z-Axis Model 10 Main spindle revolutions: 100 – 6000 rpm Main spindle motor: AC 5.5 kW Main spindle taper: BT 40 Pallet: Pallet size: 315 x 315 mm Pallet Indexing Angle: 7.5 degrees Indexing accuracy: +/- 2 sec. Repeatability: +/- 1 sec. Clamping force of the pallet: 3,400 kg Max. workpiece weight: 150 kg Automatic Tool Changer: Number of Tools 30 Tool change 2.5 sec. Collets Clamping Time 7 sec. Tool diameter max.: 110 mm Too ...

Inv. Num. : 7736 Type: CL2000B Producer: MORI SEIKI Created: 2008 Parameters: Control system: Mitsubishi MAPPS III Switch-on hours: 37200 h Maximum turning length: 560 mm Max. turning diameter: 350 mm

Inv. Num. : 7790 Type: SL-4T Producer: MORI SEIKI Created: 1984 Parameters: Control system: FANUC 6T Maximum turning diameter over bed: 490 mm Maximum turning diameter over support: 320 mm Maximum spindle speed: 3000 1/min Length: 3100 mm Width: 1900 mm Height: 1900 mm Weight: 5500 kg Equipment: Conveyor

CNC controller: Mitsubishi M-720BM (MAPPS 2) Capacity X-axis travel mm: 260 Z-axis travel mm: 590 Turning length mm: 510 Max. turning diameter mm: ø: Ø356 Upper turret Tool holder: 12 Main spindle Speed spindle rpm: 5000 Drive power spindle kW: 15/11 Spindle bore mm: 73 Manufacturer: KITAGAWA Equipment Chip conveyor Signal lamp Tool measuring arm High pressure pump Workarea light 4th axis Interface for Bar feeder Rated power kVA Working time hours Under power: 7456 Spnidle: 5423 Basic machine dimensions / weight Length mm: 3495 Width mm: 2050 Height mm: 2230 Weight kg: 5800

Key data: 190 mm

Stock No: 3764 CNC LATHE Manufacturer: Mori Seiki, Type: ZT 1000Y Machine NO.: ZT101CB0056, Year of manufacture: 2003 Specifications: Max. circumferential diameter 190 mm dia. Max. turn. About BED 250 mm DIA. Main motor power 22/18.5 kw Main spindle speed range 6000 rpm Hole through drawing tube 46 mm dia. C axles 0.001 Y axis 40+/- mm Z Aksen Rapid Traverse 1/2 - 24 m/min Tool turret 1 with 16 stations Motor power driven tools 5.5 / 3.7 / 2.2 kW Kw Tool turret 2 with 16 stations Powered tools. 6000 rpm Sub-spindle Sub-spindle speeds 6000 rpm Control MSX-501 Fabr. Power on 15088 hours Operating hours spindle 5080 hours Controlled in 5+2 axes Accessories: Load and Unload device Hydr. Chuck main spindle 169 mm dia Hydr. Chuck Subspindle 169 mm dia Tool setter Weight: 5000 kg

YOM: 2003 CNC controller: MSX-501 Axes X-axis travel mm: 630 Y-axis travel mm: 600 Z-axis travel mm: 670 Rapid traverse m/min: 50 B-axis degrees: 360º (0.001º index) Rapid traverse m/min: 50 Worktable Number of pallets: 2 Table dimensions mm: 500x500 Maximum workpiece size (D x H) mm: ø800x1.000 Max. workpiece weight kg: 500 Spindle Spindle speed rpm: 14000 Spindle drive power kW: 18.5/22 Tool system Tool holder: ISO-40 Tool magazine slots: 60 Equipment Chip conveyor Signal lamp High pressure pump Internal coolant supply

5-axis machining center Mori Seiki NHX 5000 Year of construction 2011 (bought new in 2013) Hours10768 Processing time 7172 hours Electricity one hour 29288 With few operating hours, used only for single part to small series production, mainly for special mechanical engineering The specifications are as follows: Travels: Cylinder Ø 500 x 700 Control M730BM (Mapps2) Speed 10,0000 rpm. Tool holder SK40 DIN 69871 Tool changer 60-fold Pallet changer 2-fold Accessories: Documentation Internal cooling Knoll 50 bar Conveyor Activation to 400 tool positions Pine pallet with long zero point clamping system Lang tensioning tower approx. 100 pieces of tool holders SK40 An on-site inspection is possible at any time by appointment.

Key data: 275 mm, 4000 1/min

Mori Seiki NL 2500 SY / 1250 CNC lathe with Y-axis, driven tools and 2nd spindle CNC control MSX-850-lll (mitsubishi 720 BM) Turning diameter 275 /366 mm Spindle bore diameter 80 mm Spindle speed 4000 rpm Spindle motor 18.5/15 Kw X-axis travel 260 mm Y-axis travel +50 / -50 mm Travel Z-axis: 1345 mm Travel of the W-axis (sub-spindle to main spindle) 1275 mm Min. indexing C-axis main spindle 0.001° Number of tools on the turret 12x Number of driven tools 12 x Tool cone BMT Bar Feeder LNS Quick Load Servo lll Spindle-motor-driven tools 6000 U/ If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail. Feel free to check out our other ads for a full overview of our stock.

CNC controller: Mitsubishi M-720BM (MAPPS 2) Capacity X-axis travel mm: 260 Z-axis travel mm: 520 C-axis: 360º (0.001°) Turning length mm: 515 Max. turning diameter mm: ø: Ø356 Upper turret Tool holder: 12 Main spindle Speed spindle rpm: 5000 Drive power spindle kW: 15/11 Spindle bore mm: 73 Manufacturer: KITAGAWA Counter spindle Counter spindle travel mm: 525 Equipment Chip conveyor Signal lamp Tool measuring arm Workarea light Working time hours Under power: 7.456 Cutting Time: 5.423 Basic machine dimensions / weight Length mm: 3.495 Width mm: 2.050 Height mm: 2.230 Weight kg: 5.800

X-axis travel mm: 260 Z-axis travel mm: 590 B-axis travel mm: 624 Turning length mm: 515 Max. turning diameter mm: ø: 366 Swing over bed mm: ø: 923.8 Swing over cross-slide mm: 755 Bar work capacity mm: 52 Upper turret Number of tool slots St .: 16 Speed driven tools RPM: 6.000 Drive power driven tools kW: 5.5/5.5/3.7 (3min/5min/cont) Indexing time s: 0.25 Main spindle Speed spindle rpm: 6.000 Drive power spindle kW: 11/7.5 Spindle bore mm: 61 Chuck type: Hollow Chuck (6") Manufacturer: KITAGAWA Spindle nose: JIS A2-5 Counter spindle Speed spindle rpm: 6.000 Drive power spindle kW: 11/7.5 Spindle bore mm: 43 Chuck type: Hollow Chuck (6") Manufacturer: KITAGAWA Coolant system Tank capacity liter: 235 Equipment Chip conveyor Signal lamp High pressure pump Chuck foot switch (double) for main and counter spindle Interface for ...

Key data: 800 mm

Technical details are on picture. Parts shown by hand not come.

Technical data shown on picture. Parts shown by hand not come.

CNC controller: MITSUBISHI MSX-853 IV Axes X-axis travel mm: 560 Y-axis travel mm: 560 Z-axis travel mm: 660 Distance spindle nose - table surface mm: 80-640 Feed rates m/min: 0-60 Worktable Number of pallets: 2 Table dimensions mm: 400 x 400 Maximum workpiece size (D x H) mm: 630x900 Max. workpiece weight kg: 400 APC time s: 9 División estandar Grados: 360 - 0.001º Spindle Spindle speed rpm: 12.000 Spindle drive power kW: 15/11 Spindle torque Nm: 110 Bearing Inner Diameter mm.: 80 Tipo: SJ-2B4351TK Tool system Tool magazine slots: 40 Max. Tool Diameter: 70 With free neighboring places mm: 170 Max. Tool Length mm: 450 Max tool weight kg: 8 Tool Shanks : MAS-BT40 Equipment Chip conveyor Workarea light 4th axis Cooling Tank capacity: 170L High-pressure bar: 15 Machine running times Under power: 64.734 Rated power kVA: ...

Mori Seiki SL250 b 500 High-performance CNC lathe with bar feed (Kupa 2 m) Collet chuck Passage 65 mm Year of construction 1998 Control Fanuc 16l Block Recording Switch-on hours approx. 88875 Spindle hours 19,000 Miscellaneous accessories:

Key data: 610 mm, 1540 mm

Stock number: 3998 CNC LATHE Manufacturer: MORI SEIKI , Type: NTX 2000 / 1500 SZ MAPPS-IV CNC Year of Make: 2013 Specifications: Max. circumferential diameter 610 mm dia. Turning length 1540 mm Main spindle 4000 RPM - 26 kw Hole through drawing pipe 80 mm dia. Spindle bore 91 mm dia. C axis - head spindle movement 0.001 degrees X axis movement 675 mm Z ash movement 1562 mm Y axis +/- 125 mm mm B axis movement 120 degree - 0.0001 degree B axis spindle speed 12000 rpm B axis spindle effect 18.5 Sub-spindle 5000 RPM - 22 Kw Control MAPPS IV (MX711 ) 5 axis Fabr. Accessories: ATC Tool magazine with 76 stations Hydr. Chuck main spindle Kitagawa BB-210 - 250 mm/dia mm dia Hydr. Chuck Subspindle Kitagawa BB-208 - 200 mm/dia mm dia Car Door Chip conveyance. High pressure coolant pump 70 bar Measuring System Renishaw S ...

CNC Control: Mitsubishi M-720BM(MAPPS 3) Upper turret Tool holder: 12 Main spindle Max. spindle speed rpm: 4000 Spindle drive power kW: 18.5/15 Spindle bore mm: 91 Manufacturer: KITAGAWA Sub-spindle Spindle motor: 6000 Spindle drive power kW: 11/7.5 Spindle bore mm: 43 Manufacturer: KITAGAWA Equipment Conveyor Signal lamp Tool measuring arm High Pressure Pump Workspace light Common Variables for Custom Macros (100) Year of construction: 2011

turning diameter: 460 mm turning length: 795 mm control: MORI SEIKI M730 BM Swing diameter face slide: 590/360 mm spindle passage: 80 mm Traverse X/Z:: 260/795 mm Number of working hours: 19.552 h Cutting time: 10.704 h spindle drive: 18,5 kW total power requirement: 40 kVA weight of the machine ca.: 6,4 t dimensions of the machine ca.: 3.994 x 3.056 x 2.187 m Chip chuck Ø250 mm. Chuck sub-spindle Ø170 mm. Holder HAINBUCH chip conveyor suction Bar feeder Hydrafeed Multiservo mod MSV max. bar length 1,600 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: Mori Seiki Model NLX 2500 Y/700 Top condition Year of construction 2012 only approx. 6000 operating hours incl. 12 antr. WZ Holders + 17 Static WZ Holders Quick-change system from EWS Hollow clamping device KITAGAWA BB210A821 + KITAGAWA SS1881K21 for the main spindle Coolant system with increased pressure 5 bar Hinged belt conveyor, right ejection Integrated part catcher for main spindle I/F for bar replenishment, LNS Double foot switch with protective cover Signal light (red, yellow, green) Total Counter Workpiece counters EU Tool Holder Package SAUTER BMT60 (T32259, T32260, T32261, T32262) SKM253 MSQP Transformer 45.0 kVA 15 bar Grundfos pump incl. Hydac Filter Cantilever length for driven tools 100 mm (limited Y-axis travel) (Y, SY, SMC)

Machining center Mori Seiki M25 – FH 2/35

Fabricante MORI SEIKI Modelo NLX2500SY/700 Mes / Año 12/2011 CNC MORI SEIKI M730 BM Capacidades Volteo sobre bancada/carro 590/360 mm. Diámetro máximo torneable 460 mm. Longitud máxima torneable 795 mm. Paso de barra 80 mm. Eje Y INCLUIDO Recorridos y avances Recorrido eje X/Z 260/795 mm. Rango eje Y ±50 mm. Recorrido sub-cabezal eje B 734 mm. Avance rápido ejes X, Z, B 30.0000 mm/min Avance rápido eje Y 10.0000 mm/min Avance trabajo ejes X, Y, Z, B 0-5.000 mm/min Cabezal Eje C en cabezal INCLUIDO Indexación eje C cabezal 0.001º Velocidad cabezal 4.000 rpm Número gamas velocidad cabezal 2 Tipo nariz cabezal JIS A2-8 Diámetro paso cabezal 91 mm. Potencia motor principal 18.5 kW Sub-cabezal Eje C en sub-cabezal INCLUIDO Indexación eje C sub-cabezal 0.001º Velocidad sub-cabezal 6.000 rpm Número gamas velocidad sub-cabezal 1 Tipo nariz sub-cabe ...

Key data: 260 mm, 500 mm

Turning-milling centre Manufacturer: Mori Seiki Type NL1500SY/500 Year of construction 2007 In operation 03/2008 Control MSX-850-III Y and C axis All 12 turret stations are powered Max. turning length 500mm max. turning diameter 260mm Spindle Passage 50mm Speed of the driven tools 6,000 rpm Feeds X Z B 30,000 Y 10,000 with LNS rod loading magazine, length 1000mm, max D 65mm reducer sleeves. Machine is sold with all accessories, steel holders, AGWs (all still very good) collets, chuck, pick-up chuck, documentation, extraction system. Machine only ran in single-shift operation.

This 4-axis MORI SEIKI NL2500MC was manufactured in 2006, offering robust capabilities for horizontal turning. Ideal for precision machining, this unit ensures reliable performance with its advanced design. If you are looking to get high-quality turning capabilities consider the MORI SEIKI NL2500MC machine we have for sale. Contact us for more information.

This MORI SEIKI CL2000B was manufactured in 2008. A robust horizontal turning machine featuring a max turning diameter of 440 mm and length of 363 mm. It includes a 10-station turret and an 8-inch chuck. The control system is the Mori Seiki MSX-805II. Consider the opportunity to buy this MORI SEIKI CL2000B horizontal turning machine. Contact us for more information.

This 5-axis MORI SEIKI NLX 2500 SY/700 was manufactured in 2010, featuring a max swing over bed of 590 mm and a cutting length of 795 mm. It includes Y and C axes, a sub-spindle, and high-pressure coolant system. Capable of handling bar work up to 80 mm, its equipped with a chip conveyor and automatic bar feeder. Consider the opportunity to buy this MORI SEIKI NLX 2500 SY/700 turn-mill centre. Contact us for more information about this machine.

This 6-axis MORI SEIKI NL2000SY/500 was manufactured in 2005, featuring X-axis travel of 260 mm, Z-axis travel of 590 mm, spindle power of 5.5 kW, and a spindle speed of 6,000 rpm. It includes a 12-position tool turret. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NL2000SY/500 machine we have for sale.Contact us for more information.

This 3-axis MORI SEIKI CV-500 was manufactured in 1999. Ideal for precision CNC milling, this machine maintains robust construction and reliable performance. If you are looking to get high-quality milling capabilities, consider the MORI SEIKI CV-500 machine we have for sale. Contact us for more information.

This 9-axis MORI SEIKI NZ2000 was manufactured in 2008, offering advanced capabilities for precision horizontal turning. Ideal for complex machining tasks, this machine ensures efficient production with its multi-axis configuration. Consider the opportunity to buy this MORI SEIKI NZ2000 horizontal turning machine. Contact us for more information about this machine.

This 4-axis MORI SEIKI NH-5000 40 was manufactured in 2003, featuring a robust horizontal machining centre with a spindle speed up to 20,000 rpm and a power range of 22-30 kW. It includes a versatile tool magazine with a capacity up to 180 tools and a dual-pallet automatic changer to enhance productivity. Pallet size is 500 × 500 mm, supporting a maximum workpiece height of 1,000 mm. Consider the opportunity to buy this MORI SEIKI NH-5000 40 horizontal machining centre. Contact us for more information.

turning diameter: 190 mm turning length: 235 mm control: FANUC/Mori MSX 501 spindle turning speed range: 50-5000 U/min turret head: 2x 16 weight of the machine ca.: 7.5 t Y- & B- axes Misc. accessories more details on www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 190 mm turning length: 235 mm control: FANUC/Mori MSX 501 spindle turning speed range: 50-5000 U/min turret head: 2x 16 weight of the machine ca.: 7.5 t Y- & B- axes Misc. accessories more details on www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 5-axis MORI SEIKI SH8000/5AX was manufactured in 2002. Fully overhauled in 2016, it features a Fanuc 16iMA control, a spindle speed of 10,000 rpm, and a tool magazine with a capacity of 150 tools. The machine has a pallet size of 630 × 630 mm and a loading capacity of 1000 kg. If you are looking to get high quality milling capabilities consider the MORI SEIKI SH8000/5AX machine we have for sale. Contact us for more information.

This 3-axis MORI SEIKI NV4000 was manufactured in 2003. It features a CNC control system, typically FANUC/MAPPS, and a vertical machining center design. Key specifications include a 600 mm x 400 mm x 400 mm axis travel, a table size of 700 mm x 450 mm, and a maximum spindle speed of 12,000 rpm. The tool magazine holds up to 40 tools. Consider the opportunity to buy this MORI SEIKI NV4000 vertical machining center. Contact us for more information.

This 4s MORI SEIKI NHX 5000 was manufactured in 2011. It features a dual pallet system with a pallet size of 500 × 500 mm and a maximum pallet load of approximately 500 kg. The spindle speed reaches up to 12,000 rpm, with a tool magazine capacity of 40 tools. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NHX 5000 horizontal machining center we have for sale. Contact us for further details.

This 3s MORI SEIKI SV-50s was manufactured in 1997. The CNC milling machine is in good working condition and has been used only a few times for prototype work. It features a FANUC spindle with a speed of 10,000 rpm and a tool changer with 30 positions. Consider the opportunity to buy this MORI SEIKI SV-50 vertical machining centre. Contact us for further details.

turning diameter: 370 mm turning length: 424 mm control: Fanuc total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 5-axis MORI SEIKI ZV 400 SUPER MILLER was manufactured in 2005. It features an X-axis travel of 600 mm, Y-axis travel of 425 mm, and Z-axis travel of 450 mm. The machine includes a table diameter of Ø 350 mm and a maximum workpiece weight of 200 kg. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI ZV 400 SUPER MILLER vertical machining centre we have for sale. Contact us for further details.

This 5-axis MORI SEIKI NMV 5000DCG was manufactured in 2008. It features a maximum X-axis travel of 730 mm, Y-axis travel of 510 mm, and Z-axis travel of 510 mm. The machine includes a spindle speed of 12,000 rpm, a magazine capacity of 60 tools and an automatic pallet system. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NMV 5000DCG universal machining centre we have for sale. Contact us for further details.

Used machine Universal Machining Center Machine type: DMG MORI CMX70U 3+2 Control: Heidenhain TNC 620 Year of Make: 2021 #001350 Optimal area of application. Bearing seats on long shafts, crankshaft bearing seats, balancer shafts, etc. TECHNICAL DATA: Max. turning length: [mm] 1,055 Turning diameter: [mm] 120 Max. Rotary Ø over bed: [mm] 285 Rapid traverse: (X/Z) [m/min] 20 Main spindle Max. speed: [1/min.] 3,500 Drive power: [kW] 7.5 / 5.5 Bar Passage: [mm] 43 Spindle Nose: A2-6 Number of turrets: 2 Tool positions: 6 + 6 Tool holder: Capto Tailstock This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

Offered is a horizontal machining center (HMC). Travels X/Y/Z: 560mm/510mm/510mm, max. dynamics: 40000mm/min, spindle: 12000rpm, tool holder: MAS BT 40, tool magazine: 60 positions (chain magazine), pallet system: 2-station pallet changer, pallet size X/Y: 400mm/400mm, accessories: approx. 200 tool holders (BT 40), 2 MMI towers with 8 clamping bars, hinged belt chip conveyor, Blum laser/probe, Renishaw 3D probe, machine weight: approx. 9000kg. Inspection possible by appointment.

x-travel: 1.020 mm y-travel: 510 mm z-travel: 510 mm control: MSC 501 Fanuc table surface area: (APC) 1.200 x 480 mm max. table load: (APC) 550 kg Main spindle:: turning speed range - milling: 10.000 U/min power capacity - milling spindle: 22 / 18,5 kW tool taper: BT 40 Tool-Presetter:: number of toolpositions: 30 pos. tool taper: BT 40 max. tool diameter: 80 mm max. tool-dia with free toolbox: 125 mm max. tool length: 300 mm max. tool weight: 8 kg rapid traverse: 32 m/min feed: 1 ~ 16.000 mm/min Tipp feed: 0 ~ 1.260 mm/min spindle bearing diameter: 85 mm total power requirement: 59,5 kVA weight of the machine ca.: 6,9 t dimensions of the machine ca.: 3,9 x 2,7 x 2,9 m Documents: Chip conveyor: 2x Coolantsystem: high pressure coolant: through spindle coolant: Signal-Light: pallet changer: 2 pos. CNC - Machining Center - Vertical MORI SEIKI - SV 500 B/40 - Clamping devices are NOT  ...

Key data: 730 mm, 730 mm, 850 mm

Basic machine data Used 4-axis horizontal machining center from MORI SEIKI Make: MORI SEIKI Type: NH5000 DCG Year of Make: 2011 Condition: Mint Control: Name: FANUC 32iA MAPPS Travels: x-travel: 730 mm // y-travel: 730 mm // z-travel: 850 mm Technical data: • Spindle: max. 14000 rpm • HSK A-63 Tool Holder • 60-fold tool changer • Feed speed: 50 m/min • Rapid traverse: 50 m/min • B-axis indexing: 360° • 2 pallets • Pallet dimensions: 500 mm x 500 mm • Max. workpiece size: 800 mm x 1000 mm • 680 l IKZ • Chip conveyor The machine is in mint condition. Machine has only 5203 PGM hours Prior sale is reserved. No liability is assumed for the technical information provided here. The legal provisions apply.

Lathe Mori Seiki SL25

CONTROLS   CNC controls FANUC 18 MB WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   .. among of them simultaneous CNC axes: 3   X-axis travel: 900 mm   Y-axis travel: 800 mm   Z-axis travel: 980 mm   rotating range B-axis from: 0 °   rotating range B-axis up to: 360 ° TABLE   table surface (left-right): 630 mm   table surface (front-back): 630 mm   workpiece load (max): 1200 kg SPINDLE / HEAD   spindle type: horizontal   spindle revolutions (max): 10000 /min AXIS DRIVES   rapid traverse: 50000 mm/min TOOL MAGAZINE   number of positions: 140 AUTOMATIC WORKLOAD EQUIPMENT   store type: table changer   number of store positions: 2 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 19000 kg ATTACHMENTS   chip conveyor: yes   coolant unit: yes   ban ...

This 3-axis MORI SEIKI SL-403BMC/800 was manufactured in 2002. It features a maximum turning diameter of 650 mm and a maximum turning length of 863 mm. The machine offers an X-axis travel of 345 mm and a Z-axis travel of 995 mm. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI SL-403BMC/800 horizontal turning machine we have for sale. Contact us for further details.

This 4-axis MORI SEIKI SH633 was manufactured in 2001. It features an X-axis travel of 840 mm, Y-axis travel of 760 mm, and Z-axis travel of 840 mm. The machine is equipped with 2 pallets, each measuring 630 x 630 mm, and can handle a maximum workpiece weight of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI SH633 horizontal machining centre we have for sale. Contact us for further details.

CONTROLS   CNC controls MITSUBISHI M720BM BASIC FUNCTIONS   number of spindles: 2   number of turrets: 1   live positions: yes   number of c-axes: 2 WORKING RANGE TURNING   swing diameter (max): 700 mm   turning diameter (max): 350 mm MAIN SPINDLE   spindle revolutions (max): 4000 /min   spindle bore diameter: 90 mm   c-axis: yes X/Z SLIDE   - rotation speeds (max): 6000 /min TOOL MAGAZINE   number of positions: 24 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 7500 kg ATTACHMENTS (TURNING)   chip conveyor: yes   coolant unit: yes   hydraulic system: yes   European CE standards: yes Machine in a good condition The spindle guides need to be replaced. Machine equipment (1500.- CHF (below)): - 1x double face and longitudinal turning tool holder - 3x face and longitudinal turnin ...

CONTROLS   CNC controls MORI SEIKI MSG-501 WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   X-axis travel: 1300 mm   Y-axis travel: 1200 mm   Z-axis travel: 1100 mm TABLE   table surface (left-right): 800 mm   table surface (front-back): 800 mm   workpiece load (max): 2000 kg SPINDLE / HEAD   spindle revolutions (max): 0 /min   spindle revolutions (max): 6000 /min   tool fixture: ISO BT 50 AXIS DRIVES   rapid traverse: 42000 mm/min TOOL MAGAZINE   number of positions: 60 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 7400 mm   space requirements -front/back-: 4300 mm   total height: 3750 mm   total weight approx.: 23500 kg ATTACHMENTS   chip conveyor: yes   coolant unit: yes   band filtration unit: yes   through spindle coolant att ...

turning diameter: 430 mm turning length: 519-525 mm control: Mori seiki MSX-805 x-axis: 230 mm z-axis: 520 mm total power requirement: kW weight of the machine ca.: 4100 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 4-axis MORI SEIKI NH 4000 DCG was manufactured in 2010. It features an X-axis travel of 560 mm, Y-axis travel of 560 mm, and Z-axis travel of 630 mm. The machine has a spindle speed of 14,000 rpm and a tool magazine capacity of 60 positions. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NH 4000 DCG horizontal machining centre we have for sale. Contact us for further details.

This 4-axis MORI SEIKI NV-5000α1/40 was manufactured in 2006. It features an X-axis travel of 800 mm, Y-axis travel of 510 mm, and Z-axis travel of 510 mm. The machine includes a robust table size of 1,100 × 600 mm with a maximum table load capacity of 1,000 kg. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NV-5000α1/40 vertical machining centre we have for sale. Contact us for further details.

This 4-axis MORI SEIKI SV-400 was manufactured in 1998. It features a table size of 900 × 500 mm and impressive travels of 600 mm in the X-axis, 430 mm in the Y-axis, and 460 mm in the Z-axis. The machine includes a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 30 stations. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI SV-400 vertical machining centre we have for sale. Contact us for further details.

This 8-axis MORI SEIKI NZ-2000/T2/Y2 was manufactured in 2008. It features a twin-spindle design with a maximum Z-axis travel of 810 mm and X-axis travel of 210 mm. The machine is equipped with two turrets, each with 16 stations, suitable for complex multi-process turning and milling operations. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NZ-2000/T2/Y2 turn-mill centre we have for sale. Contact us for further details.
